Differential Skid Plate for Tacoma/FJ Cruiser

Discussion in 'FJ Cruisers' started by Defined, Oct 3, 2011.

  1. Oct 3, 2011 at 3:55 PM
    #1
    Defined

    Defined [OP] Well-Known Member

    Joined:
    Aug 6, 2011
    Member:
    #61235
    Messages:
    303
    Gender:
    Male
    First Name:
    mike
    southern california

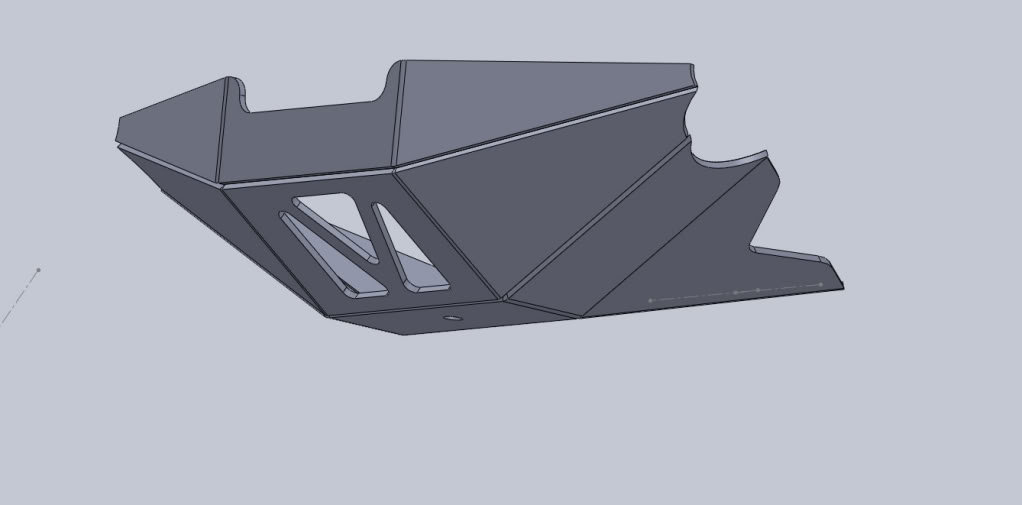

    well after nearly a year of thought, testing and design changes we are ready to start production !

    [​IMG]

    [​IMG]

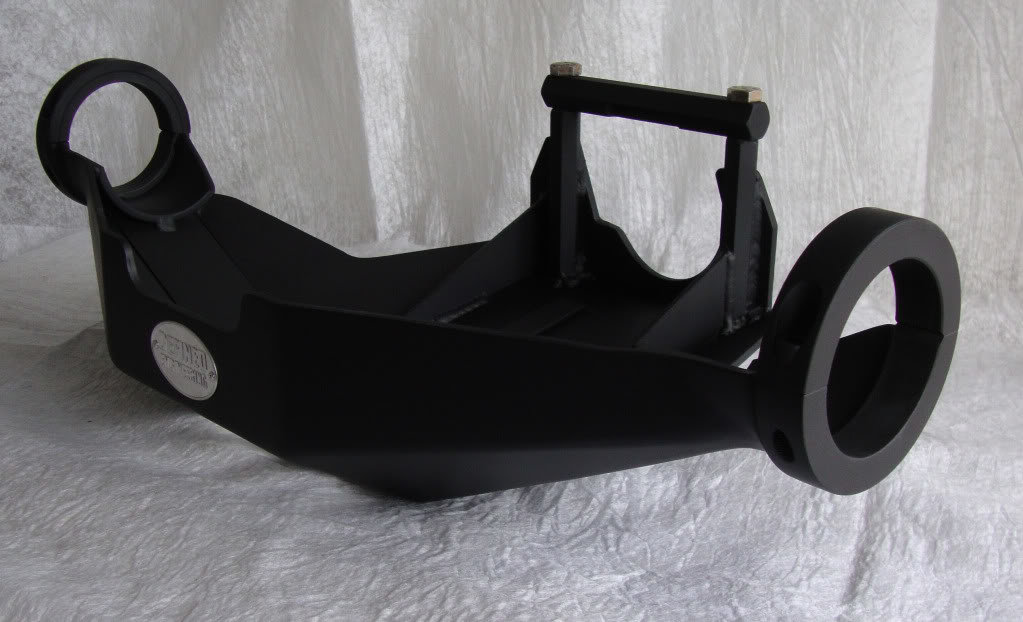

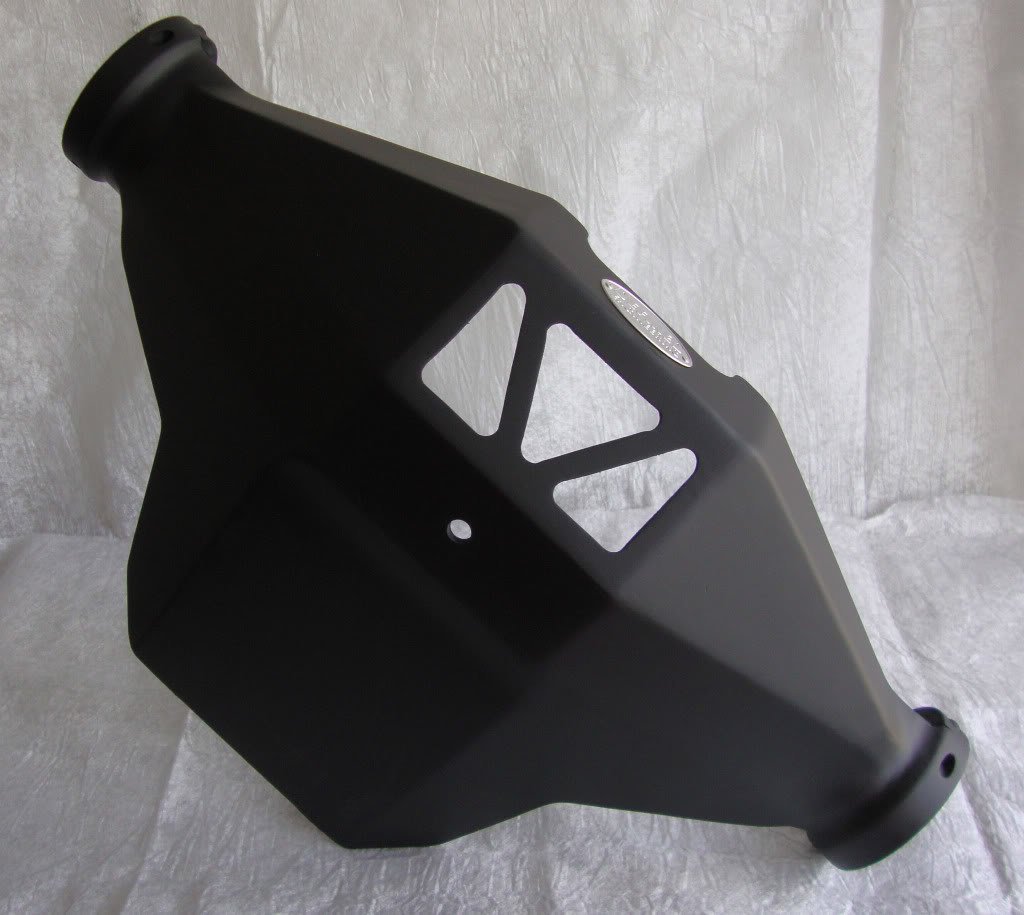

    Defined Engineering is now producing high quality bolt on differential skid plates for the 2nd gen Tacoma and FJ Cruiser. Works with both 8.4 and E-locker differentials. The skid plates are laser cut and CNC bent using 3/16” HRPO steel with 1/4” HRPO steel in critical areas. Then welded to perfection in one very robust fixture to create the ultimate hi strength skid structure.

    Here at Defined Engineering we feel U-Bolts should be used on springs , not high quality armor .So we use Billet steel collar clamps at the axle tubes and a “Saddle & top block” design where the skid mounts to the pinion snout. All this creates a skid plate that is un-moveable in even the hardest hits.

    Grade 8 hardware is always standard and ties everything together to create the Ultimate Toyota Differential Skid Plate.

    for more information contact us at http://www.definedengineering.com/index.html

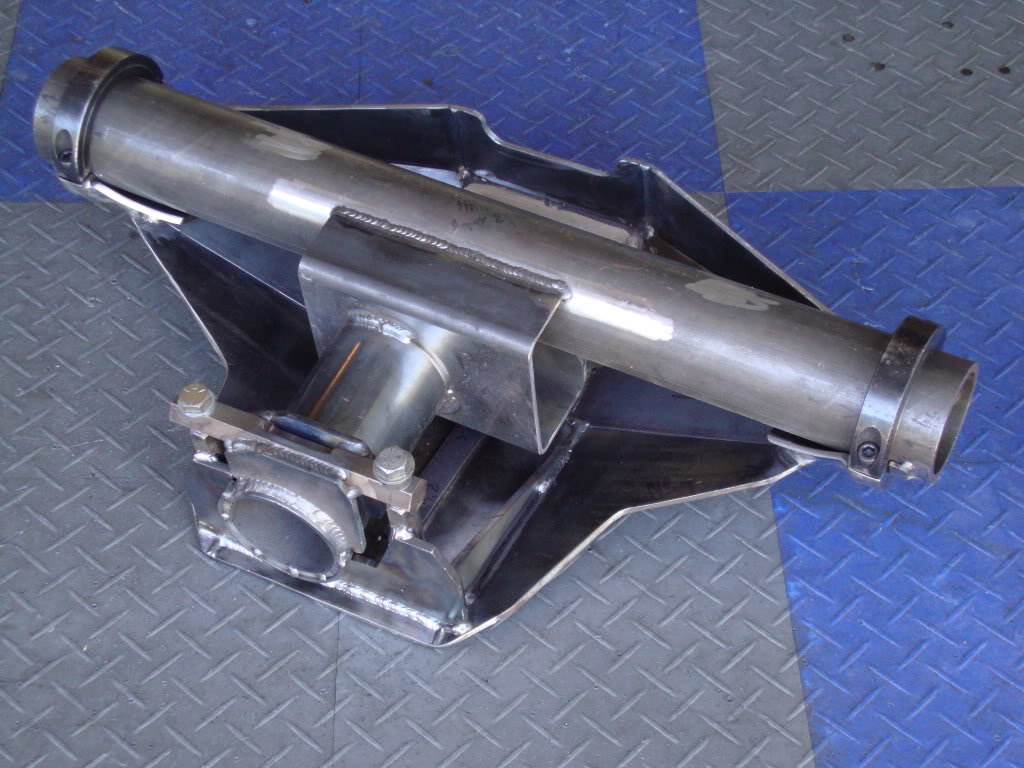

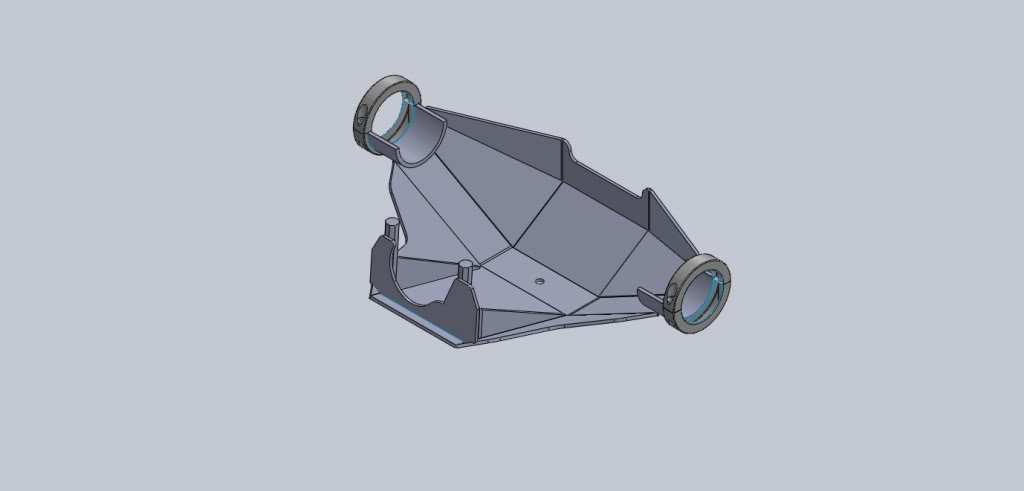

    the pics below are one of our prototypes and our stout assembly/welding fixture

    [​IMG]

    [​IMG]

    [​IMG]

  2. Oct 3, 2011 at 3:57 PM
    #2
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,254
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    OPh God Damn. What kind of pricing are we talking about?

  3. Oct 3, 2011 at 3:59 PM
    #3
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,153
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Very nice skid i love the axle mounts.

  4. Oct 3, 2011 at 3:59 PM
    #4
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,352
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    Sweet.looks like some nice products on your page

  5. Oct 3, 2011 at 3:59 PM
    #5
    greenmonstah

    greenmonstah The greenmonstah

    Joined:
    Oct 2, 2011
    Member:
    #64495
    Messages:
    387
    Gender:
    Male
    First Name:
    Andy
    Maine
    Vehicle:
    2010 Black & Green
    18's projector headlight hid 10k fogs smoked out hid 10k LED's everywhere
    and how many hours of installation

  6. Oct 3, 2011 at 4:00 PM
    #6
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    15,861
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    $375 per the website

  7. Oct 3, 2011 at 4:01 PM
    #7
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,153
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Good price too.

  8. Oct 3, 2011 at 4:01 PM
    #8
    nelson18matt

    nelson18matt Well-Known Member

    Joined:
    Mar 19, 2009
    Member:
    #14939
    Messages:
    13,816
    Gender:
    Male
    Arizona
    Vehicle:
    2004 Long Travel Tacoma
    *SOLD*
    amazing work as always mike

  9. Oct 3, 2011 at 4:04 PM
    #9
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,153
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    The driver side looks pretty wide have you guys ran into issues with it contacting the gas tank when the suspension is fully stuffed?

  10. Oct 3, 2011 at 4:19 PM
    #10
    capetaco12

    capetaco12 .<>./

    Joined:
    Mar 29, 2011
    Member:
    #53984
    Messages:
    2,492
    Gender:
    Male
    Cleveland Ledge, MA
    Vehicle:
    33's,armor,dents, ect
    OME lift CBI sliders, front bumper homemade rear bumper 33x12.50 m/t Gears Aussie locker inchworm crawlbox
    Still have yet to see a diff break due to smacking on a rock. Seen the pinion blow up cracking the third, i was under the impression the bottom of the axle is pretty beefy. Looks really clean.

  11. Oct 3, 2011 at 4:22 PM
    #11
    Defined

    Defined [OP] Well-Known Member

    Joined:
    Aug 6, 2011
    Member:
    #61235
    Messages:
    303
    Gender:
    Male
    First Name:
    mike
    southern california
    5-10 mins

    no contact with the gas tank . its close but i havent had any issues. this skid has been abused on an e-locked fj and lsd tacoma for a few months now . with it finally going back on a certain 2012 tacoma race truck tomorrow, that will see sema and the baja 1000 this year!

  12. Oct 3, 2011 at 4:24 PM
    #12
    jandrews

    jandrews Carolina Alliance Southwest Region Ambassador

    Joined:
    Jun 7, 2009
    Member:
    #18122
    Messages:
    12,254
    Gender:
    Male
    Vehicle:
    '09 FourDubDee TRD OR
    A-TRUCK, Fat Kid in the Bed, Custom Pinstriping, Ported and Polished Muffler Bearing, Hi-Performance Bed Mat
    I'm mainly interested in this for pinion/flange protection. The bottom of the rear diff housing is one of the strongest stock parts on the truck.

  13. Oct 3, 2011 at 4:24 PM
    #13
    JLee

    JLee The Man! Vendor

    Joined:
    Jul 20, 2010
    Member:
    #40461
    Messages:
    15,153
    Gender:
    Male
    First Name:
    Jerry
    Bay Area NorCal
    Vehicle:
    02 Extra cab SAS Linked front and rear
    I lost track thousands of dollars ago.
    Nice! very nice design I'm glad to see there are more company's building these now.

  14. Oct 3, 2011 at 4:26 PM
    #14
    97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    13,025
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    beefy as fuck, i like how it bolts to the axel as well

  15. Oct 8, 2011 at 2:43 PM
    #15
    amain

    amain Well-Known Member

    Joined:
    Sep 18, 2011
    Member:
    #63744
    Messages:
    131
    Gender:
    Male
    First Name:
    Brian
    Washington
    Vehicle:
    07 SC TRD FJ - The Black Lemon
    Fender Cracks
    Very nice. I like it.
