Dirt Designs 05+ Taco 4WD RACE kit

Discussion in 'Long Travel Suspension' started by dirt designs, Jun 28, 2013.

  1. Jun 28, 2013 at 6:04 PM
    #1
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    Well heres the latest suspension im going to build. 05+ 4wd tacoma race kit. 3.5 over arms, boxed upper arms, boxed lower arms, heim steering, and 4WD BOXED SPINDLES!!

    Thats right FINALLY someone has fully fabbed spindles for a 4wd tacoma. Kit should cycle 14" bolt in travel with inner fenders and stock coil buckets. With coil buckets removed and inner fender wells removed the kit should be able to pull 16" of working 4wd travel. Kit will be cycling on the truck next week so i will have real numbers then.

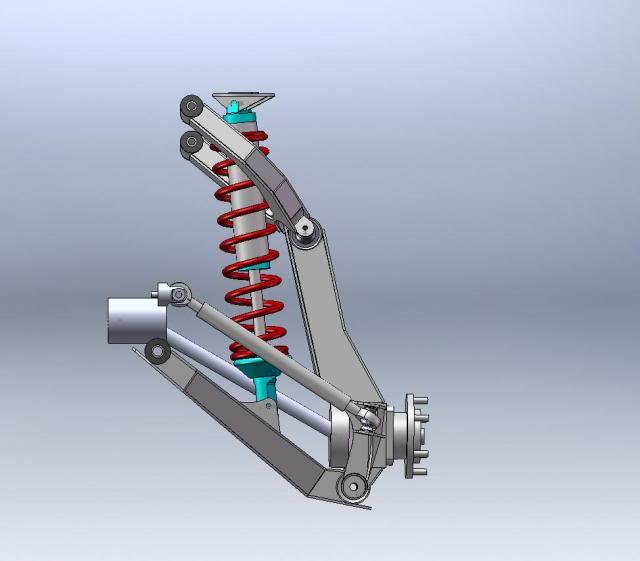

    I just finished designing the kit today
    [​IMG][/URL]

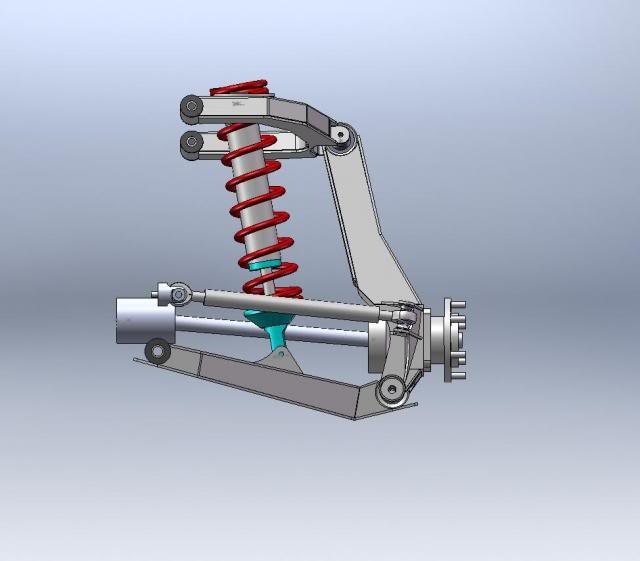

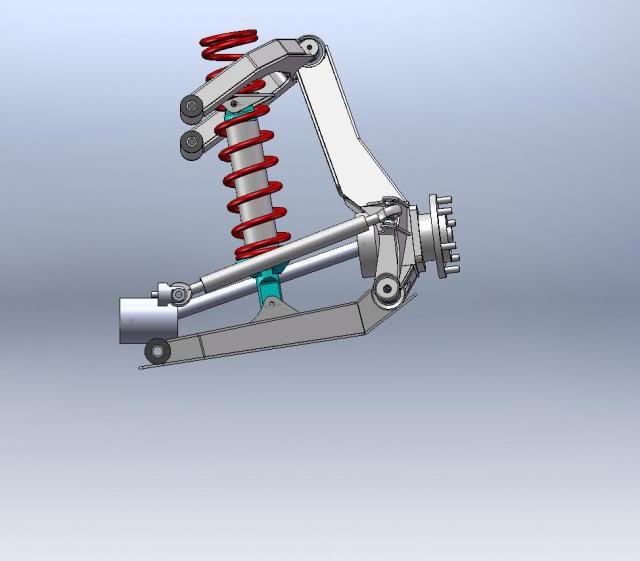

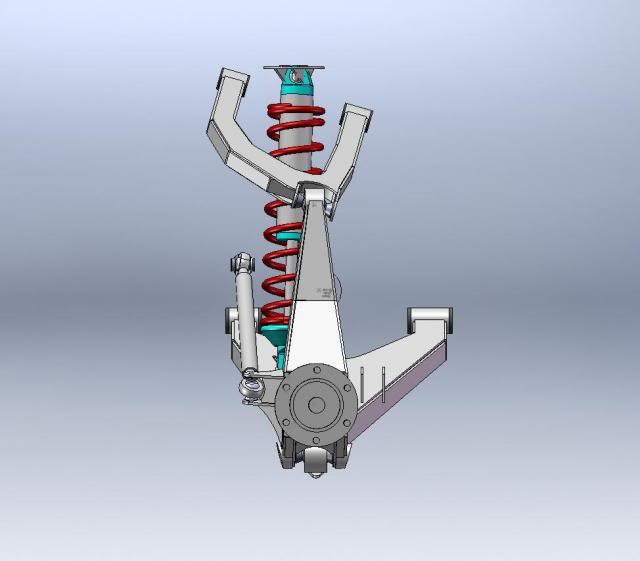

    There is very minimum bumpsteer (though i should have it all worked out next week).

    [​IMG][/URL]

    [​IMG][/URL]

    [​IMG][/URL]

  2. Jun 29, 2013 at 5:41 AM
    #2
    Mxpatriot

    Mxpatriot Arctic Prerunner

    Joined:
    Nov 18, 2009
    Member:
    #26163
    Messages:
    2,809
    Gender:
    Male
    First Name:
    Chase
    North Pole, Alaska
    Vehicle:
    '06 4x4 AP LT and Locked
    Money pit.
    Is the spindle going to compatible with stock / regular LT applications? I can't see the pics so I don't know how you have the heims set up.

    Price point on the spindle?

  3. Jun 29, 2013 at 5:51 AM
    #3
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,518
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.
    Subbed

  4. Jun 29, 2013 at 8:11 AM
    #4
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    This spindle is specific for this kit. The reason being that the other lt kits on the market all use a single shear bolt on the lower and upper control arms. While i can double shear the upper arm bolts, theres no way to double shear the lower with how they have it arranged. With this kit i didnt want to just copy what everyone else was building and i wanted to make it the strongest setup i possibly could. The spindles on this kit use a double sheared upper and lower bolts for the uniballs making the joints a whole lot stronger.


    If I build spindles to work with other LT kits the price will most likely be around $1200-1300 a pair. If there are 5 people that want the spindles I can start designing asap. And yes, they will be beefy.

  5. Jun 29, 2013 at 6:42 PM
    #5
    Ghost848

    Ghost848 Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74480
    Messages:
    1,518
    Gender:
    Male
    First Name:
    Tony
    Alberta,Canada
    Vehicle:
    09 V6 TRD OR Silver M6
    OME + Dakers, 285/75R16 Nitto Trail Grapplers, ARB Bumper, Columbia overland Dual battery, Super winch,CC stage 4 clutch, bestop supertop, URD TO bearing, BHLM headlights, Cruisin offroad rear bumper, Harrop front E-locker.
    If u design these for stock application that would be bad ass too.... ;)

  6. Jun 29, 2013 at 11:51 PM
    #6
    6spd

    6spd Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72162
    Messages:
    848
    Gender:
    Male
    san diego
    Vehicle:
    2012 4x4
    proprietary axles?

  7. Jun 30, 2013 at 12:10 AM
    #7
    Greytacoma1

    Greytacoma1 Senior Member

    Joined:
    Feb 28, 2012
    Member:
    #73797
    Messages:
    447
    Gender:
    Male
    First Name:
    dave
    Sacramento ca
    Vehicle:
    Tacoma dc lb
    Satoshi grill, Plasti derp, Ready lift kit, Wheelers 2 inch aal, Hella 700, Wheather tech floor mats, Blueinstinct armrest cover, sockmonkey bed decal, BHLM, debadge, 35% tint front windows, OEM roof rack, OEM step bar, TRD skid plate, tacomaworld.com decal, stock antenna trimed, gorilla extended lug nuts,diff breather mod, cab mount chop, AVS window visor, spidertrax 1.25 wheel spacers, toytec sway bar relocate, extra d ring mod
  8. Jun 30, 2013 at 12:22 AM
    #8
    adanfon

    adanfon YNWA

    Joined:
    Dec 3, 2011
    Member:
    #68101
    Messages:
    385
    Gender:
    Male
    First Name:
    Adan
    Visalia, CA
    Vehicle:
    '11 Tacoma DCLB 4x4
    tinted all around, grillcraft, debadged, bilstein 5100's @ 0 w/ OME 886 coils and a 1/4" top plate spacer, rear has tsb springs and Wheelers HD progressive add a leaf. 1.25" spidertrax wheel spacers. Powder coated stock wheels. Tinted tails. Sport headlights. 20" led bar behind grille...
    Sub'd

  9. Jul 1, 2013 at 12:25 PM
    #9
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails
    nope, just 3.5 over axles. We got this set from tc

  10. Jul 1, 2013 at 12:27 PM
    #10
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,835
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    hmmmm sub'd

  11. Jul 1, 2013 at 12:59 PM
    #11
    Monster Coma

    Monster Coma Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80740
    Messages:
    23,893
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh, PA/Houston, TX
    Vehicle:
    2014 WRB WRX
    It's a wagon
    Interested to see how this works on Joel's truck

  12. Jul 1, 2013 at 8:28 PM
    #12
    6spd

    6spd Well-Known Member

    Joined:
    Feb 4, 2012
    Member:
    #72162
    Messages:
    848
    Gender:
    Male
    san diego
    Vehicle:
    2012 4x4
    :cool:

  13. Jul 1, 2013 at 9:18 PM
    #13
    BulletToothTony

    BulletToothTony Gold Member

    Joined:
    Feb 20, 2008
    Member:
    #4833
    Messages:
    11,534
    First Name:
    You can call me Susan if it makes you happy.
  14. Jul 2, 2013 at 8:39 PM
    #14
    dirt designs

    dirt designs [OP] Well-Known Member

    Joined:
    Jan 9, 2013
    Member:
    #94822
    Messages:
    103
    Gender:
    Male
    First Name:
    Steve
    slo
    Vehicle:
    01 Tacoma race truck
    Only factory parts left is cab and frame rails

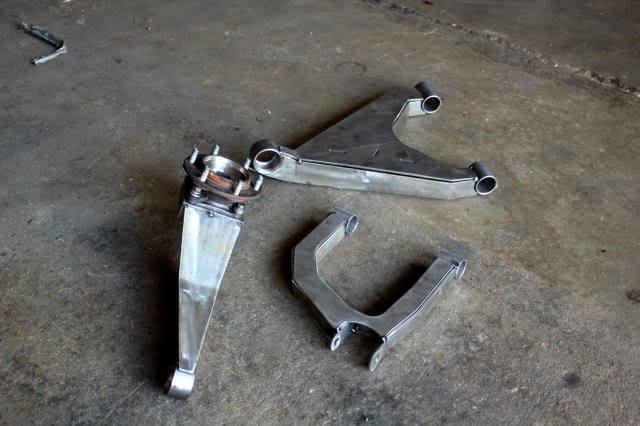

    One side of arms and spindles are all ready to cycle. I will have some good pics tomorrow

    [​IMG]

  15. Jul 2, 2013 at 8:45 PM
    #15
    BenJammn5

    BenJammn5 RN

    Joined:
    Feb 5, 2009
    Member:
    #13326
    Messages:
    1,454
    Gender:
    Male
    San Francisco
    Vehicle:
    09 TRD-Off Road PreRunner
    TRD cat-back with Spintech prostreet muffler, AFE Pro dry S intake, 16" SCS F-5 305/70 GT Radial MT, 2.5 RaceRunner Coilovers: Maxtrack Spindles 4": Sway bar delete,Rear Bilstein 5100+TSB leaf pack, DSM UCA, All Pro IFS skid, Cab mount chop, bed cab locks, Black badges, 3K fogs, 6K FX-R Morimoto projectors with 55watt ballast, color matched eyelids, fog mod, cheap rear dust lamps from autozone, Color match Satoshi Grill, Hood scoop, rear bumper by BTF, color matched Glassworks bed caps, Wet Okole seat covers
    Subbed.

    Will the spindles increase the track width or will the length be determined by the arms alone

  16. Jul 2, 2013 at 8:46 PM
    #16
    Hiatt1991

    Hiatt1991 Well-Known Member

    Joined:
    Aug 19, 2010
    Member:
    #41917
    Messages:
    8,227
    Gender:
    Male
    First Name:
    Hiatt
    Flagstaff, AZ
    Vehicle:
    2005 Tacoma Prerunner SR5 TRD offroad
    4" Bodylift 12" Offroad shock spacers Turbo Encabulator

    Well heres the latest suspension im going to build. 05+ 4wd tacoma race kit. 3.5 over arms, boxed upper arms, boxed lower arms, heim steering, and 4WD BOXED SPINDLES!!

  17. Jul 2, 2013 at 8:47 PM
    #17
    Osugoose

    Osugoose Well-Known Member

    Joined:
    Aug 2, 2012
    Member:
    #83963
    Messages:
    162
    Gender:
    Male
    First Name:
    Sean
    Tulsa, OK
    Vehicle:
    2011 Sport DCLB 4x4
    885x w/ nitro sports,Dakars w/ 182,Katskinz two tone leather
    subbed, I'm interested to see how the shear joints hold up, what are your sizes for the joints?

  18. Jul 2, 2013 at 8:48 PM
    #18
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,835
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    im keeping a very close eye on this

  19. Jul 2, 2013 at 8:48 PM
    #19
    Monster Coma

    Monster Coma Well-Known Member

    Joined:
    Jun 15, 2012
    Member:
    #80740
    Messages:
    23,893
    Gender:
    Male
    First Name:
    Corey
    Pittsburgh, PA/Houston, TX
    Vehicle:
    2014 WRB WRX
    It's a wagon
    any Idea on price yet?

  20. Jul 2, 2013 at 8:51 PM
    #20
    SoCalTacos

    SoCalTacos Penis Bird

    Joined:
    Nov 5, 2011
    Member:
    #66543
    Messages:
    3,248
    Gender:
    Male
    socal
    Vehicle:
    2012 TRD Sport 4x4 DC LB Black
    King remote resi coilovers, King rear resis, camburg 1.25" uca, deaver j66 pack, Method race wheels, bfg at ko 285/70/17, Retrofitted headlights FXR IV, debadged, tinted tails, JL audio stealthbox, focal v30, focal pc165, arc audio amp, 7" Kenwood hu, undercarriage led lighting, kibbetech custom bumper with 20" led light bar, RI duallies (6), dtlt's, urd intake, maf cal, urd y-pipe, roto pax gas tank and tacoma bed mount, pelfreybuilt bed bar.
    Subd for final product and testing.
