Ditch lights w/ Mictuning switch.

Discussion in '2nd Gen. Tacomas (2005-2015)' started by RepLA, Dec 6, 2017.

Page 2 of 2
  1. Dec 9, 2017 at 4:15 AM
    #21
    EatSleepTacos

    #21
    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    59,637
    Gender:
    Male
    First Name:
    Randy
    West Valley, AZ
    Vehicle:
    2017 4Runner
    The wiring harness he has comes with a relay.

    EatSleepTacos, Dec 9, 2017
    #21
  2. Dec 9, 2017 at 1:00 PM
    #22
    RepLA

    #22
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    Idk if I should buy another harness with different color wires? Or most likely the push button isn’t compatible ?

    RepLA, Dec 9, 2017
    #22
  3. Dec 9, 2017 at 5:01 PM
    #23
    Sub_Par

    #23
    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    4,074
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2011 TRD Off Road
    Get a picture of the wiring harness. Also who did you buy the harness from? We need a diagram of the harness as well.

    Sub_Par, Dec 9, 2017
    #23
  4. Dec 10, 2017 at 6:08 PM
    #24
    RepLA

    #24
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    RepLA, Dec 10, 2017
    #24
  5. Dec 10, 2017 at 6:17 PM
    #25
    RepLA

    #25
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles

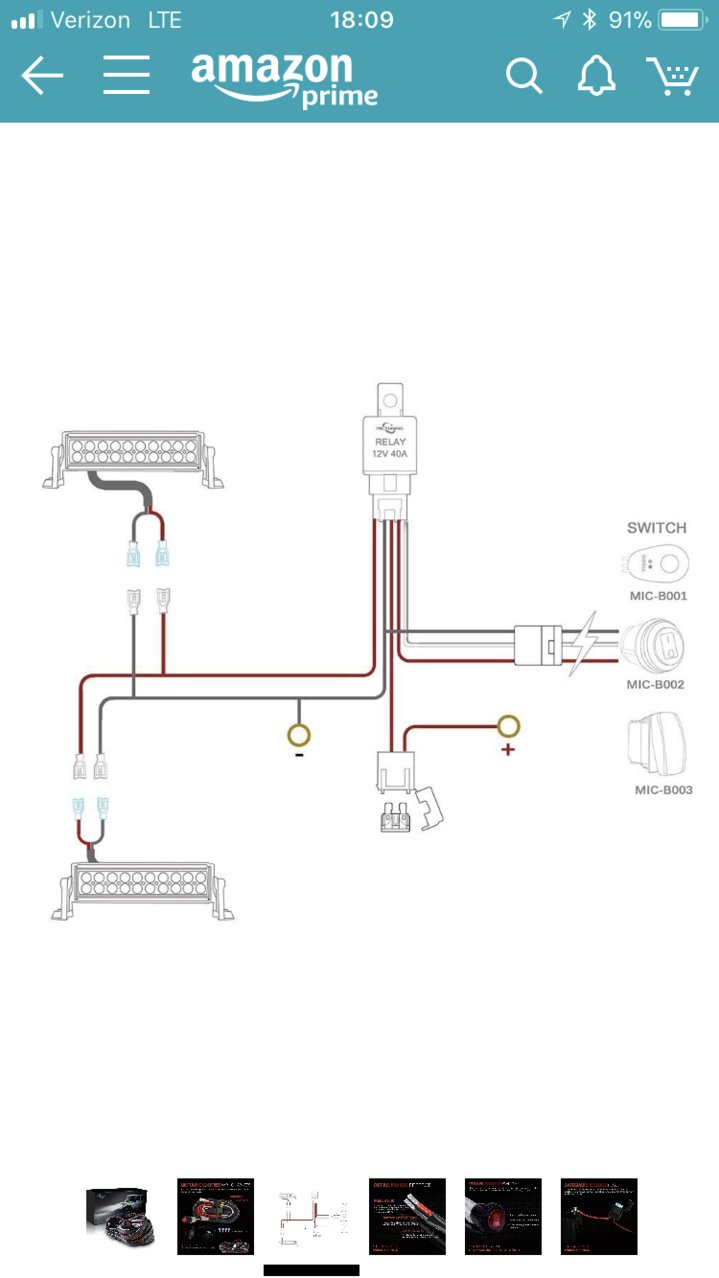

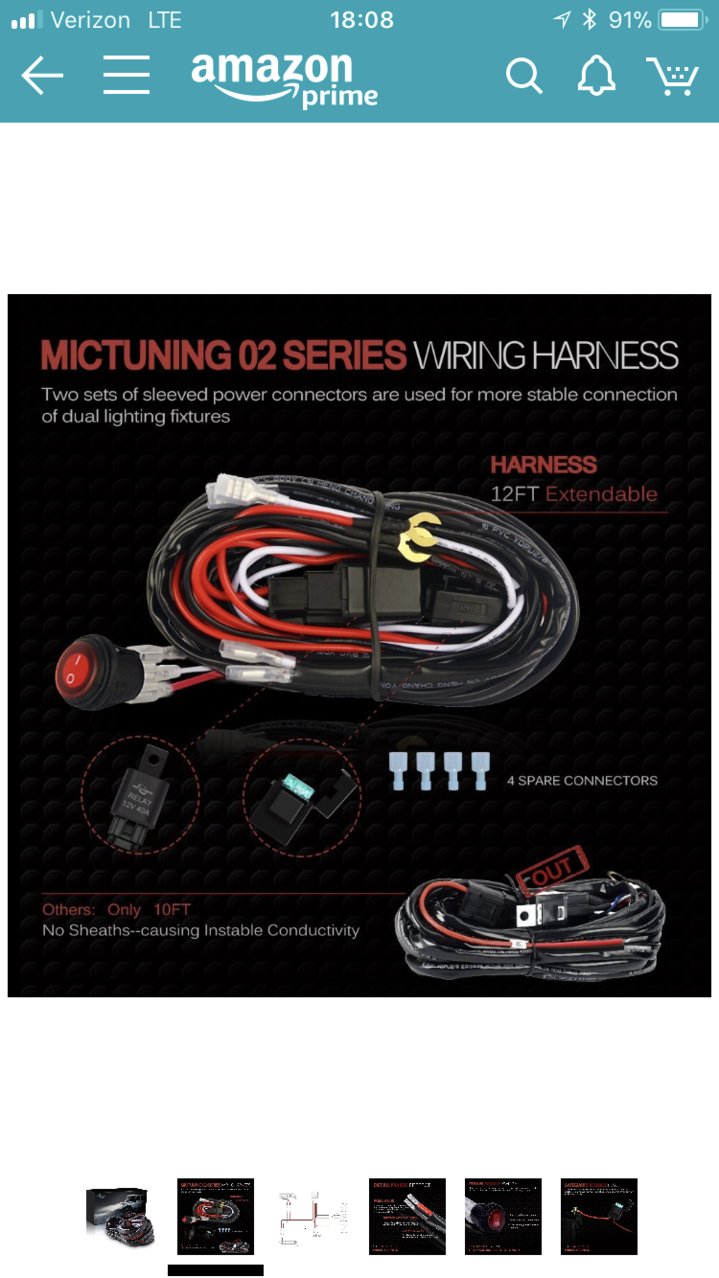

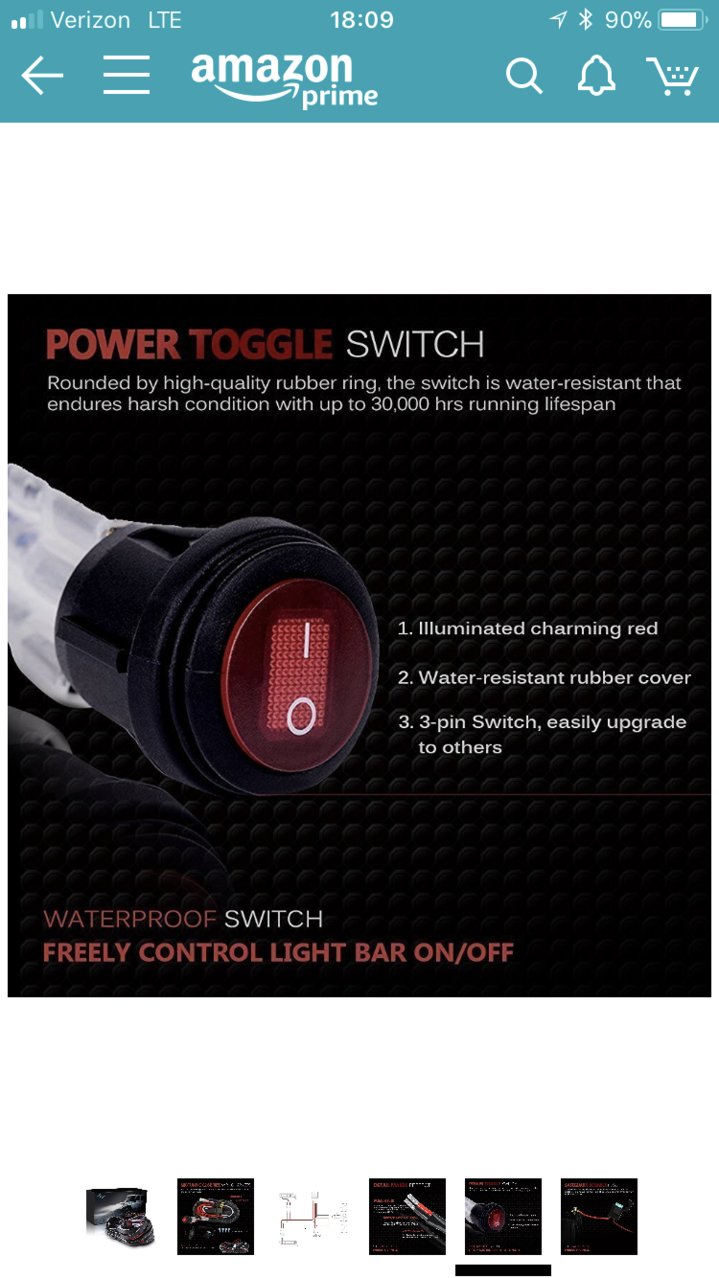

    Here’s some of the pics I got off Amazon.


    RepLA, Dec 10, 2017
    #25
  6. Dec 10, 2017 at 6:25 PM
    #26
    SuperBad

    #26
    SuperBad Well-Known Member

    Joined:
    Aug 13, 2016
    Member:
    #194456
    Messages:
    8,817
    Gender:
    Male
    First Name:
    Jason
    Dallas, TX
    Vehicle:
    2017 MGM Tacoma OR DCSB
    Truck stuff
    Should be:
    Mic Switch Wiring Harness
    Green --> Red
    Red 1 --> White
    Red 2 --> Inline fuse or spliced to dash lights (controls switch light when not powered on with the right connection it can dim with your dash lights)
    Black --> Black

    SuperBad, Dec 10, 2017
    #26
  7. Dec 10, 2017 at 8:14 PM
    #27
    RepLA

    #27
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    Tried it and nothing. Think it could just be the push button ?

    RepLA, Dec 10, 2017
    #27
  8. Dec 10, 2017 at 8:21 PM
    #28
    SuperBad

    #28
    SuperBad Well-Known Member

    Joined:
    Aug 13, 2016
    Member:
    #194456
    Messages:
    8,817
    Gender:
    Male
    First Name:
    Jason
    Dallas, TX
    Vehicle:
    2017 MGM Tacoma OR DCSB
    Truck stuff
    Not sure, anythings possible. Are you positive you didnt mix the red wires up? If you weren't so far from me I could help test the switch on my truck.

    SuperBad, Dec 10, 2017
    #28
  9. Dec 10, 2017 at 8:44 PM
    #29
    Sub_Par

    #29
    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    4,074
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2011 TRD Off Road
    Someone posted a review on Amazon saying that the wires were wrong when they received the harness. It could be possible the relay isn’t wired correctly.

    Sub_Par, Dec 10, 2017
    #29
    SuperBad likes this.
  10. Dec 10, 2017 at 8:48 PM
    #30
    Sub_Par

    #30
    Sub_Par Well-Known Member

    Joined:
    Nov 17, 2015
    Member:
    #169939
    Messages:
    4,074
    Gender:
    Male
    First Name:
    Steve
    Buffalo NY
    Vehicle:
    2011 TRD Off Road
    The relay should be wired as follows:

    85 - to ground
    30 - fused to battery
    87 - to lights
    86 - to switch for trigger

    Then out of the switch you need:

    Wire to ground
    Wire to dash lights
    Wire from pin 86 on relay for trigger
    Wire to dash lighting

    Sub_Par, Dec 10, 2017
    #30
    SuperBad likes this.
  11. Dec 10, 2017 at 10:14 PM
    #31
    RepLA

    #31
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    I’m not too good with wiring so I’m kinda confused on what you mean by the numbers?
    Do you need pictures or videos of anything ? Maybe that could help

    RepLA, Dec 10, 2017
    #31
  12. Dec 10, 2017 at 10:14 PM
    #32
    RepLA

    #32
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    Yeah I’m positive. That red wire that connects to the add a fuse I didn’t connect.

    RepLA, Dec 10, 2017
    #32
  13. Dec 10, 2017 at 10:16 PM
    #33
    anthony250f

    #33
    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    16,544
    Gender:
    Male
    First Name:
    Anthony
    San Diego, CA
    Vehicle:
    2008 dcsb trd offroad 4wd
    The relay is numbered

    anthony250f, Dec 10, 2017
    #33
  14. Dec 10, 2017 at 10:32 PM
    #34
    RepLA

    #34
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    So I just connected this push button to my light bar harness and it worked. So it’s not the push button, has to be this wiring harness for my ditch lights.

    RepLA, Dec 10, 2017
    #34
  15. Dec 11, 2017 at 3:16 AM
    #35
    RepLA

    #35
    RepLA [OP] Well-Known Member

    Joined:
    Mar 2, 2010
    Member:
    #32444
    Messages:
    76
    Gender:
    Male
    First Name:
    Steve
    Los Angeles
    Just took a look at the relay and it doesn’t say anything, but I see what you mean because I looked at my light bar relay and It shows what you said. Does that mean maybe this relay isn’t compatible ?

    RepLA, Dec 11, 2017
    #35
