DIY 1st gen Tacoma front bumper ?

Discussion in 'CBI Off-Road Fab' started by jbrandt, Dec 27, 2018.

  1. Dec 27, 2018 at 4:56 PM
    #1
    jbrandt

    jbrandt [OP] Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    6,645
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    okay, this might be a stupid question, but the diy front bumper, are those essentially the Moab? All the CBI site shows is the exploded/unassembled parts view, and not an assembled one. I found a thread of a guy with a diy for a 1st gen 4runner that looked like an open top design, so just wanted to be sure of the finished design before I pull the trigger.

    EDIT: Build thread starts on post #8...

    Last edited: Jan 21, 2019
    Broke Okie Ty likes this.
  2. Jan 1, 2019 at 9:27 PM
    #2
    Broke Okie Ty

    Broke Okie Ty Well-Known Member

    Joined:
    Aug 27, 2014
    Member:
    #137043
    Messages:
    593
    Gender:
    Male
    First Name:
    Ty
    California/Oregon/ Now in Montana
    Vehicle:
    01 trd with some stuff
    Armor, winch, other stuff
    I would also like to know before I order.

  3. Jan 1, 2019 at 9:31 PM
    #3
    Uphillshunter

    Uphillshunter El Taco Diablo

    Joined:
    Nov 6, 2017
    Member:
    #235223
    Messages:
    2,985
    Gender:
    Male
    First Name:
    Matt
    Hughson, CA
    Vehicle:
    Impulse Red 02 TRD Tacoma Prerunner "4x4 muthafukas" DC 5vz-fe
    Swapped 4x4, Twin sticks, Tundra Brakes, Bilstein 5100s, ToyTec 620# Coils, 1.5 AAL + 5 lug leaf, Pro-Comp 17x8.5, Transgo shift kit, Dual batteries
    Not a stupid question brother. I wondered the same thing.

    CBI is pretty dumb not to show an example of the finished bumper.

    Broke Okie Ty likes this.
  4. Jan 1, 2019 at 9:42 PM
    #4
    Broke Okie Ty

    Broke Okie Ty Well-Known Member

    Joined:
    Aug 27, 2014
    Member:
    #137043
    Messages:
    593
    Gender:
    Male
    First Name:
    Ty
    California/Oregon/ Now in Montana
    Vehicle:
    01 trd with some stuff
    Armor, winch, other stuff
    I agree, I would think they would have more and better pics of all their products.

  5. Jan 2, 2019 at 10:34 PM
    #5
    jbrandt

    jbrandt [OP] Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    6,645
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    My middle name is "Dangerous" so I went ahead and ordered it.

    I *really* hope they deliver sooner than the estimated middle of March...

  6. Jan 8, 2019 at 1:15 PM
    #6
    jbrandt

    jbrandt [OP] Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    6,645
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    Got the bumper in WAY less time than they estimated (got here Monday!).

    Most of it seems pretty straightforward, but there are a few pieces that can kinda go anywhere (the small triangle gussets).

    hey @CBI Offroad Fab, any chance I can get a few pics or drawings from the back to see how this goes together?

    Thanks!


  7. Jan 14, 2019 at 7:46 PM
    #7
    jbrandt

    jbrandt [OP] Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    6,645
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    Ok @CBI Offroad Fab, it’s been several days, I’m starting to wonder if you get these messages... any chance I cab get a pic from the back? I’ve seen older posts where you have the pics so I know they exist.

    Just wanting to know where the 2 sets of right angle gussets go.

    Do the larger triangle gussets go on the bottom of the winch plate? Where do the small triangles go?

  8. Jan 21, 2019 at 6:42 PM
    #8
    jbrandt

    jbrandt [OP] Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    6,645
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    Okay, here's the start of my CBI DIY Bumper build. I know my welds suck, I'm a grinder, not a welder, lol...

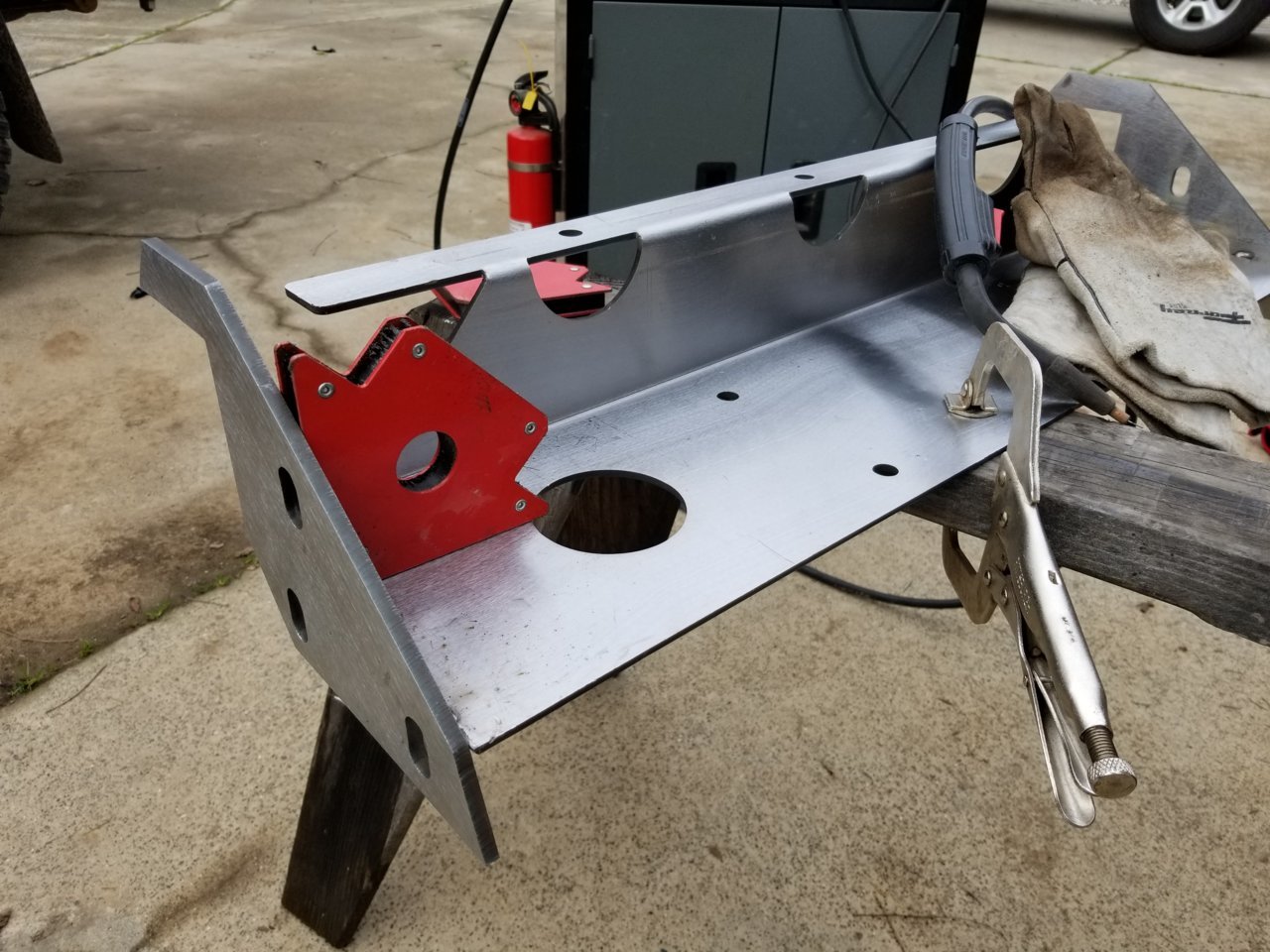

    I started with the Frame boxes, and bolted them up and took some measurements. The hard parts was the fact that 5 pieces (frame boxes, vertical trusses, and the winch plate itself) needed to go together simultaneously.

    I figured the winch plate would mount up even with the angles in the vertical trusses, and they did, more or less. I did have to trim a small amount off the skid plate mount surface to fit the frame boxes. Not sure if that's a standard thing, but it worked for my application.

    Then I used a floor jack and a chunk of 6x6 timber to hold the winch plate assembly up to the frame boxes, centered them with the help of some blue tape and a lot of measuring.

    Next was bolting up the front plate mounts and the plate itself. Measure, center, level and tack in place.

    Once that's in place, I started with the top pieces. With both of those in place, using a 6' level and numerous clamps. Once those were tacked, I placed the lower sections that have the turn signal holes. It took a bit of jiggering because I couldn't really hold it steady enough with one hand, so I used some magnets and twist tie things to get it in place, then tack it.

    Then it was time for the triangle pieces. Same thing, ended up using various magnets to hold it in place.

    Once that was in place I did the top-outer pieces. I used a level again, but I had to kind of guess on the horizontal angle based on how they looked. As it turned out, one of the sides didn't line up with the rounded piece (installed next), so I has to cut a couple tacks and move the top piece. This easily could have been because small misalignments with other pieces compounded the error with this one piece. I count this as user error, not an error in the cuts CBI made.

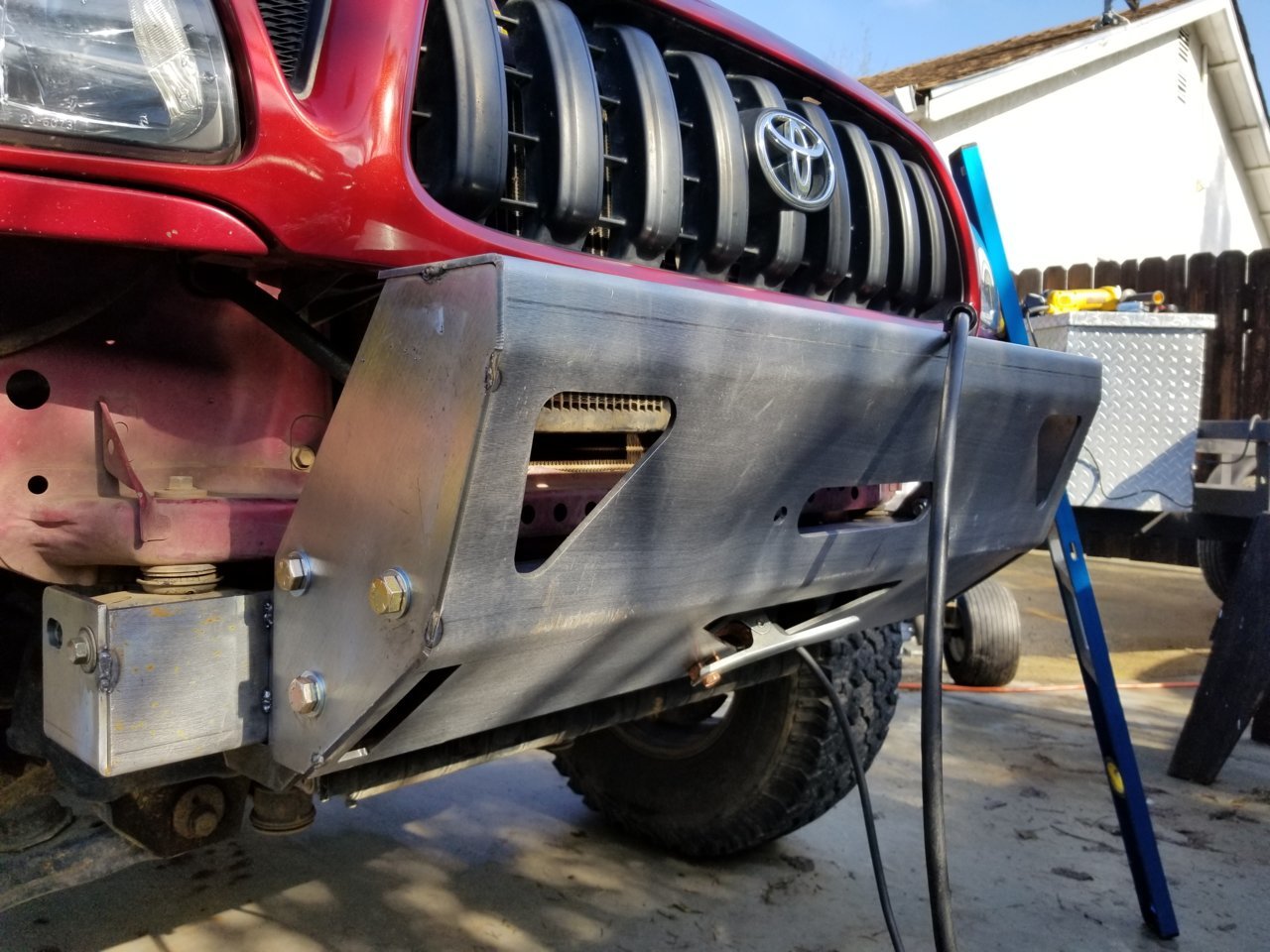

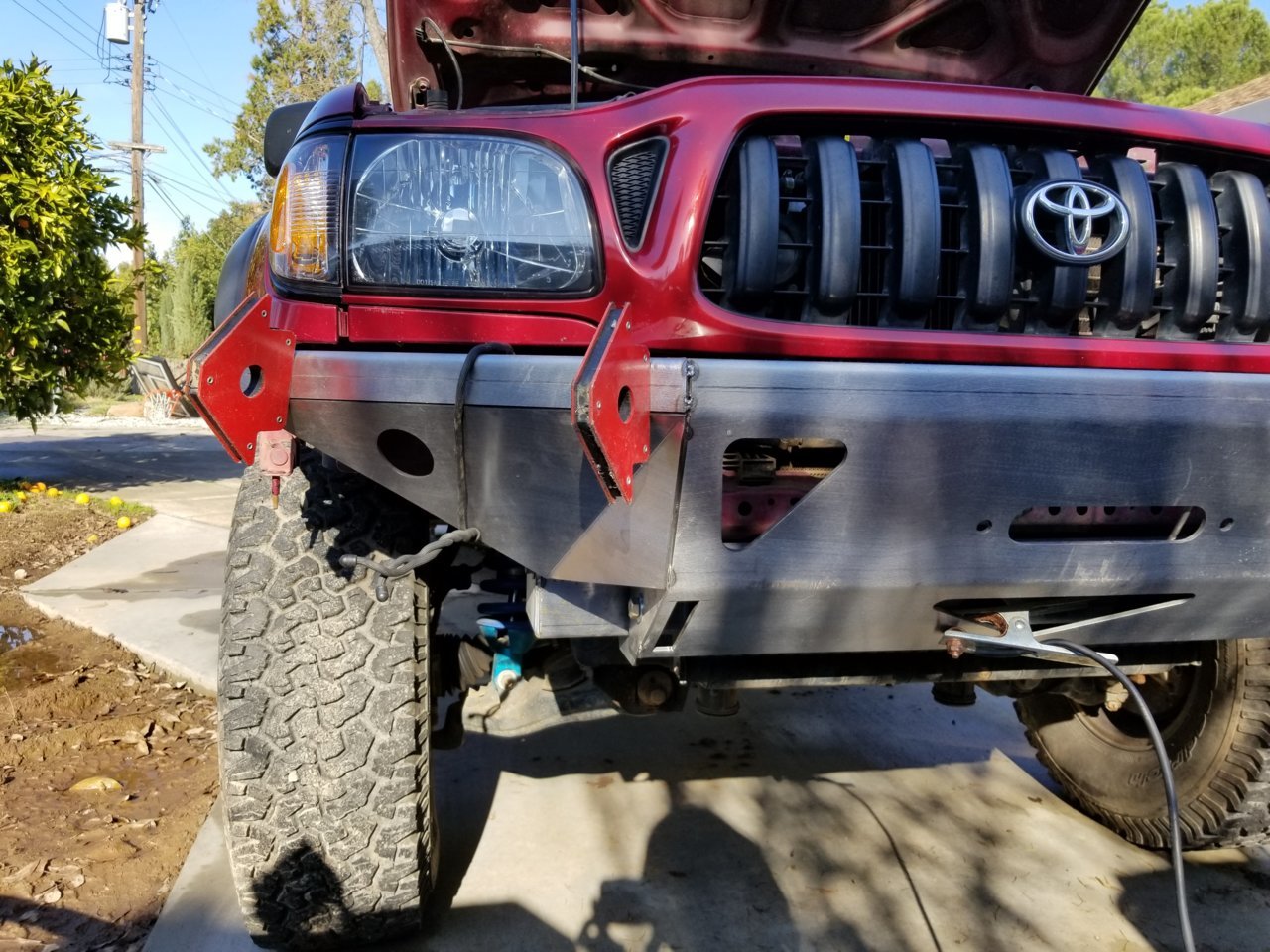

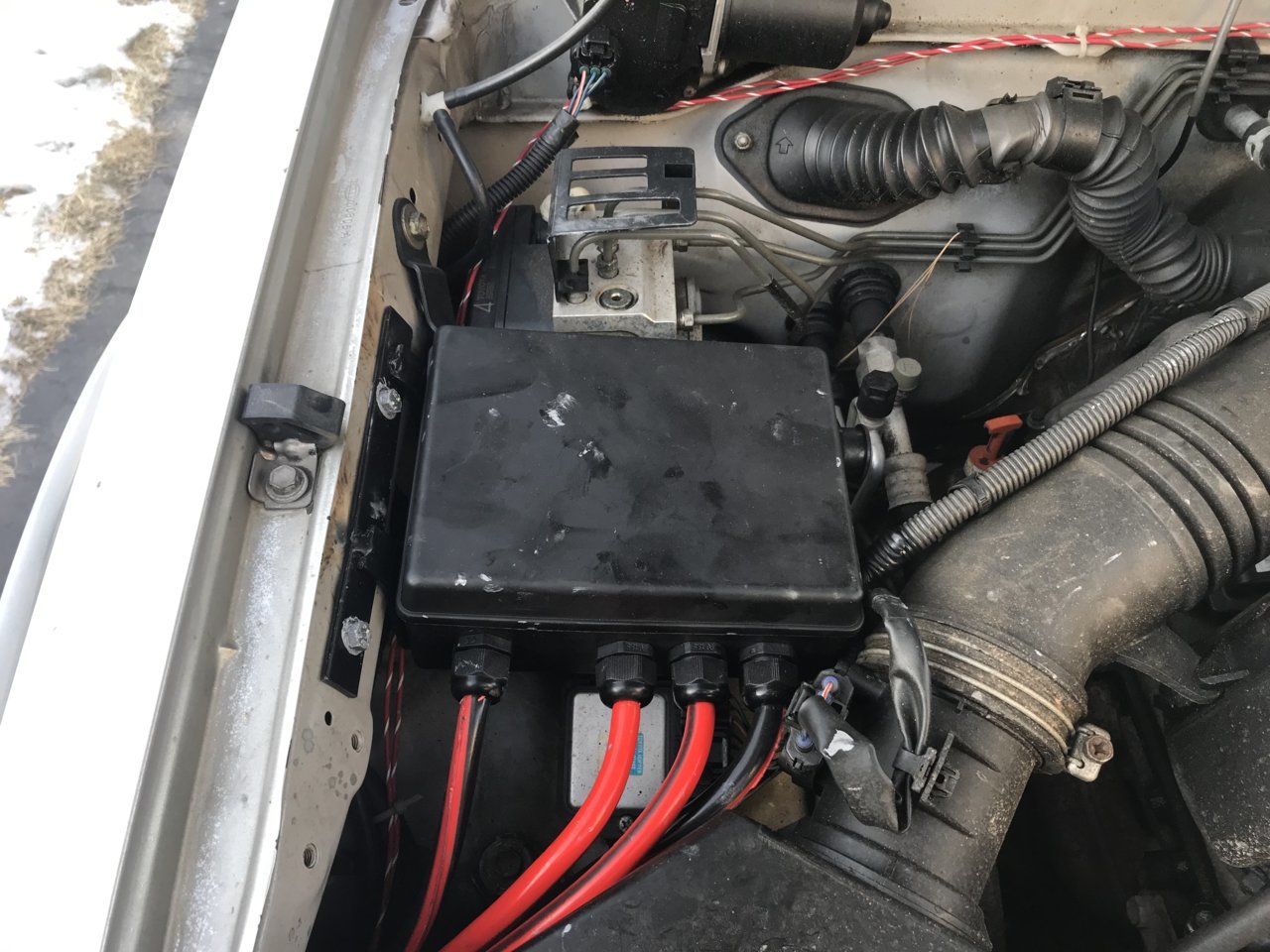

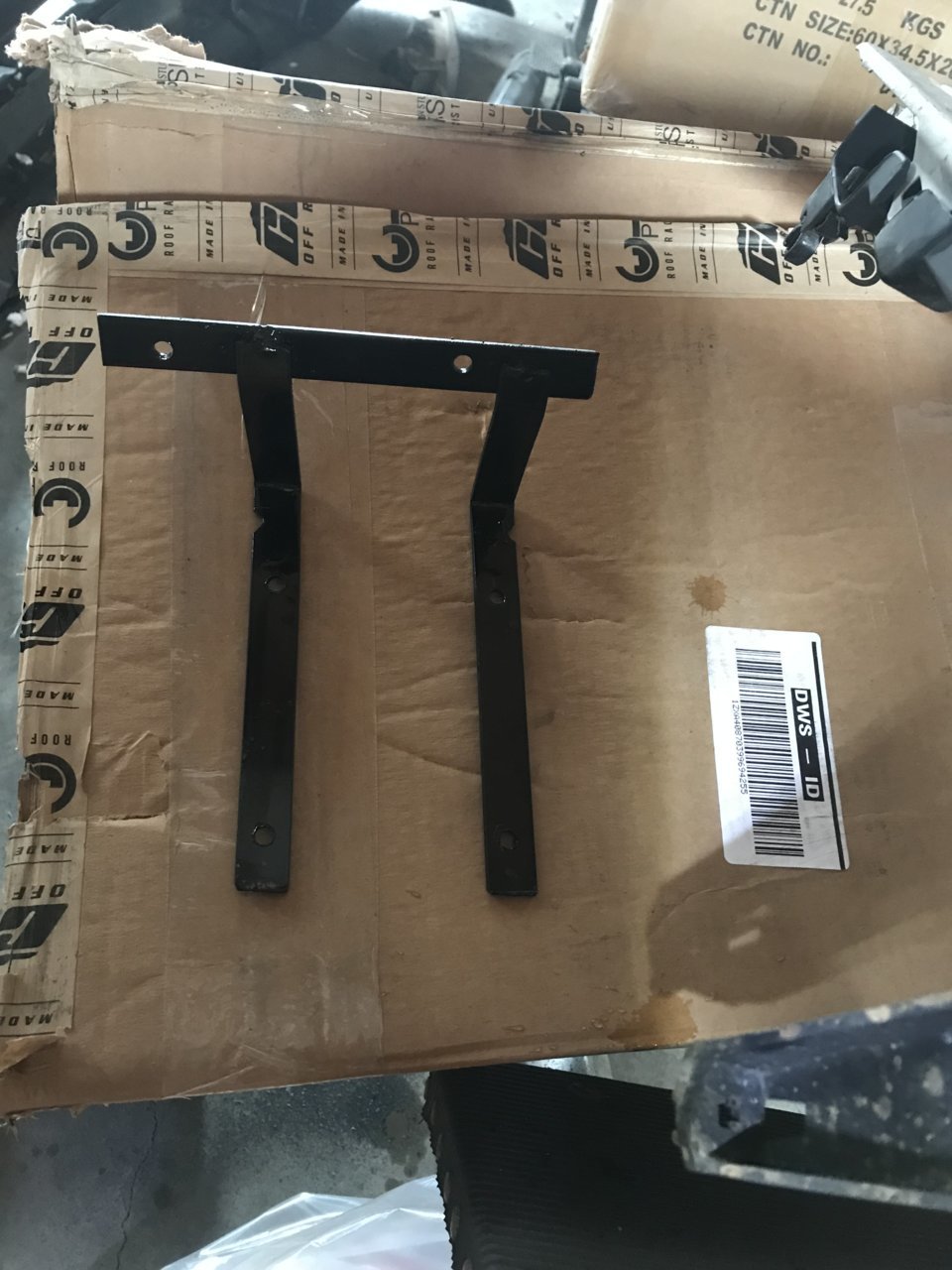

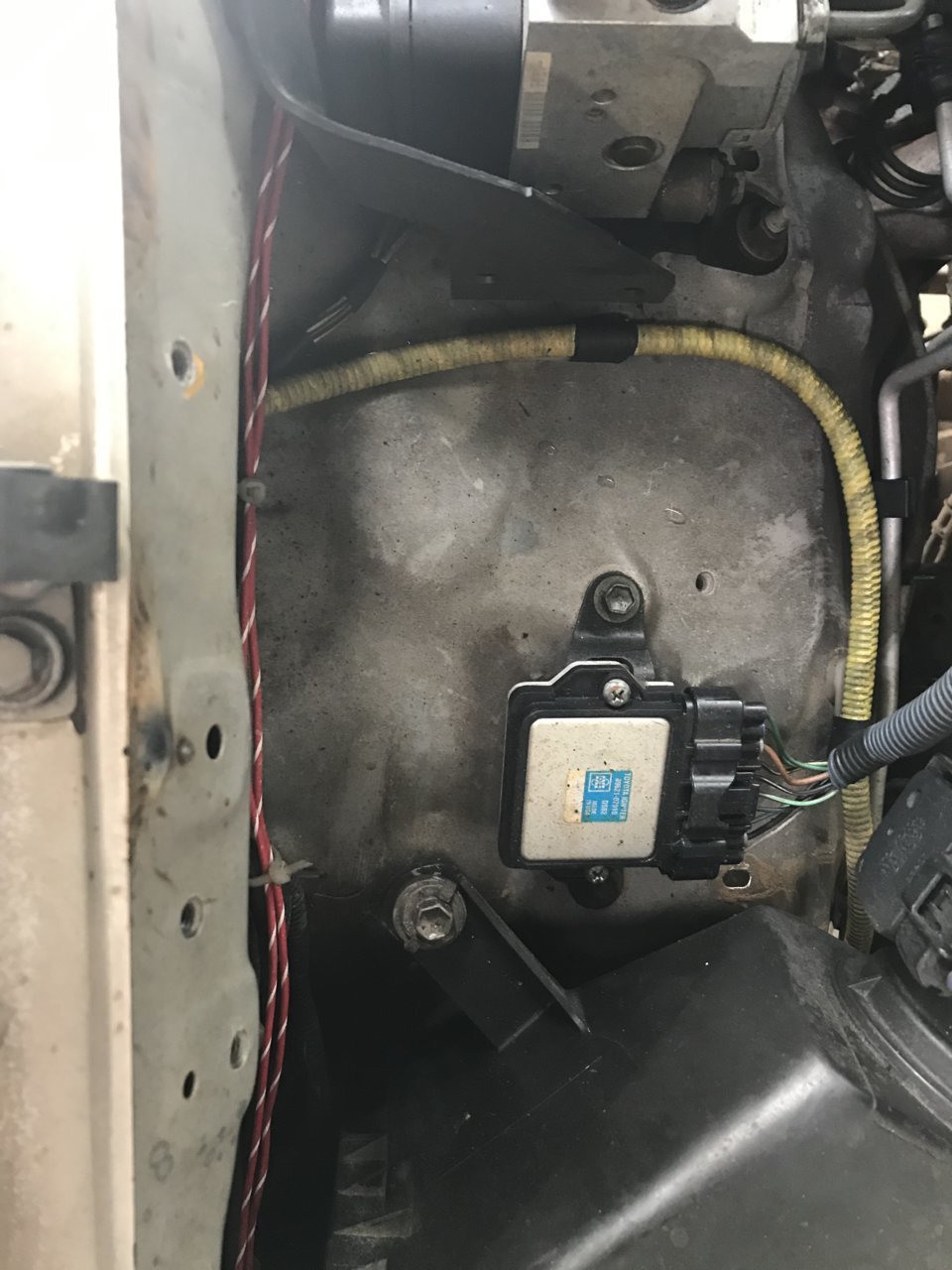

    Currently it looks like this. I'm now working on welding in the shackle mounts and the gussets. I'mm add more pics as I go.

    Any questions, ask away, I'll try to answer as best I can.

  9. Feb 1, 2019 at 8:41 AM
    #9
    Seagull233

    Seagull233 Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    920
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6 automatic
    BMW seats, OME Suspension, brush guard, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    How did you get along with refitting your bumper? How hard (or easy) is it to rebolt the main bumper to the winch plate portion?

  10. Feb 5, 2019 at 6:09 PM
    #10
    Seagull233

    Seagull233 Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    920
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6 automatic
    BMW seats, OME Suspension, brush guard, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener

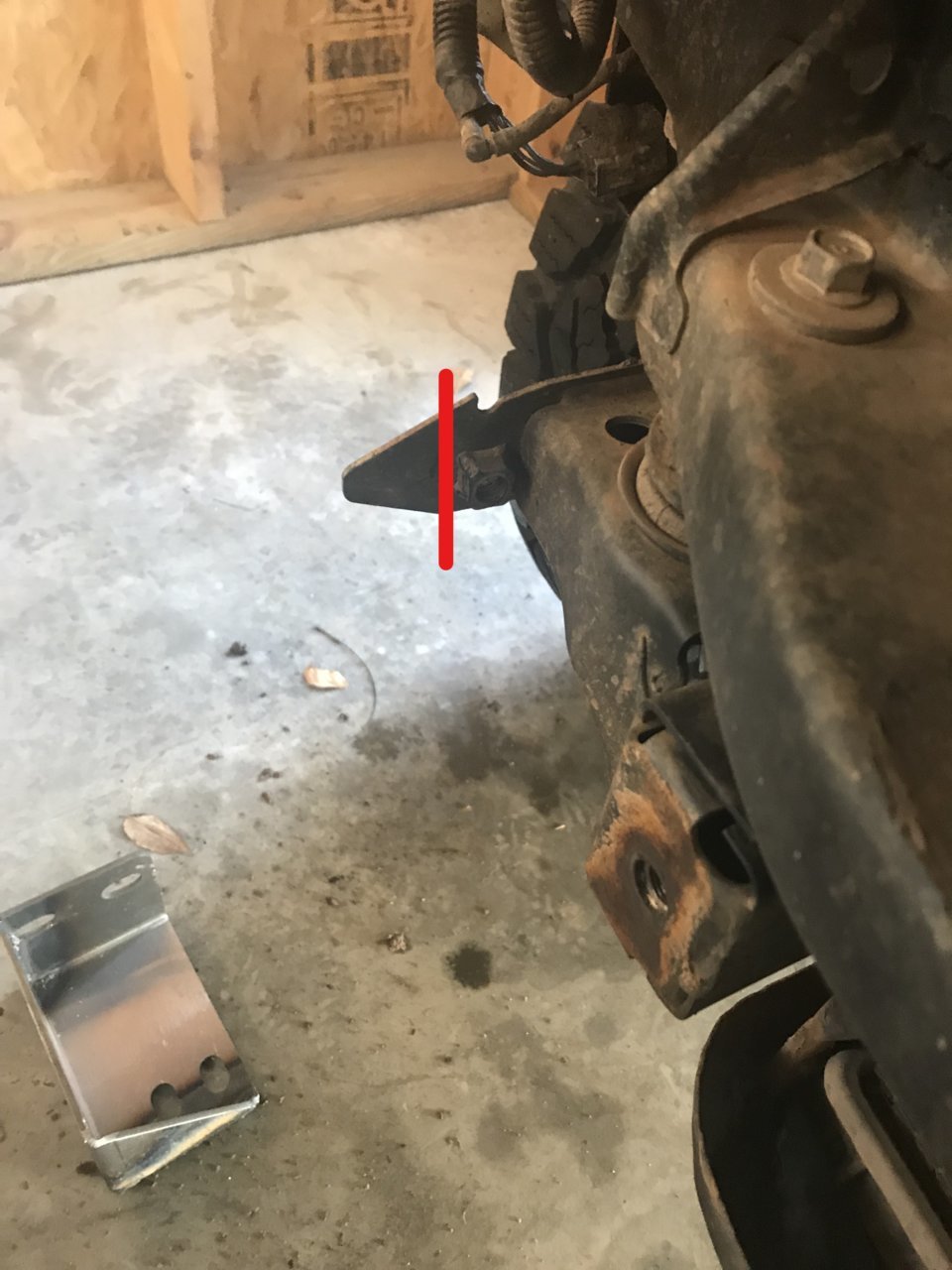

    Got a good start on mine today. Bumper and brush guard removed. Welded the seams on the box pieces at the end of the frame. Lots of measuring to get everything squared up. Interestingly, I had to cut a bit off the end of this piece. Perhaps this was an addition on my frame, since it was a replacement frame.


    xtremewlr likes this.
  11. Feb 6, 2019 at 6:58 PM
    #11
    Seagull233

    Seagull233 Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    920
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6 automatic
    BMW seats, OME Suspension, brush guard, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener

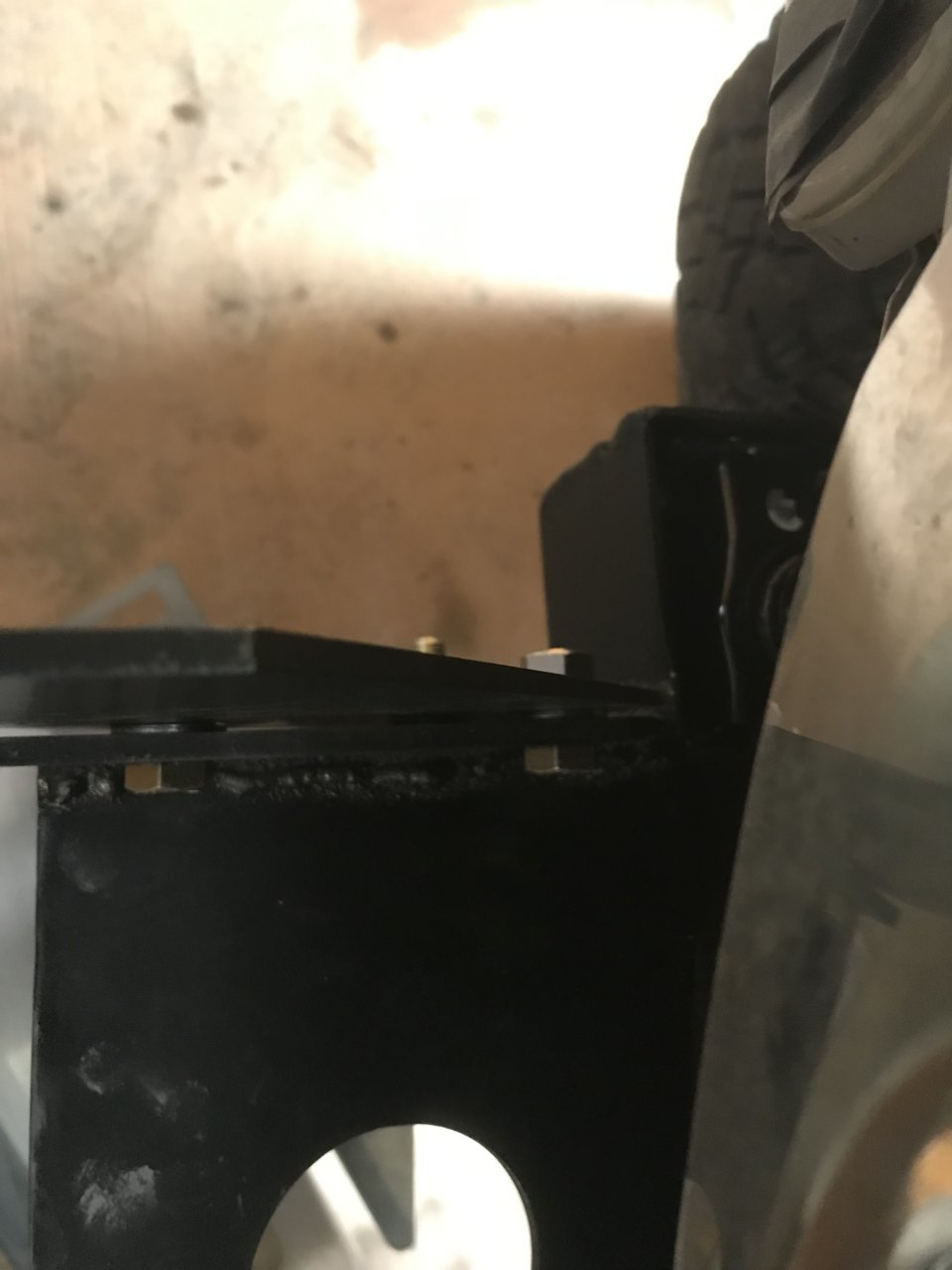

    Sorry for highjacking your thread, but here is a suggestion for anyone doing this. Use a washer between the two plates that get bolted together, to give just a little working space when attaching the outer shell of the bumper to the center section/winch plate. IMG_0352.jpg

  12. Feb 11, 2019 at 11:02 AM
    #12
    xtremewlr

    xtremewlr Well-Known Member

    Joined:
    Oct 25, 2018
    Member:
    #270626
    Messages:
    794
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    '99 Tacoma TRD
    My 99 has that little extension. It's for holding the stock bumper. There's a little tab that stick out from the bumper side bracket that goes into the notch.

  13. Feb 11, 2019 at 11:03 AM
    #13
    jbrandt

    jbrandt [OP] Well-Known Member

    Joined:
    Feb 12, 2011
    Member:
    #51038
    Messages:
    6,645
    Gender:
    Male
    Sacramento, CA
    Vehicle:
    '04 TRD Tacoma 4x4 DC
    King ext travel coils Total Chaos UCAs Sticker mod
    Nah, I had to do that as well. My frame is original.


    And yeah, when you're at this stage, using thin washers should help final fitment, at least it *would have* in my case.

    I still haven't finished cutting off and re-welding my vertical plate. If the government shut had lasted another day or 2, I would'a gotten it done, lol...

    Also, I'm kind of on the fence as to it being a good idea to do more than just tacking these pieces in place here. Once it's tacked, it might have helped to throw several 1-2" long beads around the meeting surface of the front plate and the vertical. I noticed it's a PITA to get a good bead on the inside because of the tight/acute angle between the vertical plate and the outer panels.

    Last edited: Feb 11, 2019
  14. Feb 11, 2019 at 12:56 PM
    #14
    Seagull233

    Seagull233 Well-Known Member

    Joined:
    May 4, 2017
    Member:
    #218149
    Messages:
    920
    Gender:
    Male
    First Name:
    Tom
    Upstate New York
    Vehicle:
    2004 DC 4x4 V6 automatic
    BMW seats, OME Suspension, brush guard, LED light bars, Ham Radio, topper with roof rack added, stainless exhaust, 2nd battery, inverter, sound deadener
    I just sprayed mine with bedliner today. I'll mount it up tomorrow. There sure was a lot of welding, but good practice for me, as I am pretty much a rookie welder. I, too, had to use flux core, so not very pretty, and required a lot of clean up. But in the end, it is a nice bumper for not a lot of cash.
