DIY Aluminum Bed Cover

Discussion in 'Tonneau Covers, Caps and Shells' started by dung, Dec 10, 2018.

  1. Dec 10, 2018 at 8:59 PM
    #1
    dung

    dung [OP] Well-Known Member

    Joined:
    Aug 22, 2018
    Member:
    #263711
    Messages:
    88
    Gender:
    Male
    Vehicle:
    2018 TRD OFFOAD
    I wasn't thrilled with price of current aluminum bed covers or the lack of security with super cheap rolling/folding bed covers so I built my own.

    I started out with a sheet of 3003 aluminum that is .09" thick and 59"x61.5" The frame is made from 1.5" by 1.5" 1/8" thick aluminum angle. All told I have just over $310 in materials and a few nights of time.

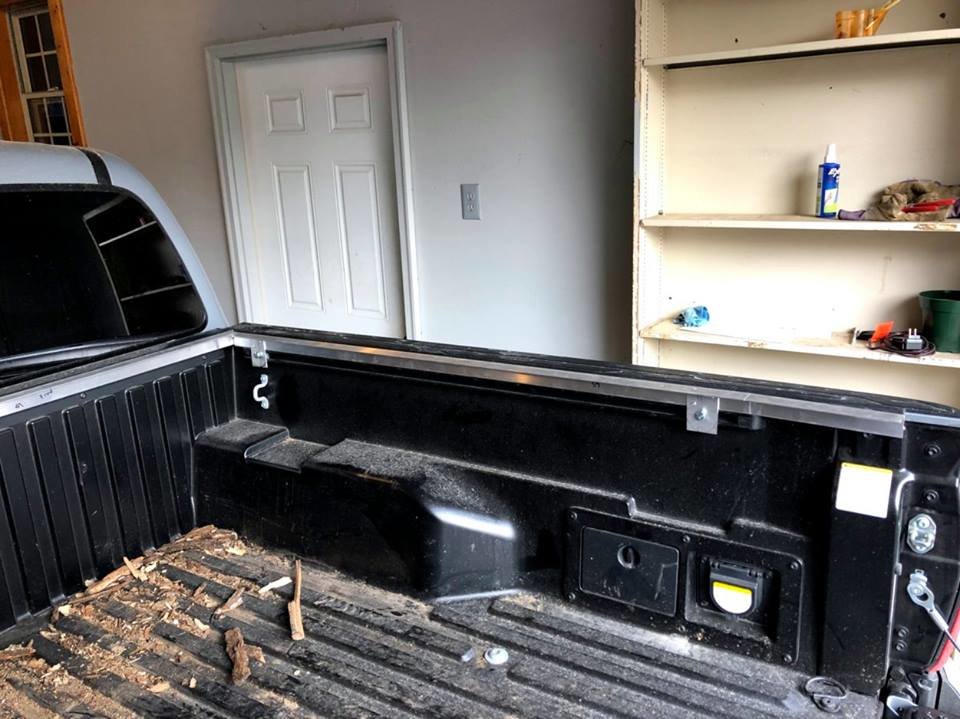

    The 57" long front rail is screwed into the mount for the factory cover. The side mounts are bolted to the rails using 3/8" unistrut nuts.
    47681916_1020366011504523_65489748130697_3dda033ba0855118707289324379b3e41093c8c7.jpg

    48360205_1020365944837863_42653873666061_43f61b4295a1eb82f4501b2be1974f2bfde472e2.jpg

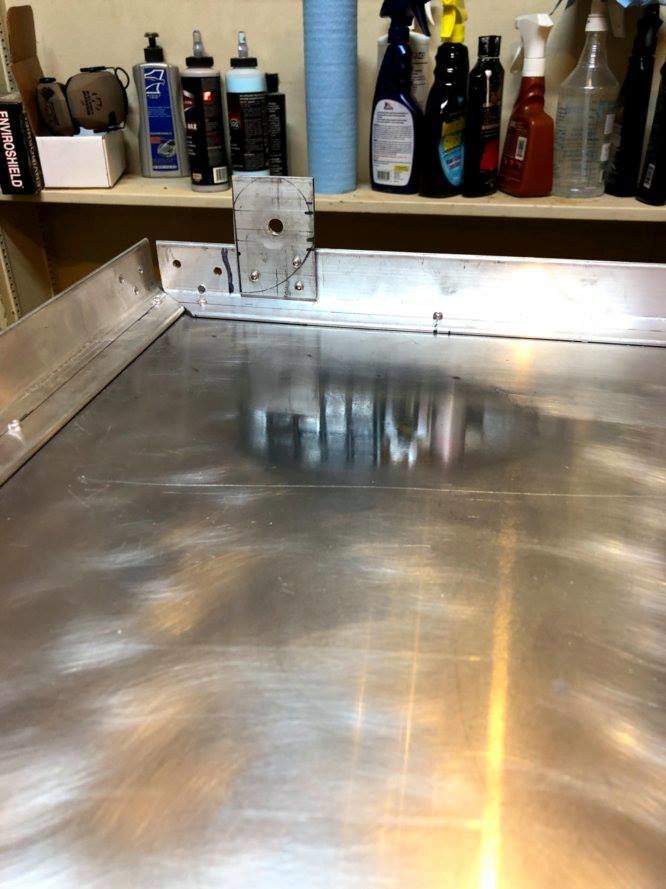

    I know the corners don't fit perfectly, I was trying to cover the holes in the header panel with this front edge to cut down on water intrusion.

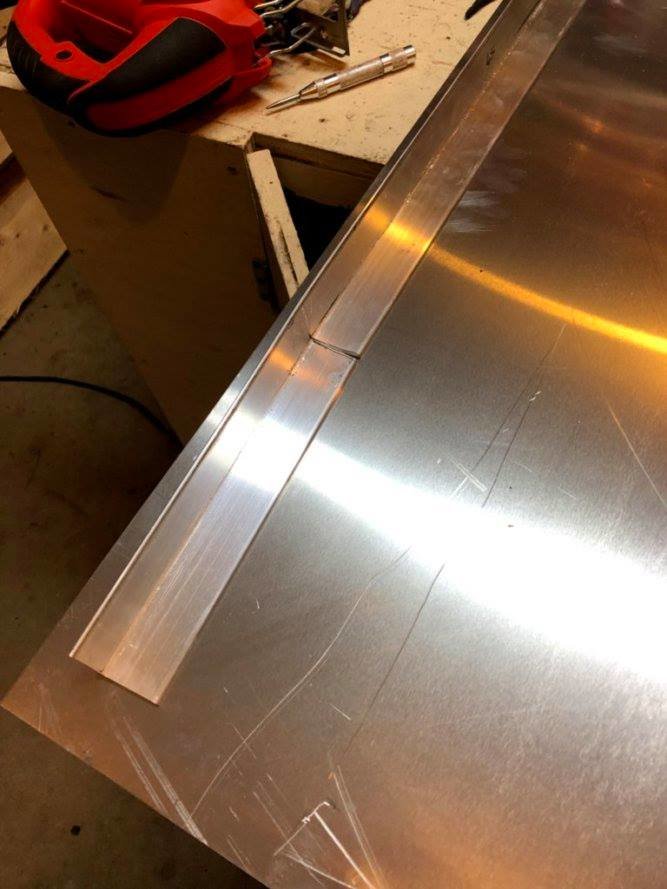

    I cut and notched the ends of the rails to account for the kick in the bed sides.
    48361640_1020365958171195_53365855907144_9da81e59a19a9d48de24f6d53c046e337e620774.jpg

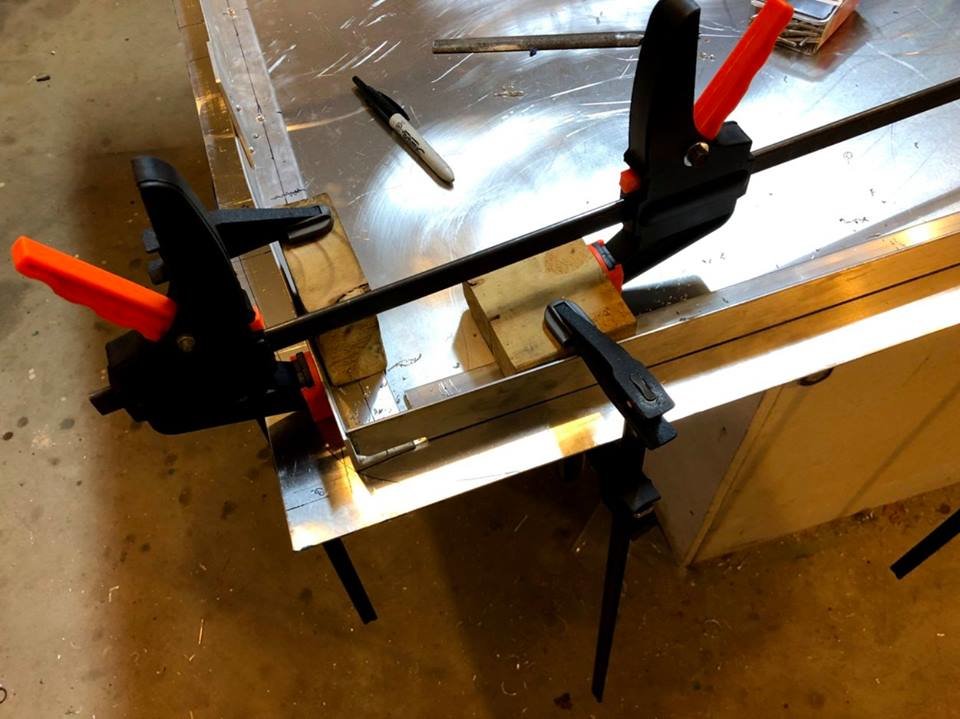

    I think the rear rail was 55.5 or 56.5 inches long and the ends were notched to allow the angles to fit tighter together. Everything is riveted together with 3/16" aluminum rivets.

    48360501_1020365974837860_27399931254255_a3b62276a813aa5ac889da76c9af45e31cd849a2.jpg
    48058891_1020365894837868_46276059933148_4cdac72a6bb0071bd1dd76d060c6de72f1705c8c.jpg

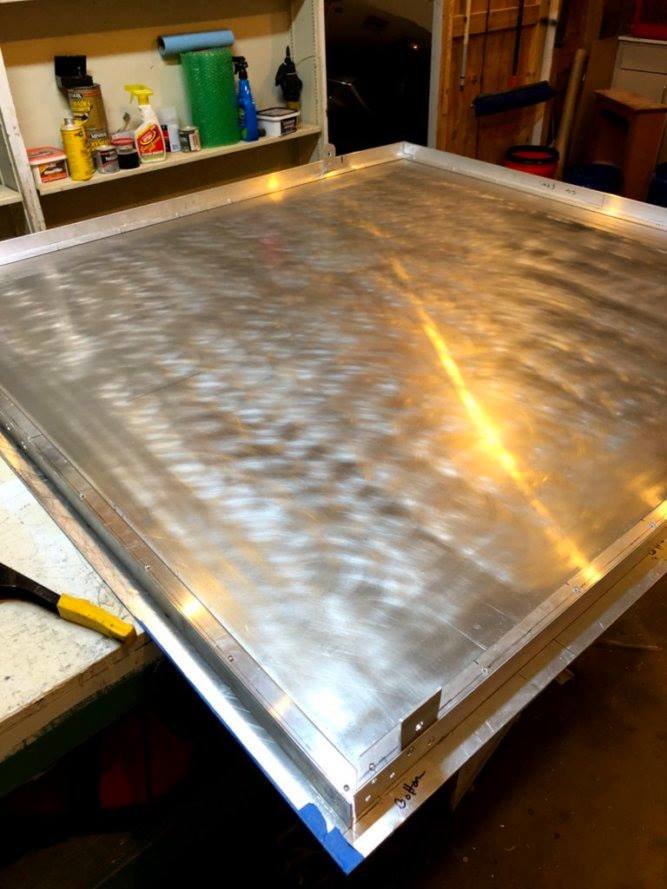

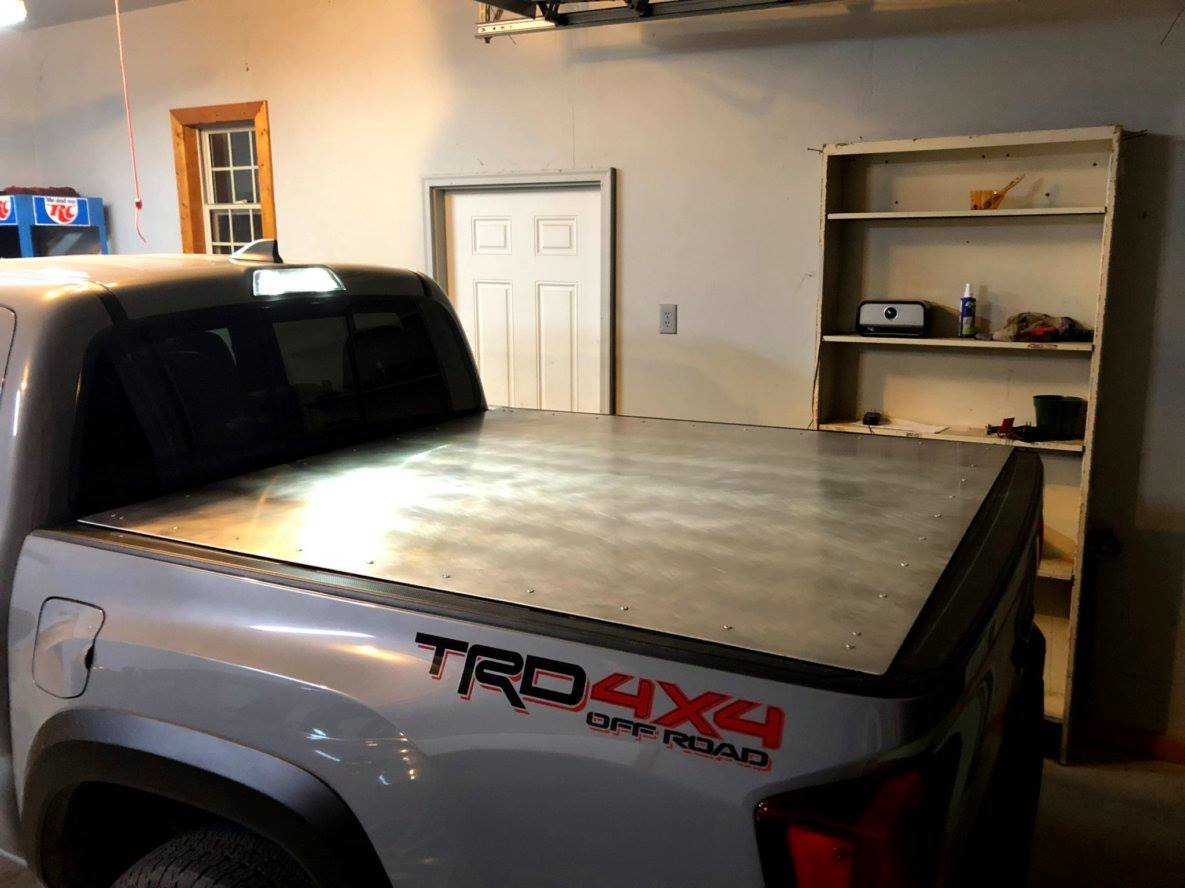

    This alloy is supposed to have good corrosion resistance. So I am going to see how long a light brushed texture will last before it goes to crap. I scuffing it deeper and clear coating it or using a self etching primer and paint it to match the body. It isn't too bright and looks better than all black to me.
    48356812_1020365911504533_58145828820221_bab7e22fb272f400588c76b1f5054ad4a2898126.jpg

    El Taco Blanco, Hawk45 and Jckdnls like this.
  2. Dec 10, 2018 at 9:06 PM
    #2
    El Tano

    El Tano i am the one who knocks

    Joined:
    Jun 29, 2010
    Member:
    #39599
    Messages:
    2,309
    Gender:
    Male
    Pasadena. CA
    Vehicle:
    10 Tacoma TRD sport
    Corvette homelink 5100 Blinstein set at 2.50 Allpro UCA’s. 1" procomp rear block with TSB leaf pack. 5100 Blinstein on back 17x9 kMC wheels 0 BS 285/70 17 Nitto Terra Grapplers G2 Amp research steps.
    Nice work. Are you are going to install rubber seals? Can you open it and hold it open?

  3. Dec 10, 2018 at 9:27 PM
    #3
    dung

    dung [OP] Well-Known Member

    Joined:
    Aug 22, 2018
    Member:
    #263711
    Messages:
    88
    Gender:
    Male
    Vehicle:
    2018 TRD OFFOAD
    I have edged it with epdm foam for now .However, it will need thicker seals at some point. I don't use my bed for many large objects so having it hinged wasn't a priority. It would just be a bit more complicated.

  4. Dec 12, 2018 at 11:47 AM
    #4
    OneMoreToyota

    OneMoreToyota Well-Known Member

    Joined:
    Mar 6, 2017
    Member:
    #212542
    Messages:
    120
    Gender:
    Male
    First Name:
    Derek
    Alberta, Canada
    Vehicle:
    2017 White DCSB TRD Sport - 6M
    Just the standard Tacomaworld mods
    Looks really good! Planning on doing something similar in the future. It's been interesting finding sheet aluminum wider than 4'. Where did you get yours?

  5. Dec 12, 2018 at 4:28 PM
    #5
    dung

    dung [OP] Well-Known Member

    Joined:
    Aug 22, 2018
    Member:
    #263711
    Messages:
    88
    Gender:
    Male
    Vehicle:
    2018 TRD OFFOAD
    It came from Metal Supermarkets. There are a bunch of locations in the states, but I don't think any in Canada. They didnt have any in stock over 4', but were able to order it in the next day and didn't screw me on the price.

    A couple other places i called didnt want to even bother with me and tried to charge me an extra $150 for a thinner sheet of aluminum.

    The dealership ran my truck through their car wash and this is not waterproof to high pressure sprays! I will add a thicker epdm seal this weekend.

  6. Dec 13, 2018 at 1:01 PM
    #6
    Hawk45

    Hawk45 Active Member

    Joined:
    Mar 7, 2018
    Member:
    #246553
    Messages:
    32
    Gender:
    Male
    First Name:
    Hawk
    Ohio
    Vehicle:
    2017 Tacoma TRD Sport MGM
    Good stuff. I Like that you can always add more bracing underneath if you want to beef up the top load and shouldn't cost too much. Other options would be to put some diamond plate on top or RhinoLine or spray coat it. Well done!

  7. Dec 14, 2018 at 4:17 AM
    #7
    El Taco Blanco

    El Taco Blanco Well-Known Member

    Joined:
    Jan 6, 2017
    Member:
    #206765
    Messages:
    563
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 White Tacoma SR5 4x4 DCLB
    Stock (for now)
    Nice work! Thanks for the write up.

  8. Dec 14, 2018 at 6:37 AM
    #8
    dung

    dung [OP] Well-Known Member

    Joined:
    Aug 22, 2018
    Member:
    #263711
    Messages:
    88
    Gender:
    Male
    Vehicle:
    2018 TRD OFFOAD
    I know it doesn't sound thick, but .09" inches doesn't flex very much since it is supported at the back and front. I anticpated it being a bit floppier and have another crossmember I can run across it if needed.

    Thanks for the compliments.
