DIY Bed "bar"

Discussion in '2nd Gen. Tacomas (2005-2015)' started by 06rubi, Apr 15, 2011.

  1. Apr 15, 2011 at 5:38 PM
    #1
    06rubi

    06rubi [OP] Well-Known Member

    Joined:
    May 1, 2010
    Member:
    #36309
    Messages:
    806
    Gender:
    Male
    First Name:
    Kenney
    Pueblo West, CO
    Vehicle:
    10 MGM (wife's truck)
    Debadged, tinted windows, 7 pin relocated, bed lights, 12 volt socket in bed of truck, on board air, auxiliary fuse box, grill craft, hella 500's, t-rex eyelids, pink budbuilt skids, icon remote resi coil over, camburg uca, alcan rear springs, ubolt flip, icon 2.5 remote rear resi shocks
    I started making a bed "bar" For the Tacoma today. My plans for it is to support the rear tire carrier I am making. But it can work as a simple DIY bed bar for bed lights, CB antennae and D-rings. I used 1 1/4" x 1 1/4" x1/8" angle, 4.5" angle grinder, T30 torx socket, Tape measure and a drill with bits.

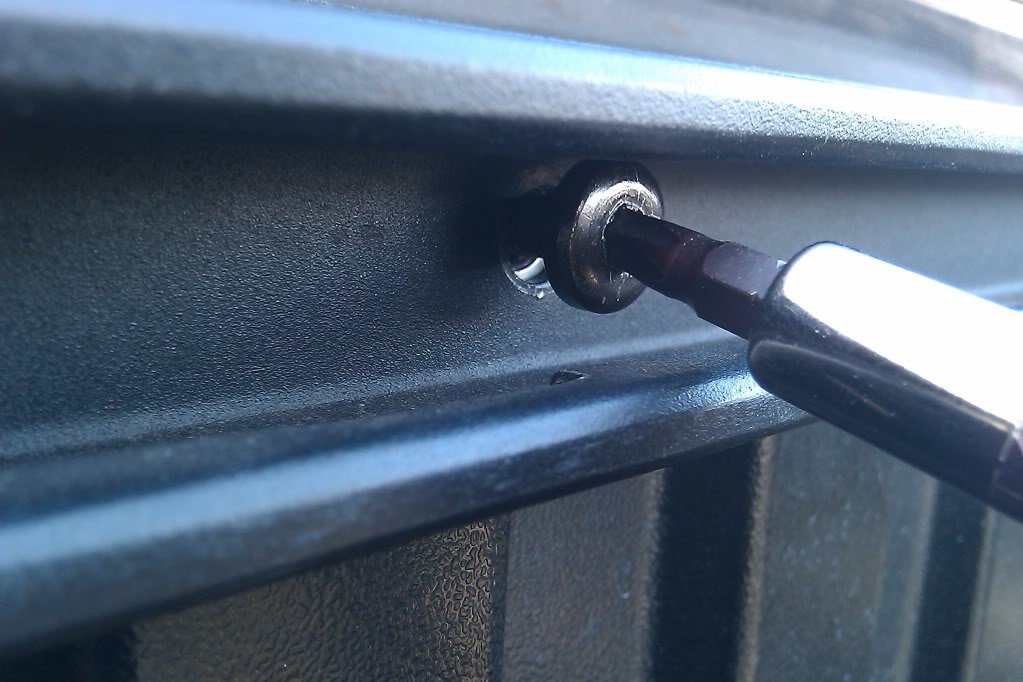

    First remove the bed rail with a T30 torx socket.
    [​IMG]

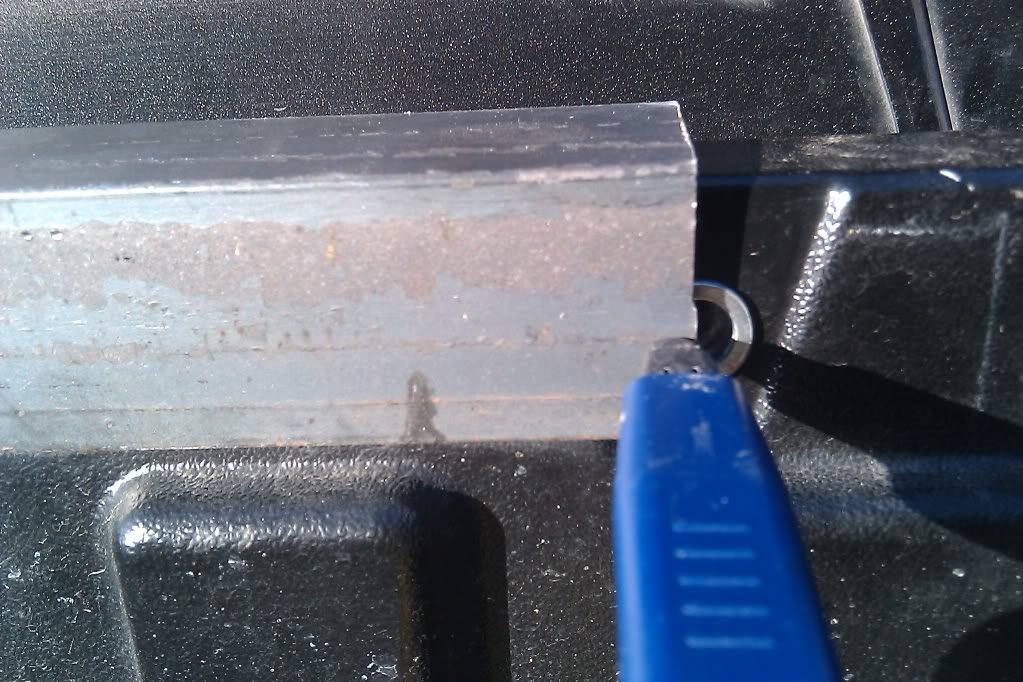

    Measure and cut the angle to the desired length. Measure the holes remembering that the inner diameter is not the same as the outside of the angle. I used a piece that I cut to mark and measure. Then i used the bed rail as I guide to mark the holes.
    [​IMG]
    [​IMG]
    Once you are sure the angle is marked correctly drill your holes with a 9/32 bit then you can use a step bit to make each hole fit better if your measurements were a bit off.
    [​IMG]

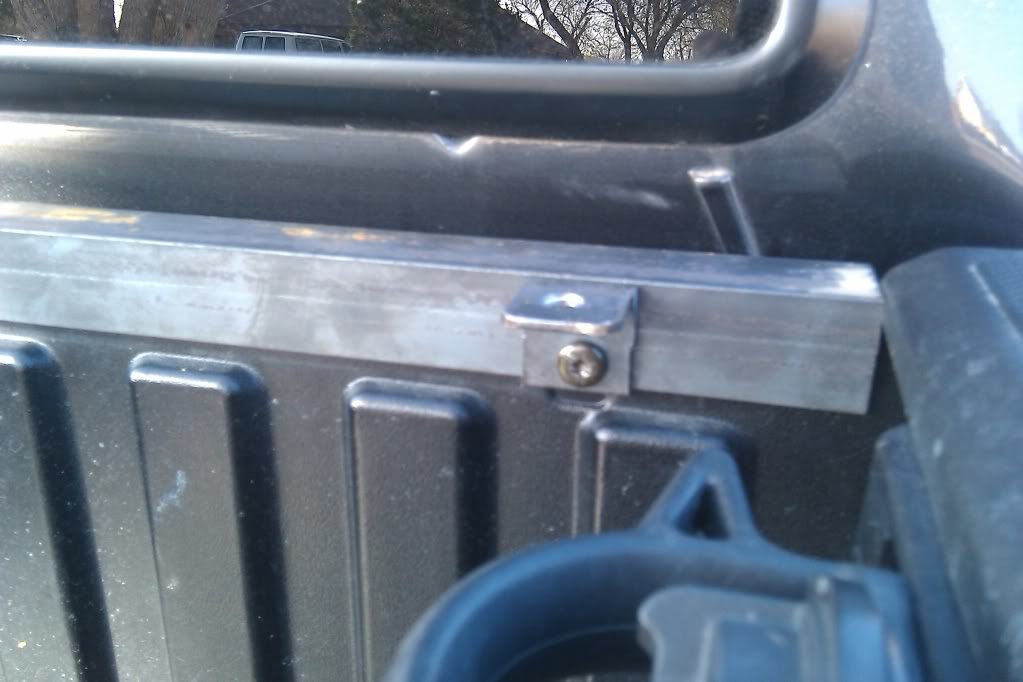

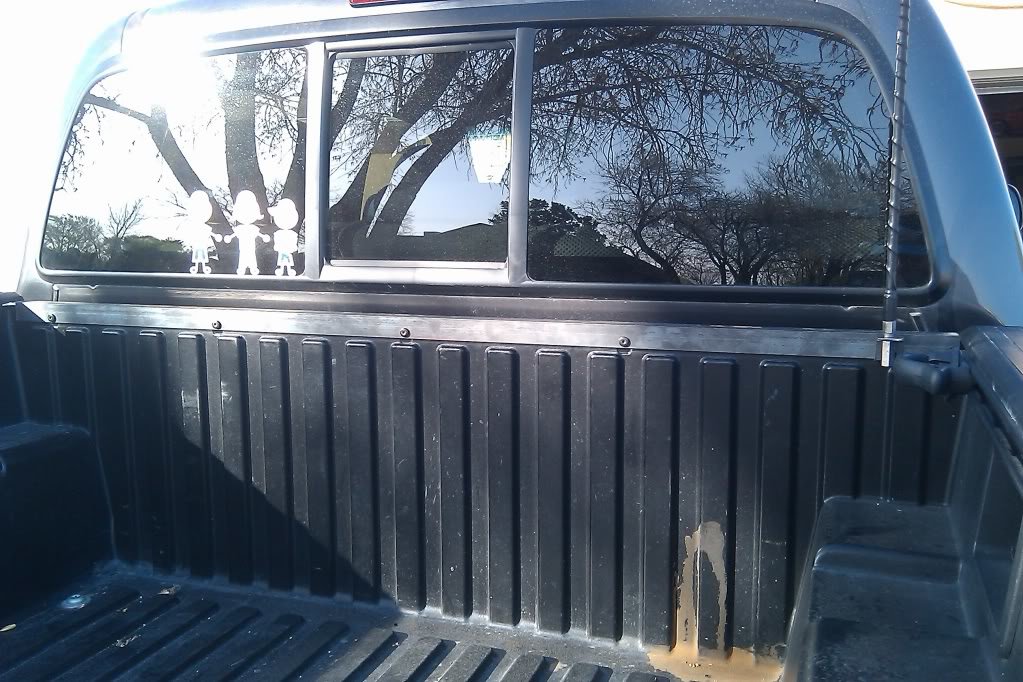

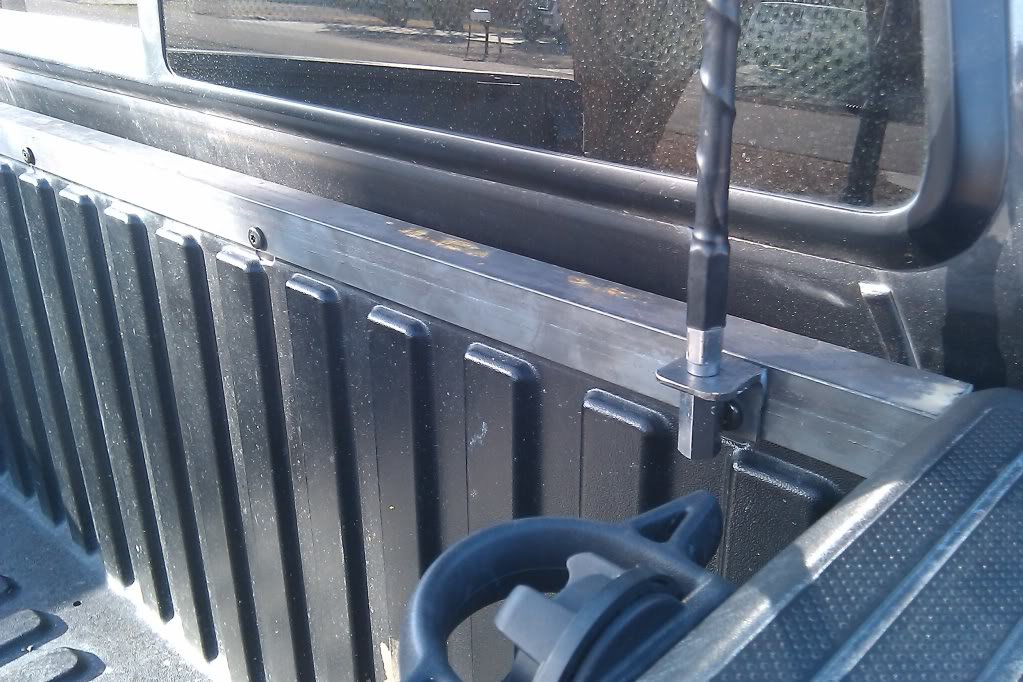

    Next install using the same bolts that the bed bar uses. I fabed up a simple bracket for a bed light or a CB antennae (note the CB antennae need to be grounded properly this is just an example of what you can do). You can also use some D-rings for extra tie downs. Then of course paint! I am welding my light mounts, CB antennae and tire carrier mounts still so I havent painted it yet.
    [​IMG]
    [​IMG]
    [​IMG]
