DIY bed mount / spare tire / bottle jack all-in-one

Discussion in 'Wheels & Tires' started by singletrack_ftw, Jan 17, 2019.

  1. Jan 17, 2019 at 11:24 PM
    #1
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    I found a very solid and secure way to mount my oversized spare tire in the bed that is

    • inexpensive
    • SOLID (for heavy off road use)
    • Easy to remove in case I need to use the bed to haul items
    • Not so large that it takes up most of the bed (leave room for other adventure items like a cooler and storage containers)

    I do not want my oversized spare tire mounted under my bed for several reasons. I Also found that the OEM bed Matt is a BIG help with this project as it keeps everything nice and solid in the bed with plenty of grip. And holes are easily cut into this to accommodate for the additional D rings added.

    • It’s not easy to get to, especially in off camber/gnarly environments
    • It can rub the diff at full compression
    • It technically decreases departure angle or breakover angle because it is like a large wart underneath the truck

    I don’t want a tire gate tire carrier because those bumpers are considerably expensive and add a lot of weight and length to my already long truck (albeit a DCSB)


    -I want the spare in the bed but I don’t want to spend a fortune on a heavy steel tire carrier in the bed that takes up a ton of space


    -I want a setup that I can remove in minutes when I want/need to use my bed for hauling large items


    -I don’t like Hi-Lift jacks and I don’t want to store one in the bed, they’re a pain and they make my feeble arms and back hurt


    $35 Bottle jack

    Alltrade 640912 Black 3 Ton,All-in-One Bottle Jack https://www.amazon.com/dp/B003ULZGFU/ref=cm_sw_r_cp_api_i_Jc9pCb8T77GE1


    $75 Heavy duty y-strap

    https://sdhqoffroad.com/collections/sdhq-straps/products/sdhq-2-3-way-adjustable-spare-tire-strap


    $20 (optional, as needed) Cali-Raised LED tie down bed bolt rings.

    https://caliraisedled.com/collectio...ucts/toyota-tacoma-upgraded-bed-tie-down-pair


    $14 (additional bed tie down D-rings)

    https://caliraisedled.com/collectio...ucts/toyota-tacoma-upgraded-bed-tie-down-pair


    $5 miscellaneous hardware (bolts/nuts/washers for D-rings)



    1. Add/drill additional D rings into your bed where needed. See pictures, specifically I needed to add 5 additional D rings to my bed but only 2 of them had to be DRILLED.
    2. 1 d ring added to each far corner of the bed at the bed bolt against the cab) I used the Cali Raised plug and play d rings and they are very strong and easy to install.
    3. 1 D ring drilled to the middle of the bed, right in the reinforced triangle of the underside of the bed skeleton)
    4. 1 d ring I added to the bed drainage hole already present up against the cab directly in the middle front of the bed (then I drilled additional drainage holes on either side of this so that standing water can drain from the bed)

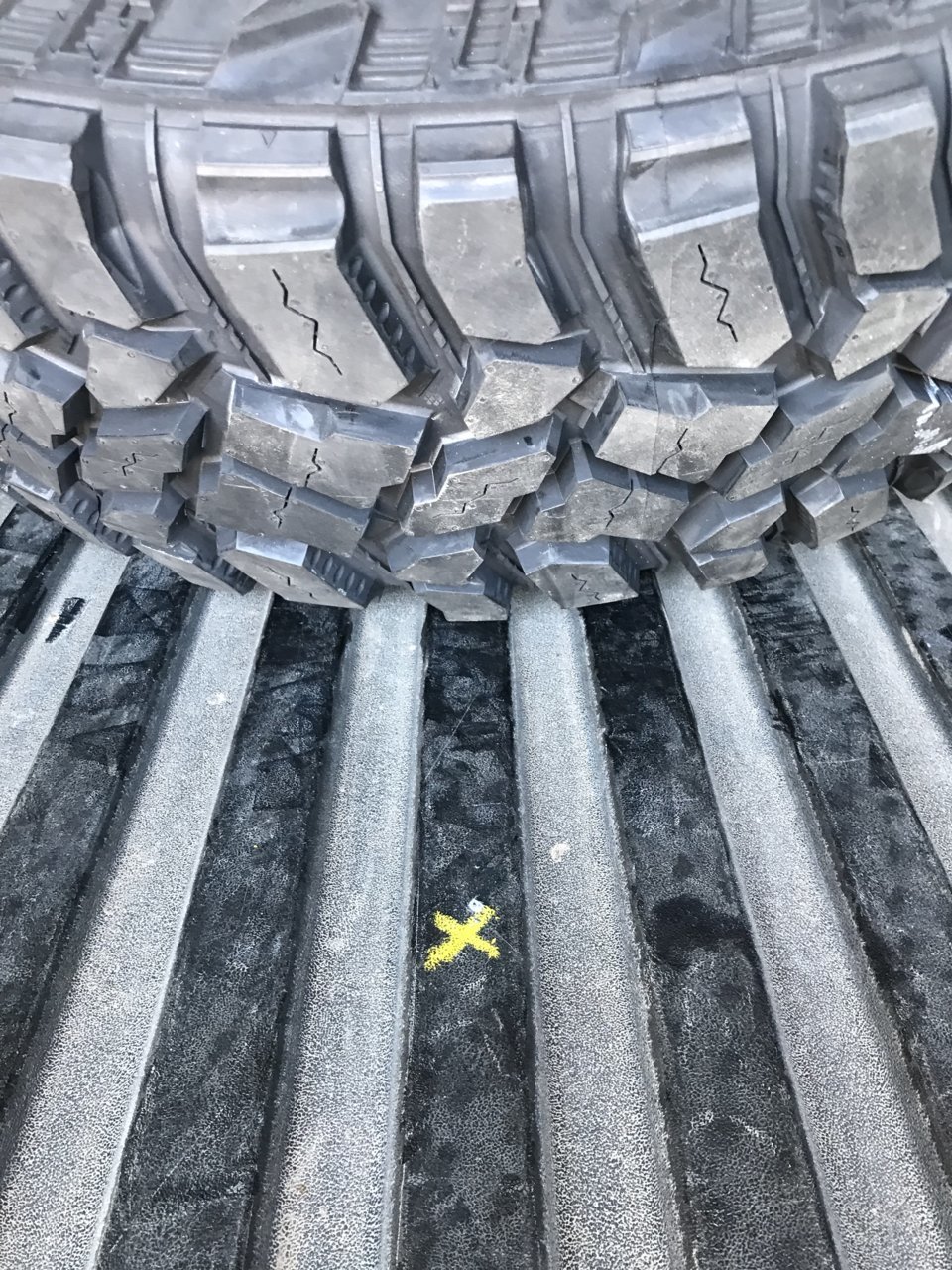

    5. 1 hole drilled about 12-16 inches down the bed from the furthest most middle hole in step 4. This d ring and the one from step 4. Are used to secure the bottle jack down nice and tight so it doesn’t rattle around or move at all.——————

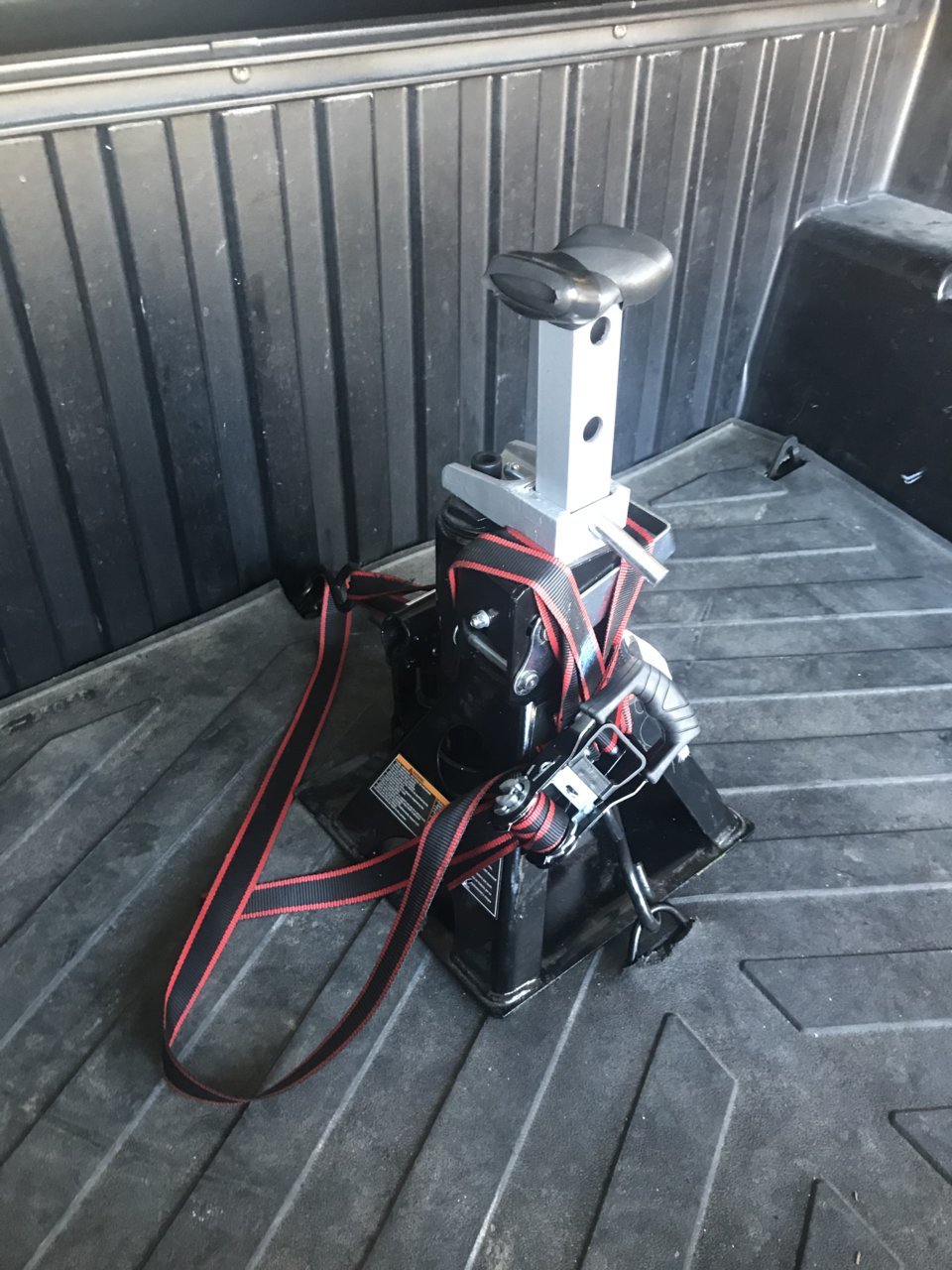

    6. Mock up your bottle jack, ratchet strap it down with the head of the jack at your desired setting (I chose the 3rd hole/highest resting setting for my needs and desired angles)

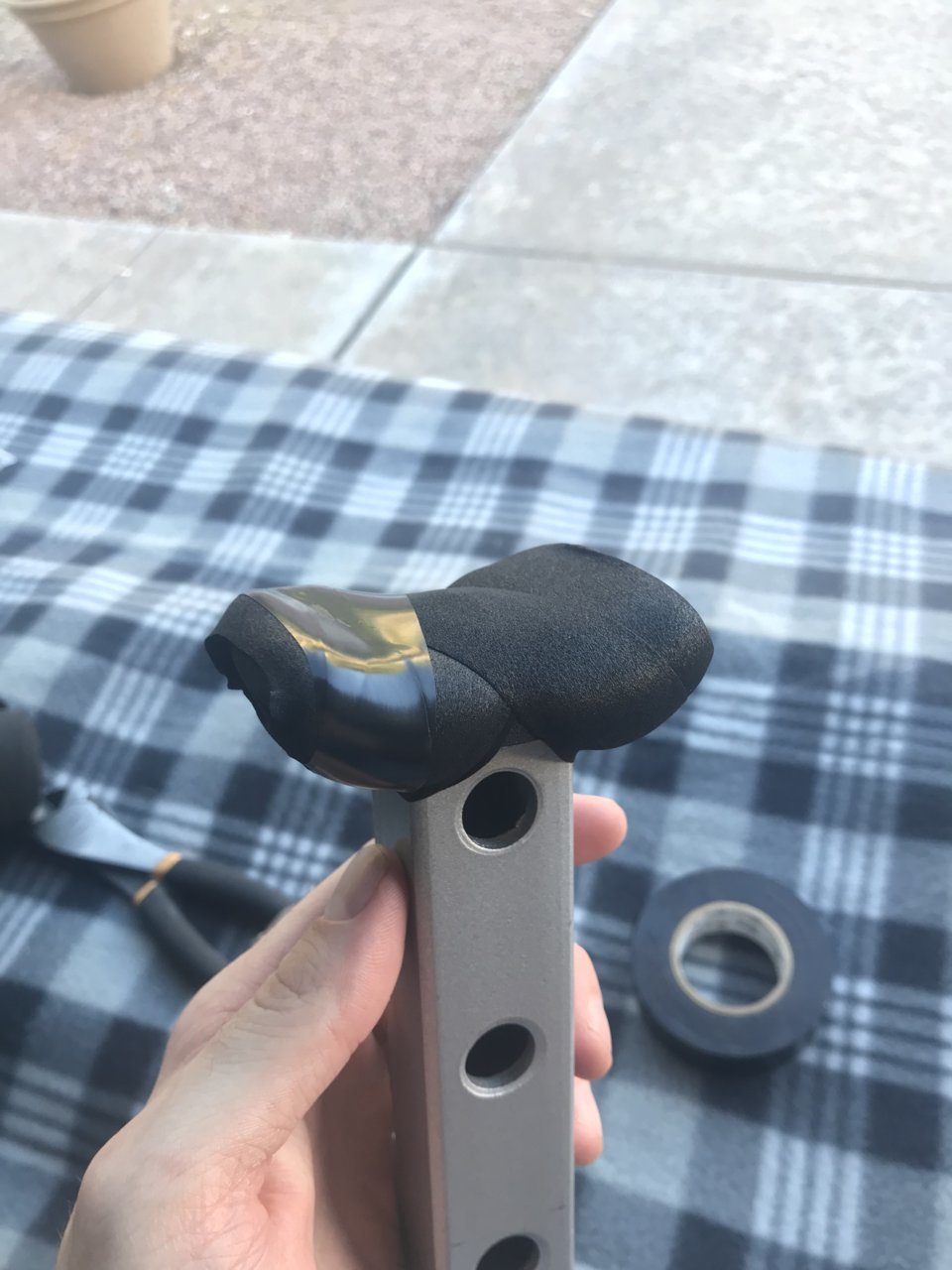

    7. Pad/cushion the head of the jack so it doesn’t mar up your wheel. (I used road-bicycle foam bar tape, this can be purchased on eBay or Amazon for like $5, or just use your own solution)

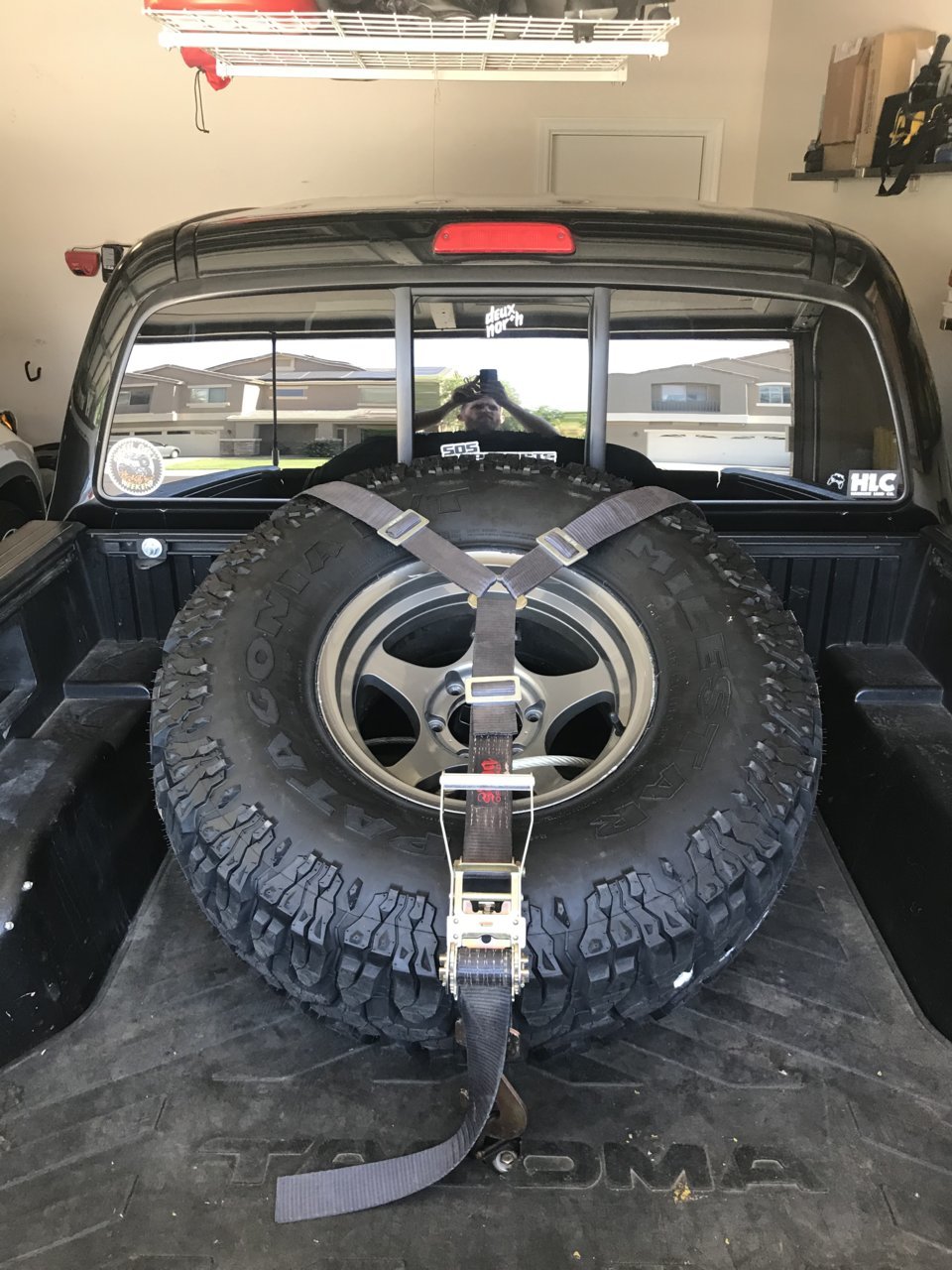

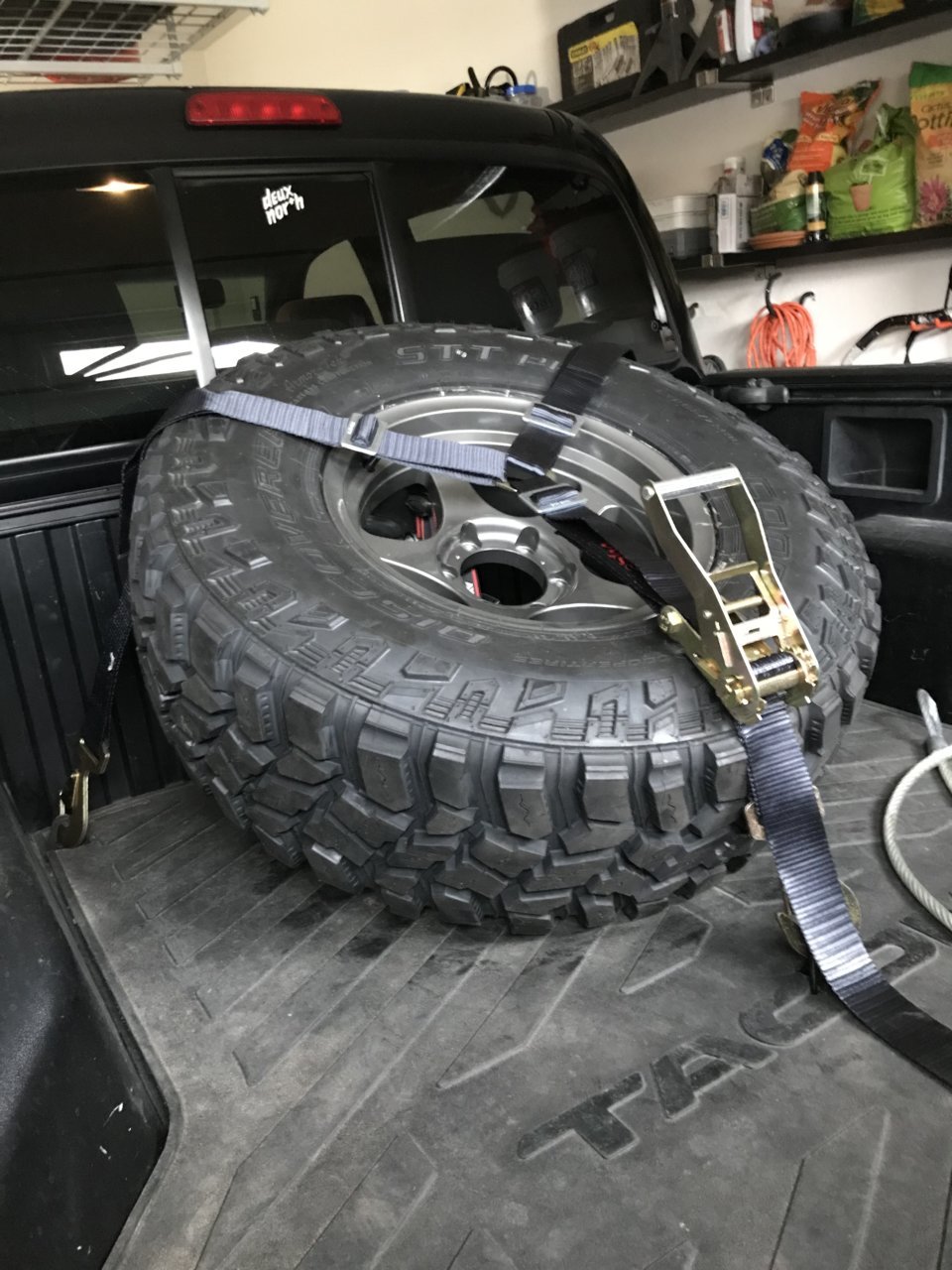

    8. Rest the wheel on the jack & lay the Y strap over it, adjust accordingly and use the ratchet mechanism to get it good and tight.
    9. Lock it up in any way you choose. I am using a long cable lock through the wheel and even the jack base plate, with a padlock to one of the corner Bed mount d rings but there are many options for his.
    10. Enjoy your spare mount and the way it looks and functions and how little it cost you.


    As of June 2019 I am using this same setup with the following changes

    -315/75r16 tire now mounted
    -no longer using a ratchet strap to hold the jack down. Only using the weight of the spare and the tension on the Y strap.



    Last edited: Jun 17, 2019
  2. Jan 17, 2019 at 11:35 PM
    #2
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    Update as of 6/2019 I am using this with a 315/75r16 with no issues. I even ditched the ratchet strap holding the jack down & am using only the weight of the spare and the ratchet straps to hold it down.


    43092EE7-B388-441B-82EF-24AAAF5791B2.jpg 96C28880-E51C-4FBE-94B3-C5BCB8E6E357.jpg 1B1E3A28-32C6-4002-B0B3-72B73C768B70.jpg

    D3528D06-0843-428A-9818-AE63823D63EE.jpg 76FA9D32-1E86-48CC-BCCC-C65C128D2529.jpg 44649E36-1A73-4321-B48D-EB57C4F204F6.jpg 04EEA22A-ABD9-48CE-8BD8-BD7CBD23C342.jpg 8251B508-6518-45D1-9D48-BF7D92B3EE4D.jpg 9A866643-432F-4ED4-BDF8-B926F5B01334.jpg 81802E57-D2CB-40E9-919E-59568EC467B0.jpg

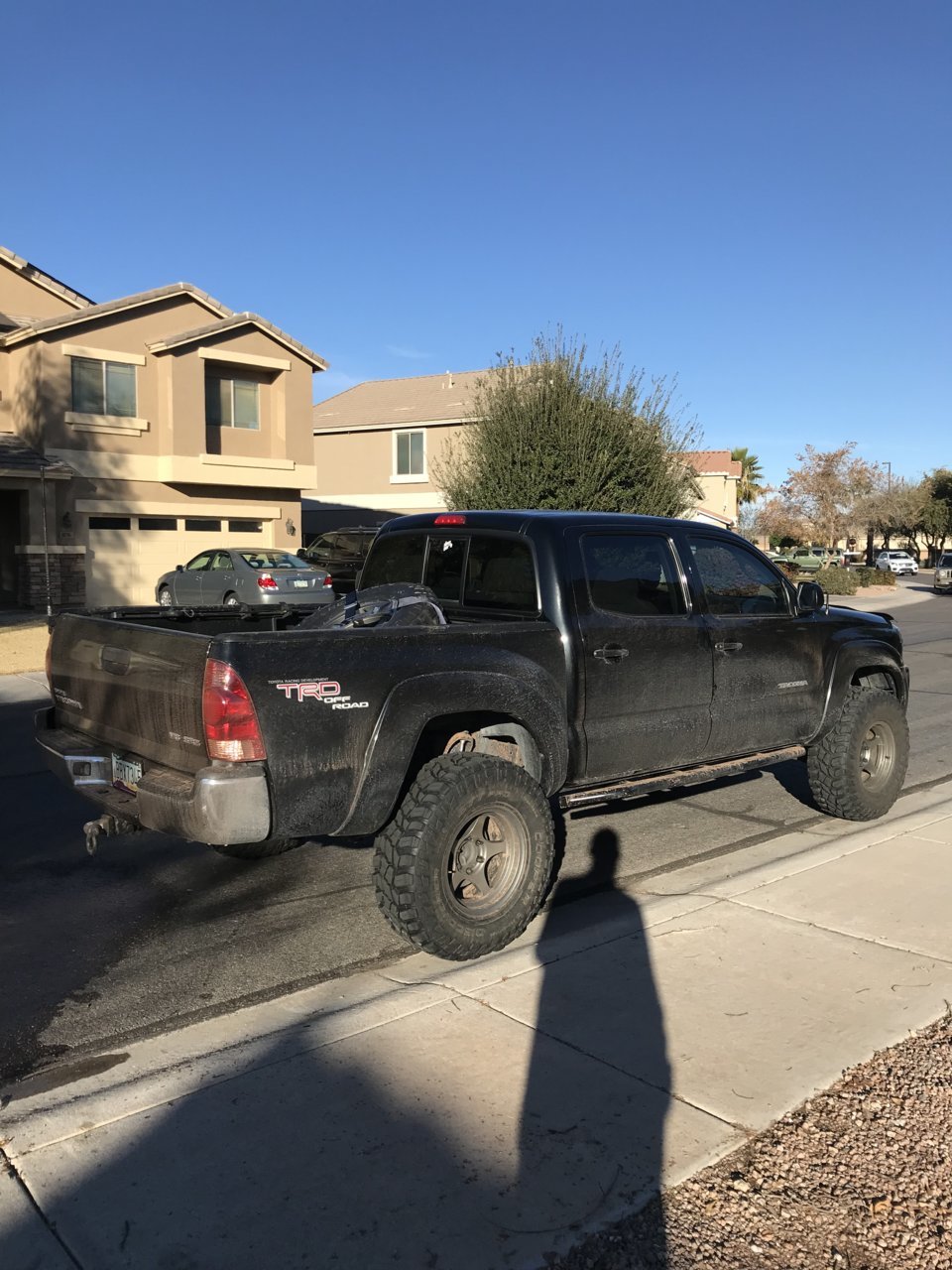

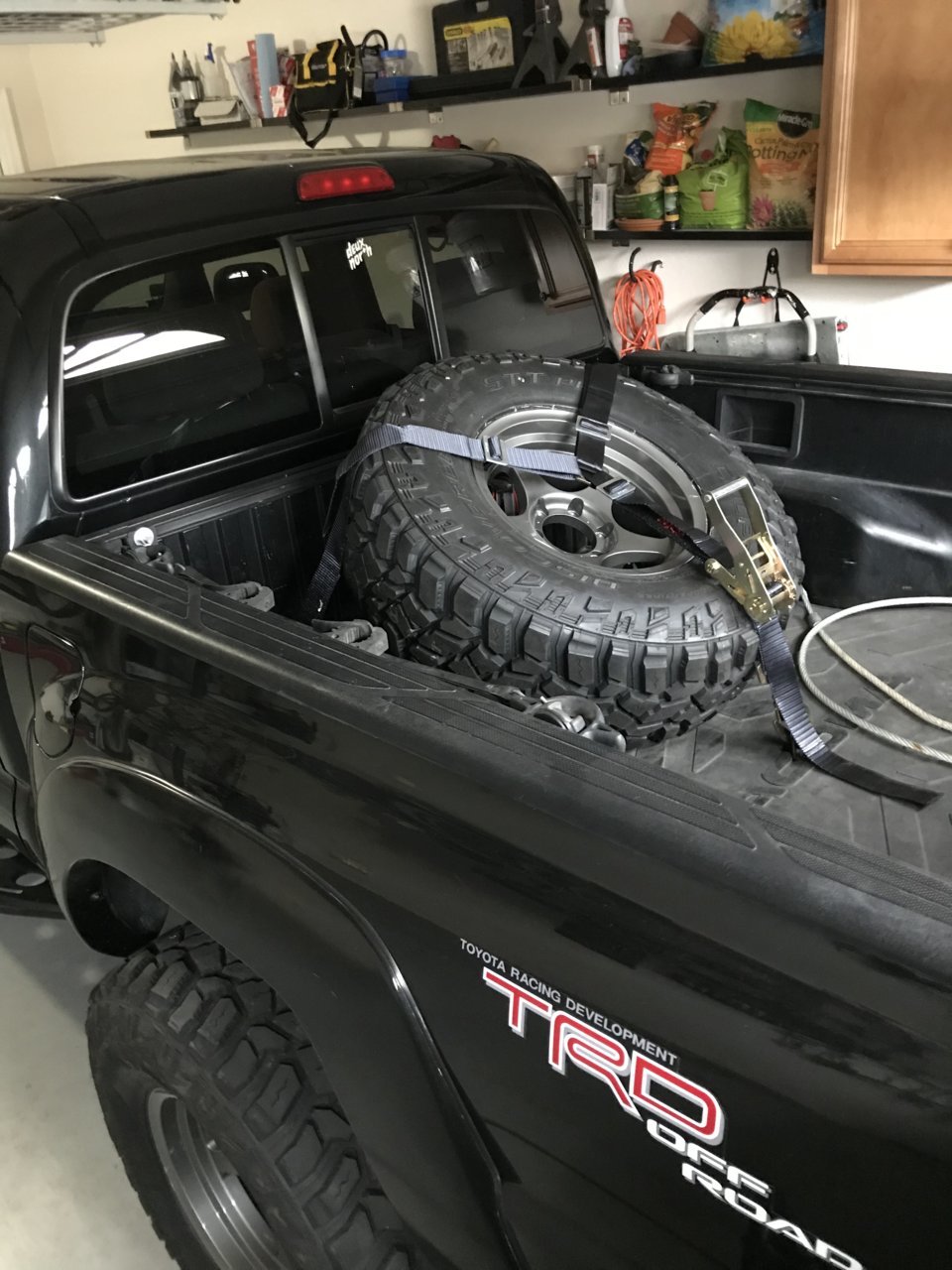

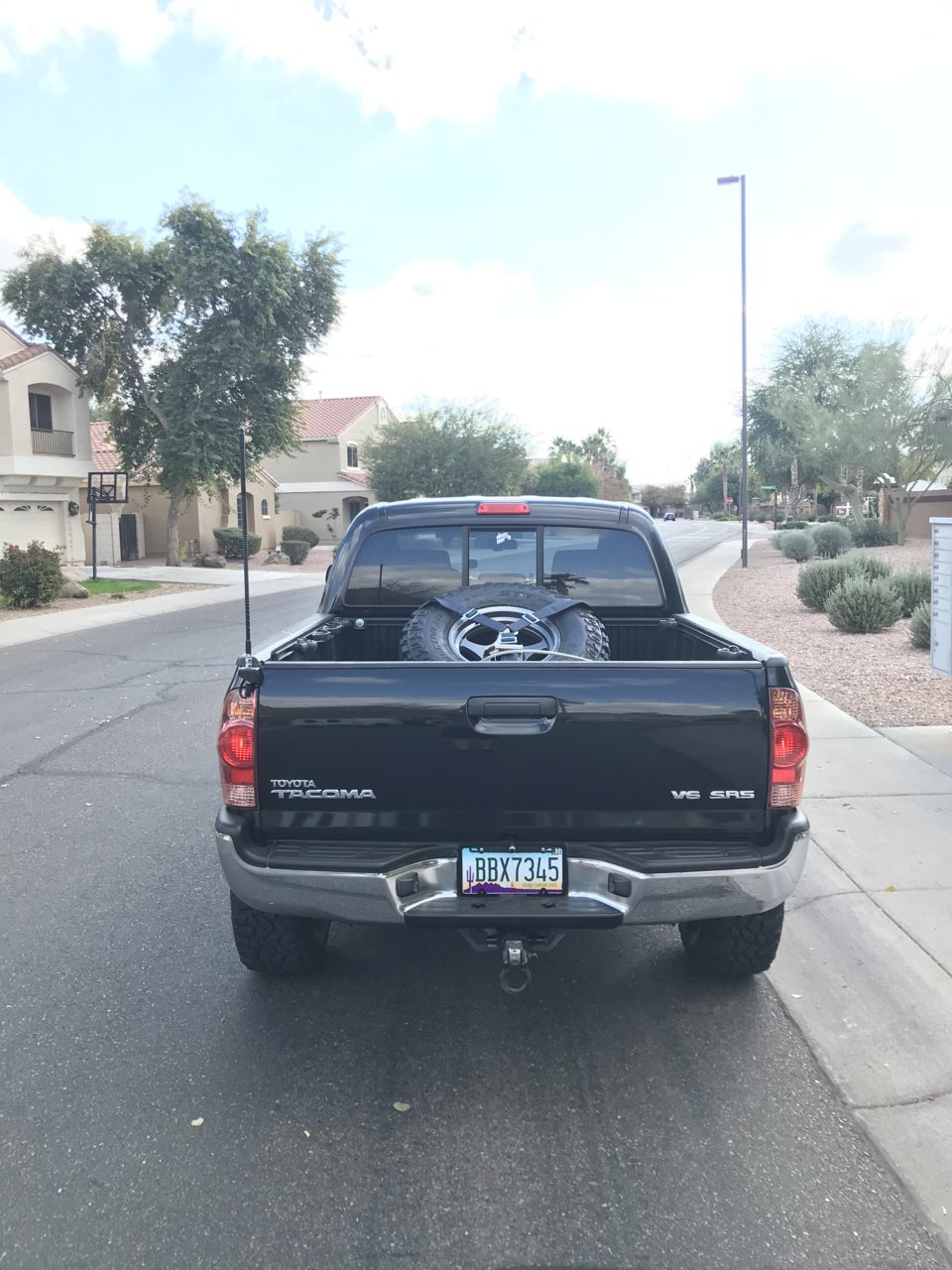

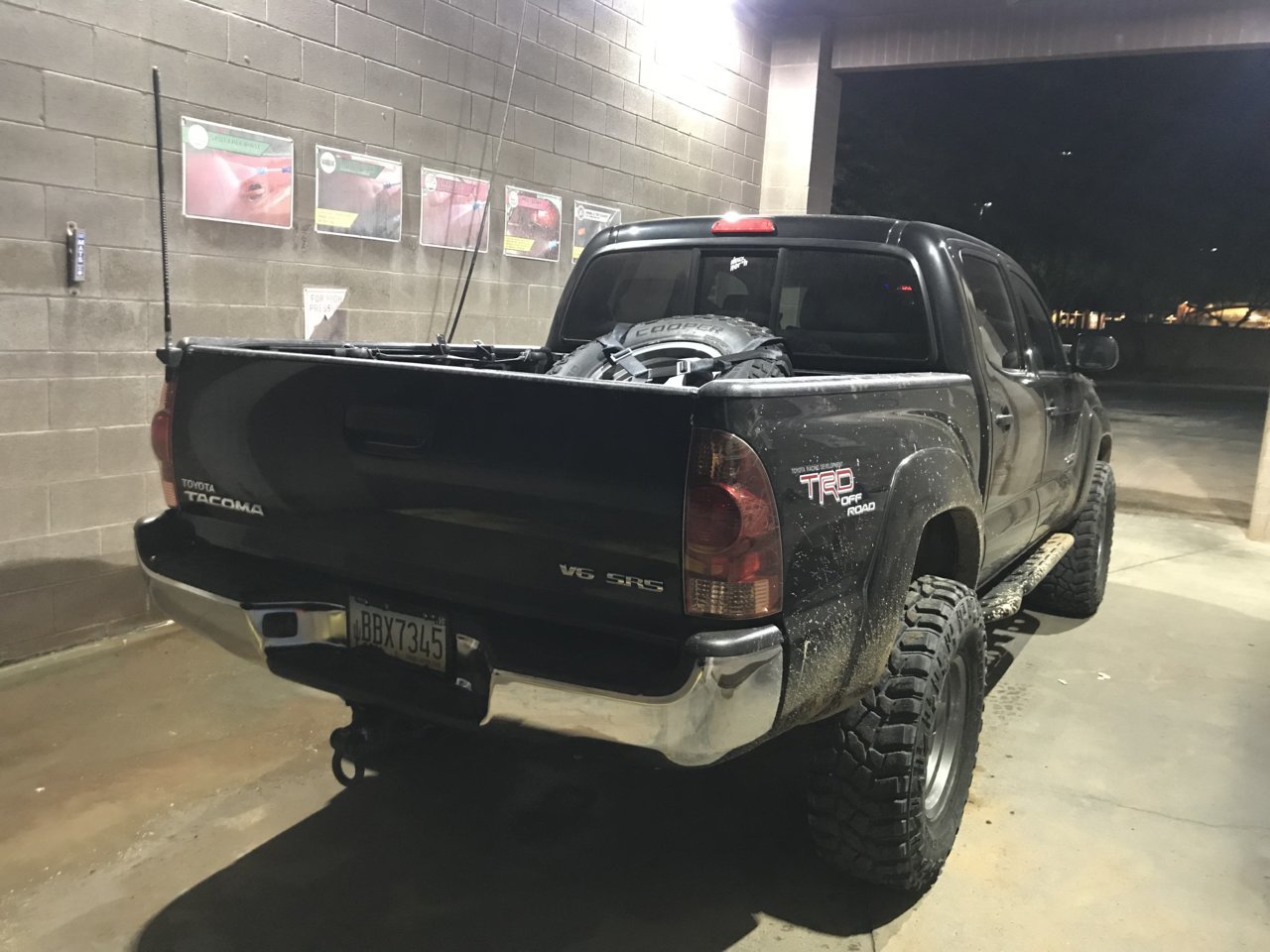

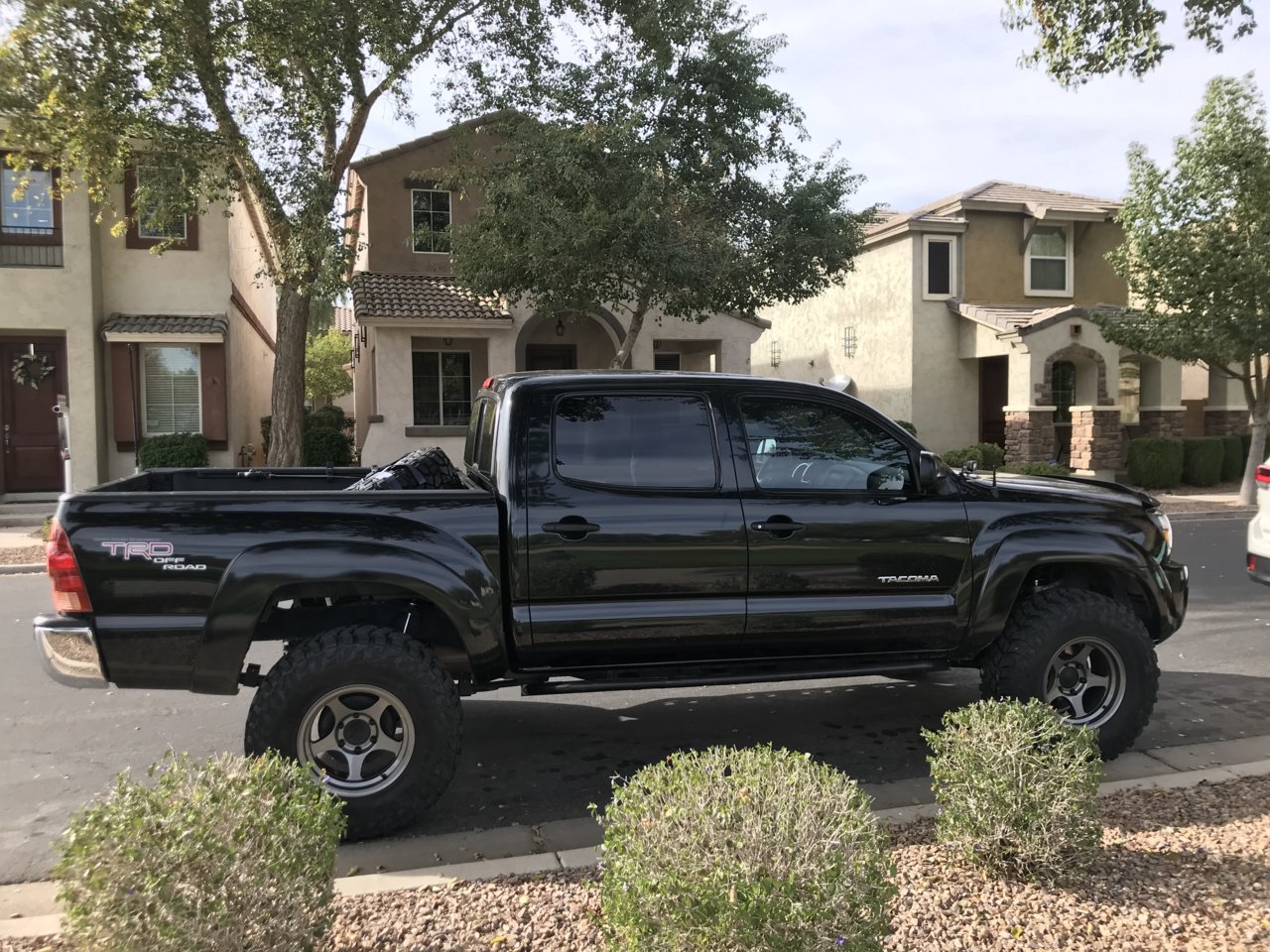

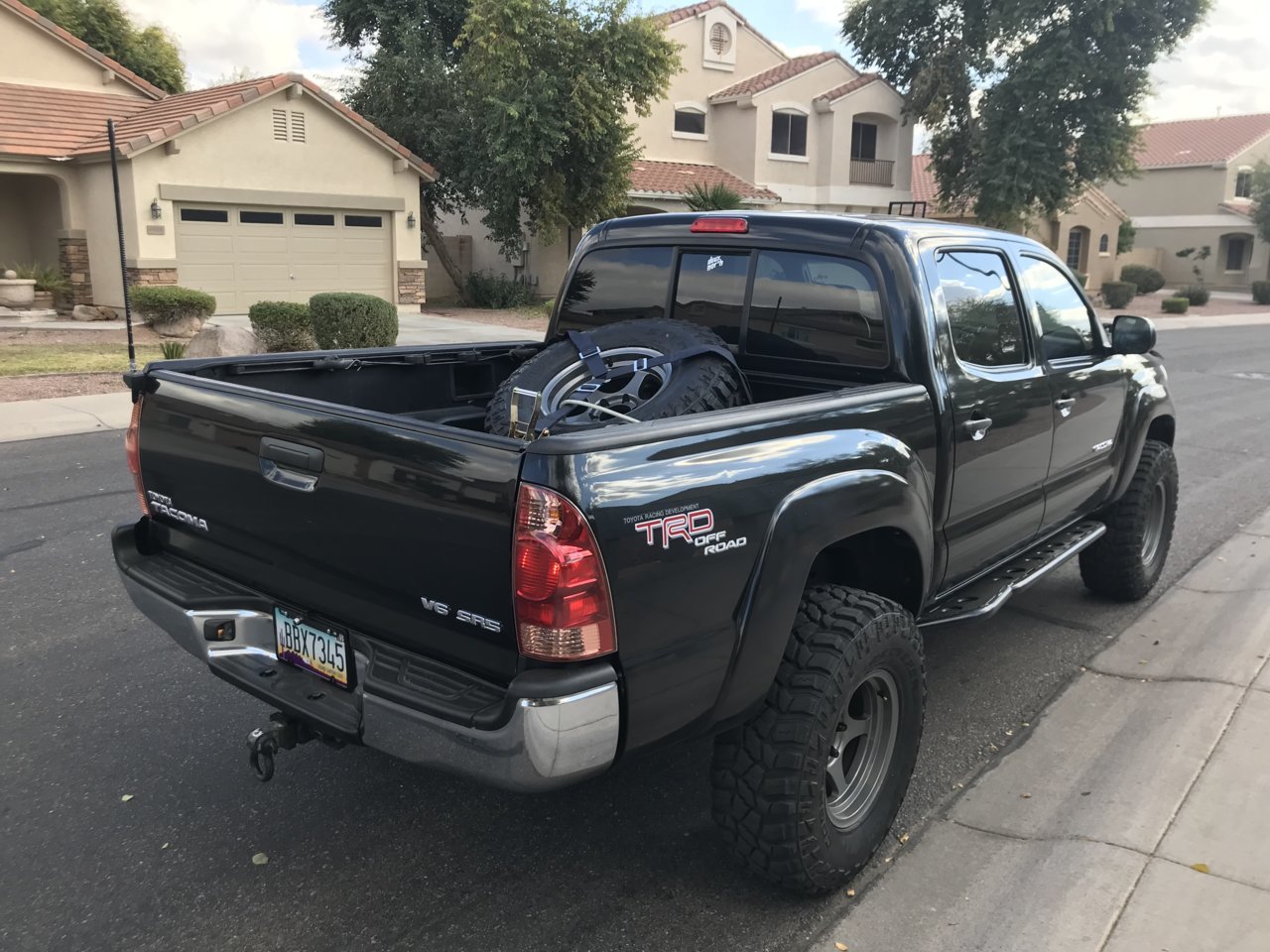

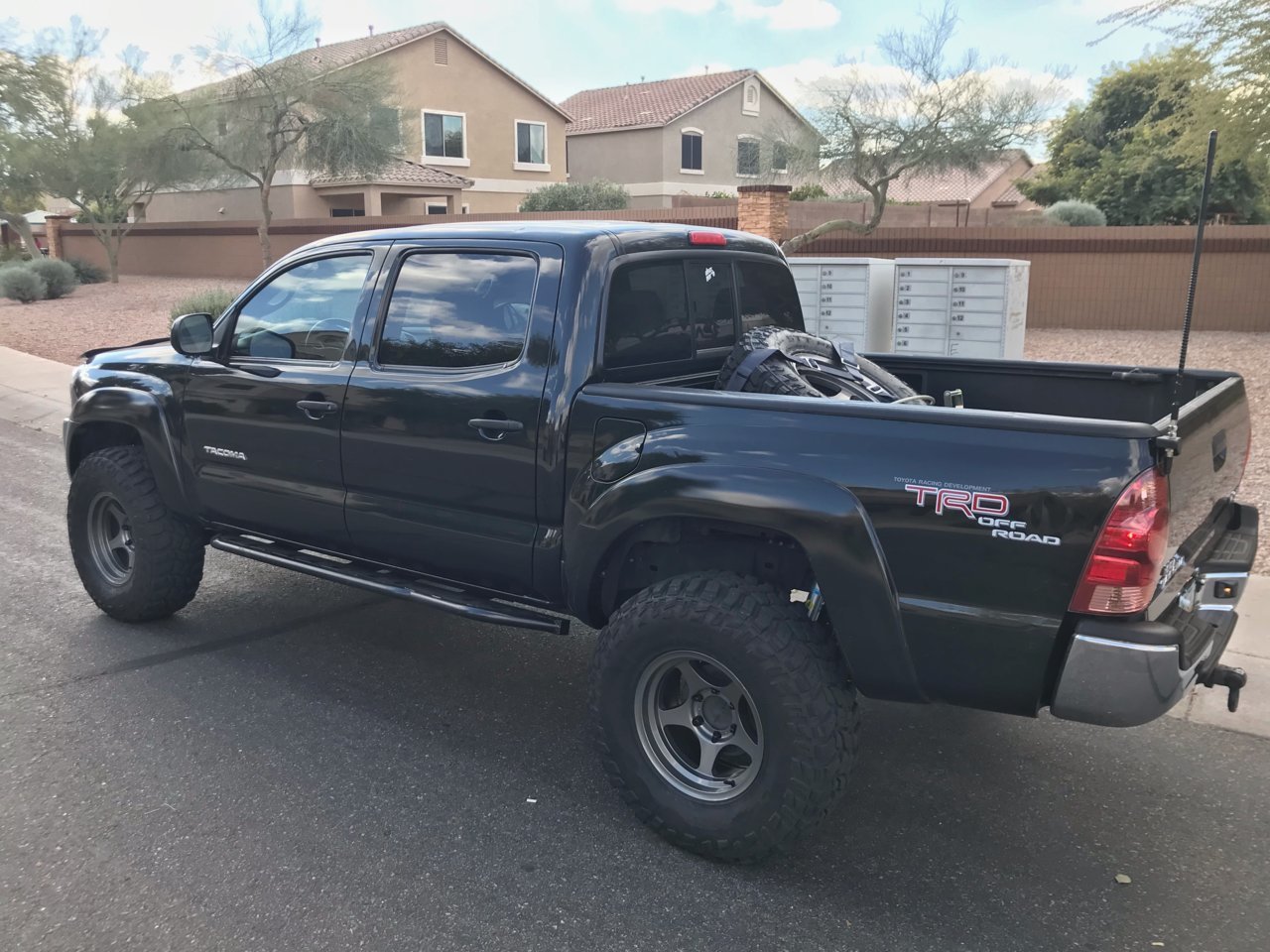

    Finished product

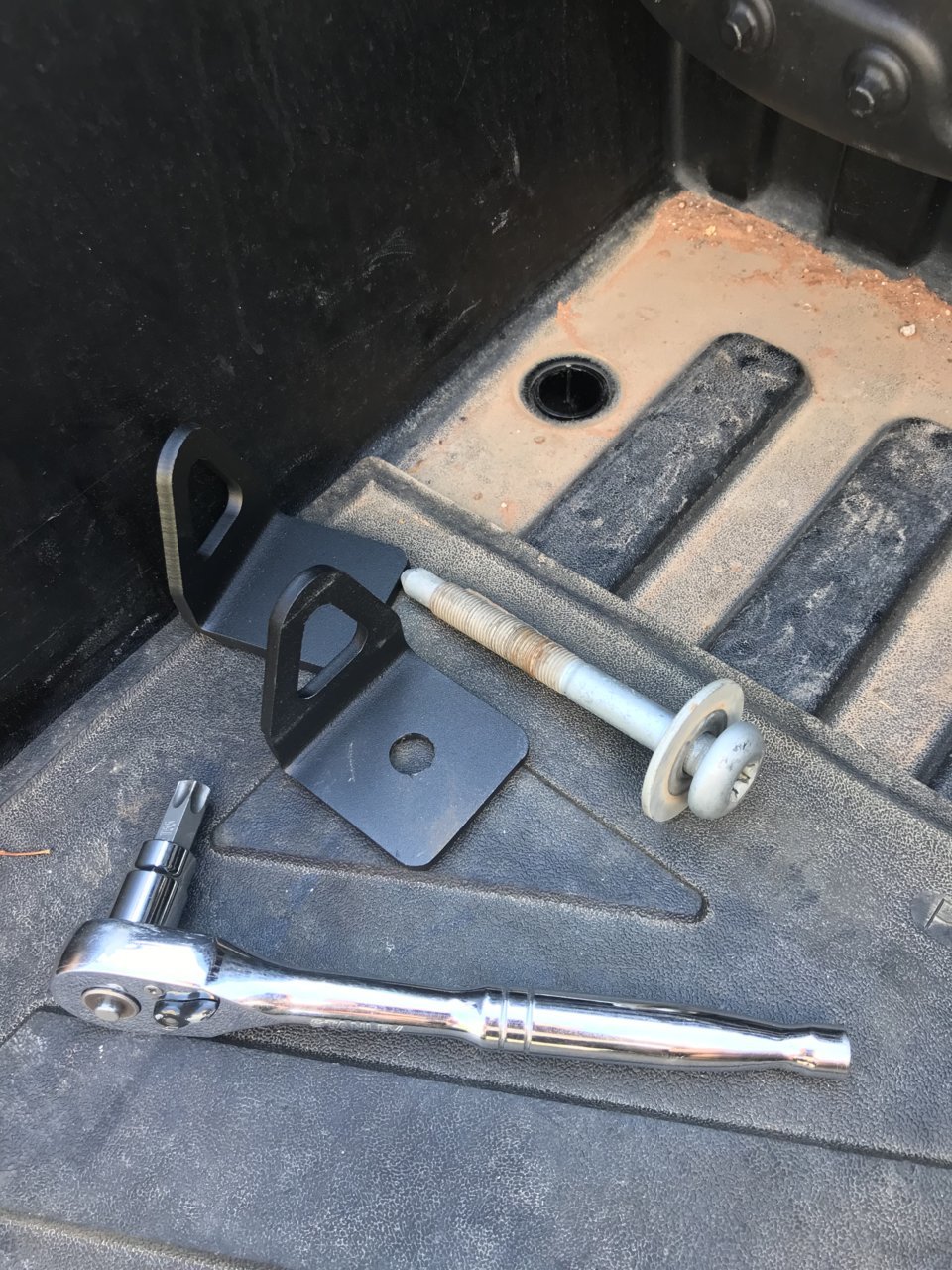

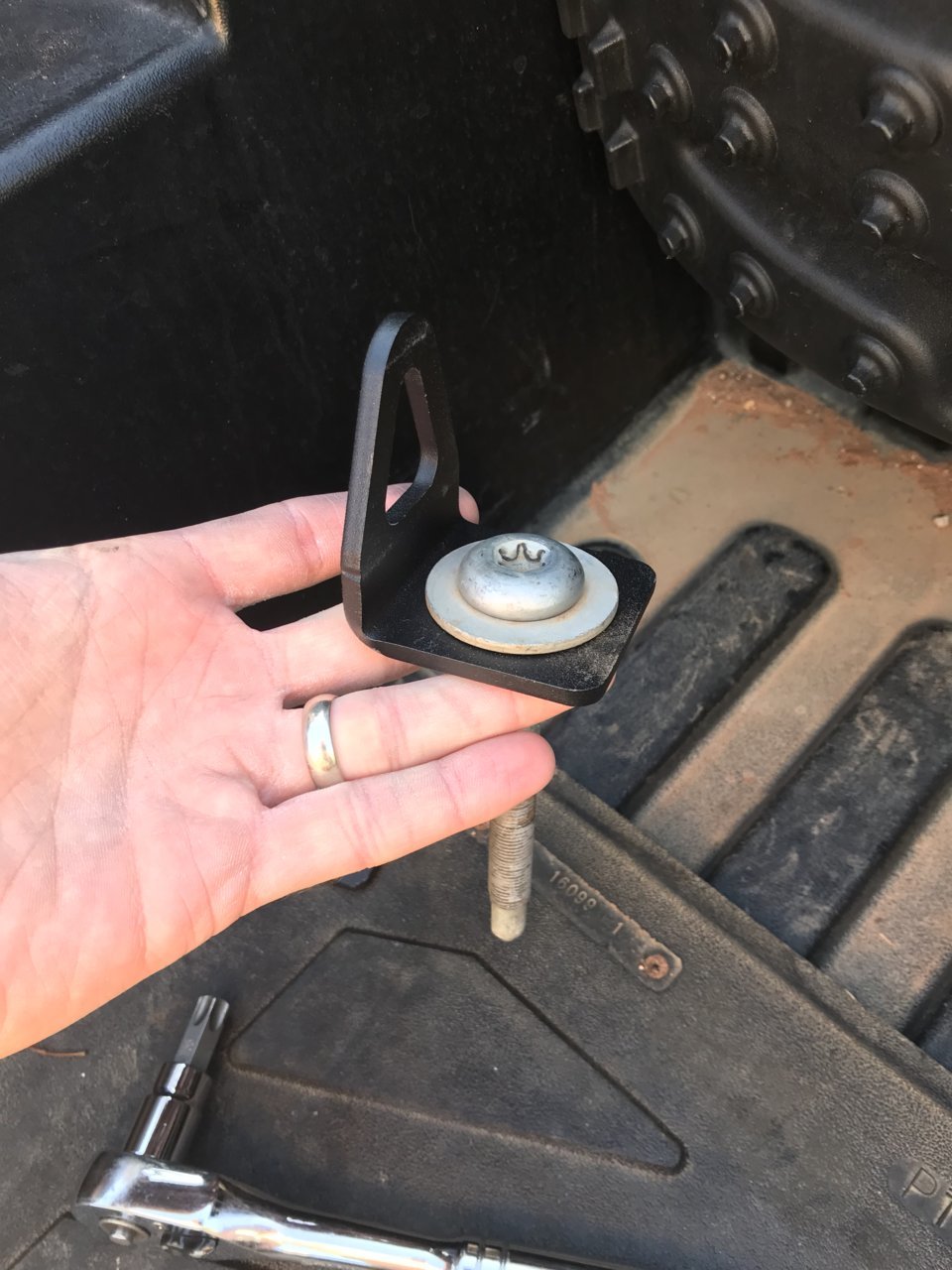

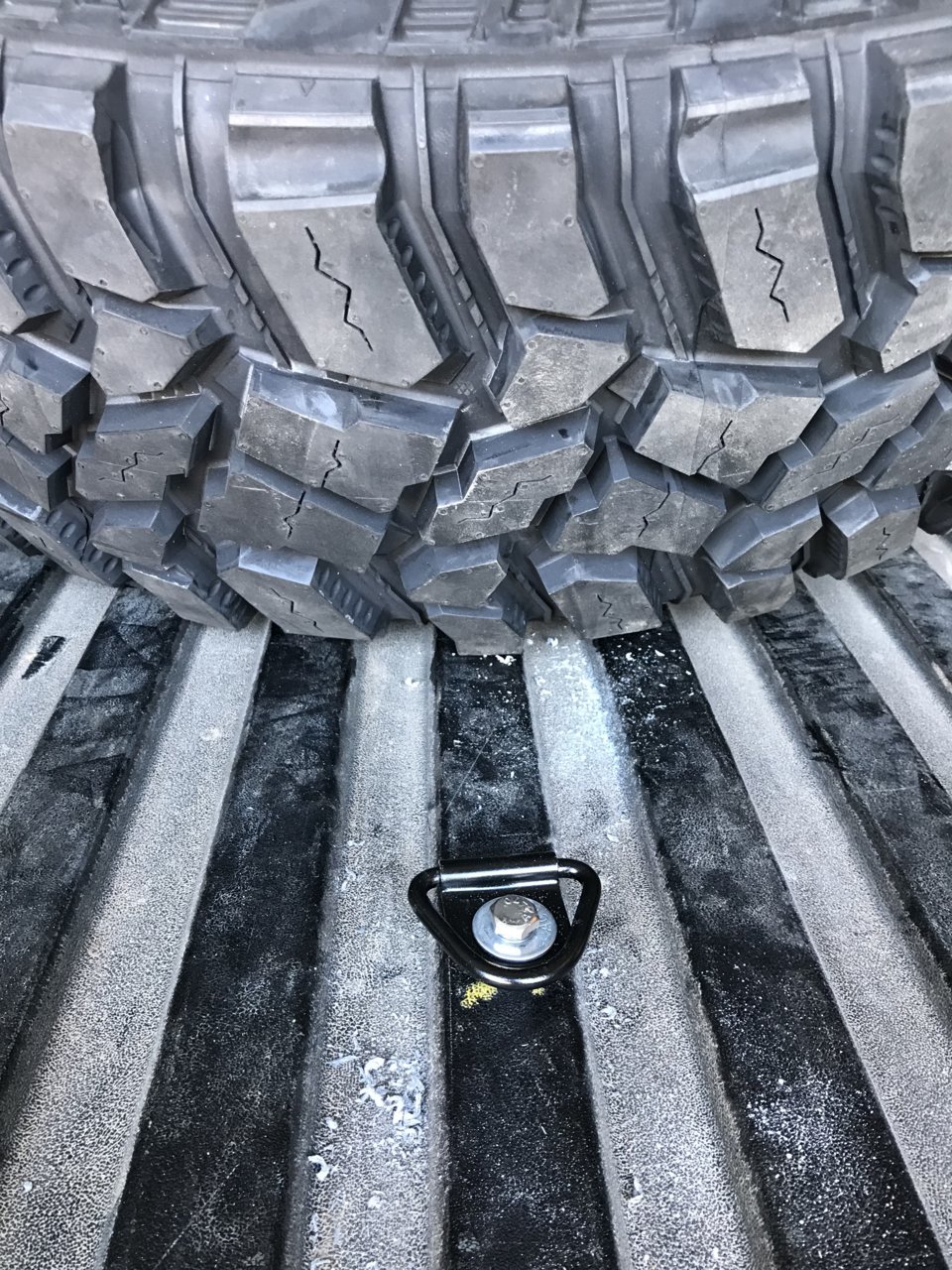

    Here are the corner bed bolt d rings added thanks to Cali rasised $20 pair

    767D7723-9125-4AA0-B76E-221DCB5546D2.jpg 9121BE2C-020D-4BEA-AFFC-4CAC9AD24F7B.jpg

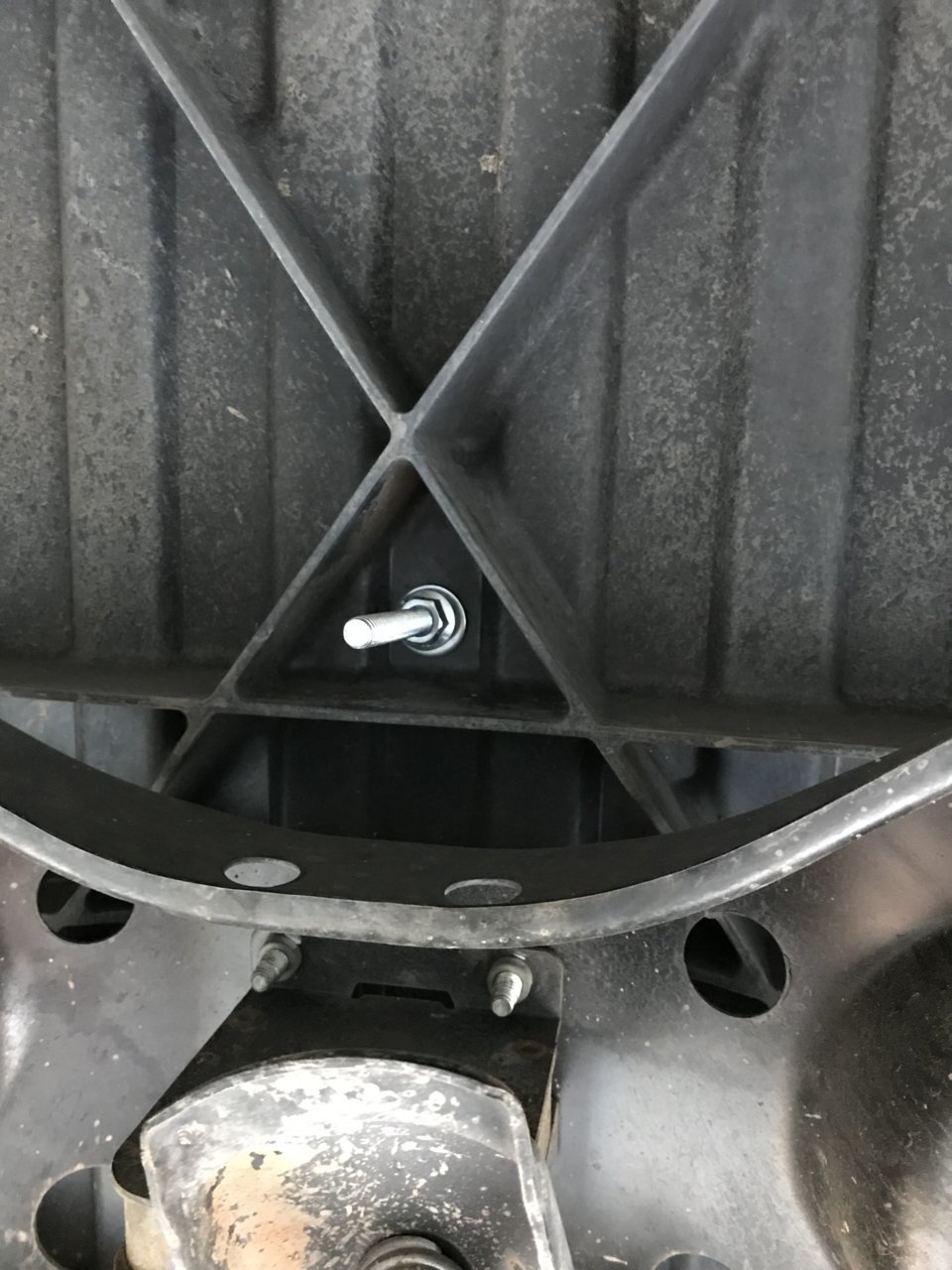

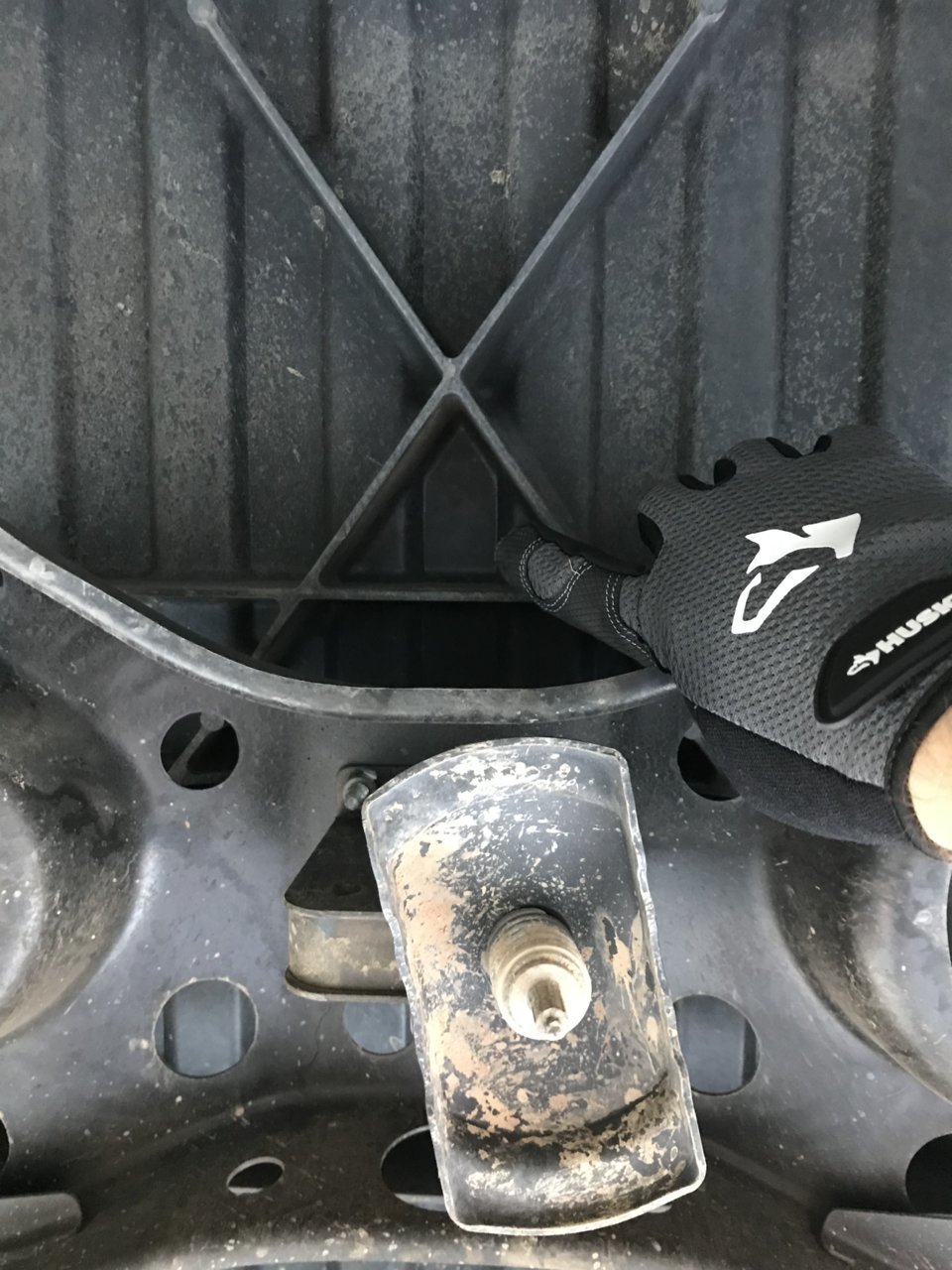

    Here is the Y strap d ring added to the reinforced sturdy little triangle under the bed.

    FDB6C419-31E1-4837-AA17-0ADA9E3BC59A.jpg 81A4D595-13D7-48F2-8C68-5315AF44C318.jpg 86C0F9C1-0D22-4812-9013-3B11DEB8A93A.jpg 6E9AD965-DE6E-4258-8421-DA958F1945CE.jpg




    Last edited: Jun 17, 2019
  3. Jan 17, 2019 at 11:40 PM
    #3
    cali04intx

    cali04intx Hung like Einstein, smart as a horse

    Joined:
    Nov 21, 2016
    Member:
    #202941
    Messages:
    388
    Gender:
    Male
    First Name:
    Djesse
    Left Coast!..The Best Coast.
    Vehicle:
    '04 DC V6
    Sounds like it LOOKS pretty cool.

    Edit: thanks for the pics. Looks good!

  4. Jan 17, 2019 at 11:41 PM
    #4
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount

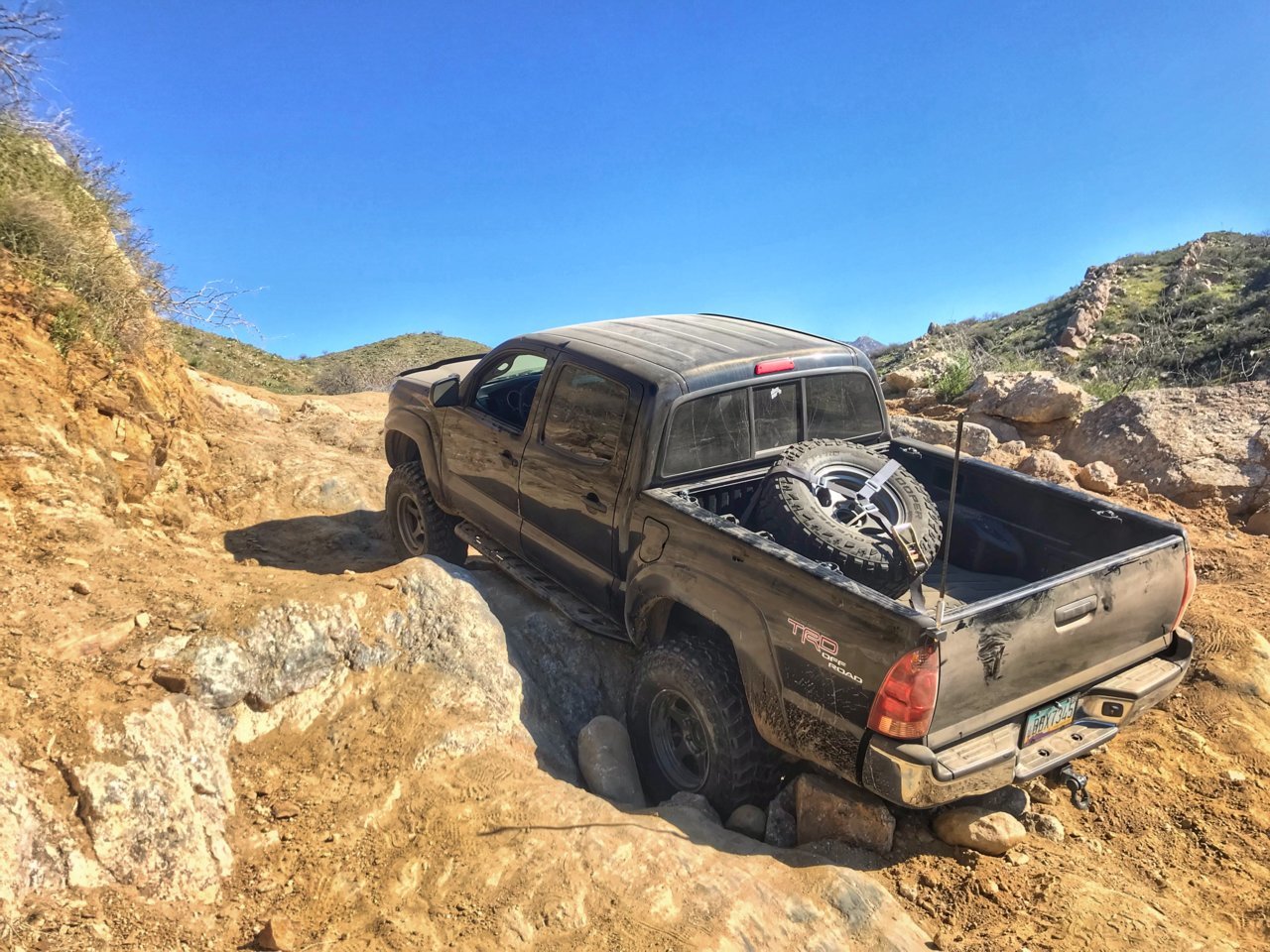

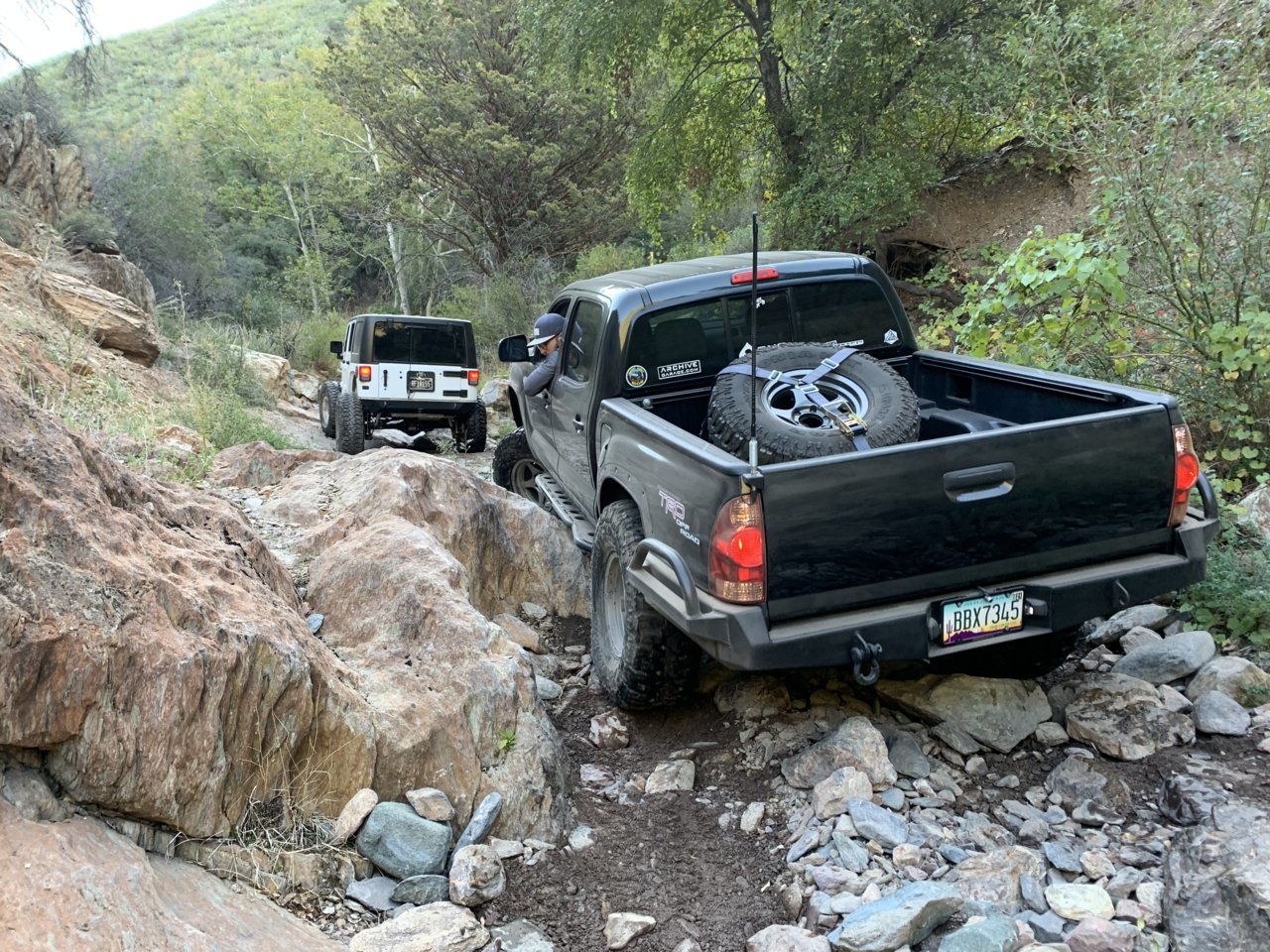

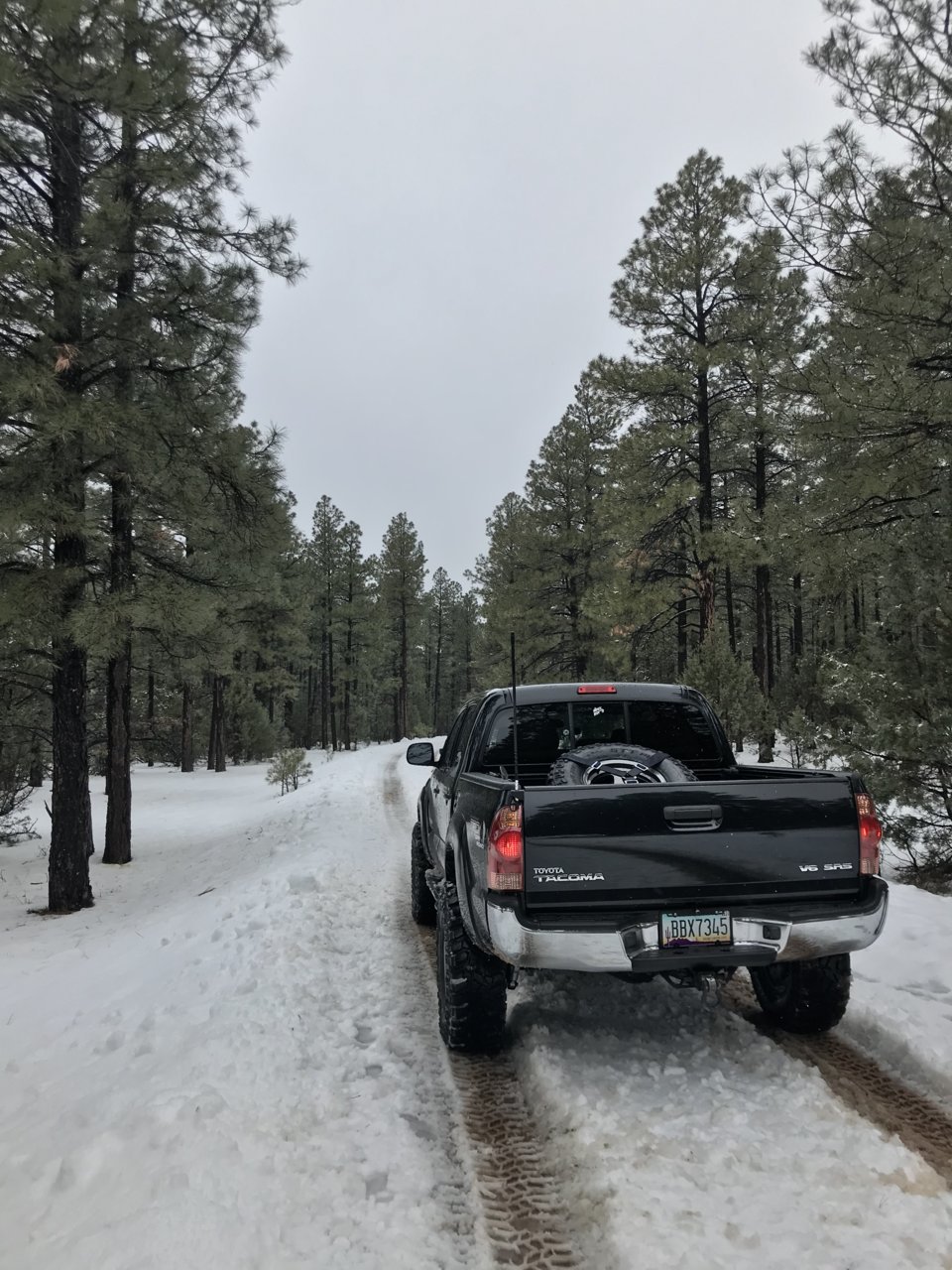

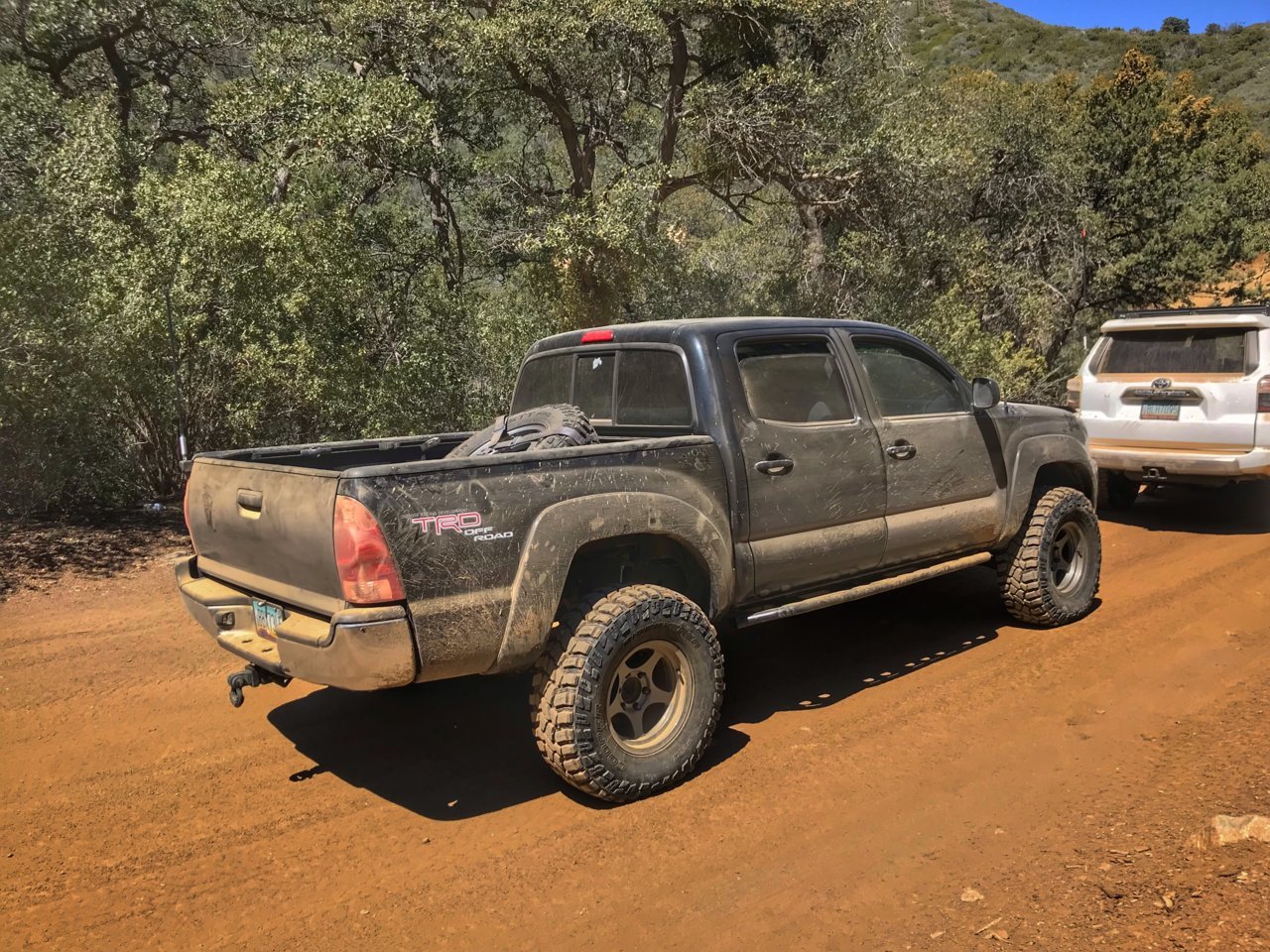

    I trail tested it and so far, it holds up like an absolute rock solid champ. More than looks. It’s all form and function!

    cali04intx likes this.
  5. Feb 14, 2019 at 8:31 PM
    #5
    protacodan

    protacodan Well-Known Member

    Joined:
    Oct 6, 2017
    Member:
    #232200
    Messages:
    634
    Gender:
    Male
    GILROY Ca.
    Vehicle:
    2017 Tacoma TRD PRO
    285/75/16 KM3’s. Cali Raised rock sliders Revtek 427AP lift kit Victory 4x4 Strike bumpers Warn VR8S winch
    Thanks for the idea going to look into this or something close

    singletrack_ftw [OP] likes this.
  6. Feb 14, 2019 at 9:16 PM
    #6
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    Holding strong and steady. Rotated my tires yesterday and took the spare out of the bed and put one of the others up there.


    protacodan likes this.
  7. Mar 26, 2019 at 12:49 PM
    #7
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    Still holding strong.


    MattCowsmasher and JKU3000 like this.
  8. Jun 23, 2019 at 6:03 PM
    #8
    HokieHT07

    HokieHT07 Well-Known Member

    Joined:
    Jul 21, 2011
    Member:
    #60267
    Messages:
    120
    Gender:
    Male
    Vehicle:
    08 DCSB TRD Off Road

    Any issues with that jack? The Amazon reviews make it seem like it leaks a lot. Otherwise, I really like your set up.

  9. Jun 23, 2019 at 7:15 PM
    #9
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    No issues whatsoever. No leaking.

    HokieHT07 likes this.
  10. Jun 23, 2019 at 9:24 PM
    #10
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    And the one I bought was from Home Depot. I don’t remember seeing it on Amazon

    HokieHT07 likes this.
  11. Jun 24, 2019 at 7:04 AM
    #11
    HokieHT07

    HokieHT07 Well-Known Member

    Joined:
    Jul 21, 2011
    Member:
    #60267
    Messages:
    120
    Gender:
    Male
    Vehicle:
    08 DCSB TRD Off Road
    Thanks. I'm upgrading the suspension and wheels this week. I'll have to swing by Home Depot and check it out.

    singletrack_ftw [OP] likes this.
  12. Jun 24, 2019 at 9:03 AM
    #12
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    My store didn’t have them in stock. Only online.

    HokieHT07 likes this.
  13. Jun 24, 2019 at 10:10 AM
    #13
    HokieHT07

    HokieHT07 Well-Known Member

    Joined:
    Jul 21, 2011
    Member:
    #60267
    Messages:
    120
    Gender:
    Male
    Vehicle:
    08 DCSB TRD Off Road
    Good to know. Thanks.

  14. Jul 20, 2019 at 8:59 PM
    #14
    Taco-Obsessed

    Taco-Obsessed Wildlife Peeping Tom

    Joined:
    Dec 23, 2018
    Member:
    #276756
    Messages:
    5,760
    Gender:
    Male
    First Name:
    Shawn
    San Jose
    Vehicle:
    2015 4x4 DCLB: Work in Progress
    Never ending
    singletrack_ftw [OP] likes this.
  15. Jul 20, 2019 at 9:29 PM
    #15
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount
    Same for mine. I ordered online

  16. Jul 27, 2019 at 4:00 PM
    #16
    hx989

    hx989 Church of @ODNAREM - Pacific Northwest Chapter

    Joined:
    Feb 6, 2016
    Member:
    #177349
    Messages:
    5,439
    Olympic Peninsula
    Lol!:rofl:

  17. Apr 29, 2020 at 5:23 PM
    #17
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    50,783
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT
    The more I look at this the more I love this. I know it kinda takes up bed space of which I now have less but dammit it looks cool.

    Taco-Obsessed and hx989 like this.
  18. May 21, 2020 at 11:50 AM
    #18
    singletrack_ftw

    singletrack_ftw [OP] “I chopped the wrong leaf!”

    Joined:
    Aug 27, 2017
    Member:
    #228223
    Messages:
    2,819
    Gender:
    Male
    First Name:
    Tyler
    AZ
    Vehicle:
    ‘08 TRD OR 4wd
    https://www.tacomaworld.com/threads/singletrack’s-‘dad-shred-build-thread’-i’m-just-doing-it-for-the-kids.619250/ Sos offroad sliders (kickout + filler) Sos offroad full belly skids (steel) Sos offroad front recovery point Sos offroad concepts HC rear bumper with bedside kickout tubes Marlin Crawler LCA frame brace kit Trail Gear rear diff cover Bilstein 5100 + OME 885 Total Chaos UCA BILSTEIN b110 OME Dakar standard pack Wheelers Ubolt flip kit Wheelers Superbump f/r Wheelers SS extended brake lines FN five star 16x8 -25 Milestar Patagonia MT 315/75r16 Custom projector retrofit (acme super h1 + morimoto 4300k) Baja Designs S2 sport ditch pods on CBI ditch pod mounts Amazon AMAK rock lights CMC CB radio hardmount

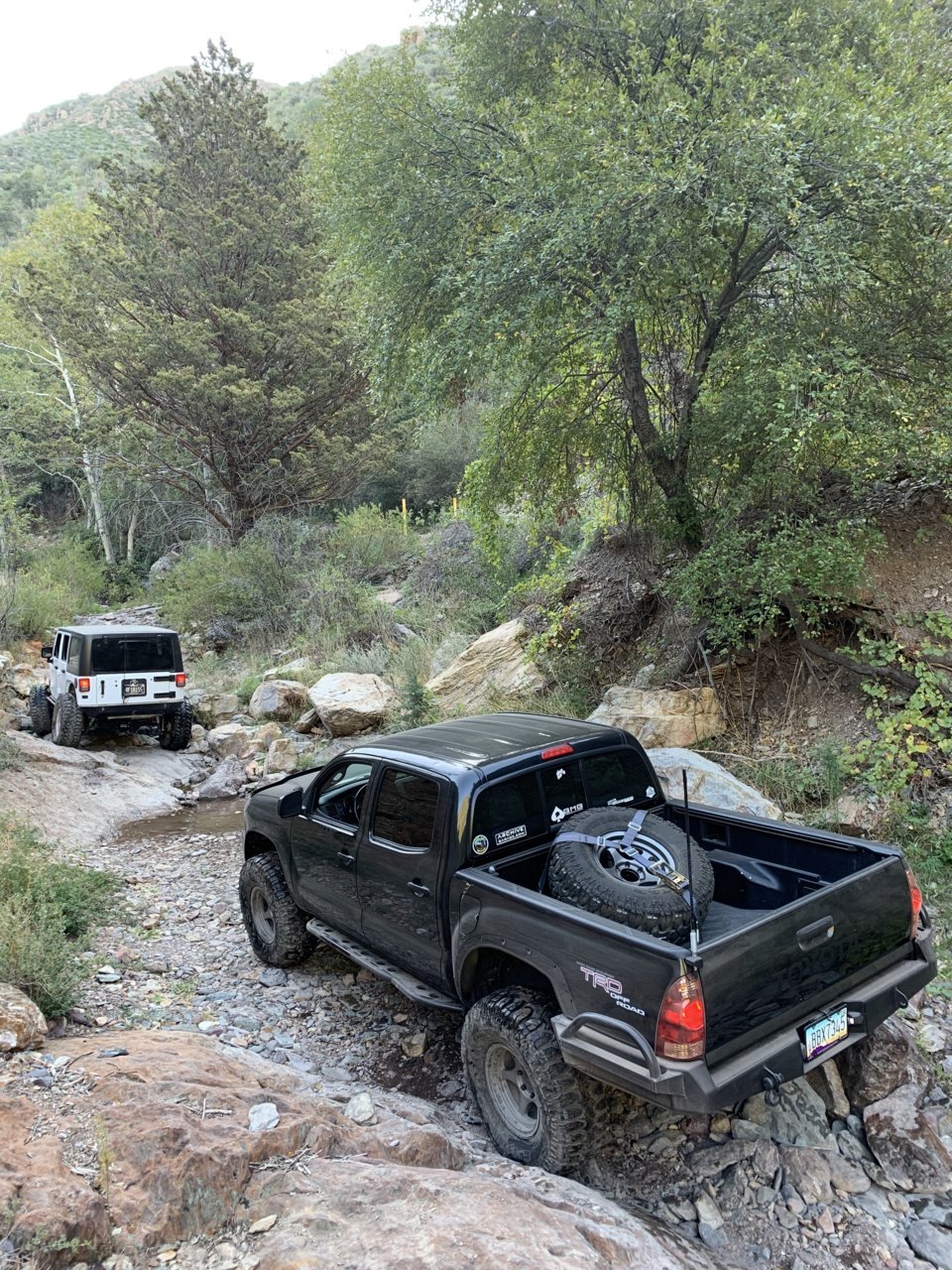

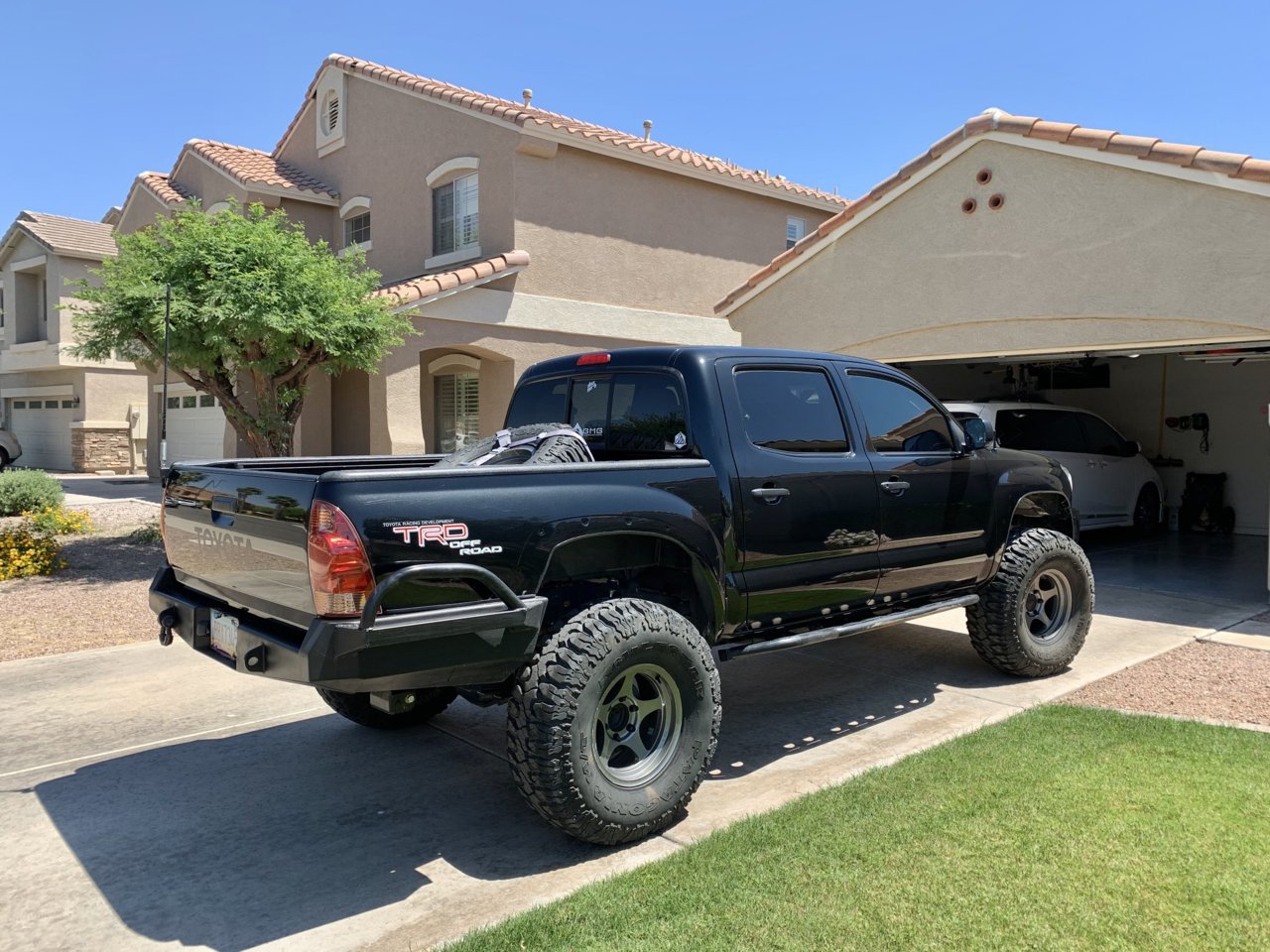

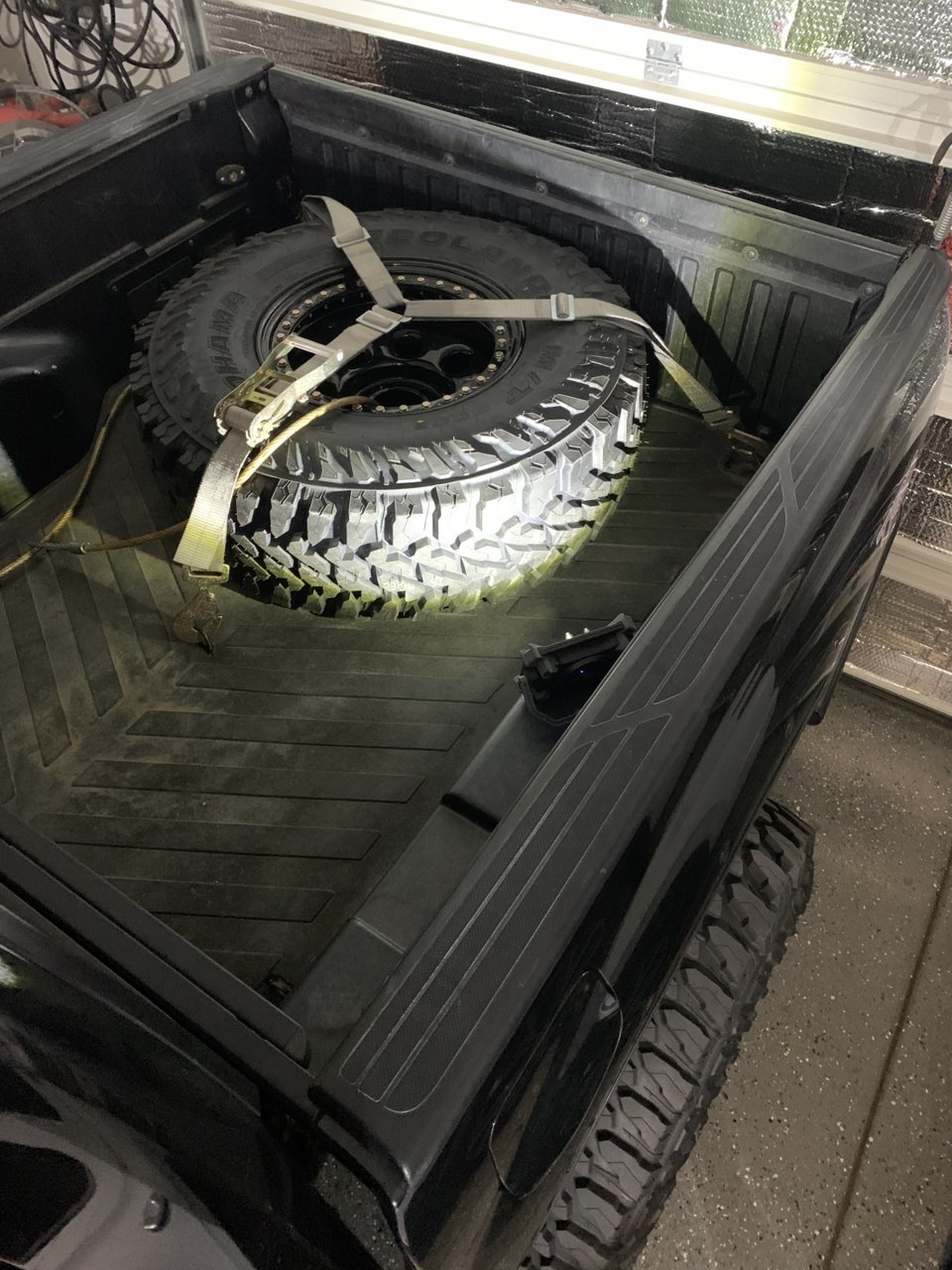

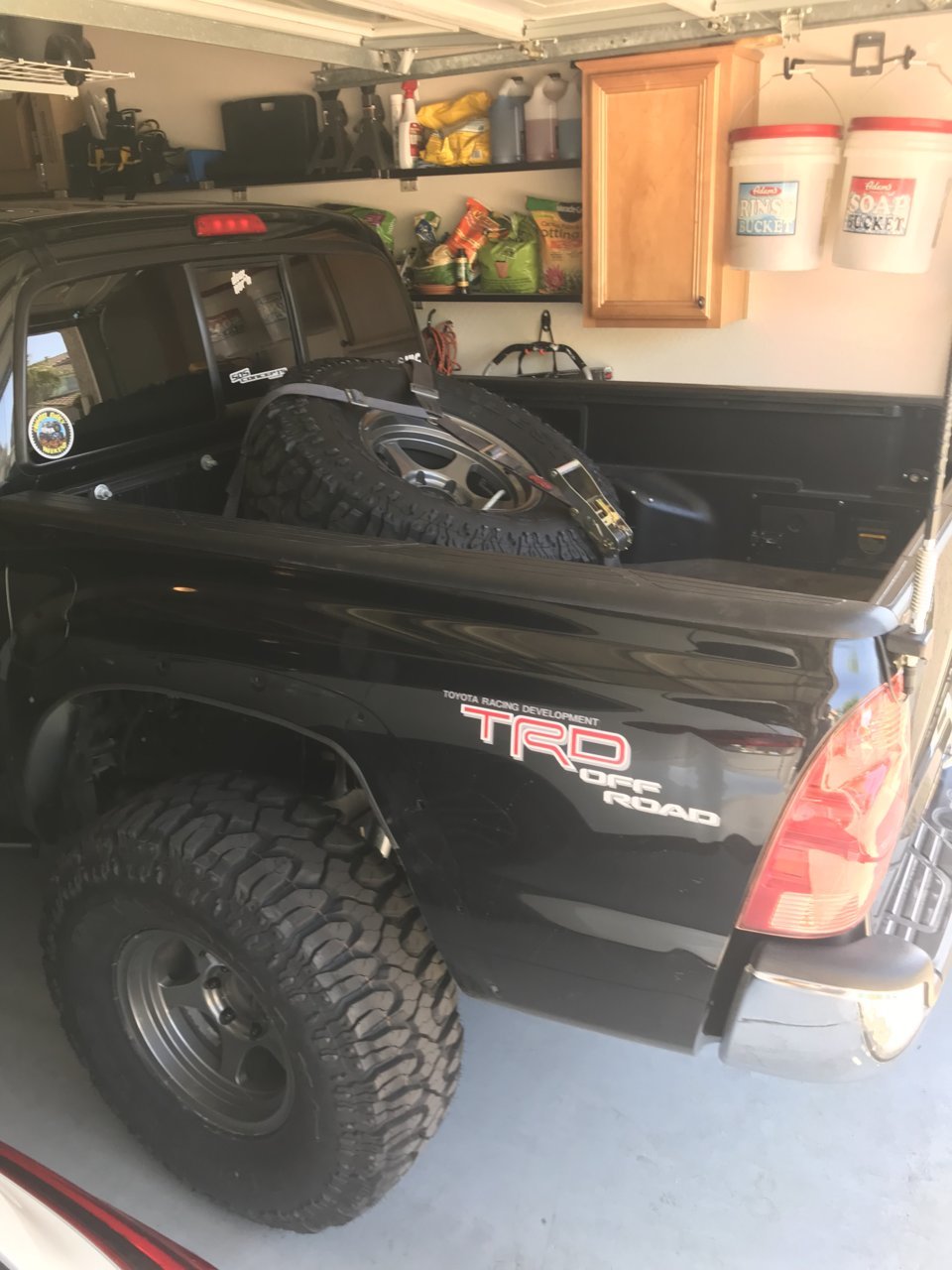

    No reason. Just aNother pic of the setup


  19. May 21, 2020 at 11:50 AM
    #19
    EatSleepTacos

    EatSleepTacos Well-Known Member

    Joined:
    Mar 24, 2015
    Member:
    #151688
    Messages:
    50,783
    Gender:
    Male
    First Name:
    Randy
    Hampton Roads, VA
    Vehicle:
    4x4 2005 SR5 AC 6MT

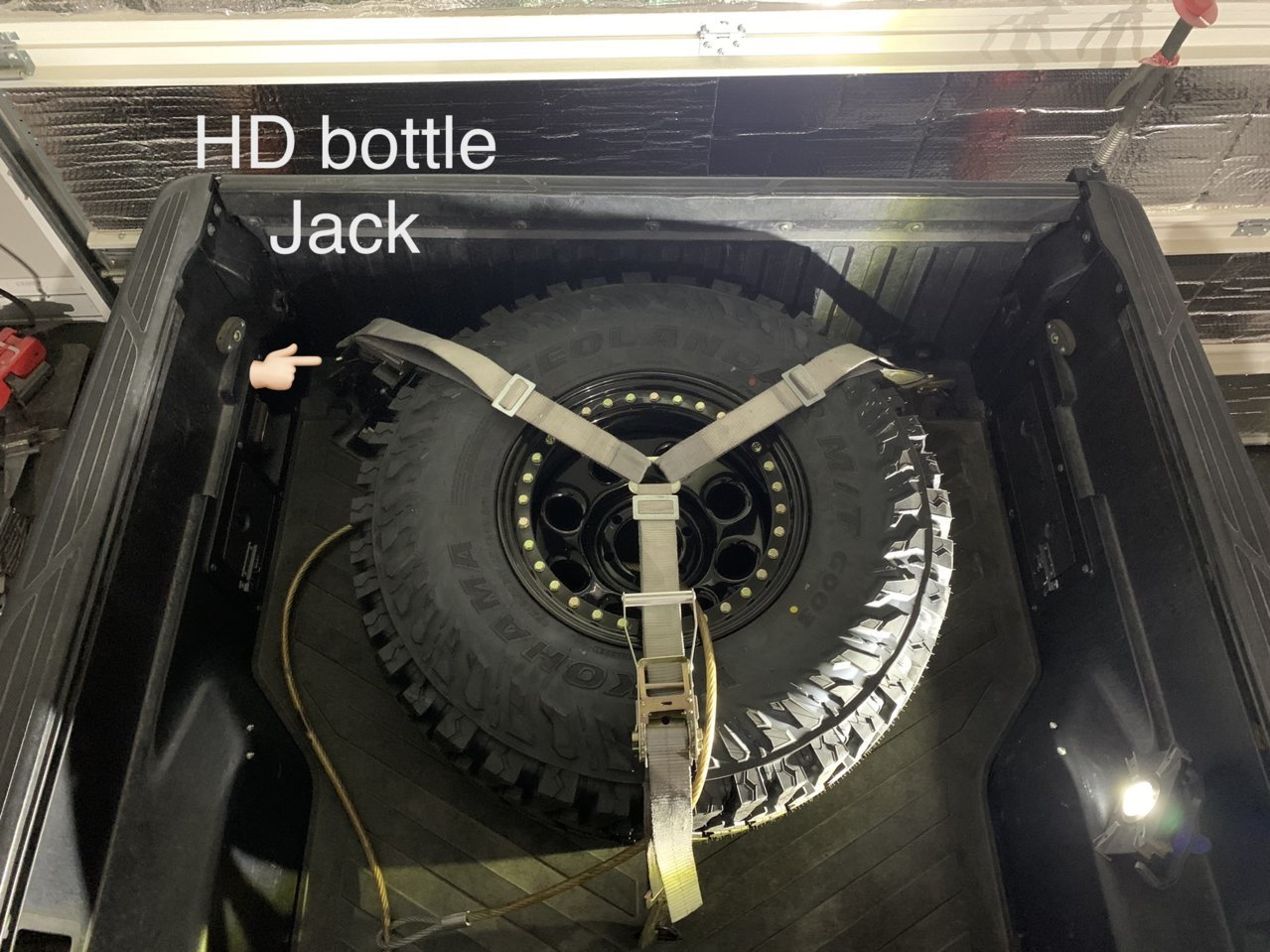

    My strap gets here tomorrow so I'm excited to get it finished. Went with a red one to match my red powertank. Of course will post pics when completed.

  20. May 21, 2020 at 11:55 AM
    #20
    Greg.Brakes.Tacos

    Greg.Brakes.Tacos Don't Feed the Animals

    Joined:
    May 24, 2018
    Member:
    #254446
    Messages:
    2,021
    Gender:
    Male
    First Name:
    Greg
    Between Richmond and Virginia Beach
    Vehicle:
    2017 Taco DCSB TRD off road
    wanna be mods
    So I (in a rush) tossed my d rings when I did my TC bed stiffeners and don't know the sequence of washers/lockwashers...anyone care to shed insight (seeing that you used it or a similar one for the bed anchoring point.
