DIY - Build and install a Bussmann RTMR Fuse/Relay Block

Discussion in 'Technical Chat' started by tacozord, Nov 4, 2015.

  1. Apr 10, 2016 at 7:06 PM
    #221
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,736
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    I got most everything from Waytek and a few things from Del City. They both had the female tangless but in different minimum order quantities I think.

  2. Apr 11, 2016 at 1:25 PM
    #222
    TaylorU

    TaylorU KC HiLiTES Vendor

    Joined:
    May 19, 2013
    Member:
    #104501
    Messages:
    1,535
    Gender:
    Male
    First Name:
    Taylor
    Flagstaff, Arizona
    Vehicle:
    2010 4x4 TRD Off-Road
    ADS 2.5" coilovers, Light Racing UCAs, 2.125" rear ADS shocks, Raptor-Style Grille using Homertaco mesh and BAMF letters, MB 352 wheels, 285/75r16 Cooper ATPs, Mini D2S 3.0 HID Projectors retrofitted, KC Flex 20", KC Pro6 light bar, KC G4 LED fog lights, Pelfreybilt front bumper
    I still haven't quite decided on where I will source everything. I'm trying to go through as few vendors as possible to keep shipping costs to a minimum.

    I may end up doing exactly what @diverdale did and just use 12 GXL rather than pay an exorbitant amount of money for TXL and avoid having to trim the 10 gauge GXL (just because it sounds like a bit of a hassle).

    The two links below are likely the choices I will go with for wiring, as well as getting some welding wire at Home Depot if they sell it.

    http://www.wirebarn.com/10-Pack-18-...llowBrown-White-Orange-Pink-Violet_p_190.html

    http://www.wirebarn.com/BLACK-12-Gage-GXL-Wire_p_84.html

  3. Apr 11, 2016 at 2:44 PM
    #223
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,871
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter
  4. Apr 12, 2016 at 11:55 AM
    #224
    TaylorU

    TaylorU KC HiLiTES Vendor

    Joined:
    May 19, 2013
    Member:
    #104501
    Messages:
    1,535
    Gender:
    Male
    First Name:
    Taylor
    Flagstaff, Arizona
    Vehicle:
    2010 4x4 TRD Off-Road
    ADS 2.5" coilovers, Light Racing UCAs, 2.125" rear ADS shocks, Raptor-Style Grille using Homertaco mesh and BAMF letters, MB 352 wheels, 285/75r16 Cooper ATPs, Mini D2S 3.0 HID Projectors retrofitted, KC Flex 20", KC Pro6 light bar, KC G4 LED fog lights, Pelfreybilt front bumper
    Hey everyone,

    I have finally completed all of the research for this build and have gotten it organized enough in my own head that I am ready to go through with it. I am posting this to see if anyone wants to split an order from Waytek. It would save each of us about $60 on the entire project. When ordering the parts from Waytek for a single fuse block build, the total is about $205. This total jumps to $290 when the parts needed for two complete fuse blocks are added. The total would then be split two ways for a total of about $145 per person compared to the $205 if done separately, which is mainly due to the minimum order quantity restrictions. If someone in the states is interested in this, let me know. I would front the Waytek bill up front and then have the partner pay me through PayPal or in person, after which I would get them all the parts. The most efficient way to do this is to split only the Waytek order, as everything else would be basically a wash to split up.

    I have attached the PDF copies of all four of the final shopping carts from the vendors I will be purchasing everything from. These should help anyone else in the future if they too want to split orders with other folks.

    Currently, I am waiting to hear back from a TW member to see if he is interested in splitting it with me but it is far from certain right now.

    EDIT: This has no impact to anyone else, but I have decided to go with switchbacks rather than the Molex connectors so my personal Mouser order is a bit off. This is because I have the extra room and I don't want to spend the extra money on the Molex crimper tool.


    Attached Files:

    Last edited: Apr 14, 2016
    tacozord [OP] and reidbailey like this.
  5. Apr 13, 2016 at 5:16 PM
    #225
    madsand

    madsand wanderer

    Joined:
    Oct 26, 2012
    Member:
    #89874
    Messages:
    3,355
    Gender:
    Male
    First Name:
    sandz
    Costa Mesa, CA
    Vehicle:
    2012 DBLCB LB sports 4x4 SC
    Icon 2.5" Remote Reservoir Extended Travel CDCV Icon tubular UCA Icon add a leaf Method NV wheels Nitto trail grappler MT 285/70/17 Weather Tech floor mat All Pro rock slider
    Nice write up

    tacozord [OP] likes this.
  6. Apr 21, 2016 at 8:58 AM
    #226
    colokevin

    colokevin New Member

    Joined:
    Apr 21, 2016
    Member:
    #184888
    Messages:
    1
    I'm in the planning/ordering parts stage for this build. I'm going to be using the Bussmann 15400 RFRM (10 relays + 40 fuses), but my question should apply to the RTMR as well. Is there a way to have some of the relayed and fused circuits "always-on" and some of them "ignition-on"? Can the internal busbars be broken/split so that half of each bus is wired "always-on" and the other half "ignition-on"? For the sake of conversation, let's say that I want 5 always-on relayed circuits, 5 ignition-on relayed circuits plus 20 always-on fused circuits, and 20 ignition-on fused circuits.

  7. Apr 21, 2016 at 10:22 AM
    #227
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,871
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter
    For the relayed circuits, its pretty easy. The bussmann box will always be hot from the get go. So all of your fused-only circuits will always be hot. The relays can be only on-ignition or anytime. For the relays:
    • Always On Circuit: All you need to do is run an always on power to your switch which then connects to the relay. you might be able to find an always on power circuit in stock fuse box in the cab (never looked so I could be wrong) or you could do what I did and just run a wire from one of the fused only circuits on the bussmann to my switch in the cab. As long as the switch always has power, you can power on the device connected to the relay.
    • Only On With Ignition: Just follow the wiring diagram @tacozord drew up (power to the switch comes from one of the fused slots on the stock fuse box in the cabin - will only have power when the truck is running).
    Not sure of whats the easiest way to do it with the fused only circuits.

    In theory you could split the internal buss bars so that one is always hot and the other is only hot with ignition but you'd need to put a big relay/solenoid inline with one of the buss bars thats activated by the ignition. While doable, seems like a lot of extra parts and work.

  8. Apr 21, 2016 at 10:29 AM
    #228
    manethon

    manethon TTAS

    Joined:
    Oct 9, 2013
    Member:
    #114161
    Messages:
    3,580
    Gender:
    Male
    First Name:
    John
    Toronto
    Many
    The wire is pretty bad@ss but really i think a good quality 1/0 is more than enough. Power wire and grounding wires are things i DO NOT skimp on. I have seen more than 1 truck burn down when they got tired of popping fuses and ran fuseless like most of the big audio builds do anyways. Well wires melted from the current and buy buy truck.

    I pref personally to have as little voltage drop as possible in my system

    alphabravo likes this.
  9. Apr 21, 2016 at 6:04 PM
    #229
    Roo1041

    Roo1041 Well-Known Member

    Joined:
    Aug 23, 2015
    Member:
    #162532
    Messages:
    419
    Gender:
    Male
    First Name:
    Riley
    Tuscaloosa, AL
    Vehicle:
    2003 Toyota Tacoma Prerunner
    aFe CAI 3" OME Nitrocharger shocks w/ 883 Coils Rear OME Dakar Leaf Pack 17x8 ATX AX324 Assault Wheels 265/70R17 BFGoodrich Rugged Terrain T/A Tinted Windows to match stock rears
    Anyone that has finished their build got some of the tools needed and looking to sell them? PM me if you do, thanks!

  10. Apr 21, 2016 at 6:25 PM
    #230
    IronPeak

    IronPeak PermaLurker

    Joined:
    Mar 9, 2016
    Member:
    #180799
    Messages:
    3,223
    Gender:
    Male
    First Name:
    AuggieX
    Back to Back
    Vehicle:
    2007 sr5 4x4 DCLB/2015 TRD sport 4x4 DCLB sold
    Bigger Taller Slower

    I got a good laugh out of that joke too!

  11. Apr 21, 2016 at 6:39 PM
    #231
    tacozord

    tacozord [OP] Well-Known Member

    Joined:
    Jan 9, 2015
    Member:
    #145945
    Messages:
    803
    Gender:
    Male
    Vehicle:
    2015 DCLB 4wd SR5
    Icon suspension, ARB front bumper, Pelfreybilt rear bumper, Warn 9.5-XP winch, Demello Offroad sliders
    The internal busbars are unable to be broken/split.

    If you plan to build the Bussman following the tutorial with the relays upside-down, then this can easily be solved. Simply install two power wires to the switches from your OEM in-cab fuse block under the dash. One wire should be hot all the time and the other should be hot with ignition on. If you can't find a fuse that's always hot, then grab power from anywhere that's always hot. Finally, route these wires to your switches and use one supply wire for five switches and the other for the other five.

  12. Apr 21, 2016 at 9:06 PM
    #232
    manethon

    manethon TTAS

    Joined:
    Oct 9, 2013
    Member:
    #114161
    Messages:
    3,580
    Gender:
    Male
    First Name:
    John
    Toronto
    Many
    ? i think I'm missing something here or the hit on the head today is making me slow

  13. Apr 21, 2016 at 9:33 PM
    #233
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,736
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    Maybe it is obvious, but the fuse only circuits will always be hot out of the RTMR but could be switched other places. For example my AntiDark and battery terminal voltmeter will come out of the RTMR and be switched on the ground wire by raising the hood.

    If you have additional low amperage circuits in the cab like say a dash cam then this could also be run from a fuse only circuit and switched at the unit so you can have the motion/sensor feature.

    rob1208 likes this.
  14. Apr 21, 2016 at 10:22 PM
    #234
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,871
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter

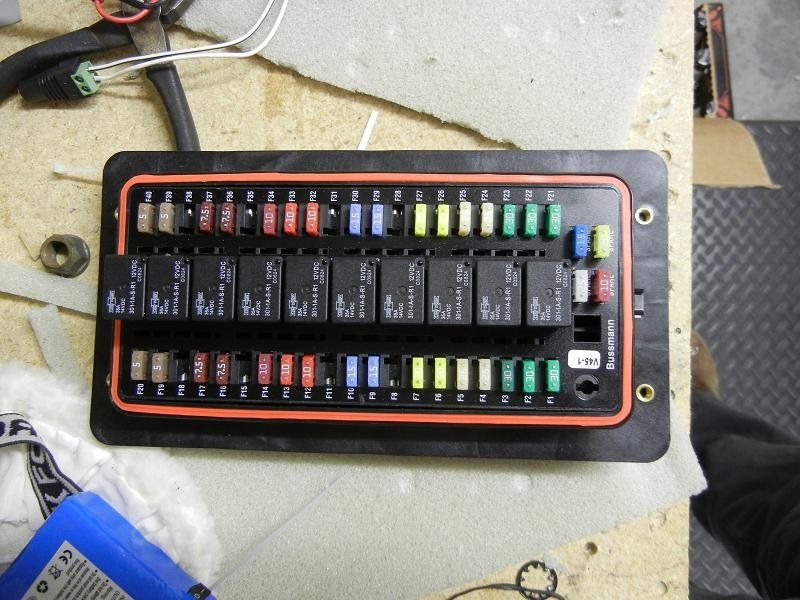

    The 10 relay box can be split. All of the relay slots are open on the bottom. Both busbars are connected internally to the fuse slots on either side of the relays



    alphabravo likes this.
  15. Apr 22, 2016 at 12:14 AM
    #235
    IronPeak

    IronPeak PermaLurker

    Joined:
    Mar 9, 2016
    Member:
    #180799
    Messages:
    3,223
    Gender:
    Male
    First Name:
    AuggieX
    Back to Back
    Vehicle:
    2007 sr5 4x4 DCLB/2015 TRD sport 4x4 DCLB sold
    Bigger Taller Slower

    Sorry I thought this was a photoshopped, this is a real thing?, can the hood of the truck close with it ? Do you need 886s? Maybe just one spring on the drivers side....Where do I get some for the three terminals on my battery ?

    Last edited: Apr 22, 2016
  16. Apr 22, 2016 at 1:17 AM
    #236
    themanbornwithin

    themanbornwithin Active Member

    Joined:
    Jun 4, 2013
    Member:
    #105605
    Messages:
    28
    Gender:
    Male
    First Name:
    Chris
    NJ
    Vehicle:
    05 Tacoma DCLB TRD Sport
    My take on ignition vs always on:

    I have on my truck a dash cam and a lightbar. Both are on switches. Normally I'd want the dashcam to turn on and off automatically with the truck, and the light only when the truck is on. I bought an on-off-on switch and wired the accessory switches to the "supply" on the switch, an ignition power to one side and hot to the other. This allows me to run accessories as normal, but with a flick of the switch allows them to bypass ignition and run them when the truck is off.

    G.T. likes this.
  17. Apr 22, 2016 at 7:27 AM
    #237
    alphabravo

    alphabravo Well-Known Member

    Joined:
    Jan 6, 2014
    Member:
    #120082
    Messages:
    1,736
    Gender:
    Male
    First Name:
    Christopher
    Canada via FL
    Vehicle:
    2003 Tacoma TRD
    Supercharger AntiDark Hood Light Redline Tuning Hood Struts Morimoto Projectors Grey Wire Mod Tundra 13WL Brake Conversion EBC ED Pads and GD Rotors Mean Green Starter DC Power 250A Alternator Odyssey PC2150 Battery, Artec Cage ADS shocks Total Chaos UCA ComeUp Winch, Factor 55 Splicer Relentless bumpers OTRATTW Switches, Bussman 15304-2-2-4 RTMR, Paranoid Fabrication switch brackets Jensen JHD3630BT Morimoto XB LED Fogs Deaver Custom Springs Ivan Stewart TRD Wheels, Pro Series TRD Wheels
    All my gear came in yesterday :D Should get deep into the build this weekend.

    Edit:
    @themanbornwithin
    I think that 8 button SwitchPro has a setting where you can configure the accessory to turn off with the ignition as a failsafe but can also be manually turned on when the ignition is off.

  18. Apr 22, 2016 at 9:59 AM
    #238
    tacozord

    tacozord [OP] Well-Known Member

    Joined:
    Jan 9, 2015
    Member:
    #145945
    Messages:
    803
    Gender:
    Male
    Vehicle:
    2015 DCLB 4wd SR5
    Icon suspension, ARB front bumper, Pelfreybilt rear bumper, Warn 9.5-XP winch, Demello Offroad sliders
    Thanks for the heads up. I've never actually used the RFRM, so I was assuming it was the same as the RTMR. But looking at the picture, I still don't think you could split one of the internal busbars in half and wire one half differently than the other. Am I missing something? There's only one stud mount per busbar.

  19. Apr 22, 2016 at 10:45 AM
    #239
    rob1208

    rob1208 Well-Known Member

    Joined:
    Aug 29, 2014
    Member:
    #137169
    Messages:
    1,871
    Gender:
    Male
    First Name:
    Rob
    SF Bay Area
    Vehicle:
    2014 Toyota Tacoma DCSB MGM TRD OR
    TRD Supercharger AFE CAI ProDryS ADS 2.5 Remote Resi Shocks ADS Rear Piggy Back 10" Travel Shocks ADS 2.0 Rear Hydro Bump Kit Deaver U402 Leaf Pack + Add a Leaf MCM Fab Uniball UCAs TC Spindle Gussets BAMF 100% Bolt On Sliders BAMF 1/4" Steel Skid Trilogy BAMF Diff Diaper Brute Force Fab Hybrid Front Bumper with Warn VR10000-s Winch Brute Force Fab High Clearance Dual Swingout Rear Bumper Custom Car Grills Mesh Grill Insert Stealth Custom Series SR8 - Matte Black 16x8 285/75/16 Toyo Tires Open Country AT2 Relentless Fabrication Ditch Light Bracket Mounts 2x2 Ditch Lights Apex Fab Works Flush Lower Grill Light Bar Mounts Caliraised 32" Light Bar Tech Deck Extreme Vagabond Outdoors Drifter
    No problem. I ended up going with the RFRM so it was pretty familiar to me.

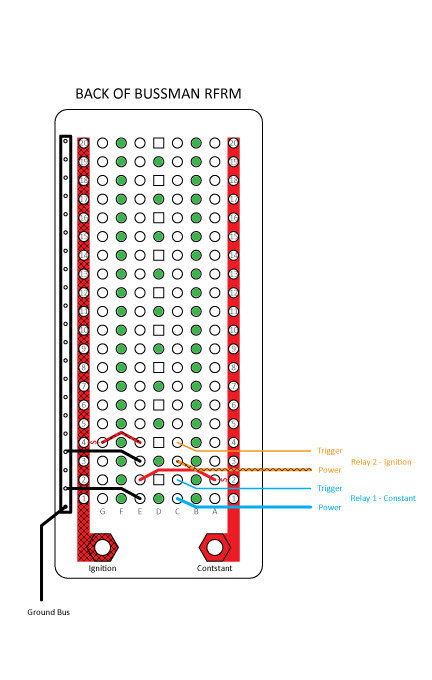

    Yes, there are two studs total, one per busbar. You have 20 fuses connected internally to each busbar. If you wanted to split them, I figured you could run one power cable to one busbar (with an inline fuse/circuit breaker). If you wanted the other busbar to be ignition only, you could run a power cable to that busbar with a solenoid/huge relay in line. The solenoid/relay would only power that busbar if its triggered by an ignition signal from somewhere. Since you have to wire jumpers on the back of the relay anyways, you could get creative and connect them to either busbar. The only stipulation is that you use an external ground strip.

    I ended up wiring mine similar to yours so that one busbar is connected to the battery (+) and the other one is connected to the ground (-). The main difference with my setup is that I had to run a jumper from 85 on the relays and on the ground on the accessory feed to a fuse on the ground busbar. I have to basically have 2 extra fuses inline with my ground connections. Excessive but works.

    - edit -
    looks like @InTheRough already did this
    https://www.tacomaworld.com/threads...and-some-switches.398242/page-2#post-11106572

  20. Apr 22, 2016 at 11:12 AM
    #240
    manethon

    manethon TTAS

    Joined:
    Oct 9, 2013
    Member:
    #114161
    Messages:
    3,580
    Gender:
    Male
    First Name:
    John
    Toronto
    Many
    lol not photoshopped at all.
    Picture 1 is the 183.5mm^2 vs top brand 1/0
    Picture 2 is the 1/0 vs 4/0 vs 183.5mm^2
    Picture 3 is the Flexibility of the wire.

    Im only posting this as you brought me in and had a few questions lol. I highly doubt this wire will serve anyone in the 4x4 industry unless they have a winch mounted in the front with a full battery relocation and care about having no voltage drop
