DIY: Fog Lights on with High Beams (Brights) FREE!

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Ostrichsak, Apr 11, 2012.

  1. Apr 11, 2012 at 10:39 AM
    #1
    Ostrichsak

    Ostrichsak [OP] Don't taze me bro!

    Joined:
    Apr 5, 2012
    Member:
    #76327
    Messages:
    8,140
    Gender:
    Male
    First Name:
    Jer
    Northern Colorado, USA
    Vehicle:
    Supercharged '10 Tacoma 4x4 TRD
    TRD Supercharger, aFe CAI (same as TRD 1st gen) w/Dry Filter, URD 2.85" Stealth Pulley, custom exhaust system, 5100's front & rear, TSB rear springs, 55 watt Xenon HID hi/lo 4500k Headlights, 35 watt 3000k yellow fog lights, fogs on w/headlights mod in sig, tinted side windows & windshield, Kenwood Navigation Unit, 5mm wide-angle flush mount LEDs in orange tied into illumination circuit to light up all storage & cubby areas at night, DEI Alarm, remote start w/cell phone control that works from anywhere, Custom electric roof mount rifle rack for LMT AR15
    [edit] The best way to describe this mod is that your fogs will come on with the lights the way the normally with (when your fog switch is left on) and when your brights are activated your fogs do NOT turn off. The fogs will NOT come on w/o your headlights and therefore you don't have to remember to turn them off like the other version of this mod that uses a jumper wire. So the difference is that mod will allow you to run your fog lights at ANY time but you also need to remember to turn it off when you don't want them on.
    [/edit]



    I did a search and couldn't find anything other than the 'Fogs on Anytime Mod' which isn't what I wanted. I wanted my fog lights to stay on when I turn my bright lights on because I have HIDs for the fogs and didn't want them turning on and off all the time. Be warned, with this mod you are hard-wiring the low-beam circuit to stay on all the time. This means when you turn on your brights you will also still have your low beams on as well as your fogs. The result: much more light when you need it (good) but it also means you will have somewhere around 180 watts on the circuit (bad). That being said, it should be able to handle it just fine but proceed at your own risk as neither I nor TW is responsible for your modifications to your truck. Now, let's proceed...

    1) Locate your fuse box under your hood net to the battery (pic 1) and find the low beam relay (pic 2 & 3) which is clearly marked under the cover
    2) Remove the relay carefully (I used plastic pry tools) as it's in there good
    3) Connect the two tabs pictured somehow (soldering is ideal but you can use a small solid core wire so long as it doesn't make contact with any of the others)

    That's it. Three simple steps. Pretty simple really. The hardest part is getting the relay out of the fuse box. The cover is somewhat fragile so gripping tools like pliers don't work real well and for most trucks you won't be able to just rock it back and forth while pulling up. You really need something to wedge under a bottom edge and pry upward and I recommend something non-conductive so you don't make contact with anything underneath. I used the leg off of a toasted capacitor because it was easiest to work with being rigid and made for soldering but you can use just about anything conductive you have laying around to keep the cost on this mod free. Just make sure that if you use a wire solid core is best or if you use braided wire you want to make sure you have no stray wires that can make contact with any of the other tabs or anything else.

    Here's the pictures:

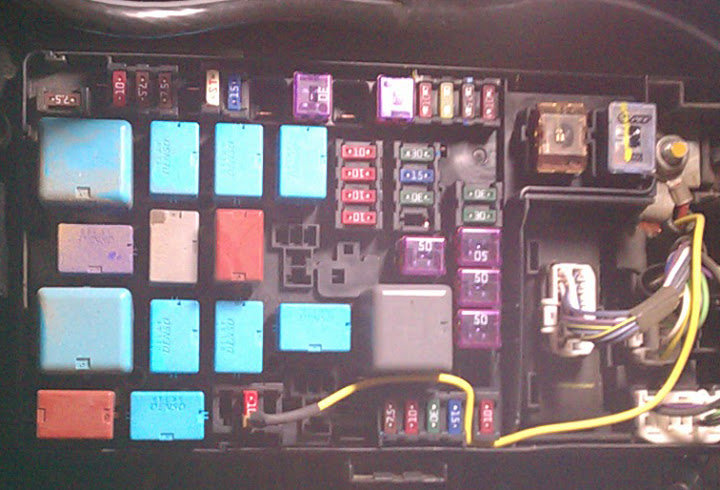

    Pic 1
    [​IMG]

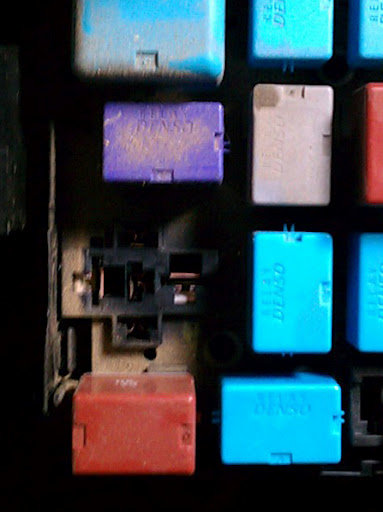

    Pic 2
    [​IMG]

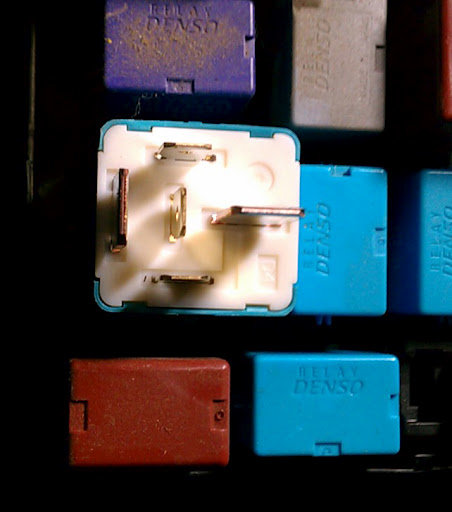

    Pic 3
    [​IMG]

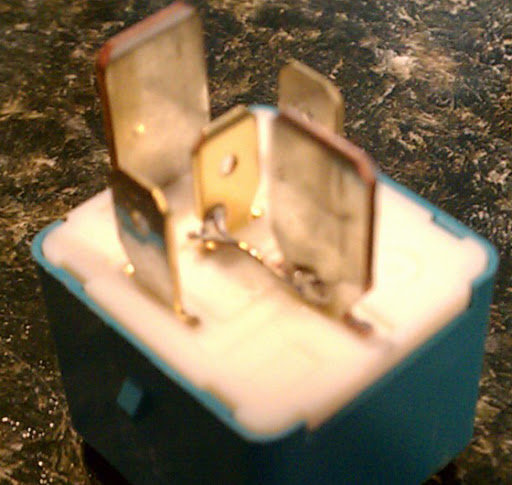

    Pic 4
    [​IMG]

    Enjoy!

    Last edited: Nov 12, 2013
  2. Apr 11, 2012 at 10:42 AM
    #2
    dexterdog

    dexterdog My pee parts itch

    Joined:
    Jul 12, 2009
    Member:
    #19571
    Messages:
    3,657
    Gender:
    Male
    Oly WA
    Vehicle:
    '07 FJ
    With the Foglight Anytime Mod my fogs stay on when I click on my brights.

  3. Apr 11, 2012 at 10:46 AM
    #3
    Ostrichsak

    Ostrichsak [OP] Don't taze me bro!

    Joined:
    Apr 5, 2012
    Member:
    #76327
    Messages:
    8,140
    Gender:
    Male
    First Name:
    Jer
    Northern Colorado, USA
    Vehicle:
    Supercharged '10 Tacoma 4x4 TRD
    TRD Supercharger, aFe CAI (same as TRD 1st gen) w/Dry Filter, URD 2.85" Stealth Pulley, custom exhaust system, 5100's front & rear, TSB rear springs, 55 watt Xenon HID hi/lo 4500k Headlights, 35 watt 3000k yellow fog lights, fogs on w/headlights mod in sig, tinted side windows & windshield, Kenwood Navigation Unit, 5mm wide-angle flush mount LEDs in orange tied into illumination circuit to light up all storage & cubby areas at night, DEI Alarm, remote start w/cell phone control that works from anywhere, Custom electric roof mount rifle rack for LMT AR15
    But you also have them on during the day when you're driving around if you leave the switch on. This mod makes it so they only come on with your headlights and stay on when your brights come on. This is a mod some people (like myself) would prefer rather than the dogs anytime mod. I don't to have to remember to turn the switch on and off during the day when I'm out driving around and then at night when I want the fogs on.

  4. Apr 11, 2012 at 10:48 AM
    #4
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,796
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    well the OP didnt want the "foglight anytime mod" because he didnt want to control the fogs seperately but wants the fog lights to stay on when he flipped his high beams on :thumbsup:

    nice that you got it working :cool:

  5. Apr 11, 2012 at 10:59 AM
    #5
    Ostrichsak

    Ostrichsak [OP] Don't taze me bro!

    Joined:
    Apr 5, 2012
    Member:
    #76327
    Messages:
    8,140
    Gender:
    Male
    First Name:
    Jer
    Northern Colorado, USA
    Vehicle:
    Supercharged '10 Tacoma 4x4 TRD
    TRD Supercharger, aFe CAI (same as TRD 1st gen) w/Dry Filter, URD 2.85" Stealth Pulley, custom exhaust system, 5100's front & rear, TSB rear springs, 55 watt Xenon HID hi/lo 4500k Headlights, 35 watt 3000k yellow fog lights, fogs on w/headlights mod in sig, tinted side windows & windshield, Kenwood Navigation Unit, 5mm wide-angle flush mount LEDs in orange tied into illumination circuit to light up all storage & cubby areas at night, DEI Alarm, remote start w/cell phone control that works from anywhere, Custom electric roof mount rifle rack for LMT AR15
    Thank you. Someone finally gets it. :D

  6. Apr 11, 2012 at 11:03 AM
    #6
    jtav2002

    jtav2002 Kenny Fuckin Powers

    Joined:
    Jun 29, 2009
    Member:
    #19074
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Josh
    Reading, PA
    Vehicle:
    2013 Tundra DBL Cab TRD OR
    Yea complete opposite reason everyone else does the foglight anytime mod lol. I wish mine would go off with my highs with the foglight anytime mod. Someone needs to do that.

  7. Apr 11, 2012 at 12:02 PM
    #7
    dexterdog

    dexterdog My pee parts itch

    Joined:
    Jul 12, 2009
    Member:
    #19571
    Messages:
    3,657
    Gender:
    Male
    Oly WA
    Vehicle:
    '07 FJ
    I understand what the OP is envisioning. I read the previous thread. The OP states in the original post that they wanted the fog lights to stay on when the brights are activated. Foglight Anytime Mod accomplishes this. A better clarification of what the modifications in this thread will provide would be prudent before another member damages something.

  8. Apr 11, 2012 at 12:03 PM
    #8
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,796
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    i dont see it damaging anything...

    if it does it with the other mod, it should handle doing it the way the OP wired it...

  9. Apr 11, 2012 at 2:49 PM
    #9
    caribe makaira

    caribe makaira Lurker No More

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    501
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    I foresee a :bananadead: at the bulb once you install the BiXenon HID. I say almost instantly when you select the highs...and even a relay and wire melt too. But hopefully the fuses will do their job...:rolleyes:

  10. Apr 11, 2012 at 3:37 PM
    #10
    Tuctaco

    Tuctaco Well-Known Member

    Joined:
    Jul 6, 2011
    Member:
    #59417
    Messages:
    660
    Gender:
    Male
    First Name:
    Todd
    Tucson, AZ
    Vehicle:
    2012 MGM TRD OR 4x4
    Katzkins, Redline hood struts, Pop & Lock,285/75/16 Toyo Open County ATll, 16X8 Konig Countersteer, Icon extended coilovers, Icon rear shocks, Icon progressive leaf pack, LR UCA's, extended brake lines,
  11. Apr 11, 2012 at 3:48 PM
    #11
    TheGrinch

    TheGrinch Cheese Head.

    Joined:
    Dec 22, 2010
    Member:
    #48070
    Messages:
    953
    Gender:
    Male
    First Name:
    Sean
    RP, CA
    Vehicle:
    07 TRD DCSB OffRoad on 33's
    6" procomp lift
    The following is a clarification for my own tiny peanut brain: trying to clarify cuz this is a major thing i hate when im out hunting and going over blind hills at night, having my fogs and lows, then want high and fogs but gay toyota didnt allow that.

    so with the fog lights anytime mod- (meaning i dont have to have my low beams) i can turn them on and off at my will without any other light on
    fog and high beam- with this you still need low, can turn on fogs, and when switched to high they will STAY on.

    if im right, my main question is with the fog anytime, can i still not run my high beams? just can go from low, low and fog, and just fog?

    if you dont get it ill try to re word cuz im throwing myself in circles now too

  12. Apr 11, 2012 at 3:54 PM
    #12
    jtav2002

    jtav2002 Kenny Fuckin Powers

    Joined:
    Jun 29, 2009
    Member:
    #19074
    Messages:
    4,499
    Gender:
    Male
    First Name:
    Josh
    Reading, PA
    Vehicle:
    2013 Tundra DBL Cab TRD OR
    With the normal fog light mod they will stay on with the highs.

  13. Apr 11, 2012 at 3:58 PM
    #13
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,796
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    ^^what he said

  14. Apr 11, 2012 at 4:01 PM
    #14
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY
    Fogs anytime. Just turn the switch on and NEVER TURN IT OFF. Solved! No worrying about the switch

    Hah, laughing...

  15. Apr 11, 2012 at 4:02 PM
    #15
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY
  16. Apr 11, 2012 at 4:45 PM
    #16
    TheGrinch

    TheGrinch Cheese Head.

    Joined:
    Dec 22, 2010
    Member:
    #48070
    Messages:
    953
    Gender:
    Male
    First Name:
    Sean
    RP, CA
    Vehicle:
    07 TRD DCSB OffRoad on 33's
    6" procomp lift
    Okay so both allow the fogs to be on with the high beams?

    With this mod do u still have to turn the fogs on or do they automatically come on with the lows and stay on with the highs?

  17. Apr 11, 2012 at 4:56 PM
    #17
    CantSitStill

    CantSitStill Well-Known Member

    Joined:
    Feb 25, 2012
    Member:
    #73601
    Messages:
    1,037
    Gender:
    Male
    First Name:
    FTR
    CNY
    Still have to turn them on. I did it once, and haven't turned them off yet.

  18. Apr 11, 2012 at 4:58 PM
    #18
    TheGrinch

    TheGrinch Cheese Head.

    Joined:
    Dec 22, 2010
    Member:
    #48070
    Messages:
    953
    Gender:
    Male
    First Name:
    Sean
    RP, CA
    Vehicle:
    07 TRD DCSB OffRoad on 33's
    6" procomp lift
    So it's the same thing then? Or in anytime do they not turn off when the car is off?

  19. Apr 11, 2012 at 5:03 PM
    #19
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,796
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    Stock:
    Only turn on when headlights are on
    Turn off when high beams are flipped

    Foglight anytime:
    Turn off with ignition
    You control when you want them on/off
    Stay on with high beams

    What the op has done:
    Turn on like stock
    Stay on with high beams

  20. Apr 11, 2012 at 5:16 PM
    #20
    TheGrinch

    TheGrinch Cheese Head.

    Joined:
    Dec 22, 2010
    Member:
    #48070
    Messages:
    953
    Gender:
    Male
    First Name:
    Sean
    RP, CA
    Vehicle:
    07 TRD DCSB OffRoad on 33's
    6" procomp lift
    Gotcha, Thanks. Back to the op, good right up and thanks. Sorry for the retardness on my end.
