DIY - Hella 500 Black Magic - Behind The Grill Mount

Discussion in '2nd Gen. Tacomas (2005-2015)' started by holeinone604, Dec 27, 2010.

  1. Dec 27, 2010 at 3:33 PM
    #1
    holeinone604

    holeinone604 [OP] Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36862
    Messages:
    71
    Gender:
    Male
    Vancouver, BC
    Vehicle:
    16' TRD Sport Black Crew Cab
    Finally have got the Hella 500's mounted behind the Satoshi.
    Thanks to Klipp for his write up especially with how he made the mounting bracket.
    If you haven't read his write up and are planning to do this mode I suggest you read it:
    http://www.tacomaworld.com/forum/lighting/79832-hella-500-hid-conversion-mount-behind-satoshi-how-w-pics.html

    I for the most part followed his directions on the bracket but did make a few minor tweaks (see below). I'll try to make this write up as detailed as possible and will go back and take some more pics and keep updating it as time permits.

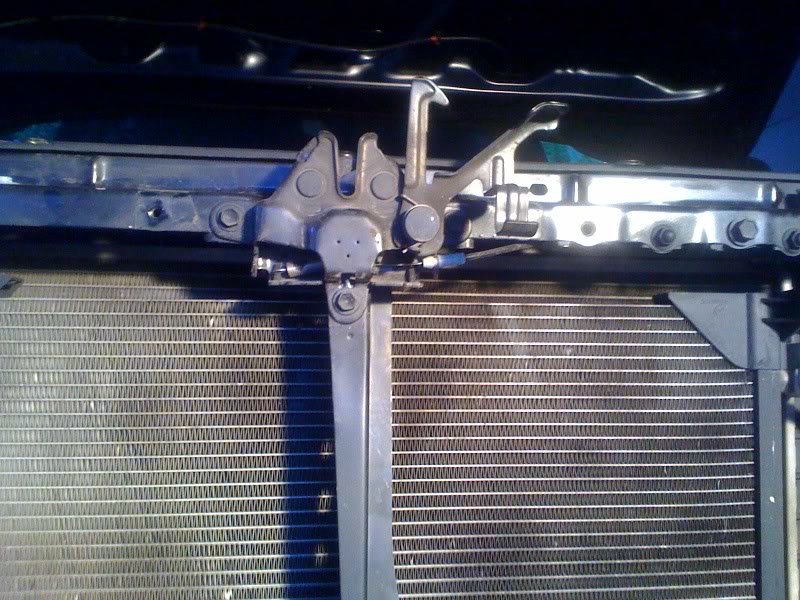

    Hood latch with the cover removed (very simple two bolts on either side of the latch cover). The bolt in the centre right below the hood latch is one of the mounting points for the bracket.
    [​IMG]

    There are a few points that stick out from the hood latch that get in the way of the mounting bracket sitting flush against the centre support beam. Klipp mentioned that he cut these off. I didn't have an angle grinder or sufficient cutting wheel and preferred to make no permanent mod's to the truck so I improvised.

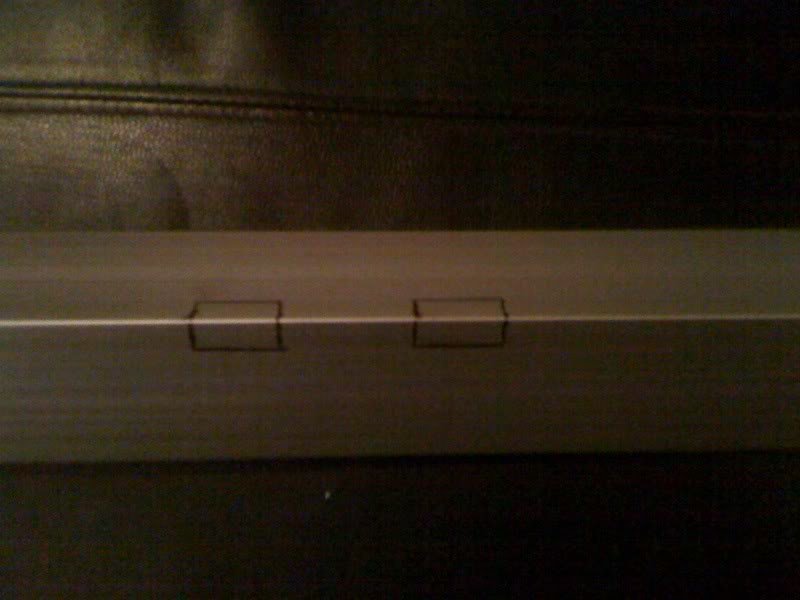

    Holding the angle iron in place I marked the contact points with a fine tip permanent marker:
    [​IMG]

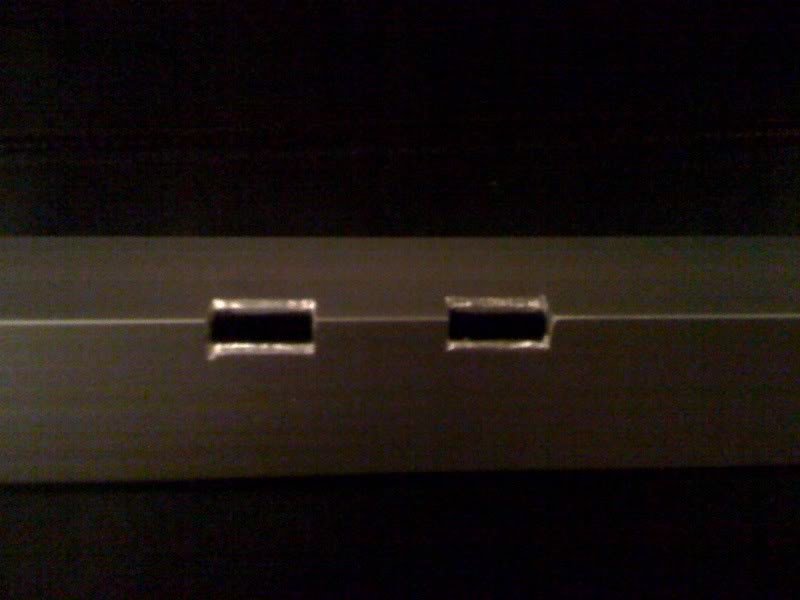

    Then cut them out with my dremel's cutting wheel:
    [​IMG]

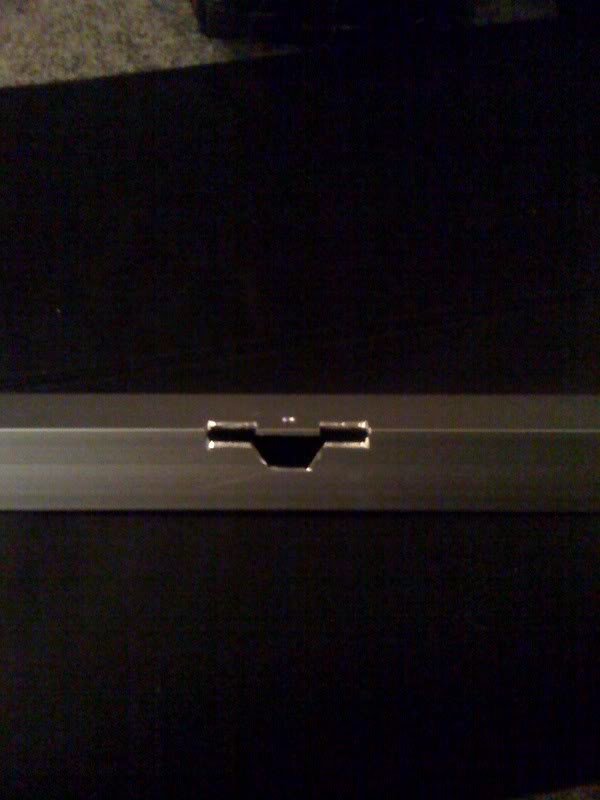

    Filed things down slightly to get a good fit and drilled the centre hole through which the centre bolt below the hood latch would pass. Problem encountered again...the diameter of the bolt head was too close to the inner top angle of the angle iron for it to pass through straight. Again not wanting to drill new holes in the centre support beam I marked out the top of the angle iron with the pen and cut away with the dremel so the bolt could clear and pass straight through:
    [​IMG]

    Bolt clears and did a test fit mounting the bracket with this bolt alone.

    Next lay a level flat across the top of the bracket and square it up as best as you can.

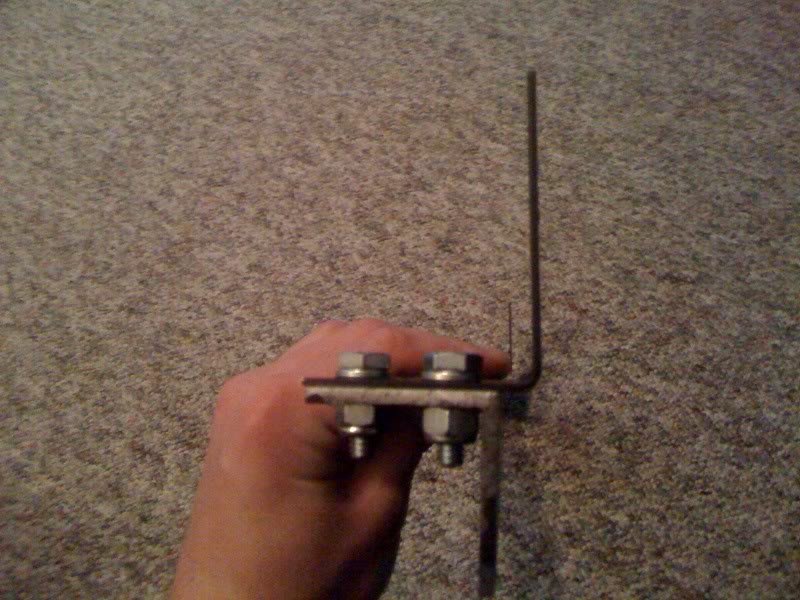

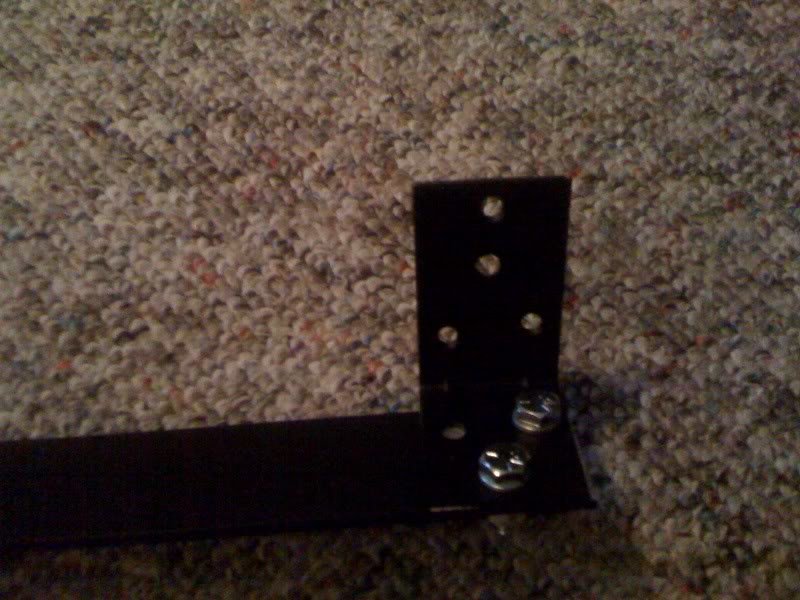

    Next is to make the L brackets which will be the outer supports.

    Klipp made these by cutting the ends off the angle iron. I found that the angle iron was just barely long enough to reach the outer mounting bolts and if used I was going to have to drill the hole very close to the top of the L brackets. I picked up a couple of steel L brackets from the hardware store that were longer and would reach the mounting points a little easier. With the angle iron bracket level gently sit the L brackets on the outer edges in line with the top mounting bolts. Mark all the mounting points with the permanent marker. Drill holes and secure outer L brackets to angle iron using locking washers and nuts.

    [​IMG]

    [​IMG]

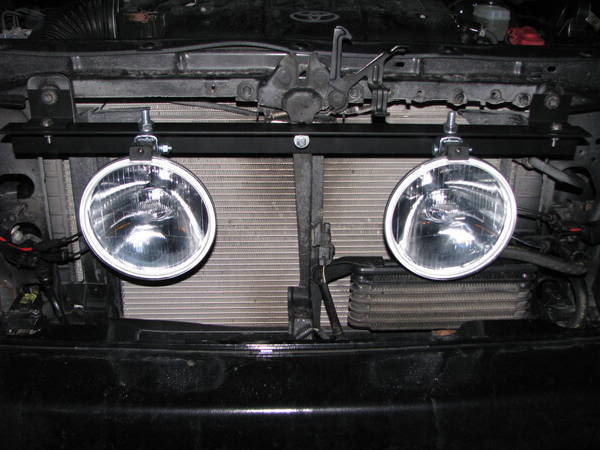

    Mount the bracket: (picture jacked from Klipp's write up as I unfortunately didn't take too many while I was doing this)
    [​IMG]

    Mount the lights and replace the grill!

    When I battle with fitting the DDM H3 HID kit on these lights I will take some more pic's of the mounting points I refer too and do a more complete install guide start to finish.

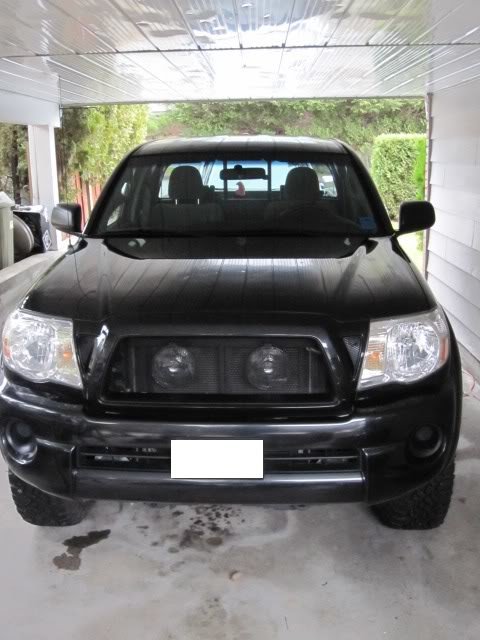

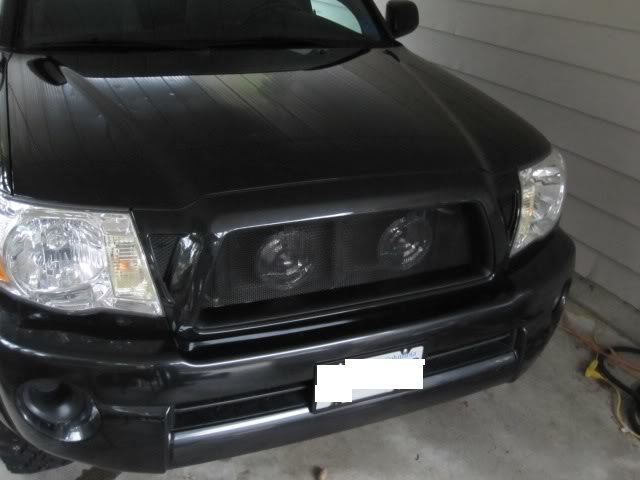

    For now the finished product:
    [​IMG]
    [​IMG]

    FYI the mesh on the satoshi is from Custom Car Grills. It came perfectly cut and powder coated black and I know many on here have used this same mesh however it is far more transparent that I want. I have darkened things up back there slightly with some black rattle can but I don't want to go heavy on the paint. Will be looking at picking up a Grillcraft at some point and satoshi'ing it.

    BLH's to come and black chrome ebay OEM lower fogs to follow in a couple weeks.

    epa4wd and 84Hilux thanks for your help with the wiring...I will be adding this to the write up soon.

    Few more pics:

    No lights on:
    [​IMG]

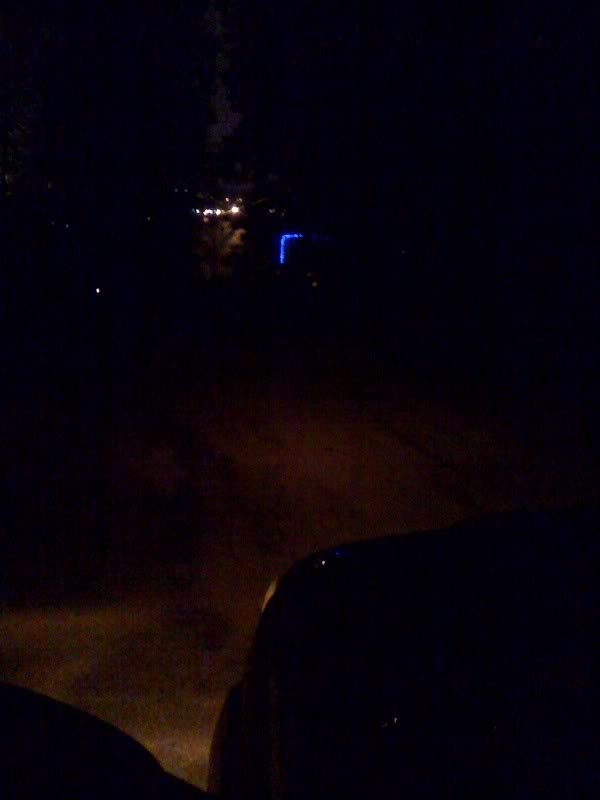

    Headlights only:
    [​IMG]

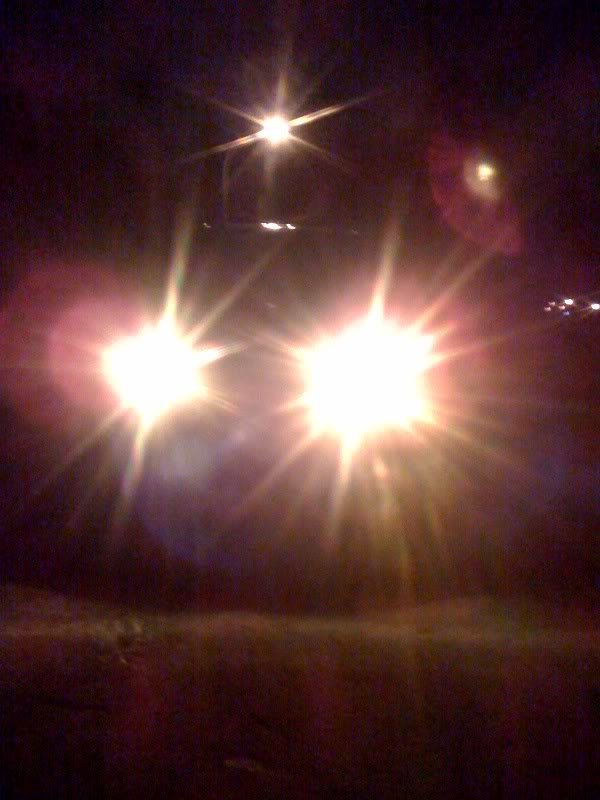

    Headlights and Fogs (35W, 3000K DDM Raptor HID Kit)
    [​IMG]

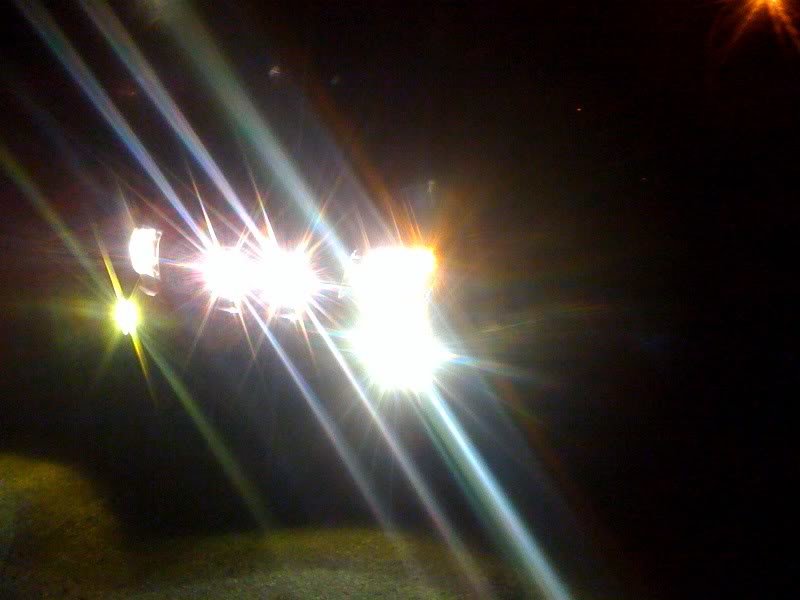

    Headlights, Fogs, Hellas:
    [​IMG]

    Running lights:
    [​IMG]

    Headlights:
    [​IMG]

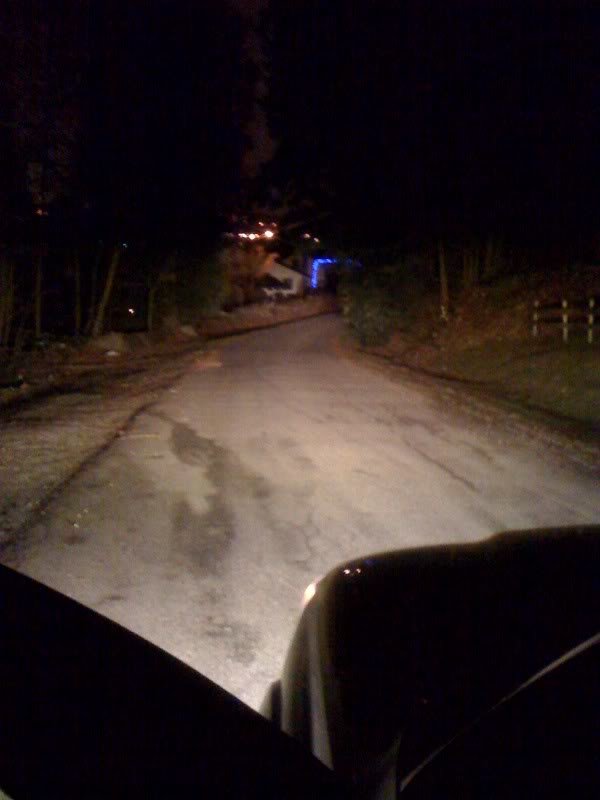

    Headlights and fogs (35W, 3000K DDM Raptor HID kit)
    [​IMG]

    Headlights, Fogs, and Hellas:
    [​IMG]

  2. Dec 27, 2010 at 3:37 PM
    #2
    sethr21785

    sethr21785 Well-Known Member

    Joined:
    Jan 15, 2010
    Member:
    #29372
    Messages:
    170
    Gender:
    Male
    First Name:
    Seth
    Windham Maine
    Vehicle:
    09 TRD SPORT
    TRD Short Throw, TRD Exhaust, 5100 1.5, Weathertech floor liners, AFE Filter, Projector Head and fogs, Weathertech vent visors
    that looks great man.. nice writeup

  3. Dec 27, 2010 at 3:45 PM
    #3
    mh3kgt

    mh3kgt -TACOMBO-

    Joined:
    Oct 5, 2010
    Member:
    #44251
    Messages:
    128
    Gender:
    Male
    First Name:
    Matt
    Elko, NV
    Vehicle:
    07 TRD Sport
    OME 885's, OME Nitros front, Billy 5100's rear, 1.5"AAL, Satoshi'd Billet Grille, 18" Moto Metal 955's Plastidipped, more to come
    Looks great! I just got done making this bracket the other weekend. My old mounting method was allowing the lights to shake like crazy when offroad. With the new bar it is rock solid. Update when you get the DDM HID kit installed. I plan to use the same kit

  4. Dec 27, 2010 at 3:52 PM
    #4
    builthatch

    builthatch MiG-21 superfan

    Joined:
    Nov 25, 2010
    Member:
    #46713
    Messages:
    549
    Gender:
    Male
    First Name:
    Tony Mandarich
    near the ocean, NJ
    Vehicle:
    '11 SSM SR5 6 speed 4x4
    Hella DOT wattage high performance 9003 headlight bulbs, Optilux by Hella XY h10 fog light bulbs, Suntek HP50 tint, AFE Stage II Si intake
    nice job dude.

    OP, show the black magic w/o the grille! the lights pictured w/o the grille are regular 500s - the black magic 500s are very cool and i'm not sure how many people actually understand what they look like unlit and unobstructed.

    great light, IMO.

  5. Dec 27, 2010 at 3:57 PM
    #5
    holeinone604

    holeinone604 [OP] Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36862
    Messages:
    71
    Gender:
    Male
    Vancouver, BC
    Vehicle:
    16' TRD Sport Black Crew Cab
    I'll post some pics of the Black Magic's with the grill off next week when I put in the black chrome lower fogs I bought on ebay. Have the 35W, H10, 3000K kit from DDM and am just waiting for the fogs to arrive. Can't wait to put them in!! Truck is pre wired and I picked up an OEM switch any relay on ebay so should be a really quick install.

    Unfortunately I ordered the H3, 55W, 5000K kit from DDM which I thought would work. The bulb is too long to work with the Black Magic because of the internal black plastic so I am going to have to figure something out. I have found some H3C (compact HID) bulbs that I think will work on eBay fro 16.99. Only problem is they are 35W, 6000K and doesn't seem to be a 55W version of the H3C around. Meaning I will have to try and exchange the 55W balasts for some 35W ones. I have heard the horror stories of DDM customer service and sure enough I have to go and make this screw up on my first purchase from them. Wish me luck in exchanging them for 35w's!

  6. Dec 27, 2010 at 3:58 PM
    #6
    holeinone604

    holeinone604 [OP] Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36862
    Messages:
    71
    Gender:
    Male
    Vancouver, BC
    Vehicle:
    16' TRD Sport Black Crew Cab
    Thanks!

  7. Dec 27, 2010 at 4:10 PM
    #7
    holeinone604

    holeinone604 [OP] Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36862
    Messages:
    71
    Gender:
    Male
    Vancouver, BC
    Vehicle:
    16' TRD Sport Black Crew Cab
    If anyone wants to buy my DDM H3, 55W, 5000K Raptor Apex kit for the price I paid (about $35 let me know). The kit is brand new, never used or installed and purchased about two weeks back. PM me and I can assure you I'm not going to rip you off on the sale.

  8. Dec 27, 2010 at 5:00 PM
    #8
    Cortland

    Cortland THIS IS AMERICA!!!

    Joined:
    Mar 25, 2010
    Member:
    #33948
    Messages:
    1,508
    First Name:
    Cortland
    Arizona
    Vehicle:
    Clifford aka Big Red
    Camburg 4" Spindles, 5100's All Around, All-Pro 1.5" Leaf Pack, All-Pro U-Bolt Flip Kit, Avid Sliders, AFE Pro Dry Filter, Wicked Flow 18" Muffler
    Looks Great!!!

  9. Dec 27, 2010 at 5:06 PM
    #9
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,894
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    [​IMG]

    [​IMG]


    made mine out of unistrut

  10. Dec 27, 2010 at 6:26 PM
    #10
    holeinone604

    holeinone604 [OP] Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36862
    Messages:
    71
    Gender:
    Male
    Vancouver, BC
    Vehicle:
    16' TRD Sport Black Crew Cab
    nice i like.

  11. Dec 28, 2010 at 8:36 AM
    #11
    mh3kgt

    mh3kgt -TACOMBO-

    Joined:
    Oct 5, 2010
    Member:
    #44251
    Messages:
    128
    Gender:
    Male
    First Name:
    Matt
    Elko, NV
    Vehicle:
    07 TRD Sport
    OME 885's, OME Nitros front, Billy 5100's rear, 1.5"AAL, Satoshi'd Billet Grille, 18" Moto Metal 955's Plastidipped, more to come
    Looks good, I like the smoked lenses a lot

  12. Dec 28, 2010 at 9:45 AM
    #12
    Veccster

    Veccster bass turds

    Joined:
    Aug 8, 2008
    Member:
    #8407
    Messages:
    2,096
    Gender:
    Male
    First Name:
    Eric
    Pittsburgh - The City of Champions
    Vehicle:
    2009 DC V6 TRDsport
    5100's all around - fronts at 1.75", 265/70/17 Bridgestone Revo 2, HID headlights and fog lights, factory skid plate, ss exhaust tip, tube steps, Access roll-up tonneau cover, Redline hood struts, 6 D-rings, seat MagLite, LED dome, fumoto oil drain, DTRL, fog light anytime, Kenwood/Clarion speakers, Pop-N-Lock 5300, LED bed lights and a few other things...
    Can you set these to switch on when hi-beams are switched on?

    I am obsessed with light at night (not the best eyes) and want more! I have HID fogs and heads and did the 'fog lights anytime' mod so those stay on when the hi's come on.

    I'm pretty sure it's illegal to use aftermarket lights on the road...correct??? But if I only use them with my hi's engaged, who cares? I only use my hi's on back roads when no other cars are around so no one would even know.

    Thoughts?

  13. Dec 28, 2010 at 10:43 AM
    #13
    mh3kgt

    mh3kgt -TACOMBO-

    Joined:
    Oct 5, 2010
    Member:
    #44251
    Messages:
    128
    Gender:
    Male
    First Name:
    Matt
    Elko, NV
    Vehicle:
    07 TRD Sport
    OME 885's, OME Nitros front, Billy 5100's rear, 1.5"AAL, Satoshi'd Billet Grille, 18" Moto Metal 955's Plastidipped, more to come
    You may be able to tap them into the hi-beam harness to get power when the highs are on, and run them off of a relay or something. I just have mine on a separate switch altogether so that I can have them on alone, or with my other lights

  14. Dec 28, 2010 at 11:09 AM
    #14
    builthatch

    builthatch MiG-21 superfan

    Joined:
    Nov 25, 2010
    Member:
    #46713
    Messages:
    549
    Gender:
    Male
    First Name:
    Tony Mandarich
    near the ocean, NJ
    Vehicle:
    '11 SSM SR5 6 speed 4x4
    Hella DOT wattage high performance 9003 headlight bulbs, Optilux by Hella XY h10 fog light bulbs, Suntek HP50 tint, AFE Stage II Si intake
    yes, of course.

    and,

    aftermarket lights on your vehicle generally are not illegal if wired/used properly as per the laws, but it depends greatly on your state and local laws.

  15. Dec 29, 2010 at 7:41 AM
    #15
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,894
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    Kings:Camburg:BFG
    i have them wired seperatly so i can have them on whenever

  16. Jan 10, 2011 at 7:40 PM
    #16
    holeinone604

    holeinone604 [OP] Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36862
    Messages:
    71
    Gender:
    Male
    Vancouver, BC
    Vehicle:
    16' TRD Sport Black Crew Cab
    Bump, some more pics added.

  17. Jan 3, 2012 at 11:28 AM
    #17
    txtuffluck

    txtuffluck Well-Known Member

    Joined:
    Apr 25, 2011
    Member:
    #55543
    Messages:
    128
    Gender:
    Male
    First Name:
    Johnny
    Central Texas
    Vehicle:
    07 TRD OR, V6 4X4
    Did you ever get the black magics converted to HID? If so where did you get the kit?

    I was hoping DDM would have an H3C option available that wasn't listed on their site...but nope:(

  18. Jan 18, 2013 at 7:52 PM
    #18
    TOY4JMEBOOZE

    TOY4JMEBOOZE Well-Known Member

    Joined:
    Nov 25, 2012
    Member:
    #91843
    Messages:
    293
    Gender:
    Male
    Oceanside, CA
    Vehicle:
    2012 SW Tacoma Sport 4x4
    17x9 XD black wheels, 285/70/17 bfg all terrain ko's, bhlm, afe pro dry s intake, magna flow cat-back with tailpipe cut after axle, all-pro sliders, tailgate theft mod, differential breather mod, hi-lift jack mounts on bed rail, bilstein 5100 with ome 887x springs, tc ucas, led map and dome lights, 35% tint front, 5% rear, cb radio, antenna & pa speaker, grill craft upper and lower grill, bamf light bar behind grill with hella 500ffs, horn relocation, yellow painted fog lights, fog light anytime, 5x D-rings on bed bolts, weathertechs front and rest, salex console organizer, Blue instinct console cover, ATO antenna mount,
    I already got my hellas installed and will start the wiring process and have an oem fog switch. How did you wire yours and how would i wire mine?
