DIY Hi-Lift mount

Discussion in '1st Gen. Tacomas (1995-2004)' started by TIPICOTACO, Apr 4, 2013.

  1. Apr 4, 2013 at 7:11 AM
    #1
    TIPICOTACO

    TIPICOTACO [OP] Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,073
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"
    Some lift, some armor, some scratches..
    About a month ago I got stuck in some deep mud and high-centered and really wished I had a hi-lift with me.. Had to get rescued by a Cummins..:eek:

    So recently I bought a 54" hi lift, but then there's the problem of where to store it.. its bulky, heavy, and awkward.

    After looking at some of the options I decided to just make my own. I designed it based on the HI Lift 4XRAC but added a few things which I felt were necessary.

    This is how it turned out!
    [​IMG]

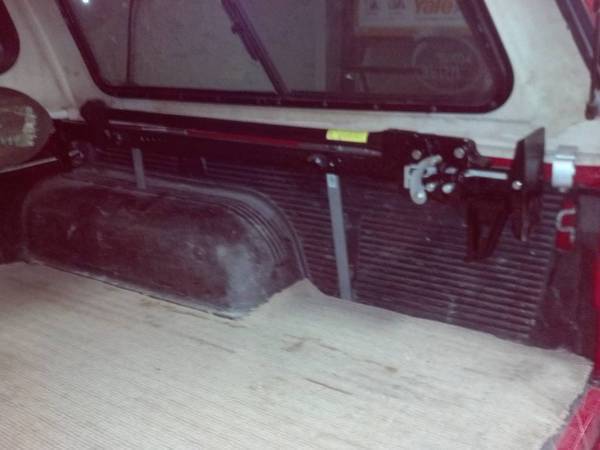

    fits nicely along the side of the bed
    [​IMG]
    added rubber stoppers on each side of the jack to secure it snuggly and prevent damage from the bolts

    [​IMG]

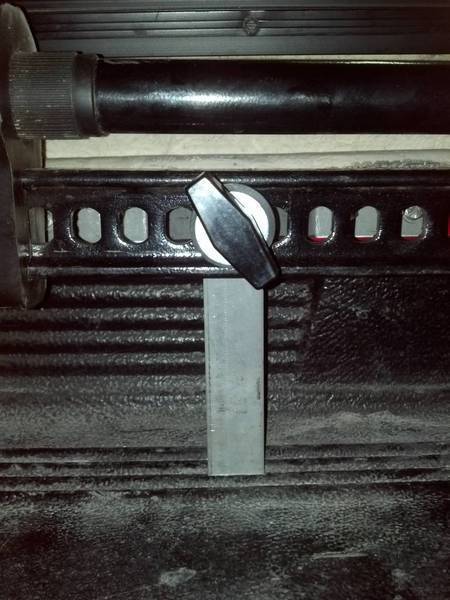

    found these screw on handles and they're perfect! much better than wing-nuts
    also there are backing plates on the back-side of the bed rails for added strength

    [​IMG]
    because the jack is so heavy I thought it needed some type of vertical supports
    [​IMG]

    Materials used:
    (42") 1 1/2" x 1/8" flat steel (brackets, vertical supports, and backing plates)
    (8) 1/4" x 3/4" hex bolts and stop nuts (used to mount brackets to bed rail)
    (2) 5/16" x 3 1/2" full thread hex bolts
    (4) fender washers
    (2) 5/16" nuts
    (4) rubber stoppers
    (2) screw on handles

    The jack is very secure and doesn't seem to bounce around at all and the handles make it very easy and quick to access. Total cost was about $40.

    *sorry I didn't get any pics of the "fabrication" process but I plan on taking it all apart to paint it so I can get some.

    Hope this helps someone out!! :)

  2. Apr 4, 2013 at 8:10 AM
    #2
    Manlaan

    Manlaan Well-Known Member

    Joined:
    Jan 25, 2010
    Member:
    #30054
    Messages:
    1,029
    Gender:
    Male
    First Name:
    Greg
    Riverton, Utah
    Vehicle:
    2002 XtraCab SR5 V6 4x4 Black
    See Signature
    Looks good and good idea on reinforcing the lip, as we know, they are really not that strong.

    The only concern I have is the vertical support looks just like the stuff you can get from home depot, which really isn't going to hold a load very well like that. You might want to think about replacing it with something with an angle or two for that added regitivity. I'm just concerned that something you're hauling will bend the support, causing the support to be useless.

    Have you through about trying to reinforce the channel itself? That might work, if you dont mind putting some bolts on the top as well. Not sure how well that would work, as you wouldn't be able to reinforce it from the outside of the bed. Just tossing out an idea though.

  3. Apr 4, 2013 at 8:12 AM
    #3
    jdk52

    jdk52 Bro do you even 'Merica?

    Joined:
    Mar 5, 2012
    Member:
    #74223
    Messages:
    834
    Gender:
    Male
    Utah
    Vehicle:
    11 SR5
    3 inch OME lift kit, rear diff breather mod, cb install, sliders, brute force fab front end.
    sub'd for later reference

  4. Apr 4, 2013 at 9:15 AM
    #4
    TIPICOTACO

    TIPICOTACO [OP] Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,073
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"
    Some lift, some armor, some scratches..
    By "channel" do you mean the bed rails? I have a topper so I don't see bolting anything thru the top of the rails. I did make backing plates out of the same 1/8" steel and the rails don't flex at all when I try to wiggle the bracket, so far so good, I'll see how it holds up to bumpy roads and off-road abuse

    Last edited: Apr 4, 2013
  5. Apr 4, 2013 at 9:30 AM
    #5
    TacoDell

    TacoDell Truck ~n~ Tow

    Joined:
    Jun 20, 2008
    Member:
    #7448
    Messages:
    999
    Gender:
    Male
    SoCal
    Vehicle:
    '00 Tacoma SR5 4X
    Donahoe CO's, Deaver leaf paks, Lockright Locker, All Pro body armor ( sliders, front and rear bumpers ), All Pro under belly skids, Warn M8K w/Masterpull synthetic line, Dual Optima battery system, 4 ea LightForce Striker 170 offroad lights, 8 ea wired rock lights, and plenty more I'm sure
    hope it holds up for you...

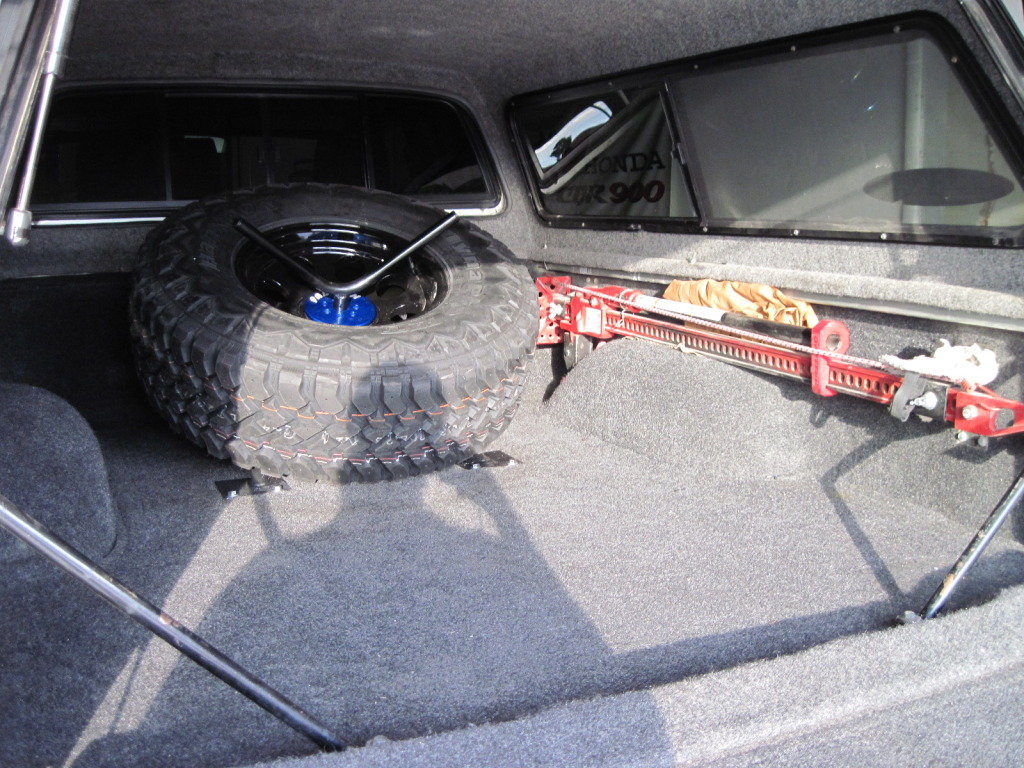

    I did similar... but installed it differently
    so muh 60's weight rests upon the wheel well.

    [​IMG]

    It looks like you have supports going to the bed's floor...
    so hopefully that will hold up over time and gravity.
    But you should have a 90* at the bottom of the vertical supports
    and bolt those down to the bed.
    Probably need to gusset those 90* ends as well.

    I don't trust the flimsy bed rails to support much weight...
    especially when the weight is supported by horizontal bolts that
    are inserted into what I consider to be, not far off from, cheap pot metal.
    ^ Use of backing plates should help reinforce that some.

    well not exactly true... I guess the bed's rail supports muh shell...
    But the "j" hooks fubar the bed rail(s) lip...
    Guess one day I need to spend some time reinforcing that
    or just hard mount the shell by drilling vertically into the rail.

    Just sayin' what I've seen...
    Even tho' yours has an attempt of support off the bed...
    The vertical supports need work on the lower ends.
    I've seen others similar with the upper mounts torn from the bed rail.

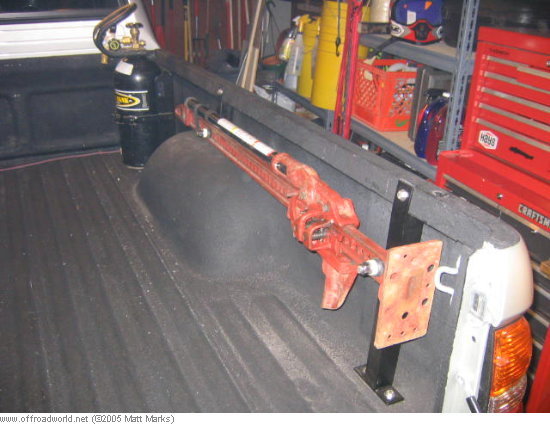

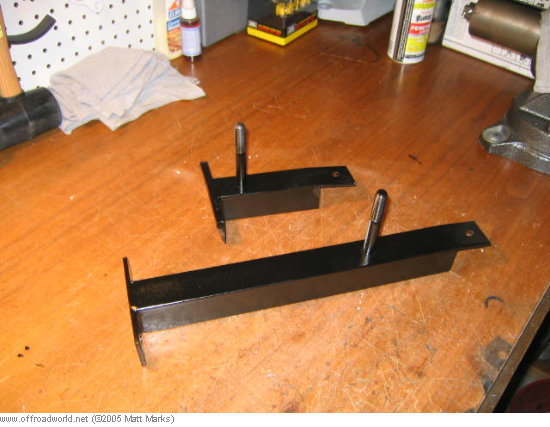

    I built a jack support similar to yours for a friend...
    I used square tube for the vertical supports
    flat stock has too much flex IMO

    similar to these...
    ('cept I used two mounting bolts at the upper - w BP's both upper/lower)


    [​IMG]

    [​IMG]

    Last edited: Apr 4, 2013
  6. Apr 4, 2013 at 11:26 AM
    #6
    TIPICOTACO

    TIPICOTACO [OP] Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,073
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"
    Some lift, some armor, some scratches..
    I would have loved to rest it on the wheel well but my short bed kinda kills that idea..

    and yea I'm kinda counting on gravity to help out here. I like the idea of doing a 90 at the bottom of the support, but I'm hesitant to bolt through my bed liner/bed, also no welder so gussets aint happening.

    this was my first attempt, there's room for improvement, and with the ideas I've gotten already I definitely foresee some nice mods coming.

    thanks for the suggestions! :)

  7. Apr 4, 2013 at 11:40 AM
    #7
    jkirkpatrick

    jkirkpatrick Well-Known Member

    Joined:
    Feb 29, 2012
    Member:
    #73869
    Messages:
    538
    Gender:
    Male
    First Name:
    Jason
    Edmonton
    Vehicle:
    2000, build thread soon
    Stealth sub box, total stereo overhaul, 883 OME with Nitros, Dakars, All Pro bumper, Engo 10,000lb winch w/ synthetic line, ARB rear locker, All Pro full skids, All Pro sliders, 7069 Pro Comp with 285/75/16 Duratracs, front sway bar disconnects, CBI rear bumper
    Subscribed for future reference!

  8. Jul 18, 2013 at 12:18 PM
    #8
    xd45

    xd45 Member

    Joined:
    Nov 10, 2012
    Member:
    #90868
    Messages:
    16
    Gender:
    Male
    First Name:
    Chris
    Pittsburgh
    Vehicle:
    04 extracab 4x4
    Sub'd

  9. Jul 19, 2013 at 10:40 AM
    #9
    RJ MacReady

    RJ MacReady professional trousersnake charmer

    Joined:
    Nov 19, 2012
    Member:
    #91424
    Messages:
    955
    Gender:
    Male
    First Name:
    RJ/Mike Hauncho/HeavyHands
    US OUTPOST North 31-Mayday Mayday! We've found som
    Vehicle:
    00 4Runner 4WD LTD - Cheatin' Bitch Build 2
    Cheatin' bitch build 2: All stock for now... 99' Tacoma 4wd TRD Cheatin' bitch build 1: BG44K additive, motul 5w40(always), deckplate mod, K&N washable air filter, 2.5" flow master(cut thanks to Airdog), king fronts 2.5", all pro standard leaf pk, stainless steel rear ext brakeline, 5125's 10" travel rears, 4-jasper offroad 6" pod LED spot lights, secret compartment for small bottle of wild turkey, cobra CB, Hi-lift jack w/locking bed mount, hi lift curved bumper lift & road base plate, smittybuilt X20 winch, wab fab F&R bumpers w/ hitch receivers, smittybuilt 4in1 recov tool, 10gal mini flamethrower, 11 lbs dynamite sticks, 13 4-hr snowflares, .50Cal full auto mounted machine gun w/ RPG unit & a shitoad of death metal to fuckstart your brain...everything you need for first contact with a shape-shifting alien entity frozen for over 100,000 years reanimated & immitating all life it engulfs.
    have mine resting on the wheel well too but on driver's side, only adding to the infamous "taco-lean" :facepalm:

  10. Sep 24, 2013 at 12:28 PM
    #10
    SnowmanFX

    SnowmanFX Well-Known Member

    Joined:
    Feb 8, 2012
    Member:
    #72428
    Messages:
    95
    Gender:
    Male
    San Antonio, TX
    Vehicle:
    TX Pinstriped 08 Tacoma
    3" Lift w/small goodies
    Where did you get the rubber stoppers?

  11. Sep 24, 2013 at 12:40 PM
    #11
    DHwreckage

    DHwreckage Well-Known Member

    Joined:
    Oct 12, 2012
    Member:
    #88868
    Messages:
    412
    Gender:
    Male
    Boulder, CO
    Vehicle:
    Moby Dick (FZJ-80)
    You should sell these i want one :D

  12. Sep 24, 2013 at 12:50 PM
    #12
    TIPICOTACO

    TIPICOTACO [OP] Well-Known Member

    Joined:
    Nov 22, 2010
    Member:
    #46556
    Messages:
    2,073
    Gender:
    Male
    First Name:
    Tyler
    nw nj
    Vehicle:
    '01 DC 4X4 TRD "RAD BARON"
    Some lift, some armor, some scratches..
    Lowes Or HD.. they Are SoliD Rubber But I Drilled Out The Centers.. Or Have Your Kid Rob Chem Lab!!!

  13. Sep 25, 2013 at 1:31 AM
    #13
    SeattleCoug

    SeattleCoug Washington State University

    Joined:
    Jul 25, 2012
    Member:
    #83444
    Messages:
    3,233
    Gender:
    Male
    First Name:
    Mark
    Oceanside, CA
    Vehicle:
    2015 TRD Off-Road
    sub'd. Maybe see some more hi-lift mounts?

    I just ordered mine off Amazon so this will be a dilemma I am soon to face :rolleyes:

  14. Oct 17, 2013 at 8:37 PM
    #14
    PBR Streetgang

    PBR Streetgang Well-Known Member

    Joined:
    Apr 17, 2012
    Member:
    #77118
    Messages:
    114
    Gender:
    Male
    First Name:
    Andrew
    Medford, OR
    Vehicle:
    2013 AC 4x4 TRD
    Icon stage 4 kit, Deaver J66 leaf springs, Firestone ride-rite airbags, Warn 9.5 XPS winch
    sorry, wrong forum, post moved.
