DIY LCA Cam replacement 2005+ Tacoma

Discussion in 'Suspension' started by XXXX, May 14, 2012.

  1. May 14, 2012 at 5:14 PM
    #1
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    This is for removal and replacement of totally seized OE LCA CAM bolts and sleeves ONLY.
    I am not covering the removal of OE components that are in the way of LCA bolt removal and installation.



    You may be able to get them free once seized thus saving yourself time and money, but if they have been seized greasing them up will only delay the inevitable and they will continue to degrade due to pitting. I recommend replacement of the parts and proper maintenance (continual greasing throughout your trucks lifespan - yes I know it sucks). For those just greasing up the cam bolts: index them, remove all the bolts, clean, lube, and re-install them. Be sure to also clean and grease the inside of the bushings. You should still get an alignment afterwords.

    For LCA bushing replacement see here http://www.tacomaworld.com/forum/sus...ml#post3691528

    For LCA ball joint replacement see here http://www.tacomaworld.com/forum/su...oint-replacement-2005-tacoma.html#post3691540

    <<<A front end alignment is highly recommended after you swap CAM bolts and sleeves even if you indexed them>>>


    Tools required:


    Common Sense
    1/2" Impact ratchet
    1/2" Ratchet
    ??? mm impact socket (1/2" drive)
    ??? mm impact socket (1/2" drive)

    PB Blaster or similar
    Mobil 1 or similar grease
    Gloves
    Safety glasses
    Grinder and cut off wheels
    Sawzall and metal blades
    Cutting wax
    Aluminum colored sharpie
    Cup, water, and Goof Off (or similar)

    It's YOUR responsibility to wear the proper PPE and use common sense. This could prove dangerous if the tools required are used in manners they were not designed or intended for. Do not apply torque to the tools past their recommended limit.

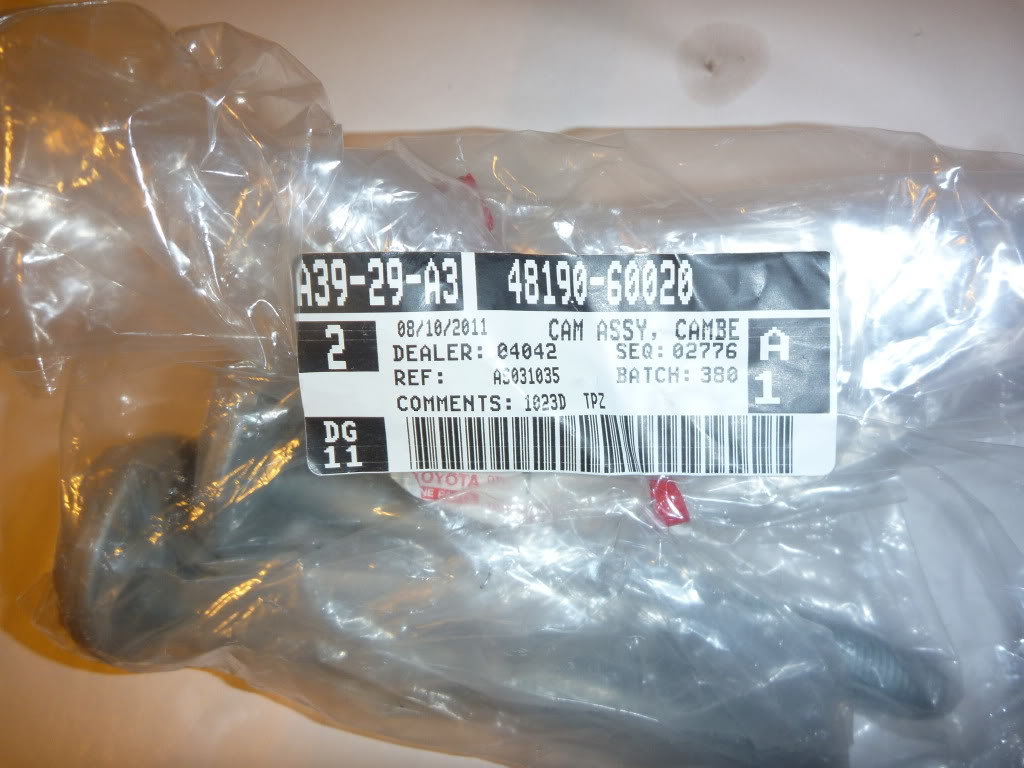

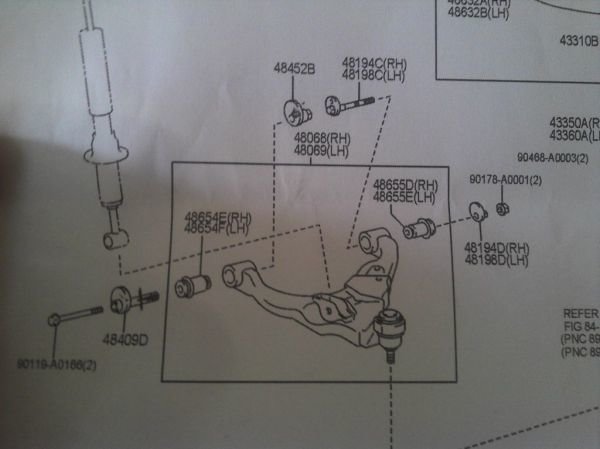

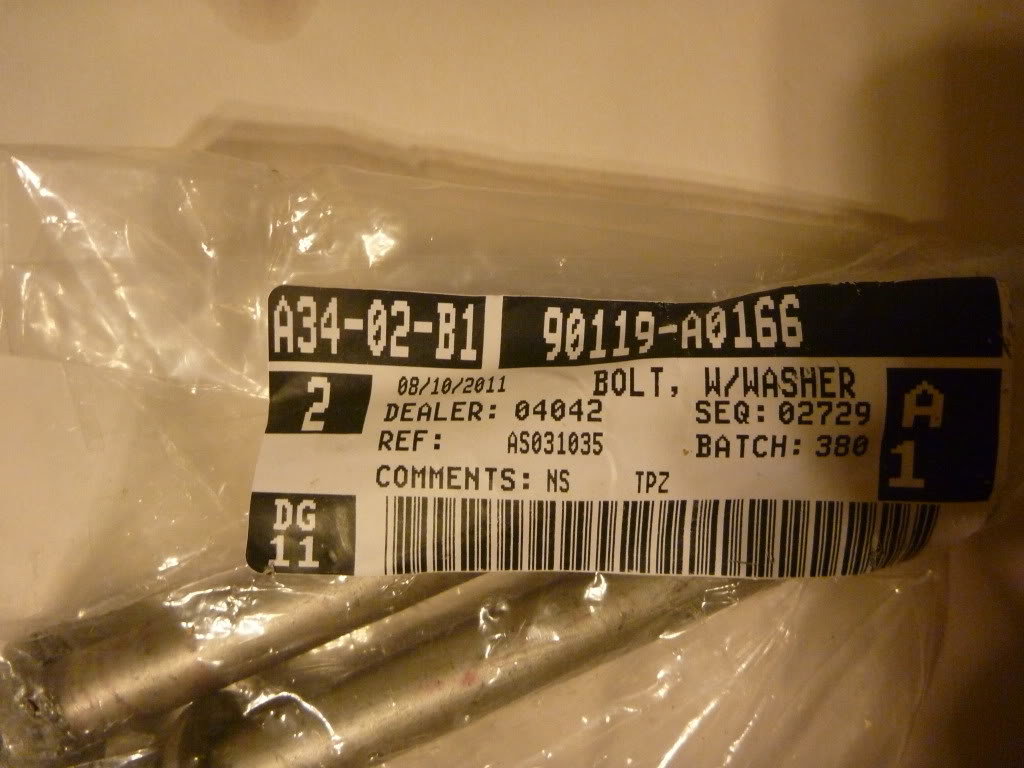

    Toyota Parts required:

    [​IMG]

    (2) of these
    [​IMG]

    [​IMG]



    (2) of these
    [​IMG]

    [​IMG]



    (2) of these
    [​IMG]

    You will need to remove the stickers on the front cams. Do not use anything abrasive. I soaked them in water overnight then cleaned off the adhesive with Goof Off.



    The remaining hardware can be reused as long as you cut the LCA's off correctly. IMO there is no need to replace good hardware.



    Everything needed for the front:
    [​IMG]



    Everything needed for the rear:
    [​IMG]






    Removal

    Note: Lube all threaded bolts, nuts, etc. before attempting to loosen them. I lubed mine up every days for about a week before touching anything.

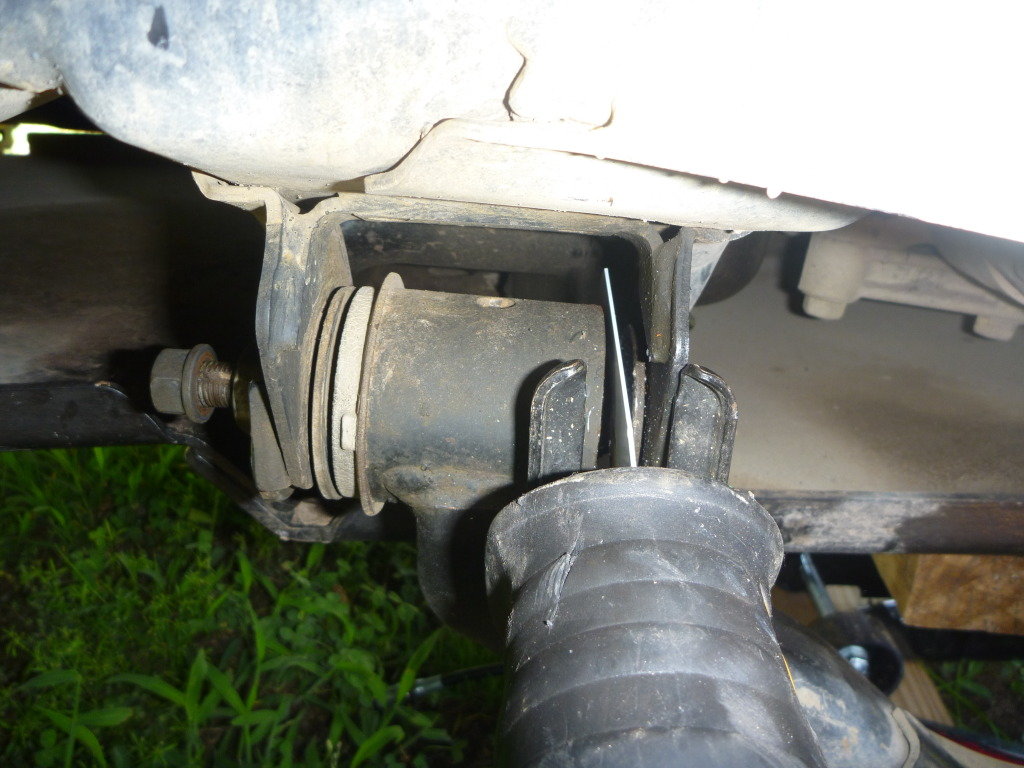

    Step 1: Index the cams by marking them in 2 locations front and rear.

    You will still need an alignment, but being able to get them back to close will be safer.

    (I didn't take pics of my indexing mine so here is from the install - note I had to transfer the markings to the sides of the new cam)
    [​IMG]

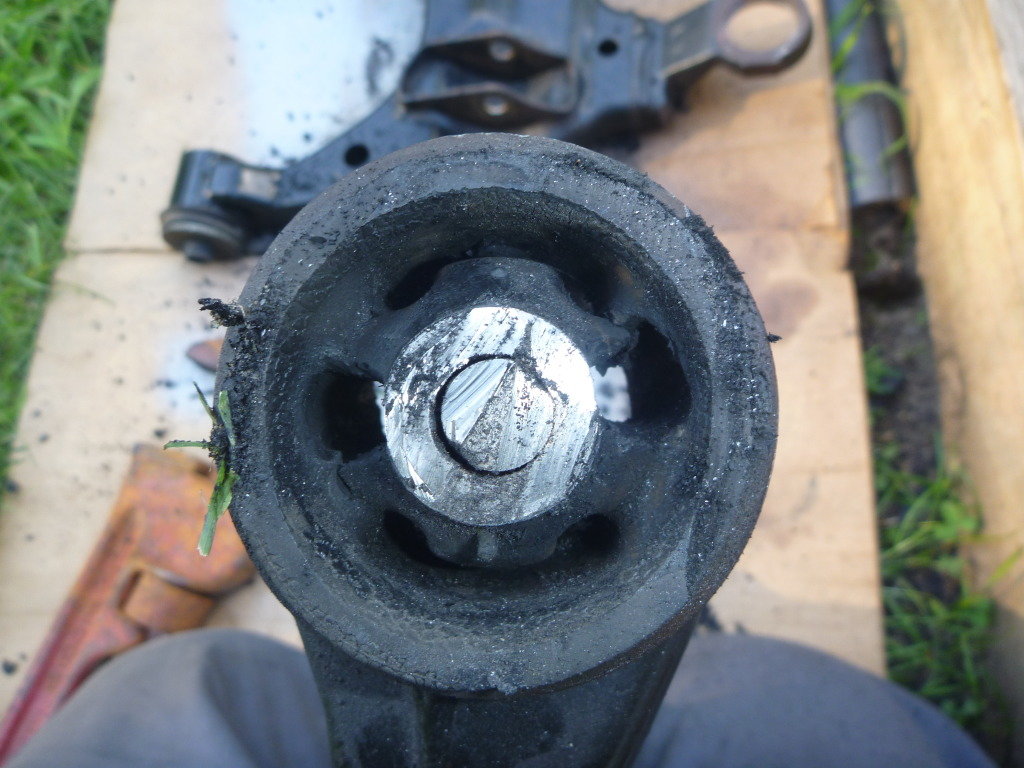

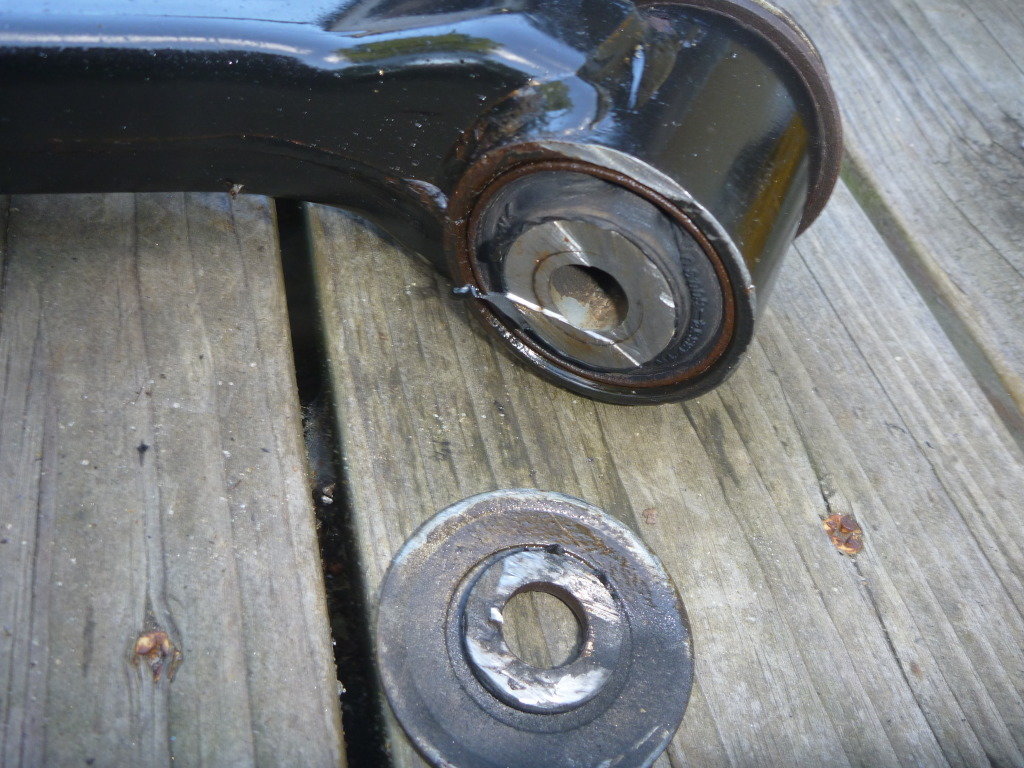

    Step 2: Loosen all the nuts and cut the front of the rear bushing. Be careful not to cut into the frame.

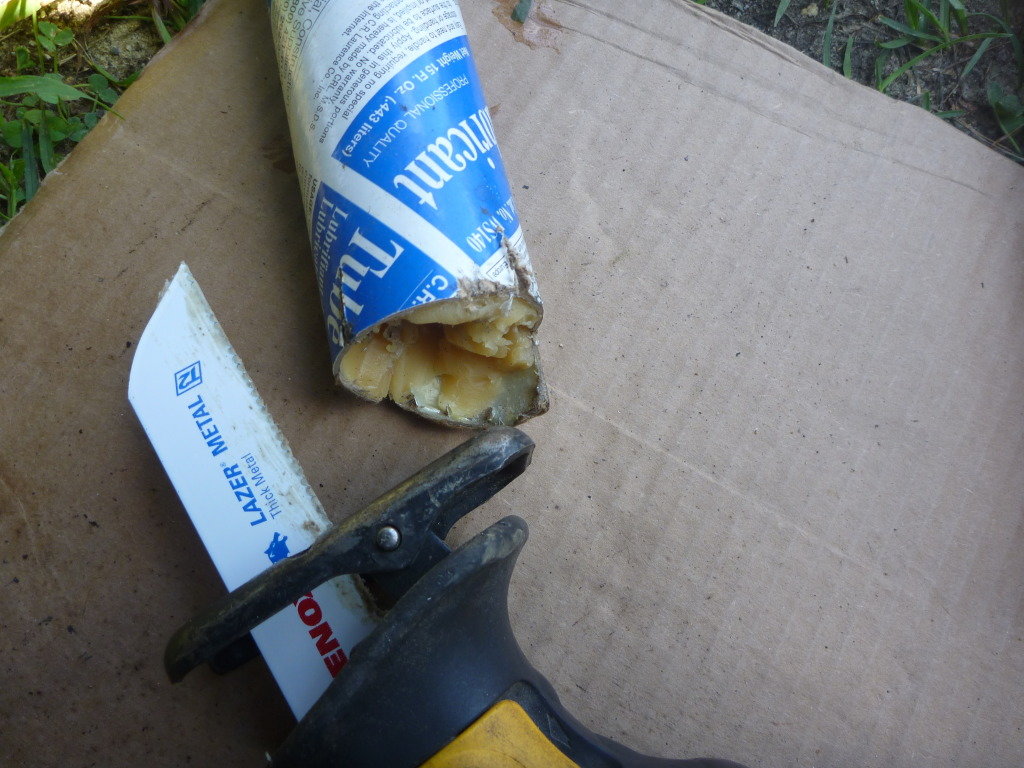

    If you want you can try a sawzall, but I found this to be a poor tool for the job. It was time consuming even using high quality Lenox steel blades and wax. I found using cut off wheels to be much quicker although not as safe. Having some smaller cut off wheels (used ones) proved to be key for the final bits of cutting. They can be used where a larger wheel will hit the frame.

    [​IMG]

    [​IMG]


    [​IMG]

    [​IMG]




    Step 2: Loosen all the nuts and cut the rear of the front bushing. Be careful not to cut into the frame.



    [​IMG]

    At this point the LCA will come right out. You now need to remove the old bushings in the LCA and put new ones in. See here
    http://www.tacomaworld.com/forum/sus...ml#post3691528





  2. May 14, 2012 at 5:14 PM
    #2
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    Installation


    Step 1: Transfer index marks to new hardware. I usually lay them on a table and use a small framing square.

    (Sorry no pics)



    Step 2: Install LCA's with pre-lubed bushings

    Front
    [​IMG]


    Rear
    [​IMG]



    Step 3: Front LCA

    Install sleeve into front LCA mount towards the rear
    [​IMG]

    [​IMG]


    It will stick out the back of the front LCA mount if you did it right.
    [​IMG]



    Install re-used cam plate to the rear of the front LCA mount
    [​IMG]



    Insert front LCA bolt from front towards rear
    [​IMG]

    [​IMG]

    [​IMG]

    Hand tighten. When your done with the rear come back and torque to 110ft# or some shit


    Step [SIZE=3]4[/SIZE]: [SIZE=3]Rear LCA

    [/SIZE]
    Insert lubed bolt from front to back[SIZE=3]
    [SIZE=3][IMG]http://i813.photobucket.com/albums/zz51/boydmiller/IFS%20BS/017_zps2230529a.jpg[/IMG]

    [SIZE=3][IMG]http://i813.photobucket.com/albums/zz51/boydmiller/IFS%20BS/018_zps422106ca.jpg[/IMG]

    [SIZE=3][IMG]http://i813.photobucket.com/albums/zz51/boydmiller/IFS%20BS/019_zps3daeb28d.jpg[/IMG]

    [/SIZE][/SIZE][/SIZE][/SIZE]
    Install re-used cam tab and nut. Torque to balls ass tight. [SIZE=3][SIZE=3][SIZE=3][SIZE=3]
    [SIZE=3][IMG]http://i813.photobucket.com/albums/zz51/boydmiller/IFS%20BS/022_zps9fb860b5.jpg[/IMG][/SIZE]
    [/SIZE][/SIZE][/SIZE][/SIZE]

  3. May 14, 2012 at 5:29 PM
    #3
    Pugga

    Pugga Pasti-Dip Free Since 1983

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    28,979
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    19 mm for LCA bolt removal :thumbsup:

    EDIT: NVM, this is for the sleeves, those are bigger.

  4. May 14, 2012 at 5:30 PM
    #4
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    lol...


    sorry I'm a little late for yours :D


    We also need a GOOD wheel bearing thread. The ones I have seen are seriously lacking

  5. Aug 9, 2012 at 10:30 PM
    #5
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Fix yer damn threads

  6. Aug 10, 2012 at 10:24 AM
    #6
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    :brianr:


    we got 85,000 members.....maybe some of them should put down the platiderp and contribute to this place :D

    Maybe this weekend buddy.....maybe

  7. Aug 23, 2012 at 7:58 PM
    #7
    YumaTRD

    YumaTRD Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,949
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    any updates?
    Is the Qty of parts to replace all 4 cams or just the one seized cam?
    I'm already piecing together pricing to see how much it will cost to refurbish a used set of LCA's with a Moog balljoint and aftermarket bushings.

  8. Aug 24, 2012 at 11:00 AM
    #8
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    This stuff is what you would need should you cut exactly where I did and had 4 seized up on you. If you cut the right stuff when removing it the less parts you will need (what I did).

  9. Aug 25, 2012 at 10:04 AM
    #9
    YumaTRD

    YumaTRD Chewie is my Co-pilot

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    2,949
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    SAS Yota
    SAS, Flat bed, 22R, BFG Muds,
    Got it. so if it looks like i only have one that's seized, then i will only need the parts for a "drivers front" cam. will it be fine to reuse the other ones as long as I grease them again?

  10. Dec 30, 2012 at 11:11 AM
    #10
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius

    You OK? Still got questions?

    I finally got around to completing the thread. Still needs some polishing, but it's 99% there.

    Sorry for the wait.

  11. Mar 21, 2013 at 11:25 PM
    #11
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    has anyone used any other brands for alignment cams?? is Toyota in major centers more than like to have a toe set-up..... I kind of hit a snag tonight, how is it only 1/4 was seized ugh, I now know why the alignment was never able to be perfect though......

  12. Mar 22, 2013 at 7:31 AM
    #12
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    SPC makes a kit

  13. Mar 22, 2013 at 7:33 AM
    #13
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
  14. Mar 22, 2013 at 8:31 AM
    #14
    bulhas

    bulhas the habs fan

    Joined:
    Dec 17, 2010
    Member:
    #47857
    Messages:
    4,829
    Gender:
    Male
    First Name:
    Joe
    Edmonton, Alberta
    Vehicle:
    1997 Rexus
    i make things cook Marshmallows
    thanks i think the factory kit looks a little more robust lol

    thanks though!! The good news is ill have a new part by noon

  15. Mar 22, 2013 at 8:33 AM
    #15
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    I agree , but I do like that the SPC kit has a sleeve to keep the bolt from seizing to the bushing

  16. Mar 22, 2013 at 9:39 AM
    #16
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    Good find Peter!

  17. Mar 22, 2013 at 9:40 AM
    #17
    anthony250f

    anthony250f Well-Known Member

    Joined:
    Feb 18, 2012
    Member:
    #73066
    Messages:
    7,458
    Gender:
    Male
    First Name:
    Anthony
    goleta/santa barbara, ca
    Vehicle:
    97 5 speed 4x4 v6
    lt
    i hate the factory front cams...ive broken 4 of them

  18. Mar 22, 2013 at 2:19 PM
    #18
    Drunknsloth

    Drunknsloth Indffrnce will be the fall of manknd but who cares

    Joined:
    Jun 17, 2010
    Member:
    #39105
    Messages:
    3,200
    Gender:
    Male
    First Name:
    Retribution
    South West
    Vehicle:
    08 SR5 Access V6 6-Speed
    Blacked-Out Badges; Retribution Decals (Sockmonkey); Tailgate Mod; Red LED Rear Blinkers; Yellow Foglights; Yellow Front Blinkers; Superwhite Xenon Corner Bulb; Leer Bedcap; Bedrug Bedmat; Black Cupholders; Black Plastic Piece Around Window Controls; Plasti-Dip Front Bumper Valence; Plasti-Dip Grill Surround; Blackout Chrome Back Bumper; Metal Miller Skid-Plate; Aero Turbine 2525 Muffler; TSB Rear Leaf Springs and Shocks; Satoshi Grill Pending; Off-Roading Torn off Mirror (Replaced); Blue-Sea Fuse Box; Tinted Tail Lights; URD Short Shifter; Interior Mood Lighting; Hood Lights; BedLights Pending
  19. Mar 22, 2013 at 4:49 PM
    #19
    OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    23,895
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Yeah , looks like 1 kit does 1 LCA

    Edit : It even says 1 kit per wheel in the link , lol

    Last edited: Mar 22, 2013
  20. Mar 22, 2013 at 4:56 PM
    #20
    XXXX

    XXXX [OP] Well-Known Member

    Joined:
    Sep 1, 2011
    Member:
    #62715
    Messages:
    21,087
    Gender:
    Male
    First Name:
    sKiP
    Vehicle:
    05 Prius
    Someone needs to buy them and test them out to see how long that plastic lasts.

    I only have another 2-3 years on my new bushings & bolts :D
