DIY Raptor Lights - $15-$30

Discussion in '3rd Gen. Tacomas (2016+)' started by TacomaDanK, May 8, 2018.

  1. May 8, 2018 at 10:55 AM
    #1
    TacomaDanK

    TacomaDanK [OP] Well-Known Member

    Joined:
    Feb 17, 2018
    Member:
    #244685
    Messages:
    51
    Gender:
    Male
    First Name:
    Daniel
    Spanish Fork, UT
    Vehicle:
    2016 Tacoma TRD OffRoad
    Custom Roof Rack by Rave Off Road

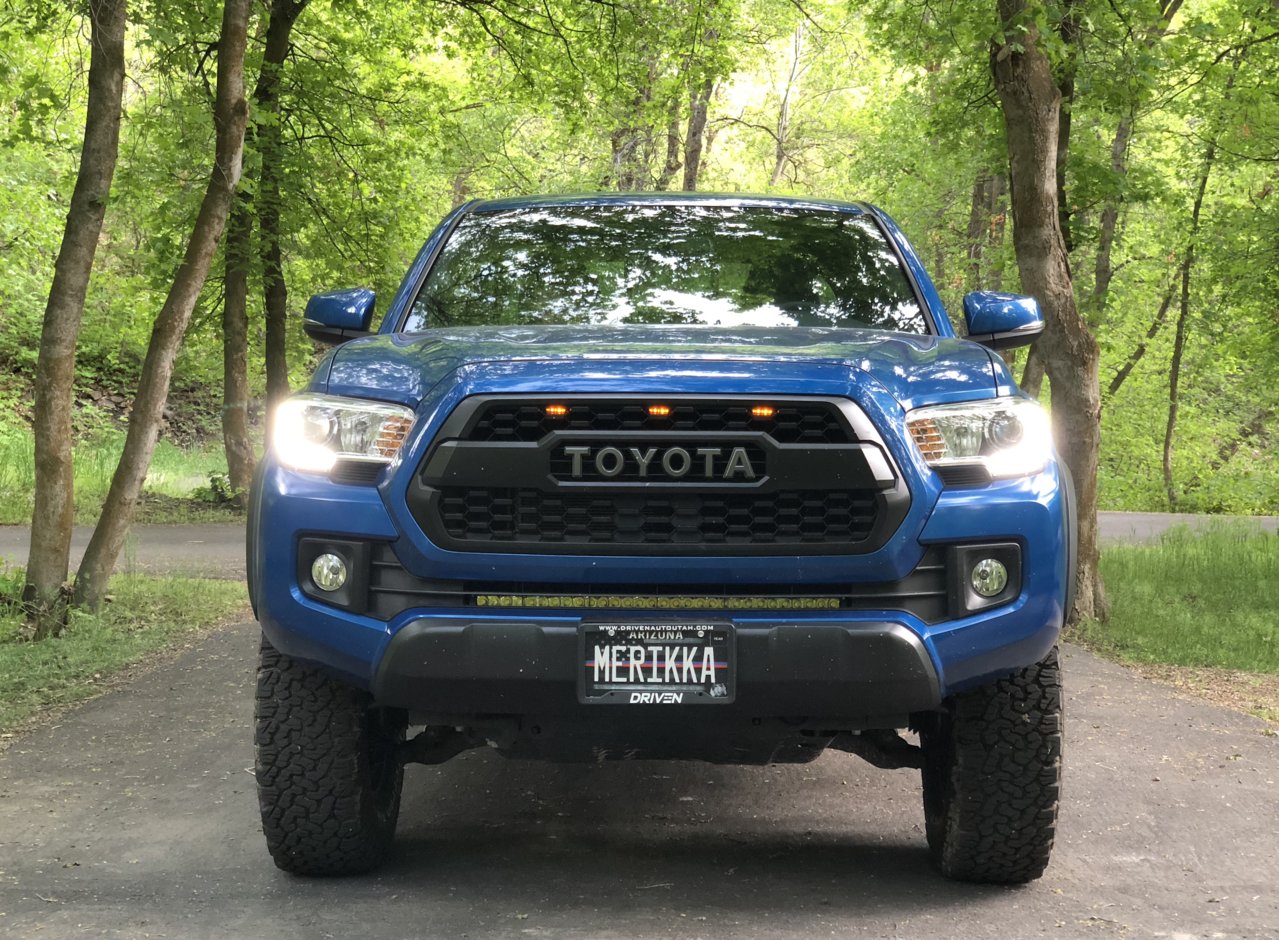

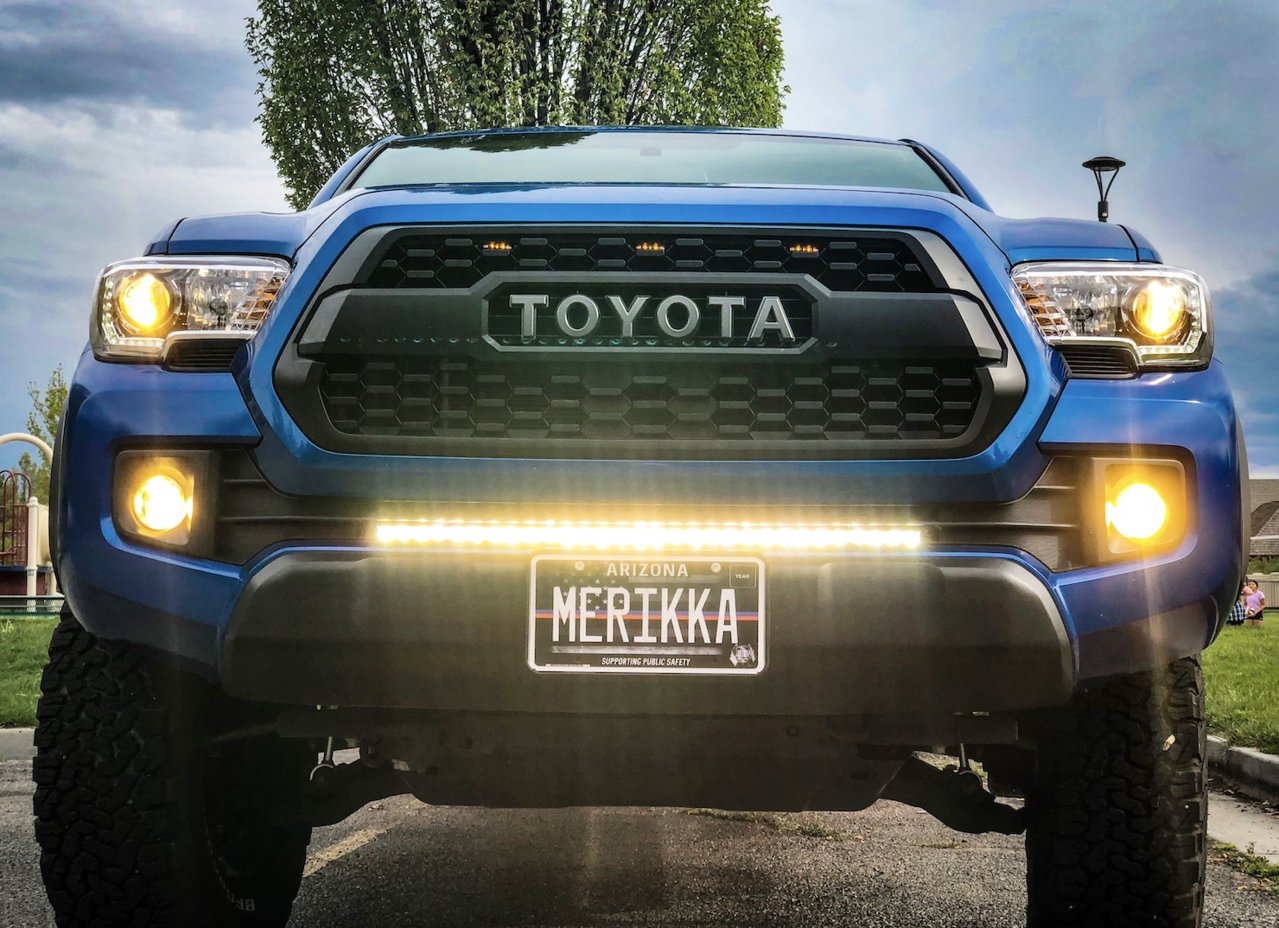

    I wanted Raptor lights but didn't wanna spend $79 bucks. Especially since I wasn't sure if I was going to end up liking them, or if one day I wanted to take them off. I have a TRD Pro Grill, so these instructions may be different for other types of grilles. Same idea though.

    Tools Needed:

    • Wire Stripper
    • Flat Head Screwdriver
    • Phillips Screwdriver
    • 10mm Ratcheting Socket
    • Strong Pliers


    Materials Needed:

    The Lights $13
    AMBER 6 PACK LED LIGHTS
    This will come with 6, so you could do it with a friend or use the extra 3 on something else. I like these because they have a black smoked lens and when the truck is off, they are almost completely hidden.

    Miscellaneous Items
    If you don't have these laying around, and don't do electrical projects often, I would recommend AutoZone, OReily, etc. (if you buy on Amazon, you'll have to buy 100 pieces of a connector when you only need a couple)


    1. Take off the grill. (this is where you'll need the screwdrivers) 2 phillips screws and 2 clips.

    2. Take it inside where there's AC and cold drinks and NBA playoffs

    3. Sit down at the kitchen table and your wife will love how you just commandeered the table.

    4. Visualize where the lights will look best. The TRD Pro Grill has 7 openings across the top, use #2,4,6

    5. Use the screw holes on either side of the amber LED light and zip tie the lights into those 3 spots on the grill, with the wires going inside towards the engine, and the lenses facing out the grill. (I originally used zipties just to temporarily see if I liked how these looked, and planned on doing something cleaner and less tacky down the road, but black zip ties on the pro grill honestly work great. They disappear into the darkness of the grill and even in sunlight are not very noticeable. When you tighten the zip ties, go slowly, evenly tightening back and forth between each side. If you tighten one as tight as it goes the other side will be crooked.

    6. Once all 3 lights are zip-tied in place, you can cut off the excess. Then use the wire connectors (I used quick-splicers) and extra wire to connect all 3 of the black (12v) to one wire and white (ground) to another wire. Go in the direction of passenger side to driver's side (thats where the fuse box is, and where you'll connect the ground terminal ring) Leave a couple feet of extra wire on the drivers side to connect your ground and 12v. MAKE SURE THE WIRES ARE STRONGLY CONNECTED. These tend to come undone easily. It may take a couple times and a couple wasted connectors to get them firm and permanent.

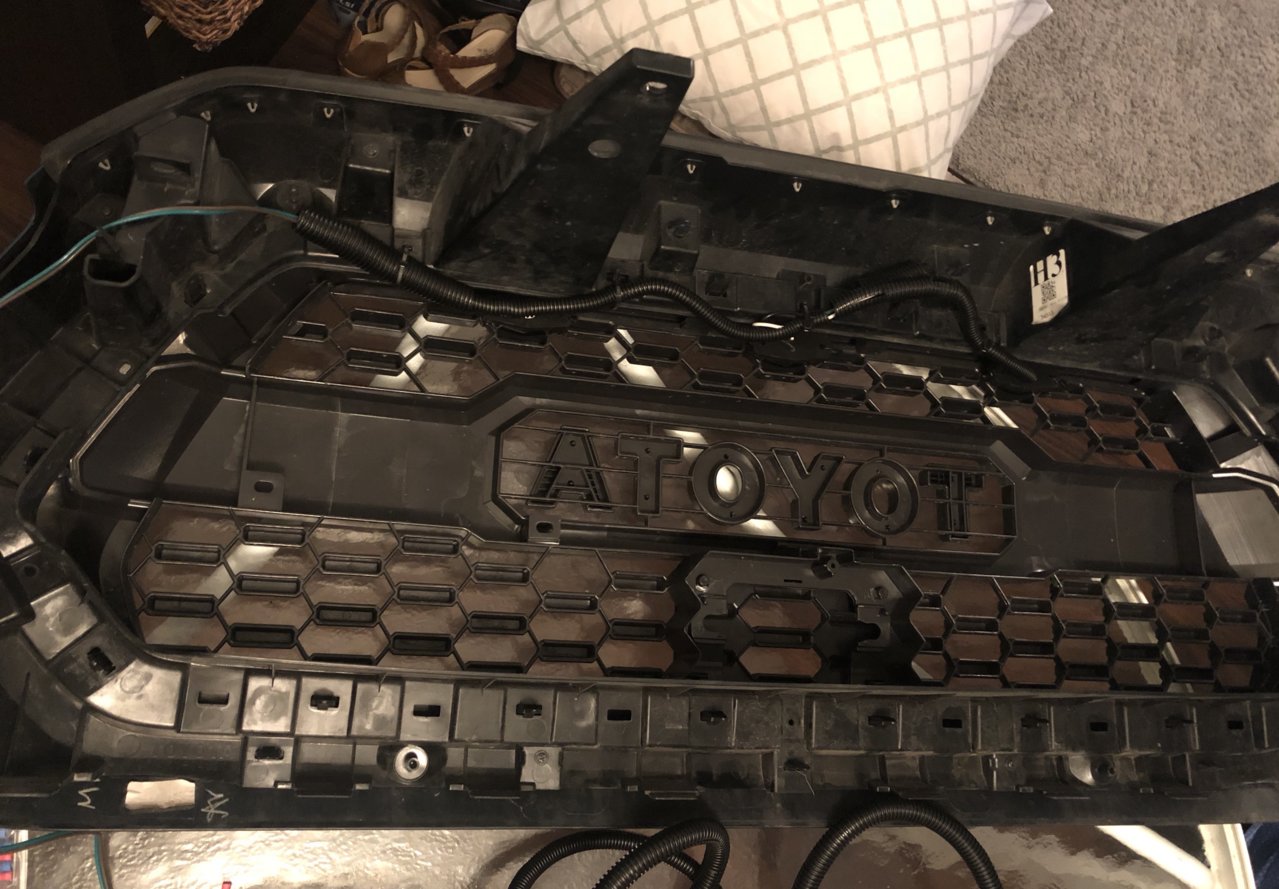

    7. Use the tubing to enclose all the wires, and connectors, letting each light's wires join the group of wires like onramps coming onto the freeway. (see wiring diagram)

    8. Tuck them up into the top part of the grill, hiding them from sight when looking into the grill.


    9. Find nearby holes to use zip ties to keep the wires/tubing from falling into sight.

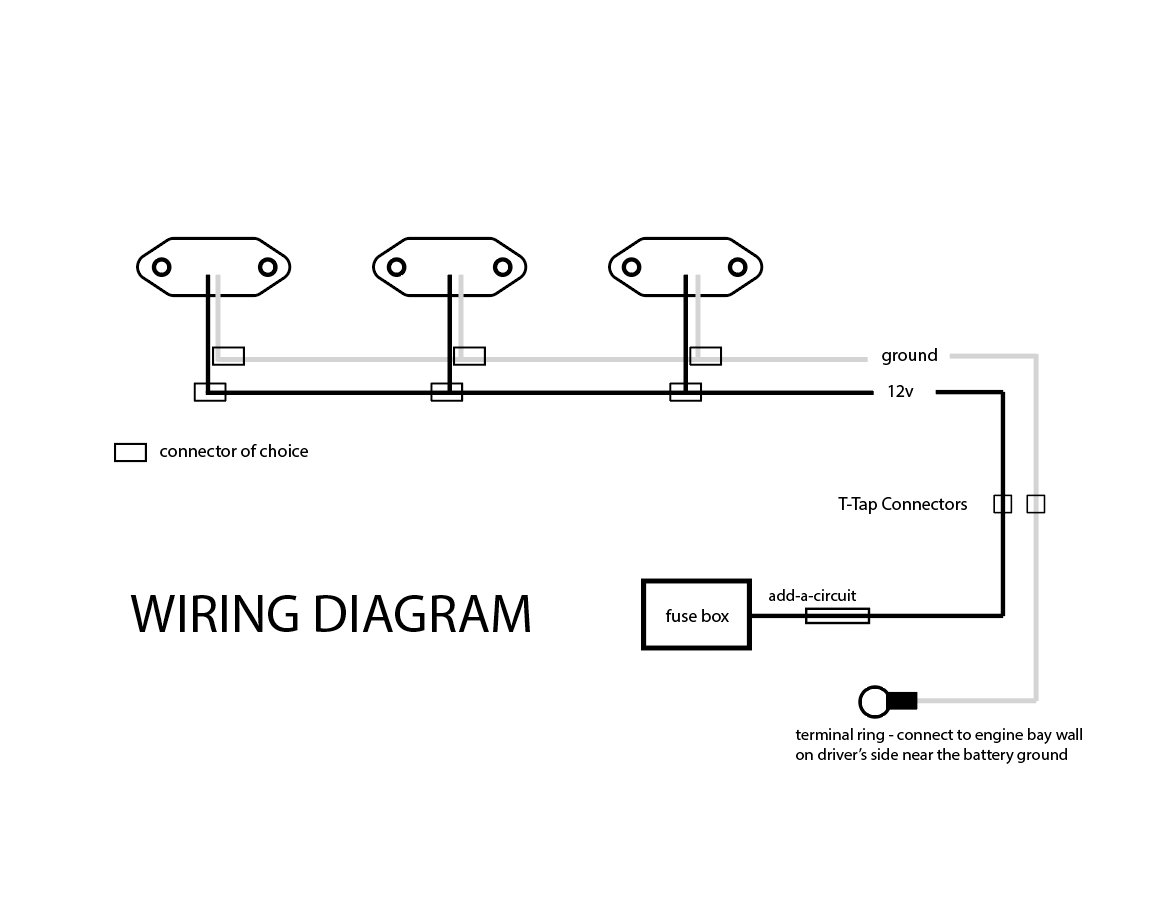

    10. Cut the wire with about a 2 ft of extra wire and reconnect the wires using 2 T-Tap connectors. This is so when you take off your grill next time, you can just disconnect and re-connect these two wires at a point that is easily accessible.

    11. Measure a comfortable length of wire to reach the ground connection on the side wall of the engine bay near the negative terminal of the batter. Cut the far end of the ground wire coming from the lights. (remember, you can always cut more off, but it's much more of a headache to add more wire) Connect a terminal ring to the ground wire coming from the lights. Use a 10mm socket to take out the bolt, place the O-ring with the others and bolt it back into the side wall.


    12. Measure a comfortable length of wire to reach the fuse box and cut the 12v wire coming from the lights. Connect the add-a-fuse to the wire with pliers. Squeeze VERY HARD, and use heavy duty pliers. I've learned that it's better to strip the wire with the full length of the metal tube so that the full connector tube is touching the wire directly.

    13. Depending on when you want your lights on, choose a fuse or a wire to splice into that will turn on when you want the lights on. (I originally spliced into the daytime running lights 12v, but that was a headache and I really didn't want to ruin the headlight wiring, so I ended up just adding a circuit to the INJ 10AMP (fuel injectors) fuse. That way, whenever the car is on, the raptor lights are on.

    Questions are welcome, hopefully this helps. Sorry there aren't more pictures.


  2. May 8, 2018 at 11:02 AM
    #2
    RobP62

    RobP62 Those fuk'n squirrels!

    Joined:
    Jun 4, 2017
    Member:
    #220718
    Messages:
    39,217
    First Name:
    Rob
    Street, Md.
    Vehicle:
    TTC Member #0125
    Very nice write up Man! Gonna sub for when the time comes. Thanks! :thumbsup:

  3. May 8, 2018 at 11:03 AM
    #3
    Spencer4x42006

    Spencer4x42006 Whoisthatguy

    Joined:
    Feb 17, 2017
    Member:
    #210830
    Messages:
    130
    Gender:
    Male
    First Name:
    Spencer
    Bend, OR
    Vehicle:
    2006 TRD OR
    5100s Wildpeaks Light bar Other shit
    I'm trying to do this with a 2nd gen, this looks sweet tho^^^

    iprefertacos, Slamuel and RobP62 like this.
  4. May 8, 2018 at 11:32 AM
    #4
    SQR74

    SQR74 Well-Known Member

    Joined:
    Apr 10, 2018
    Member:
    #250034
    Messages:
    96
    Gender:
    Male
    Austin, TX
    Vehicle:
    2018 Tacoma TRD Sport
    Clean, very simple. Nice job.

    RobP62 likes this.
  5. May 8, 2018 at 11:50 AM
    #5
    navin r

    navin r Well-Known Member

    Joined:
    Feb 10, 2017
    Member:
    #210206
    Messages:
    281
    Gender:
    Male
    Vehicle:
    2017 double cab short bed trd off road 4wd w/ premium pkg.
    Great write up, I have absolutely no need to do this, but I still would like to do this.

    RobP62 likes this.
  6. May 8, 2018 at 12:17 PM
    #6
    Camel89

    Camel89 IG: kh.camel

    Joined:
    Nov 30, 2015
    Member:
    #171087
    Messages:
    431
    Gender:
    Male
    Houston, TX
    Vehicle:
    2016 TRD OR 4x4

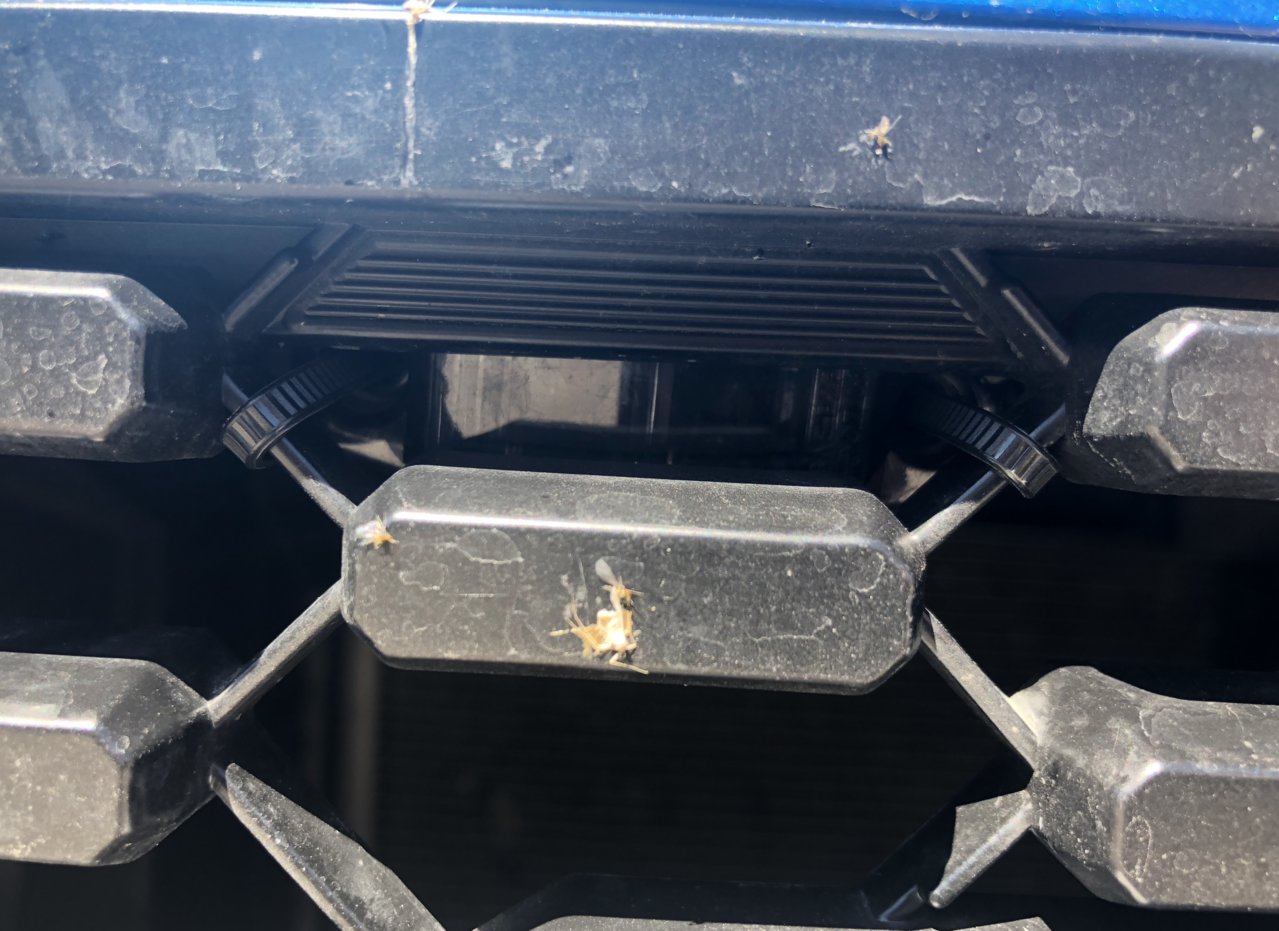

    What exactly did you zip tie the lights to on the grille?

  7. May 8, 2018 at 1:27 PM
    #7
    TacomaDanK

    TacomaDanK [OP] Well-Known Member

    Joined:
    Feb 17, 2018
    Member:
    #244685
    Messages:
    51
    Gender:
    Male
    First Name:
    Daniel
    Spanish Fork, UT
    Vehicle:
    2016 Tacoma TRD OffRoad
    Custom Roof Rack by Rave Off Road

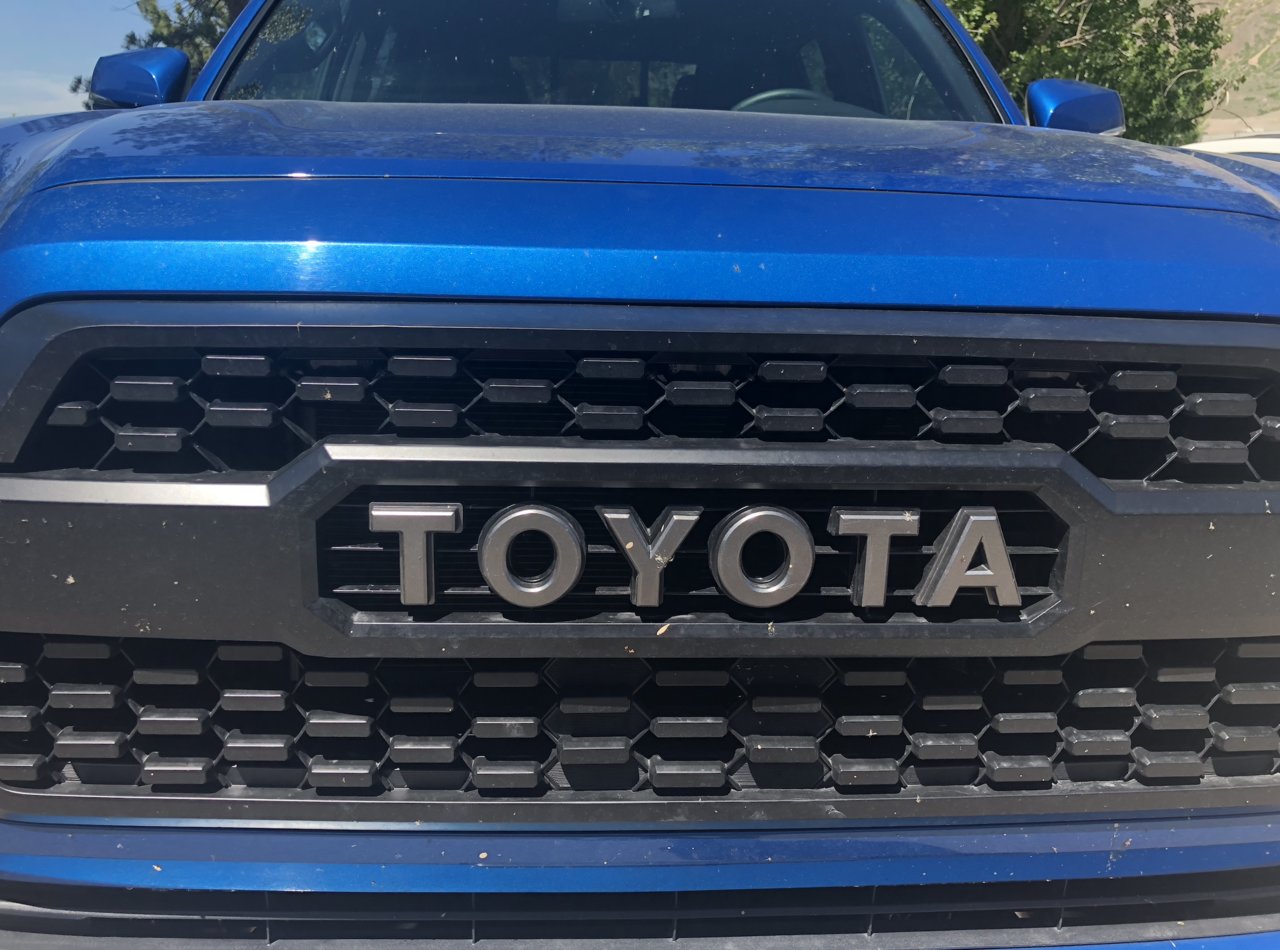

    Somebody needs a car wash haha...



    Camel89 likes this.
  8. May 8, 2018 at 1:33 PM
    #8
    woohoo_tacos

    woohoo_tacos Well-Known Member

    Joined:
    Jun 22, 2017
    Member:
    #222121
    Messages:
    173
    Gender:
    Male
    First Name:
    Matt
    Atlanta
    Vehicle:
    2017 TRD off-road 4x4
    3” lift 285/70-17 TRD PRO wheels 17x7
    REMOVE THE ADD A FUSE FROM THE INJECTOR!!! I did that with my rapotor lights and huge mistake. It worked great for a few days and one day the truck shut off in the middle of the road and acted very weird and wouldn’t turn back on after it shut off. Removed the add a fuse and bam fired right back up no problems since then

    stealthmode and remgu2000 like this.
  9. May 8, 2018 at 1:36 PM
    #9
    Norsemanvike

    Norsemanvike Well-Known Member

    Joined:
    Feb 15, 2018
    Member:
    #244562
    Messages:
    4,854
    Gender:
    Male
    Escondido, CA
    Vehicle:
    '18 Sport 4x4, DblCb, ShBd, BBP
    I'm terrified of doing anything electrical, but this seems pretty simple and I'm saving this for later.

  10. May 8, 2018 at 1:37 PM
    #10
    Nettleberger

    Nettleberger Well-Known Member

    Joined:
    Mar 14, 2018
    Member:
    #247329
    Messages:
    328
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    2017 Tacoma TRD Pro DCSB Super White
    How's the brightness? They look somewhat dim in the pictures.

  11. May 8, 2018 at 2:01 PM
    #11
    JMC3800

    JMC3800 Well-Known Member

    Joined:
    Jan 25, 2015
    Member:
    #147156
    Messages:
    138
    Gender:
    Male
    Western MASS
    Vehicle:
    2015 TRD PRO
    Tail Gate Mods, Gator SR-1 Roll up Tonneau Cover
    Can I ask where did you get power for these after the you disconnected it from the injectors fuse? Thanks

  12. May 8, 2018 at 2:19 PM
    #12
    woohoo_tacos

    woohoo_tacos Well-Known Member

    Joined:
    Jun 22, 2017
    Member:
    #222121
    Messages:
    173
    Gender:
    Male
    First Name:
    Matt
    Atlanta
    Vehicle:
    2017 TRD off-road 4x4
    3” lift 285/70-17 TRD PRO wheels 17x7
    Fed the power cable through firewall gromet and used the 12 volt plug fuse

  13. May 8, 2018 at 2:53 PM
    #13
    greg8765

    greg8765 Well-Known Member

    Joined:
    Sep 19, 2016
    Member:
    #197683
    Messages:
    1,268
    Gender:
    Male
    First Name:
    Greg
    Utah
    Vehicle:
    2016 Magnetic Grey Tacoma Sport DCSB
    Empyre Off Road Grille, Nitto Ridge Grapplers, 17 Inch TRD Pro Wheels, 3 Inch Tuff Country Lift, Bakflip Tonneau Cover, Tint, Pop & Lock, Door Sill Decals, Tailgate Insert Decals
    as am I... but might try to do this over the weekend.

    thanks for the write up!

  14. May 8, 2018 at 4:23 PM
    #14
    MGMTaco17

    MGMTaco17 Well-Known Member

    Joined:
    Sep 17, 2016
    Member:
    #197544
    Messages:
    516
    Gender:
    Male
    Orange County, CA
    Vehicle:
    2017 Tacoma DCSB TRD Sport
    2017 DCSB TRD Sport. TRD Pro Grille. Morimoto Elite 35W HID Headlights. Morimoto XB LED Fog Lights. Clazzio All Black Leather Seat Covers. 32" LED Light Bar Bumper Stealth Mount. BHLM. Raptor Light Kit. Leer 100R. Bilstein 6112/5100 set at 3rd notch. LT275/70-17 C-Load Hercules Terra Trac AT2. Bora .750" Wheel Spacers.
    Great write up! Want to sell the 3 extras you have to me so I don't have to buy the 6 pack? :)

  15. May 8, 2018 at 5:05 PM
    #15
    TacomaDanK

    TacomaDanK [OP] Well-Known Member

    Joined:
    Feb 17, 2018
    Member:
    #244685
    Messages:
    51
    Gender:
    Male
    First Name:
    Daniel
    Spanish Fork, UT
    Vehicle:
    2016 Tacoma TRD OffRoad
    Custom Roof Rack by Rave Off Road

    Oooooo boy! Good to know! How long ago did this happen?

  16. May 8, 2018 at 5:40 PM
    #16
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,295
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    i didnt wanna mess up with my fuse box so instead, i just tapped mine to the park light so every time my park lights are on, theses bad boys are on =)

  17. May 8, 2018 at 6:25 PM
    #17
    woohoo_tacos

    woohoo_tacos Well-Known Member

    Joined:
    Jun 22, 2017
    Member:
    #222121
    Messages:
    173
    Gender:
    Male
    First Name:
    Matt
    Atlanta
    Vehicle:
    2017 TRD off-road 4x4
    3” lift 285/70-17 TRD PRO wheels 17x7
    About a month and a half or so

  18. May 8, 2018 at 9:10 PM
    #18
    TacomaDanK

    TacomaDanK [OP] Well-Known Member

    Joined:
    Feb 17, 2018
    Member:
    #244685
    Messages:
    51
    Gender:
    Male
    First Name:
    Daniel
    Spanish Fork, UT
    Vehicle:
    2016 Tacoma TRD OffRoad
    Custom Roof Rack by Rave Off Road
    So if you have your lights on auto, do they not turn on during the day?

  19. May 8, 2018 at 9:27 PM
    #19
    batong_23

    batong_23 vincedprince

    Joined:
    May 29, 2017
    Member:
    #220176
    Messages:
    1,295
    Gender:
    Male
    SoCal
    Vehicle:
    2017 white toyota tacoma trd sport
    Sorry I don't have auto lights.. but ideally, if you do that then it won't turn on during the daytime

  20. May 8, 2018 at 9:34 PM
    #20
    TheTacoma

    TheTacoma Well-Known Member

    Joined:
    Oct 11, 2015
    Member:
    #166371
    Messages:
    5,472
    Gender:
    Male
    First Name:
    Chris
    Birmingham, AL
    Vehicle:
    2017 DCSB, TRD OR 4x4, Quicksand. SOS Bolt-on Sliders. 285x75r16. Kings
    @BAMATOY I am going to need your assistance :thumbsup:
