DIY: Relocate Trailer Harness

Discussion in '2nd Gen. Tacomas (2005-2015)' started by ilovetacos, Sep 19, 2010.

  1. Sep 19, 2010 at 9:45 PM
    #1
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    I have seen a few ways do this, the most popular way is relocating into the rear bumper. Seen here and here.

    I decided to relocate the harness up behind the tow hitch using homemade "L" brackets and utilizing the existing mount.

    Going this route still puts it tucked out of the way and I still have use of both of my license plate lights. I don't often tow so having it up there shouldn't be an issue when it is needed.

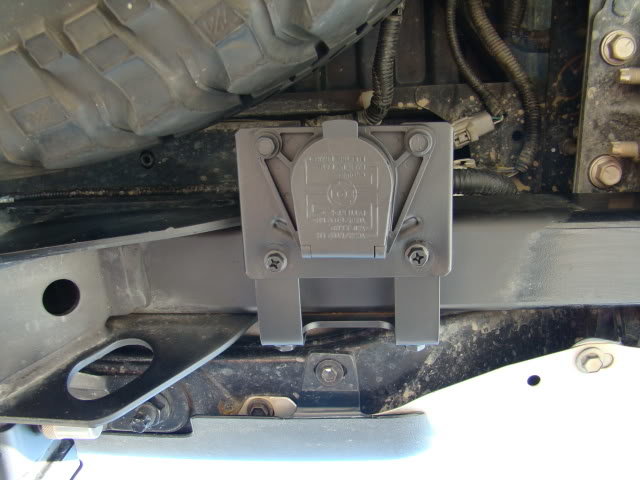

    Before:
    [​IMG]

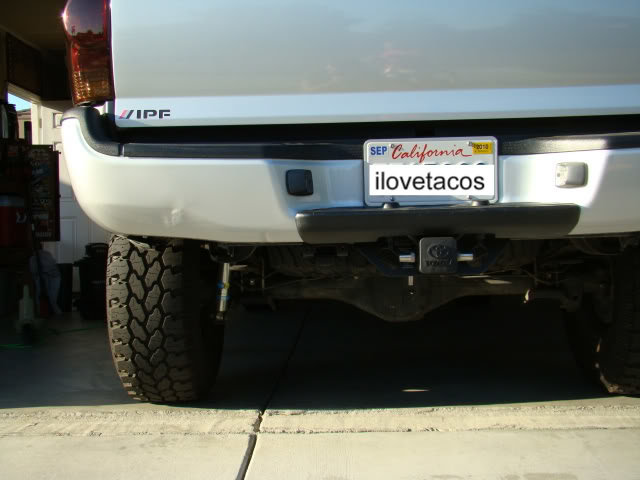

    After:

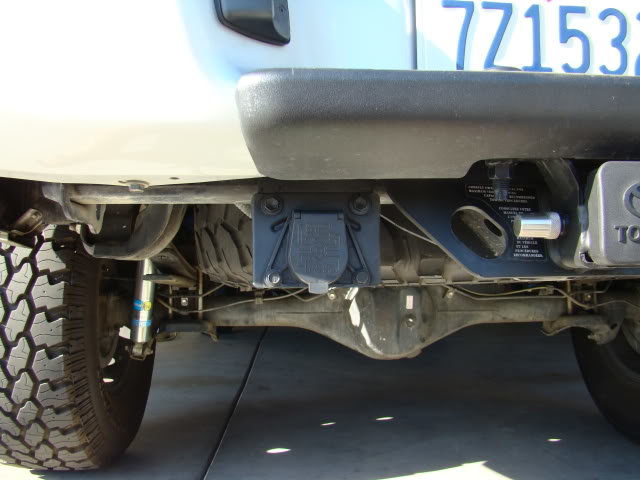

    [​IMG]


    On to the write up...

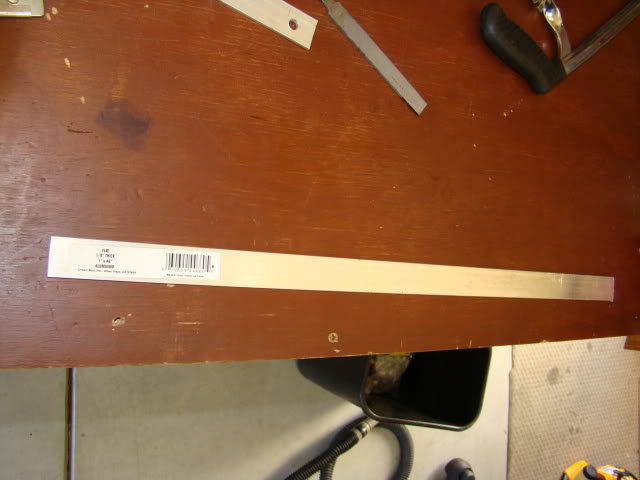

    I used a piece of 1" flat aluminum that is 1/8" thick. I decided to use aluminum because it is easy to work with, won't rust and I had it laying around the garage.
    [​IMG]

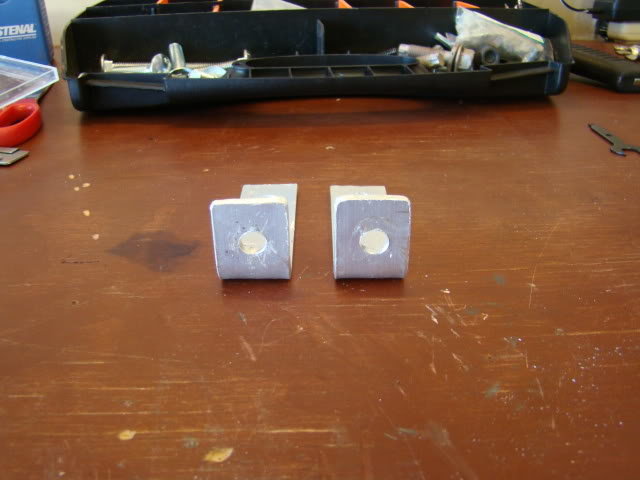

    After measuring I cut (2) 4" pieces and drilled holes at each end. I was in a hurry so it's not that pretty but it worked. I used a dremel to round the edges.

    I did center the holes after this picture using a round bastard file. :eek:
    [​IMG]

    Before paint, mock up
    [​IMG]

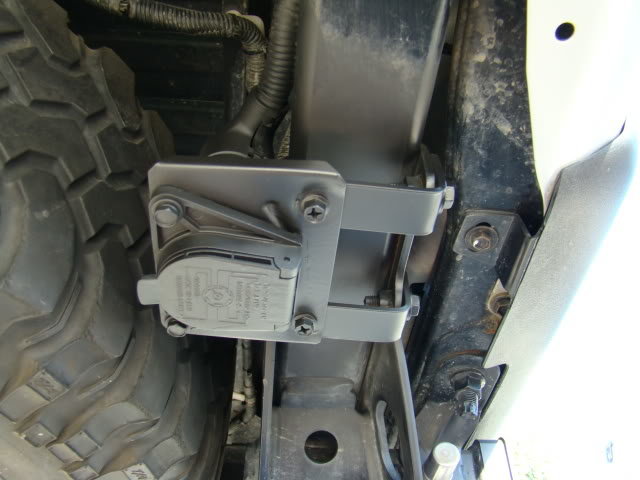

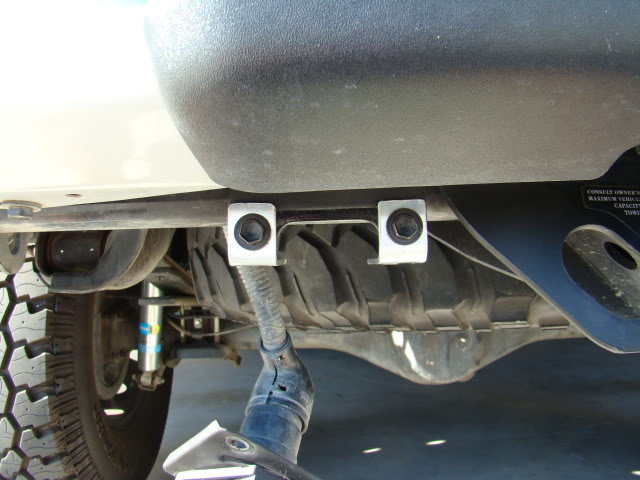

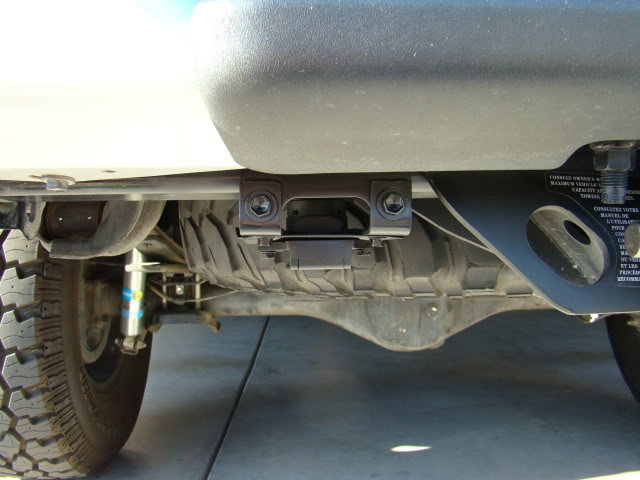

    Everything else it pretty self explantory based on the pictures. Line everything up, tighten down the bolts and hit it with black paint.
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]
    [​IMG]

    Tell me what you think...It was a quick DIY that I just decided to do with out any planning.

    Anyone see any issues with it being there?

    Pirhett likes this.
  2. Sep 19, 2010 at 9:49 PM
    #2
    Paul's TRD

    Paul's TRD I'm Not Your F***ing Brother

    Joined:
    Jan 29, 2010
    Member:
    #30306
    Messages:
    616
    Gender:
    Male
    TX
    Vehicle:
    2011 Z71 4x4 5.3L V8
    I like it. I might use this idea for myself.

  3. Sep 19, 2010 at 9:50 PM
    #3
    pudge151

    pudge151 Well-Known Member

    Joined:
    Apr 4, 2010
    Member:
    #34558
    Messages:
    3,393
    Gender:
    Male
    First Name:
    Sean
    Connecticut
    Vehicle:
    2015 Tundra Platinum
    good work man

  4. Oct 6, 2010 at 9:20 PM
    #4
    JLink

    JLink Well-Known Member

    Joined:
    May 9, 2010
    Member:
    #36795
    Messages:
    11,333
    Gender:
    Male
    First Name:
    Josh
    Ocean, NJ
    Vehicle:
    The "Big Nig"
    Lifted, Locked, Armored. Ready To Wheel.
    that is a very good idea. I got way more into it and ended up cutting a hole in my bumper for the harness to stick through, but yours is simple and very effective. I wish I had seen this before.

    heres mine:
    [​IMG]

    Douglas1953, Blacked_Out and jasonct like this.
  5. Oct 6, 2010 at 9:33 PM
    #5
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    ^^^ I was going to do the same thing but was pressed for time. I am actually happy I went this route because I can always put it back to stock if needed.

  6. Apr 7, 2011 at 6:57 AM
    #6
    gov875

    gov875 WahooTaco

    Joined:
    Jun 15, 2010
    Member:
    #38970
    Messages:
    682
    Gender:
    Male
    First Name:
    Matt
    Pacific Beach, CA
    Vehicle:
    TRD Sport DCLB
    Wet Okole's (front & rear), Weathertech Floormats (front & rear), cheap tailgate theft mod, extra d-rings, low profile toolbox (flat black), Thule Roof Rack (58" load bars), Thule Ski/Snowboard Roof Rack, Blacked Out Badges, Fishing Bobber Trailer Ball Cover, AVIC-X930BT w/ XM & steering controls, 5100s All Around (front set at .85), Eibach Coils, Rear TSB, rear AAL, LR UCAs, Toytec Diff. Drop, Mudflap Delete, Tailgate Reinforcement, Spidertrax (all 4), 285 Nittos, Rear Diff Breather Extension, TRD Exhaust, Powered Rear Sliding Window, DeeZee Bedmat, rear-view anytime mod, trailer bracket relocate, fog light anytime mod, redline hood struts, Satoshi with Homertaco Custom TRD Mesh, Hella 500s behind the grill, Brighter Reverse Lights
    you didn't happen to have a write up with some pics on how you did this did you? i think i'd rather integrate it next to the bumper if it's not too much extra effort

  7. Apr 7, 2011 at 8:45 AM
    #7
    fvtalon

    fvtalon Well-Known Member

    Joined:
    Aug 12, 2010
    Member:
    #41625
    Messages:
    234
    Gender:
    Male
    First Name:
    Mike
    Southern BC
    Vehicle:
    07 DC TRD/Yamaha
    285/65/18 BFG ATs on MKWs Leer Cap
    Looks good and no real issues there except it's not as protected as if it was higher up. Still better than stock though. Only issue I'd maybe be concerned with is what happens to the wire when you're towing, the wire might hang down a little low.

    I was going to put mine beside the plate like that but there wasn't enough room because I put in a 4/7 pin combo like new Ford's & Dodge's have. I hinged the plate on top and put the plugin behind the plate.

  8. Apr 7, 2011 at 8:48 AM
    #8
    paintdiddy

    paintdiddy Machine gun shits

    Joined:
    Oct 12, 2008
    Member:
    #9924
    Messages:
    10,307
    Gender:
    Male
    First Name:
    shithead
    nj and not from "the jersey shore"
    Vehicle:
    silver bullet
    thats a sweet setup. my only problem with the OP set up is when i put my 6 pin adapter to flat 4 pin it would sit kinda low...maybe

  9. Jun 15, 2011 at 5:19 PM
    #9
    YumaTRD

    YumaTRD 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,069
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's
    Great idea OP.
    Ive been procrastinating too long to do this mod.
    I just did it in twenty min. at my shop. Super easy
    :thumbsup:

  10. Jun 15, 2011 at 10:14 PM
    #10
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!

    Thanks! Glad to see other's getting use from this idea!

  11. Jun 15, 2011 at 10:21 PM
    #11
    Bfoster133

    Bfoster133 If i asked my dad for money, He'd knock me out

    Joined:
    Apr 24, 2011
    Member:
    #55492
    Messages:
    1,803
    Gender:
    Male
    First Name:
    Blake
    Thousand oaks, California
    Vehicle:
    2011 PreRunner TRD offroad
    15% Tint, 5100's at 1.75, Rear Diff Breather, CB radio, Black rattle canned rims, 265/75/16 Goodyear MTR, Magnaflow Offroad pro cat back, hi-lift bed mounted, shovel bed mounted
    how much $$ for you to make/paint/send me a pair, too lazy too go out and buy the materials, much easier typing in paypal

  12. Jun 15, 2011 at 10:26 PM
    #12
    ilovetacos

    ilovetacos [OP] Well-Known Member

    Joined:
    Jan 27, 2008
    Member:
    #4464
    Messages:
    2,316
    Gender:
    Male
    First Name:
    Gavin
    Sacramento/Woodland
    Vehicle:
    2006 TRD Sport 4x4 DC
    Sold!
    Come on man! It's easy! I would have to go buy the material because I'm out of the flat aluminum piece. I wouldn't want to charge you but I honestly don't have the time to do it right now. Maybe someone else can make them and sell them on here. I would maybe charge $15 shipped if I were to make them.

  13. Jun 15, 2011 at 10:29 PM
    #13
    Bfoster133

    Bfoster133 If i asked my dad for money, He'd knock me out

    Joined:
    Apr 24, 2011
    Member:
    #55492
    Messages:
    1,803
    Gender:
    Male
    First Name:
    Blake
    Thousand oaks, California
    Vehicle:
    2011 PreRunner TRD offroad
    15% Tint, 5100's at 1.75, Rear Diff Breather, CB radio, Black rattle canned rims, 265/75/16 Goodyear MTR, Magnaflow Offroad pro cat back, hi-lift bed mounted, shovel bed mounted
    hmmm so you comin down to my house to install it too isnt ggunna happen :p

    ill probably find the time, i havnt broken it off yet, so it doesnt bother me, but ill be pissed when it does break off

  14. Jun 15, 2011 at 10:45 PM
    #14
    Hardscrabble

    Hardscrabble Well-Known Member

    Joined:
    Feb 9, 2011
    Member:
    #50838
    Messages:
    2,187
    Gender:
    Male
    First Name:
    Scott
    McDonough, GA
    Vehicle:
    2011 Timberland Mica 4X4
    Leather seats, WeatherTech's, Access LiteRider tonneau cover, extra D-rings in bed & tailgate. Pelley lightbar with Hella 700FF's. Temp./compass O/H console.
    Nice mod and write up Gavin. Good job!

  15. Jun 15, 2011 at 11:06 PM
    #15
    YumaTRD

    YumaTRD 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,069
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's
    I might be able to produce these at $15 shipped, but ill have to look at material cost.
    Galvin, are you running a 33" spare?
    That's the only variable i see that can be different between setups.

    I'll take pics of my work and also show how low the 6 pin adapter to flat 4 pin hangs at this position.

  16. Jun 16, 2011 at 8:57 AM
    #16
    YumaTRD

    YumaTRD 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,069
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's

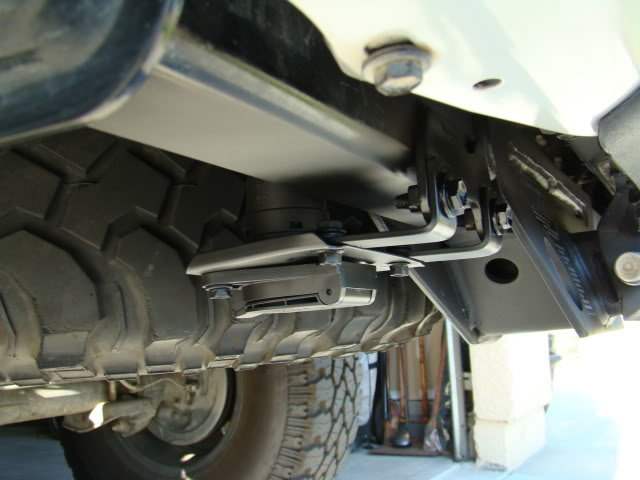

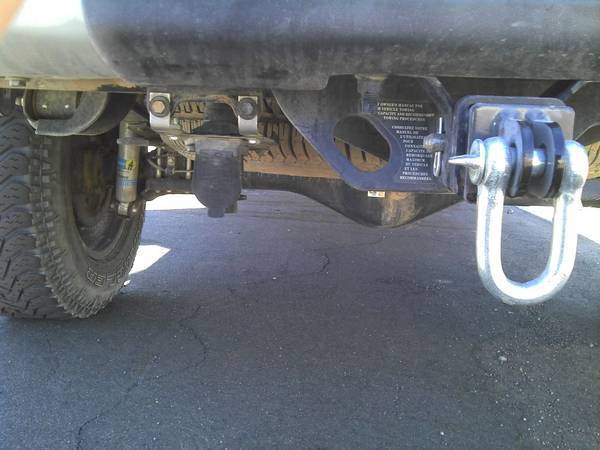

    Here is my install
    [​IMG]

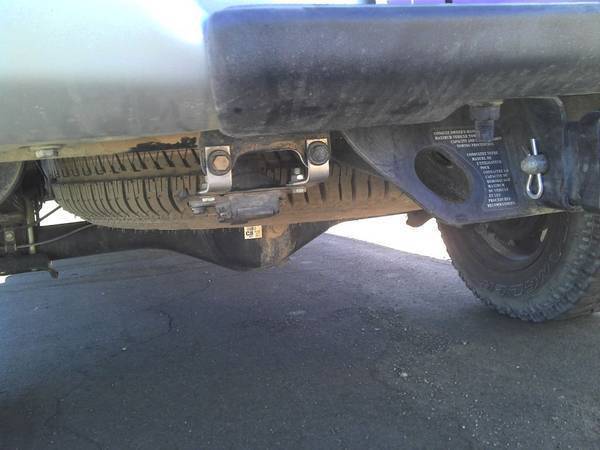

    Here is how low the 6-to-4 pin adaptor hangs
    [​IMG]

  17. Jun 16, 2011 at 9:10 AM
    #17
    KevLot17

    KevLot17 Well-Known Member

    Joined:
    Jun 30, 2010
    Member:
    #39621
    Messages:
    694
    Gender:
    Male
    First Name:
    Kevin
    Pennsylvania
    Vehicle:
    '10 Blacked Out TRD Sport
    Debadged, Toytec Ultimate Lift, Banks Monster Exhaust, AFE Pro Dry filter, Black Grillecraft grille, Flat Black background headlights, Red Blinkers and markers with alternating turn signal mod, Krypton Bulbs 6000K Headlights and Fogs, Fog Light anytime Mod, LED interior lights with map light mod, AVS Black Taillight Covers, Tinted Windows, WeatherTech Digital floor liners.
    This is a great mod... i have a bunch of stainless layin around, i might have to do this, or just grab some aluminum scrap from work... anyways... my $.02 is that if you use the plug itself 75% of the time, its great.. if you use 4 pin more than the regular plug, probably better to do it in the bumper.. OR... if you hate the idea of choppin your bumper up (as i do) and hate it hanging(as i do) you can do this mod, and if you need to use the adapter, just zip out the bolts quick and put it in the stock location...
    I might make these up and go hook it up to my trailer and post a pic of how low it will hang.... (maybe)

  18. Jun 16, 2011 at 11:33 AM
    #18
    bridaw

    bridaw The light was yellow, Sir.

    Joined:
    Oct 27, 2010
    Member:
    #45297
    Messages:
    211
    Gender:
    Male
    First Name:
    Brian
    SoCal, East San Diego County
    Vehicle:
    10 DC 6-speed TRD OR 4x4 tow debadged
    tailgate hose clamp/washer mod ,disable seatbelt warning ,dealer tinted windows ,running boards ,DiamondBack SE bed cover ,OEM rubber bed mat ,TRD Japan shift knob ,bed rail corner reinforcement with angle brackets+square nuts ,Armor Tech Offroad mount for 60" highlift jack ,Scangauge II ,OEM roof rack ,BajaRack basket ,WeatherTech dark tint window deflectors ,removed mud flaps ,debadged ,stubby antenna ,D-rings - 4 in bed floor + 8 on the side rails ,cut four D-ring slots in bedmat ,secured ActionPacker 48 gal cargo box to bed ,center console lock ,relocated 7 pin harness ,Redline Tuning QuickLIFT Elite hood supports ,Pop & Lock PL5300 tailgate lock ,RAM A-pillar mounts for GPS and Drift HD170 camera ,RAM mounts on bajarack for Drift HD170 exterior shots ,relocated rear differential breather ,headrest iPad mount ,ImMrYo rear view mirror lift ,Panavise Indash mount ,265/75/16 BFG All-Terrain T/A KO on TKO black rims ,installed front and rear WeatherTechTacoma DigitalFit FloorLiners ,replaced interior/external lights with Jumpers LEDs +switchback mod +under hood light ,installed rcbs204 Illuminated 4x4 Switch ,installed left and right Relentless Off-road Fabrication hood hinge light mounts ,installed KB Voodoo's Powder Coated Tailgate Cap System ,installed front and rear Wet Okole seat covers ,made and installed mount for Trail Toys NSA Switch Panel ,did ND4's Fog Light Anytime Mod
    There isn't much benefit to doing it this way. No harm either being a temporary mod but if you are going to bother, do it right.

    If the spirit of the mod is to gain more clearance for off road, it isn't enough IMO. It is still too vulnerable down there. This mod would not have protected the bracket from the terrain that bent mine before I relocated the harness to the bumper. I didn't mind cutting my bumper because I know IT is too low and stands a good chance of getting mangled and replaced with a high clearance bumper some day. :)

    If you never use the trailer harness then you would be better off simply removing the bracket from the stock location and zip-tie/mount the harness up behind the bumper or hitch. If you ever do need it, there it is.

    If you DO use the harness, judging from these pictures with a cable plugged in it would hang even lower than stock. :confused:

    The bottom of the trailer harness bracket in stock location is about even with the bottom of the trailer hitch.
    [​IMG]

    It looks like there is even less clearance here with the cover open. There is no cable hanging out of there either (just adapter).
    [​IMG]

  19. Jun 16, 2011 at 1:17 PM
    #19
    YumaTRD

    YumaTRD 22R...Legends never die

    Joined:
    Aug 15, 2009
    Member:
    #21219
    Messages:
    3,069
    Gender:
    Male
    First Name:
    David
    El Cajon, CA hometown Yuma, AZ
    Vehicle:
    Solid Axle Yota
    Locked, Flat bed, 22R 5 speed, BFG KO's
    I agree with you bridaw that this relocate is not best if you offroad with a trailer.
    But i do believe its a permanent solution since the plug is out of harms way and protected by the spare wheel and hitch. (when offroading without a trailer)
    [​IMG]

  20. Jun 16, 2011 at 1:48 PM
    #20
    KevLot17

    KevLot17 Well-Known Member

    Joined:
    Jun 30, 2010
    Member:
    #39621
    Messages:
    694
    Gender:
    Male
    First Name:
    Kevin
    Pennsylvania
    Vehicle:
    '10 Blacked Out TRD Sport
    Debadged, Toytec Ultimate Lift, Banks Monster Exhaust, AFE Pro Dry filter, Black Grillecraft grille, Flat Black background headlights, Red Blinkers and markers with alternating turn signal mod, Krypton Bulbs 6000K Headlights and Fogs, Fog Light anytime Mod, LED interior lights with map light mod, AVS Black Taillight Covers, Tinted Windows, WeatherTech Digital floor liners.
    Correct... and if youre off roading with a trailer... and you hit something high enough to bother the plug in this position.. then id be more worried about my trailer.....
