DIY Running Board Lights / Ground Lights

Discussion in 'Lighting' started by larryde09, Aug 2, 2010.

  1. May 5, 2012 at 4:13 PM
    #21
    spence1991

    spence1991 Member

    Joined:
    May 4, 2012
    Member:
    #78216
    Messages:
    15
    Gender:
    Male
    First Name:
    Spencer
    birmingham,al
    Vehicle:
    Black 07 DCSB Sr5 4x4

    i thought the same and did it, now my fuse blows the instant it gets power, any ideas?

  2. May 5, 2012 at 4:44 PM
    #22
    Rich91710

    Rich91710 Well-Known Member

    Joined:
    Feb 23, 2012
    Member:
    #73470
    Messages:
    16,332
    Gender:
    Male
    First Name:
    Rich
    Los Angeles
    Vehicle:
    08 Base
    Satoshi with FJ badge, factory cruise, factory intermittent wipers, Redline Tuning hood-lift struts, Hellwig Swaybar, Rosen DVD-Nav
    You said you are grounding to the frame.

    You can not ground to the frame.

    Hot comes from the white wire.
    Ground comes from the blue wire.

    Do not connect anything to the frame. The dome light uses a switched ground, not a switched hot.

  3. May 29, 2012 at 10:12 PM
    #23
    GATORTACO92

    GATORTACO92 Well-Known Member

    Joined:
    Jan 15, 2012
    Member:
    #70702
    Messages:
    2,270
    Gender:
    Male
    First Name:
    Alex
    Hoover, Al
    Vehicle:
    2004 F-350 6.0 King Ranch
    2004 F-350...uh lots of motor work to go fast...er. Way to much to list. 2001: 3" leveling kit, ARB bumper, lightforce 240 blitz, 35" KM2s. SOLD 2008: OME 886s 90000 with dakars, LR UCAs, 5% tint, Satashi. SOLD 2015: Flooded and Gone

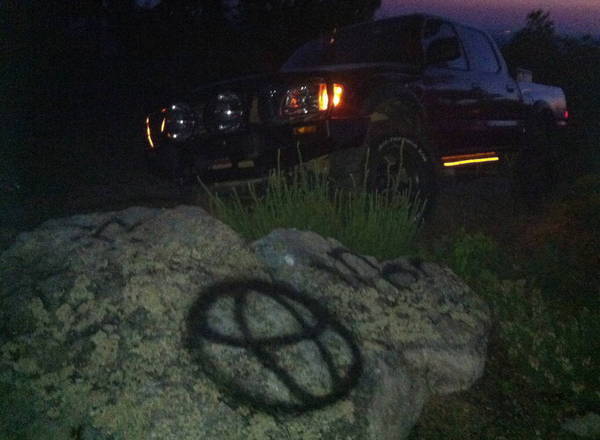

    if those lights go out and you want new ones....i got these from RECON trucking.
    they are amber running/turn signal lights.
    [​IMG]
    [​IMG]
    the second pic is off my phone. but they are bright at night and saved other drivers from having a F'ed up car! sorry if it seems like a thread jack, I'm not trying to. just figured id show them out there for you.

  4. Nov 21, 2012 at 1:23 PM
    #24
    Fisher

    Fisher Well-Known Member

    Joined:
    Jul 16, 2012
    Member:
    #82757
    Messages:
    220
    Gender:
    Male
    First Name:
    Matt
    Salem, OR
    Vehicle:
    2007 2.7 SR5
    K&n Drop In, Secondary filter removed, 5k Headlights, 3K fog lights. Vvt-I sticker (plus 15 HP), Magnapack muffler
    So i got the driver ones installed in great! but whats the best way to connect the passanger side ones? just use the wire taps again on the wires from the lights on the drivers side?

    Or should i of put both sets of wires into the wire taps that i tapped into the white and blue wires?

  5. Dec 17, 2012 at 5:02 PM
    #25
    nammer

    nammer Well-Known Member

    Joined:
    Aug 1, 2011
    Member:
    #60945
    Messages:
    9,480
    Gender:
    Male
    First Name:
    Nam
    Bradenton, Florida
    Vehicle:
    Wishing I had a Taco
    just installed this today, I just tapped the passenger side into the driver's side

    got a few questions though....

    I ran the 12v power from my switch to the white wire in the a pillar
    I ran the switched power out from my switch to the power (red) on my lights
    I ran the black negative to the blue wire in the a pillar
    I grounded the switch

    everything works as it should, HOWEVER, the switch is always lit, I know I can take off the ground, and it won't be lit, but did I do this correctly?

  6. Jan 7, 2014 at 8:01 PM
    #26
    TacomaZeus

    TacomaZeus Member

    Joined:
    Dec 3, 2013
    Member:
    #117811
    Messages:
    14
    Gender:
    Male
    First Name:
    John
    Fort Hood
    Vehicle:
    2010 PreRunner
    bone stock...For now
    looks good. Wanting to do the same thing

  7. Apr 9, 2014 at 9:17 AM
    #27
    firetaco18

    firetaco18 Well-Known Member

    Joined:
    Jan 17, 2013
    Member:
    #95408
    Messages:
    448
    Gender:
    Male
    sub'd. Wanted to install these lights via dome light.

  8. Sep 12, 2014 at 6:37 PM
    #28
    Toyotamudbogs

    Toyotamudbogs Well-Known Member

    Joined:
    Mar 20, 2012
    Member:
    #75239
    Messages:
    166
    Gender:
    Male
    First Name:
    Devin
    White Springs , FL
    Vehicle:
    06 Tacoma 4x4, 4 door sr5
    Tintedwindows,Rockforfosgate amp 2 10" sub , fire dept radio,Rock sliders, Body Armer front Bumper, CB, 3'' EZ leveling kit, fog light mod, beep on lock mod, front duallys rigid led lights, rigid led flasher kit
    Subd Ive been looking for this info for a while now .

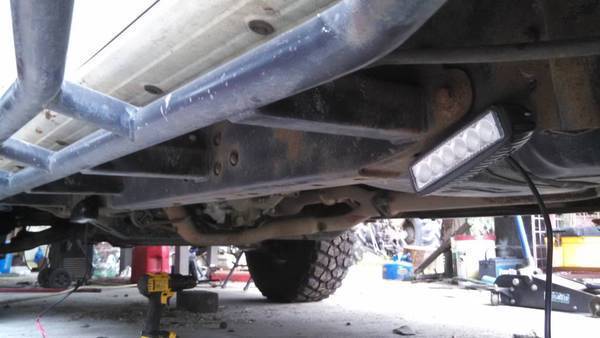

    Now a few questions I have these lights under my truck and wanted to hook them up so when I hit my unlock butten on my key fob that the dome lights come on. [​IMG]
    I have them grounded to the frame . And the power wire ran to a relay under my seat. Now correct me if Im wrong . I can hook that blue wire in the A piller to the power wire to that realy and it will turn my lights on right ?

  9. Jan 29, 2015 at 9:06 AM
    #29
    jp05

    jp05 Well-Known Member

    Joined:
    Jun 1, 2013
    Member:
    #105379
    Messages:
    203
    Gender:
    Male
    First Name:
    Juan
    TN 931
    Vehicle:
    2016 Tacoma SR, DCSB, 4x4, Leer Top.
    sub'd for install

  10. Jan 29, 2015 at 9:56 AM
    #30
    fergyz

    fergyz Mmmm...Tacos

    Joined:
    Apr 25, 2012
    Member:
    #77624
    Messages:
    735
    Gender:
    Male
    49th State
    Vehicle:
    06' DBC 4x4 6spd
    i realize this post is a little old...

    How are you controlling the relay? are you sending 12volts to it from a switch or are you controling the relay by the ground side?

    This will dictate if you need a second relay.

  11. Feb 3, 2016 at 5:20 PM
    #31
    bigfoote13

    bigfoote13 Well-Known Member

    Joined:
    Aug 5, 2015
    Member:
    #161099
    Messages:
    5,357
    Gender:
    Male
    First Name:
    Joe
    South Florida
    Vehicle:
    15 TRD SPORT
    2016 Sport suspension 1/2 spacer up front and aal in rear SCS Stealth 6 17 inch wheels Wildpeak AT3 265 70 17
    I want to know how to install this like the dome light. On off door. If I am going to do this I want to be able to turn them on and off whenever. But I am going to need taco world to teach me how to do this.

  12. Feb 4, 2016 at 10:38 PM
    #32
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,754
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Use a 3 way switch. One solid ground(on), middle is off, one lead from dome ground(door)

  13. Feb 7, 2016 at 7:42 PM
    #33
    bigfoote13

    bigfoote13 Well-Known Member

    Joined:
    Aug 5, 2015
    Member:
    #161099
    Messages:
    5,357
    Gender:
    Male
    First Name:
    Joe
    South Florida
    Vehicle:
    15 TRD SPORT
    2016 Sport suspension 1/2 spacer up front and aal in rear SCS Stealth 6 17 inch wheels Wildpeak AT3 265 70 17
    Where would I put that 1amp fuse. Before or after the switch?

  14. Feb 7, 2016 at 8:11 PM
    #34
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,754
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    No, Generally not on the ground side of the circuit. Put it as close to where you're getting you're power from as you can.

  15. Feb 7, 2016 at 8:18 PM
    #35
    bigfoote13

    bigfoote13 Well-Known Member

    Joined:
    Aug 5, 2015
    Member:
    #161099
    Messages:
    5,357
    Gender:
    Male
    First Name:
    Joe
    South Florida
    Vehicle:
    15 TRD SPORT
    2016 Sport suspension 1/2 spacer up front and aal in rear SCS Stealth 6 17 inch wheels Wildpeak AT3 265 70 17
    That would be on the white grey. I am getting and eduction. Thank you.

    Now I need to get my supplies and then I can have some fun.

  16. Feb 7, 2016 at 8:34 PM
    #36
    AZDesertTRD

    AZDesertTRD Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77969
    Messages:
    302
    Gender:
    Female
    First Name:
    Pamela
    Arizona
    Vehicle:
    2012 PreRunner Sport
  17. Feb 7, 2016 at 8:36 PM
    #37
    Sandman614

    Sandman614 Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,754
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    White-Grey? You don't have to use both the Pos and Neg from the dome light. Preferably not the Dome Pos because the circuit wasn't designed for much more load. Just get your positive from the battery of fusebox.

    bigfoote13 likes this.
  18. Mar 25, 2017 at 7:55 PM
    #38
    cdelgado14

    cdelgado14 Well-Known Member

    Joined:
    Dec 11, 2012
    Member:
    #92905
    Messages:
    829
    Gender:
    Male
    First Name:
    Chris
    Alice,Texas
    Vehicle:
    Supercharged micro machine ;)
    Bilstein 3 inch w/ 5100's
  19. Jan 23, 2018 at 8:54 PM
    #39
    Creator2009

    Creator2009 Member

    Joined:
    Jan 22, 2018
    Member:
    #242063
    Messages:
    5
    Gender:
    Male
    First Name:
    Luke
    Vehicle:
    2005 Blue Tacoma SR5 TRD Off Road
    2/1inch level, 32 inch LED Light bar in bumper, aftermarket UCA's, LED interior and exterior bulbs, Spectre Performance CAI, rear roadside clearance lights, front "Raptor Style" clearance lights. Grille and toolbox mounter amber/white warning lights, twin rear facing light bars inside toolbox, HAM radio mounted.
    Did a successful install yesterday, thanks for the excellent write up!
