DIY: Wiring after-market lights

Discussion in 'Technical Chat' started by rhoppas, Mar 6, 2008.

  1. rhoppas

    rhoppas [OP] Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    I am not sure what to tell you except to trace each wire and look for a place that is touching the metal of the truck. Pay special attention to the wires hooked to the positive terminal of the battery. I suspect that one of those is grounding out to the truck metal. If the lights are wired directly to the battery, not using a relay, there aren't that many wires and it might be just as quick to just run new wires. You can waste alot of time tracing wires down. That way you also know it is done right. It is not that hard to do, it just takes a little time (a good Saturday afternoon project). :)

  2. climber-420

    climber-420 I love tight cracks

    Joined:
    Sep 29, 2008
    Member:
    #9583
    Messages:
    125
    Gender:
    Male
    Above the Mile High City
    Vehicle:
    2004 TRD Tacoma with derp
    Grey Wire Mod, brushguard, cb, DigiDiodes 14" LED light bar (5,800 lmns), DigiDiodes (2) 3x3 Pods (2,100 lmns/piece), Leer Topper, custom bed platform, rear diff breather mod, BlitzPro (2) 6" LED aux reverse lights, full time power to aux 12V outlets.
    thanks for all your help rhoppas. might just be better to take the lights off, and the wiring and put some hella 500's on there with new wiring.

  3. piercedtiger

    piercedtiger Devout Atheist

    Joined:
    Oct 29, 2007
    Member:
    #3284
    Messages:
    6,357
    Gender:
    Male
    First Name:
    Jon
    B.F.E., NY
    Vehicle:
    06 TRD OR DC SB 6SPD
    Bestop canopy, hood struts, relocated 7-pin, 3" Toytec spacer/AAL, 265/75 16 Yokohama Geolander ATS, Hi-Lift mounted in bed, fog light mod, turn signal mod, locker mod, driver seat mag light mount, step bars, reinforced tailgate, ABS kill switch, black grill surround, bed lights, Brute Force front
    It's always a pain in the ass to figure out someone else's wiring.... :rolleyes: I've done it. I hate it. Just rip out all the wires after the the lights, and redo it yourself with new wire, relay(s), and switch. Then you know it's done right. :thumbsup:

  4. mpreiss

    mpreiss Attack Life.

    Joined:
    Nov 30, 2008
    Member:
    #11166
    Messages:
    166
    Gender:
    Male
    Capon Bridge, WV
    Vehicle:
    07 D.cab 4x4 w/3" Lift
    3" Pro comp Suspension Lift Fog light Mod. Tinted Front windows 15% (match rears) Tonneau cover Halo head lights K&N filter.

    Hey Philly74- is that how all those types of halos are made or were yours just messed up? And did you get them all working good now.?

  5. Troubletoo

    Troubletoo Active Member

    Joined:
    Mar 21, 2009
    Member:
    #14996
    Messages:
    39
    Gender:
    Male
    Houston
    Vehicle:
    2008 Black V6 Toyota Tacoma
    Hey Philly74, I think that I have the same lights as you but I haven't hook it up yet. Iam still doing some research before going at it. If you have any suggestion or have figure it out, please let me know. Thanks

  6. mpreiss

    mpreiss Attack Life.

    Joined:
    Nov 30, 2008
    Member:
    #11166
    Messages:
    166
    Gender:
    Male
    Capon Bridge, WV
    Vehicle:
    07 D.cab 4x4 w/3" Lift
    3" Pro comp Suspension Lift Fog light Mod. Tinted Front windows 15% (match rears) Tonneau cover Halo head lights K&N filter.
    i have these lights installed now and mine worked out great. Let me know if i can help you. Check out my pics they should be in there.

  7. Troubletoo

    Troubletoo Active Member

    Joined:
    Mar 21, 2009
    Member:
    #14996
    Messages:
    39
    Gender:
    Male
    Houston
    Vehicle:
    2008 Black V6 Toyota Tacoma
    Hey mpreiss,
    If you can be of any assistant, I would be forever be greatful. I've got these lights for a few days now and I still can't find very much information on how to install them. I can get the lights mounted on my truck with no problems, but it's the wiring that Iam a little hesitant about. Please let me know how you did it, cause I would love to get these on asap. Oh if you have any recomendation on what type of light bubs I should use, cause yours looks pretty bright. Thanks :)

    Vincent

  8. BioMed80

    BioMed80 Well-Known Member

    Joined:
    Sep 12, 2008
    Member:
    #9176
    Messages:
    158
    Gender:
    Male
    Colorado Springs, CO
    Vehicle:
    09 Regular Cab
    3" ReadyLift Kit, 31x10.5x15 General Grabber AT2s, AFE Drop-In, Bull Bar, Hella 500FF, Secondary Filter Removed

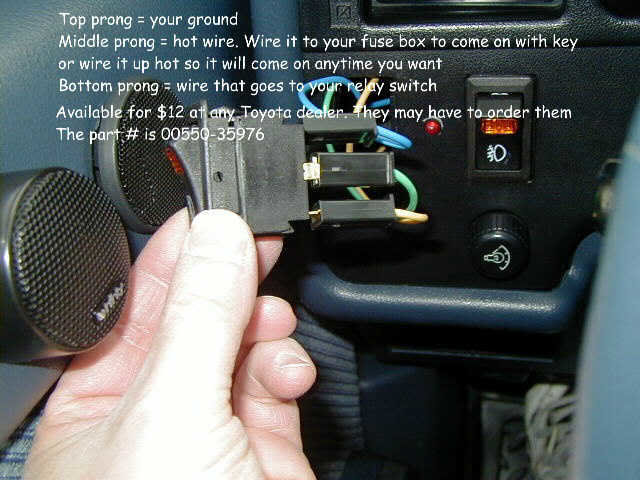

    Not sure if this has been posted before, but I've had a heck of a time trying to find it. Here are the wiring posts for the Toyota switch (p/n 00550-35976). They don't come with any instructions. Hope this helps. I found this on a Rav4 site. LOL. I believe the switch will illuminate only when turned on if wired this way.

    [​IMG]

  9. MiikeyD

    MiikeyD The Green Machine

    Joined:
    Jul 6, 2007
    Member:
    #2017
    Messages:
    1,435
    Gender:
    Male
    First Name:
    Mike
    Upland, CA
    Vehicle:
    Green Prerunner DC 2.7L
    Suspension / Wheels / Tires 3.5" Fabtech lift w/ AAL 265/75/16 BFG A/T American Racing Baja Audio Alpine HU CDA-9886 Kicker DS650 Z-Edition 1000W Memphis M3 US Amps 4000W 2.5Farad Cap Lighting 6000K HID 2 Hella 500FF 2 Aux Bed Lights 2 Aux Driving Lights Performance Volant CAI Flomaster Super 44 Doug Thorley Long Tube headers (coming soon) NGK Iridium Sparkplugs Accessories Scanguage II Cobra LTD27-NW with 3' Firestik Radio Shack Triple Trunking Scanner Harbor Freight Hi-Lift Cosmetics Flat Black Bumper Trim Flat Black Grill Surrounding with Satoshi Clear Corners Future Modifications (not specific) Longtravel w/ king shocks or fox Caged bed Shackles rear suspension. Fox / king shocks custom front bumper Custom Glassworks extreme kit for 01-04 (only have hood and passenger side.. need driver panel) Supercharger + 8port intake manifold optima yellow top battery remounted new rims caged interior rear bench removal 4 sparc
    Does the relay HAVE to be mounted or can it do its thing and dangle like the rest of the wires?

  10. rhoppas

    rhoppas [OP] Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    I suppose it could dangle. You would just want to make sure it doesn't make contact with anything to short out the connections. And you would have to make sure that, over time, the wires do not come loose from the relay connectors. i would think you could find someplace to mount it about anywhere....just to be safe.

  11. Atron22

    Atron22 Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26341
    Messages:
    60
    Gender:
    Male
    San Felipe Peublo, New Mexico
    Vehicle:
    05 Taco Double Cab 4x4
    K&N Cold Air intake 77 Series, 3 inch leveling kit front, AAL w 1 1/2 inch block, rear Pro Comp ES9000 Shocks, Dynomax Catback Exhuast.
    Awesome!!! Thanks, this is what I have been looking for. Step by Step wiring or more clearer directions. Very Very Helpful.

  12. Atron22

    Atron22 Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26341
    Messages:
    60
    Gender:
    Male
    San Felipe Peublo, New Mexico
    Vehicle:
    05 Taco Double Cab 4x4
    K&N Cold Air intake 77 Series, 3 inch leveling kit front, AAL w 1 1/2 inch block, rear Pro Comp ES9000 Shocks, Dynomax Catback Exhuast.
    why am I blowing te inline fuse? I wired it according to the way you did yours step by step. So why am I blowing the inline fuse?

  13. rhoppas

    rhoppas [OP] Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    You apparently have something different. You probably have something grounded that shouldn't be. Are you using a lighted switch with 3 terminals? You may have the ground hooked to the wrong terminal. Verify which terminal is the ground.

  14. Atron22

    Atron22 Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26341
    Messages:
    60
    Gender:
    Male
    San Felipe Peublo, New Mexico
    Vehicle:
    05 Taco Double Cab 4x4
    K&N Cold Air intake 77 Series, 3 inch leveling kit front, AAL w 1 1/2 inch block, rear Pro Comp ES9000 Shocks, Dynomax Catback Exhuast.
    Yeah I have a lighted switch with 3 terminals. So verify from the switch and not the relays.

  15. Atron22

    Atron22 Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26341
    Messages:
    60
    Gender:
    Male
    San Felipe Peublo, New Mexico
    Vehicle:
    05 Taco Double Cab 4x4
    K&N Cold Air intake 77 Series, 3 inch leveling kit front, AAL w 1 1/2 inch block, rear Pro Comp ES9000 Shocks, Dynomax Catback Exhuast.
    Ok. so I wired the lights again and I am still blowing the inline fuse. I am running the Pro Comp 100 lights and the inline fuse that came with the switch kits is using a 30A fuse. would running a different fuse work? How would I bypass the relay and run it straight from the battery?

  16. rhoppas

    rhoppas [OP] Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    PM sent...

  17. rhoppas

    rhoppas [OP] Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat

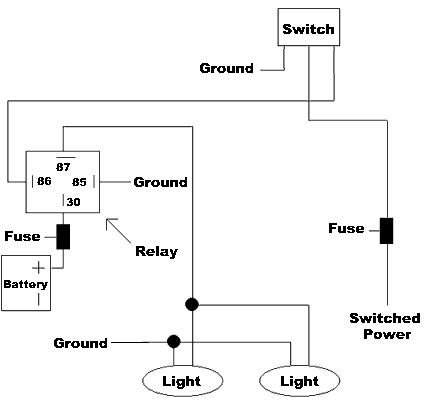

    Here is a good diagram of the wiring...

    [​IMG]

  18. Atron22

    Atron22 Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26341
    Messages:
    60
    Gender:
    Male
    San Felipe Peublo, New Mexico
    Vehicle:
    05 Taco Double Cab 4x4
    K&N Cold Air intake 77 Series, 3 inch leveling kit front, AAL w 1 1/2 inch block, rear Pro Comp ES9000 Shocks, Dynomax Catback Exhuast.
    Ok the diagram is similar to how i have it wired, except the wiring going to the negative terminal of the battery. Those would be the white wires from the lights, right?

  19. Atron22

    Atron22 Well-Known Member

    Joined:
    Nov 22, 2009
    Member:
    #26341
    Messages:
    60
    Gender:
    Male
    San Felipe Peublo, New Mexico
    Vehicle:
    05 Taco Double Cab 4x4
    K&N Cold Air intake 77 Series, 3 inch leveling kit front, AAL w 1 1/2 inch block, rear Pro Comp ES9000 Shocks, Dynomax Catback Exhuast.
    What did you use to connect the two white wires from the lights to the negative terminal of the battery?

  20. rhoppas

    rhoppas [OP] Land of Oz

    Joined:
    Aug 29, 2007
    Member:
    #2564
    Messages:
    1,309
    Gender:
    Male
    Topeka, KS
    Vehicle:
    07 Double Cab V6 TRD Sport Tow
    Earnhardt Cannons, Terra Grapplers, Viper alarm, Hunter4x4 Bull Bar, 6" Pro Comp Off-Road lights, extra set of bed D-rings, Chrome exhaust tip, Metra Ipod/MP3 adapter, Garmin GPS, CarriageWorks grill, Maglite mounted to driver seat, 9" Stubbie Antenna, WeatherTech floor liners, Saddleman Neoprene seat covers, DeeZee bed mat
    I have mine connected to a good ground in the front of the truck. I have nothing connected directly to the battery (in step 10).
