Do I need a spring compressor to flip my ball joints?

Discussion in 'Street Trucks' started by chuckyray, Mar 29, 2020.

  1. Mar 29, 2020 at 2:32 PM
    #1
    chuckyray

    chuckyray [OP] Active Member

    Joined:
    Dec 7, 2019
    Member:
    #312681
    Messages:
    26
    Vehicle:
    rusty 01 2.4l xtracab
    Hey guys I'm wondering if I will need a spring compressor to flip my ball joints. I'm mid frame swap on my 2wd Tacoma and decided to lower her a bit.

    This is where I'm at, tie rod is disconnected and the two bolts holding the strut support and stabilizer are out, it seems like once I unbolt the lower ball joint from the LCA everything will explode, or am I just being a scaredy cat? Same thing if I unbolt the UCA and upper ball joint? I've never seen any BJ flippers mention a spring compressor.


    Thanks for any help, I've been lurking here for a bit and this place is super helpful.

  2. Mar 29, 2020 at 5:57 PM
    #2
    e.deCastro

    e.deCastro Well-Known Member

    Joined:
    Aug 26, 2014
    Member:
    #136960
    Messages:
    437
    Gender:
    Male
    First Name:
    Eric
    San Diego
    Vehicle:
    '01 S-Runner original owner
    Exterior TRD 5 Piece body kit Grillecraft grill DDM Tuning HID retrofit Custom etched Lexus HID Projectors Custom two-tone pin stripe by Jprints Chrome Rocker panels Wheels/ brakes 99 Lexus RX300 OEM wheels converted to 3 piece by ChamorroBoy86 Cadillac ATS Brembo 4 piston calipers Cadillac CTS-V Ceramic Brake pads Mitsubishi EVO IV 12.6” rotors provided by BR Autoworks modified by ChamorroBoy86 Subaru WRX STI Stoptech Stainless Steel brake lines Suspension Custom FBSS air suspension Accu-Rate manifold Dual 444c Viair compressors Accuair Chrome tank Custom Polished Hardlines Streetacos weld on c-notch Custom front shock mounts Custom airbag brackets Streetacos ball joint flip kit Engine TRD supercharger URD 2.2” Supercharger Pulley 312cc NA 2JZ Supra fuel injectors JBA Ti Ceramic Headers Spectre Carb Legal CAI LCE Pro Clutch LCE lightened flywheel 16” electric fan HPS silicone radiator hoses Yellow Top Optima battery Custom Battery tie down Universal oil catch can Denso 105 amp alternator AEM 320 LPH Fuel Pump Interior 02 Lexus SC430 trispoke woodgrain Steering wheel Japanese Rose Wood dash kit Authentic JDM Tsurikawa Nishijin Sakura Gold Black (heart version) Authentic JDM Suichuuka shift knob Authentic Junction Produce Fusa Authentic Junction Produce seat cushion Authentic Influenced VIP satin Pillow set Broadway mirror Custom Aloha print door jamb decals from BigHeadzdesigns LCE Short shift kit Electronics Soundstream VRCP-65 Double Din Multimedia entertainment center Alpine MRV-F545 4-channel amplifier Alpine MRD-M1005 monoblock amplifier NVX VCW124 12” Subwoofer MB Quart DSH216 6.5” 2-way component speakers Black Vue 650S Front and Rear Dash Camera AEM boost gauge AEM Uego wideband O2 controller URD Mass Air Flow Fuel and Timing calibrator
    No need for a spring compressor. At least I didn’t need one. But the ball joint itself was a violent removal. It pops extremely hard. But not dangerous

  3. Mar 29, 2020 at 6:56 PM
    #3
    chuckyray

    chuckyray [OP] Active Member

    Joined:
    Dec 7, 2019
    Member:
    #312681
    Messages:
    26
    Vehicle:
    rusty 01 2.4l xtracab
    Thanks for the info!

    How do you bolt everything back into place without compressing the spring, once the bj's are flipped?

  4. Mar 29, 2020 at 7:33 PM
    #4
    e.deCastro

    e.deCastro Well-Known Member

    Joined:
    Aug 26, 2014
    Member:
    #136960
    Messages:
    437
    Gender:
    Male
    First Name:
    Eric
    San Diego
    Vehicle:
    '01 S-Runner original owner
    Exterior TRD 5 Piece body kit Grillecraft grill DDM Tuning HID retrofit Custom etched Lexus HID Projectors Custom two-tone pin stripe by Jprints Chrome Rocker panels Wheels/ brakes 99 Lexus RX300 OEM wheels converted to 3 piece by ChamorroBoy86 Cadillac ATS Brembo 4 piston calipers Cadillac CTS-V Ceramic Brake pads Mitsubishi EVO IV 12.6” rotors provided by BR Autoworks modified by ChamorroBoy86 Subaru WRX STI Stoptech Stainless Steel brake lines Suspension Custom FBSS air suspension Accu-Rate manifold Dual 444c Viair compressors Accuair Chrome tank Custom Polished Hardlines Streetacos weld on c-notch Custom front shock mounts Custom airbag brackets Streetacos ball joint flip kit Engine TRD supercharger URD 2.2” Supercharger Pulley 312cc NA 2JZ Supra fuel injectors JBA Ti Ceramic Headers Spectre Carb Legal CAI LCE Pro Clutch LCE lightened flywheel 16” electric fan HPS silicone radiator hoses Yellow Top Optima battery Custom Battery tie down Universal oil catch can Denso 105 amp alternator AEM 320 LPH Fuel Pump Interior 02 Lexus SC430 trispoke woodgrain Steering wheel Japanese Rose Wood dash kit Authentic JDM Tsurikawa Nishijin Sakura Gold Black (heart version) Authentic JDM Suichuuka shift knob Authentic Junction Produce Fusa Authentic Junction Produce seat cushion Authentic Influenced VIP satin Pillow set Broadway mirror Custom Aloha print door jamb decals from BigHeadzdesigns LCE Short shift kit Electronics Soundstream VRCP-65 Double Din Multimedia entertainment center Alpine MRV-F545 4-channel amplifier Alpine MRD-M1005 monoblock amplifier NVX VCW124 12” Subwoofer MB Quart DSH216 6.5” 2-way component speakers Black Vue 650S Front and Rear Dash Camera AEM boost gauge AEM Uego wideband O2 controller URD Mass Air Flow Fuel and Timing calibrator
    It has been a long time since I did it but I believe I used a floor jack. Aside from the actual removal of the ball joints which can be a pita. It was pretty easy. Good luck and post before an after shots of your truck.

    chuckyray[OP] likes this.
  5. Mar 29, 2020 at 7:41 PM
    #5
    Sixthelement

    Sixthelement Ran over a Yeti once, Texas, never again

    Joined:
    Apr 1, 2017
    Member:
    #215083
    Messages:
    2,708
    Gender:
    Male
    Flagstaff
    Vehicle:
    JD LT
    If you have to question. Then go with the safe route. I would use a compressor. If you unbolt and knock out your ball joint. That spring will push down your lower control arm and come out very violently.
    At the very least, use your floor jack under the lower control arm. Make sure it is set to hold the load and securely. Not be able to be pushed out of the way, or thrown out of the way.
    I've had springs fly out on me on GM cars and trucks. Nearly died a few times. Be safe.

    chuckyray[OP] likes this.
  6. Mar 29, 2020 at 7:47 PM
    #6
    Hooligans

    Hooligans Well-Known Member

    Joined:
    Oct 27, 2019
    Member:
    #309209
    Messages:
    474
    Gender:
    Male
    First Name:
    John
    Fairbanks, Alaska
    Vehicle:
    2015 4x4 2.7/5spd.
    Still thinking about it.
    I can't argue with the safety recommendations but I have plenty of experience with the floor jack method. Just get a nut on there as soon as you see some threads.

  7. Mar 29, 2020 at 7:50 PM
    #7
    chuckyray

    chuckyray [OP] Active Member

    Joined:
    Dec 7, 2019
    Member:
    #312681
    Messages:
    26
    Vehicle:
    rusty 01 2.4l xtracab
    Thanks for the advice, I think I'll find a compressor tomorrow and go the safe route. I've been trying the floor jack method but I get to a certain point where the jack just starts lifting the entire frame instead of compressing the spring.

    I'll definitely post some before and after.

    Hooligans likes this.
  8. Mar 29, 2020 at 8:23 PM
    #8
    e.deCastro

    e.deCastro Well-Known Member

    Joined:
    Aug 26, 2014
    Member:
    #136960
    Messages:
    437
    Gender:
    Male
    First Name:
    Eric
    San Diego
    Vehicle:
    '01 S-Runner original owner
    Exterior TRD 5 Piece body kit Grillecraft grill DDM Tuning HID retrofit Custom etched Lexus HID Projectors Custom two-tone pin stripe by Jprints Chrome Rocker panels Wheels/ brakes 99 Lexus RX300 OEM wheels converted to 3 piece by ChamorroBoy86 Cadillac ATS Brembo 4 piston calipers Cadillac CTS-V Ceramic Brake pads Mitsubishi EVO IV 12.6” rotors provided by BR Autoworks modified by ChamorroBoy86 Subaru WRX STI Stoptech Stainless Steel brake lines Suspension Custom FBSS air suspension Accu-Rate manifold Dual 444c Viair compressors Accuair Chrome tank Custom Polished Hardlines Streetacos weld on c-notch Custom front shock mounts Custom airbag brackets Streetacos ball joint flip kit Engine TRD supercharger URD 2.2” Supercharger Pulley 312cc NA 2JZ Supra fuel injectors JBA Ti Ceramic Headers Spectre Carb Legal CAI LCE Pro Clutch LCE lightened flywheel 16” electric fan HPS silicone radiator hoses Yellow Top Optima battery Custom Battery tie down Universal oil catch can Denso 105 amp alternator AEM 320 LPH Fuel Pump Interior 02 Lexus SC430 trispoke woodgrain Steering wheel Japanese Rose Wood dash kit Authentic JDM Tsurikawa Nishijin Sakura Gold Black (heart version) Authentic JDM Suichuuka shift knob Authentic Junction Produce Fusa Authentic Junction Produce seat cushion Authentic Influenced VIP satin Pillow set Broadway mirror Custom Aloha print door jamb decals from BigHeadzdesigns LCE Short shift kit Electronics Soundstream VRCP-65 Double Din Multimedia entertainment center Alpine MRV-F545 4-channel amplifier Alpine MRD-M1005 monoblock amplifier NVX VCW124 12” Subwoofer MB Quart DSH216 6.5” 2-way component speakers Black Vue 650S Front and Rear Dash Camera AEM boost gauge AEM Uego wideband O2 controller URD Mass Air Flow Fuel and Timing calibrator
    I just remember I didn’t separate the ball joints just unbolted them. No violent removal. Just put a jack und neath and start to in bolt. I also have lowering springs so the spring I believe is unsprung when the suspension hangs low.

  9. Mar 30, 2020 at 6:35 PM
    #9
    chuckyray

    chuckyray [OP] Active Member

    Joined:
    Dec 7, 2019
    Member:
    #312681
    Messages:
    26
    Vehicle:
    rusty 01 2.4l xtracab

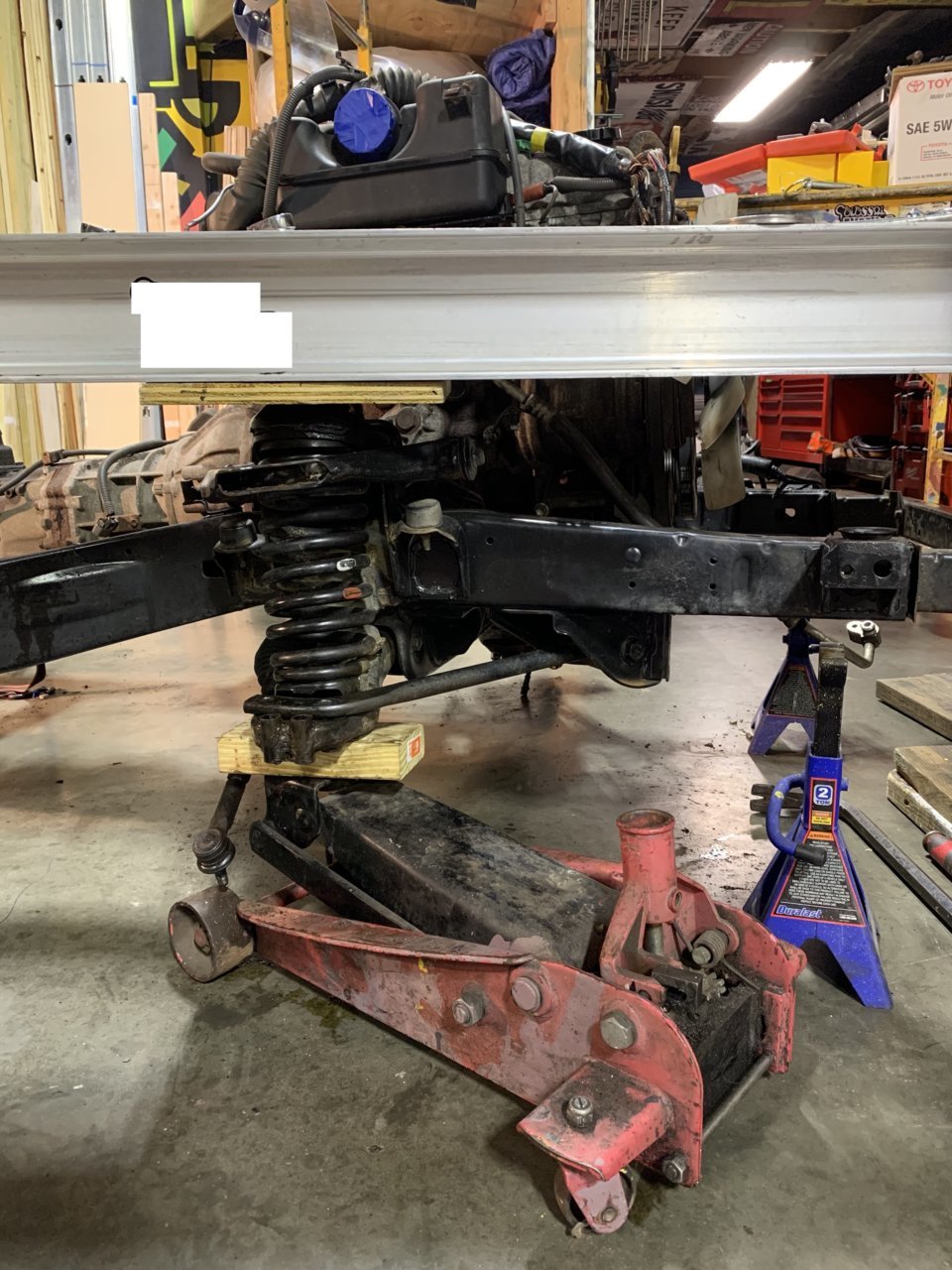

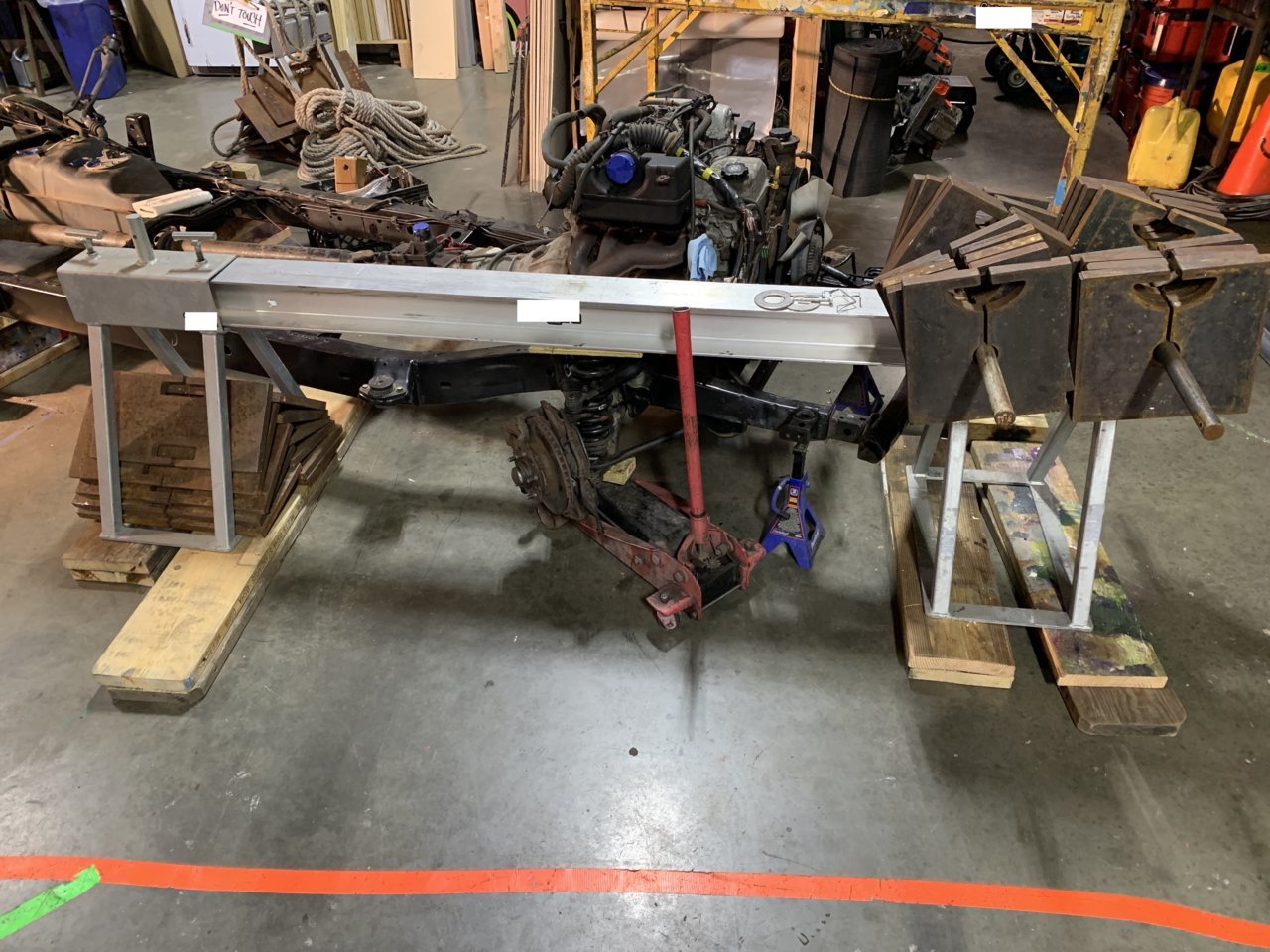

    Went the safe route...
    IMG_4411.jpg IMG_4412.jpg


    Attached Files:

    Last edited: Mar 30, 2020
    pinktaco808 likes this.
