Do shackles auto-correct for solid rear axle toe?

Discussion in '1st Gen. Tacomas (1995-2004)' started by HazardFraught, Aug 4, 2022 at 8:57 PM.

  1. Aug 4, 2022 at 8:57 PM
    #1
    HazardFraught

    HazardFraught [OP] New Member

    Joined:
    Jul 22, 2022
    Member:
    #401885
    Messages:
    4
    First Name:
    A
    Vehicle:
    2003 4x4 XtraCab 3.4L
    Hi friends, new to TW here.

    I'm busy doing my best to repair sections of frame on my 2003 Xtracab, ~180k miles spent in salty NJ, and previous owner did not take care of the frame and missed the recall. Repair included rebuilding the rear 19 inches of the rails/beams. I decided to re use the original shackle mounts, while rebuilding the beam out of new metal. It came out looking great, much sturdier than before but i now noticed that I welded in the driver's side shackle mount about 0.5" further back than it was originally. My concern is whether this means the leaf spring will "pull" the driver's side of the rear axle 0.5" backwards- thus misaligning the toe angle. I am currently doing the exact same repair on the passenger side- should I now attach the passenger shackle mount 0.5" to the back? or keep it stock dimensions?

    I would usually be taking my time and updating my progress here, but I need to finish this repair as I am moving on a budget across country soon- next week.

    Any comments/criticism welcome, I'm just doing my best shadetree work. In any case this truck is _much_ safer to drive in its present state than before. The frame was completely gone in multiple places where I have since substantially rebuilt it.

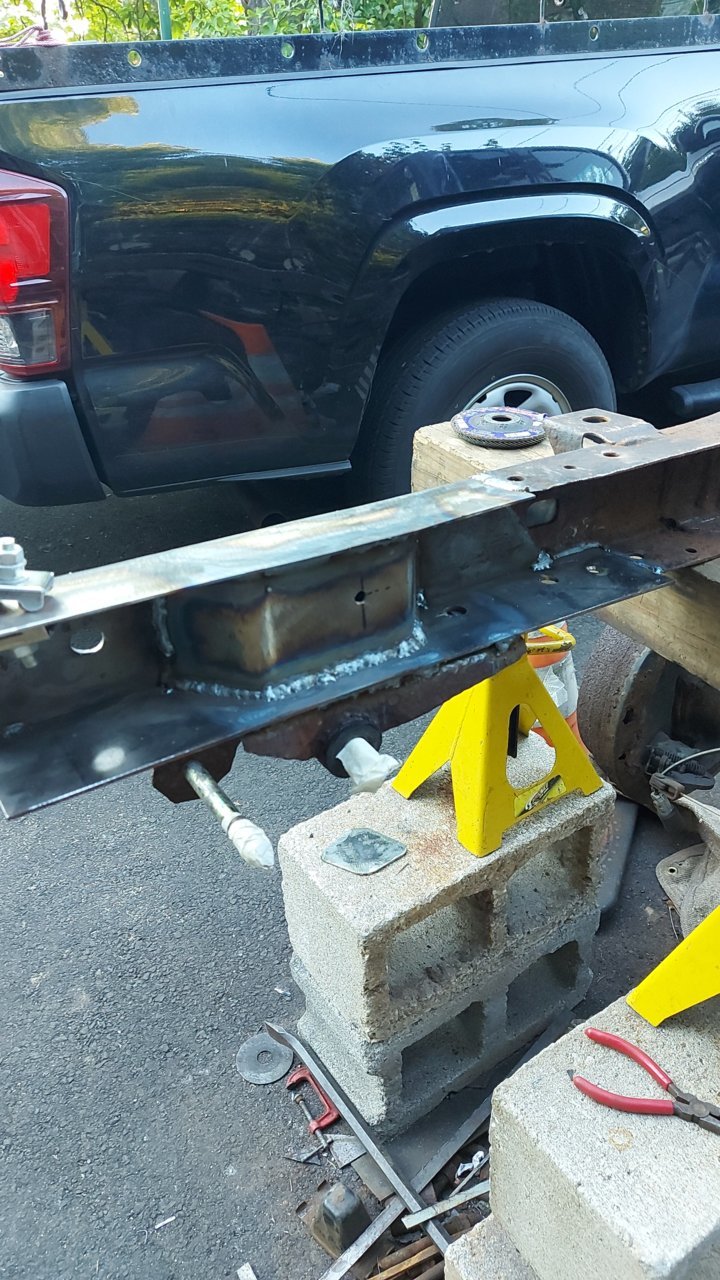

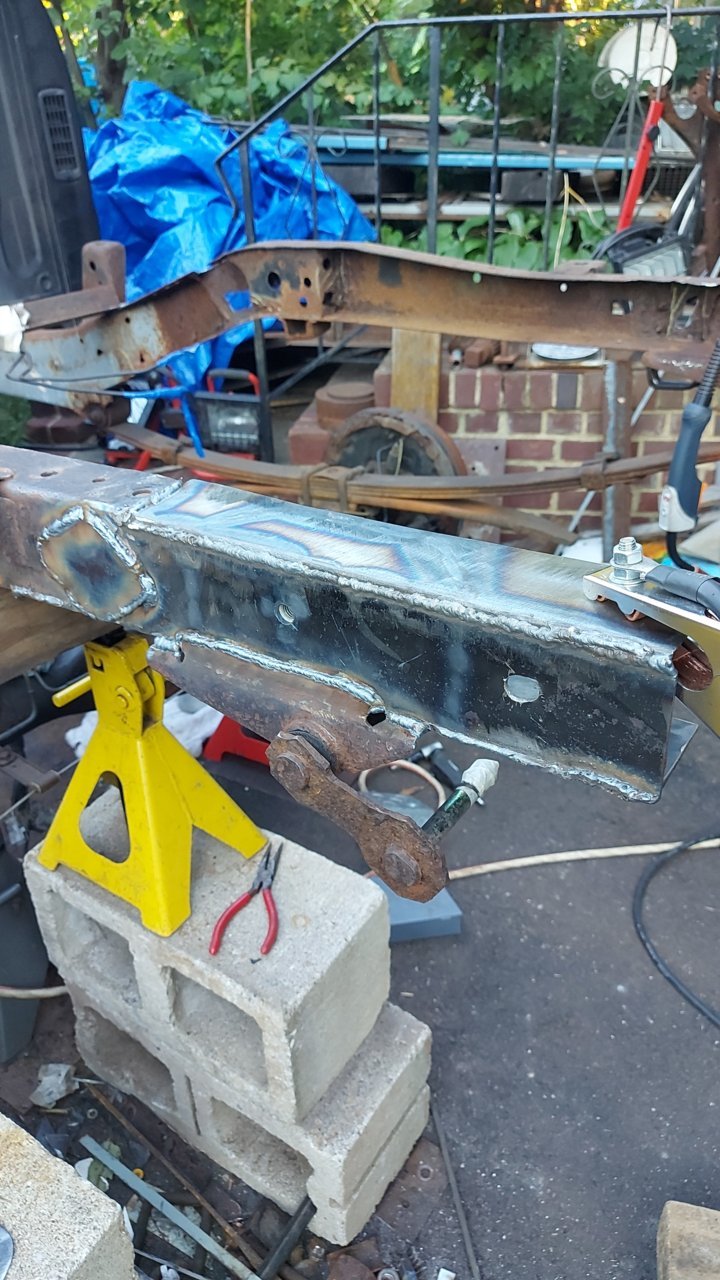

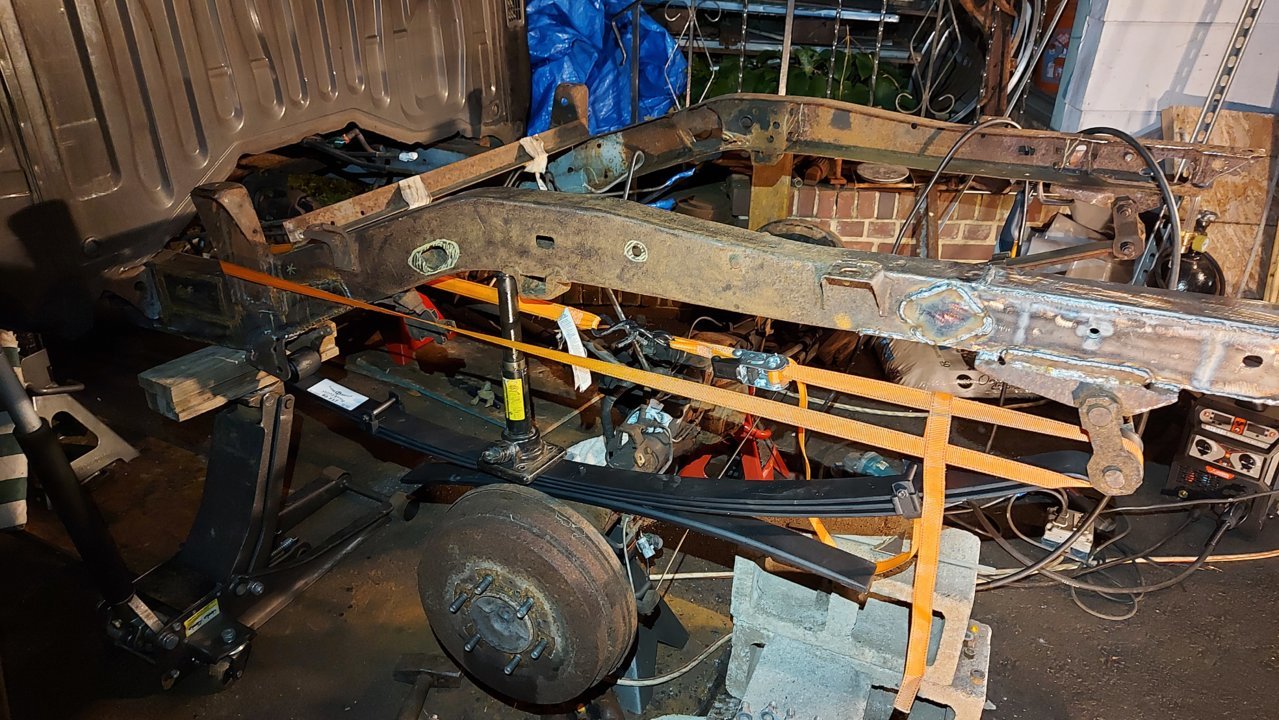

    IMG-20220803-WA0005.jpg IMG-20220803-WA0007.jpg20220803_225144.jpg

    Last edited: Aug 4, 2022 at 9:17 PM
    SR-71A likes this.
  2. Aug 4, 2022 at 9:01 PM
    #2
    mlcc

    mlcc Well-Known Member

    Joined:
    May 2, 2015
    Member:
    #154429
    Messages:
    1,554
    Gender:
    Male
    Oregon
    Vehicle:
    2002 DC TRD/ 1990 4runner
    Lights, 3in lift, tires/ wheels, being awesome
    .5 inch is pretty significant when aligning suspension, however id be go for it first and see how it aligns and go from there.

  3. Aug 4, 2022 at 9:10 PM
    #3
    Bivouac

    Bivouac Well-Known Member

    Joined:
    Sep 5, 2021
    Member:
    #376253
    Messages:
    4,971
    Northern Lehigh Valley Pa
    Vehicle:
    2000 Tacoma 5 speed 3.4
    Remains to be seen I bought the tires and wheels the rest came along
    Cinder blocks are real scary I had a friend commit suicide using them because he knew better he was in a hurry it was hard on his Mom .

    How did you end up a 1/2" off I would weld the right side the same or correct the left?

    Jakuku Pahwheenis likes this.
  4. Aug 4, 2022 at 9:11 PM
    #4
    HazardFraught

    HazardFraught [OP] New Member

    Joined:
    Jul 22, 2022
    Member:
    #401885
    Messages:
    4
    First Name:
    A
    Vehicle:
    2003 4x4 XtraCab 3.4L
    0.5" may be an exxageration, but yes I noticed it since I'm now getting ready to put in both new crossmembers (which is its own whole endeavour, passender frame rail had to be cut anyways), and I noticed the most rear-ward bolt hole for the tire mount crossmember is slightly blocked by the shackle mount.

  5. Aug 4, 2022 at 9:14 PM
    #5
    HazardFraught

    HazardFraught [OP] New Member

    Joined:
    Jul 22, 2022
    Member:
    #401885
    Messages:
    4
    First Name:
    A
    Vehicle:
    2003 4x4 XtraCab 3.4L
    Sorry to hear, that's a scary story. I'm currently using 4 other jackstands in other areas to support the majority of the weight. The cinderblock fiasco was more or less there to maintain level, not bear load, as I reconstructed the driver side front hanger. Fairly confident I have the hanger welded in nearly the stock position.

    EDIT: I thought I had the shackle mount exactly in place and was careful to tac and measure, but must have made a mistake somewhere.

    Last edited: Aug 4, 2022 at 10:22 PM
  6. Aug 5, 2022 at 5:38 AM
    #6
    Jakuku Pahwheenis

    Jakuku Pahwheenis Normalize No-Wipe November

    Joined:
    May 27, 2022
    Member:
    #398083
    Messages:
    571
    First Name:
    J Phoenix
    South Carolina
    Vehicle:
    2003 Xtracab 2.7L 3RZ-FE 4x4 manual 245K+ miles
    Just be careful. Cinder blocks weren't meant to bear load sideways like that, if you inadvertently shift the load to them when adjusting another support. This is how I have mine supported. Cinder blocks and shims are cheap.


    [​IMG]
    [​IMG]

  7. Aug 5, 2022 at 5:50 AM
    #7
    SR-71A

    SR-71A Define "Well-Known Member"

    Joined:
    Jun 1, 2018
    Member:
    #255145
    Messages:
    5,959
    Gender:
    Male
    First Name:
    Zack
    Southern Maine
    Vehicle:
    2012 DCSB, TX Baja Edition. Barcelona Red
    Mobtown sliders, ARB bar, Icon RXT leafs, extended & adjustable Kings, JBA UCAs, Tepui Ayer 2, dual batteries, Gen2 xrc9.5 winch, CB, GMRS, S1 ditch lights...
    If it were me and I was in a rush Id move the other side back to match the drivers side. Half an inch would be roughly 0.75 degrees thrust angle give or take. Not terrible by any means, but if you can get away with fixing it why not

    Bivouac likes this.
  8. Aug 5, 2022 at 7:40 AM
    #8
    mlcc

    mlcc Well-Known Member

    Joined:
    May 2, 2015
    Member:
    #154429
    Messages:
    1,554
    Gender:
    Male
    Oregon
    Vehicle:
    2002 DC TRD/ 1990 4runner
    Lights, 3in lift, tires/ wheels, being awesome
    Put the bed on first and see if its centered in the wheel too.

    Nessal likes this.
  9. Aug 5, 2022 at 7:26 PM
    #9
    5efvz

    5efvz Well-Known Member

    Joined:
    Jul 22, 2022
    Member:
    #401886
    Messages:
    55
    Replace the cinderblocks with wood cribbing.
