Does anyone make an aftermarket spindle for 2nd gen 4X4 tacoma?

Discussion in 'Suspension' started by Dr. Sleep, Apr 17, 2012.

  1. Apr 17, 2012 at 10:44 AM
    #1
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Does anyone make an aftermarket spindle for 2nd gen 4X4 tacoma? Or is the only option for increased strength the Total chaos spindle gussets?

  2. Apr 17, 2012 at 4:48 PM
    #2
    silver taco

    silver taco Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34079
    Messages:
    755
    Gender:
    Male
    First Name:
    Chris
    Los Angeles
    Vehicle:
    07 4X access cab
    Icon 2.5 ext travel, Camburg 1.25" uca's, All-pro leafs, Icon 2.5" rear shocks, LR jounce front and back, breather mod, KR Fab rear bumper, Kenwood 2m radio, All-Pro sliders, Front bumper by Surfinferno (Dylan), Glassworks fenders, 4:56 gears, gusseted spindles and coil buckets
    SDHQ makes them if I'm not mistaken.

  3. Apr 18, 2012 at 8:00 AM
    #3
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Do you have a link to the product?

  4. Apr 18, 2012 at 8:42 AM
    #4
    silver taco

    silver taco Well-Known Member

    Joined:
    Mar 27, 2010
    Member:
    #34079
    Messages:
    755
    Gender:
    Male
    First Name:
    Chris
    Los Angeles
    Vehicle:
    07 4X access cab
    Icon 2.5 ext travel, Camburg 1.25" uca's, All-pro leafs, Icon 2.5" rear shocks, LR jounce front and back, breather mod, KR Fab rear bumper, Kenwood 2m radio, All-Pro sliders, Front bumper by Surfinferno (Dylan), Glassworks fenders, 4:56 gears, gusseted spindles and coil buckets
    I dont. Sdhq said in another forum just to contact them. They dont advertise it as they said theres not enough interest in them.

  5. Apr 18, 2012 at 8:44 AM
    #5
    prerunner24

    prerunner24 AR-15 Shooter

    Joined:
    Jan 17, 2012
    Member:
    #70817
    Messages:
    80
    Gender:
    Male
    First Name:
    DYLAN
    North East Texas
    Vehicle:
    Silver 2wd 06 Prerunner 6" lift
    Silver, 6" Pro Comp lift, re geared rear end, 20x9 Fuel Offroad Boost wheels & 305/55/20 Cooper Zeon LTZ tires, black halo projector headlights, black billet grille, Debadge tailgate and black door badges, Nightshades blacked out taillights & 3rd brake light, Pioneer double din monitor, K&N cold air intake, Cherry Bomb Extreme muffler with no cats & chrome 5" diesel tips dumped behind rear axel, Unichip programmer. Long Travel plans for the future, going back to 35" tires this summer, probably mud grapplers. Putting out 218 rwhp, and 245 ft/lb of torque.
    What about a heavier duty whole hub assembly and spindle for a 2wd 6 lug 2nd gen? The factory setup cant handle the stress of deep offset offroad wheels, well on my truck at least, and i'd sure love to be able to have bigger wheels.

  6. Apr 18, 2012 at 1:49 PM
    #6
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    Do you know if it is a completely new spindle or just steel plating welded on to factory spindle?

  7. Apr 18, 2012 at 1:55 PM
    #7
    SoCaltaco65

    SoCaltaco65 Well-Known Member

    Joined:
    May 10, 2011
    Member:
    #56389
    Messages:
    6,986
    Gender:
    Male
    Vehicle:
    2011 DCSB 4x4 Offroad TRD
    Harbor Freight 110v welder garage fab parts.
    SDHQ is in Development of a fully boxed spindle for 4x4 applications, there are a few pics floating around of them. Only current option is a gussets, and the route im going tomorrow with new LCA's

  8. Apr 19, 2012 at 8:35 AM
    #8
    SDHQ OFFROAD

    SDHQ OFFROAD Cuz Stock Sucks!

    Joined:
    Dec 20, 2007
    Member:
    #3916
    Messages:
    1,996
    Gender:
    Male
    First Name:
    SALES
    Gilbert AZ
    Vehicle:
    Caged and Linked 2008 4x4
    Camburg Long Travel and 9" Rear End, Caged and 3 Linked Icon Shocks PCI Race Radios Method Wheels Toyo Tires Mastercraft Seats and Belts

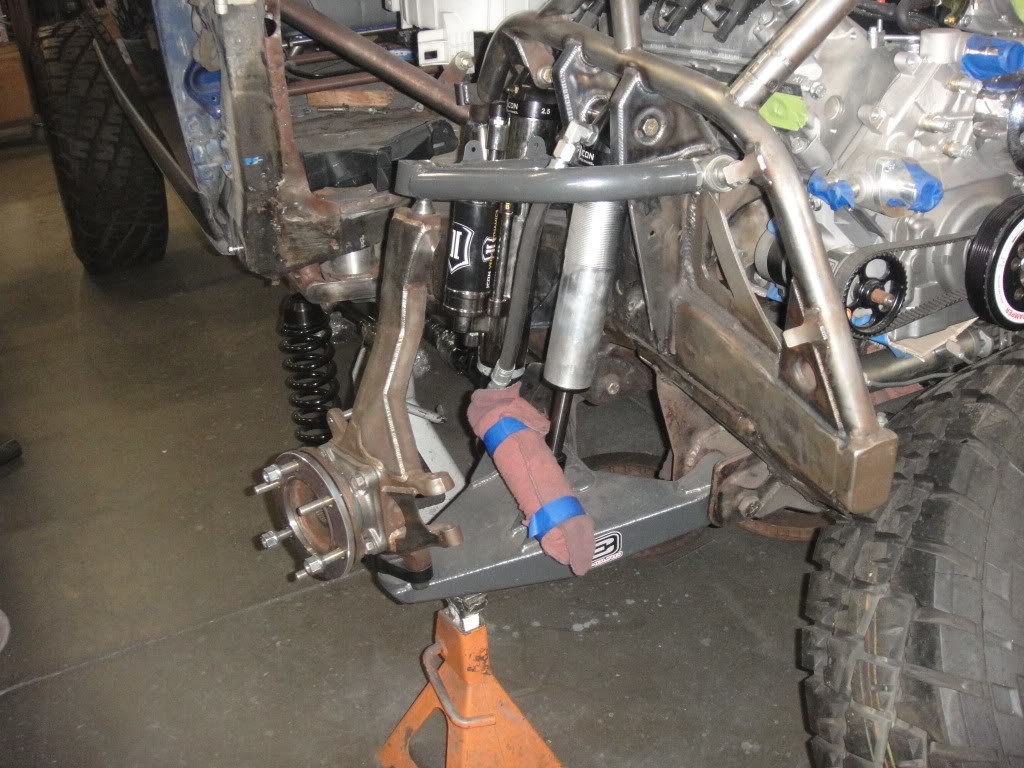

    Its a plated OEM spindle but done the right way. Normal MIG welding of a spindle gusset to the case spindle will cause the spindle itself to become more brittle and thus more likely to break instead of bend under extreme circumstances.

    Our gussets are not only more extensive but are TIG welded and can be set up for either Single or Double sheer steering.

    [​IMG]

  9. Apr 19, 2012 at 3:55 PM
    #9
    Dr. Sleep

    Dr. Sleep [OP] Well-Known Member

    Joined:
    May 8, 2009
    Member:
    #16977
    Messages:
    279
    Gender:
    Male
    First Name:
    Shane
    Colorado
    Vehicle:
    07 DoubleCab SR5 4X4
    SDHQ OFFROAD">
    I'm curious what kind of filler rod you use when welding to the cast spindle. And any other special procedures you take for ensuring or trying to ensure the cast spindle isn't made more brittle from the welding heat. Personally, I'm not sure anything will be better than a new cast piece .. cast with a different mold. Unless of course someone made a forged billet piece, but that would be crazy expensive .. CNC'd from a single, solid billet of steel.
