Discussion in 'Long Travel Suspension' started by lilgerber, Nov 15, 2012.

  1. lilgerber

    lilgerber [OP] Well-Known Member

    Joined:
    Nov 23, 2008
    Member:
    #10974
    Messages:
    435
    Gender:
    Male
    fresno ca
    Vehicle:
    06 4x4 speedway blue
    flowmaster40,vloant intake,king coilovers,TC UCA's,3inch lift,billet grill,chrome handles,stero system.motometals 951 285/17/70
    Installed my 3.5 TC kit and seems like the upper A arm is almost at full droop.
    Doesn't seem right, how do I fix this??

    P.S. I haven't installed limit straps yet

  2. Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,521
    Gender:
    Male
    Take some of the preload off, did you torque them while the truck was on it's own weight? That might be a factor.

  3. Large

    Large Red

    Joined:
    Sep 10, 2011
    Member:
    #63268
    Messages:
    15,521
    Gender:
    Male
    Actually I don't know much about LT, it might be correct :notsure:

  4. jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,389
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Definitely not right.

    What length stroke are the shocks?
    What length springs?
    How much preload?
    Which bottom plate do you have?
    How long is the rod end on the shock?

  5. Socalrunner

    Socalrunner Toyota Its Like A Jeep Thing Only Better

    Joined:
    Oct 25, 2010
    Member:
    #45226
    Messages:
    1,979
    Gender:
    Male
    First Name:
    Chris
    Glendora
    Vehicle:
    2010 TRD Offroad 4x4 DCSB
    Icon Coilovers
    Damn Beat me to it ^^^^^Show some side front shots of the arms. What rod end are you using? What length coilovers and what spring rate?

  6. 97yota4wd

    97yota4wd Well-Known Member

    Joined:
    Aug 26, 2010
    Member:
    #42280
    Messages:
    13,025
    Gender:
    Male
    First Name:
    Eric
    Mesa, AZ
    Vehicle:
    alot of metal, small engine, decent travel.
    caged, camburg long travel, 50t leafpack (soon to be installed) light rack over cab, 5pt harnesses etc
    something sure isnt right. how much lift did you get when you installed it??

  7. Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,192
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    It looks like its just the preload. Did you just install everything and its all brand new? Did you already get everything aligned at that ride height? You can let off some preload and it will drop but that is going to change your alignment. You should have let some preload off to get it close to ride height to get it aligned properly, then once the springs break in and sag you can give it more preload to bring it back to the correct ride height. Also install those straps!

  8. jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,389
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Also that's looks like the old top plates TC provided with the older version of the kit. IIRC for 4x4 trucks you're supposed to cut the coil bucket and flip the top plate upside down.
    Of course this weakens the bucket, so I wouldn't do it unless you do the secondary shock hoop.
    For the new kits, you're supposed to get a special top plate from King if you want to run King coilovers.

  9. PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    17,976
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2015 Tundra Double Cab
    See Build in Sig
    Looks like might have too long of spring or a wrong lower shock piece. Snap some pics showing from the front.

    Actually I think Jberry is right with the top plate

  10. Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,192
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    Also what # springs

  11. Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,192
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
    I think this is the winner, 2nd gen 4wd should be flipped because of the longer rod at the bottom to clear the axles

  12. 05TacoRunner

    05TacoRunner You say tomato..........I say fuck you!

    Joined:
    Apr 26, 2011
    Member:
    #55578
    Messages:
    2,533
    Gender:
    Male
    First Name:
    Jason
    Peoria, Az
    Aftermarket nuts and bolts

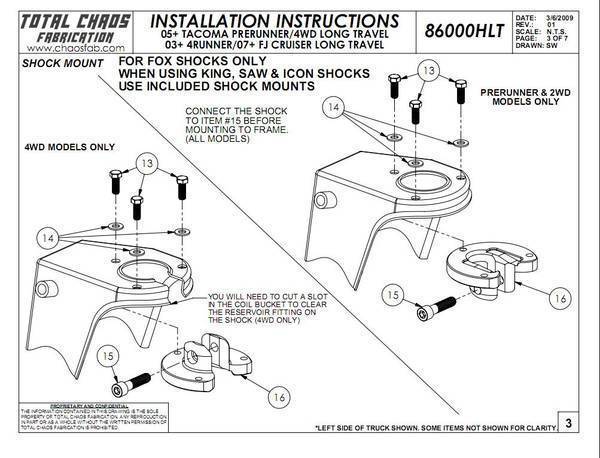

    It says you are 4x4. In the first picture showing the coil bucket it is set up like 2wd. The 4wd have to cut the coil bucket and flip the coil over mount. The 4wd use a longer rod end to clear the axle. Here is a picture of an fj but same concept.

    [​IMG]


    EDIT: Damn I am slow.

  13. jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,389
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.

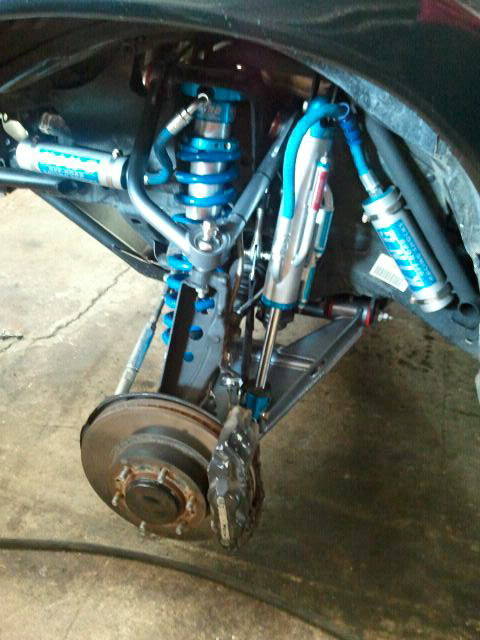

    Special top plate if you wanna run kings:

    [​IMG]

    [​IMG]

    [​IMG]

  14. lilgerber

    lilgerber [OP] Well-Known Member

    Joined:
    Nov 23, 2008
    Member:
    #10974
    Messages:
    435
    Gender:
    Male
    fresno ca
    Vehicle:
    06 4x4 speedway blue
    flowmaster40,vloant intake,king coilovers,TC UCA's,3inch lift,billet grill,chrome handles,stero system.motometals 951 285/17/70
  15. jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,389
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    Looks like you have the correct bottom plate and rod end for 4x4.
    You need to flip the top plate and cut the bucket.

    Also, 600 lb spring rate for a 4x4 second gen miiiiiiight be a little light.


    EDIT:
    Ohhh...that's an 18" coil. I'm not the second gen expert, but pretty sure you need to pull that fucker out too and put in a 16" coil in.

  16. Cr250jumper

    Cr250jumper Señor member

    Joined:
    Dec 2, 2010
    Member:
    #47033
    Messages:
    10,192
    Gender:
    Male
    The moon
    Vehicle:
    50 shades of tan
    Tacoma with some stuff melted to it
  17. lilgerber

    lilgerber [OP] Well-Known Member

    Joined:
    Nov 23, 2008
    Member:
    #10974
    Messages:
    435
    Gender:
    Male
    fresno ca
    Vehicle:
    06 4x4 speedway blue
    flowmaster40,vloant intake,king coilovers,TC UCA's,3inch lift,billet grill,chrome handles,stero system.motometals 951 285/17/70
    Man I love this site! You guys know your ish. Well looks like I need to cut the coil bucket or order king top plates..

    Why is 600 light for 4x4?

    What would you recommend for the spring weight and why??

    Slowly still learning.

  18. 05TacoRunner

    05TacoRunner You say tomato..........I say fuck you!

    Joined:
    Apr 26, 2011
    Member:
    #55578
    Messages:
    2,533
    Gender:
    Male
    First Name:
    Jason
    Peoria, Az
    Aftermarket nuts and bolts
    TC recommends a 600lb spring on 4x4 and I am running 500lb on 2wd. All in the valving. Also I am running 18" coils with no issue.


    EDIT: Atleast thats what I was told by TC when I bought my kit.

  19. jberry813

    jberry813 The Mad Scientist

    Joined:
    Jan 21, 2011
    Member:
    #49636
    Messages:
    13,389
    Gender:
    Male
    First Name:
    Jason
    Lake Tahoe
    Vehicle:
    Resurrected LT TRD S/C 4x4
    TRD Supercharger, URD 7th Injector Kit, Total Chaos LT, King Coilov....too much shit to list.
    He's got a second gen DC and 4x4.
    If it were my truck, I'd run 650, but it depends entirely on what the truck is used for and how he drives it.

  20. lilgerber

    lilgerber [OP] Well-Known Member

    Joined:
    Nov 23, 2008
    Member:
    #10974
    Messages:
    435
    Gender:
    Male
    fresno ca
    Vehicle:
    06 4x4 speedway blue
    flowmaster40,vloant intake,king coilovers,TC UCA's,3inch lift,billet grill,chrome handles,stero system.motometals 951 285/17/70
    Can anyone also confirm that I need a 16" instead of the 18"

    Ps.
    For sale stock rod ends, 600 Springs and TC Top plates. Lol
