Double Check Leaking Head Gasket Diagnosis

Discussion in '1st Gen. Tacomas (1995-2004)' started by PathFinder1776, Feb 4, 2025.

  1. Feb 4, 2025 at 8:12 PM
    #1
    PathFinder1776

    PathFinder1776 [OP] Well-Known Member

    Joined:
    Aug 23, 2021
    Member:
    #375045
    Messages:
    201
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    2003 DCSB TRD OR 4WD
    TRD S/C & TRD Boost Gauge Snugtop Topper Chevy 63 Swap, Gen 1 Raptor Shocks Boxed rear frame Aluminum F/R bumpers, sliders AEM 340 Fuel Pump Odyssey 27F Battery Shifted LCAs UCAs Icon 2.5 Ext. Coilovers

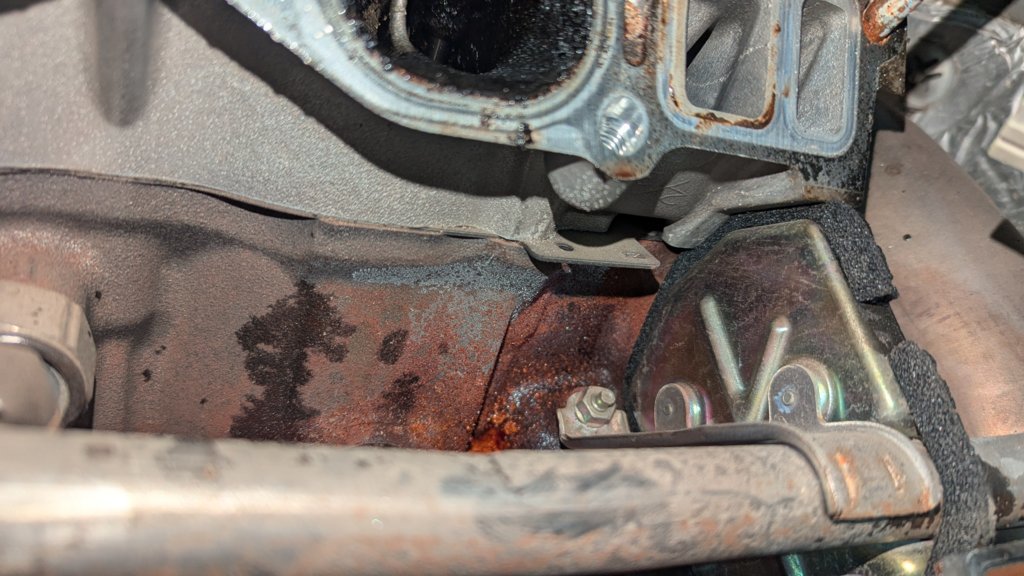

    Pulled the lower intake manifold to replace knock sensors and found this at the back corner of the passenger side head. Is it a leaking head gasket? Wanted to double check before ordering more parts and pulling the heads.
    No other symptoms of a failing head gasket. No misfires, lost coolant or oil, or mixing of the two.
    Thanks
    PXL_20250205_032719194.jpg PXL_20250205_032715113.jpg

    Last edited: Feb 4, 2025
  2. Feb 5, 2025 at 11:06 AM
    #2
    PathFinder1776

    PathFinder1776 [OP] Well-Known Member

    Joined:
    Aug 23, 2021
    Member:
    #375045
    Messages:
    201
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    2003 DCSB TRD OR 4WD
    TRD S/C & TRD Boost Gauge Snugtop Topper Chevy 63 Swap, Gen 1 Raptor Shocks Boxed rear frame Aluminum F/R bumpers, sliders AEM 340 Fuel Pump Odyssey 27F Battery Shifted LCAs UCAs Icon 2.5 Ext. Coilovers
    Anyone have input on whether this is indicative of an external head gasket leak? It's looking like the answer is yes. Engine is at 210K, which seems early to need a head gasket for a 5VZ. Neither of my previous two at 212k supercharged and 265k N/A ever had an issue. I'll try to get a picture of the back side behind the crossover pipe with a mirror this evening.

  3. Feb 6, 2025 at 7:35 AM
    #3
    PathFinder1776

    PathFinder1776 [OP] Well-Known Member

    Joined:
    Aug 23, 2021
    Member:
    #375045
    Messages:
    201
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    2003 DCSB TRD OR 4WD
    TRD S/C & TRD Boost Gauge Snugtop Topper Chevy 63 Swap, Gen 1 Raptor Shocks Boxed rear frame Aluminum F/R bumpers, sliders AEM 340 Fuel Pump Odyssey 27F Battery Shifted LCAs UCAs Icon 2.5 Ext. Coilovers
    Update: Good news is that it's not an external head gasket leak. Just where moisture gets in around the bracket and the foam seal. Seeing the rust initially caused a panic, but closer inspection showed it wasn't coolant or from the head gasket.

  4. Feb 7, 2025 at 12:42 PM
    #4
    Glamisman

    Glamisman Well-Known Member

    Joined:
    Oct 22, 2016
    Member:
    #200436
    Messages:
    4,997
    Gender:
    Male
    While you are in there replace the knock sensor harness... this is a "proximity" repair, you do it because in 3 months when you get knock sensor codes you will scream.

  5. Feb 8, 2025 at 9:35 AM
    #5
    PathFinder1776

    PathFinder1776 [OP] Well-Known Member

    Joined:
    Aug 23, 2021
    Member:
    #375045
    Messages:
    201
    Gender:
    Male
    Colorado Front Range
    Vehicle:
    2003 DCSB TRD OR 4WD
    TRD S/C & TRD Boost Gauge Snugtop Topper Chevy 63 Swap, Gen 1 Raptor Shocks Boxed rear frame Aluminum F/R bumpers, sliders AEM 340 Fuel Pump Odyssey 27F Battery Shifted LCAs UCAs Icon 2.5 Ext. Coilovers
    That's the plan. Knock sensors were the reason for digging in here in the first place. Doing those, headers, valve adjustment, and a supercharger rebuild.

  6. Feb 8, 2025 at 9:43 AM
    #6
    JustADriver

    JustADriver Well-Known Member

    Joined:
    Mar 27, 2011
    Member:
    #53838
    Messages:
    667
    Gender:
    Male
    Vehicle:
    1996 Tacoma 3.4L V6 2WD 5-lug AT 5VZ-FE
    That and the coolant temp ECU sensor harness also was ready to fall apart on mine. They're heat resistant but I guess not after 29 years of use.

    PathFinder1776[OP] likes this.
