Drive Shaft Vibrations Solved Step-by-Step

Discussion in '2nd Gen. Tacomas (2005-2015)' started by TscotR214, Oct 18, 2012.

Page 26 of 60
  1. Jun 20, 2014 at 9:28 AM
    #501
    ostroud18

    #501
    ostroud18 Well-Known Member

    Joined:
    Sep 12, 2012
    Member:
    #86793
    Messages:
    54
    Gender:
    Male
    First Name:
    Odis
    Grayslake, IL
    Vehicle:
    2017 4x4 4 door silver TRD Sport
    None
    I have a 2012 DCSB 4X4 TRD, put 1.5 inch AAL and incoil spacer w/ 1/4 inch top spacer = 1.5 inch lift in front. Got vibes at 20mph, added 2 washers on each bolt between frame and carrier bearing and still get vibes. I will remove them this weekend and flip carrier bearing 180 degree to see if that works. I would not think such a small lift 1.5 to 2 inches you would need to drop the carrier bearing much. Also QQQ??? the drives shafts should not be V verted as in down angle correct? They should always be angled upwards slightly but close to parallel.
    Any suggestions?

    ostroud18, Jun 20, 2014
    #501
  2. Jun 20, 2014 at 3:03 PM
    #502
    Alfuh

    #502
    Alfuh It's pronounced alpha

    Joined:
    Aug 21, 2013
    Member:
    #110878
    Messages:
    6,786
    Gender:
    Male
    First Name:
    Chris
    Bismarck, North Dakota
    Vehicle:
    2006 Prerunner
    I have a few mods
    try some 2* or 3* shims or try adding some more washers to the CB, the OME CB drop i believe is like 1/2in tall or something like that, so try to replicate Old Man Emus drop kit to see if that really does help

    I installed my shims the other weekend, and a good majority of them went away, but now my U-joint just aft of my slip yoke has died so I need to replace all my ujoints. so replacing all your U-joints could also get rid of some of the vibs as well.

    when my ujoint finally died a good amount of vibs went away, its still there but barely noticable and bearable to drive around 40 mph

    Last edited: Jun 20, 2014
    Alfuh, Jun 20, 2014
    #502
  3. Jun 20, 2014 at 3:16 PM
    #503
    dYL0n

    #503
    dYL0n أنا لست الإسلامي

    Joined:
    Jan 14, 2011
    Member:
    #49250
    Messages:
    4,595
    Gender:
    Male
    First Name:
    Dyl0n
    New Orleans, LA
    Vehicle:
    17TRDORDCSBQSJBLKBRO2SPECU1.04
    1.04. Kbro2s. ICONS.
    Streettacos carrier drop bracket and driveshaft spacer did the trick for me

    dYL0n, Jun 20, 2014
    #503
  4. Jun 20, 2014 at 3:23 PM
    #504
    SOS CONCEPTS

    #504
    SOS CONCEPTS Bumper builder

    Joined:
    Sep 9, 2013
    Member:
    #112175
    Messages:
    15,658
    Gender:
    Male
    First Name:
    SOS
    Laurens SC
    Vehicle:
    17 sos buggy, 09 taco(in pieces), 14ram 3500
    Rock bouncer
    I have 4* shims $12 shipped brand new. Fixed with out them

    SOS CONCEPTS, Jun 20, 2014
    #504
  5. Jul 30, 2014 at 2:27 PM
    #505
    MTopp

    #505
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    If anyone has any small shims, like 1.5 or 2, let me know. PM'd bacotaco already

    MTopp, Jul 30, 2014
    #505
  6. Aug 5, 2014 at 2:38 PM
    #506
    MTopp

    #506
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Bump

    MTopp, Aug 5, 2014
    #506
  7. Aug 16, 2014 at 2:17 PM
    #507
    jwhaley

    #507
    jwhaley Well-Known Member

    Joined:
    Jan 28, 2011
    Member:
    #50093
    Messages:
    112
    Gender:
    Male
    First Name:
    Josh
    Arkansas
    Vehicle:
    07 PreRunner TRD offroad
    sport hood, billet grille, removed yellow plastic from head lights, painted door handles/tailgate handle/mirrors, Camburg 4" Spindles, 3" leaf pack, 5100's all around, plasti dip emblems, 18" Dick Cepek DC2 with 285/60 Nitto Terra Grapplers, blue and white led's on the interior, custom TRD decal, TRD exhaust
    ^^BUMP^^

    jwhaley, Aug 16, 2014
    #507
  8. Aug 16, 2014 at 2:28 PM
    #508
    MTopp

    #508
    MTopp Professional bear handler

    Joined:
    Aug 12, 2013
    Member:
    #110295
    Messages:
    5,811
    Gender:
    Male
    First Name:
    Matt
    Vehicle:
    05 SR5 4x4
    trifecta tonneau, pop n' lock, Depo black bezel headlights, mb 352 wheels, 265/75r16 cooper at3s, visors, colormatched 2011 grille with raptor LEDs, much LEDs in and out Future/wanted: black valence, hood scoop, catback, CAI, 285/75r16s, OMD leaf pack mod
    Meh, its alright, I may just buy some toytec ones. Thanks for the bump though

    MTopp, Aug 16, 2014
    #508
  9. Aug 16, 2014 at 2:57 PM
    #509
    birry

    #509
    birry Well-Known Member

    Joined:
    Oct 5, 2012
    Member:
    #88370
    Messages:
    625
    Gender:
    Male
    Oklahoma City, OK
    Vehicle:
    2008 4x4 DCSB
    OME 885, Bilstein 5100's, Wheeler's (single) AAL
    What is a drive shaft spacer?

    birry, Aug 16, 2014
    #509
  10. Aug 16, 2014 at 3:02 PM
    #510
    Alfuh

    #510
    Alfuh It's pronounced alpha

    Joined:
    Aug 21, 2013
    Member:
    #110878
    Messages:
    6,786
    Gender:
    Male
    First Name:
    Chris
    Bismarck, North Dakota
    Vehicle:
    2006 Prerunner
    I have a few mods
    This is a driveshaft spacer. What it does is pushes the drive shaft forward back to being flush with the tranny tail housing. Since lifting a vehicle pulls the driveshaft backwards and out a bit. And that's used to put it back being flush


    Alfuh, Aug 16, 2014
    #510
  11. Aug 16, 2014 at 3:03 PM
    #511
    birry

    #511
    birry Well-Known Member

    Joined:
    Oct 5, 2012
    Member:
    #88370
    Messages:
    625
    Gender:
    Male
    Oklahoma City, OK
    Vehicle:
    2008 4x4 DCSB
    OME 885, Bilstein 5100's, Wheeler's (single) AAL
    Got it. I'm on stock suspension, so I assume it wouldn't apply.

    birry, Aug 16, 2014
    #511
  12. Aug 16, 2014 at 3:14 PM
    #512
    Alfuh

    #512
    Alfuh It's pronounced alpha

    Joined:
    Aug 21, 2013
    Member:
    #110878
    Messages:
    6,786
    Gender:
    Male
    First Name:
    Chris
    Bismarck, North Dakota
    Vehicle:
    2006 Prerunner
    I have a few mods

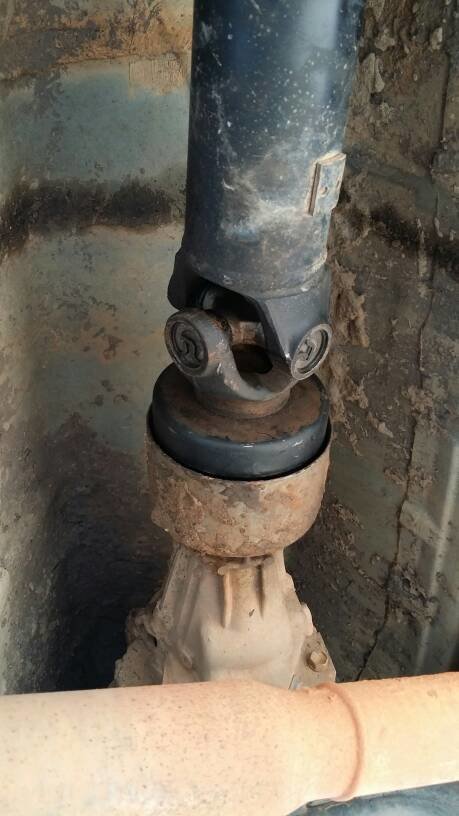

    Pretty much ya, I'm not sure how the 4wd driveshaft is setup but mines 2wd and if it looks like this yes you need one, if not...no

    This is what my ds looks like going into the tail housing


    Last edited: Aug 16, 2014
    Alfuh, Aug 16, 2014
    #512
  13. Aug 16, 2014 at 4:01 PM
    #513
    BS2014

    #513
    BS2014 Active Member

    Joined:
    Aug 16, 2014
    Member:
    #136274
    Messages:
    42
    Gender:
    Male
    First Name:
    Mike
    Las Vegas
    Vehicle:
    2014 Tacoma 4x4
    4 inch Tuff country lift with uni-ball UCA's, 2 inch spacers in the rear (for now) 16 inch method double standards with 33" Toyo Open Country MT's
    I need a driveshaft spacer !

    BS2014, Aug 16, 2014
    #513
  14. Nov 29, 2014 at 7:33 AM
    #514
    cfree5119

    #514
    cfree5119 Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81597
    Messages:
    257
    Gender:
    Male
    What page is the PDF walkthrough after all edits?

    cfree5119, Nov 29, 2014
    #514
  15. Dec 4, 2014 at 5:45 AM
    #515
    Osugoose

    #515
    Osugoose Well-Known Member

    Joined:
    Aug 2, 2012
    Member:
    #83963
    Messages:
    161
    Gender:
    Male
    First Name:
    Sean
    Tulsa, OK
    Vehicle:
    2011 Sport DCLB 4x4
    885x w/ nitro sports,Dakars w/ 182,Katskinz two tone leather
    Osugoose, Dec 4, 2014
    #515
  16. Dec 4, 2014 at 7:43 AM
    #516
    IPNPULZ

    #516
    IPNPULZ Well-Known Member

    Joined:
    Jun 16, 2014
    Member:
    #132087
    Messages:
    13,790
    Gender:
    Male
    Deeper in the South…….
    Vehicle:
    2023 TRD Off Road Premium 4R
    going to be fun!
    Awesome!!!!

    IPNPULZ, Dec 4, 2014
    #516
  17. Feb 15, 2015 at 12:50 PM
    #517
    skootx

    #517
    skootx Well-Known Member

    Joined:
    Apr 20, 2014
    Member:
    #128066
    Messages:
    663
    Gender:
    Male
    Erie, CO
    Vehicle:
    2014 Tacoma TRD Off Road Double Cab Short Bed
    Icon Stage 1 Shocks & coils Deaver AAL Light Racing UCA's PAC SNI-35 line output converters, miniDSP, Rockford Fosgate R600X5, Rockford Fosgate Punch P3 P3SD210, Helix Blue B62C speakers, HELIX Blue B5X 5 speakers G4 Elite Fold A Cover Rear Diff Breather Relocation
    How much are you guys ending up lowering the carrier bearing? I have Icon 1's up front and Deaver AAL and Icon shocks in back, all fenders are 38" from the ground. I put in 3 degree shims which solved all my high speed issues but I still have a good rumble at 15-20. That rumble is lessening as I continue to add washers and drop the carrier bearing, but I already have the OME carrier drop shims and 5 washers, must be an inch or more already. I'm starting to worry I don't have long enough bolts...

    skootx, Feb 15, 2015
    #517
  18. Feb 16, 2015 at 12:22 AM
    #518
    Up2NoGood

    #518
    Up2NoGood Well-Known Member

    Joined:
    Jun 23, 2014
    Member:
    #132511
    Messages:
    3,302
    Gender:
    Male
    First Name:
    Jaimes
    BC, Canada
    Vehicle:
    2014 TRD Sport DCLB
    Subd

    Up2NoGood, Feb 16, 2015
    #518
  19. May 26, 2015 at 6:41 PM
    #519
    J4m3z420

    #519
    J4m3z420 Active Member

    Joined:
    May 1, 2013
    Member:
    #103239
    Messages:
    36
    Gender:
    Male
    First Name:
    James
    Keystone, CO
    Vehicle:
    09 DCBS TRD Off-Road V6 4x4
    Front: OME 884x | 90021 | Light Racing UCA’s Rear: CS047R (minus top overload) | 60091 FN Six Shooter 17x8 6-139.7 (20lbs) BFG KO2: LT265 /70 R17 112S C1 RWL (45lbs) ECGS bushing front diff
    Just wanted to give my experience with vibrations...

    Installed a full OME Lift with OME front and rear shocks, 884x coils and Dakar with top overload removed. Was getting 5-10 take of shudder and 15-40mph vibes and Front Diff pulse/growl. Not too much high speed vibes, may just have been my OCD.

    Ordered the Toytec 3degree shims. I used the center pins with the shims. Did not have to add a collar to make the head longer. Fit in plenty. Just installed tonight. Seems to have fixed most of the 15mph and up vibes. Still can tell I have the front diff vibes, to which I will be installing the ECGS bearing this week. Still have a take of shudder.

    Installed the shims with fat end towards the rear to angle the pinion up. Seems to be close to parallel with the 1st shaft.

    I do have some play in my CB up and down, not much side to side. Will be experimenting with CB drops tomorrow.

    So far I am happier than I was. Hopefully it will last. Feel like it will just be a 3-6 month patch until I can afford a new Double Cardan driveshaft.

    Thank you to everyone in this thread for allowing me to learn from your mistakes and trials with shim direction and degrees.

    Last edited: May 26, 2015
    J4m3z420, May 26, 2015
    #519
  20. Jun 4, 2015 at 7:38 PM
    #520
    cfree5119

    #520
    cfree5119 Well-Known Member

    Joined:
    Jun 29, 2012
    Member:
    #81597
    Messages:
    257
    Gender:
    Male
    My 3 working angles are 4.7, .5, 3.0 front to back respectively. Recommendations on how to adjust ? I feel like there should be a formula for this. 08 4x4 dcsb, ome 885 icon aal in back with ome rear shocks and original leaf springs, overload in. Thanks

    cfree5119, Jun 4, 2015
    #520
