"Drive Systems" maze: what is ON in 2WD mode?

Discussion in '2nd Gen. Tacomas' started by Thighmaster, Mar 10, 2012.

  1. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    {I have read some decent threads on this mess already but I am still a bit lost}
    My 2012 TRD Off Road is less than on day old... I can't figure out what traction systems are "on" when I turn the key, starting out in generic 2WD mode. Is there any power distributed to the front wheels?

  2. Warhorseforever

    Warhorseforever Will The Thrill

    Joined:
    May 3, 2011
    Member:
    #56023
    Messages:
    4,825
    Gender:
    Male
    First Name:
    Will
    Sand Lapper
    Vehicle:
    2001 Toyota Tacoma Pre-Runner SR5
    Kenwood KDC-348U HU Kicker DS65 Front Doors Only 2 Polk Audio MM840 Kenwood KAC 8105D for subs SuperCrewSound.com behind rear seat sub box
    All of this should be in your manual DK should be along shortly though. I'll find some threads that explain it a little better. Welcome to the forum. IBDK.

  3. Warhorseforever

    Warhorseforever Will The Thrill

    Joined:
    May 3, 2011
    Member:
    #56023
    Messages:
    4,825
    Gender:
    Male
    First Name:
    Will
    Sand Lapper
    Vehicle:
    2001 Toyota Tacoma Pre-Runner SR5
    Kenwood KDC-348U HU Kicker DS65 Front Doors Only 2 Polk Audio MM840 Kenwood KAC 8105D for subs SuperCrewSound.com behind rear seat sub box
    Here:http://www.tacomaworld.com/forum/te...uto-lsd-explained-easy-understand-i-hope.html


  4. Fightnfire

    Fightnfire Recklessly tired

    Joined:
    Jun 12, 2011
    Member:
    #58178
    Messages:
    5,053
    Gender:
    Male
    First Name:
    Luke
    Marysville, WA
    Vehicle:
    09 Access Cab V6 4X4
    Softopper, Bilstein 5100's @ 1.75 in the front, TSB Rear, 17x8.5 Lvl 8 Guardians, 265/70-17 Goodyear Wrangler Duratracs, Scooped, Anytime fog mod, Osram Nightbreakers, LED Interior lights, Debadged, Painted valance, Removed rear head rests, De-flapped, Hidden Hitch installed, Weather Techs, Flyzeye'd A/W/A, Cover Kings,... oh and the hot wife mod.
    No power to the front at all in key on 2WD. Your truck does not have any type of AWD. You have a light limited slip with traction control (just key on) and you have a strong limited slip if you push the button once. ALSD. Then, while stopped if you push and hold the button you have open diffs.

    That process is similar in 4H except you jump straight to strong limited slip, push and hold the button for open diffs.

    If you have an off-road you have a locker and A-trac for extra traction.

  5. OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    21,197
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    IBDK

  6. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    Got it - no power to the front wheels at all when starting her up. Limited slip on the rear. Thanks.
    Thanks both of you for your help. OzT I had seen your previous threads on this issue, appreciate it.

  7. OZ-T

    OZ-T All of those moments....will be lost.....in time

    Joined:
    Dec 15, 2009
    Member:
    #27584
    Messages:
    21,197
    Gender:
    Male
    First Name:
    Peter North
    British Columbia
    Vehicle:
    Mag Grey 09 Trd Sport DCLB 4x4
    OME 885x , OME shocks and Dakars , Wheelers SuperBumps front and rear , 275/70/17 Hankook ATm , OEM bed mat , Weathertech digifit floor liners , Weathertech in-channel vents , headache rack , Leer 100RCC commercial canopy , TRD bedside decals removed , Devil Horns by Andres , HomerTaco Satoshi
    Wa

  8. David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,794
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.

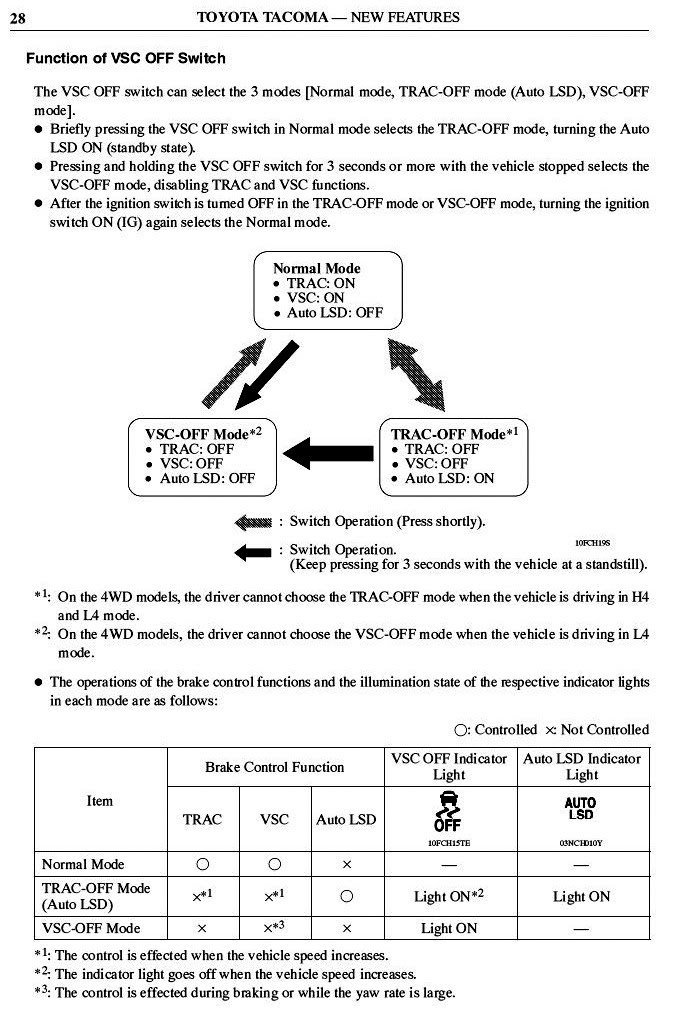

    Thanks for posting that info for him, and also here is the chart that applies to all 2009+ Tacomas:

    [​IMG]

  9. whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,268
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    http://www.majormedia2.com/4WDSimplifiedv5/4WD.html

    No just TRAC and VSC in normal mode which is just traction control and stability control.

  10. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
  11. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    Recently saw the YouTube with the Tacoma pro from "Expeditions West" and it helped me understand when to use the rear locker and when to use the A-TRAC (sand vs uneven terrain, for example).

  12. David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,794
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    About sand...

    A-TRAC is only in low range, and unless you are burried and need to crawl out (from fully inflated tires and not using TRAC in H4), keep it in high range (with TRAC on).. or deflate your tires.

    On sand, you want to float on top and not dig in... and that is best done with non-aggressive and deflated tires, and in high range.

    Aggressive (mud terrain and 3 ply tires) tend to want to dig you deeper and will require more air removed to float on the sand, than all terrain or highway tires.

    Low Range has lots of torque and the tires will try to spin... and that only digs you in.

    Traction control limits spin (TRAC) and staying in high range helps prevent digging in.

  13. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    That seems pretty clear. Thanks.

  14. David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,794
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Glad it helped... please don't hesitate to ask if anything isn't clear!

  15. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    Can you list EACH mode, including 2WD as well, and when you would use each?
    I don't understand the diagram when it says TRAC OFF not available in 4 hi and lo.

  16. David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,794
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    YES... first let me answer the second question:

    What the chart says is the driver cannot choose the 'TRAC OFF MODE' in H4 and L4...

    This is just a poor use of terms by Toyota. They call AUTO LSD the 'TRAC OFF MODE'... which only works in 2WD.

    So, in 4WD you cannot turn on 2WD's AUTO LSD (TRAC OFF MODE).

    In H4 your normal mode is TRAC without engine regulation, and you can turn off the TRAC which is what Toyota calls the 'VSC OFF MODE' (TRAC and VSC both off).

    In L4 you have no traction controls (except the Off Road TRD's A-TRAC).

    ========================================================

    In my sig. is a link to: http://www.tacomaworld.com/forum/2n...-controls-trac-auto-lsd-trac-rear-locker.html


    In there is this:

    UP TO NINE DRIVE MODES

    1) Normal street driving: H2 TRAC ON and VSC is on.

    2) Slippery conditions, to get moving from a stuck: H2 AUTO LSD ON (VSC is off under 30 mph). Press VSC button once while moving or stopped.

    3) Spinning tires prefered: H2 VSC OFF/ TRAC OFF. Press and hold down VSC button 3+ seconds, while stopped.

    4) Loose dirt, sand, snow: H4 TRAC ON and VSC is on.

    5) Spinning tires prefered, off pavement: H4 VSC OFF/ TRAC OFF. Press and hold down VSC button 3+ seconds, while stopped.

    6) Spinning tires prefered with low gearing torque: L4 (with A-TRAC off)

    7) Steep grades, large rocks, deep mud, severe traction conditions: L4 with A-TRAC ON. Press A-TRAC button once.

    8) Spinning tires in front only: L4 with REAR DIFFERENTIAL LOCKED.

    9) L4 REAR LOCKED and A-TRAC ON. A-TRAC comes on automatically when speed drops to under 3 mph to provide front traction to get you going, again.

    ALL Tacomas have 1-3. ALL 4WD Tacomas have 1-6. ONLY 4WD OFF ROAD TRD Tacomas have 1-9.

  17. whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,268
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
  18. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    You da man DK. Thanks again.

  19. David K

    David K Well-Known Member

    Joined:
    Jun 27, 2009
    Member:
    #18969
    Messages:
    8,794
    Gender:
    Male
    San Marcos, Alta California
    Vehicle:
    2010 4WD Off Road DC
    Differential Breather Mod Light Bar: 2 Hella 4000 HID, 1 Kragen HID, 1 Cibie Halogen.
    Just a fan of 4WD systems... and like you, I wanted to know! The problem is most don't know what they have or how to use it... be it poor salesman at purchase, poor research on their part or just poor information from Toyota.

    Calling AUTO LSD: 'TRAC OFF MODE' instead of "Enhanced Trac Mode", and calling the traction control in 4WD-HI: 'TRAC' instead of AUTO LSD or "Super Trac" doesn't help understand the systems!

    Just remember:
    TRAC in H2 is less/lighter/weaker traction than TRAC in H4. Also,
    TRAC in H2 is less/lighter/weaker traction than AUTO LSD (TRAC OFF) in H2.
    To turn off TRAC and turn off AUTO LSD is the VSC OFF MODE.

  20. Thighmaster

    Thighmaster [OP] Well-Known Member

    Joined:
    Mar 8, 2012
    Member:
    #74493
    Messages:
    111
    Gender:
    Male
    Ward, Colorado
    Vehicle:
    2012 Red TRD Off-Road
    I love the options, but wish the names and controls were more intuitive, you know?
    I will print out your nine step guide and put it on my visor.
