Drivers side headlight dimmer than normal

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Brian007Taco, May 9, 2014.

  1. May 9, 2014 at 1:50 PM
    #1
    Brian007Taco

    Brian007Taco [OP] 007Taco

    Joined:
    May 16, 2012
    Member:
    #78964
    Messages:
    19,816
    Gender:
    Male
    First Name:
    If you ask. You don't know me very well!
    South Jordan, Utah
    Vehicle:
    2012 Red TRD OR 4x4 DCSB (aka Clifford the Big Red Truck)
    12 OR DCSB 4x4 265/75/16 Goodyear Ultra Terrain wrapped on MB352's. OME 886's w/5100's front and back, and Dakars. Derped Emblems. KM Fab sliders, Mobtown Front and back bumpers w/tire gate, KM Fab Bed Rack, Bestop Supertop, Matt Gecko bed lights. Tree Smashed Taco 06 OR AC Prerunner! OME 885 with 5100's in front, TSB and AAL with 5125's in back. 30" light bar in the valance.
    The drivers headlight on my 06 all of a sudden went dim. I turn on the brights, the passenger side goes bright but the drivers stays dim and the fogs stay on and I haven't done the fig anytime mod. I checked the fuses for all the lights and they are fine. The lights are the Sylvania 9003/HB2/H4 SU SilverStar That I purchased a year ago next week.
    What could this be? Any help would be greatly appreciated. Thanks in advance.

    Edit: I have searched the interwebs a bit and have not had any luck.

    Last edited: May 9, 2014
  2. Dec 5, 2018 at 5:13 PM
    #2
    Sterling_vH111

    Sterling_vH111 Go do something real instead.

    Joined:
    Oct 4, 2015
    Member:
    #165793
    Messages:
    1,864
    Gender:
    Male
    First Name:
    Sterling
    Fullerton & your moms house
    Vehicle:
    2012 DCLB Prerunner V6
    Secretly Long Travel.
    Thread revival...

    My driver side headlight is getting current, as the bulb glows, but is not nearly as bright as it should be. So much so, that I though it was completely out. When putting high beams on, there is no change. Stays the same.
    The passenger side works fine.

    Also, the high beam light on my dash is permanently glowing when the headlights are on (anything past dtrl on the stalk). Although it does get even brighter when I put my high beams on.

    I have new Philips h4 bulbs in there, but the truck did just have the inner fenders modified, so components like the battery and fuse box were remounted and how the battery provides its ground to the truck (the short wire grounding the engine bay right next the the battery) was modified. It still grounds the chassis in the same area as oem, but that area is now tubes, not sheet metal.

    Any suggestions?

    I’m going to test tomorrow by swapping the bulbs and buying a volt meter to make sure the harness is putting out the correct voltage to the driver side.

    Also going to send fabricator a text in case he has an idea.

  3. Dec 5, 2018 at 5:32 PM
    #3
    HillJackJDS

    HillJackJDS Well-Known Member

    Joined:
    Dec 6, 2016
    Member:
    #204147
    Messages:
    168
    Gender:
    Male
    First Name:
    Dale
    Vehicle:
    2008 Tacoma 4WD
    I an wondering if this is a ground issue, but would just be speculating.

  4. Dec 5, 2018 at 8:26 PM
    #4
    crashnburn80

    crashnburn80 Vehicle Design Engineer

    Joined:
    Jun 6, 2015
    Member:
    #156893
    Messages:
    12,725
    Gender:
    Male
    Kirkland, WA
    Vehicle:
    2003 DCSB TRD OR
    Go Hawks!
    Report back after running these tests. If you swap bulbs side-to-side and it changes sides, it is obviously a bad bulb. If the problem remains on one side, it is a voltage issue and you can start tracing it from there. It seems unlikely to be a battery grounding issue as that would affect both sides.

    TACOMA2NDGEN and Sterling_vH111 like this.
  5. Dec 5, 2018 at 8:31 PM
    #5
    Sterling_vH111

    Sterling_vH111 Go do something real instead.

    Joined:
    Oct 4, 2015
    Member:
    #165793
    Messages:
    1,864
    Gender:
    Male
    First Name:
    Sterling
    Fullerton & your moms house
    Vehicle:
    2012 DCLB Prerunner V6
    Secretly Long Travel.
    True true, and it’d probably affect even more that the headlights too.

    Fab guy responded that when removing headlights, the ground wire of the plug was a bit loose, so I’m pretty sure it’s that.

    Will confirm tomorrow.

    crashnburn80 likes this.
  6. Dec 5, 2018 at 8:39 PM
    #6
    Muddinfun

    Muddinfun Well-Known Member

    Joined:
    Apr 17, 2017
    Member:
    #216500
    Messages:
    7,501
    I'm betting it's the ground connection for the headlight. The low beam is feeding through the high beam and finding ground somewhere. Essentially the low beam and high beam are connected in series. That's why the light is dim and the high beam indicator is on.

    HillJackJDS and Jimmyh like this.
  7. Dec 5, 2018 at 10:35 PM
    #7
    Jimmyh

    Jimmyh Well-Known Member

    Joined:
    May 16, 2012
    Member:
    #78991
    Messages:
    13,035
    Gender:
    Male
    SC
    Vehicle:
    2012 Prerunner SR5
  8. Dec 6, 2018 at 7:04 AM
    #8
    fathomblue

    fathomblue When the music's over...turn out the lights.

    Joined:
    Sep 13, 2014
    Member:
    #138206
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Richard
    Eastern Kansas
    Vehicle:
    Cavalry Blue 2019 DCSB SR5 4x4
    Have you tried opening the hood and banging your fist down hard on the fuse box? That's what I do when this exact same thing happens to me. Just kidding, sorta, it does work for me.

    I bought my '05 about 4 years ago with a little over 100,000 miles on it. A few months later it started doing the same thing as described above, drivers side headlight about 1/4 as bright as it should be on both bright and dim and bright indicator in dash glowing faintly regardless of switch position. I've spent hours trying to find the problem and while I haven't yet discovered a permanent fix I redneck engineered something to keep it from happening.

    In the fuse box, next to the fuses are three connectors. I discovered that wiggling the largest one would cause the light to come back on to full brightness, which is odd because that connector doesn't have anything to do with the lights. (You can unplug it completely and they stay on.) My "fix"? I wedged a wire nut down beside the connector to keep pressure on it and, voila, no more dim headlight.

    Obviously there is something slightly loose somewhere in the fuse box, and I have gone as far as taking it apart far enough to flip it over, but when I saw the eleventy- billion wires coming out of the bottom I got a little scared of screwing something up and just left it alone. For the time being my "fix" works.

    Edit: Thanks to @Jimmyh for the wiring diagram. I printed it off; come spring and warmer weather maybe I'll tackle this again.

    Last edited: Dec 6, 2018
  9. Dec 6, 2018 at 10:14 AM
    #9
    fathomblue

    fathomblue When the music's over...turn out the lights.

    Joined:
    Sep 13, 2014
    Member:
    #138206
    Messages:
    1,122
    Gender:
    Male
    First Name:
    Richard
    Eastern Kansas
    Vehicle:
    Cavalry Blue 2019 DCSB SR5 4x4

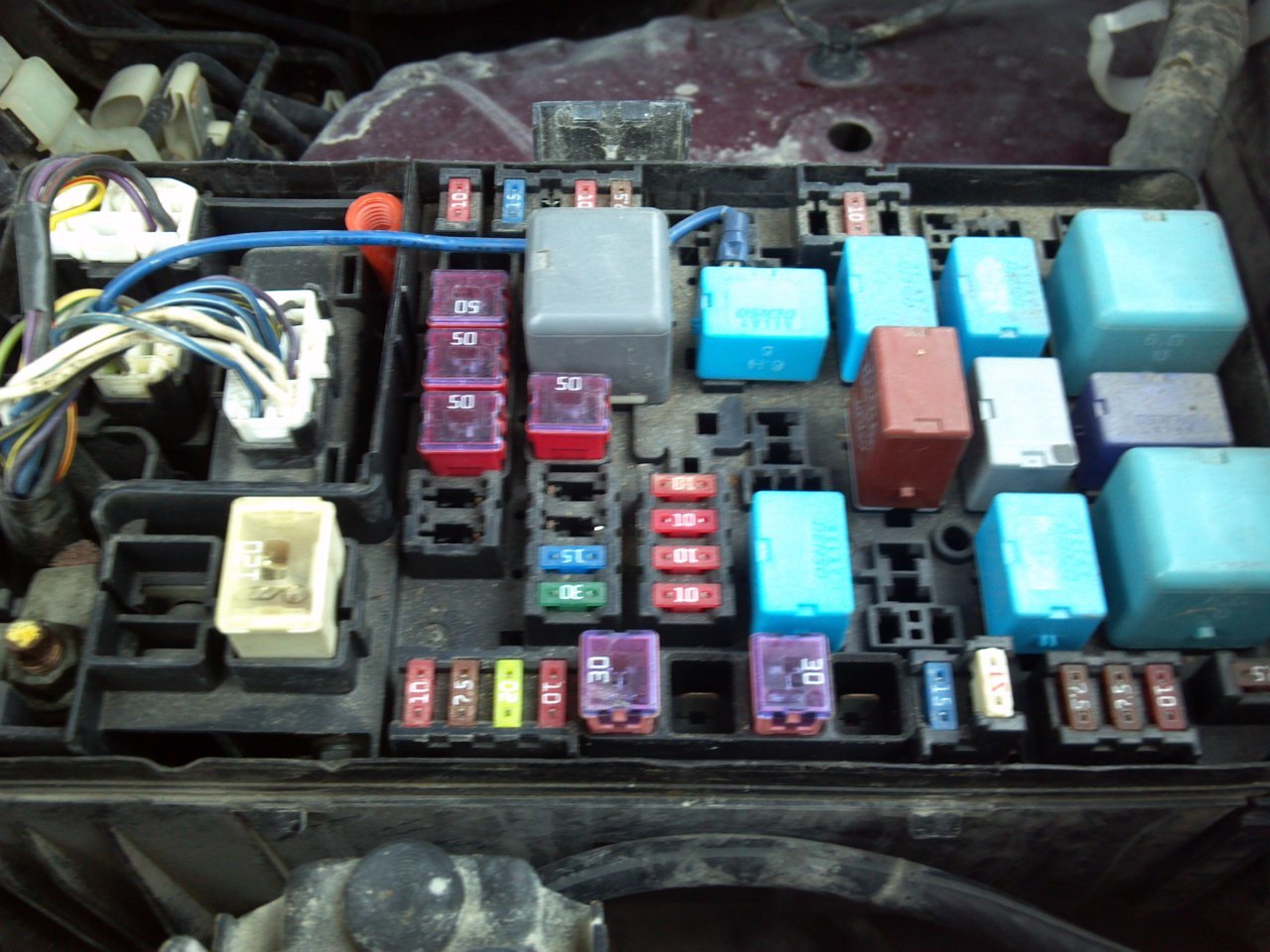

    Here's a picture of my fix described in the above post. You can see the orange wire nut wedged up against the connector. That was all I needed to do to keep the light working. Beats the hell out of opening the hood and thumping the fuse box every morning. YMMV


  10. Dec 6, 2018 at 12:30 PM
    #10
    Sterling_vH111

    Sterling_vH111 Go do something real instead.

    Joined:
    Oct 4, 2015
    Member:
    #165793
    Messages:
    1,864
    Gender:
    Male
    First Name:
    Sterling
    Fullerton & your moms house
    Vehicle:
    2012 DCLB Prerunner V6
    Secretly Long Travel.
    Looks like my problem was that the ground wire was very loose, almost pulled out, of the back of the h4 socket/plug. Barely making contact.
    Soldering it back into place should take care of the issue.
    Going to do that his afternoon.

    crashnburn80 and Muddinfun like this.
  11. Dec 6, 2018 at 12:32 PM
    #11
    Sterling_vH111

    Sterling_vH111 Go do something real instead.

    Joined:
    Oct 4, 2015
    Member:
    #165793
    Messages:
    1,864
    Gender:
    Male
    First Name:
    Sterling
    Fullerton & your moms house
    Vehicle:
    2012 DCLB Prerunner V6
    Secretly Long Travel.
    You were correct sir

    crashnburn80 and Muddinfun like this.
