Drivers Side Window Switch LED

Discussion in 'Lighting' started by CaliTacoma619, Sep 2, 2010.

  1. Sep 2, 2010 at 1:32 PM
    #1
    CaliTacoma619

    CaliTacoma619 [OP] Active Member

    Joined:
    Mar 21, 2010
    Member:
    #33659
    Messages:
    28
    Gender:
    Male
    Cleared Headlights 8000k 35w hid fog/head Grillcraft Grill 5100's all around nittos terra graplers 285/70/17 weld dune 6 17's pioneer avh4100 2) jl audio c2 6.5 1)jl audio 300/4
    So got to the LED and am stuck i am new to the whole LED scene so sorry i f i ask a stupid question. :facepalm

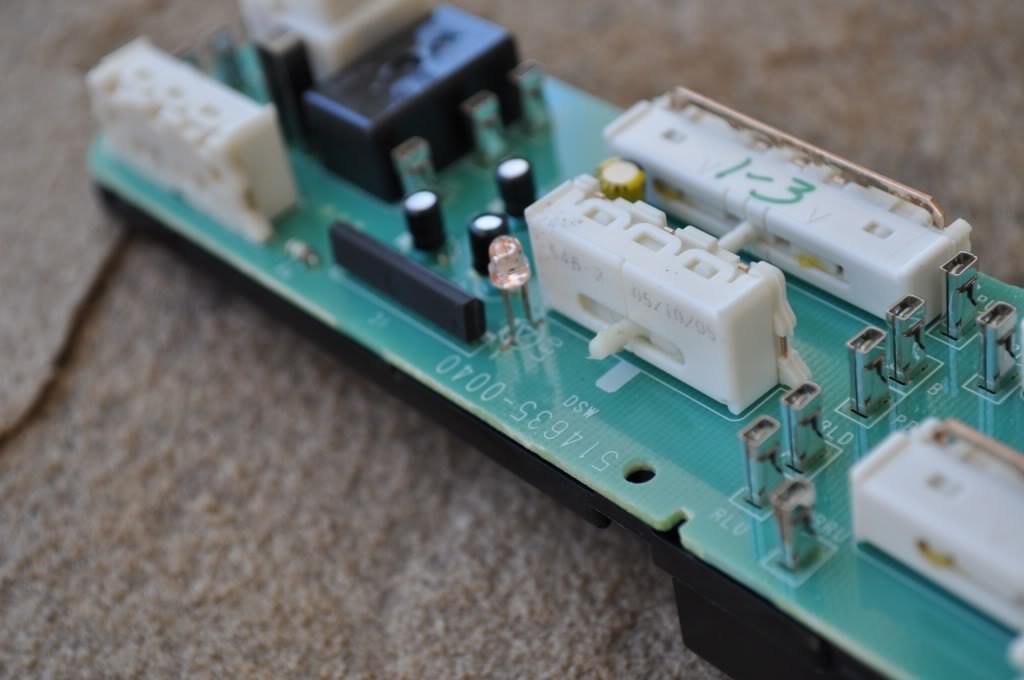

    I have my 3mm LED i wanna switch out to blue but my question is.


    Do i just snip the ends of the LED and solder the new one on? Heres a picture​


    [​IMG]

  2. Sep 2, 2010 at 5:52 PM
    #2
    CaliTacoma619

    CaliTacoma619 [OP] Active Member

    Joined:
    Mar 21, 2010
    Member:
    #33659
    Messages:
    28
    Gender:
    Male
    Cleared Headlights 8000k 35w hid fog/head Grillcraft Grill 5100's all around nittos terra graplers 285/70/17 weld dune 6 17's pioneer avh4100 2) jl audio c2 6.5 1)jl audio 300/4
    Anyone know how to do it ??

  3. Sep 2, 2010 at 6:05 PM
    #3
    Basfshr27

    Basfshr27 Well-Known Member

    Joined:
    Aug 29, 2010
    Member:
    #42432
    Messages:
    86
    Gender:
    Male
    First Name:
    Marshall
    Gautier, MS
    Vehicle:
    06 PreRunner SR5 TRD
    A.R.E. Bed cover
    If it was me I would desolder the old one and solder the new one in its place and then test before re-assy.

  4. Sep 2, 2010 at 6:10 PM
    #4
    CaliTacoma619

    CaliTacoma619 [OP] Active Member

    Joined:
    Mar 21, 2010
    Member:
    #33659
    Messages:
    28
    Gender:
    Male
    Cleared Headlights 8000k 35w hid fog/head Grillcraft Grill 5100's all around nittos terra graplers 285/70/17 weld dune 6 17's pioneer avh4100 2) jl audio c2 6.5 1)jl audio 300/4
    wouldnt that require somehow taking the plastic backing off to get to the bottom??

  5. Sep 2, 2010 at 6:10 PM
    #5
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    Yup. Use flux to get the old solder off, then heat each lead and pull individually.

  6. Sep 2, 2010 at 6:11 PM
    #6
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    Once you get down to the board it will all make more sense. Completely remove the board from whatever is holding it.

  7. Sep 2, 2010 at 6:19 PM
    #7
    CaliTacoma619

    CaliTacoma619 [OP] Active Member

    Joined:
    Mar 21, 2010
    Member:
    #33659
    Messages:
    28
    Gender:
    Male
    Cleared Headlights 8000k 35w hid fog/head Grillcraft Grill 5100's all around nittos terra graplers 285/70/17 weld dune 6 17's pioneer avh4100 2) jl audio c2 6.5 1)jl audio 300/4
    im not sure if the board comes off, have you ever done this?

  8. Sep 2, 2010 at 6:25 PM
    #8
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    no, hes talkning about getting down to just the PC board. you desolder/resolder the LED at the pads on the PC board...which appear to be on the backside of that pic

  9. Sep 2, 2010 at 6:28 PM
    #9
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    Nope, my truck doesn't have power windows. I have done all the others in the truck and generally know what I am talking about however.

    It should be very simple:

    Isolate the board- remove it entirely from everything else so you can access the back

    Use flux to remove solder from the back of the board which is holding the LED in

    Heat one connection at a time and pull from the front to remove from the board.

    Insert new LED in the correct orientation

    Solder both contacts

    Reassemble



    If you can't figure it out I suggest stopping while you are ahead.

  10. Sep 2, 2010 at 6:30 PM
    #10
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    but he wants the LEDz!!! (i agree, if you need to ask questions like the above, probably shouldnt be doing it!!)

  11. Sep 2, 2010 at 6:30 PM
    #11
    =JSG=

    =JSG= Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41475
    Messages:
    504
    Gender:
    Male
    Canada
    Vehicle:
    2017 DC TRD OR 4x4 SB
    Morimoto 2 Stroke H11 lows
    Remember LED's are not bulbs they have polarity, following diagram should explain everything:

    [​IMG]

  12. Sep 2, 2010 at 6:31 PM
    #12
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    ^ aw, cmon, let him install it backwards...reinstall everything, then cry that it doesnt work...w/ his questions thats where this was going!! you guys dont have any fun around here...!!

  13. Sep 2, 2010 at 6:32 PM
    #13
    =JSG=

    =JSG= Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41475
    Messages:
    504
    Gender:
    Male
    Canada
    Vehicle:
    2017 DC TRD OR 4x4 SB
    Morimoto 2 Stroke H11 lows
    LMAO

  14. Sep 2, 2010 at 6:37 PM
    #14
    Stew_Fri

    Stew_Fri Well-Known Member

    Joined:
    Oct 16, 2008
    Member:
    #10016
    Messages:
    68
    Gender:
    Male
    Dallas, Tx
    Vehicle:
    09 PreRunner Speedway Blue SR5 D. Cab Sport
    JC Whitney Light Bar w/ 4 100 watt KC Daylighters, Mobil 1 Synthetic Motor Oil, K&N CAI (77 series), Hand Grenade Shifter, Custom Painted Engine Cover,
    I did that same mod and all I did was carefully about halfway down I cut both metal prongs. Then I took my new LED, that I want to soder on and I measured out the length to match the old LED's height, then I cut the new ones legs. I then soldered the new LED's legs (that I cut) on top of the old LED's legs (that I also cut). I just soldered it on then took it out to the truck, hooked it up and checked to make sure it was working. Or you could take the plastic back off and then de-solder the old LED but eh, more work for same outcome. Your choice!

  15. Sep 2, 2010 at 6:38 PM
    #15
    =JSG=

    =JSG= Well-Known Member

    Joined:
    Aug 9, 2010
    Member:
    #41475
    Messages:
    504
    Gender:
    Male
    Canada
    Vehicle:
    2017 DC TRD OR 4x4 SB
    Morimoto 2 Stroke H11 lows
  16. Sep 2, 2010 at 6:39 PM
    #16
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    ^ wow, WAY too much work, plus you run into heating up the actual soldered joint on the board and causing that one to come loose....

    just remove the old one properly and solder in the new one! really not that hard.

  17. Sep 2, 2010 at 6:39 PM
    #17
    CaliTacoma619

    CaliTacoma619 [OP] Active Member

    Joined:
    Mar 21, 2010
    Member:
    #33659
    Messages:
    28
    Gender:
    Male
    Cleared Headlights 8000k 35w hid fog/head Grillcraft Grill 5100's all around nittos terra graplers 285/70/17 weld dune 6 17's pioneer avh4100 2) jl audio c2 6.5 1)jl audio 300/4


    you might be right haha. thats for all the help anyways and i didnt mean to say it thought you didnt know what you were doing i was just asking if you have done it before lol sorry about that.

  18. Sep 2, 2010 at 6:41 PM
    #18
    flightcancled

    flightcancled Addicted

    Joined:
    Feb 7, 2010
    Member:
    #30917
    Messages:
    1,465
    Gender:
    Male
    Syracuse NY/ Nantucket MA
    Camper top with racks, Custom fogs behind lower bumper. Interior LED lighting, Rock Lights, Hella 500s with upraged bulbs behind black billet grill, AAL, Front 5100s
    Its cool. I would rather you know that I am flying by the seat of my pants then have the blind lead the blind.

  19. Sep 2, 2010 at 6:41 PM
    #19
    CaliTacoma619

    CaliTacoma619 [OP] Active Member

    Joined:
    Mar 21, 2010
    Member:
    #33659
    Messages:
    28
    Gender:
    Male
    Cleared Headlights 8000k 35w hid fog/head Grillcraft Grill 5100's all around nittos terra graplers 285/70/17 weld dune 6 17's pioneer avh4100 2) jl audio c2 6.5 1)jl audio 300/4
    thats what i was originally was thinking but no one chimed in haha thank you

    i felt like i was gonna break the plastic peice off the pc board.

  20. Sep 2, 2010 at 6:42 PM
    #20
    yosh2000

    yosh2000 Well-Known Member

    Joined:
    Sep 18, 2007
    Member:
    #2733
    Messages:
    2,925
    Gender:
    Male
    Denver, CO
    Vehicle:
    '05 4runner SR5 v8
    read my response to this...this is NOT the proper way to do it...
