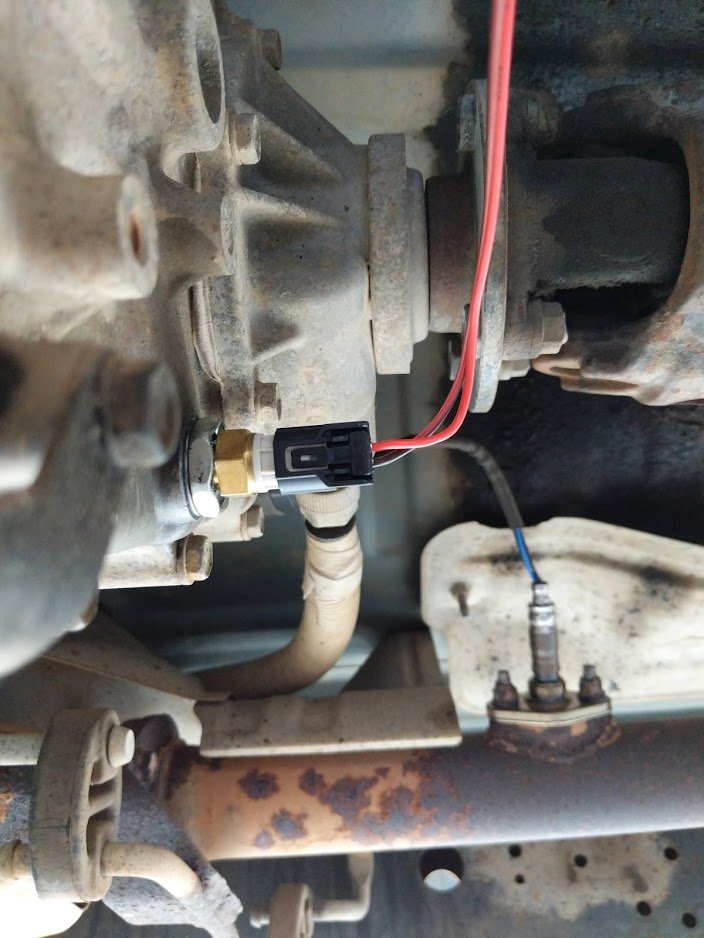

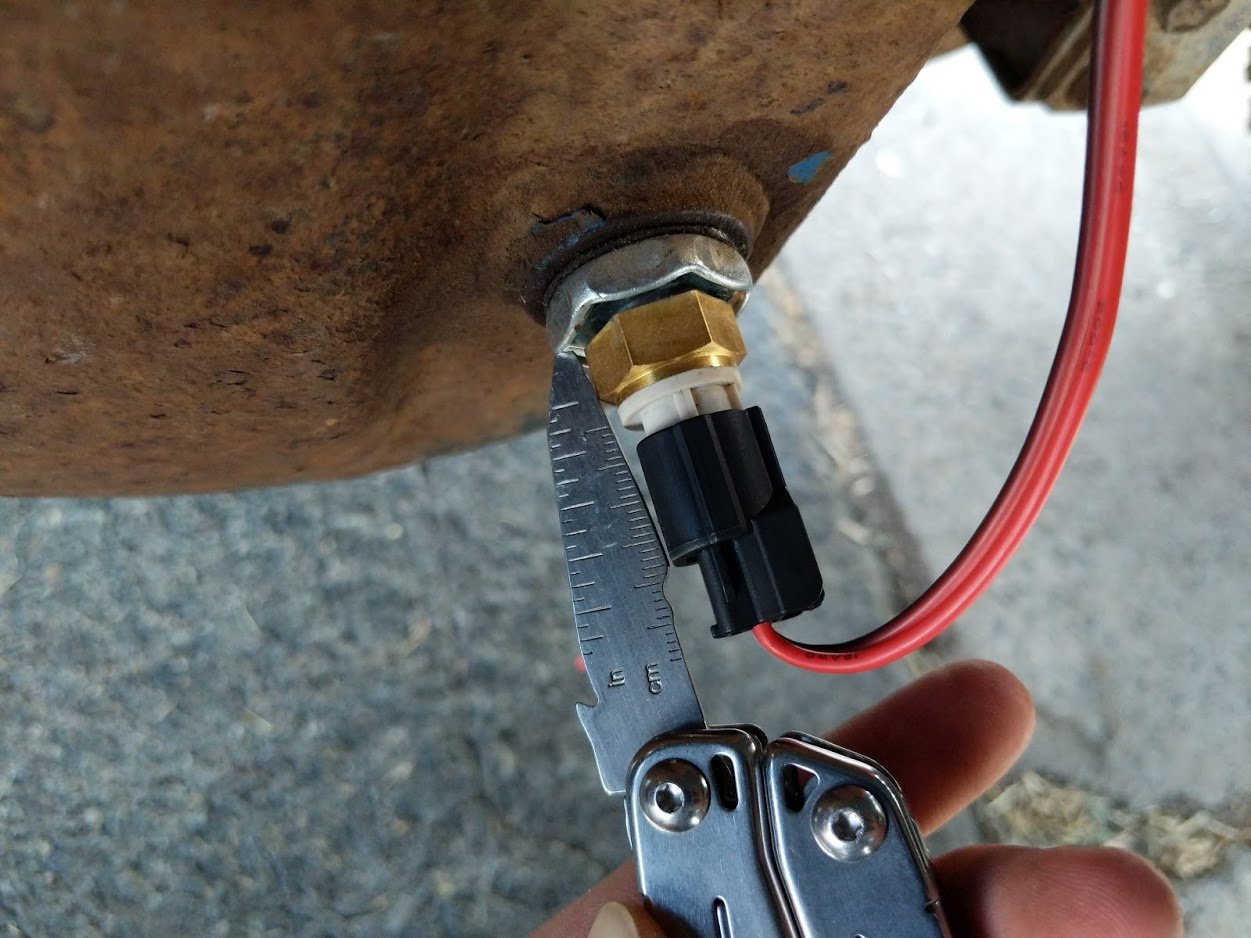

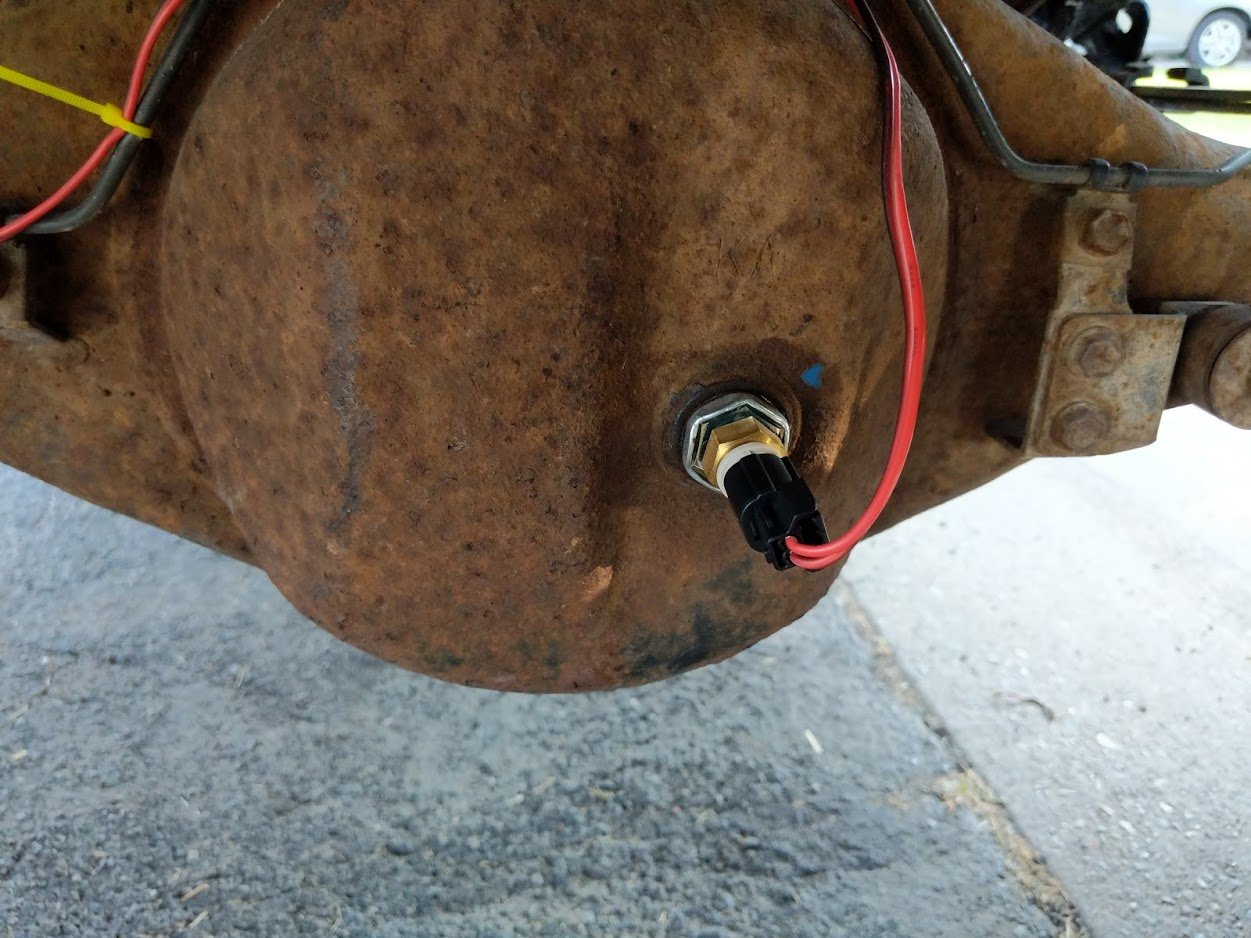

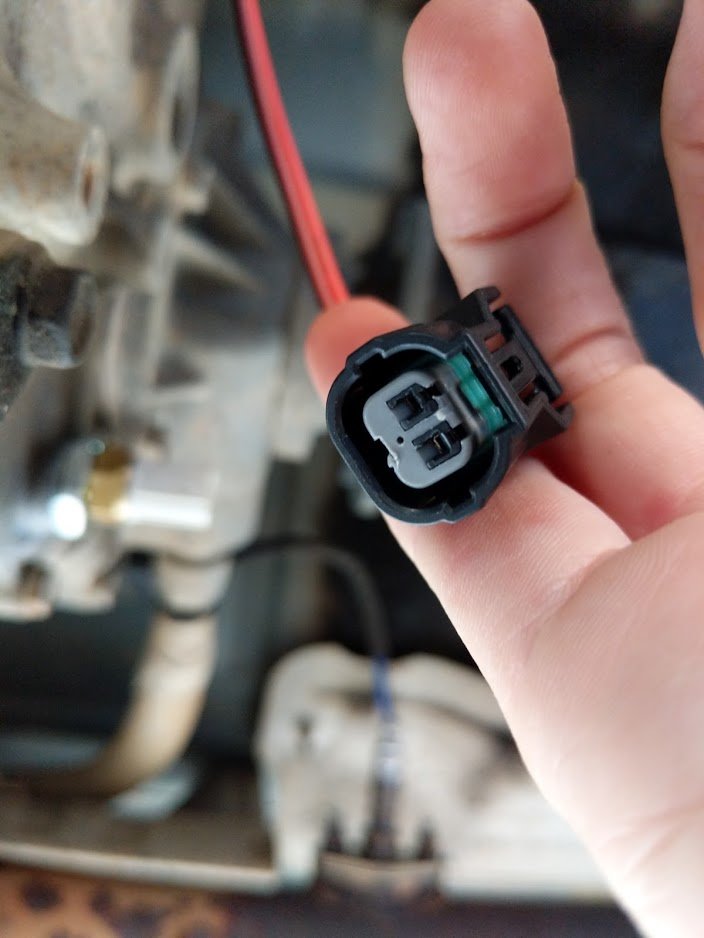

Drivetrain temperature sensors

Discussion in '1st Gen. Tacomas (1995-2004)' started by drewmox, Jun 16, 2020.

  1. Jun 17, 2020 at 9:35 AM
    #21
    sk8rjess

    sk8rjess IG: @whoishack

    Joined:
    Jul 5, 2009
    Member:
    #19286
    Messages:
    2,252
    Gender:
    Male
    First Name:
    Cody
    Nashville, TN
    Vehicle:
    02 4x4 sr5
    some duct tape and zip ties
    not very hard to do either :spy:
    https://www.tacomaworld.com/threads/my-digital-inclinometer.447583/

    0xDEADBEEF likes this.
  2. Jun 17, 2020 at 9:35 AM
    #22
    drewmox

    drewmox [OP] Member

    Joined:
    Jun 15, 2020
    Member:
    #331556
    Messages:
    15
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1995.5 4x4 2.7L
    Thanks for the suggestion. I don't think it should be too much of an issue heat wise but I'll have to see through testing. I don't expect the whole device to even use 1A to be honest. An IMU would be pretty awesome to add, I'll have to grab some components to test that out. At this point I would probably need to add in a toggle button to switch between modes.

  3. Jun 17, 2020 at 9:51 AM
    #23
    0xDEADBEEF

    0xDEADBEEF This statement is false.

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    4,011
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles.
    Yeah, it'll probably be okay as long as ambient temp isn't too high. Might consider a heat sink tho.

    I've used a BNO055 IMU in the past, it works good with arduino. Its a pain in the behind with out the arduino library though, I did it with straight C and spent most of my time crying into my coffee :laughing:

  4. Jun 17, 2020 at 9:54 AM
    #24
    drewmox

    drewmox [OP] Member

    Joined:
    Jun 15, 2020
    Member:
    #331556
    Messages:
    15
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1995.5 4x4 2.7L
    Thanks for the suggestion. Definitely something I will add later, a little bit of a stretch for this first version but I'm definitely looking to add it when I can.

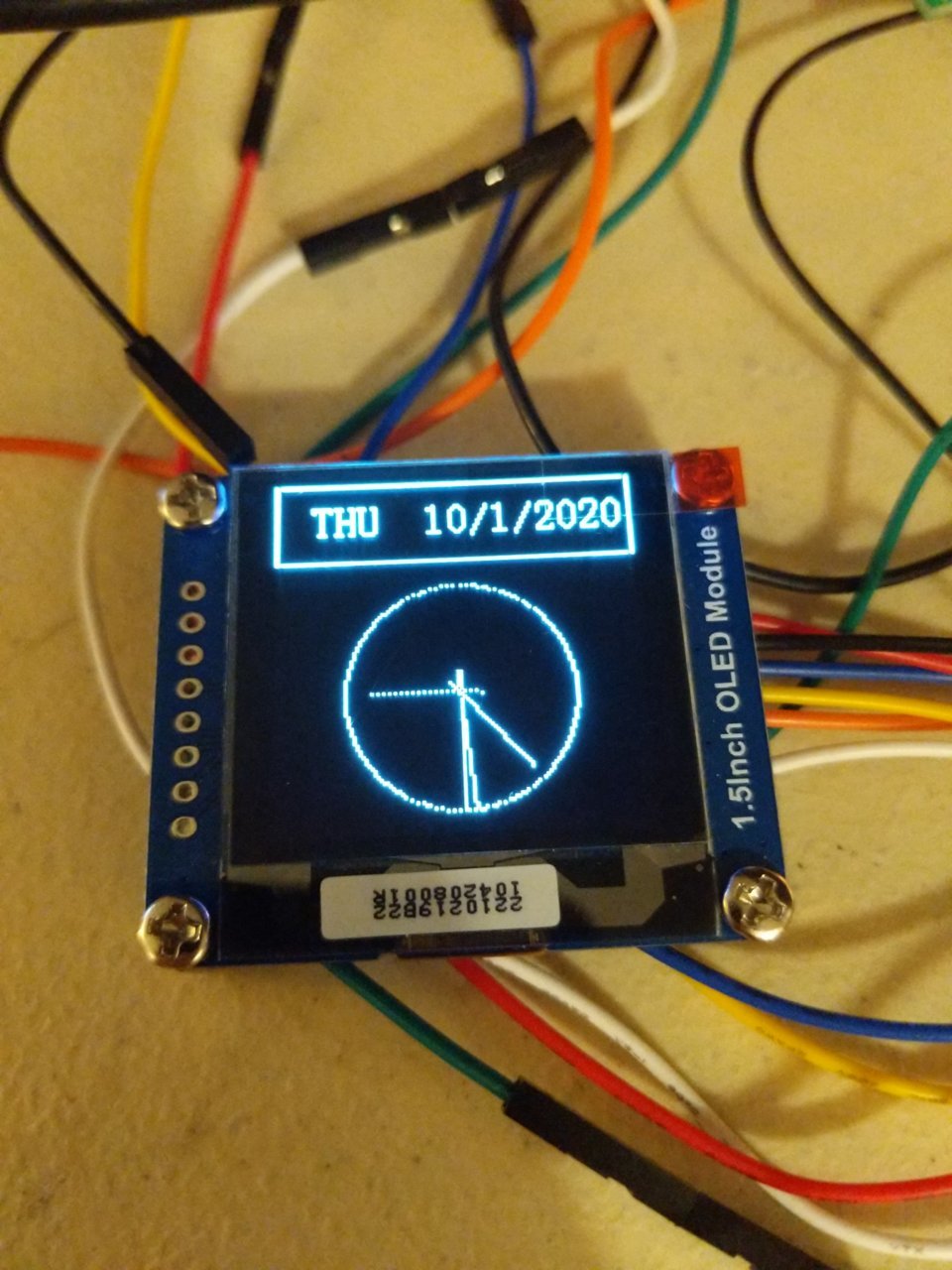

    I think at this point I am gonna look to replace the clock in my truck with this OLED. So I'll probably be adding a time keeping unit in there so I can still have a clock function on each screen.

    sk8rjess and 0xDEADBEEF like this.
  5. Jun 30, 2020 at 1:10 AM
    #25
    drewmox

    drewmox [OP] Member

    Joined:
    Jun 15, 2020
    Member:
    #331556
    Messages:
    15
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1995.5 4x4 2.7L
    Made some progress and finally got the initial connection for OBDII setup. Anyone with an ELM327 or similar bluetooth module would be able to connect.IMG_20200628_160603.jpg

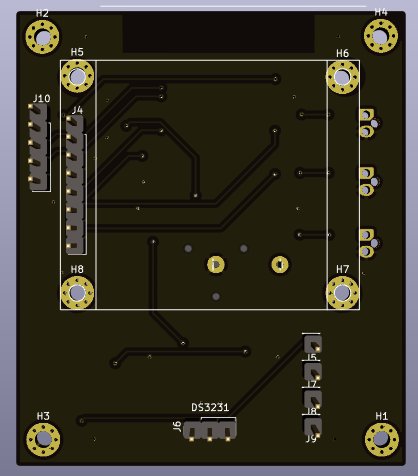

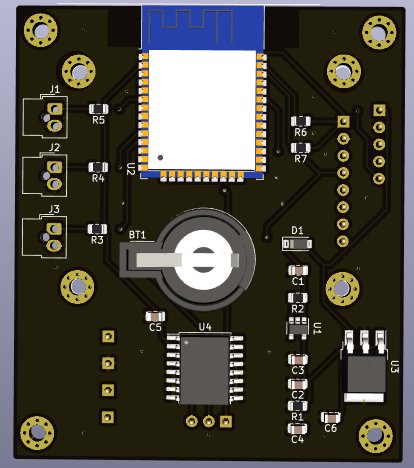

    Gonna start working on some nice graphics for the different variables from the truck. There will be a switch to change modes and settings in the final version, for now a lot is hard coded while I develop. Still working on mocking up a design for the module to fit in place of the OEM clock, nothing worth showing yet. My initial PCB layout is a little bit too large so I need to redesign the board. It's a little ugly at the moment but it has a spot to mount the screen and assemble in the the housing at least. Also got a time keeping IC to play with and put the circuit on the board with the battery needed to keep it accurate.

    Screen Shot 2020-06-30 at 12.56.10 AM.jpgScreen Shot 2020-06-30 at 12.56.30 AM.jpg

    Still a lot left to do but all progress is good. I included a connection in the design that will utilize the factory clock connector, this way I won't need to tap any wires for the power or the illumination circuit.

  6. Jun 30, 2020 at 7:11 AM
    #26
    sk8rjess

    sk8rjess IG: @whoishack

    Joined:
    Jul 5, 2009
    Member:
    #19286
    Messages:
    2,252
    Gender:
    Male
    First Name:
    Cody
    Nashville, TN
    Vehicle:
    02 4x4 sr5
    some duct tape and zip ties
    What's the issue you're having with the clock location? I can print you an adapter for it when you have the final size for your pcb

    drewmox [OP] likes this.
  7. Jun 30, 2020 at 7:19 AM
    #27
    drewmox

    drewmox [OP] Member

    Joined:
    Jun 15, 2020
    Member:
    #331556
    Messages:
    15
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1995.5 4x4 2.7L
    No issue with the clock per say, I have a short in my dome circuit atm I need to source though. I have a 3D printer as well so I should be able to print a housing out once I sketch it up.

    osterhagen and sk8rjess like this.
  8. Jun 30, 2020 at 8:15 AM
    #28
    0xDEADBEEF

    0xDEADBEEF This statement is false.

    Joined:
    Mar 2, 2019
    Member:
    #285037
    Messages:
    4,011
    Vehicle:
    2000 4WD MT Single Cab
    Rust, dents, miles.
    So when I got my truck, the clock was not working because the tip of a cigarette lighter power plug was jammed inside one of the power ports. Might be worth checking those for shorts.

    drewmox [OP] likes this.
  9. Jun 30, 2020 at 8:18 AM
    #29
    drewmox

    drewmox [OP] Member

    Joined:
    Jun 15, 2020
    Member:
    #331556
    Messages:
    15
    Gender:
    Male
    First Name:
    Andrew
    Vehicle:
    1995.5 4x4 2.7L
    Good info! I'm gonna be pulling the dash soon so I can install my new stereo and clean all the dust out. So I'll be using my multi meter to check everywhere. I miss my interior lighting. :annoyed:

    osterhagen and 0xDEADBEEF like this.
