Drum brakes-which spring release tool?

Discussion in '2nd Gen. Tacomas (2005-2015)' started by craigFLA, Mar 20, 2011.

  1. Mar 20, 2011 at 2:09 PM
    #1
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    420
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs
    Just hit 57,000 miles, need to replace front pads soon. Figured it wouldnt hurt to take a look at the rear drum brakes while I'm at it.

    From the research I've done, no real "specialty brake tools" are required for shoe replacement, although I'm sure I'll need a spring release tool.

    Will any universal spring release tool work, if not can someone recommend one that does?

    Also, is there any other brake tools required, or that will make the process easier? Have no problem spending money on tools...especially if it makes the job go easier/quicker.

  2. Mar 20, 2011 at 2:21 PM
    #2
    98tacoma27

    98tacoma27 is gooder 'en chicken Moderator

    Joined:
    Dec 18, 2008
    Member:
    #11714
    Messages:
    49,839
    Gender:
    Male
    First Name:
    Ben
    Beech Creek
    Vehicle:
    05 Tundra SR5 (+250k AND COUNTING), 88 SR5 PU (SOLD), 98 TRD OR (CRUSHED)
    5100's all on fours
    This one will do everything for the rears.


  3. Mar 20, 2011 at 2:24 PM
    #3
    brutalguyracing

    brutalguyracing BIG DADDY

    Joined:
    Jun 28, 2009
    Member:
    #19000
    Messages:
    24,038
    Gender:
    Male
    F.U> GUYZ
    broken mods
    fail

  4. Mar 20, 2011 at 2:32 PM
    #4
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    420
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs

    Thanks for the help! I hadnt researched the pliers...but will now.

  5. Mar 21, 2011 at 9:55 AM
    #5
    kws129

    kws129 Well-Known Member

    Joined:
    Jan 23, 2009
    Member:
    #12880
    Messages:
    248
    Gender:
    Male
    PA
    Vehicle:
    TRD Off Road Double Cab
    Those pliars are the ones you want for rear brakes. But I woudl check the brakes first - my last tacoms had almost 200000 miles on it before it needed rear brakes

  6. Mar 21, 2011 at 11:40 AM
    #6
    05Moose

    05Moose Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,535
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    x2. I'll be shocked if you need rears before 100K. I'm at 108K, but checked them around 90K and they had a lot left.

  7. Mar 21, 2011 at 1:49 PM
    #7
    all.on.black

    all.on.black Well-Known Member

    Joined:
    Jan 2, 2008
    Member:
    #4066
    Messages:
    1,481
    Gender:
    Male
    Auburn, WA
    Vehicle:
    06 Double Cab Sport with a few mods
    They might have a lot of life left but check to make sure they're not glazed. Glazed pads/rotors don't stop very well. Mine had lots of life left but they were slightly glazed and I'm happy I replaced them. The truck stops much better now.
    You shouldn't need much more than some pliers to do the rear.

  8. Mar 21, 2011 at 2:14 PM
    #8
    macgyver

    macgyver Well-Known Member

    Joined:
    Aug 14, 2009
    Member:
    #21173
    Messages:
    3,590
    Gender:
    Male
    First Name:
    Brad
    Canton, GA
    Vehicle:
    '13 Tundra double cab SR5 4x4
    I highly doubt you need new rear brakes. When I sold my accord with 210k miles the shoes still had about 1/2 life left in them. I never changed the rears on that car when I had it. I bought it with 110k miles.

  9. Mar 21, 2011 at 2:25 PM
    #9
    skistoy

    skistoy Make mine a Double!

    Joined:
    Jul 6, 2009
    Member:
    #19356
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Mike
    Western New York
    Vehicle:
    09 4X4 SR5 BSP Double Taco
    Rear Spring TSB,Billy 5100@.85,Bull bar,Nerfbar,Painted Grill,Painted Rims,Bed D-rings,Compustar Starter,Goodyear Duratrac's,Transmission TSB,Brake Overide
    brakes may still be good

    but still good to get in there and look around

    plus get some brake cleaner and get out all the gunk

    while you have it opened.

    your brakes will thank you for it - haha

  10. Mar 21, 2011 at 2:30 PM
    #10
    trd sport

    trd sport Well-Known Member

    Joined:
    Oct 8, 2009
    Member:
    #23980
    Messages:
    118
    Gender:
    Male
    queens,ny
    Vehicle:
    07 double cab trd sport
    How do you inspect the rear shoes? Do you pull the drums to check? Also, how do you adjust the rear brakes without pulling off the drums?

  11. Mar 21, 2011 at 2:36 PM
    #11
    skistoy

    skistoy Make mine a Double!

    Joined:
    Jul 6, 2009
    Member:
    #19356
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Mike
    Western New York
    Vehicle:
    09 4X4 SR5 BSP Double Taco
    Rear Spring TSB,Billy 5100@.85,Bull bar,Nerfbar,Painted Grill,Painted Rims,Bed D-rings,Compustar Starter,Goodyear Duratrac's,Transmission TSB,Brake Overide
    [​IMG]

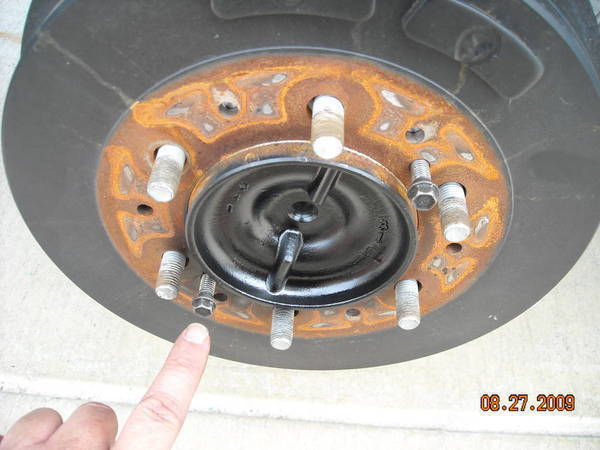

    not sure what size bolts, have had these for years
    insert bolts, alternate tightening the bolts, this will slide drum off brakes.

    [​IMG]

  12. Mar 21, 2011 at 2:47 PM
    #12
    05Moose

    05Moose Middle-Aged Member

    Joined:
    Jan 18, 2010
    Member:
    #29613
    Messages:
    2,535
    Gender:
    Male
    First Name:
    Jim
    In the snow (NorCal)
    Vehicle:
    '05 4x4 DC LB SR5 #8 (LSD, Tow Pkg)
    '05 4x4 DC LB SR5 (LSD & Tow Pkg), Timbrens, AAL, 5100s (.85), Owned: 12/3/04 Mods: Fog, Map/Dome Light, Illuminated 4wd Switch, Washable Cabin Air Filter
    Yes, you have to pull off the drums. Under normal circumstances, you shouldn't need to adjust them since they self adjust when you use the emergency brake.

    If for some reason you have to manually adjust them (like you've replaced the shoes), then there's a plug in the back at the 12-o-clock position that can be removed. Behind it you'll find a dial whereby you insert a flat head screwdriver and turn it (can't remember for sure, but I think turning it downward tightens them...there's a metal lever on it that you actually have to hold aside if you want to go the other way). The remaining adjustments are done via the emergency brake. This link has a good picture of the dial:
    http://auto.howstuffworks.com/auto-parts/brakes/brake-types/drum-brake2.htm

    Good pics. A little bit of warning though to anyone checking them when getting close to or passing 100K miles. The shoes wear a channel in the drums leaving a lip that's taller on the outer edge of the drum (edge that sits toward the middle of the truck). Because the shoes are sitting in this channel created by normal wear, you may find it almost impossible to remove the drum even using the two bolts method (I sure did at 90K). The lip of the drum will not pass over the shoe. So it may be necessary to remove the plug in the back and back off the shoes first...and that's NOT an easy task because you have to hold the level on the automatic adjuster while turning it!!!

  13. Mar 21, 2011 at 2:56 PM
    #13
    skistoy

    skistoy Make mine a Double!

    Joined:
    Jul 6, 2009
    Member:
    #19356
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Mike
    Western New York
    Vehicle:
    09 4X4 SR5 BSP Double Taco
    Rear Spring TSB,Billy 5100@.85,Bull bar,Nerfbar,Painted Grill,Painted Rims,Bed D-rings,Compustar Starter,Goodyear Duratrac's,Transmission TSB,Brake Overide
    TRUE DAT

    Thats why its good to inspect at least yearly.

    plus after a few times you become a pro

  14. Mar 21, 2011 at 3:28 PM
    #14
    trd sport

    trd sport Well-Known Member

    Joined:
    Oct 8, 2009
    Member:
    #23980
    Messages:
    118
    Gender:
    Male
    queens,ny
    Vehicle:
    07 double cab trd sport
    Thanx 05Moose, great info!

  15. Mar 22, 2011 at 4:05 AM
    #15
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    420
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs
    I believe I read somewhere that the bolt size is 8X1.5mm...although I obviously havent personally tried this yet.

    I doubt I'll be needing new shoes at 60k, but wanted to be prepared with any tools required incase I pulled the drums to inspect and clean and discovered an issue. I'm just now...at 60k, almost ready for front pads...and most vehicles do 60 to 80% stopping with the fronts...so I'm expecting to just be performing a good cleaning with my compressor and air-gun...maybe some sand paper on the shoes and brake cleaner worse case...

    I do have one concern...as I didnt realize the the self-adjuster operated from the parking brake...I NEVER use my parking brake...and in fact...until I finish my custom kick-panels and swap out the Q-logic kick-panels still installed CANT use my parking brake... hmmm.... Well...guess I'll see whats there when i tear into it...maybe do a manual adjustment if needed.

  16. Mar 23, 2011 at 12:25 AM
    #16
    saumon

    saumon Well-Known Member

    Joined:
    Jul 1, 2010
    Member:
    #39696
    Messages:
    87
    Gender:
    Male
    Montreal, Qc, Canada
    Vehicle:
    2015 DC LB 4x4 SR5 SSM
    The right size for the bolt is M8x1,25.

    06TAC0MA likes this.
  17. Mar 24, 2011 at 10:10 PM
    #17
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,784
    Gender:
    Male
    more pics with it offf

  18. Mar 27, 2011 at 9:08 PM
    #18
    pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,784
    Gender:
    Male
  19. Mar 27, 2011 at 9:34 PM
    #19
    bk1

    bk1 Well-Known Member

    Joined:
    Nov 9, 2008
    Member:
    #10614
    Messages:
    100
    Gender:
    Male
    Lower Mainland, BC
    Vehicle:
    08 Tacoma TRD Sport
    ProComp Stage 2 6" lift, AAL, Heated Mirrors, DVD/NAV, Amp & Subs, Fog Light Mod, Rear Diff breather. WeatherTech Mats, Soft Tonneau Cover, 33" TrXus M/T, M8000 Winch & Bumper, CB, Rock/suspension Lighting and a whole lot more Soon to come rear Locker and more....
    I just picked up new pads, and was gonna inspect the shoes in the back.

    been a long long long time since ive changed rear drums..

    all tips are helpful...

  20. Mar 28, 2011 at 3:58 AM
    #20
    craigFLA

    craigFLA [OP] Well-Known Member

    Joined:
    Oct 6, 2007
    Member:
    #2944
    Messages:
    420
    Gender:
    Male
    Ft. Lauderdale, Florida
    Vehicle:
    Tacoma TRD Sport Pkg.#1, XSP Package
    Leather, 20" rims, Borla cat-back exhaust, running boards, back up camera/3" screen in rear view mirror, carbon fiber interior trim. Tow Package. MODS: URD intake BHLM. Tinted tails & 3rd brake light Fog Light mod. 5pc Grill Craft (High Gloss Black powder-coat) T-Rex eye-lids AVS Wind Deflectors 3M Window Tint 15 front/30 rear OBX Sports Pedals Viper 5901 / remote start Pioneer AVIC F90BT-NAV Hybrid L8's in doors, L4's and Dynaudio MD102 tweets in custom kicks, morel rear-fill, JL TW5-13" sub, JBL MS-8, 2@Tru B475, Tru 4.65, PPI a600.2, PPI 456 X-over, Raamat BX2 and ensolite. relocated rear seats 3/4" Retrax cover electric dual "dead-bolt-lock" electric tailgate lock. electric Dynalock for Retrax Cover/custom fabricated case. kinetik second battery/power-gate isolation. Powerslot Cryogenic rotors, Hawks HPS Pads, SS lines,painted calipers&drums FULL trans flush mod OE Denso plugs
    My '06 and I'm guessing your '08 have well under 100k...so the likely hood of needing much more than a cleaning with an air-gun/compressor are very slim.

    I've decided to throw some G-2 black brake paint on mine while their off...give them a cleaning, and adjustment.

    I found several threads here while searching that will pretty much walk me through the process...just wanted to make sure I had the right spring release tool etc. as there are different sizes/styles...just in case I have to actually remove the shoes...which is very unlikely at 57k.

    Will be making a trip to Sears to pick up some other things...and will browse their brake tool selection while I'm there.

    Thanks again for everyones help.
