Dual Battery Electrical Build

Discussion in '3rd Gen. Tacomas (2016-2023)' started by riverrat12, Nov 4, 2023.

  1. Nov 4, 2023 at 3:17 PM
    #1
    riverrat12

    riverrat12 [OP] Well-Known Member

    Joined:
    Jul 22, 2017
    Member:
    #224771
    Messages:
    152
    Gender:
    Male
    Vehicle:
    2017 White Tacoma Off Road 4x4
    King all around Custom leafs GFC V2 Redarc / Dakota Lithium dual battery

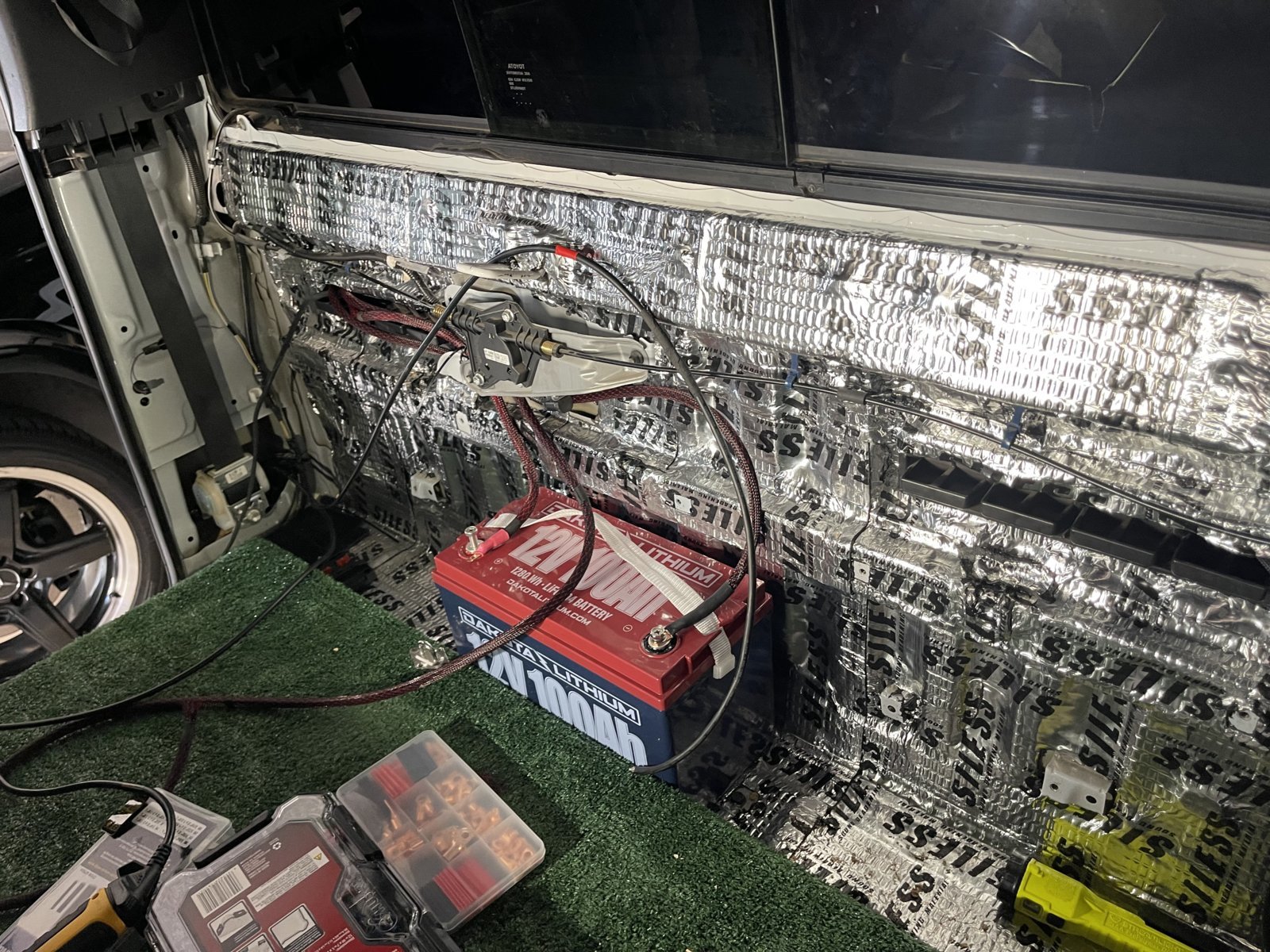

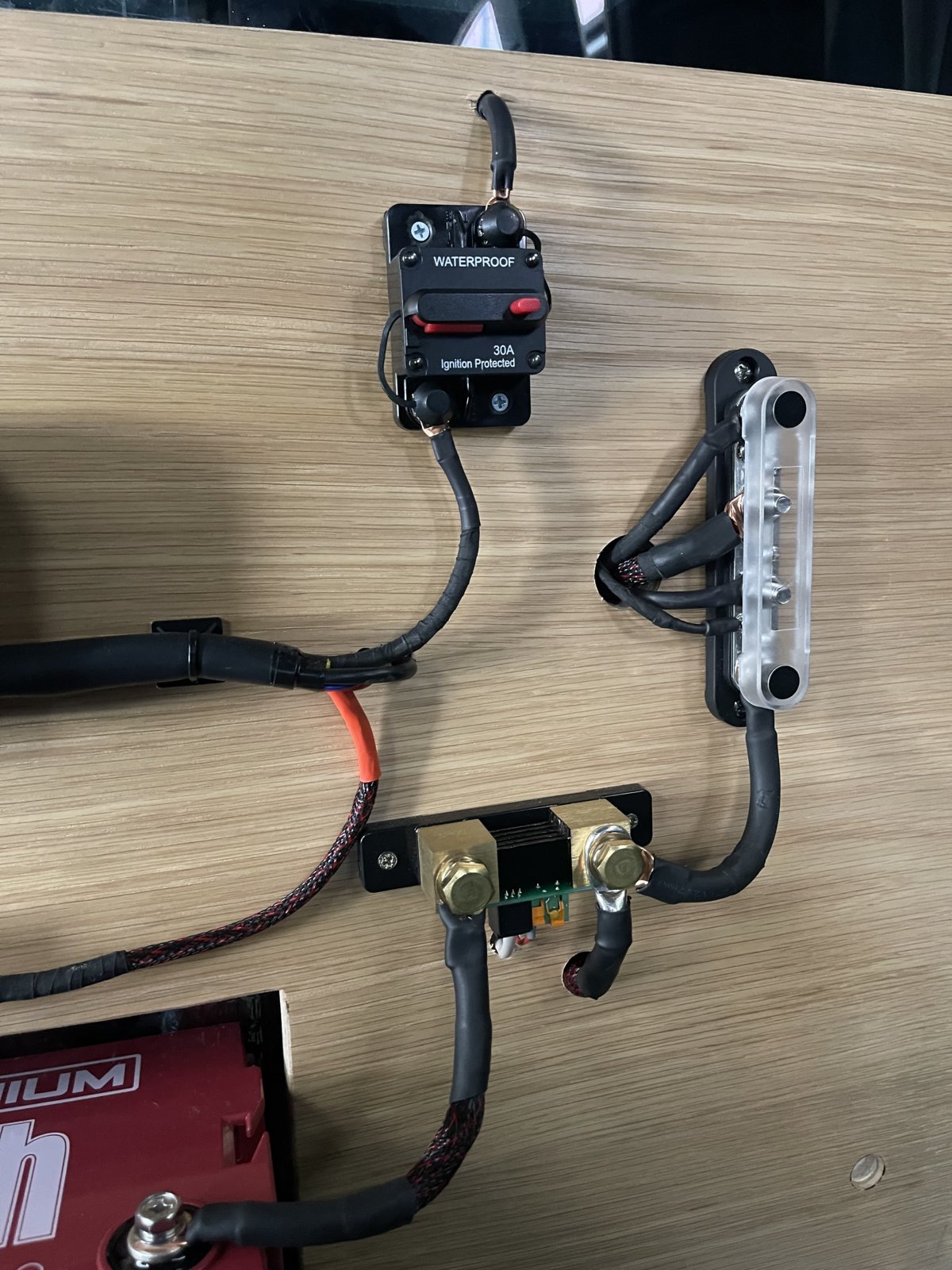

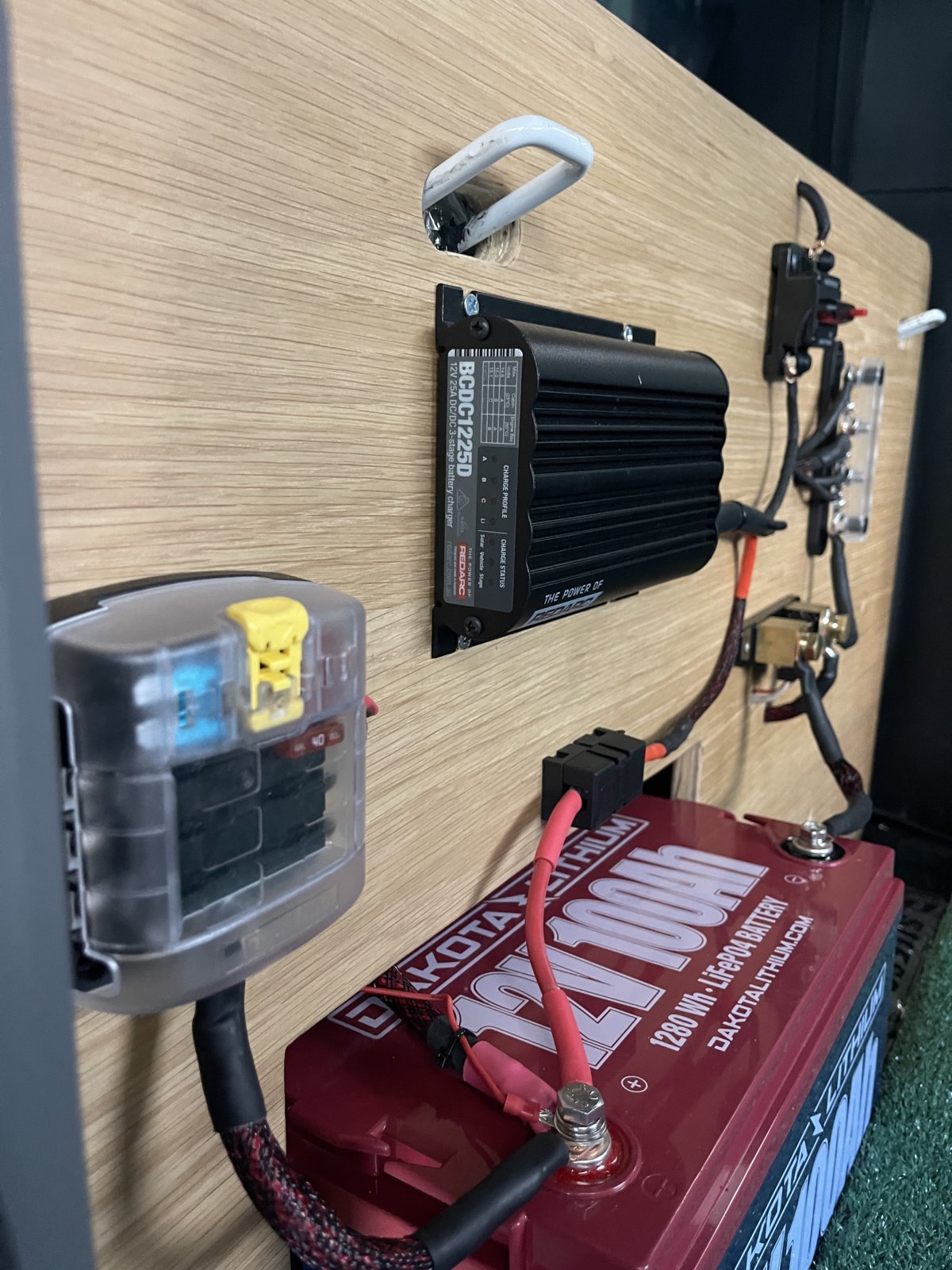

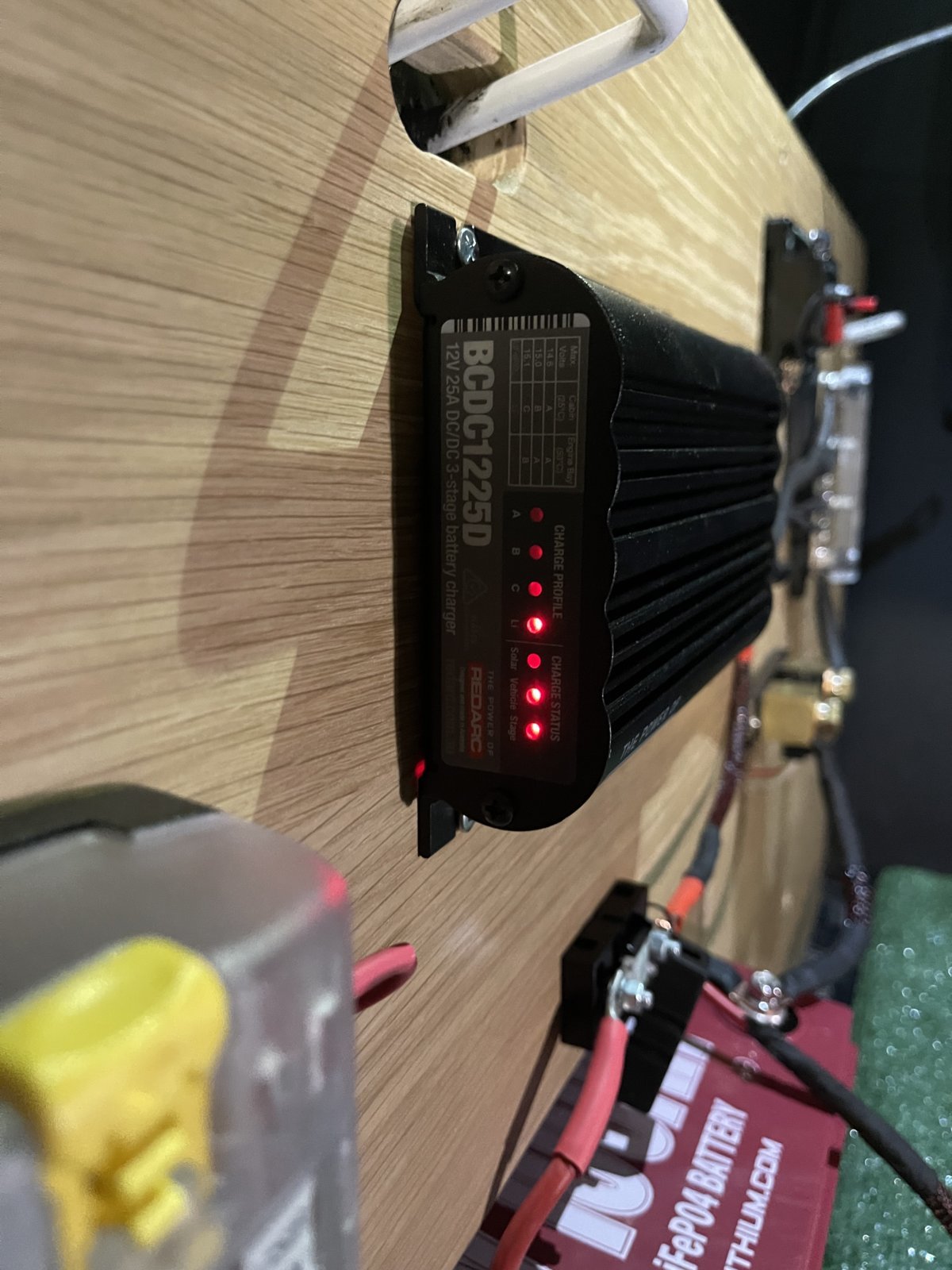

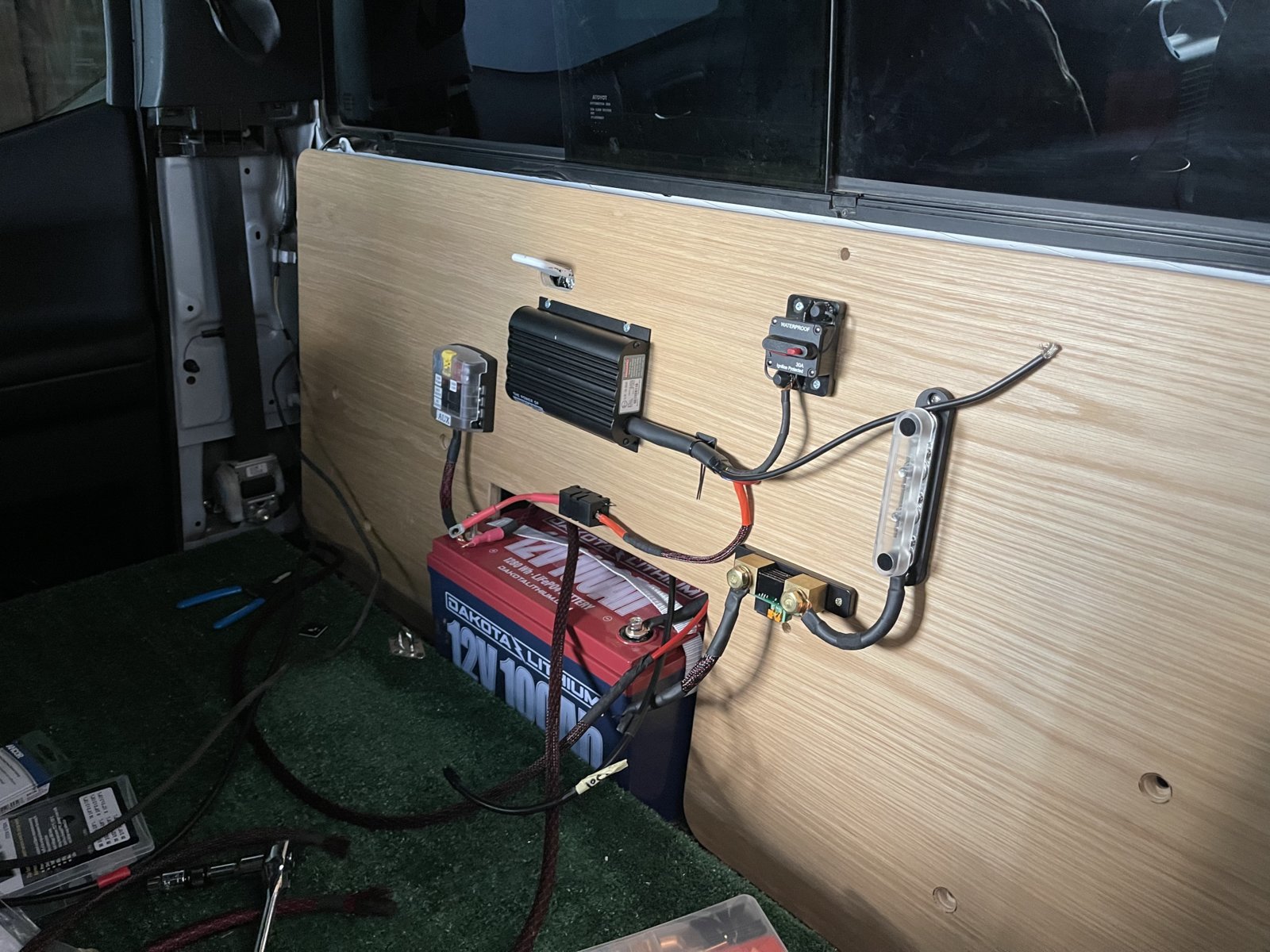

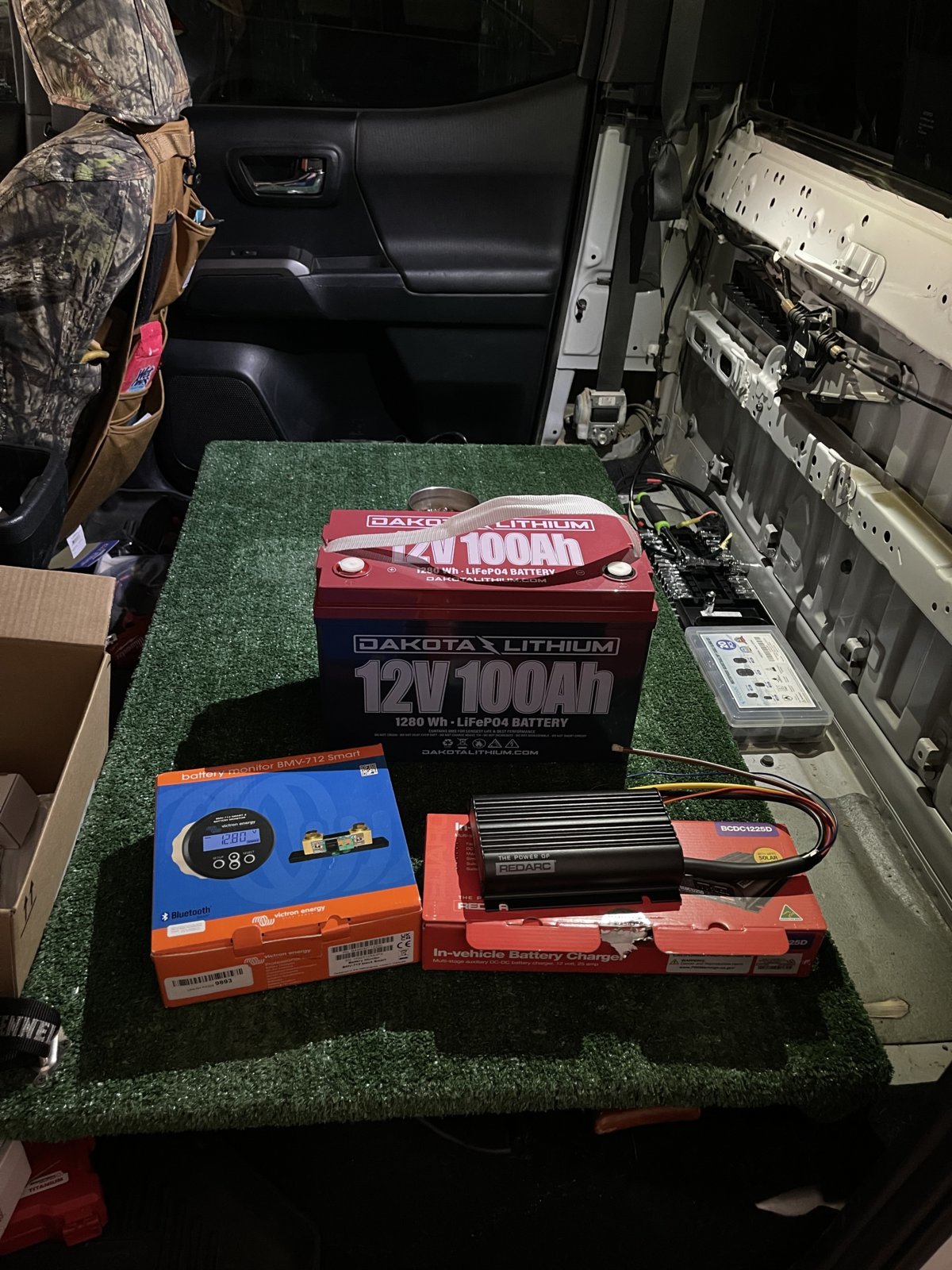

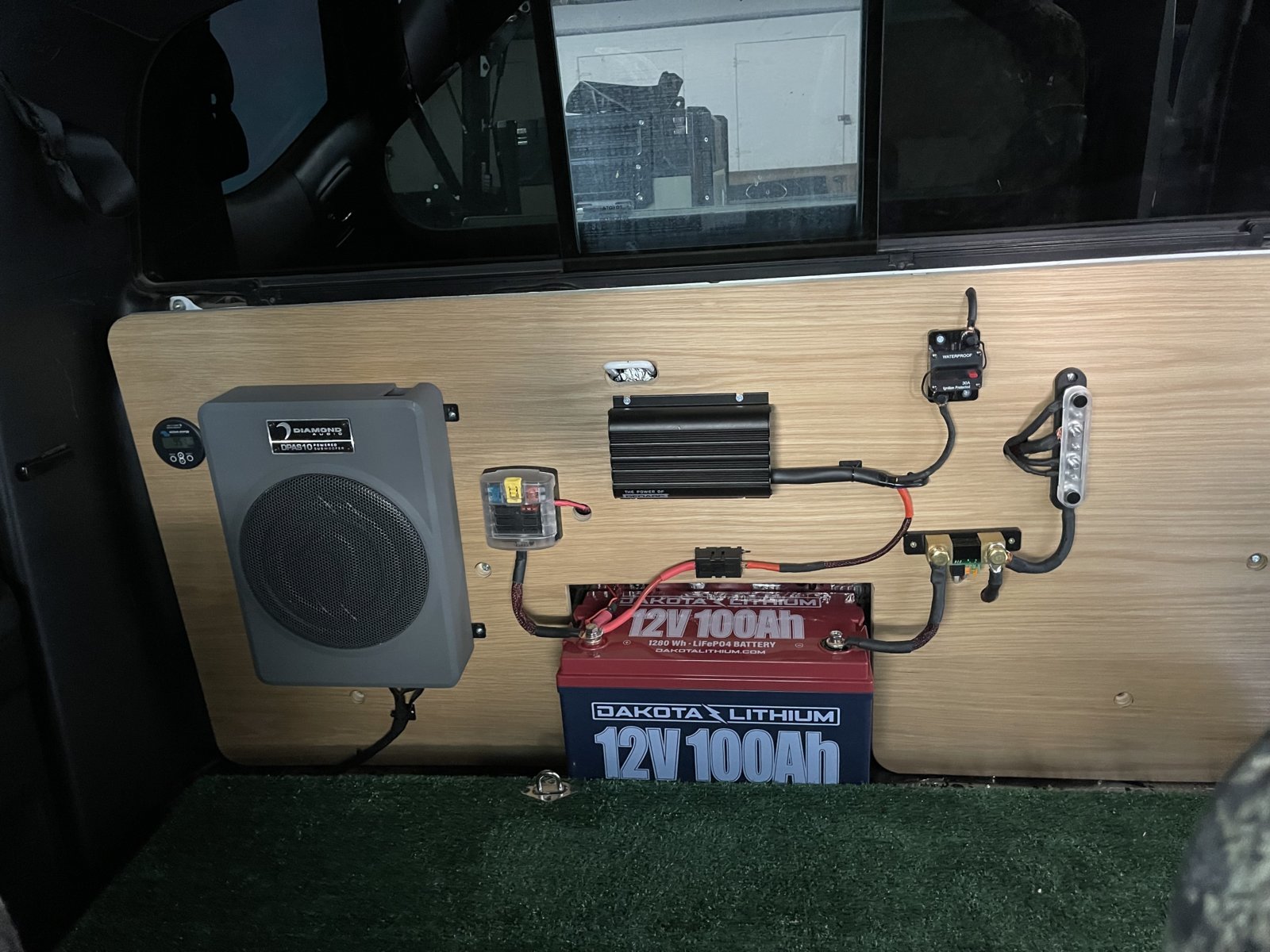

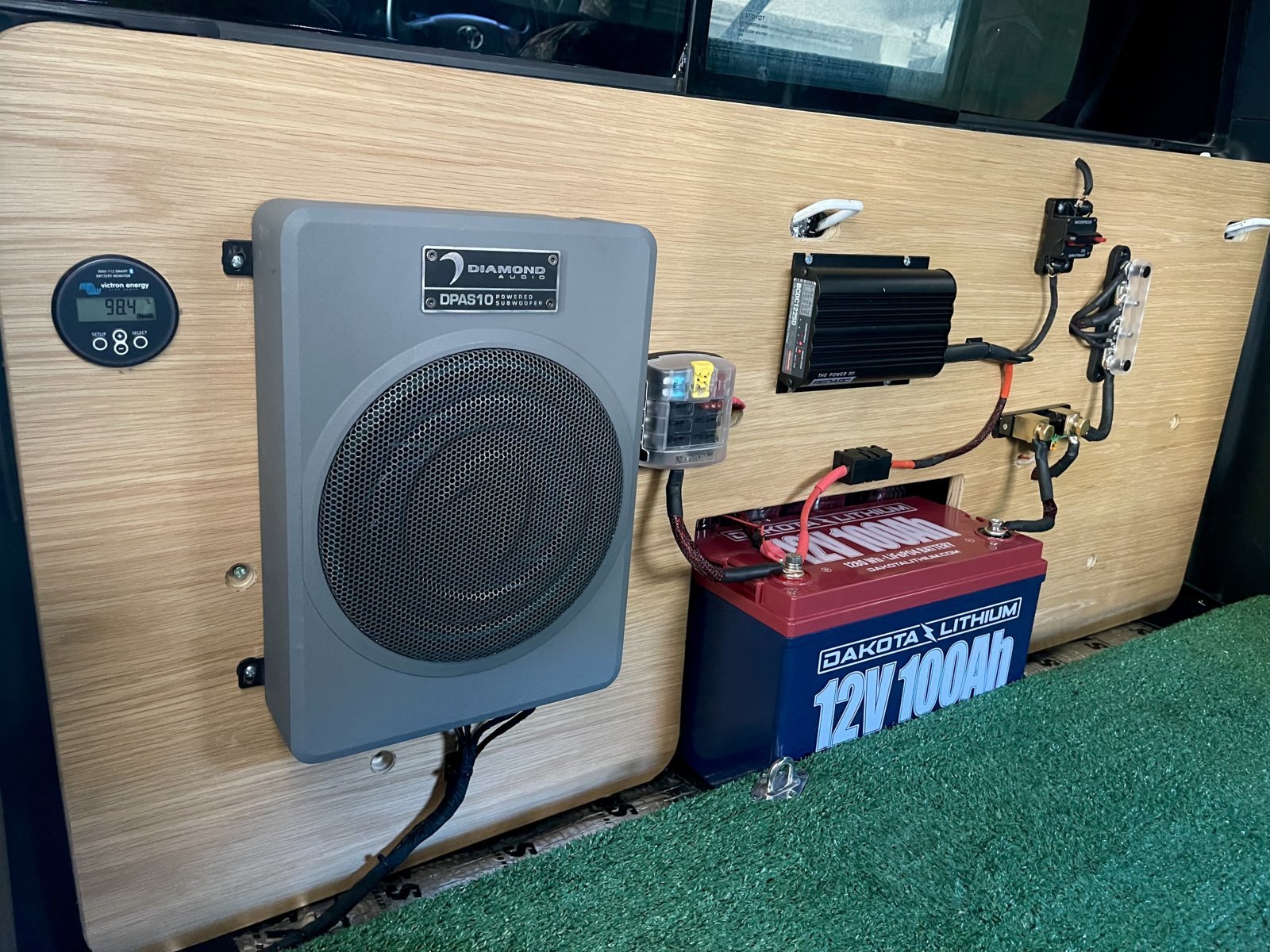

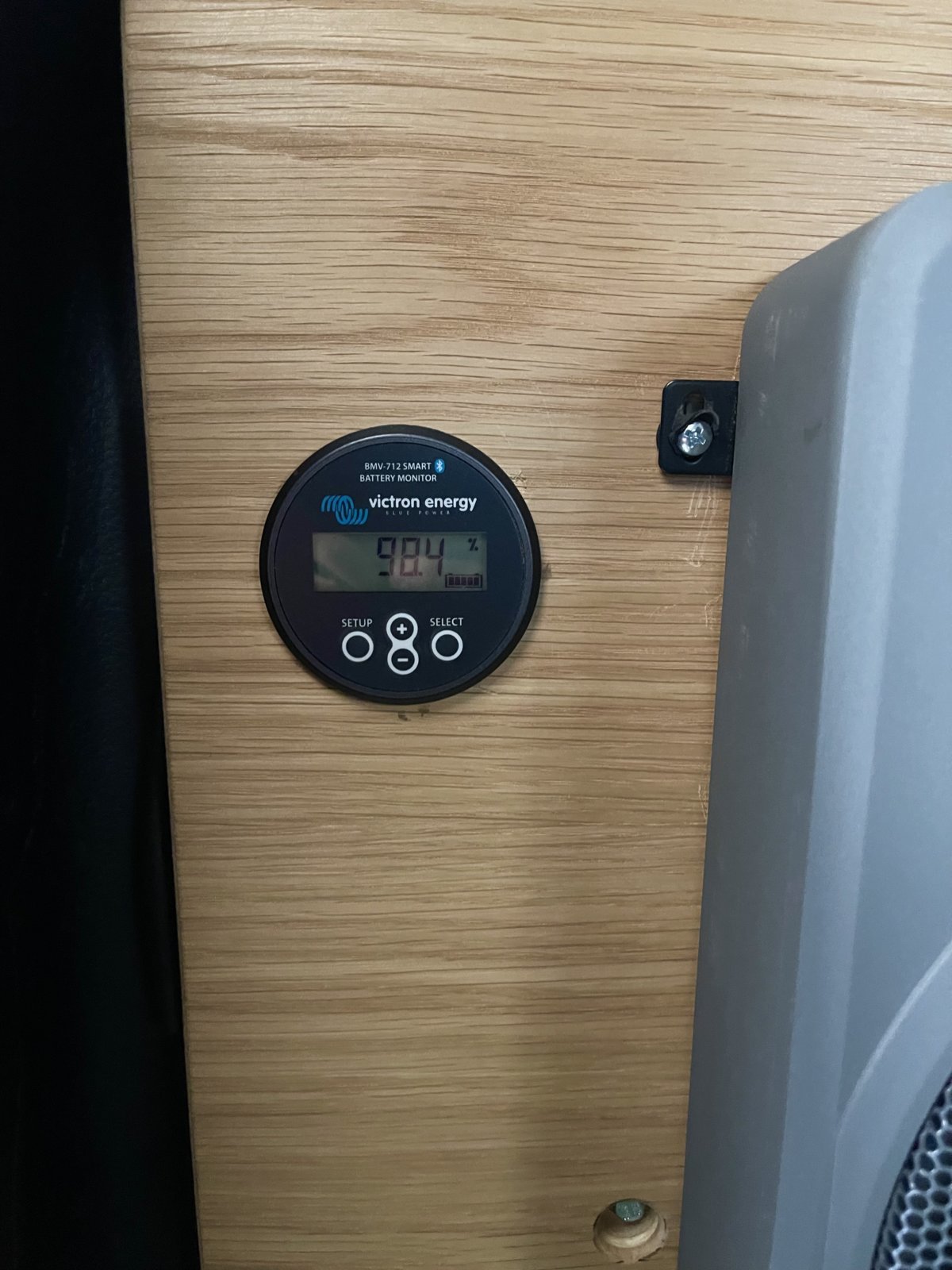

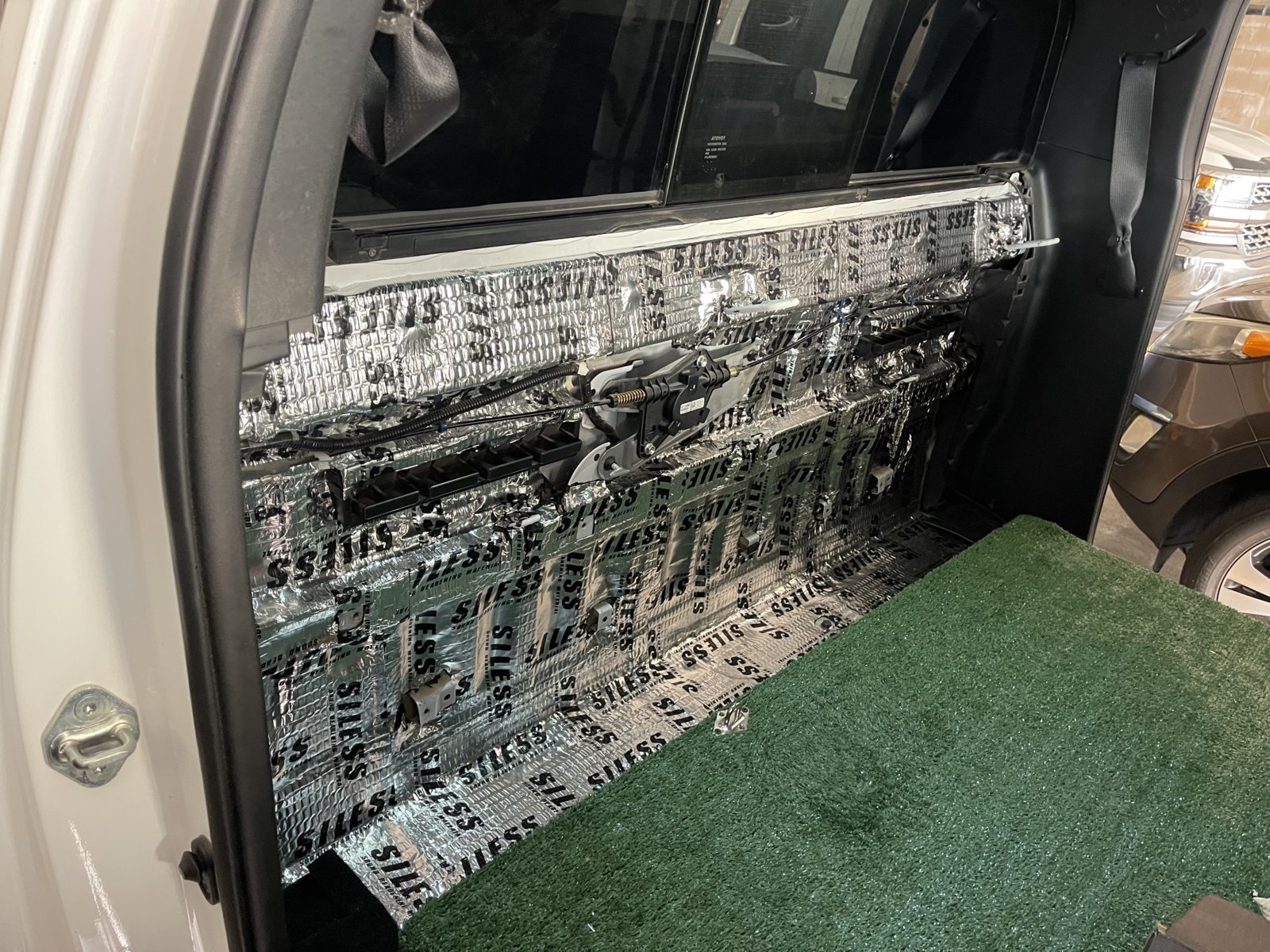

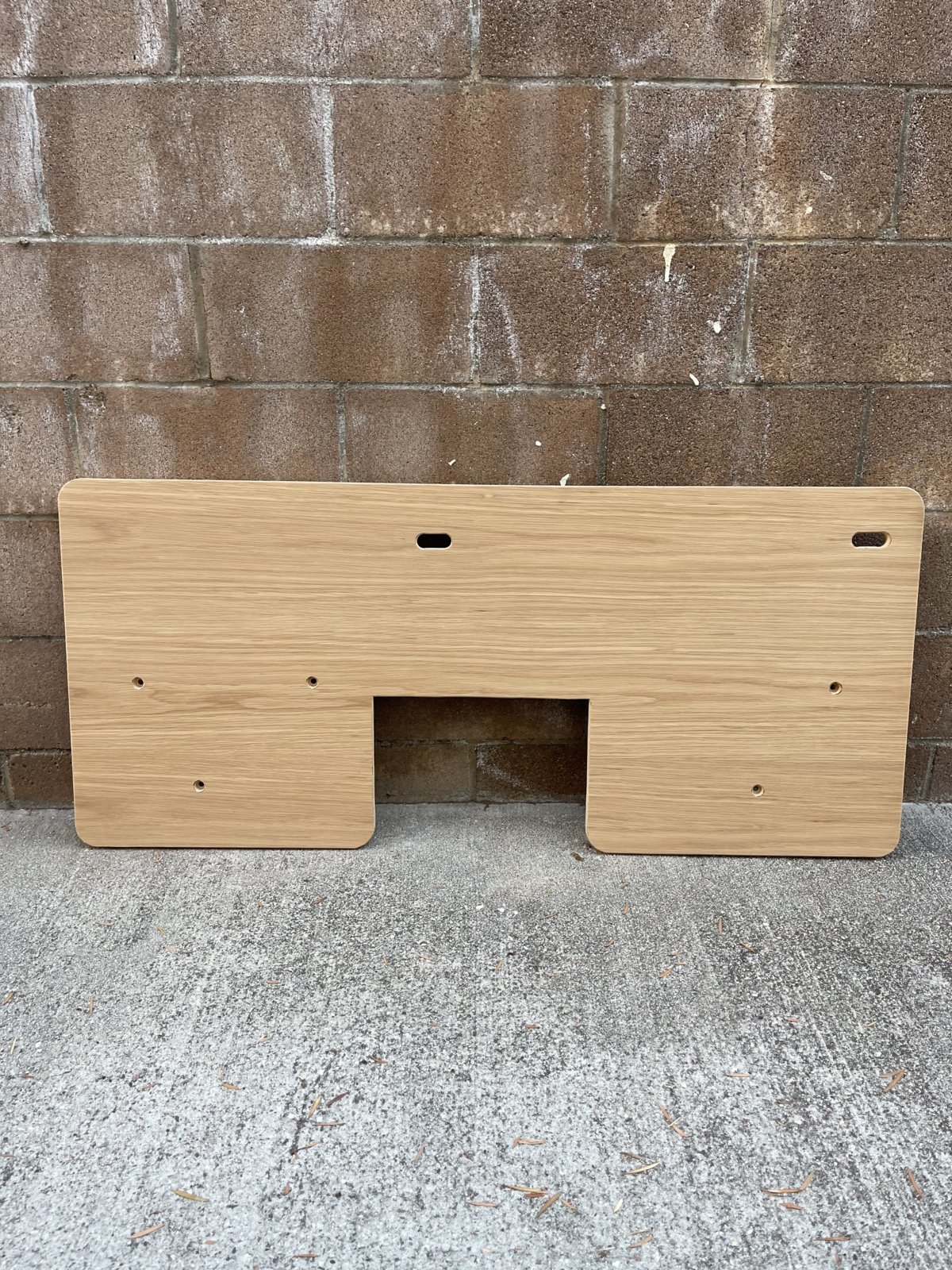

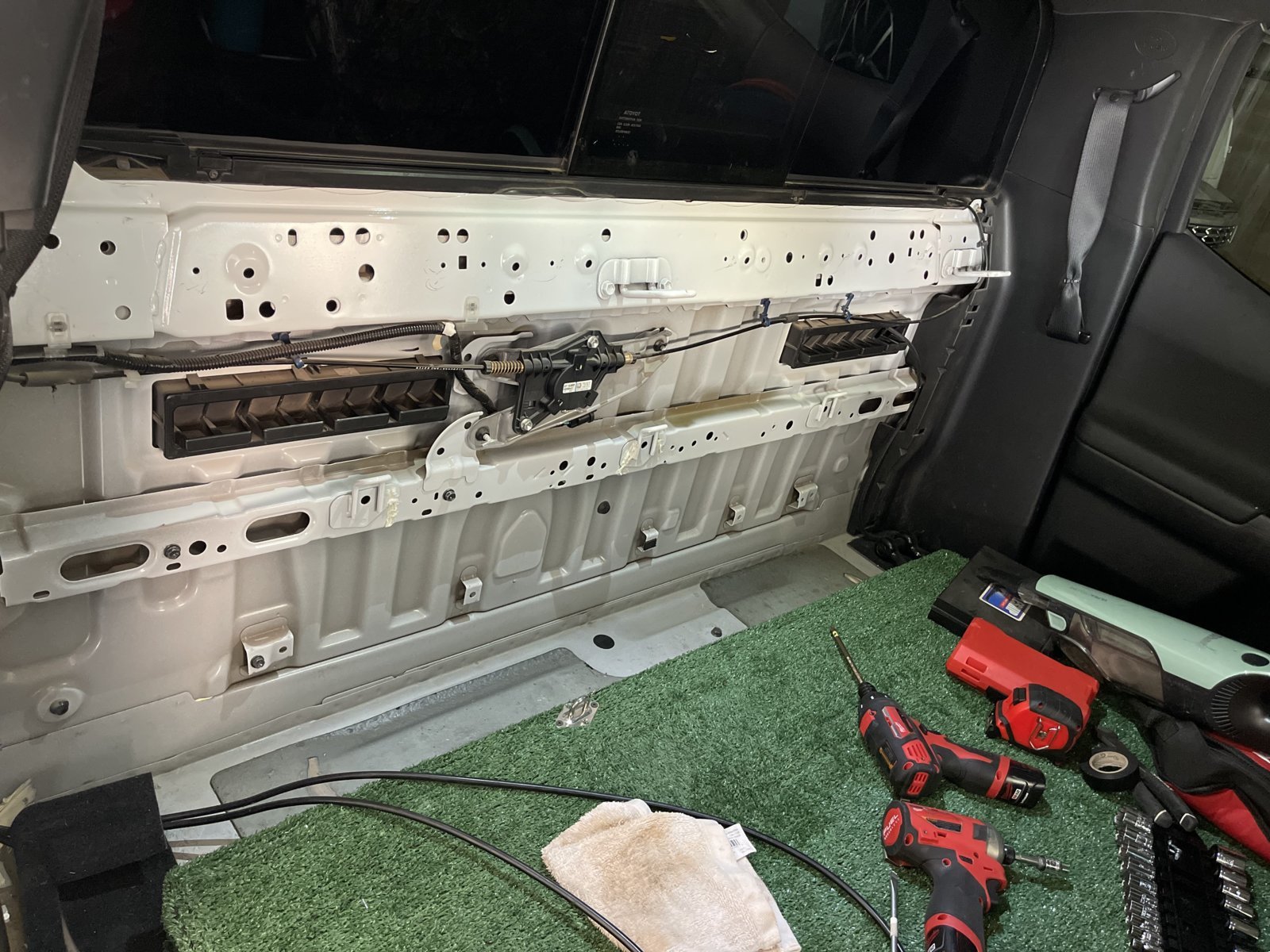

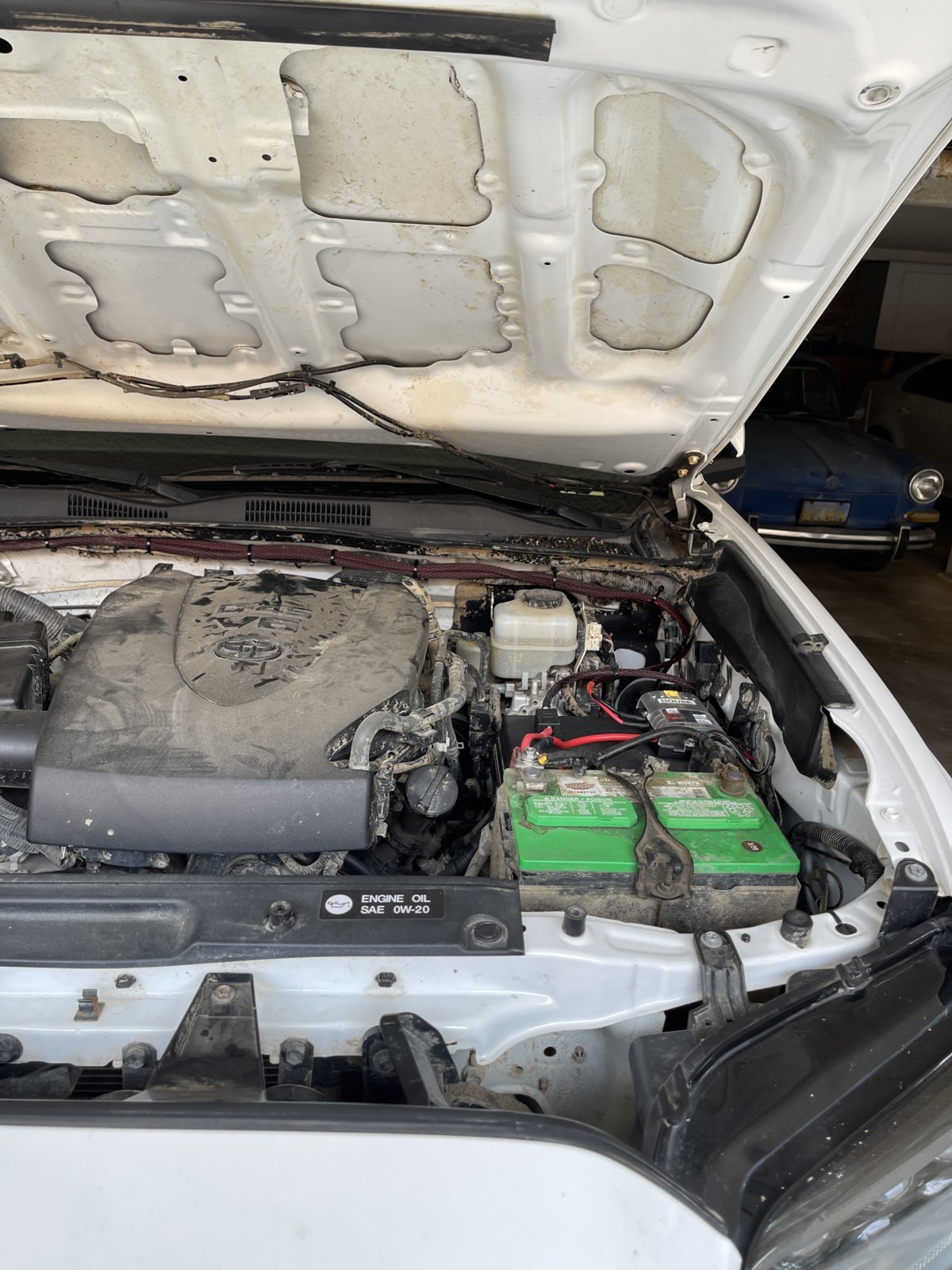

    Finally got around to upgrading my electrical system. I swapped out my previous solar powered deep cycle battery for a new Dakota Lithium 100AH. This is being powered by a Redarc BCDC 1225D (alternator) and a 100w Renogy solar panel. I also installed a Victron BMV-712 Smart to monitor everything and keep any eye on the battery output.

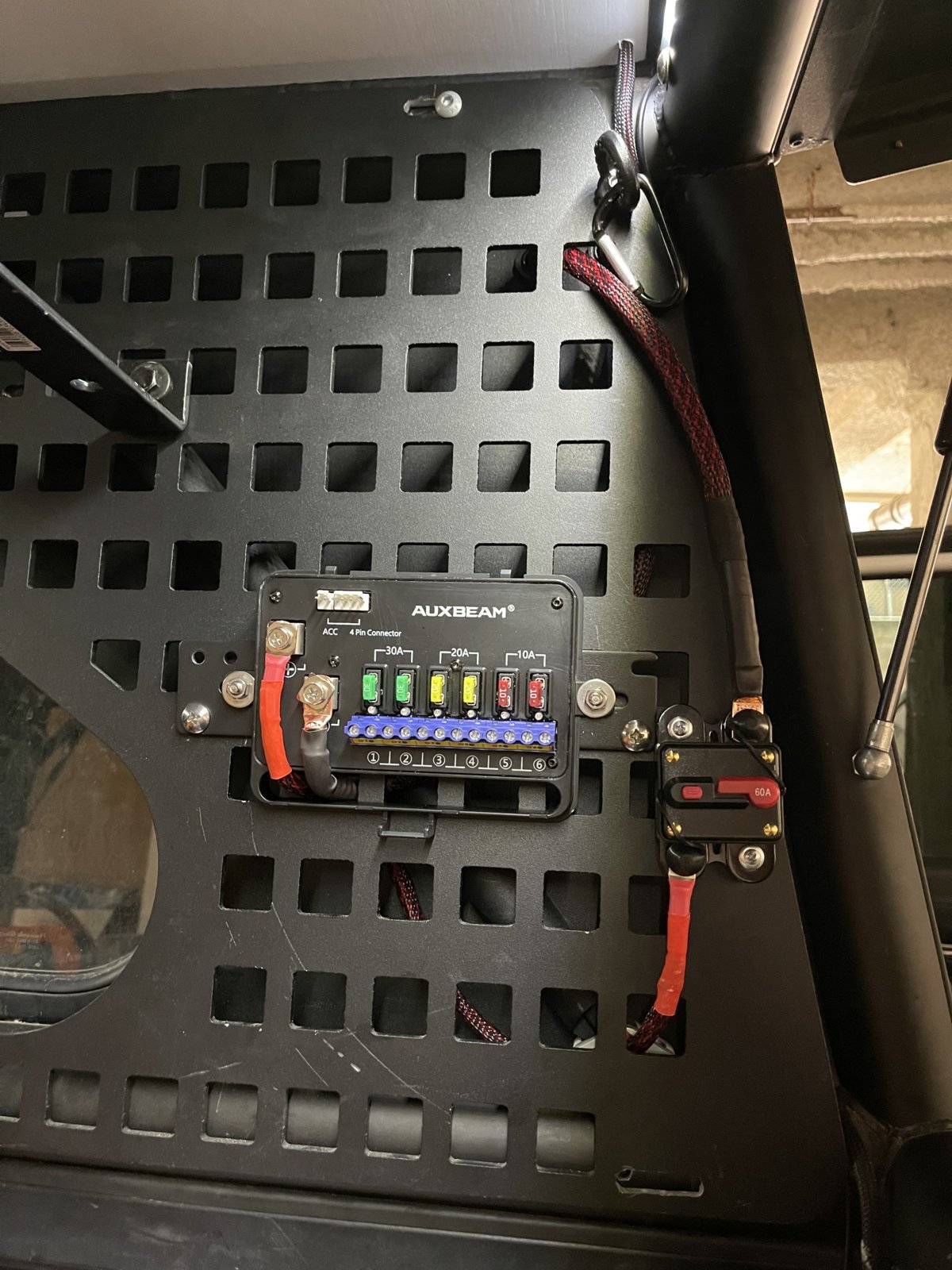

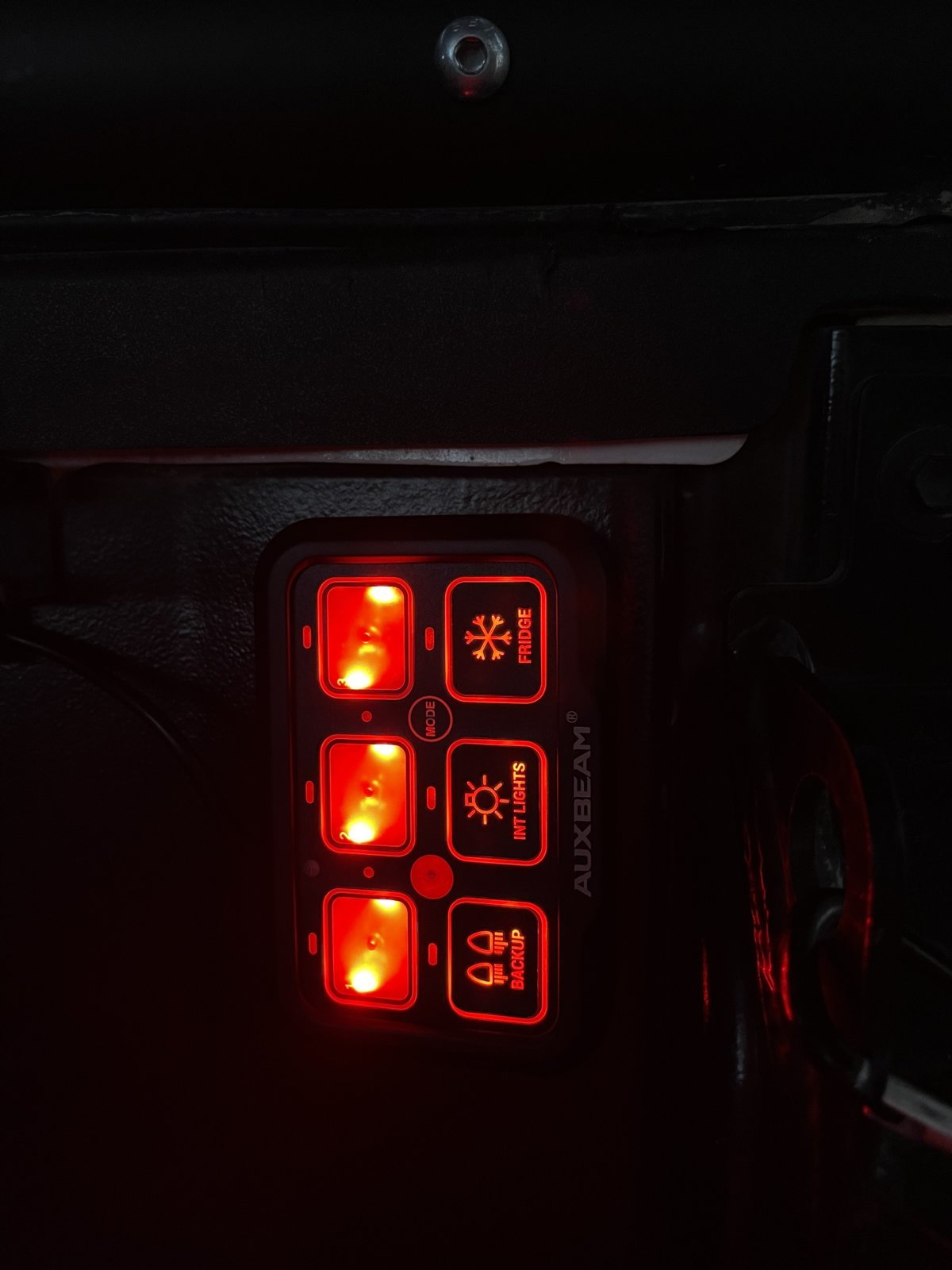

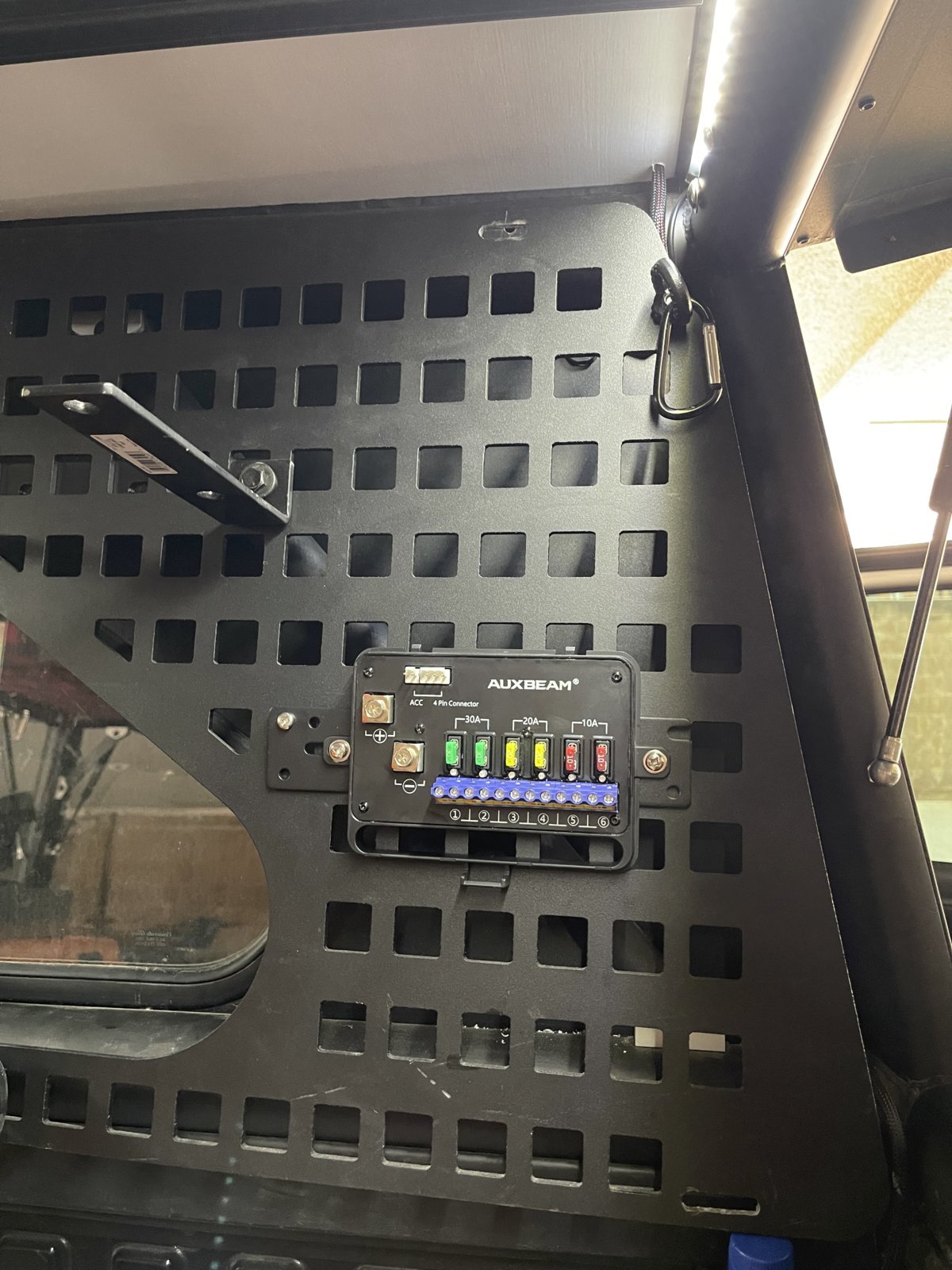

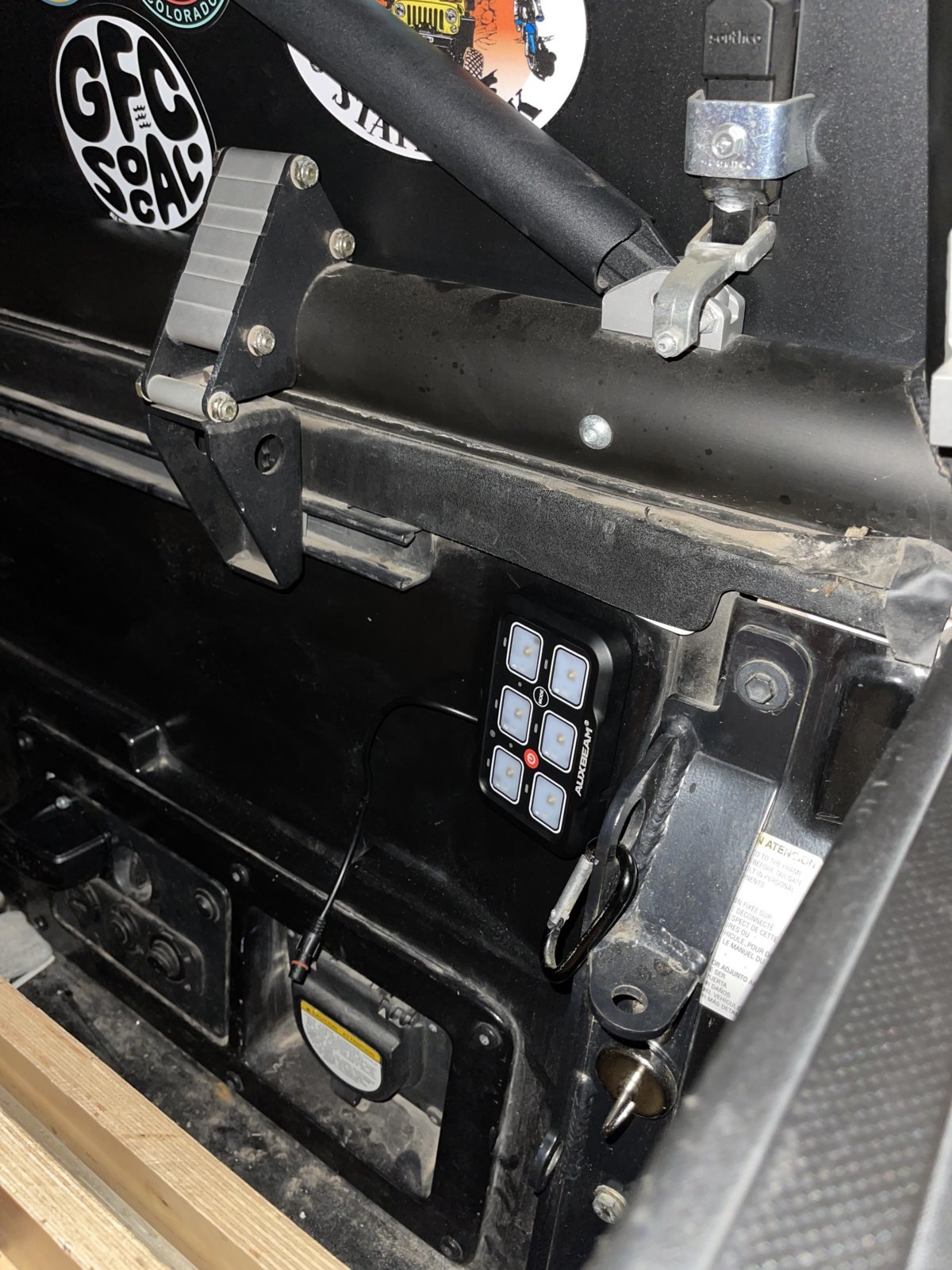

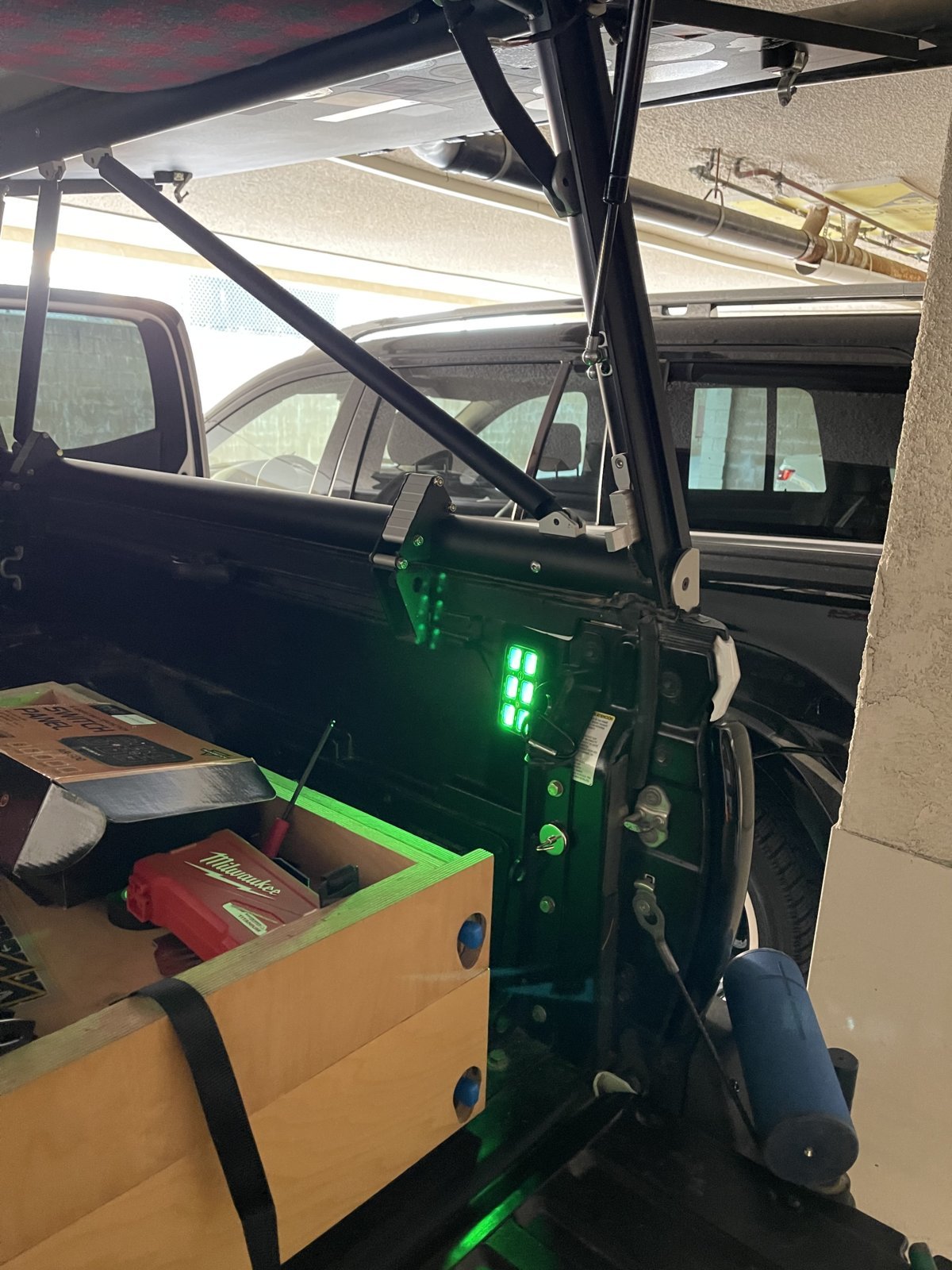

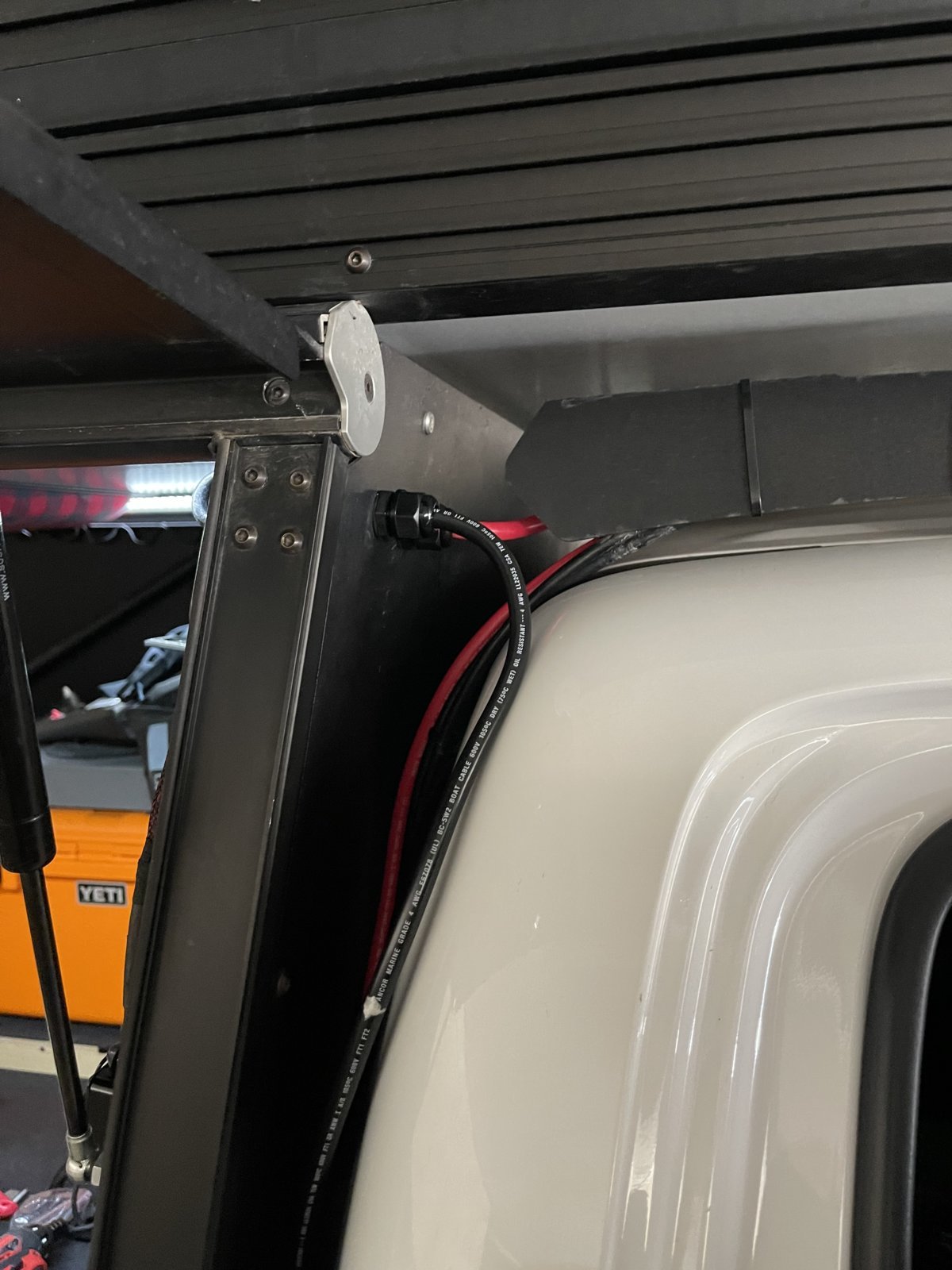

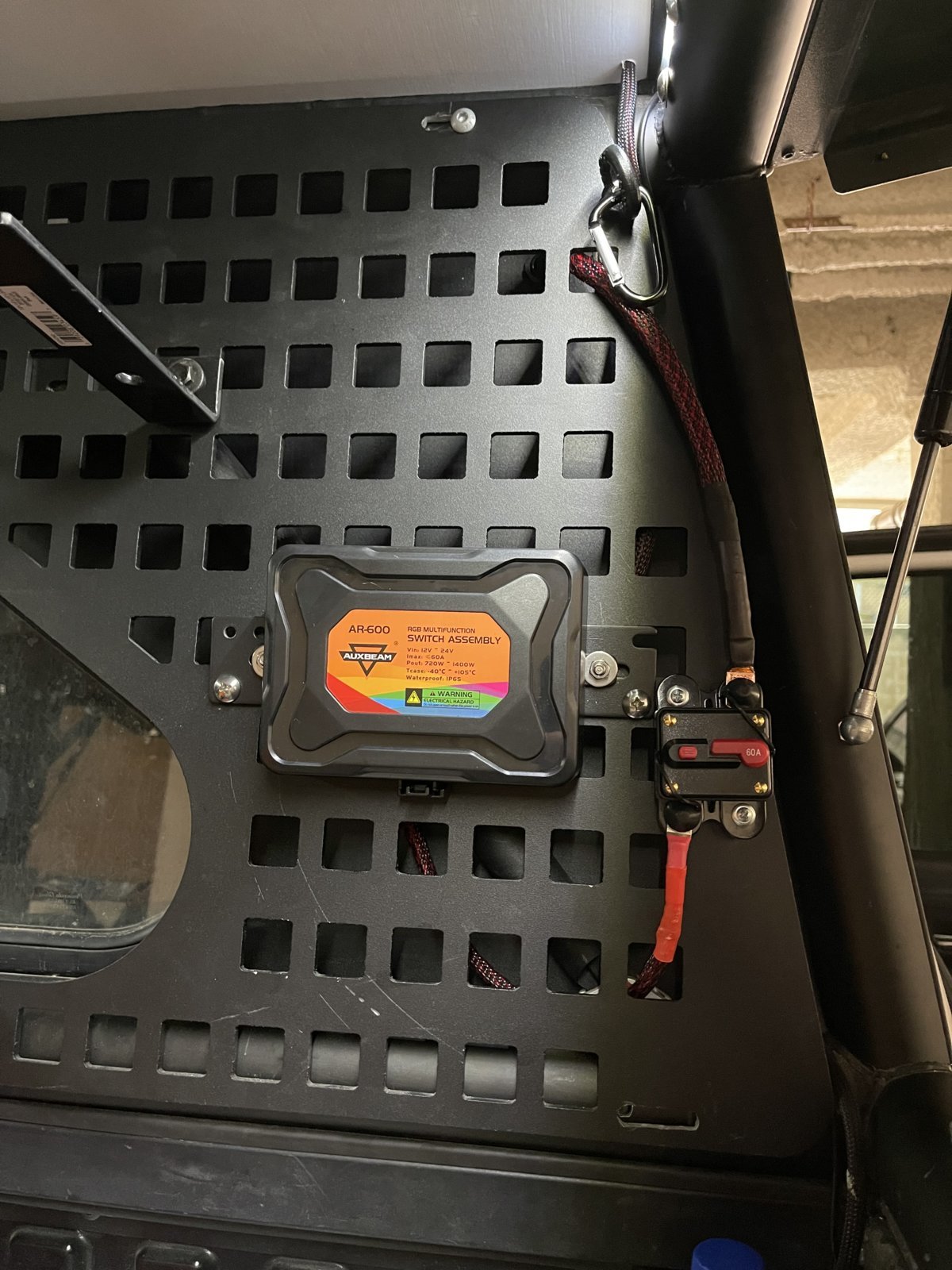

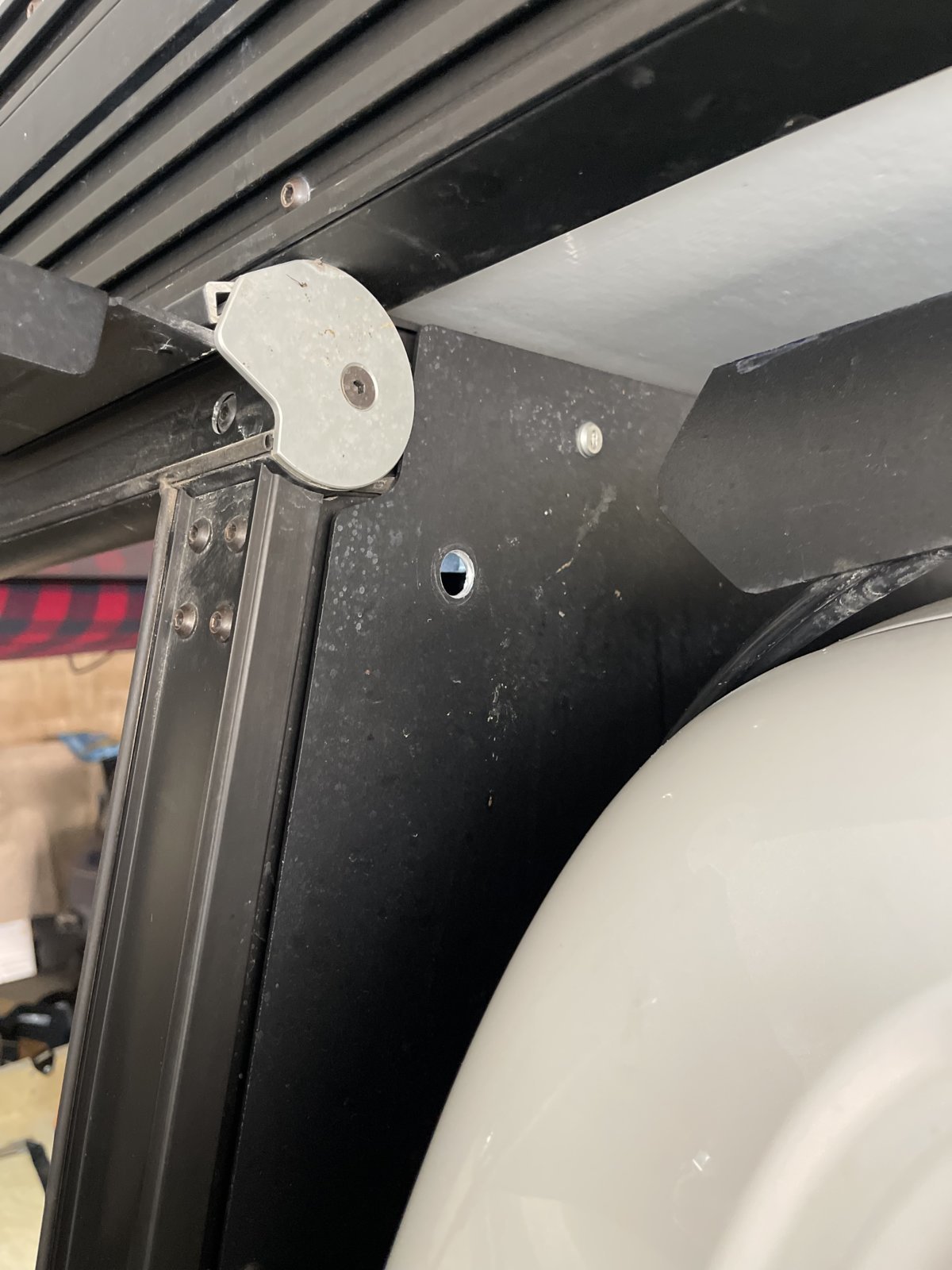

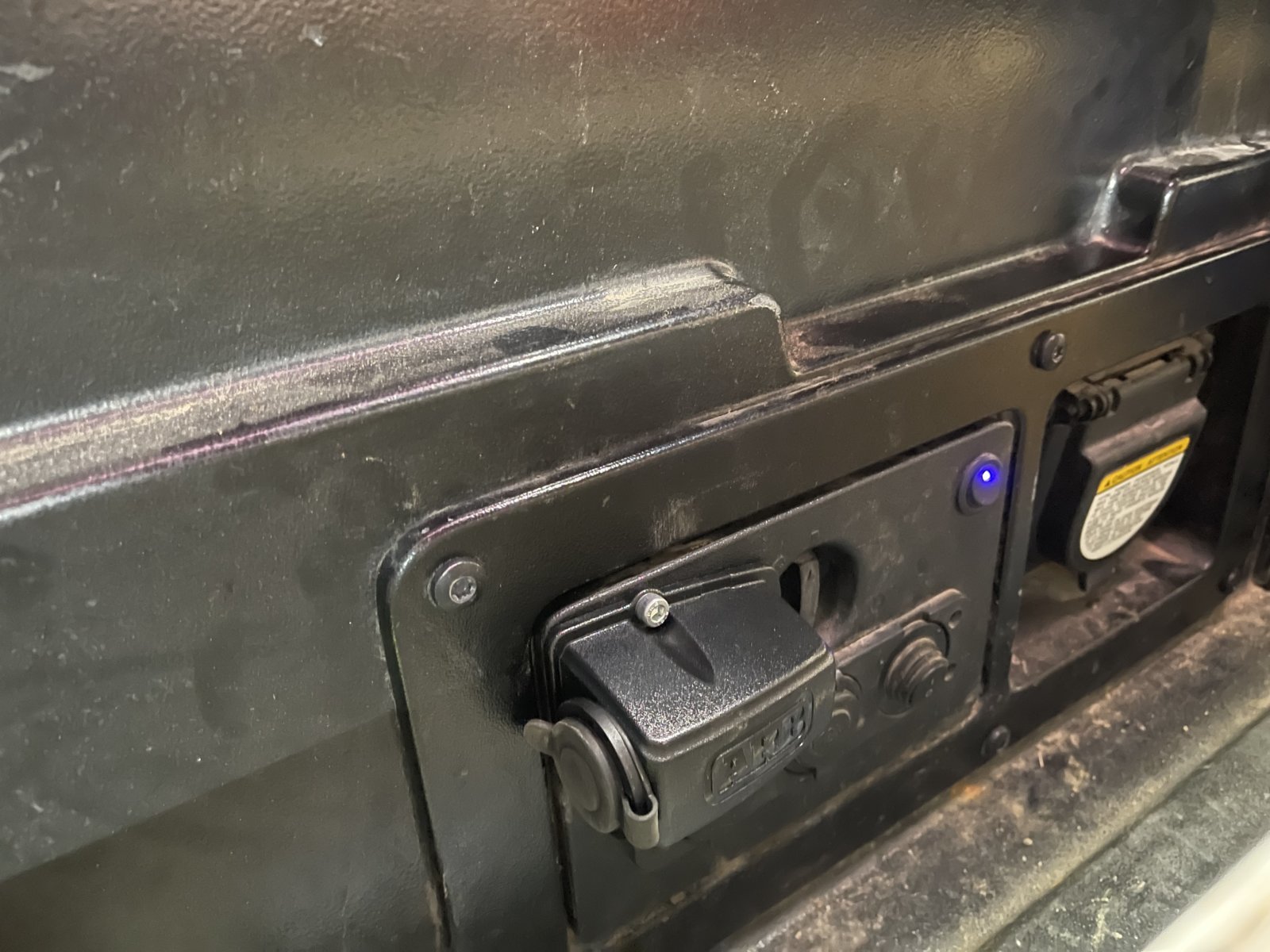

    Inside the GFC I mounted an Auxbeam 6 gang switch panel to control all of my accessories from the panel or through bluetooth. 4 gauge wire was used for the power supply and grounds. Overall, I am super stoked with how the build came out. Everything is working great and constantly topping off the battery.


  2. Nov 4, 2023 at 3:46 PM
    #2
    RyanDCLB

    RyanDCLB Well-Known Member

    Joined:
    Jun 13, 2019
    Member:
    #296235
    Messages:
    3,547
    Gender:
    Male
    Vehicle:
    4/19 DCLBOR
    Looks solid. Thanks for all the pictures. Keep us updated on that nice Dakota battery! :thumbsup:

    riverrat12[OP] likes this.
