Dual Halo wiring issue

Discussion in 'Lighting' started by Fosk, May 30, 2017.

Post Reply

May 30, 2017 at 12:31 PM

#1

#1
Fosk [OP] Well-Known Member

Joined:

Nov 11, 2009

Member:

#25787

Messages:

368

Gender:

Male

First Name:

Andrew

Huntington Beach, CA

Hey gents and ladies. I am trying to wire my Switchback Halos to run off of my DTRLs but can't find exactly how to do it. Each headlight has dual halos and therefore 2 boxes. Can I splice the 2 halo harness together for each light? Ideally I want amber halos on for DTRLs and blinkers.
What is the best way to accomplish this?
Ps, I am not an accomplished electrician...

This is what I am working with:

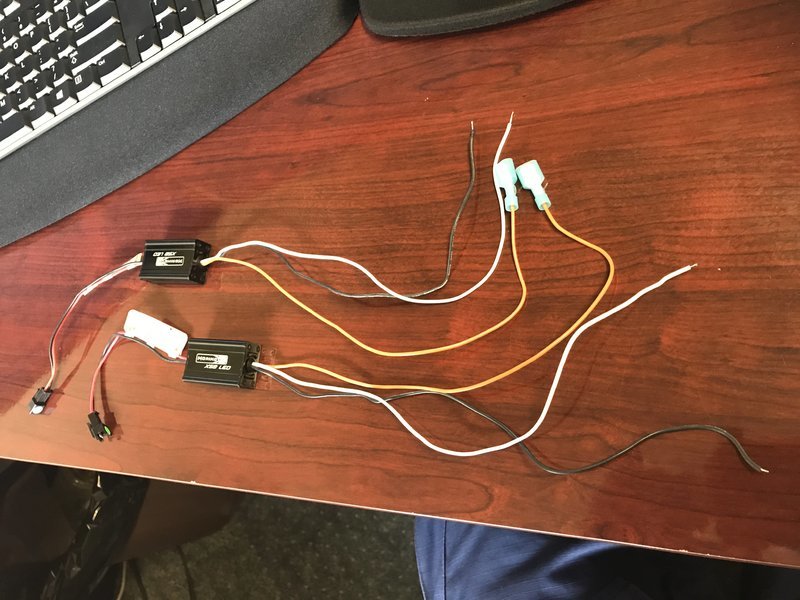

2 for each light.

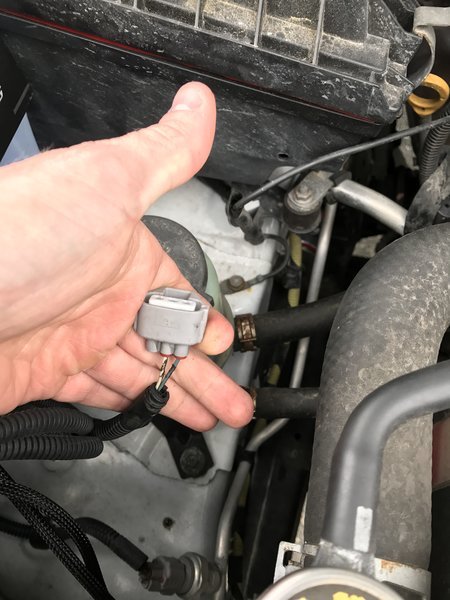

2-wire DTRL harness.

Obligatory seduction photograph.

Thank you for the guidance.

Fosk, May 30, 2017
