E-Locker wire harness mounting

Discussion in '1st Gen. Tacomas (1995-2004)' started by nzbrock, Apr 3, 2017.

  1. Apr 3, 2017 at 5:32 AM
    #1
    nzbrock

    nzbrock [OP] Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    3,257
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    Can anyone tell me where the mounting points are for the elocker wiring harness where it goes from the frame to the rear axle? I know there is one mount on the axle and one mount on the gas tank, but where does the 3rd mount go (closest to the frame side)? A picture would be super helpful!

    I've looked in that area on my frame but it is hard to see things with the LPBV and the gas tank right there.

  2. Apr 3, 2017 at 12:21 PM
    #2
    nzbrock

    nzbrock [OP] Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    3,257
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube
    I just realized that this would need to be a picture of a 95.5-01 since the charcoal canister was relocated to behind the gas tank around 02. Either way, anything helps!

  3. Apr 5, 2017 at 10:58 AM
    #3
    nzbrock

    nzbrock [OP] Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94572
    Messages:
    3,257
    Gender:
    Male
    First Name:
    Noah
    San Marcos, TX
    Vehicle:
    99 TRD Prerunner 3RZ
    SAW 2.0 Coilovers Wheeler's 5 Leaf + 3 AAL Bilstein 5100s LCE long tube header Flowmaster Delta 50 Muffler FJ Trail Team Wheels 4Runner overhead sunglass console 4Runner leather seats All LED lights Red/Clear Tail Light Tundra Brakes HID Projector Retrofits 4Runner Auto Up/Down Windows Bullet Liner Cargo tie down system E-locker axle swap w/4.56 Gears ARE MX Cap Prinsu Toprac Custom heated turn signal/puddle light mirrors Volant Intake Tube

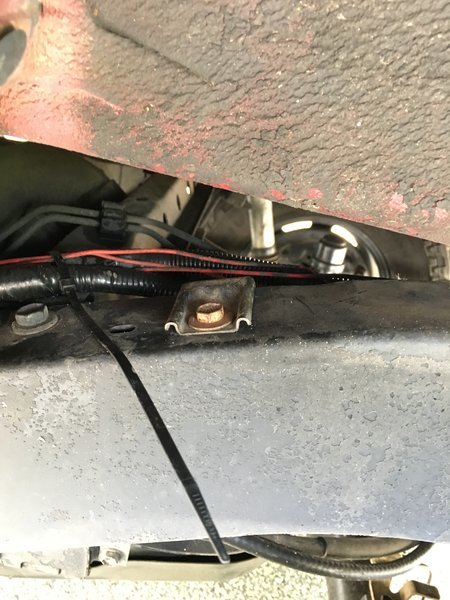

    So, after analyzing a lot of pictures I figured out that it mounts on top of the frame rail just behind the gas tank cross member. It actually uses the same size bolt as the ebrake mounts on the rear axle (which I had a surplus of).

    Dalandser and mechanicjon like this.
