Easiest Raptor Wiring?

Discussion in '3rd Gen. Tacomas (2016-2023)' started by TRDstingray, Nov 22, 2019.

Page 4 of 4
  1. Jan 18, 2021 at 2:25 PM
    #61
    tacoWithstickyrice

    #61
    tacoWithstickyrice Well-Known Member

    Joined:
    Jun 28, 2019
    Member:
    #297762
    Messages:
    213
    Gender:
    Male
    Vehicle:
    '19 DCSB TRD OffRoad 4x4
    Diodes can be added to help prevent back feed and I forgot to put them in the diagram. I just did a quick diagram to show how I would wire it up since I know some/most would want the raptor lights on when the truck is on/running and I know the green wire loses power when the headlights are on.

    tacoWithstickyrice, Jan 18, 2021
    #61
    DruncanIdaho likes this.
  2. Jan 19, 2021 at 5:19 AM
    #62
    DruncanIdaho

    #62
    DruncanIdaho Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334992
    Messages:
    52
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2020 TRD Off-Road
    Y'all are awesome, thank you for the tips!!

    Ideally, I'd like my raptor lights to run with my DRLs. What I'm lacking with my current fuse tap is the ability to turn them off via the headlight stalk. (and also they randomly turn on either for a few seconds or for a few minutes when the truck is off...)

    I've yet to see anyone find a fuse to tap into to get what I want, so I was thinking splice them directly into the DRL power wire--but I also wondered if that would trigger an alert within Tacoma's computer (headlight out, etc).

    DruncanIdaho, Jan 19, 2021
    #62
  3. Jan 19, 2021 at 6:08 AM
    #63
    caribe makaira

    #63
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,777
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you're tapping into the INJ fuse, the 4 banger is the one exhibiting that behavior...
    It would not.

    caribe makaira, Jan 19, 2021
    #63
  4. Jan 19, 2021 at 6:26 AM
    #64
    DruncanIdaho

    #64
    DruncanIdaho Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334992
    Messages:
    52
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2020 TRD Off-Road
    Thank you for helping guide me through my electrical ignorance...

    Does this mean I should *not* splice the raptor LEDs into DRL power wire?

    DruncanIdaho, Jan 19, 2021
    #64
  5. Jan 19, 2021 at 6:58 AM
    #65
    caribe makaira

    #65
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,777
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    If you do, they turn OFF when low beams are selected...

    caribe makaira, Jan 19, 2021
    #65
    DruncanIdaho[QUOTED] likes this.
  6. Jan 19, 2021 at 7:23 AM
    #66
    DruncanIdaho

    #66
    DruncanIdaho Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334992
    Messages:
    52
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2020 TRD Off-Road
    Well crap. Any ideas to consider before just installing direct on/off switch for my raptors?

    DruncanIdaho, Jan 19, 2021
    #66
  7. Jan 19, 2021 at 4:04 PM
    #67
    caribe makaira

    #67
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,777
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,
    Does your Taco have the towing relay to charge the trailer battery?

    caribe makaira, Jan 19, 2021
    #67
  8. Jan 19, 2021 at 4:21 PM
    #68
    DruncanIdaho

    #68
    DruncanIdaho Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334992
    Messages:
    52
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2020 TRD Off-Road
    I have no idea. How might I check?

    DruncanIdaho, Jan 19, 2021
    #68
  9. Jan 19, 2021 at 4:26 PM
    #69
    caribe makaira

    #69
    caribe makaira Well-Known Member

    Joined:
    Feb 13, 2011
    Member:
    #51121
    Messages:
    11,777
    Gender:
    Male
    Caribbean, Puerto Rico
    Vehicle:
    05 PreRunner TRD Offroad AutoTrans
    Hood Struts, My version Fogs always ON, Map & Overhead Light Mod,

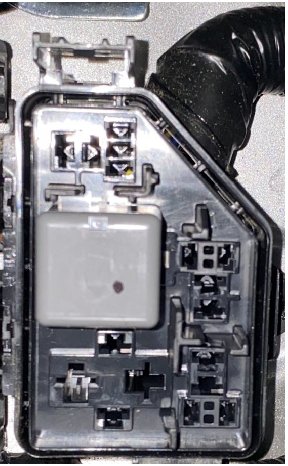

    Small side box attached to main fuse/relay box in engine bay.

    caribe makaira, Jan 19, 2021
    #69
  10. Jan 19, 2021 at 4:37 PM
    #70
    DruncanIdaho

    #70
    DruncanIdaho Well-Known Member

    Joined:
    Jul 19, 2020
    Member:
    #334992
    Messages:
    52
    Gender:
    Male
    First Name:
    Andy
    Vehicle:
    2020 TRD Off-Road
    The big gray square? I'll check when I get off work...

    Seriously appreciate y'all's help, I'm pretty ignorant when it comes to electronics.

    DruncanIdaho, Jan 19, 2021
    #70
