Easy Quickfist mounts-NO FABRICATION REQUIRED

Discussion in 'Technical Chat' started by NativeTaco, May 27, 2013.

  1. NativeTaco

    NativeTaco [OP] Counting days until June...

    Joined:
    May 29, 2012
    Member:
    #79689
    Messages:
    4,622
    Gender:
    Male
    First Name:
    Travis
    Fort Collins, CO
    Vehicle:
    '08 Double Cab LB V6 Silver
    ARB, OME, BAMF, ATO, Rigid, more... Mountain Man Limousine
    Quickfist/other stuff Mounts

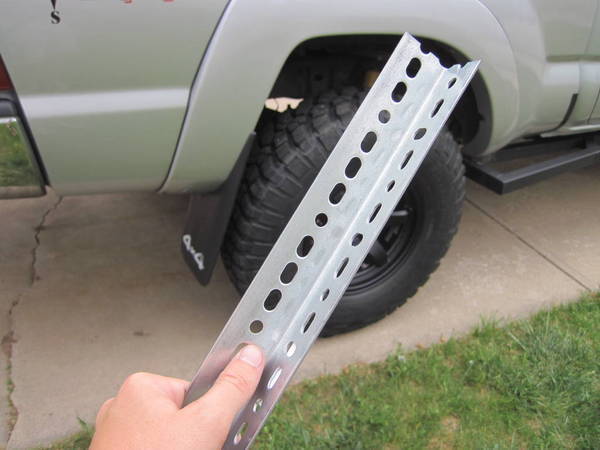

    Didn't have time to fab something more specialized, and these need a few tweaks. Got this galvanized angle steel at a hardware store.
    [​IMG]

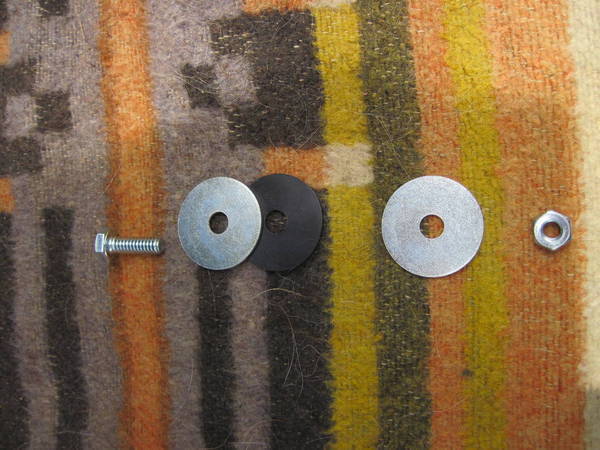

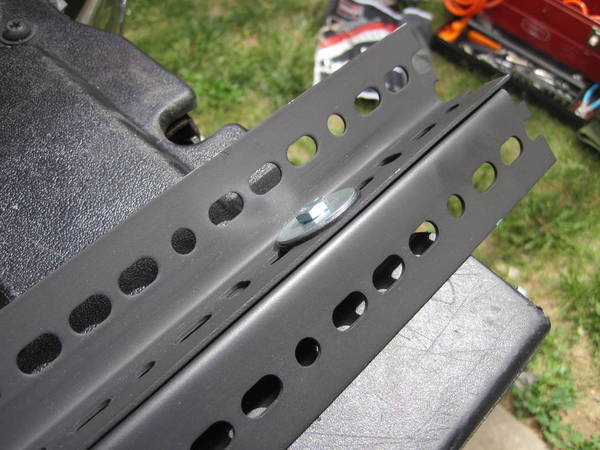

    I primed and painted it (waste of time becasue the paint scratched off so easily. Maybe if I had put a clear coat on... Anyway, I used some bolts, rubber and galvanized washers and nuts to put two lengths of the angle material together like so:
    [​IMG]
    [​IMG]
    I then took off my bed rails and put one side of the angle underneat and reinstalled the bed rails.
    [​IMG]
    I forgot to take a pic with just the quickfists, but I used #10 machine screws with bolts and wingnuts to make them relatively easy to move around as I get different tools.
    [​IMG]

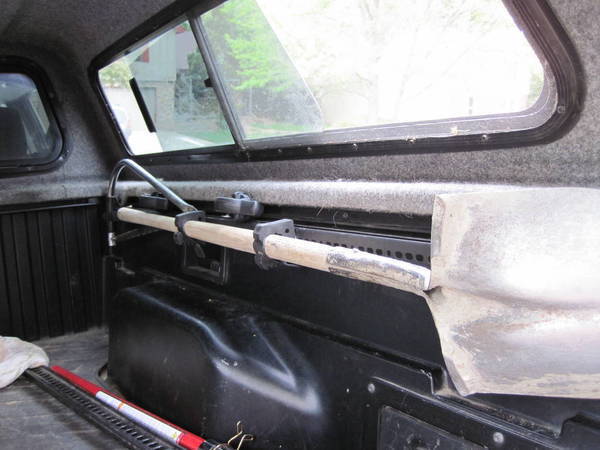

    And here is most of the stuff I need for whatever else I might need while out on the trail (usually my dogs)
    [​IMG]

  2. RockyMtnTRD

    RockyMtnTRD McBuckets

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    5,793
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    35 Toyo RT, BAMF Towers + Sliders, Brute HC w/table + Hybrid Front, King 12.0, Alcan Springs, TC Upper
    Nice job Travis. If I ever get enough shit to mount in my bed to need these Ill come back to this thread haha. :D

  3. NativeTaco

    NativeTaco [OP] Counting days until June...

    Joined:
    May 29, 2012
    Member:
    #79689
    Messages:
    4,622
    Gender:
    Male
    First Name:
    Travis
    Fort Collins, CO
    Vehicle:
    '08 Double Cab LB V6 Silver
    ARB, OME, BAMF, ATO, Rigid, more... Mountain Man Limousine
    Yeah, when I get my winch points wired up the truck will be really self-sufficient to go out on moderate trails alone and so I am trying to get my expo setup going. Branch saw, shovel, more recovery gear, etc. and I will probably but them behind the cab too. THe hi lift will go on the opposite bed side.

  4. RockyMtnTRD

    RockyMtnTRD McBuckets

    Joined:
    May 4, 2011
    Member:
    #56088
    Messages:
    5,793
    Gender:
    Male
    First Name:
    Noah
    Colorado
    Vehicle:
    '11 TRD OR
    35 Toyo RT, BAMF Towers + Sliders, Brute HC w/table + Hybrid Front, King 12.0, Alcan Springs, TC Upper
    I hear ya. The goal of my truck is the same. Be able to just go out and conquer anything in between point A and point B.

  5. KenLyns

    KenLyns Lord of War

    Joined:
    May 23, 2010
    Member:
    #37674
    Messages:
    20,136
    Gender:
    Male
    Belly of the Beast
    Vehicle:
    4x4 TRD Off Road Full-Auto
    All-Pro Front Bumper, All-Pro UCAs, Icon ET Coilovers, Icon VS Rear Shocks, TSB Leafs, Timbren Bumpstops, CBI Sliders, ViAir Compressor, Klearz LED 3rd Brake Light, Pop-N-Lock Tailgate Handle, Husky Front Flaps, Deeza HD Sway Bar Links
    Surprised you chose to do this rather than bolt the Quickfist to the bed rails directly with T-slot nuts.

    Last edited: May 27, 2013
  6. NativeTaco

    NativeTaco [OP] Counting days until June...

    Joined:
    May 29, 2012
    Member:
    #79689
    Messages:
    4,622
    Gender:
    Male
    First Name:
    Travis
    Fort Collins, CO
    Vehicle:
    '08 Double Cab LB V6 Silver
    ARB, OME, BAMF, ATO, Rigid, more... Mountain Man Limousine
    I move those bed cleats quite a bit and didn't want them to interfere with the 'fists.
