easy subwoofer options

Discussion in 'Audio & Video' started by Otis1382, Dec 9, 2016.

  1. Jun 9, 2018 at 9:27 PM
    #61
    WildLand

    WildLand Does Ursus arctos defecate in deciduous forest?

    Joined:
    Dec 16, 2012
    Member:
    #93212
    Messages:
    10,482
    Gender:
    Male
    First Name:
    Fish
    AZ
    Vehicle:
    13T4RTRAILKDSS
    Patches on headliner
  2. Jun 13, 2018 at 1:25 PM
    #62
    Dirty Harry

    Dirty Harry Well-Known Member

    Joined:
    Jun 21, 2016
    Member:
    #190180
    Messages:
    2,121
    Gender:
    Male
    First Name:
    Andrew
    Sarasota, FL
    Vehicle:
    2019 4runner TRD OR
    Victory 4x4 Rock Rails, ARB Diff Snorkel, LED Conversion
    How'd your install go? Need to buy anything extra?

  3. Jun 13, 2018 at 1:41 PM
    #63
    CJREX

    CJREX Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191027
    Messages:
    1,564
    Gender:
    Male
    Georgia
    I needed a cheap adapter, but depending on your head unit you may not need anything.

    The Kenwood will accept either low level or high level inputs.

    I had an aftermarket Pioneer head unit that had a single Sub out RCA jack so I had to buy a Y-splitter (~$8) for the sub's RCA input.

    You have to have both a left and right input or the sub power will be halved which is why I needed the Y-splitter.

  4. Jun 13, 2018 at 2:14 PM
    #64
    Dirty Harry

    Dirty Harry Well-Known Member

    Joined:
    Jun 21, 2016
    Member:
    #190180
    Messages:
    2,121
    Gender:
    Male
    First Name:
    Andrew
    Sarasota, FL
    Vehicle:
    2019 4runner TRD OR
    Victory 4x4 Rock Rails, ARB Diff Snorkel, LED Conversion
    Does the sub pull power directly from the factory head? Cus that'd be awesome. I'm already running quite a few wires up in the engine bay due to some offroad lighting so I'd prefer to not have to run another hot wire to the battery.

  5. Jun 13, 2018 at 2:28 PM
    #65
    CJREX

    CJREX Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191027
    Messages:
    1,564
    Gender:
    Male
    Georgia
    No, it has its own power line.

    You tap into the head unit for speaker input and the Remote or Power Antenna line to power the sub on.

    If you go to the Kenwood website you can download the manual which shows all of the connections.

  6. Jun 13, 2018 at 2:30 PM
    #66
    Dirty Harry

    Dirty Harry Well-Known Member

    Joined:
    Jun 21, 2016
    Member:
    #190180
    Messages:
    2,121
    Gender:
    Male
    First Name:
    Andrew
    Sarasota, FL
    Vehicle:
    2019 4runner TRD OR
    Victory 4x4 Rock Rails, ARB Diff Snorkel, LED Conversion
    Did you end up running yours to the battery?

  7. Jun 13, 2018 at 2:32 PM
    #67
    CJREX

    CJREX Well-Known Member

    Joined:
    Jul 1, 2016
    Member:
    #191027
    Messages:
    1,564
    Gender:
    Male
    Georgia
    Mine is in an F250 so I had many spare circuits for accessories.

    I just tapped into one of those, one of the trailer circuits if I recollect properly.

    Dirty Harry likes this.
  8. Jun 13, 2018 at 7:15 PM
    #68
    jmeitz

    jmeitz Audio Solutions

    Joined:
    Sep 23, 2016
    Member:
    #198045
    Messages:
    709
    Gender:
    Male
    First Name:
    Jeremie
    St. Louis, MO
    Vehicle:
    2016 Tacoma trd sport
    Remote Start Lift Stereo Leather LED lights
    I did a JL 12tw3 off a 5 channel amp


  9. Jun 19, 2018 at 10:27 PM
    #69
    skierd

    skierd Well-Known Member

    Joined:
    Mar 11, 2018
    Member:
    #247038
    Messages:
    1,136
    Gender:
    Male
    First Name:
    David
    Fairbanks, AK
    Vehicle:
    2017 SR DCSB
    I finally finished installing the wiring for the amp and sub this afternoon and got it tuned. It sounds pretty good but I think I’m going to add a second sub. It fills in the low end pretty seamlessly as is, but is lacking in outright punch. Wiring a second sub and box in parallel will be extremely simple fortunately.

    Man of Steel TRD likes this.
  10. Jun 20, 2018 at 8:15 PM
    #70
    skierd

    skierd Well-Known Member

    Joined:
    Mar 11, 2018
    Member:
    #247038
    Messages:
    1,136
    Gender:
    Male
    First Name:
    David
    Fairbanks, AK
    Vehicle:
    2017 SR DCSB
    I’d like to amend my previous review. Today I learned how important it is to have the proper source material for your audio when you go to evaluate its performance. Put simply, Bluetooth sucks for quality.

    With my iPhone wired in instead of streaming over Bluetooth, the pioneer sub and Kenwood amp combo is actually quite impressive. It doesn’t slam but there is definitely enough bass to balance out the kicker tweeters and the stock speakers on the stock head unit. It’s very “adult with a nice stereo” vs “teenager with giant rattling subs in the trunk”.

    It also goes deeper and hits accurately enough for metal (my favorite test is Metallica “Dyers Eve” due to all the double bass) while having enough boom for pop, electronica, hip hop and rap. It is *almost* a perfect balance for a system based around the stock head unit. I’m very happy with it, especially considering the overall cost and the fact that should I decide that too much is what I really want it’s as simple as adding a second pioneer sub+box. The only holes I had to drill was for the mounting screws for the amp and the small hole in the wiring harness plug on the firewall to run the 8ga power cable.

  11. Nov 14, 2018 at 4:17 PM
    #71
    skierd

    skierd Well-Known Member

    Joined:
    Mar 11, 2018
    Member:
    #247038
    Messages:
    1,136
    Gender:
    Male
    First Name:
    David
    Fairbanks, AK
    Vehicle:
    2017 SR DCSB
    Another update: I’ve noticed that the subs responsiveness falls off pretty steep on deeper bass notes. Since the box is only 0.15cuft I made the assumption that’s it’s on the small side so I added some poly fill to see if I could help it out. Results so far are promising, the bass range seems to go deeper now and it’s a little bit louder.

    I should also note, the sub that comes in the box is not the Pioneer 8” DVC sub but some other single voice coil Pioneer branded sub. Since I will be buying a second box soon, I think, I may try to swap for the 8” TS-SW2002D2 in this box and put it in the new box I order to go with it. Other option is to get a JL CP108LG-W3v3 instead, I’ll check out my local audio shop for a test ride after the holiday maybe.

  12. Feb 11, 2019 at 9:38 PM
    #72
    skierd

    skierd Well-Known Member

    Joined:
    Mar 11, 2018
    Member:
    #247038
    Messages:
    1,136
    Gender:
    Male
    First Name:
    David
    Fairbanks, AK
    Vehicle:
    2017 SR DCSB
    That sub and box won’t fit in a 3rd gen with the cubby in place, not sure about a 2nd gen. You’ll need power and ground for the amp of course, and an rca cable to run from those leads to the amp, and some speaker wire. But yeah I bet it’ll sound great!

    I reworked my pioneer sub a little this afternoon. I bought and installed the pioneer TS-SW2002 8” before Christmas and filled the box with polyfill. It was better, it not great. Today I spent a little bit of time rewiring the box (originally I reused the original 16ga wiring) and more time tuning then I had before. Low bass is no longer a problem, the sub is nice and punchy for bass and kick drums but can hold its own for rap and hip hop. With one sub it fills in the low end for a nice balanced setup with my new speakers. I definitely want to add a second one now, but for most a single will be a great setup.

    Bridge4 likes this.
  13. Feb 26, 2019 at 11:51 AM
    #73
    4bangerr

    4bangerr the little engine that could

    Joined:
    Jun 21, 2017
    Member:
    #222102
    Messages:
    145
    Gender:
    Male
    Hawaii
    Vehicle:
    2017 Mag Grey SR Access Cab 4 Cyl.
    -12" XFIRE 4 ohm dvc subwoofer 500 WATT rms w/custom ported box -600 WATT XFIRE amplifier -1 way viper alarm -LED lighting conversion interior & exterior -HID low beams & LED high beams -AVS front visors -5% tint all around -stainless steel truck tip -TRD sport wheels w/black mag lugs
    can't go wrong with a bazooka tube. i got a Alpine 10" bazooka with a 800 Watt CRUNCH amp.

  14. Feb 26, 2019 at 3:34 PM
    #74
    stec06

    stec06 Well-Known Member

    Joined:
    Apr 15, 2018
    Member:
    #250540
    Messages:
    110
    Gender:
    Male
    First Name:
    Sam
    NoVA
    Vehicle:
    '15 DCSB PreRunner 2.7
    So far, this is my experience with a single 8" woofer. Really fills out the low end and takes the burden off the front 6x9s. Not super loud, but nice and clean.


    ready6delta likes this.
  15. Dec 10, 2019 at 9:56 AM
    #75
    TALLNDIRTY

    TALLNDIRTY Active Member

    Joined:
    May 16, 2015
    Member:
    #155370
    Messages:
    36
    Gender:
    Male
    Winnipeg Manitoba
    Vehicle:
    2015 Tacoma Access cab SR5 4cyl 5spd 4x4

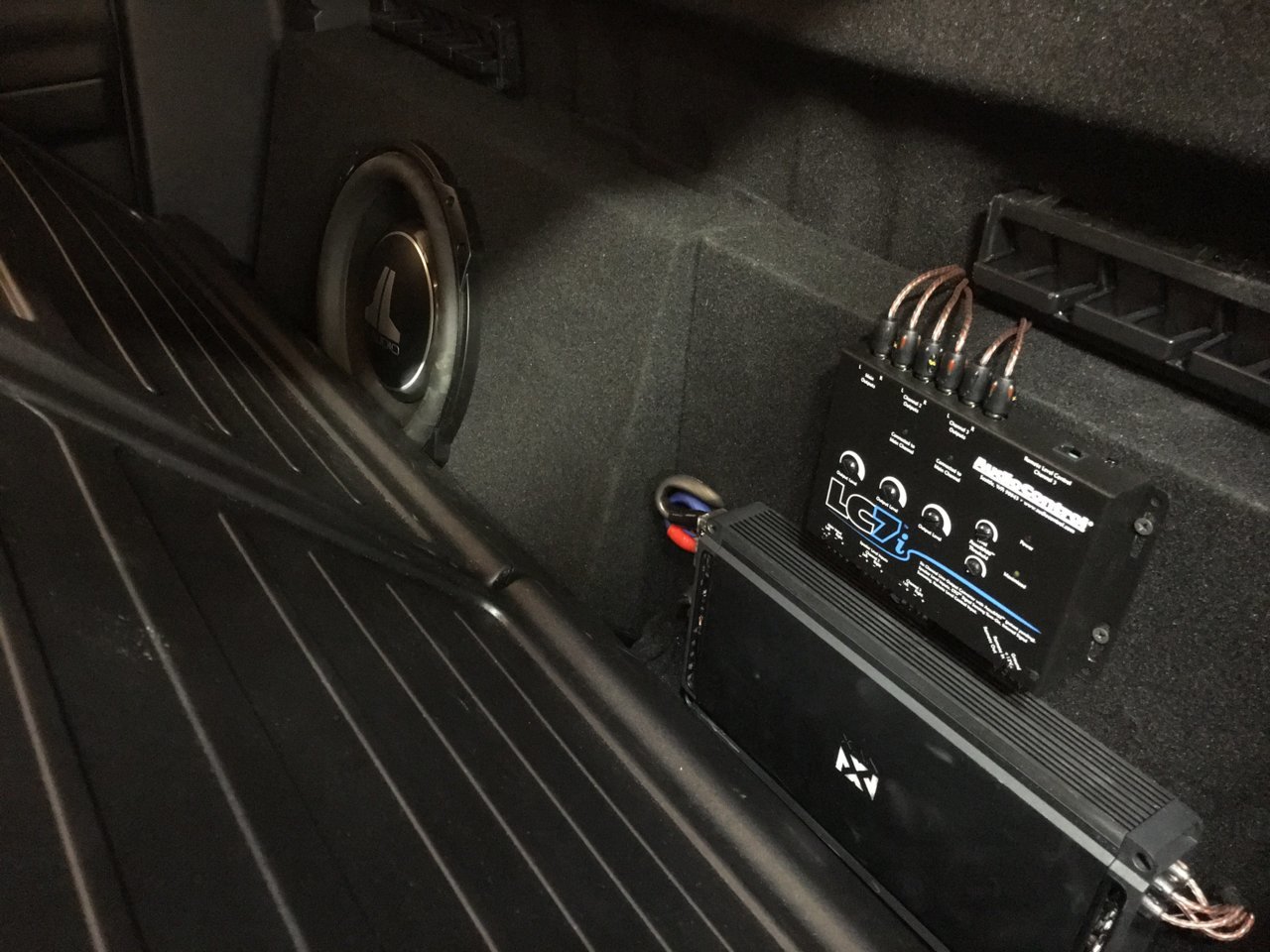

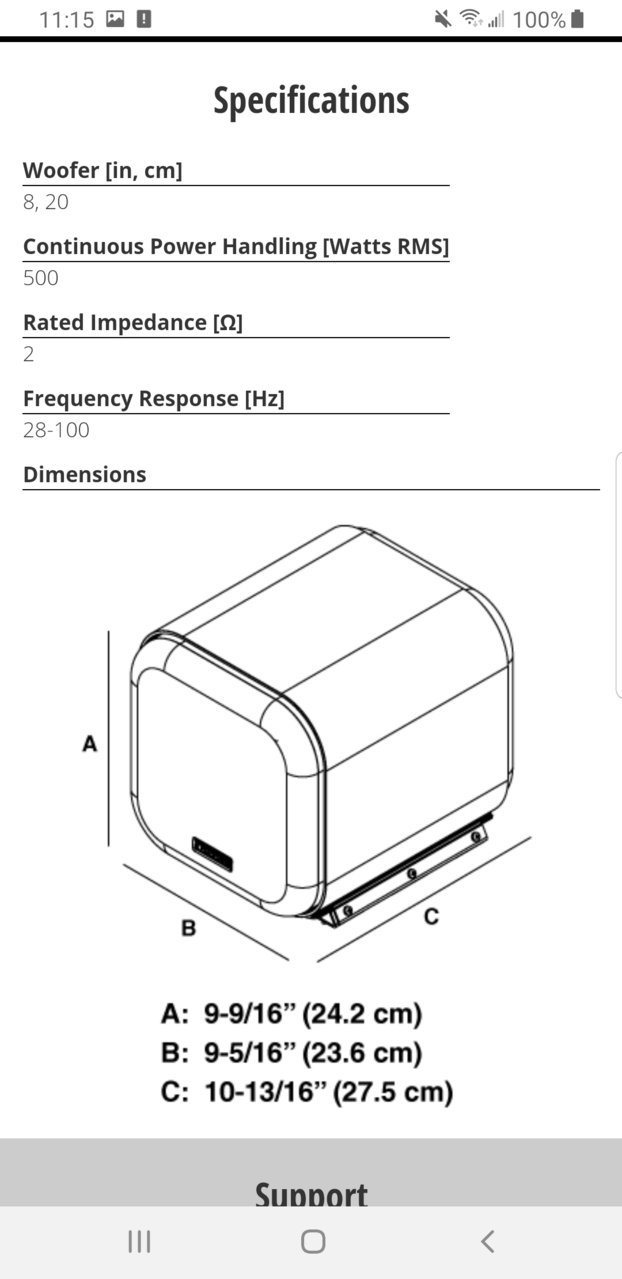

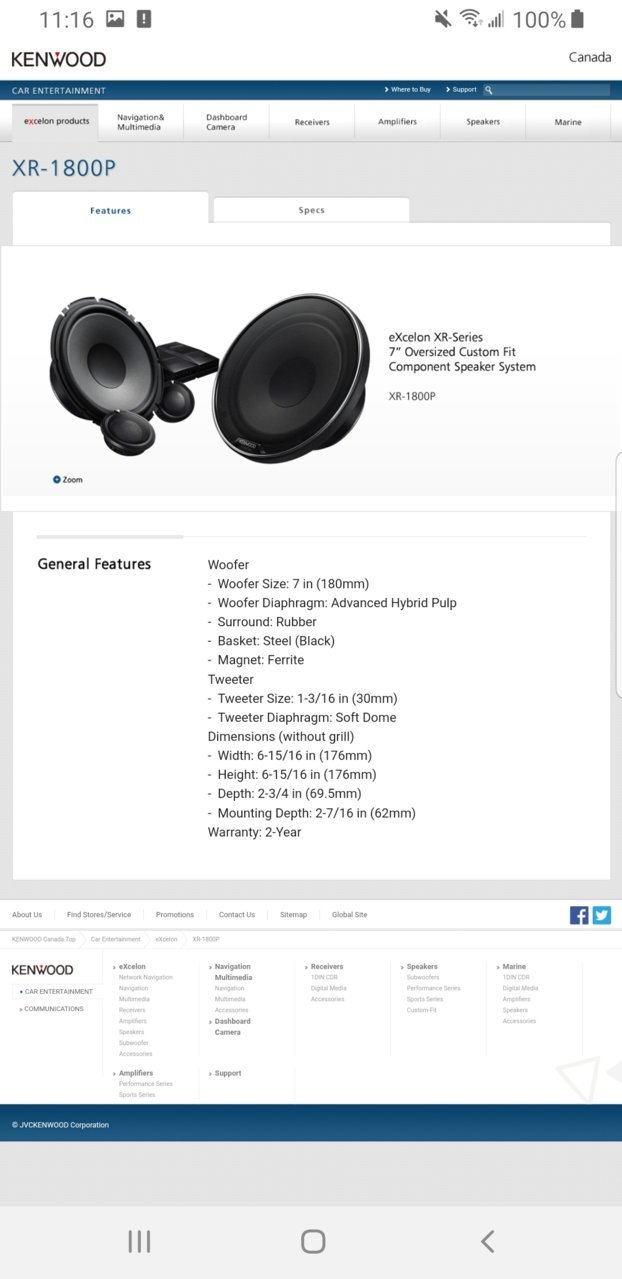

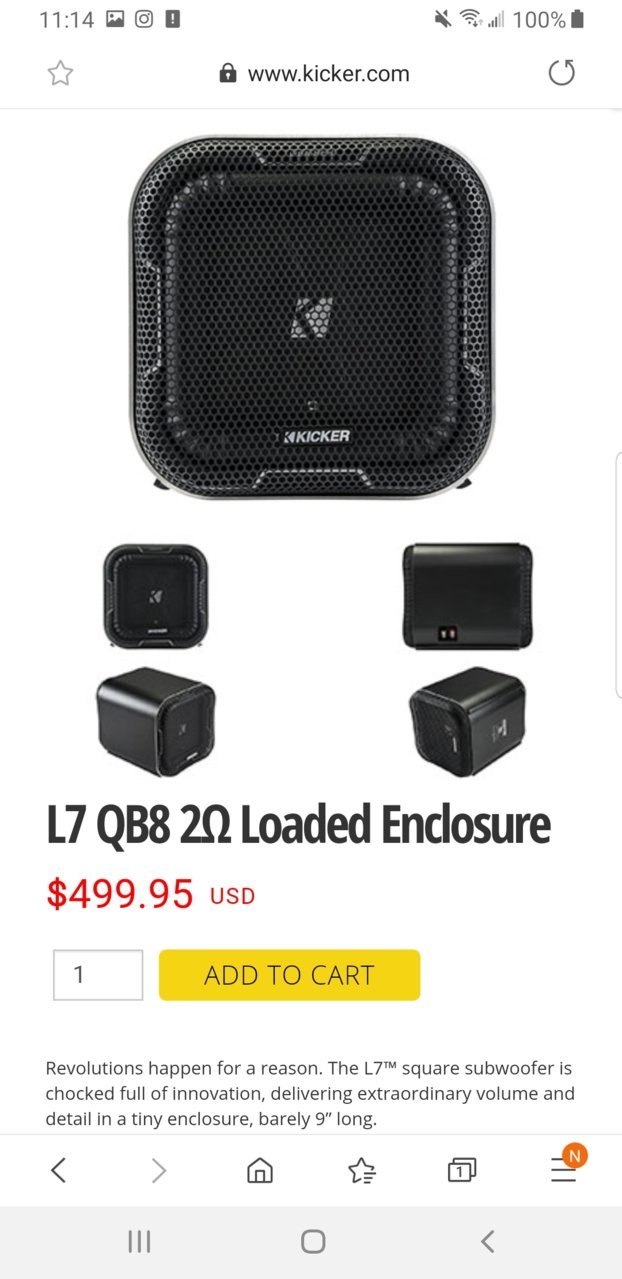

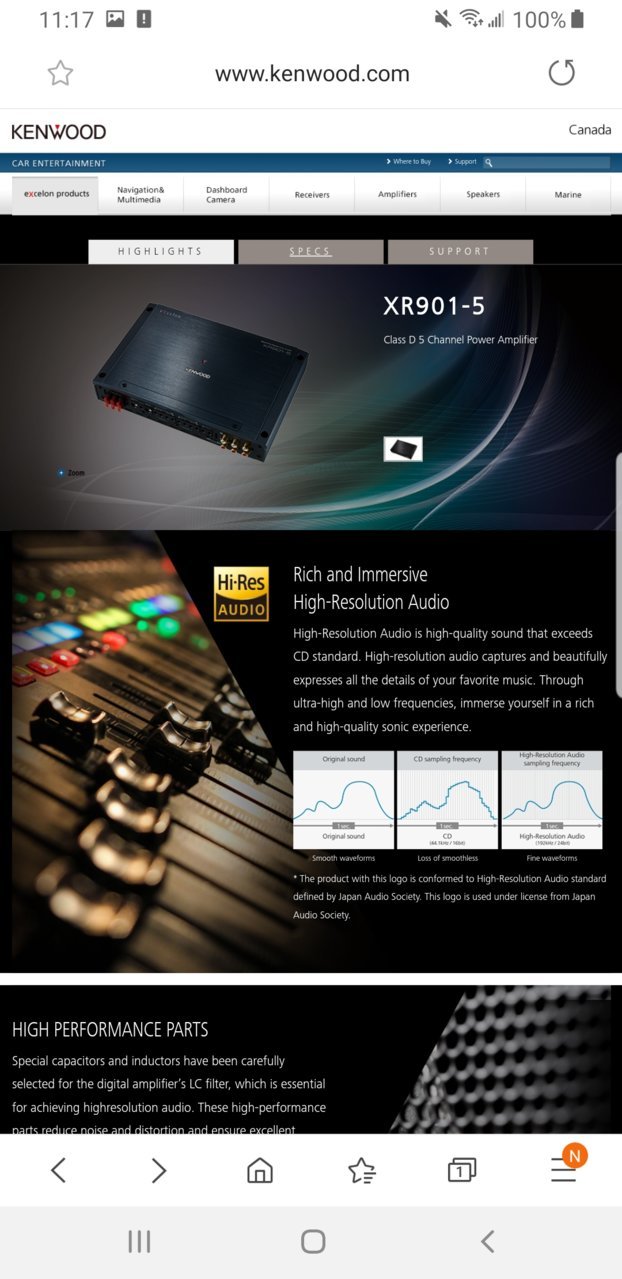

    Screenshot_20191209-231451_Samsung Internet.jpg Screenshot_20191209-231519_Samsung Internet.jpg Screenshot_20191209-231608_Samsung Internet.jpg Screenshot_20191209-231711_Samsung Internet.jpg I added these to my 2015 Access cab 4x4.....all the while keeping my factory head unit. Sounds amazing..a bit overkill but I am happy with it
