Ecm wires to downstream 02 sensor

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Nandotaco, Jan 31, 2023.

Post Reply

Jan 31, 2023 at 3:46 PM

#1

#1
Nandotaco [OP] New Member

Joined:

Jan 31, 2023

Member:

#416844

Messages:

2

Gender:

Male

First Name:

Nando

Vehicle:

2016 silver sr5 tacoma

2016 2.7 tacoma sr5 So they stole my catalytic convertor and noticed they yanked the pigtails that connects to my o2 sensor iam having trouble identifying what wire is what here is a picture of the wires can some tell me which one is the signal, ground and heater heater wires

Nandotaco, Jan 31, 2023

#1

Jan 31, 2023 at 4:53 PM

#2

#2
Vlady Well-Known Member

Joined:

Dec 20, 2017

Member:

#238986

Messages:

4,673

Gender:

Male

Issy, WA

Vehicle:

2017 White SR5 DCSB V6 4x4

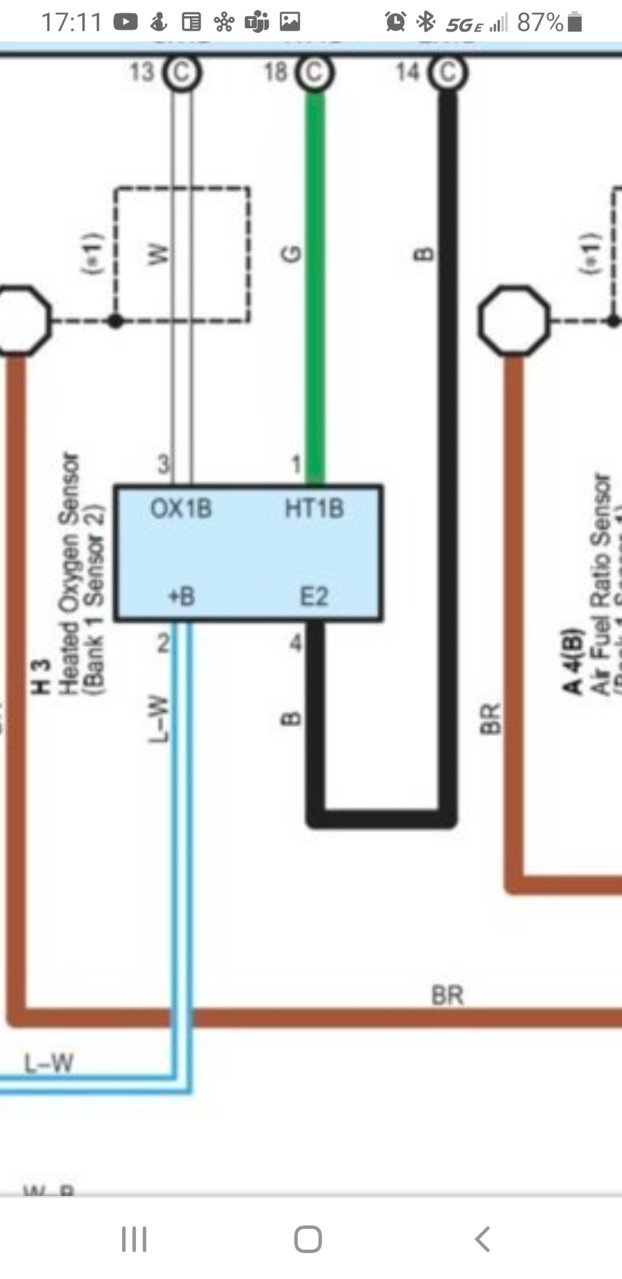

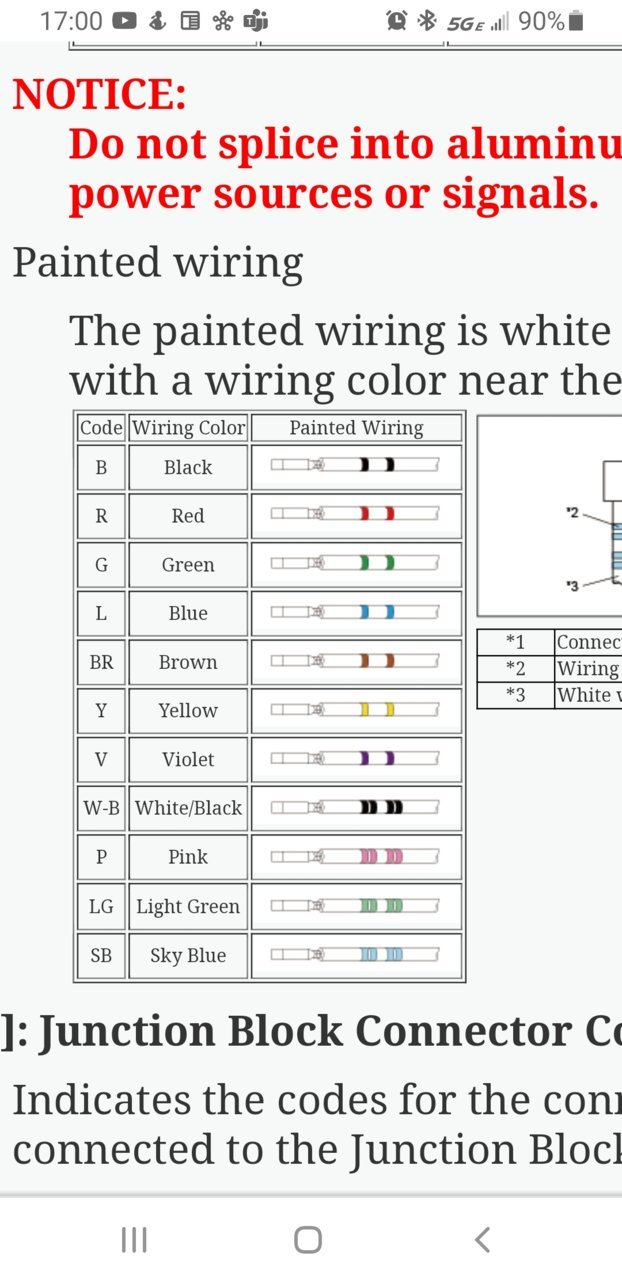

here is sensors wiring diagram and color code
Attached Files:
- 8.pdf

  File size:

  81.4 KB

  Views:

  4
Last edited: Jan 31, 2023

Vlady, Jan 31, 2023

#2

Nandotaco[OP] likes this.

Jan 31, 2023 at 5:05 PM

#3

#3
Nandotaco [OP] New Member

Joined:

Jan 31, 2023

Member:

#416844

Messages:

2

Gender:

Male

First Name:

Nando

Vehicle:

2016 silver sr5 tacoma

Thank you so much appreciate it

Nandotaco, Jan 31, 2023

#3

Jan 31, 2023 at 5:20 PM

#4

#4
Vlady Well-Known Member

Joined:

Dec 20, 2017

Member:

#238986

Messages:

4,673

Gender:

Male

Issy, WA

Vehicle:

2017 White SR5 DCSB V6 4x4

The option with a green wire

Vlady, Jan 31, 2023

#4

Nandotaco[OP] likes this.
