Discussion in '3rd Gen. Tacomas (2016-2023)' started by MESO, Oct 18, 2016.

Page 6 of 27
  1. Dec 19, 2016 at 2:57 PM
    #101
    MESO

    #101
    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,295
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Been there, done that. I did a full write up on ECT MOD ON all the time. Don't tap off start signal. All the wires you need are below the radio. (switched power from CLA, and trigger wires on ECT harness)

    Edit: that was weird..replied in a different thread and it posted to this oneo_O

    Last edited: Dec 19, 2016
    MESO, Dec 19, 2016
    #101
    vinkon235 likes this.
  2. Dec 20, 2016 at 12:50 PM
    #102
    jomopdx

    #102
    jomopdx Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188267
    Messages:
    279
    Gender:
    Male
    First Name:
    jomo
    Vehicle:
    2016 Tacoma Sport
    Edited -

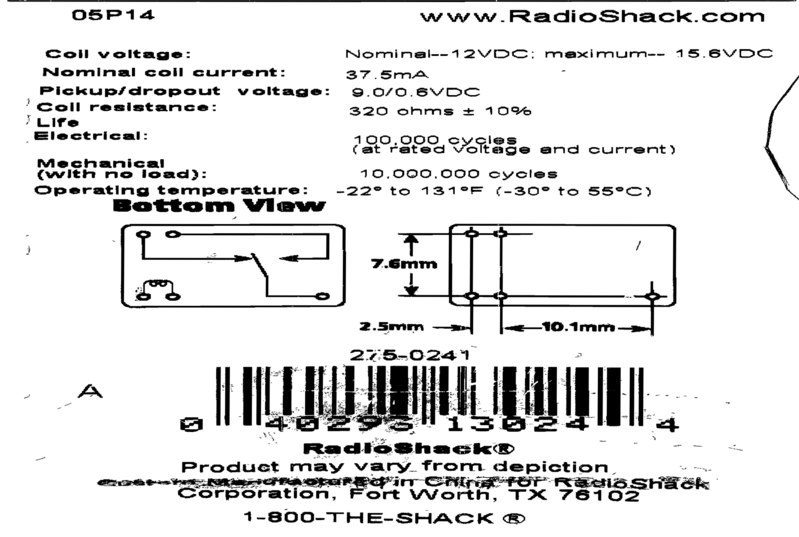

    Below is a diagram of the 12v Relay from Radio Shack.
    The pin labels are as follows: upper left two are: 87a(NC), 87(NO). Lower left two are the coil pins: 85, 86, Lower right is ground: 30.


    Last edited: Feb 5, 2017
    jomopdx, Dec 20, 2016
    #102
  3. Dec 20, 2016 at 9:27 PM
    #103
    jomopdx

    #103
    jomopdx Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188267
    Messages:
    279
    Gender:
    Male
    First Name:
    jomo
    Vehicle:
    2016 Tacoma Sport
    This posting has been corrected to be as per OP's description on posting #1. And corrected as per posting below #105.

    From SPDT relay - pin 86 to cig lighter ground; pin 87 to ECT pin 1(white/black); pin 30 to ECT pin 4(pink); pin 85 to TR7 blue.
    From TR7 - Blue wire to SPDT pin 85; ground to cig lighter ground; green wire and red wire to cig lighter power.

    Last edited: Feb 5, 2017
    jomopdx, Dec 20, 2016
    #103
  4. Dec 20, 2016 at 10:40 PM
    #104
    ratcityrain

    #104
    ratcityrain Well-Known Member

    Joined:
    Jun 3, 2015
    Member:
    #156667
    Messages:
    1,374
    Gender:
    Male
    Seattle, WA
    Vehicle:
    2017 Double Cab Off Road
    OEM Running boards |oemassive headlights | winjet tail lights | led lighting | hid headlight & fogs | oem tri-fold Bed cover | Custom dual JL Audio 10tw3-d4 sub box and custom amp rack | black off road wheels | painted oem grille | jbl door speakers |
    Great job. I must try

    ratcityrain, Dec 20, 2016
    #104
  5. Dec 20, 2016 at 11:03 PM
    #105
    MESO

    #105
    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,295
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    @jomopdx
    You're correct on that radioshack^ relay pins. But you have #30 and#86 bassackwards.

    MESO, Dec 20, 2016
    #105
  6. Dec 28, 2016 at 10:27 AM
    #106
    jomopdx

    #106
    jomopdx Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188267
    Messages:
    279
    Gender:
    Male
    First Name:
    jomo
    Vehicle:
    2016 Tacoma Sport

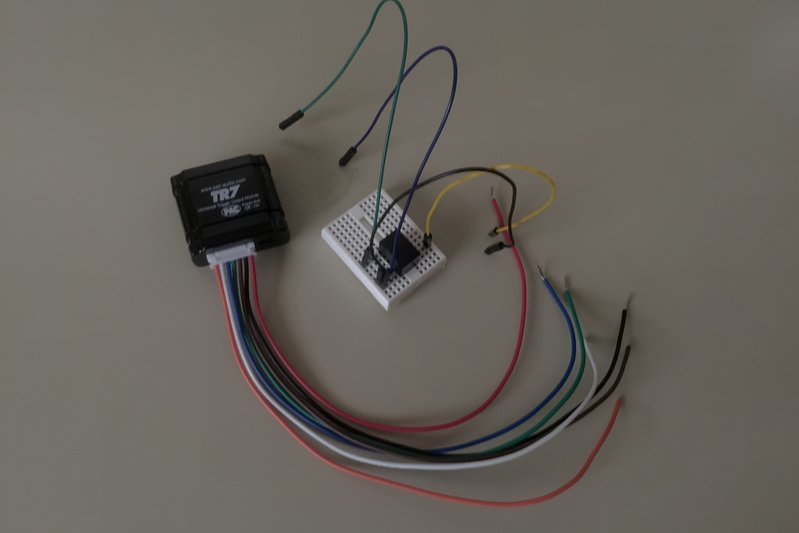

    Okay, here is my progress so far in the assembly of the kit:

    jomopdx, Dec 28, 2016
    #106
    smitty99, Wallbright and vinkon235 like this.
  7. Jan 13, 2017 at 1:15 PM
    #107
    smitty99

    #107
    smitty99 I also bought a 4Runner

    Joined:
    Sep 10, 2015
    Member:
    #163923
    Messages:
    12,944
    Gender:
    Male
    Scottsdale
    Vehicle:
    16 TRDORDCSB 4x4 A/T (loaded w/ JBL)
    6112s/5160s & 3-leaf AAL;ubolt flip kit;Superbumps
    Any movement on this? Extremely interested.

    smitty99, Jan 13, 2017
    #107
  8. Jan 13, 2017 at 1:27 PM
    #108
    jomopdx

    #108
    jomopdx Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188267
    Messages:
    279
    Gender:
    Male
    First Name:
    jomo
    Vehicle:
    2016 Tacoma Sport
    Well, sorry not much, but ready to install. I have soldered the small relay into a small $2.50 Radio Shack circuit board and now just ready for the install. I also have numbers for the SPDT pins in post #1 of this thread if of interest to anyone using that relay type instead of the small one I'm using.
    Here goes on the numbers for the pins on posting #1 of this thread:
    Top: 87.
    Middle three - left to right: 86; 87a; 85.
    Bottom: 30.

    We got two feet of snow here in Portland and still need chains on my narrow hillside street. Also 17 degrees and the snow will be here for a while. Thank goodness for my Tacoma!!!

    jomopdx, Jan 13, 2017
    #108
    vinkon235 likes this.
  9. Jan 20, 2017 at 5:01 PM
    #109
    kahanabob

    #109
    kahanabob Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51477
    Messages:
    2,231
    Gender:
    Male
    Maui
    Vehicle:
    16 TRD 2WD 4DR
    can i assume once this mode is done if the ECT button is pushed it will take it OUT of ECT mode? also is the very first post still the best way to get this done? remember reading somewhere there was an issue after a few starts but maybe that was another post.

    kahanabob, Jan 20, 2017
    #109
  10. Jan 20, 2017 at 5:08 PM
    #110
    MESO

    #110
    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,295
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Correct. If you want to DISABLE ECT, push the button to turn it off. First post is the current method I am using.(had some failed trials previsously).
    It's Working 100%, truck gets started multiple times everyday. Love this mod! Thanks @mesojdmo_O:thumbsup:

    MESO, Jan 20, 2017
    #110
  11. Feb 1, 2017 at 4:16 PM
    #111
    kahanabob

    #111
    kahanabob Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51477
    Messages:
    2,231
    Gender:
    Male
    Maui
    Vehicle:
    16 TRD 2WD 4DR
    i just got the exact same relay from Amazon. i am lost, did you ever figure it out or do i need to find out where to get the SPD relay that the OP used? pins are super small!

    kahanabob, Feb 1, 2017
    #111
  12. Feb 1, 2017 at 4:21 PM
    #112
    kahanabob

    #112
    kahanabob Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51477
    Messages:
    2,231
    Gender:
    Male
    Maui
    Vehicle:
    16 TRD 2WD 4DR
    where did you get the SPDT relay? i got the wrong thing from Amazon see last post above this of thread

    kahanabob, Feb 1, 2017
    #112
  13. Feb 1, 2017 at 4:38 PM
    #113
    MESO

    #113
    MESO [OP] Major Modder Vendor

    Joined:
    Feb 16, 2015
    Member:
    #148809
    Messages:
    16,295
    Gender:
    Male
    State of Jefferson
    Vehicle:
    2016 DCLB TRD HELLCAT SWAP
    Any car stereo shop will have it. Just ask for a standard Bosch 12V relay.

    MESO, Feb 1, 2017
    #113
  14. Feb 2, 2017 at 12:10 AM
    #114
    kahanabob

    #114
    kahanabob Well-Known Member

    Joined:
    Feb 19, 2011
    Member:
    #51477
    Messages:
    2,231
    Gender:
    Male
    Maui
    Vehicle:
    16 TRD 2WD 4DR
    kahanabob, Feb 2, 2017
    #114
  15. Feb 2, 2017 at 12:21 PM
    #115
    jomopdx

    #115
    jomopdx Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188267
    Messages:
    279
    Gender:
    Male
    First Name:
    jomo
    Vehicle:
    2016 Tacoma Sport
    Yes, one can use this relay. It came with a test circuit board that can be taped together or one can buy a small circuit board from radio shack ($2.50) that the relay and wires can be soldered.
    Nonetheless, the bigger relays are easier to use and much easier to solder if one wants to go that route.
    Overall - still not a big issue to solve.

    Last edited: Feb 2, 2017
    jomopdx, Feb 2, 2017
    #115
  16. Feb 2, 2017 at 12:40 PM
    #116
    jomopdx

    #116
    jomopdx Well-Known Member

    Joined:
    May 30, 2016
    Member:
    #188267
    Messages:
    279
    Gender:
    Male
    First Name:
    jomo
    Vehicle:
    2016 Tacoma Sport
    Last edited: Feb 2, 2017
    jomopdx, Feb 2, 2017
    #116
  17. Feb 2, 2017 at 12:48 PM
    #117
    acemastr

    #117
    acemastr Well-Known Member

    Joined:
    Mar 11, 2016
    Member:
    #180906
    Messages:
    947
    Gender:
    Male
    First Name:
    Aaron
    Tampa, FL
    Vehicle:
    2016 Tacoma Limited 2WD AT
    OVTune
    Anyone else find ECT is extremely touchy at 1% throttle (just as you touch it I mean) which makes it rather jerky?

    acemastr, Feb 2, 2017
    #117
  18. Feb 14, 2017 at 5:00 PM
    #118
    hightechcoonass

    #118
    hightechcoonass Living the dream

    Joined:
    Sep 24, 2016
    Member:
    #198163
    Messages:
    73
    Gender:
    Male
    First Name:
    Ritchie
    land of the swamps LA
    Vehicle:
    2017 SR5 4x4 super white
    TRD Offroad wheels and decal set.
    Very nice work indeed!

    hightechcoonass, Feb 14, 2017
    #118
  19. Feb 14, 2017 at 7:37 PM
    #119
    rrentrop

    #119
    rrentrop TVDvinyldecals.com Vendor

    Joined:
    Sep 11, 2015
    Member:
    #163975
    Messages:
    1,694
    Gender:
    Male
    First Name:
    Rich
    Orange County, CA
    Vehicle:
    2016 Tacoma 4x2 Limited MGM
    T-Rex Billet Grille, N-Fab Steps, Tailgate decals, Bed Lights, Power Tailgate Lock
    Yes! For the past few months I've been driving with the ECT on, but the touchy throttle, particularly in reverse was starting to bug me in tight parking lots. I recently went back to normal and have learned to mash the pedal a bit more and actually like the way it is responding now. I'll be getting rev 1 done at my next oil change.

    rrentrop, Feb 14, 2017
    #119
  20. Feb 18, 2017 at 6:11 PM
    #120
    AmericanDrug

    #120
    AmericanDrug Well-Known Member

    Joined:
    Jan 30, 2017
    Member:
    #209110
    Messages:
    498
    Gender:
    Male
    First Name:
    Rod
    Valdosta, GA
    Vehicle:
    2018 TRD OR 4x4 6mt
    Following

    AmericanDrug, Feb 18, 2017
    #120
