ECT Stealth PRO shift knob

That was me .. so here it is Post #1090
I was using my finger on my tablet so it's a little crude



So my package got here earlier than expected. I just tried out the flip flop below. I managed to light it on fire

$8 HiLetgo 5V 1 Channel Self Locking Bistable One Button Start/Stop Self-Locking Relay Module Relay Switch for MCU Control

https://www.amazon.com/gp/product/B00LW2VLS0/ref=ppx_yo_dt_b_asin_title_o04_s00?ie=UTF8&psc=1

Glad I built a test board for it before actually wiring it to anything important. Electricity is fun

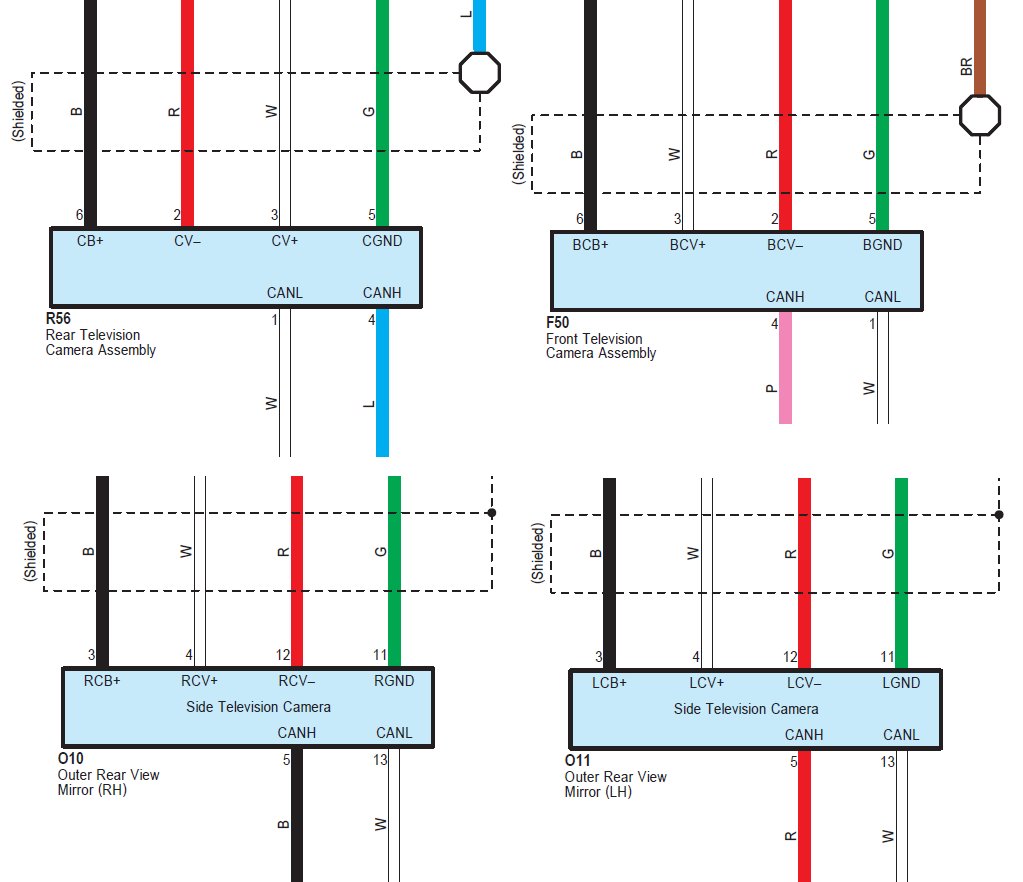

That's gonna be a pipe dream, the 2020's panoramic cams are all tied into the CanBus to do their thing...

Just kidding...it might be a doable thing.
Reverse interrupt and Front view select switch...



Hahahahah



I’ll have to grab a 2020 from the dealership and see what’s going on. I don’t think there would be canbus going to just the stock switch.. but you never know what Toyota does lol



Next test will be this one on Friday

https://www.amazon.com/gp/product/B0002J22BO/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&psc=1



Best of luck



Could you hook up the second switch to the hazard lights? Monetary just to warn traffic behind you of a sudden stop or something



Sorry. I just realized that may have came off as laughing at you, I wasn't at all. I've just been there before, get things all set up, go to test and you release the black smoke, hectic at first but ultimately makes for a good laugh. Thanks for being the guinea pig on this, probably pave the way.



Haha dont worry, I was laughing. I think that is the fastest I have destroyed an Amazon package. Probably less than 15 minutes from it being at my door til it was smoking lol



You definitely have a great talent with electrical systems. Your detailed schematics are always appreciated.



Fuck alllllllll of that. I need to get better at canbus. The industry is headed there and I'm woefully unprepared.

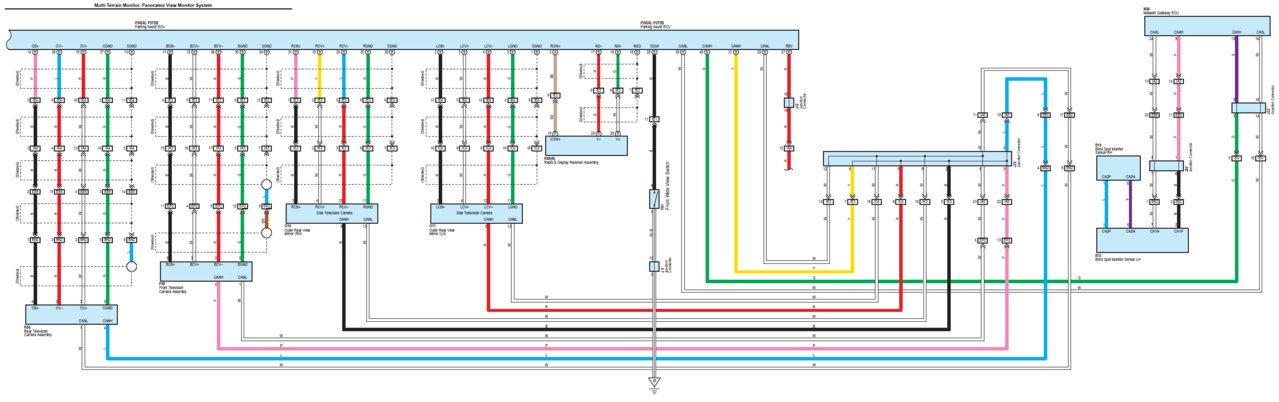

Do you have a higher res pic?



Smoking electronics frustrates me. Mostly because I'm ignorant



It's just MSPaint...copy, edit and paste...but knowing what goes where and why helps too...



I do...but you'll have to stitch it...

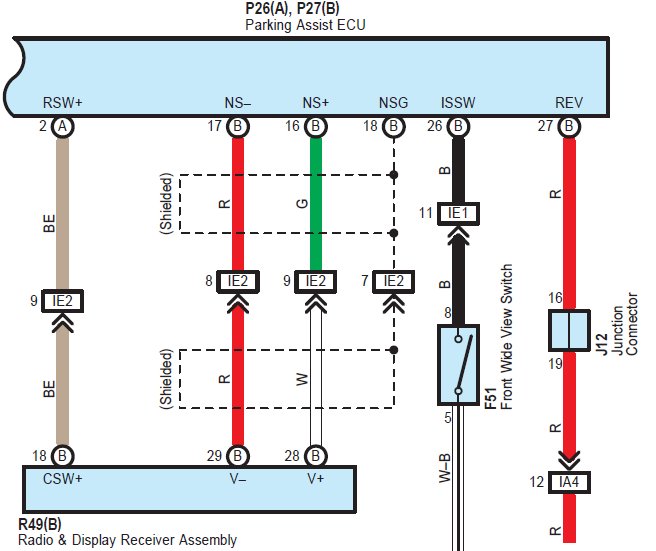

The only switch I see is the "Front wide view switch", although the left front panel switch has four wires going to it. Is the backlighting wiring not shown in this view? Assuming this is the switch, it looks I can just tie the black and grey wires into my stealth switch.
