Electric Servo Canopy Project

Discussion in '1st Gen. Tacomas (1995-2004)' started by Cheesycook, Oct 3, 2010.

  1. Oct 3, 2010 at 6:28 PM
    #1
    Cheesycook

    Cheesycook [OP] Geek with a gun

    Joined:
    Jun 10, 2009
    Member:
    #18295
    Messages:
    166
    Gender:
    Male
    Hermiston, OR
    Vehicle:
    01 4x4 DC Tacoma V6

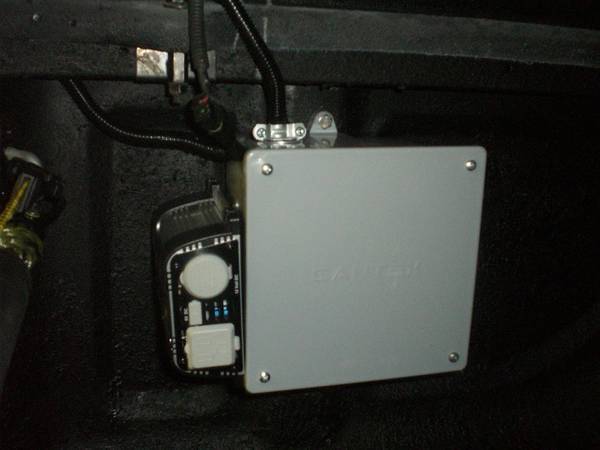

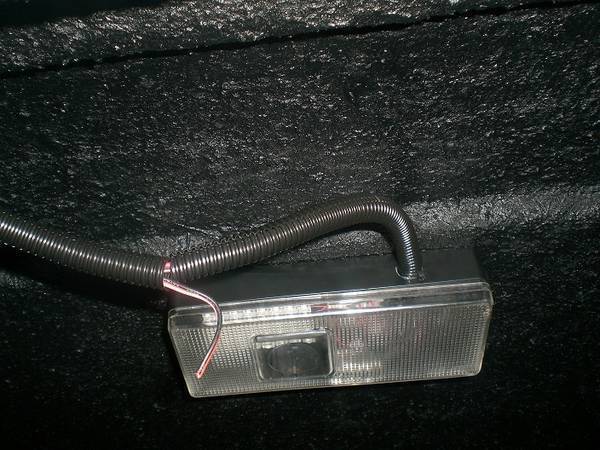

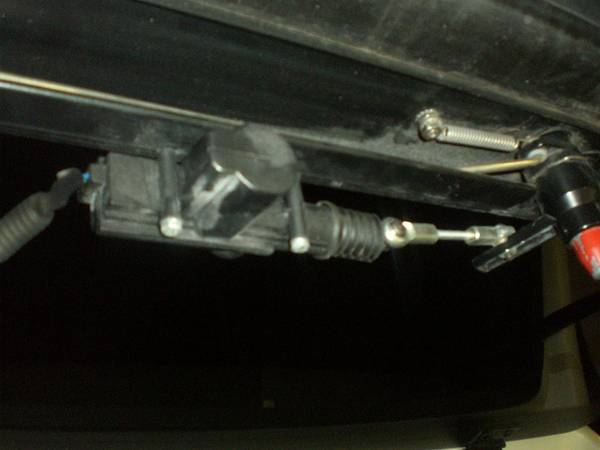

    I got bored this weekend and made this up after doing some painting. I have a SnugTop Canopy and made some small changes to suit my gadget needs. First the dome light was battery powered and weak. I swapped that over to a 12v LED using the same switch and housing. I am replacing the third brake light with a new one because the old one took on water and was all messed up. If you are wondering those are the loose wires. I hate pulling a key out for the rear hatch so I installed a cheap $18 Ebay hatch release and rigged it up with some heim joints from Jegs. The box is from Ace and houses my 12v power distribution block, a common ground, and controls for the hatch release remote. On the side I placed a 200w converter. That is still waiting for some double sided tape.

    Next week’s project should the family allow is to take my secondary remote for the hatch release which I soldered wires to both poles of the clicker switch and wire it to the car alarm so the AUX button activates the remote and allows me to use my normal alarm fob.

    Just thought I would share.

    …. And yes, I did bed line the inside of the canopy.


    [​IMG]
    [​IMG]

    [​IMG]
    [​IMG]
    [​IMG]

  2. Oct 6, 2010 at 2:17 PM
    #2
    Cheesycook

    Cheesycook [OP] Geek with a gun

    Joined:
    Jun 10, 2009
    Member:
    #18295
    Messages:
    166
    Gender:
    Male
    Hermiston, OR
    Vehicle:
    01 4x4 DC Tacoma V6
    Update: Having a hell of a time trying to get my accessory button on my Prestige APS25N alarm to trigger the spare remote for the canopy lid. Can't find the wiring diagram, don't know if it is activated by a click, double - click, or a long press. Heck, I don't even know if the accessory wire on the alarm is a ground or a positive. NEVER BUY AN AUDIOVOX ANYTHING!!! This thing is so cheap they don't even put a label on the alarm itself.

  3. Oct 6, 2010 at 2:21 PM
    #3
    Madjik_Man

    Madjik_Man The Rembrandt of Rattle Can

    Joined:
    Dec 2, 2009
    Member:
    #26893
    Messages:
    13,088
    Gender:
    Male
    Boulder, CO
    Vehicle:
    1998 Ext Cab 4x4 TRD 5MT sunfire red pearl
    About 25 pounds of spray paint and vinyl dye
    The dome light in my topper is shot, has been for years. Forgive my stupidity, but when you said you switched to a 12v LED light, that runs fine off the battery, correct?

    (I understand the battery is 12v, just don't know enough about LED electronics)

    And where can I find a 12v LED dome light like that?

    Thanks in advance

  4. Oct 6, 2010 at 6:16 PM
    #4
    Cheesycook

    Cheesycook [OP] Geek with a gun

    Joined:
    Jun 10, 2009
    Member:
    #18295
    Messages:
    166
    Gender:
    Male
    Hermiston, OR
    Vehicle:
    01 4x4 DC Tacoma V6
    I actually removed the bulb and battery tray from the dome light. The dome light I bought comes with universal bulb adapters that plug into the old bulb housing. I then just ran a 12v battery source and a ground from the truck to the positive and ground that used to go to the battery tray. That way I could still use the switch on the side of the dome light box. For running the wires to the box I just drilled a hole in the side and pushed the wire loom plastic in for a better look.

    THIS is the style LED I used.

  5. Nov 27, 2010 at 2:03 PM
    #5
    Cape Codder

    Cape Codder Native Son

    Joined:
    Feb 20, 2010
    Member:
    #31714
    Messages:
    1,617
    Gender:
    Male
    First Name:
    Jack
    Hangin' Out in the Atlantic
    Vehicle:
    2010 TRD Sport 4x4 Access Cab 4.0L V6 Auto - Silverstreak Mica
    SOS Concepts Sliders waiting for POR-15 Rust Abatement (Spring 2016), OEM Silver Tube Steps 'til then OME 2.5" Suspension w/885 Coils & Dakars / LR UCA's w/SpecRide Bushings / Lifetime Alignment Wheeler's "Super Bump" Bump Stops Front & Rear / OME Carrier Bearing Drop / 2.5° Axle Shims (Eliminated Vibration) Moog Greaseable LCA Cam Bolts / ToyTech Sway Bar Relocate Kit / Stainless Steel Extended Brake Lines (Front & Rear) TIRES - LT275/70R17 (32.2") Firestone Destination A/T's (and Matching Spare) mounted on (5) 17”x8” (4.5” BS) Machined Aluminum Alloy, with Light Gunmetal Accents, Konig SixShooter Wheels with Hofmann Anthracite Adhesive Power Weights / McGard 65002 Chrome SplineDrive Lug Nuts / Cloned Schraeder EZ Sensor 33000 TPMS SNOW TIRES - Bridgestone Blizzak DM-V1 - P255/75-17 (32.1") mounted on Stock TRD Sport Wheels (5.5” BS) w/BORA 1" Wheel Spacers (to = 4.5” BS), Wheels Locks & OEM Lug Nuts Wheel Master 36" Stainless Steel Mesh Spare Tire Inflator/Checker attached to Rear Bumper / Spare Tire Lock TRD Skid Plate / Husky Mud Flaps / Redline Tuning Hood Struts / UltraGauge / Frame Hole Plugs / OEM Chrome Exhaust Tip Salex SLX102 - '05-'13 Tacoma GloveBox & Console Organizers Combo Set / GRID-IT (Console Cover Organizer) Color Matched SATOSHI Grill w/ Individual Letters Toyota Emblem (from ‘86 Toyota Land Cruiser) Hella Fogs on Elusive Elements Light Bar mounted behind Grill / Relocated Horns & Outside Temperature Sensor SilverStar zXe Headlights / SilverStar Fogs / Upper & Lower Color Matched Eyelids / LED's @ Dome, Maps, Lic Plate & 3rd Brake / 866 Foglight Lamps for Back-Up Lights WeatherTech Headlight & Foglight Protection / AutoBahnd RoadBlock (3M) Paint Protection System on Front End & Tailgate Avid Hitch Step Color Match Powdercoated / Avid LightBar Color Match Powdercoated / DIY Front Plate Holder mounted on AVID Light Bar (NO Bumper Holes) Emblems DeBadged / CBoy808's Silver OME EMU, Medium Gray Mall Rated, TRD Skid & Matte Black US Flag Decals SockMonkey Medium Gray Shadow Only Bedside, Door, Hood Scoop & Tailgate Decals DeBadged Leer 100LX Cap w/ Adventure Pkg including Thule 48” & 60” AeroBar Locking Removable Racks, Removable Front Window & Rear Door Remote Lock Charcoal/Blk Wet Okoles (front & rear) w/Front Seat Back Waterproof Zippered Pockets, Front Pistol Pockets & Seat Heaters / Drop Stop Seat Wedge Fillers 6 CD Changer w/SubWoofer (TRD Sport OEM) / BluLogic Hands Free (Blue Tooth) / Lutron Maestro Pico Remote Control for Driveway Floods Pro-Fit & Pro-Clip Device Holders for Cell Phone & GPS / Beltronics RX 65 Blue Detector / Garmin 885T GPS 30% Tint on Driver/Passenger Windows / WeatherTech Dark Front Window Deflectors / AutoMate AM-7 Alarm w/Remote Start WeatherTech FloorLiners (Front & Rear) / WeatherTech All Weather Mats (Over Front Liners) TRD "Offroad" Front Recovery Hook (Color Matched) / 2" x 30' & 3" x 30' Recovery Straps ELITE OffRoad 2" Receiver Hitch Shackle / Daystar Black Shackle Isolator / LifeLong Locks Class 5 Locking Hitch Pin Viair 00088 88P Portable Air Compressor / Rockford 12,000mah, 200/400 Amp, Portable Power Source & Mini Jump Starter Pop&Lock PL5305 Manual Tailgate Lock w/Color Matched Handle / Driver's Door Keytechniques Keyhole Cover OEM Bed Mat / 4 Extra Military Issue Bed "D" Rings Attached with Bed Bolts / 4 Extra Bed Rail Tiedowns & 2 Mini Tiedowns H3R Performance Halguard Halotron® 1 (Clean Agent) - HG250C 2.5lb Chrome Fire Extinguisher and Extreme Duty Quick Release Bracket (Mounted in Bed) H3R Performance Halguard Halotron® 1 (Clean Agent) - HG100C 1.4lb Chrome Fire Extinguisher (In Cab Back Door Pocket) H3R Performance MX500R - 5lb Dry Chemical Fire Extinguisher w/ Vehicle Mount (On Cab Back Floor, Not Yet Mounted in Bed) ResQMe GB0-RQMTWIN-O Orange Keychain Version of the Original LifeHammer (Hanging Within Reach in Cab) FogLight Anytime / Differential Breather / A/C Condensate Drain / Tailgate Hoseclamp Anti-Theft Mods Toyota Extra Care Platinum Vehicle Service Agreement (VSA) – 8 Year / 125,000 Miles TSB's: Transmission TSB / Blower Motor TSB / Steering Intermediate Shaft Bushing TSB 90L Accelerator Pedal D0L Recall / Driver & Passenger Seat Belts Recall / Inspect Wheels & Tires "BOB" Recall The “TW EMPTY UR WALLET MOD” and a Pile of Stuff Waitin' for Install
    Was trying to figure out where you mounted that box, ,til I saw you've got an '01.
    That would be the sidewall of the bed, Right?

    Nice Job
