electrical connection ID

Discussion in '1st Gen. Tacomas (1995-2004)' started by Tuluk, May 21, 2022.

  1. May 21, 2022 at 3:50 PM
    #1
    Tuluk

    Tuluk [OP] Well-Known Member

    Joined:
    Apr 23, 2022
    Member:
    #395640
    Messages:
    208
    Vehicle:
    1999 trd manual 4x4 ext cab

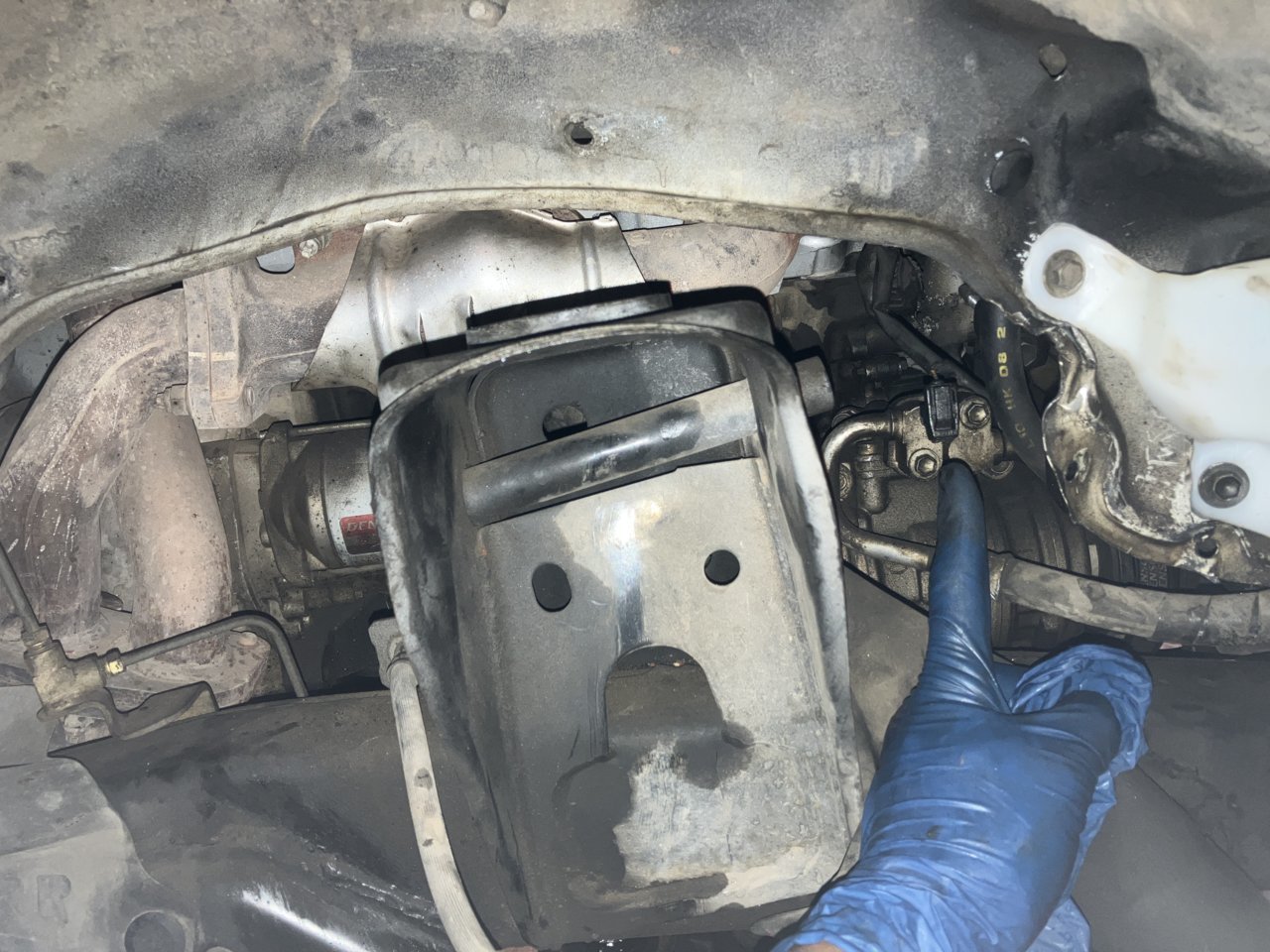

    While replacing my upper control arms I noticed this loose connector on the passenger side. Anyone know what is goes to? it’s seemingly too short to connect to anything I can see, My best guess was to the O2 sensor, but I feel like It would’ve already caused me problems if it were that.

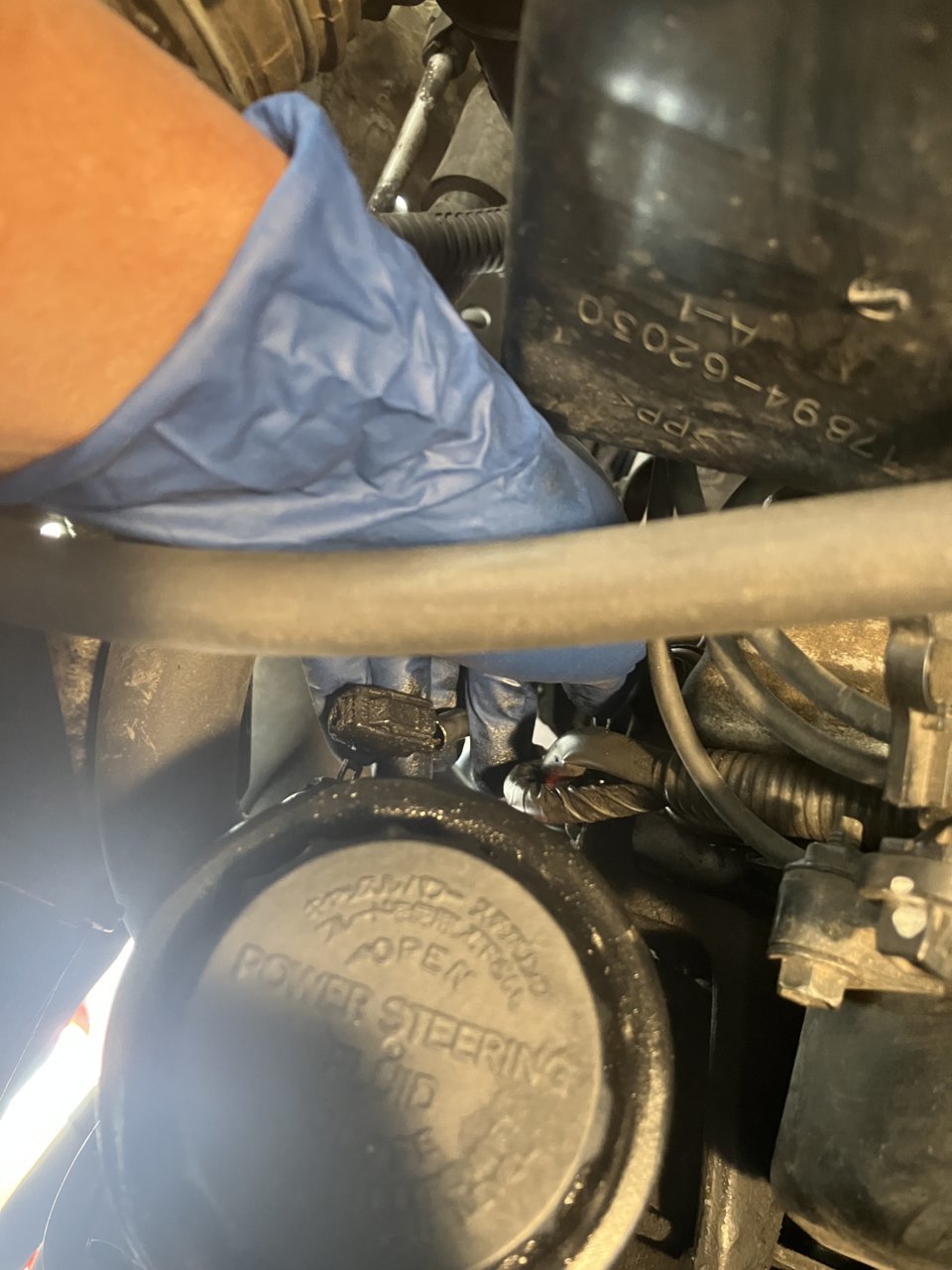

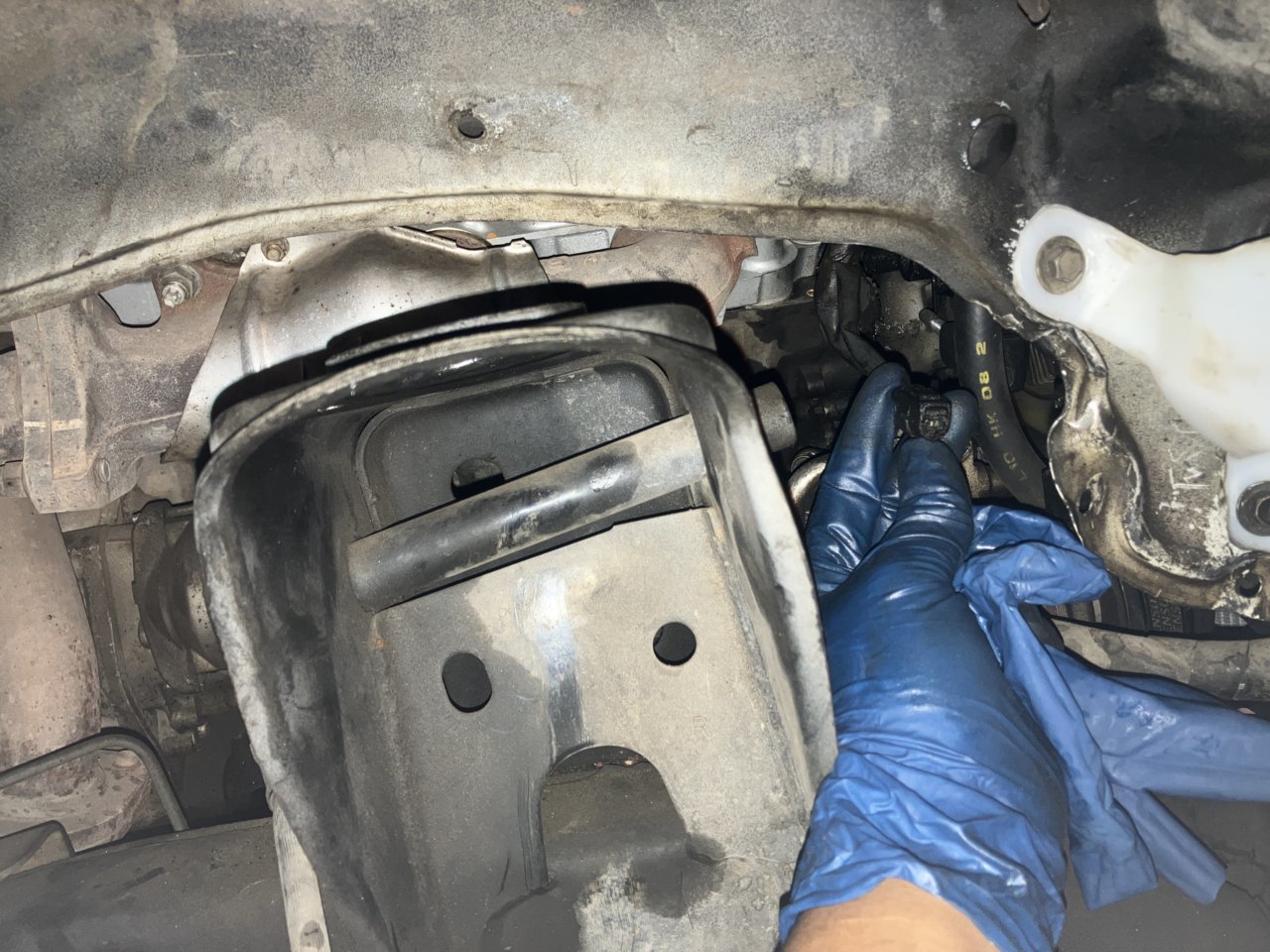

    first two pics are from the passenger wheel well, last one if top view, it sits in the wire loom below the power steering pump.



  2. May 21, 2022 at 7:19 PM
    #2
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    9,169
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    Wire color would help determine for sure but it looks like the connector for the power steering pressure switch or A/C compressor.

    Bivouac and MalinoisDad like this.
  3. May 21, 2022 at 7:47 PM
    #3
    Tuluk

    Tuluk [OP] Well-Known Member

    Joined:
    Apr 23, 2022
    Member:
    #395640
    Messages:
    208
    Vehicle:
    1999 trd manual 4x4 ext cab
    Thank you, I was looking at the diagram here, but the power steering threw me off because of the orientation on the diagram.

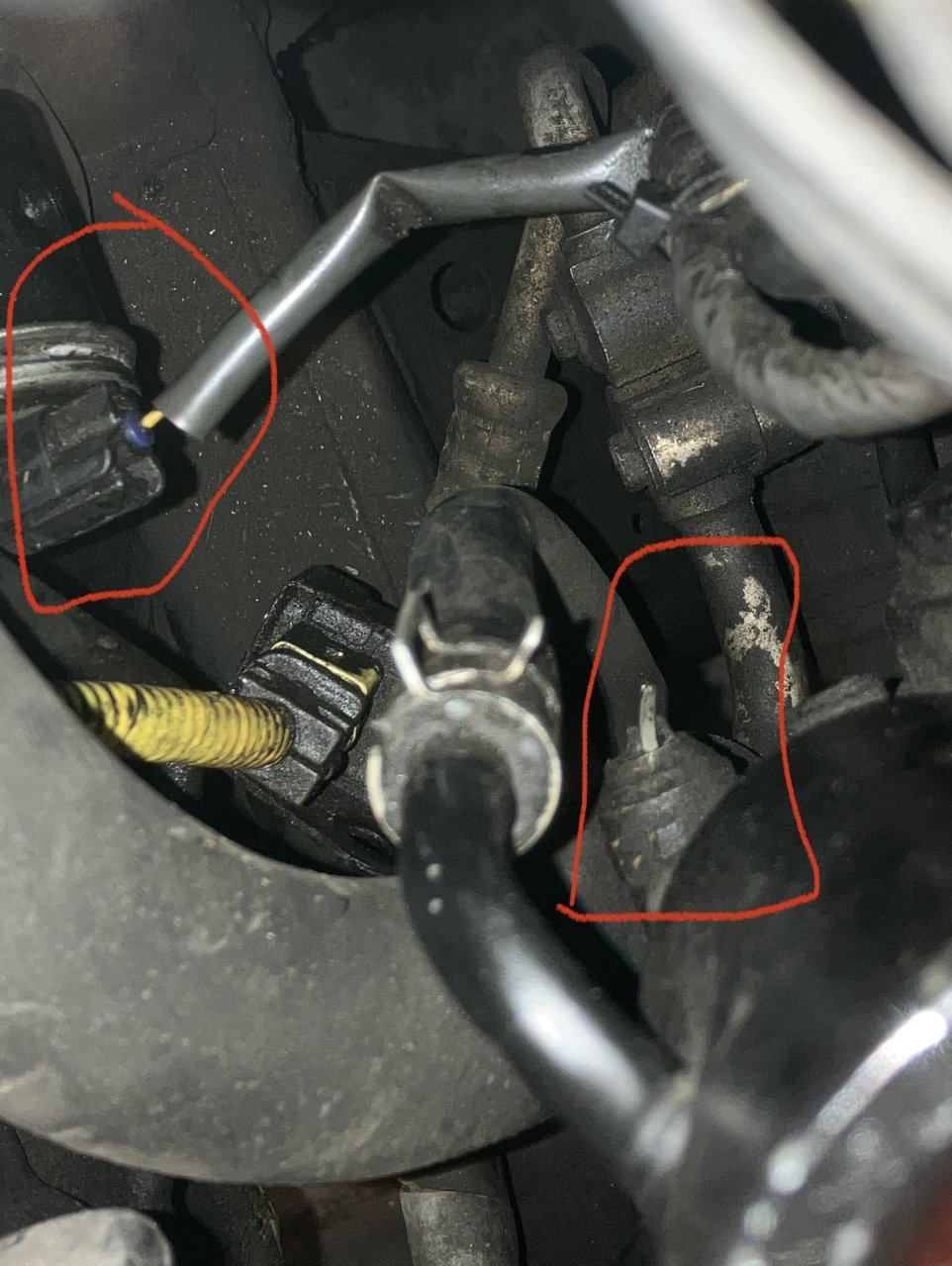

    you are right, it appears to be just that, yellow wired, and unfortunately I think it may be broken at the pump connector as you can see in this picture. 8 wonder why it hasn’t popped a code or something?
    I just replaced the steering rack with an oem unit and was going to flush the power steering pump next, do you think I should be overly concerned about repairing this as well?


    Dm93 likes this.
  4. May 21, 2022 at 8:00 PM
    #4
    Dm93

    Dm93 Test Don't Guess

    Joined:
    Mar 3, 2015
    Member:
    #150066
    Messages:
    9,169
    Gender:
    Male
    Texas
    Vehicle:
    2014 DC OR 6spd 4x4
    Predator tube steps, Ranch Hand grill guard, Magnaflow CatBack exhaust, Toyota tool box & bed mat, 2LO Module by @Up2NoGood, Rearview Compass/Temp Mirror, Tune by @JustDSM.
    I don't believe there's any logic to set a code for the power steering switch being open as that's it's normal state, it's only job is to tell the ECM to increase idle speed during low speed turning when there is increased line pressure on the steering system.

    While it's not an essential part since it's already broken it may be a good idea to replace it since it may start leaking or blow out completely along with all the steering fluid.

  5. May 21, 2022 at 8:16 PM
    #5
    Tuluk

    Tuluk [OP] Well-Known Member

    Joined:
    Apr 23, 2022
    Member:
    #395640
    Messages:
    208
    Vehicle:
    1999 trd manual 4x4 ext cab

    well that is very enlightening, I honestly didn’t know there was an electronic connection for the power steering before this, so I’ve learned something new. I will see about replacing this since I’m pulling the reservoir anyways. Thanks!

  6. Jul 26, 2022 at 11:13 AM
    #6
    gusto11071

    gusto11071 Well-Known Member

    Joined:
    Jun 17, 2020
    Member:
    #331669
    Messages:
    554
    Gender:
    Male
    First Name:
    Juan E.
    Brewster, NY
    Vehicle:
    2003 Tacoma Ext Cab DLX 2.7L 4X4
    Rear FJ Cruiser Disc Brakes, Front Tundra Brakes, Heated 4Runner Mirrors, 2018 Tacoma OEM 18" Wheels
    Mine was leaking from the o-ring on the sensor itself. I was curious to know has anyone converted to Electronic Power Steering?
