Electrical connector repair questions

Discussion in '3rd Gen. Tacomas (2016-2023)' started by Bowhunter32, Aug 24, 2018.

  1. Aug 24, 2018 at 9:33 AM
    #1
    Bowhunter32

    #1
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male

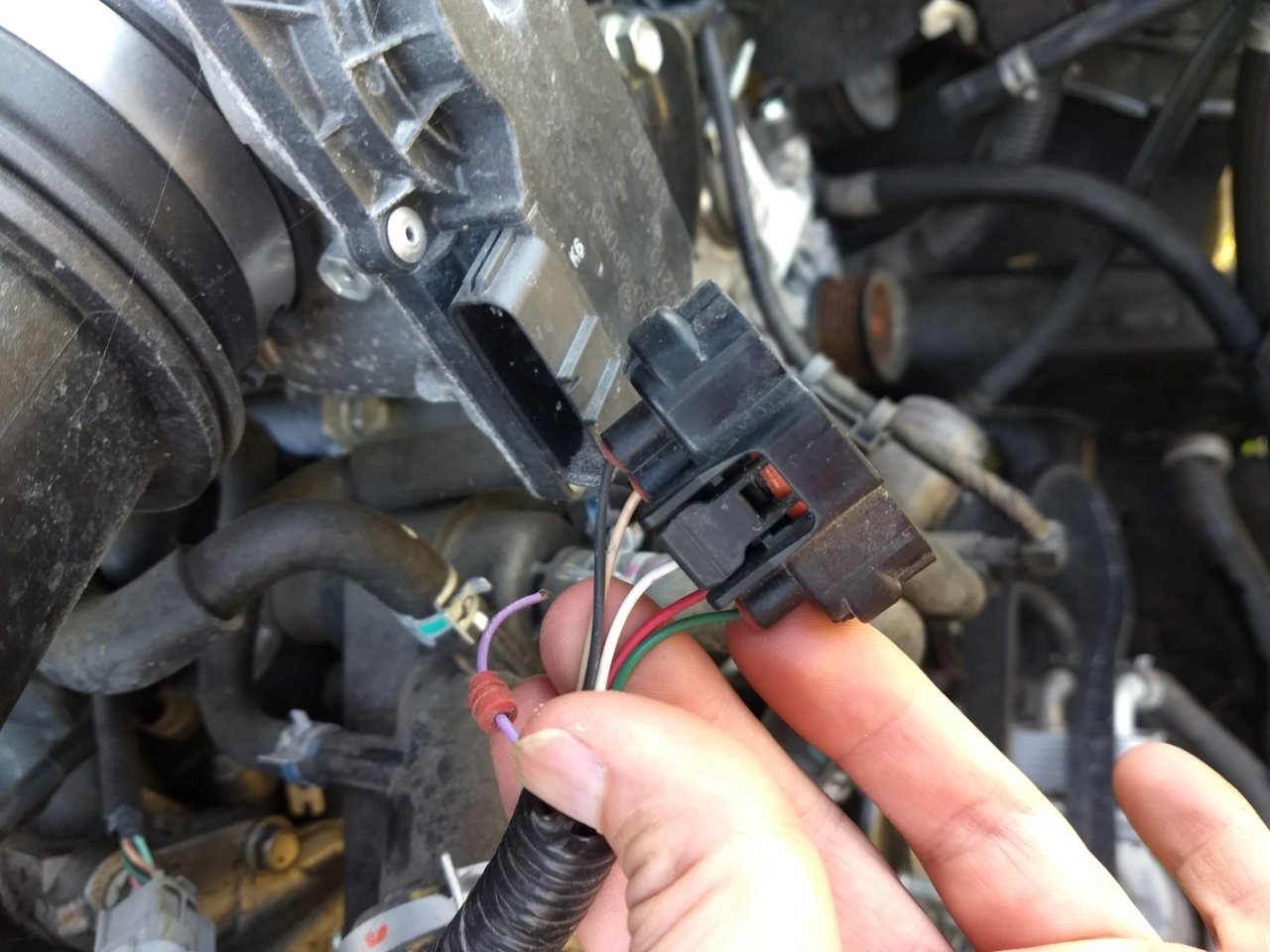

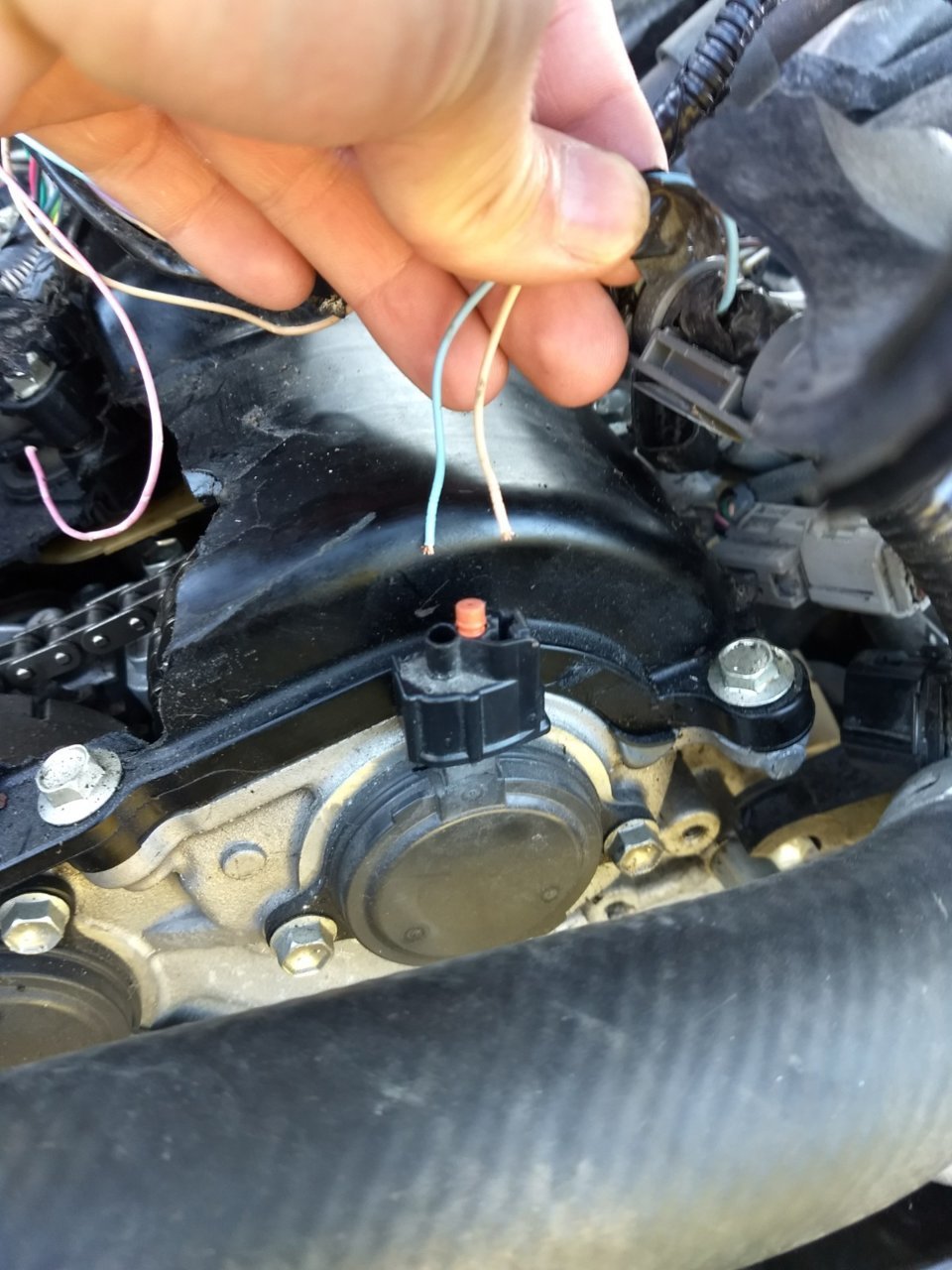

    Is there an easy way to pull these wire plugs out of the housing so I can reattach these wires? Also in the 2ndIMG_20180823_180308121.jpg IMG_20180823_193425553_LL.jpg IMG_20180823_192123571.jpg IMG_20180823_180452812.jpg photo with the 4 bare wires and 2 bare wires, what are these to and does anybody know where I can get replacement plugs? If not, could I just use a generic 4 plug and 2 plug and re-solder at both ends?

    Thanks

    Bowhunter32, Aug 24, 2018
    #1
  2. Sep 5, 2018 at 7:32 AM
    #2
    Bowhunter32

    #2
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male

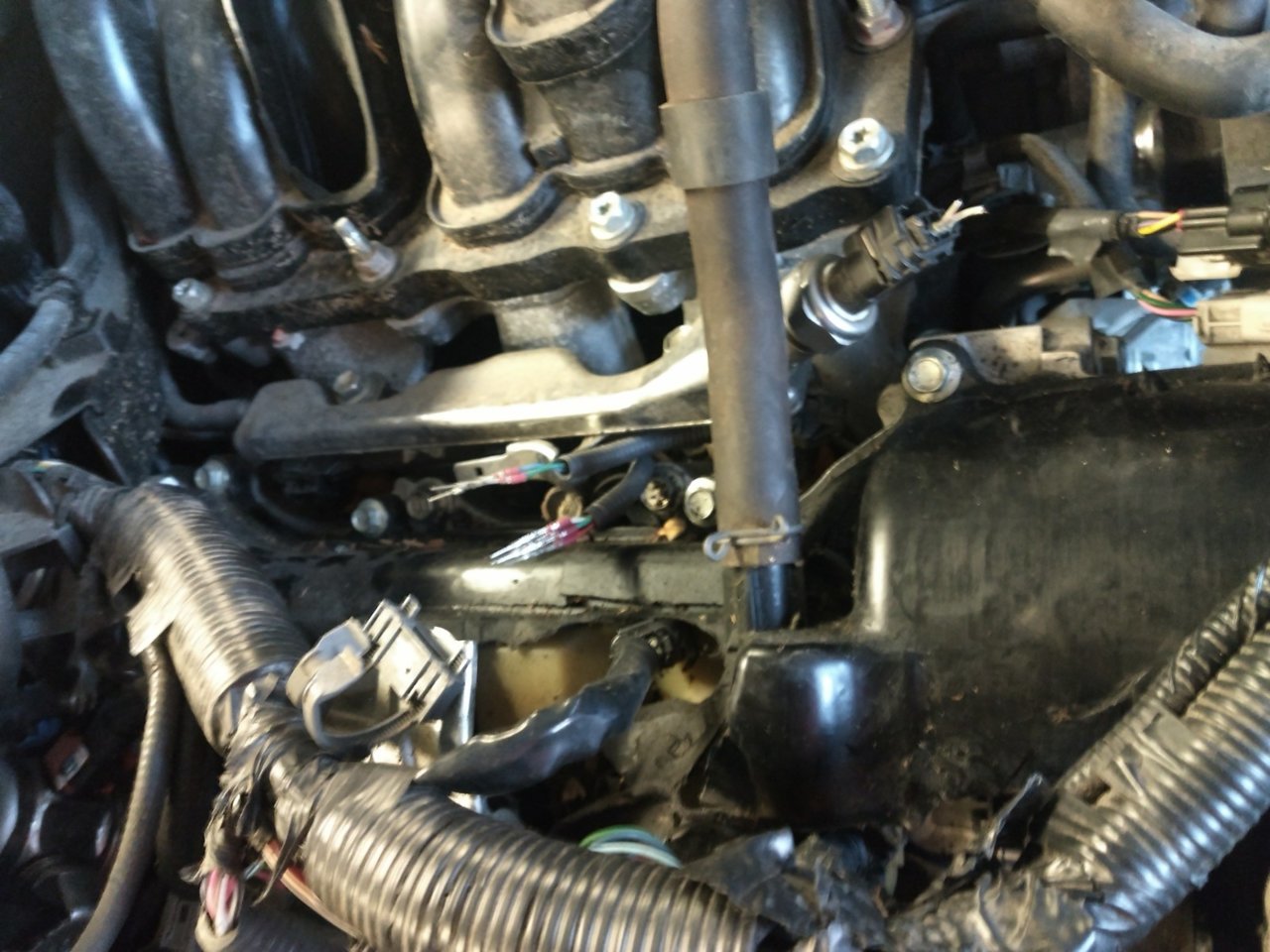

    well the connectors were pretty easy to figure out. can someone tell me if the blue wire on the upper cam sensor (passenger side of engine) is on the left (passenger) side or the right (drivers) side?

    Also, I am still at a loss for what the wires in the middle of the 2nd picture are for. There is a group of 2 and a group of 4 wires. do these go to 1 plug? or 2 separate plugs? what do they go to? If i can't find the 1 side to the plug i will probably just cut them at both ends and solder a new plug of a different style...

    Bowhunter32, Sep 5, 2018
    #2
  3. Sep 5, 2018 at 8:12 AM
    #3
    dnk

    #3
    dnk New Member

    Joined:
    Apr 18, 2016
    Member:
    #184616
    Messages:
    2
    dnk, Sep 5, 2018
    #3
  4. Sep 5, 2018 at 8:18 AM
    #4
    Bowhunter32

    #4
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male
    Actually I just used a couple very small flathead screwdrivers and the plugs came apart very easy.

    Bowhunter32, Sep 5, 2018
    #4
  5. Sep 6, 2018 at 4:11 AM
    #5
    Bowhunter32

    #5
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male
    Ttt

    Bowhunter32, Sep 6, 2018
    #5
  6. Sep 6, 2018 at 4:17 AM
    #6
    Mtn Mike

    #6
    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    754
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    You can probably purchase the individual pins and re-use the plastic plugs. The Electrical Depot sells pins for various plug types, as well as the needed tools to re-crimp. I've used them for other brands of plug pins, never Toyota's but it wouldn't hurt to ask them if they have Toyota plug compatible pins. theelectricaldepot.com/

    Mtn Mike, Sep 6, 2018
    #6
  7. Sep 6, 2018 at 4:19 AM
    #7
    Bowhunter32

    #7
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male
    Thanks, I but I just soldered them to the existing pins. The issues I'm having currently are in post 2.

    Bowhunter32, Sep 6, 2018
    #7
  8. Sep 6, 2018 at 4:24 AM
    #8
    Mtn Mike

    #8
    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    754
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    They sell the plugs too.

    Mtn Mike, Sep 6, 2018
    #8
  9. Sep 6, 2018 at 4:28 AM
    #9
    Bowhunter32

    #9
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male
    Awesome! If you could tell me what plug or plugs I need for the 6 bare wires in the middle of the second photo you would be my hero... I have no idea what they are to..

    Bowhunter32, Sep 6, 2018
    #9
  10. Sep 6, 2018 at 4:31 AM
    #10
    Mtn Mike

    #10
    Mtn Mike Well-Known Member

    Joined:
    Oct 29, 2017
    Member:
    #234494
    Messages:
    754
    Gender:
    Male
    First Name:
    Mike
    Spokane, WA
    Vehicle:
    2017 TRD OR AC
    haha, that I can not. I would send a pic of the face of the female plug end to the guy at Electrical Depot and see if he can ID it. I'd be happy to look at my truck for the missing side, but I'm away from my truck for the week.

    Mtn Mike, Sep 6, 2018
    #10
  11. Sep 7, 2018 at 5:47 AM
    #11
    Bowhunter32

    #11
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male
    Anyone know what those wires go to?

    Bowhunter32, Sep 7, 2018
    #11
  12. Sep 7, 2018 at 12:35 PM
    #12
    Bowhunter32

    #12
    Bowhunter32 [OP] Well-Known Member

    Joined:
    Jul 27, 2018
    Member:
    #260779
    Messages:
    69
    Gender:
    Male
    They are for the fuel injectors..

    Bowhunter32, Sep 7, 2018
    #12
