Electrical Connector to What??? Mystery...

Discussion in '2nd Gen. Tacomas (2005-2015)' started by rjbb2, Nov 2, 2011.

  1. Nov 2, 2011 at 12:22 PM
    #1
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    Does anyone know what this connector is for? Drivers side, in front of the battery, (this is an 2011 base).


  2. Nov 2, 2011 at 12:33 PM
    #2
    Jerez

    Jerez SoCal LED Dash Swap

    Joined:
    Feb 1, 2010
    Member:
    #30488
    Messages:
    15,836
    Gender:
    Male
    First Name:
    Roderick aka Royer
    Ontario/Chino Area (CALI)
    Vehicle:
    08 TRD ESport DCLB
    Half LT dont count
    I could be wrong as I am taking a quick guess off the top of my head but....it seems like it might be the plug for the outside temperature (at least I remember my 08 runs thru the driver side :thumbsup:)

  3. Nov 2, 2011 at 12:39 PM
    #3
    whippersnapper02

    whippersnapper02 Well-Known Member

    Joined:
    Dec 20, 2009
    Member:
    #27905
    Messages:
    35,214
    Gender:
    Male
    First Name:
    Christian
    Yorba Linda, CA
    Vehicle:
    10 MGM TRD OR 4wd Auto DCSB
    Banks Monster Exhaust, Pop n Lock tailgate lock, Hook-Ups tie down brackets, USA Spec Ipod adaptor, WO seat covers, color matched grill with Grillcraft insert, Tuffy locking bed box
    Don't worry about it if everything works?: notsure:

    live via :sandwich:

  4. Nov 2, 2011 at 1:01 PM
    #4
    TexasRobb

    TexasRobb New Member

    Joined:
    Oct 18, 2011
    Member:
    #65405
    Messages:
    4
    Gender:
    Male
    FGGM, MD
    Vehicle:
    09 Tacoma
    Does your truck beep when you lock and unlock using the key fob?

    If not, then it is to a small box that makes the audible sound. At least mine was located right in front of my battery and I just unplugged and removed it.

  5. Nov 2, 2011 at 1:02 PM
    #5
    Wally

    Wally Well-Known Member

    Joined:
    Jul 13, 2011
    Member:
    #59793
    Messages:
    159
    Gender:
    Male
    Ontario (the metric version)
    Vehicle:
    07 Access Cab TRD 4x4 6MT 1GR-FE

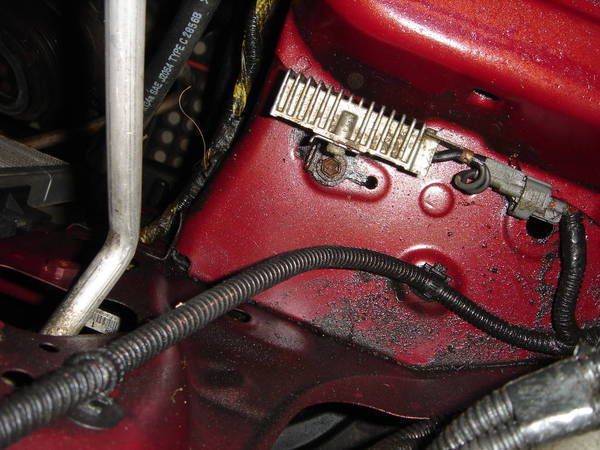

    If you look at photo # 5, there's a little recess there for a component. I'm not sure what it is w/o checking but it bolts into the wiring harness almost exactly where that plug would go if it wasn't taped around like it is.

    My plug is a different shape and the harness is slightly different but it's older too. They just dead end the harness instead of manufacturing a completely new piece. I can't see any pins ... is that an open connector or do they put a plug on it to close it off?

    Here's the exact same spot on my truck (an 07).

    [​IMG]

  6. Nov 2, 2011 at 6:03 PM
    #6
    wolftree

    wolftree Well-Known Member

    Joined:
    Oct 9, 2011
    Member:
    #64877
    Messages:
    685
    Gender:
    Male
    First Name:
    Rick
    Ohio
    Vehicle:
    2011 Tacoma 4x4 Regular cab automatic trans,
    Rear Leaf TSB, Bilstein 5100s, extra leaf added
    Bob, I don't know what it goes to either. I have one as well. Mine looked to be part of the front lighting circuit(Fog lights, I hoped). But the gauge of wire is too small. I guess the harness assembler had a hang over that morning and included a few extra wires.

  7. Nov 3, 2011 at 4:04 AM
    #7
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    That is what I was thinking too. Have a base so no temp. overhead console.

  8. Nov 3, 2011 at 4:06 AM
    #8
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    Everything works, just like to know cause I love having a pre-wired future mod:D

  9. Nov 3, 2011 at 4:07 AM
    #9
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    That could be it too...? Have a base, no keyless entry.

  10. Nov 3, 2011 at 4:11 AM
    #10
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    Originally thought same thing....maybe fog light hookup, but didn't check the wire guage.
    It goes to a wrapped cluster coming from the headlights, so I was thinking fog, temp sensor, or keyless beep?
    I am hoping temp sensor since I wouldn't mind adding overhead temp panel in the future.

  11. Nov 3, 2011 at 4:17 AM
    #11
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    Looks like that grey connector in mid right of your photo, except mine is black. Will check pins today. There is no cap on it. Just hanging there open in front of the battery. I am pretty sure that is it. The covered wire continues up and over the front of the radiator.

  12. Nov 3, 2011 at 4:35 AM
    #12
    Pugga

    Pugga Pasti-Dip Free 1983 - 2015... It was a good run

    Joined:
    Jun 18, 2010
    Member:
    #39131
    Messages:
    29,089
    Gender:
    Male
    First Name:
    Mike
    Massachusetts
    Vehicle:
    '13 Ford F-150 SCREW
    F-150 Mod
    It's for the flux capacitor. Your truck was apparently not equipped for super sonic speeds :cool:

  13. Nov 3, 2011 at 4:40 AM
    #13
    rjbb2

    rjbb2 [OP] Member

    Joined:
    Aug 28, 2011
    Member:
    #62512
    Messages:
    87
    Gender:
    Male
    First Name:
    Bob
    NC
    Vehicle:
    2011 4x4
    Lighted 4x4 switch, Ipod direct adapter, Intermittent wiper, cruise control.
    Damn, I thought it would be for the halogen headlight fluid reservoir, which of course does not come on the base model.:rolleyes: What was I thinking buying a truck without it.:rolleyes::eek:

  14. Nov 3, 2011 at 6:08 AM
    #14
    sloppyjoe

    sloppyjoe They are more like guide lines.

    Joined:
    Aug 10, 2010
    Member:
    #41487
    Messages:
    315
    Gender:
    Male
    All Over
    Vehicle:
    Silver and simple
    Non

    Have you tried to check to see when the wire is powered? This may help at least to know when the item is supposed to work? Just a thought, good luck! JOE>
