Electrical problems, WTH?

Discussion in '1st Gen. Tacomas' started by 45acp, Mar 3, 2011.

  1. Mar 3, 2011 at 2:09 AM
    #1
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,852
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L

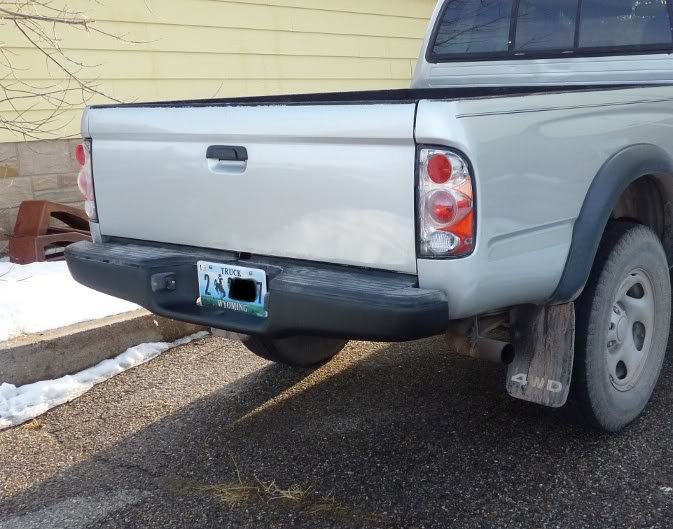

    So here's the deal. The last owner installed some aftermarket tail lights like so:

    [​IMG]

    and also added some "tail light converter" wiring that looked like an absolute nightmare.

    Someone backed into my truck and took out a tail light.

    I got a good deal on a used set of OEM tail lights courtesy of another member here.

    I removed the aftermarket lights and also removed the wiring associated with it. The original wiring for the lights did not appear to be molested in any way by the new wiring that looked as if it only connected the two tail lights.

    I connected the new lights and tested them. Nearly everything didn't work the way it's supposed to. I know it's not a bulb issue because I checked all of them. Some lights would work while others didn't and I even had one that served two functions.

    What the hell is going on??

  2. Mar 3, 2011 at 5:40 AM
    #2
    EnolaGaia

    EnolaGaia Well-Known Member

    Joined:
    Sep 9, 2006
    Member:
    #9
    Messages:
    1,136
    Gender:
    Male
    Midwest USA
    Vehicle:
    '01 & '04 S-Runners
    01 SR: Double Cab conversion, S/C, lowered.
    Here's my guess ...

    The aftermarket lights were wired for the 1995.5 - 2000 version of the taillight grounding scheme (the ground layout changed in 2001), and they wouldn't work on the '04. He went to the trouble of rewiring to emulate the older grounding scheme (hence the oddball additional wiring).

    What year Taco did the most recent tails come from? If they were pre-2001, you'll have to re-install the prior owner's patch wiring to make them work right. If they were 2001 - 2004, there's additional damage or a wiring fault somewhere.

  3. Mar 3, 2011 at 7:45 AM
    #3
    45acp

    45acp [OP] Paint me back in Wyoming again...

    Joined:
    Aug 9, 2009
    Member:
    #20861
    Messages:
    5,852
    Gender:
    Male
    First Name:
    Jonathan
    Boring, Wisconsin
    Vehicle:
    bone stock / unmolested 04 2.7L
    Well crap! I didn't know the layout changed in 2001. The used pair I installed came off a 2000 taco...

  4. Mar 3, 2011 at 9:19 AM
    #4
    clarkie152

    clarkie152 Well-Known Member

    Joined:
    Dec 25, 2009
    Member:
    #28146
    Messages:
    533
    Gender:
    Male
    MA
    Vehicle:
    13 MGM Tacoma DCSB
    None, yet
    2000 tail light [​IMG]

    2001-04
    [​IMG]

  5. Mar 3, 2011 at 9:23 AM
    #5
    only_K

    only_K 1st Gen. Pride

    Joined:
    Nov 20, 2009
    Member:
    #26257
    Messages:
    507
    Gender:
    Male
    First Name:
    Kevin
    Turlock, CA
    Vehicle:
    99 Tacoma PreRunner
    K&N drop in filter, Magnaflow Exhaust, Billet grille. All 4 Bilstien 5100s. Fronts set at 2.5". Rear 2" AAL.
    is it possible to wire the 01-04 tails to a 95-00?

  6. Mar 3, 2011 at 12:37 PM
    #6
    Skillet

    Skillet Well-Known Member

    Joined:
    Jan 18, 2011
    Member:
    #49503
    Messages:
    46
    Gender:
    Male
    First Name:
    Caleb
    Palmdale,Ca
    Vehicle:
    99 tacoma prerunner 3.4 auto trans trd,
    Trd edition,black powdercoated wheels,king Coils front, king double bypass rear, k&n cai, jba headers,borla exhuast,optima batt,xenon hid,crystal headlights,rewired entire car to four guage wiring on big stuff alt starter etc.,alpine screen,focal honeycomb components,JL four channel amp,dynamated entire inside of truck and hoodliner,limo tint all rear windows,LEDs everywhere possible dome light, tails,fronts,04 tailights,
    Yeah it can be done, plugs right in and works perfectly,I have a 99 and have tails from a 2004. I love the newer look! No wiring problem for me must be you're fuses,I would check them.

  7. Mar 3, 2011 at 2:53 PM
    #7
    EnolaGaia

    EnolaGaia Well-Known Member

    Joined:
    Sep 9, 2006
    Member:
    #9
    Messages:
    1,136
    Gender:
    Male
    Midwest USA
    Vehicle:
    '01 & '04 S-Runners
    01 SR: Double Cab conversion, S/C, lowered.
    2001 - 2004 tails will work with the older grounding layout, but not the other way around.
