Energy rear shackle bushing *solved*

Discussion in '2nd Gen. Tacomas (2005-2015)' started by Sandman614, Jul 10, 2016.

  1. Jul 12, 2016 at 4:28 PM
    #21
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Exactly. So that's the Old Man Emu bushing on the left and factory on right? For the shackle and not spring eye?

  2. Jul 12, 2016 at 4:30 PM
    #22
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    That's exactly right. It's the metal shell on the factory bushing that seems to be causing the problem.

    Thank you for your pics!

    :proposetoast:

  3. Jul 12, 2016 at 4:32 PM
    #23
    Pigpen

    Pigpen My truck is never clean

    Joined:
    Mar 6, 2012
    Member:
    #74319
    Messages:
    8,892
    Gender:
    Male
    Northwest Montana
    Vehicle:
    2012 AC Manual 4.0 4x4 Base Model
    Access cab toolbox/ dog bed with seats and headrests deleted, waterproof TRD seat covers, yellow wire mod, diff breather relocated to tail light, engine block heater, Leer topper with Yakima tracks and rack, Yakima rack on cab, Ride Rite with Daystar cradles, CBI hidden front hitch, wired for winch front and rear Warn quick connect, Warn x8000i on external carrier, sway bar delete, trailer plug relocated to bumper, Pelfreybilt IFS and Mid skids, ECGS front diff bushing, ARB CKMA12 compressor, 255/85/16 Toyo M55 load E tires on stock steel rims, Up2NoGood heated mirror kit, Husky X-act Contour front floor liners, Northstar AGM 27F battery, Pelfreybilt bolt on sliders with kickout and top plates, TRD Pro headlights, Depo smoked tail lights, Energy suspension body mount bushing kit, Cobra 75WXST cb with rear mounted Wilson 3' antenna on Shmellmopwho mount, OME Dakar leaf packs with AAL, Billstein B110 rear shocks, 5100s with 885 coils and 1/4" spacers, SPC LR UCAs, 2wd low range mod
    The reading comprehension problem was mine. I have nothing to contribute to the conversation. :notsure:

  4. Jul 12, 2016 at 4:34 PM
    #24
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional

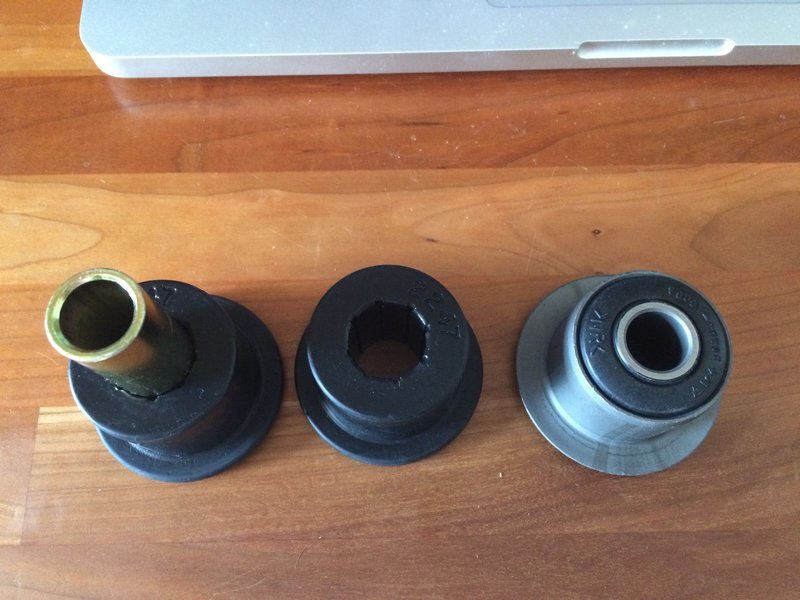

    The metal/rubber bushing is a factory bushing and I'm about 95% sure the poly ones are what OME sent with my springs. They are both for the shackle side of the springs. My OME set had a set of bushing already install in front, which appear to me to be factory style.

    I have a set of red Energy Suspension bushing marked 2176 as well but I think they were for 89-95 and 1st gen springs. But FWIW they measure 0.565" ID of the sleeve and 1.625" OD on the bushing.


    Last edited: Jul 12, 2016
    Sandman614 [OP] likes this.
  5. Jul 12, 2016 at 4:36 PM
    #25
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    That would do it, the ID of that sleeve is about 1.365" (very roughly, it's kind of an eyeball with the caliper) and I suspect would be a very tough fit.

    Last edited: Jul 12, 2016
    Sandman614 [OP] likes this.
  6. Jul 12, 2016 at 6:30 PM
    #26
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Now do I still get that extra set or take mine out and cut the sleeves out?

  7. Jul 12, 2016 at 8:00 PM
    #27
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Extra set of which?

    I'd cut or press out any sleeve, which is probably supposed to still be attached to the rubber of the original bushing but has torn off.

  8. Jul 12, 2016 at 8:03 PM
    #28
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Extra set of shackles I found that a friend has.

  9. Jul 12, 2016 at 8:07 PM
    #29
    DaveInDenver

    DaveInDenver Not Actually in Denver

    Joined:
    May 18, 2013
    Member:
    #104390
    Messages:
    3,595
    Gender:
    Male
    First Name:
    David
    Grand Junction
    Vehicle:
    2008 Super White TRDOR AC 6MT
    Unexceptional
    Copy that. If it was me I'd start with fresh shackles - get out the old stuff, coat of paint, fit in new bushings.

    Crom likes this.
  10. Jul 16, 2016 at 6:53 PM
    #30
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Tackled this today. I used a redneck press to press out the rubber and inner sleeve, then cut slits in the flange with my Dremel then made a cut down through the sleeve with a metal cutting blade on my jigsaw, and finally hammered it out. The Energy bushings slide in by hand and the inner sleeve is a little tight so I put it back on the press with minimal pressure.
    IMG_20160716_174435.jpg IMG_20160716_180710.jpg IMG_20160716_180842.jpg IMG_20160716_181112.jpg IMG_20160716_182834.jpg

    Last edited: Jul 16, 2016
  11. Jul 16, 2016 at 7:06 PM
    #31
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Hell yeah! Handled like a boss. ;) :cheers:

    DaveInDenver likes this.
  12. Jul 19, 2016 at 8:12 PM
    #32
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    That's a 1.5" pvc coupler, I did end up squashing it because the 2nd bushing was a little more "at home" than the first.

  13. Aug 6, 2016 at 6:56 PM
    #33
    moweryaviation

    moweryaviation Life begins, where the pavement ends!

    Joined:
    Jul 22, 2015
    Member:
    #160061
    Messages:
    211
    Gender:
    Male
    Dixon, California
    Vehicle:
    2011 Tacoma, 4x4, manual, access cab
    3" (or so) lift, Dakar leafs & 886 up front.OME Sport shocks, Pro-Crap struts up front, SPC UCA's, Brute Force Fab front and rear, super winch 9500, KM2 255/85, Holly Brakes, SS Brake lines, DOT 4 Fluid, Custom bed system, independent bed LEDs, black head lights, Mag Grey grill, DIY 50$ roof tie down system, On Board Air, DIY spare tire swing arm, DIY painted rims, Energy bushings, camp lights, independant power system, BAMF Bolt on Sliders, DIY IFS Skid, DIY Roof Rack, Bad ass additude, one old smart dog, one young dumb dog, and one hot Burnett!
    Thanks for the pics! Ill see if mine have that, now that I assembled it all back together!

  14. Sep 13, 2016 at 3:38 PM
    #34
    Crom

    Crom 2/3 way thru. I'll be back OCT 23, 2021

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,507
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    @Sandman614

    I picked up a set of spare stock shackles a while back to work on.

    I cut / drilled the rubber on the flange outta the way, then used some fire.

    [​IMG]

    Here is a nice shot of the two shells, if you look inside you can see they don't quite touch in the middle.
    [​IMG]

    Gonna make some cuts like you I think.

    Last edited: Sep 13, 2016
  15. Sep 13, 2016 at 6:12 PM
    #35
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Sweet, cutting is the ticket.

  16. Jan 5, 2017 at 6:01 AM
    #36
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    261
    Gender:
    Male
    First Name:
    Kellen
    Vancouver, BC
    Vehicle:
    07 DCSB 6MT 4x4
    Pop rivets and JB Weld.
    The TLDR makes it sound like these tests were failures, but the last two posts in this thread look like you guys made some progress? Maybe I'm mistaken.

    So no replacement bushings successfully fit in the shackles yet? Thanks for the R&D work regardless.

  17. Jan 5, 2017 at 6:03 AM
    #37
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    The energy bushings fit.

  18. Jan 5, 2017 at 6:04 AM
    #38
    Kasbien

    Kasbien Well-Known Member

    Joined:
    Sep 30, 2013
    Member:
    #113581
    Messages:
    261
    Gender:
    Male
    First Name:
    Kellen
    Vancouver, BC
    Vehicle:
    07 DCSB 6MT 4x4
    Pop rivets and JB Weld.
    The ones out of the 8.2116 kit? (with sleeve removal)

    EDIT: PM'd him to clarify and yes, they fit.

    Last edited: Jan 7, 2017
  19. Jan 16, 2017 at 12:57 AM
    #39
    Boomkanani

    Boomkanani Well-Known Member

    Joined:
    Nov 7, 2015
    Member:
    #168939
    Messages:
    995
    Gender:
    Male
    First Name:
    Mike
    Goldsboro, NC
    Vehicle:
    2009 TRD OffRoad DCSB - 6 Speed
    Some stuffz
  20. Jan 16, 2017 at 4:17 AM
    #40
    Sandman614

    Sandman614 [OP] Snarky TWSS elf, Travis #hotsavannahdotcom, LRGRNR

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    34,653
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    No
