Energy Suspension body mount bushing replacement on 1st gen double cab

Discussion in '1st Gen. Tacomas (1995-2004)' started by penadam, May 20, 2020.

  1. May 20, 2020 at 9:48 PM
    #1
    penadam

    penadam [OP] Well-Known Member

    Joined:
    Feb 25, 2019
    Member:
    #284448
    Messages:
    182
    Denver
    Vehicle:
    2003 Double Cab Tacoma TRD

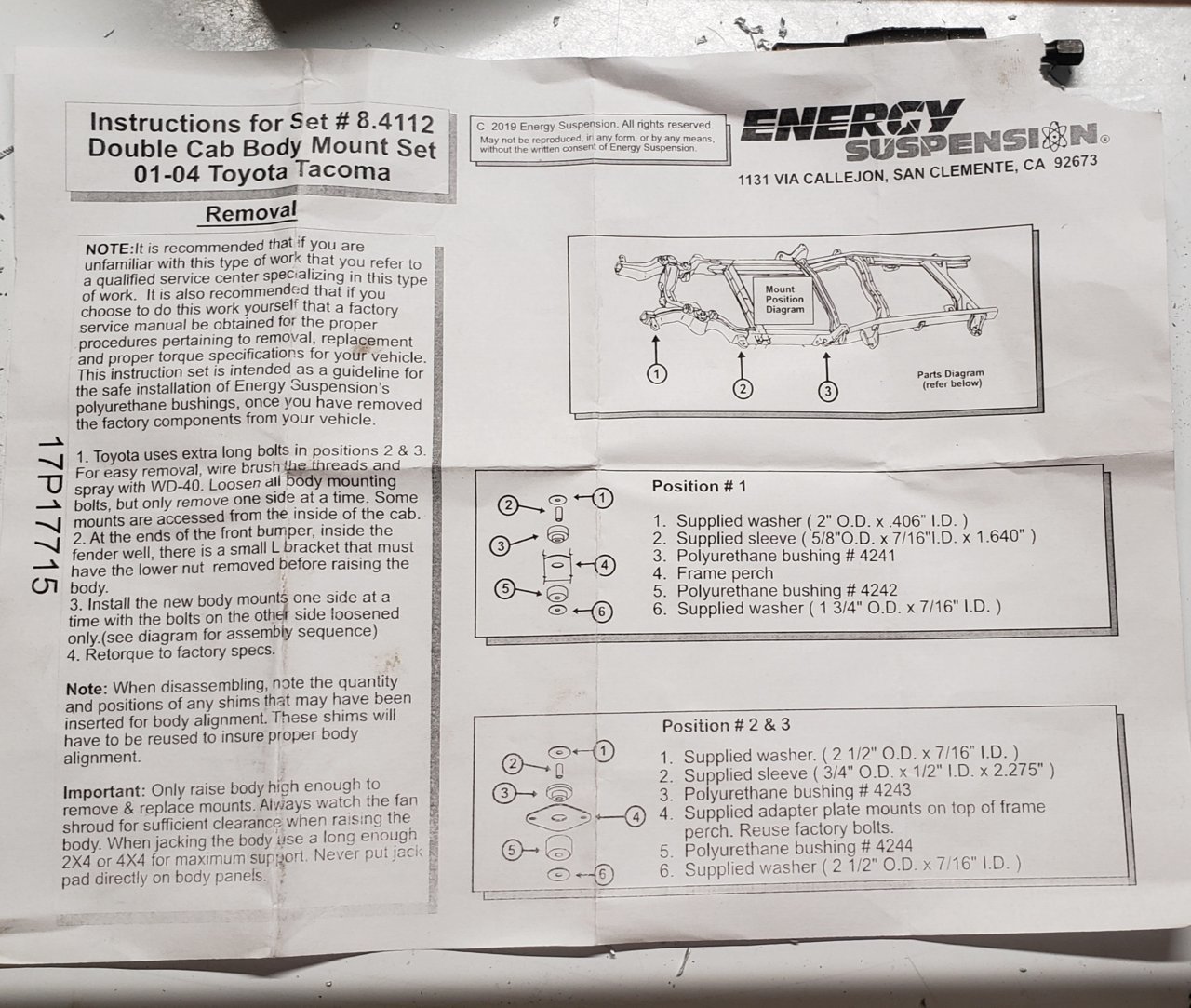

    I'd noticed my body mount bushings were worn out and needed replacing, so like many others, ordered the energy suspension bushings. I ordered part 8.4107G, which many sites claimed was for all 2001-2004 tacomas. Turns out this isn't exactly the case. The rearmost (3rd) top bushing in this kit it too short for a double cab, which causes a misalignment and potential body to frame contact. I'm working to get the correct parts, but had to reinstall my OEM bushing until I can get them.

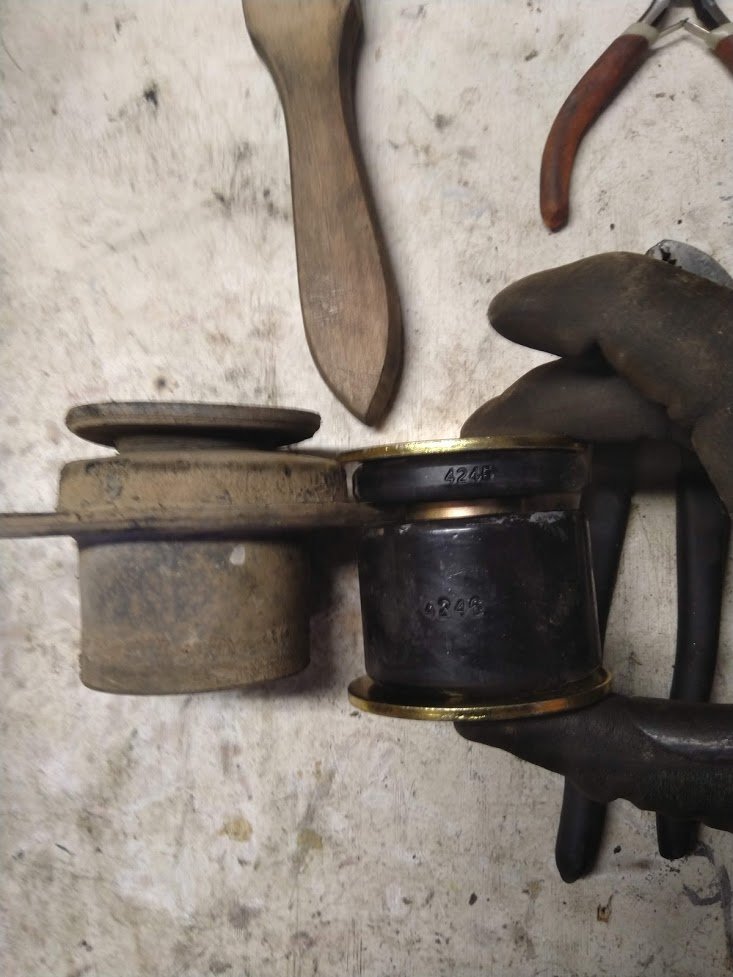

    Stock vs OEM rearmost bushing (position 3). Over a 1/4" difference in height.
    K40h6uRYz6oB0H3E5QKfaqjeg7ylYwmV4fw_yvsZ_88e542a635e0355607b82ab282fe5cd89cd5d6bc.jpg


    That out of the way, here's a quick write to hopefully make the job go smoother.

    About a week before you start, spray all the bolts down the PB blaster. There's 6 bushing bolts, and 8 plate bolts (2 each on the middle and rear mounts). Doesn't hurt to wire brush the bolts while you're down there.

    When you're ready, gather supplies. Besides standard hand tools, it really helps to have a impact, some crows feat or swivel head wrenches, and ratcheting wrenches. Don't forget to have a handful of 2x4s as well. You'll want some at least 4' long to get the leverage you need. Shorter ones are also handy for supporting the body.

    Next, remove all the nuts on the body bushing bolts on the side your're going to replace first, and looses them as much as you're able on the other side. If you don't, it's unlikely you'll be able to move the body up high enough to remove the OEM bushing, especially on the middle mount. You may also want to loosen your steering column slip joints at this point. I didn't, and had to fight to get it re-aligned once I was done.

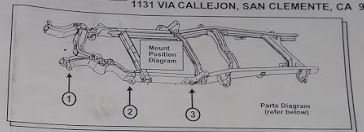

    Position 1 bolts are at the radiator and are easily accessed without removing anything.

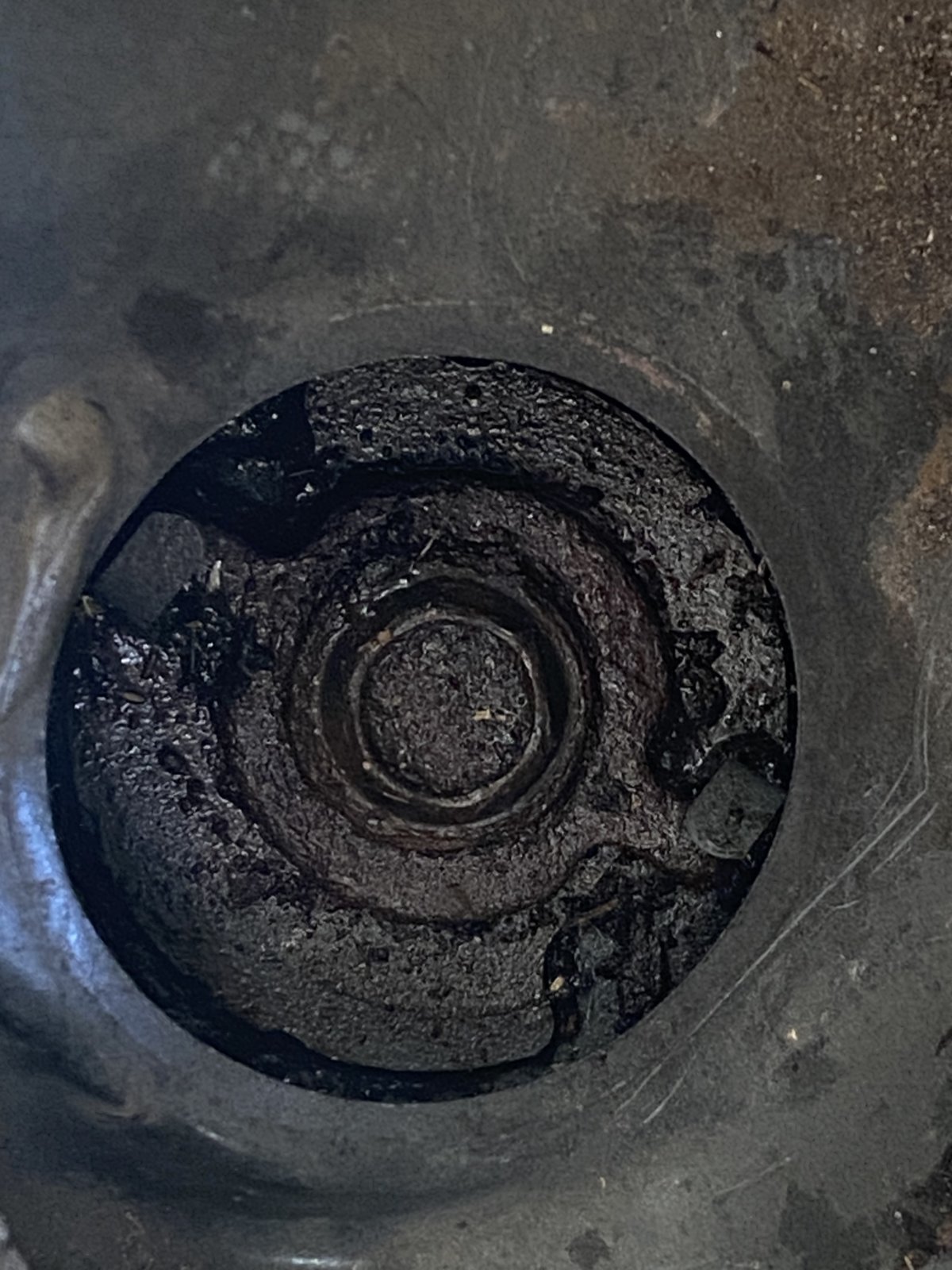

    Position 2 requires the front door lower trim pieces to be removed and the carpet pulled back slightly. Remove the black cap, to access the bolt head.
    Position 3 is behind the rear seats. Fold the seats down, the pull up the carpet. Remove the black cap, to access the bolt head. Note there are built in retainers, so you need to rotate the bolt before you can remove it.

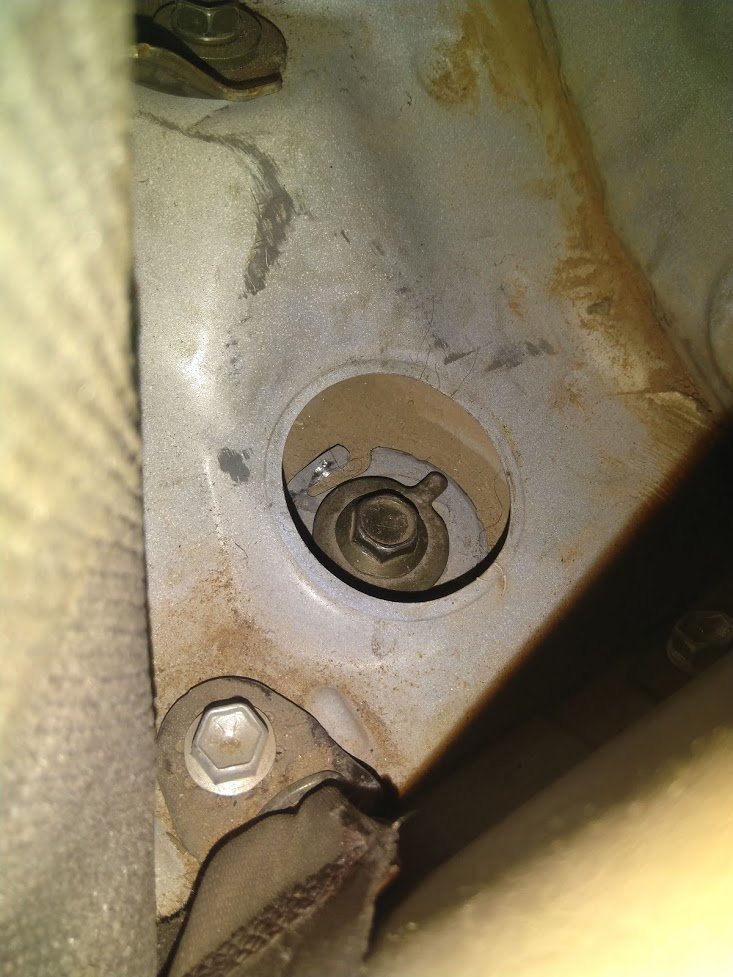

    Position 3 bolt showing retainers
    Ajneg1Hq8QduoPMED4opO7iS44V4Pw65T52FOkiA_94f7a02b97669acb8d5995ca36c516105fcd411d.jpg

    You'll want to start replacing the bushing from front to back, doing one side then the other.

    For position 1, you'll be able to get enough clearance to remove and replace the bushing using a pry bar. Install the new bushing and old bolt, but do not install the nut. You can't get clearance to remove the other bushings on that side with this one tight. I'd recommend pulling all the bolts, wire brushing them and then giving them a coat of anti-seize or grease. Some of mine had a fair bit of pitting developing.

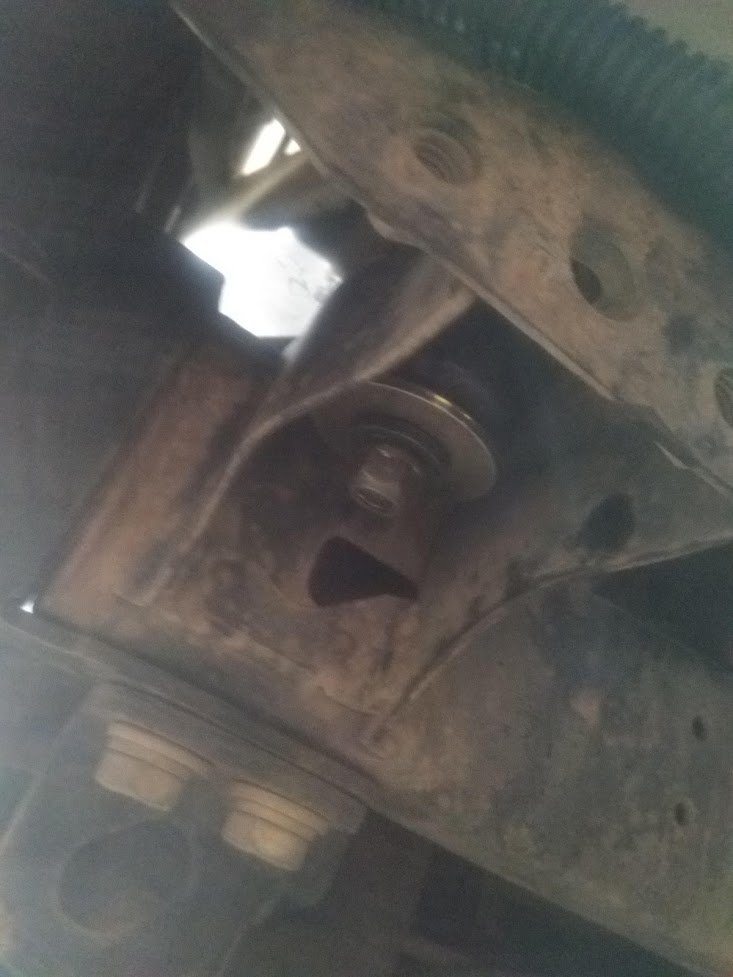

    Position 1 new bushing installed
    QzljUhxv0H1exW12_0C3lVtq5MFvAf3skZ-XpjsA_ee2a1fa6d19691a602fb2f97524d9371cc20602e.jpg

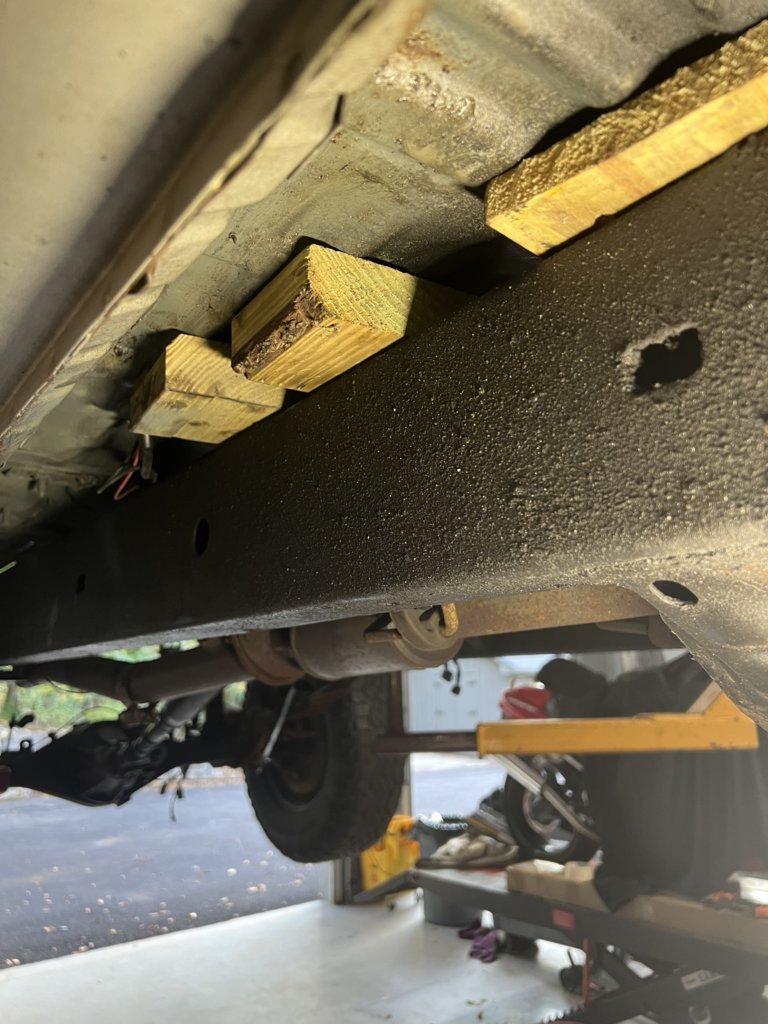

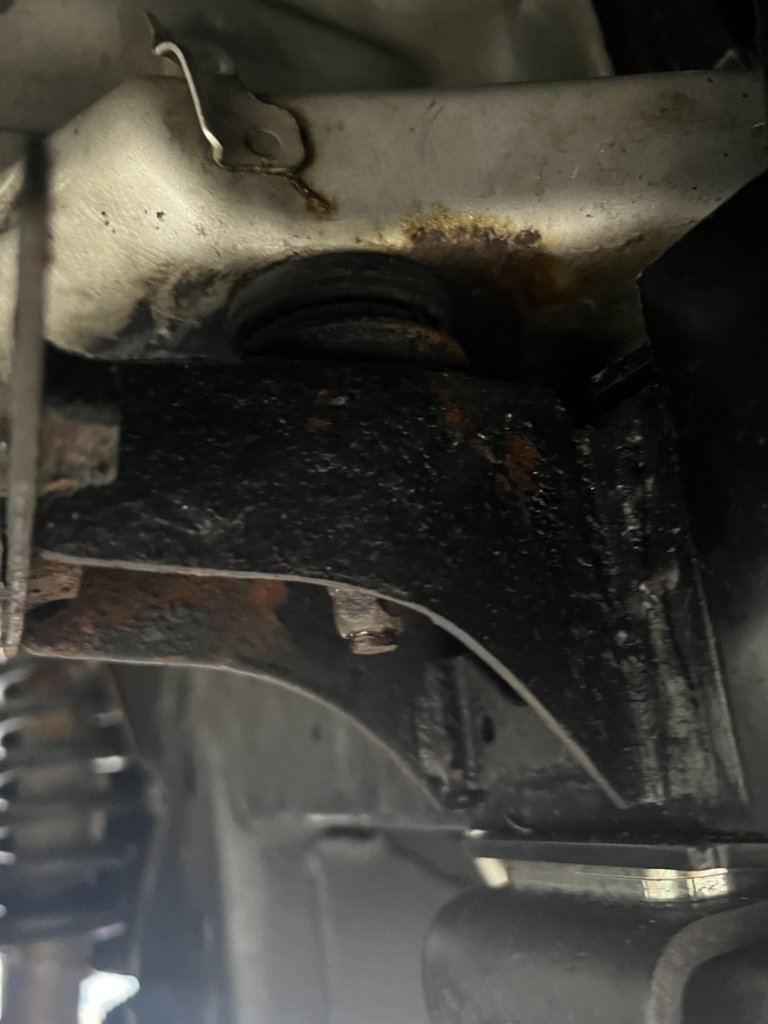

    For position 2, put a floor jack and some wood just forward of the bushing on the pinch weld. Raise the body using the jack enough to get a piece of wood in to use as a lever. Sliders make this way easier. Make sure to put some wood in to hold the body high enough above the frame. Do not rely on the jack and wood alone as it's extremely unstable.

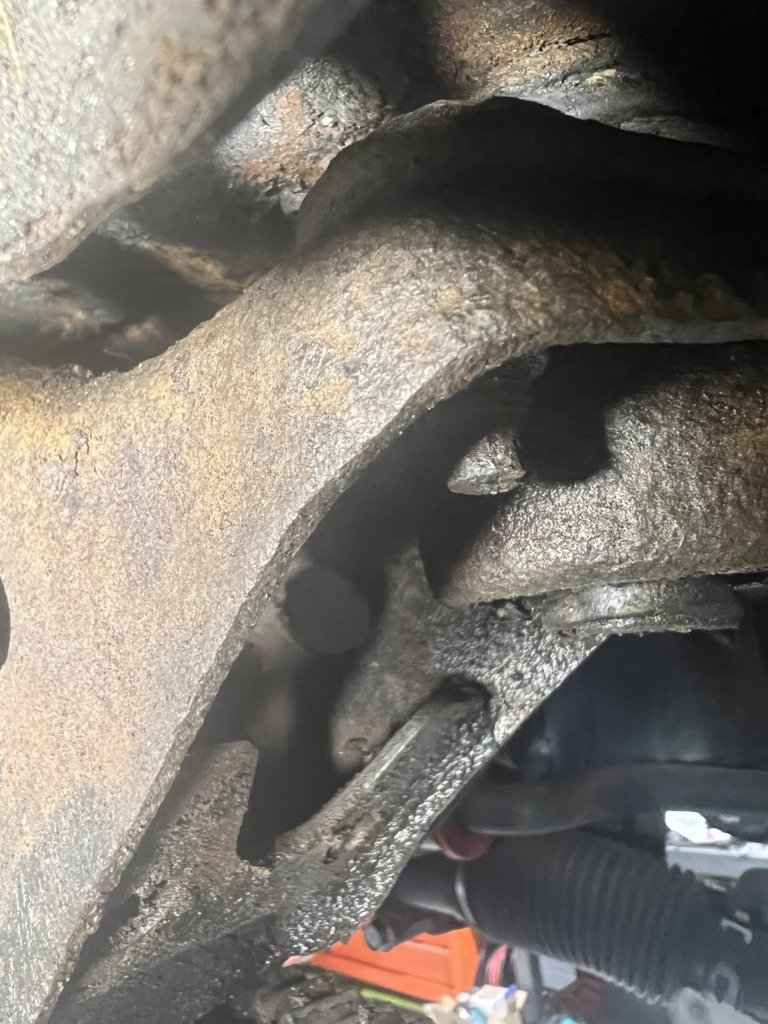

    Once you've raised the body enough you'll have access to the nuts/bolts on the bushing plate. These were the most difficult to remove, as there's very little clearance between the bolt head and body. Ratcheting wrenches are a huge plus here. Take the time to verify that the nuts on the bottom of the frame perch aren't welded on. I had some that were and some that weren't (or at least weren't anymore). If they are, remove the bolt from the top, if they're not, an impact on the bottom makes short work of them.

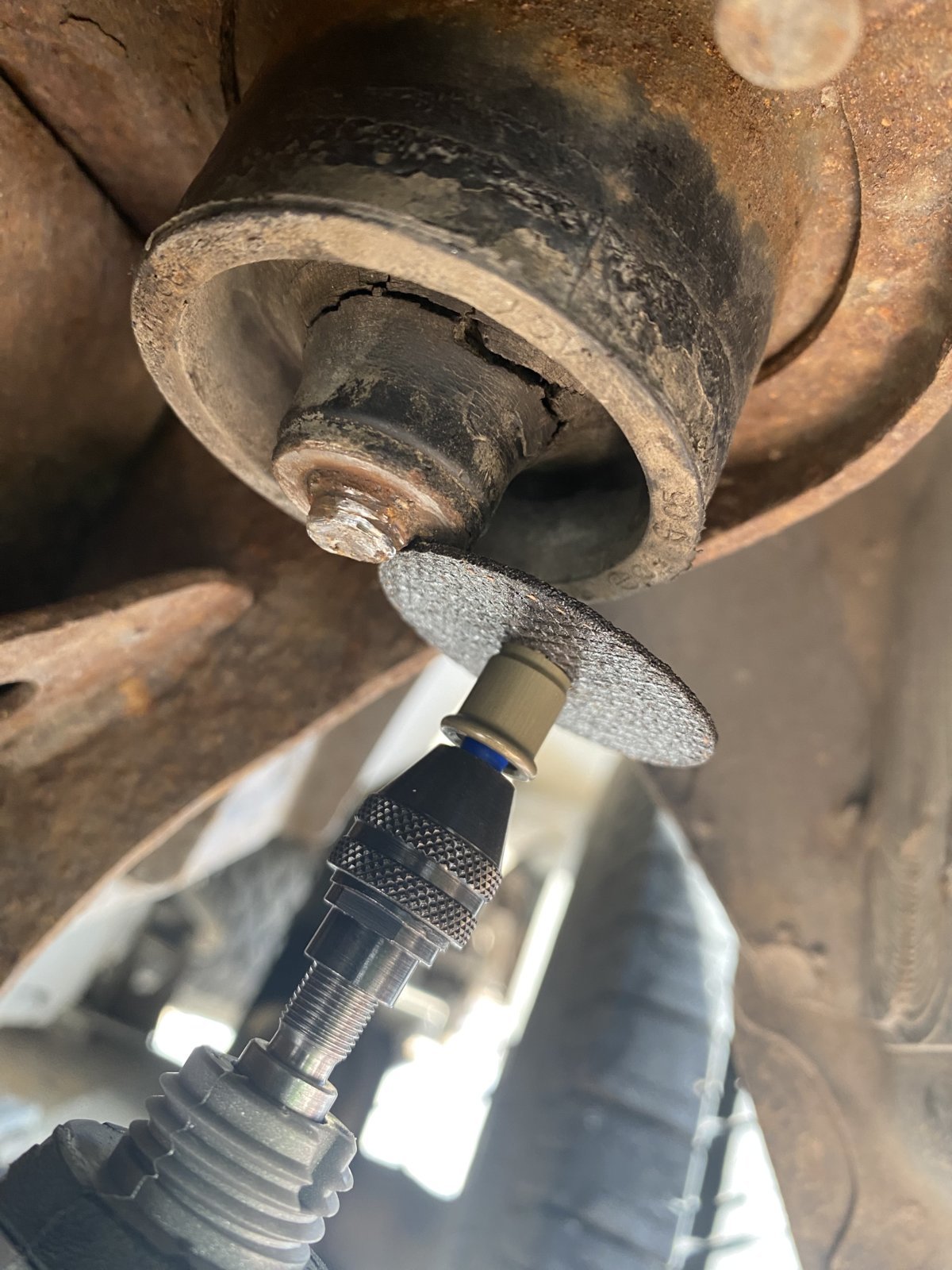

    Once removed, you can slide the OEM bushing out. This takes an ton of room. Make sure to lift in small increments, taking the time to look for any stressed connectors between the frame and body, including the steering column. This is worst on the passenger side. Install the new bushing, and the install the bolt, but not the nut.

    Position 3 is very similar to position 2, but slightly easier. These nuts were welded, so removal was from the top. Easy on the passenger side, but the gas tank really limits access on the drivers side. Again, ratcheting wrenches and low profile sockets are your friend here.

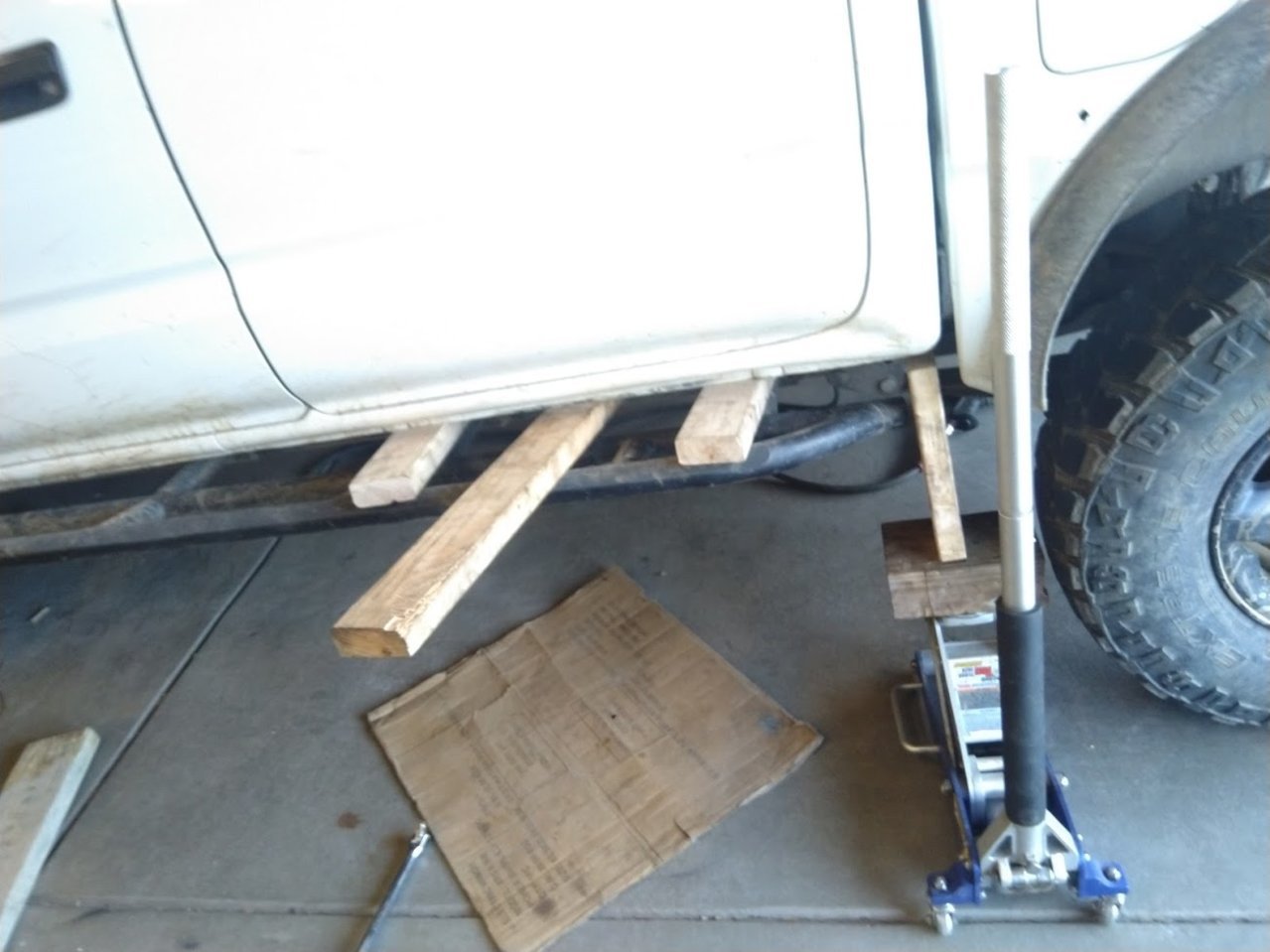

    Use of floor jack and wood to raise body to access position 3 bushing.
    muESLgyf_ZP65QKh2P2Yr9-vgyI0TWbjUrf129Ke_01de3df14a1695f369b419af9a84ee1500728777.jpg


    After you've completed one side, lower the body and install the nuts so they're just on the threads. Do not tighten them too much. You can now remove the nuts of the other side and repeat the process.

    With both sides complete, tighten everything down. Don't worry about the exact torque too much as there's a metal sleeve inside the bushing that prevents it from over-compressing. Re-install/connect any wires/steering shaft you had previously disconnected, and you'll all set.

    EDIT:Fixed photos

    Last edited: May 21, 2020
    MtnClimber, GQ7227, jammer and 2 others like this.
  2. May 21, 2020 at 1:23 AM
    #2
    Wyoming09

    Wyoming09 Well-Known Member

    Joined:
    Apr 24, 2015
    Member:
    #153833
    Messages:
    13,115
    Gender:
    Male
    New Tripoli Pa
    Vehicle:
    2000 Work truck 5 speed 4x4 3.4
    Super Springs
    Your pictures did not work!

    GQ7227 and Taco critter like this.
  3. May 21, 2020 at 3:09 AM
    #3
    Taco critter

    Taco critter #mall crawler , patw and ,ttc#0247

    Joined:
    Nov 10, 2018
    Member:
    #272225
    Messages:
    64,301
    Gender:
    Male
    First Name:
    John
    Pottstown /stowe , pa
    Vehicle:
    02 tacoma 4x4 full mall crawler,
    Ome 3inch ,rims ,cold air intake ,,4 crawler body lift ,cb in ashtray mod,leds, jet maf,Satoshi grille,led roof bar,yakama roof basket ,smittybilt parts,spare tire mount in hitch ,rago fabrication parts, winch bumper ,winch ,285s on wagon wheels ,traction boards ,hi lift jack,wet oaklies,smittybilt ,bamf bedrack,loads more,TOO MUCH SHIT TO LIST
    No pics

    GQ7227 likes this.
  4. Nov 30, 2020 at 11:49 AM
    #4
    jammer

    jammer 2003 Toyota PreRunner 3.4L

    Joined:
    Jan 23, 2014
    Member:
    #121272
    Messages:
    1,330
    Gender:
    Male
    First Name:
    Ben
    Bentonville, AR
    Vehicle:
    2003 Lunar Mist Tacoma PreRunner 3.4l
    OME Coils/Bilstein 5100's front / 5125's rear 105 Amp Denso Alternator
    Great write up! Thank you for posting.

  5. Nov 30, 2020 at 5:12 PM
    #5
    tacomataco2

    tacomataco2 A dude

    Joined:
    Nov 27, 2012
    Member:
    #91944
    Messages:
    1,868
    Gender:
    Male
    Mass
    Vehicle:
    02 Dbl cab Lunar Mist
    Some of this Some of that
    I had the same problem with my double cab, ended up stacking washers on top of the bushing until the height was correct. Recently installed a day star 1 in lift/ poly bushing combo with no probs like that
