Equalizer settings

Discussion in 'Audio & Video' started by Endurozw, Oct 10, 2011.

  1. mrmumbels

    mrmumbels Well-Known Member

    Joined:
    Nov 17, 2010
    Member:
    #46331
    Messages:
    256
    Gender:
    Male
    Land O Lakes, fl
    Vehicle:
    09 prerunner
    none
    I had the p3200bt and felt like I could never get it sounding just right. I just installed an x930bt and the sound is amazing. I wish I knew what they did different with this one.

  2. Endurozw

    Endurozw [OP] War Damn Eagle!

    Joined:
    May 12, 2009
    Member:
    #17122
    Messages:
    216
    Gender:
    Male
    First Name:
    Zach
    Birmingham, Alabama
    Vehicle:
    09 PreRunner DC SR5 w/ tow package
    Fold-a-cover G4 - Wranger Duratrac 265/75/16 Audio Upgrades: Pioneer AVH-P4200DVD / JL Audio HD600/4 amp / Hybrid Audio 6.5 Clarus up front / Arc Audio 10 in subwoofer
    Thanks for taking the time to write this post :) very informative! I'll try cutting back a bit to see how that changes things as well as lowering the LP filter down a bit to test that as well. In answer to a previous poster, the only way I can "turn off" the LP filter going to my amp channels for the Sub would be to move them off of the subwoofer preouts and then I would lose the ON/OFF control as well as the "gain" control in software. I think the biggest difference between my settings and others that I've seen is that I prefer the vocals to be prominent even in rock music, where others prefer the guitars / bass to be center stage, so I agree that not one equalizer setting would make everyone happy! I'll keep playing around with the settings, thanks again :D

  3. Endurozw

    Endurozw [OP] War Damn Eagle!

    Joined:
    May 12, 2009
    Member:
    #17122
    Messages:
    216
    Gender:
    Male
    First Name:
    Zach
    Birmingham, Alabama
    Vehicle:
    09 PreRunner DC SR5 w/ tow package
    Fold-a-cover G4 - Wranger Duratrac 265/75/16 Audio Upgrades: Pioneer AVH-P4200DVD / JL Audio HD600/4 amp / Hybrid Audio 6.5 Clarus up front / Arc Audio 10 in subwoofer
    Alright so before I left for work I was playing around with some settings out of curiousity, so I set the EQ to flat, the subwoofer LPF to 80/100 Hz (played with both), and then upped the volume to see what was prominent and what needed to be turned down.

    First impressions were that turning the LPF down a bit really quieted my truck down, as the sub was just putting out a lot of "sound" (obviously since more content is being sent to it) and that by turning it down to 100 Hz, I could hear the drums much more clearly but still have some bass vibration coming through. I'm undecided on 80 Hz as it makes it very hard to tell that the sub is there, but I'll keep playing around with it.

    As far as the EQ being set flat and then modified I could instantly tell that I wanted the low end turned down as it was overpowering the rest of the music, and I could no longer hear the highs, so I tried adjusting 2.5-10kHz on up to get a "brighter" sound as I've heard it called. So far I'm the most pleased with just adjusting the LPF on the subwoofer because I didn't realize how much sound was coming out of it, to the point of almost giving me a headache when my windows were closed. I'll keep playing around with all of the settings and keep everyone updated.

  4. dolbytone

    dolbytone Well-Known Member

    Joined:
    May 14, 2010
    Member:
    #37165
    Messages:
    320
    Gender:
    Male
    Vehicle:
    09 TRD Off Road
    When I set mine up I had a hard time getting control over 200Hz, it was spiking like a mofo so I had to turn it down the most. I don't know if that was a truck thing or a speaker thing though. For the LPF to the sub, I ultimately set it to 60Hz because anything above that and I could hear bass guitar parts moving forward and back between the door speakers and the subwoofer. I think at the time I was listening to that solo by Cliff Burton on Metallica's Kill 'Em All record. Super annoying.

  5. Kelson

    Kelson My Truck is Cuter than Yours

    Joined:
    May 13, 2008
    Member:
    #6597
    Messages:
    4,630
    Gender:
    Male
    First Name:
    Kelson
    Honolulu, Hawaii
    Vehicle:
    08 5-Lug Reg. Cab SR5
    SR5 Exterior/Interior (Color matched Front Bumper, Chrome Grille Surround and Chrome Rear Bumper/Silver Scoshe Dash Kit, A/C Bezel, A/C Vent Surround) LED license plate and white interior lights, Wet Okole Seat Covers, iPad in-Dash, JL CL-RLC, JL 13TW5 sub, JL 500/1 Slash V1 amp, JL XR 6.5 Components, Rockford Fosgate 6X9s in Boxes Front XRunner Coils, DJM Control Arms and Rear 4X4 Leafs, Custom 2" Angled Streetacos.com Blocks Front XR Bilstien Struts and Rear XR Bilstien Shocks, CravenSpeen Antennae, RX-8 Rims w/ Fronts:235/40-R18 Sumitomo HTR Rears:245/40-R18 Goodyear Eagle GT, 35% Tint front windows, OEM Sliding Privacy Glass w/ 5% Ceramic Tint, Flowmaster Super 44 dumped before the axle, URD Short Throw Shifter, Door Sill Protectors, Door Edge Guards, OEM Sport Pedals,The Retrofit Source Morimoto Mini D2S Stage III 35W 5K HID Headlights, OEM Fog Lights w/ piss yellow bulbs, OEM Cruise Control, Porsche 944 Bucket Seats, BeefedTaco Skid Plate, Whale

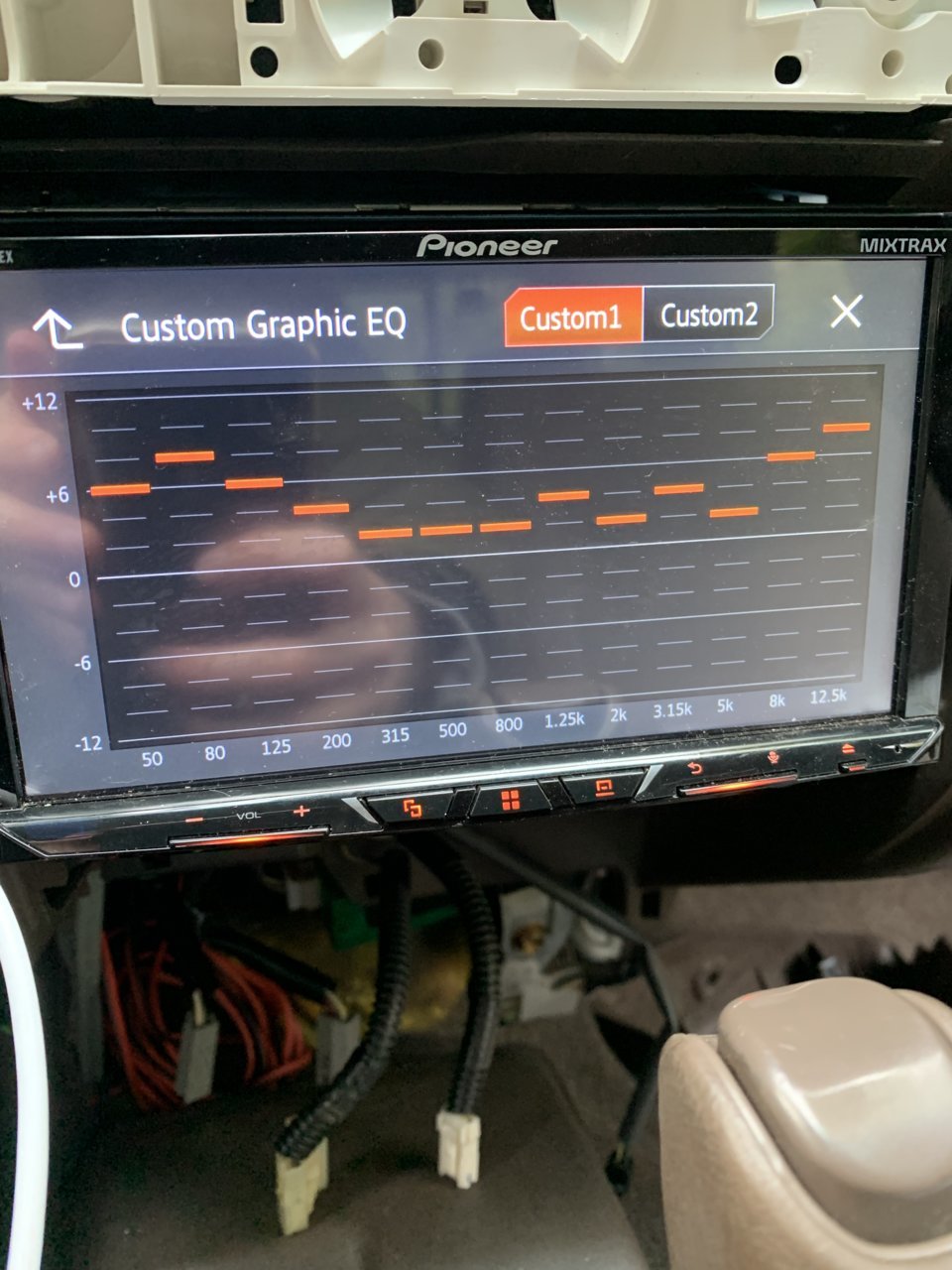

    this is how mine is set up. listen to a wide variety of music

    [​IMG]

  6. pinktaco808

    pinktaco808 Hot Steppa

    Joined:
    Jul 23, 2010
    Member:
    #40651
    Messages:
    2,795
    Gender:
    Male

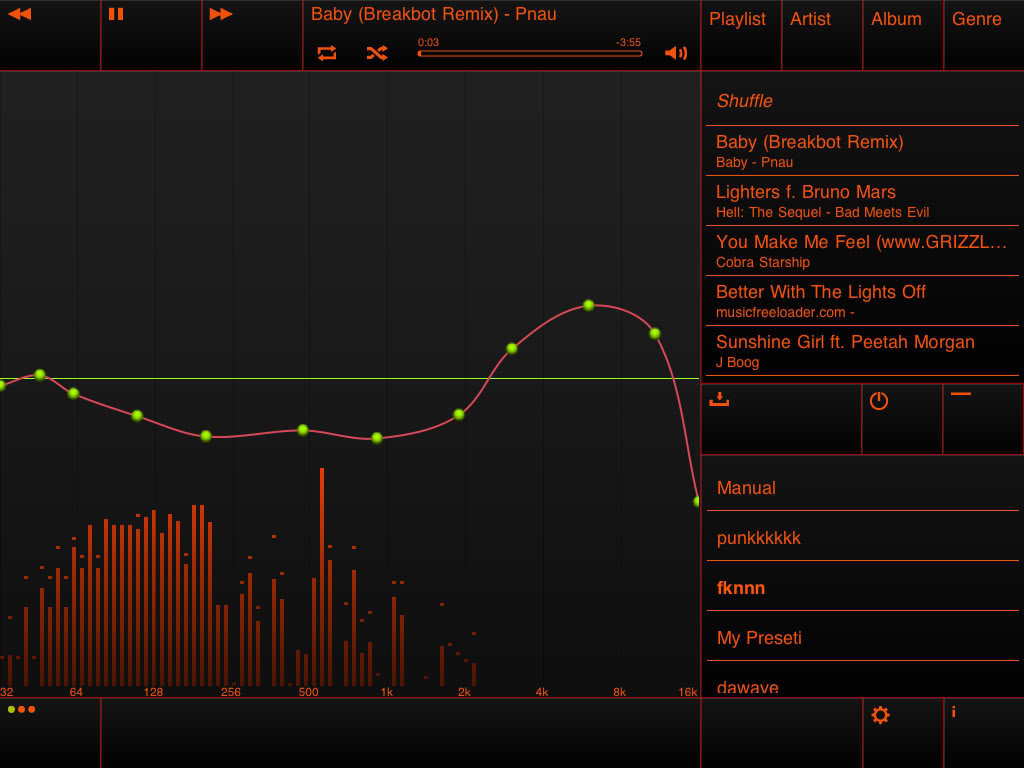

    Is that the ipad 2 eq app?if not what is that from. Looks good btw. I miss the old dancing eg. Does anyone know where I can get one from? Ebay doesnt have any good ones.
