ERMB's D-I-Y Rack System Build

Discussion in 'Other Builds' started by ERMB, May 23, 2016.

Page 12 of 39
  1. Aug 26, 2016 at 6:37 AM
    #221
    ctsnow13

    #221
    ctsnow13 Well-Known Member

    Joined:
    Jan 3, 2016
    Member:
    #173859
    Messages:
    292
    Gender:
    Male
    Vehicle:
    2014 Magnetic Grey TRD DCSB
    Any of you guys that built a rack on your she'll put a RTT on there yet? Looking to see how it's working out. I think I've almost talked my wife into getting one.:thumbsup:

    ctsnow13, Aug 26, 2016
    #221
  2. Aug 26, 2016 at 1:13 PM
    #222
    ERMB

    #222
    ERMB [OP] Well-Known Member

    Joined:
    Mar 11, 2011
    Member:
    #52813
    Messages:
    10,399
    Gender:
    Male
    Vehicle:
    2002 Land Cruiser

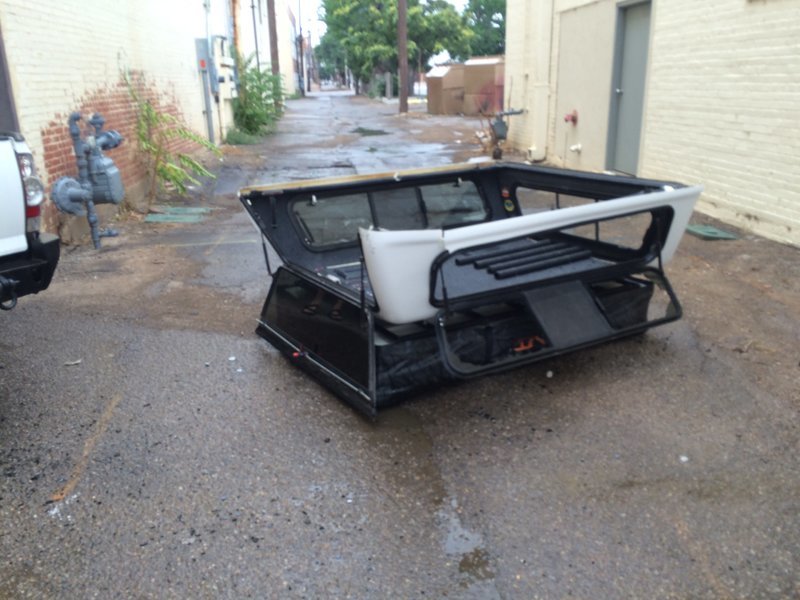

    Look at the top of the page, @PHTaco had one on his...till he knocked it off in a parking garage, but to the racks credit it all stayed together very well. Look above you'll see. I haul lumber on mine all the time more weight than an RTT by far with no issues.

    ERMB, Aug 26, 2016
    #222
    Crom and ctsnow13 like this.
  3. Aug 26, 2016 at 1:13 PM
    #223
    ERMB

    #223
    ERMB [OP] Well-Known Member

    Joined:
    Mar 11, 2011
    Member:
    #52813
    Messages:
    10,399
    Gender:
    Male
    Vehicle:
    2002 Land Cruiser
    See my post above forgot to quote it.

    ERMB, Aug 26, 2016
    #223
    ctsnow13[QUOTED] likes this.
  4. Aug 26, 2016 at 3:12 PM
    #224
    Sandman614

    #224
    Sandman614 Ex-Snarky TWSS elf, Travis #hotsavannahdotcom

    Joined:
    Oct 26, 2010
    Member:
    #45273
    Messages:
    35,565
    Gender:
    Male
    First Name:
    Tim
    Garner, NC/Boone, NC
    Vehicle:
    '06 SR5 Off Road
    ARB Front Bumper, Projector Headlights w/Slimcubby 4300K HID's, Oznium LED's, LED taillights, DIY Washable Cabin Moose Filter, Sockmonkey SR5 Off Road, Aux Audio plug, OME 886x, OME Nitrochargers, Wheelers 3 Leaf Progressive AAL, ImMrYo Rear-View Mirror Lift Bracket, Dodge D-Rings
    Might start into this.

    Sandman614, Aug 26, 2016
    #224
  5. Aug 26, 2016 at 5:43 PM
    #225
    samiam

    #225
    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    Two more Superstruts and a crap-load of fasteners in the garage now. Except for paint, I hope to get this finished up this weekend.

    samiam, Aug 26, 2016
    #225
    Crom and ERMB[OP] like this.
  6. Aug 27, 2016 at 9:55 PM
    #226
    samiam

    #226
    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    Seems like the more I work on this project, the further I get from completion.

    Back to Home Depot in the morning.

    samiam, Aug 27, 2016
    #226
    C41n, ERMB[OP], Thelgord and 1 other person like this.
  7. Aug 28, 2016 at 9:12 PM
    #227
    samiam

    #227
    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it

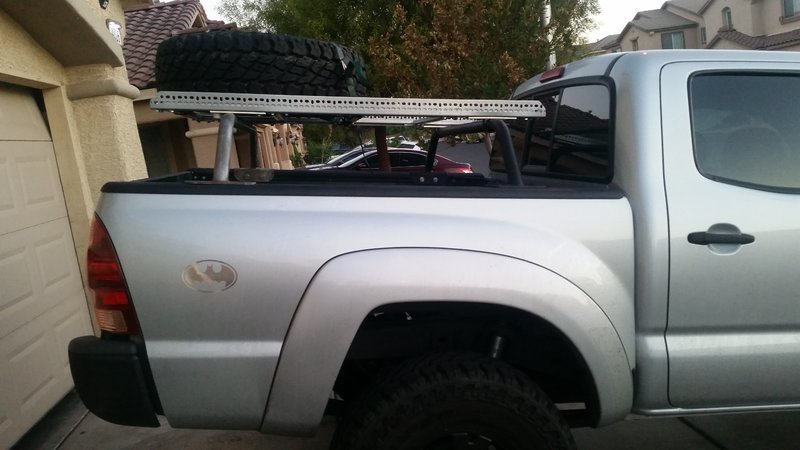

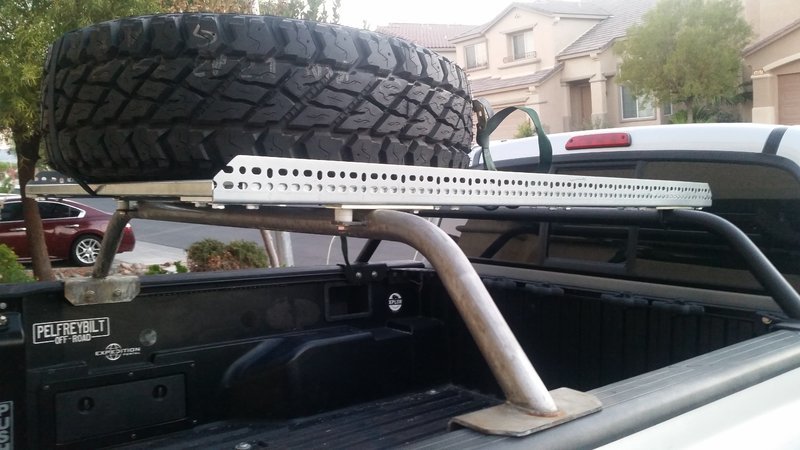

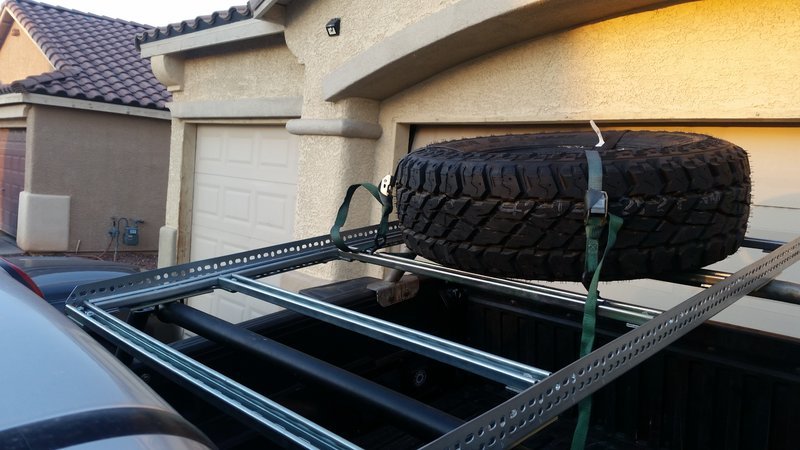

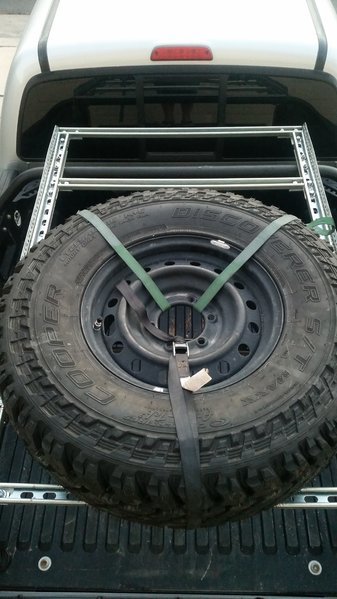

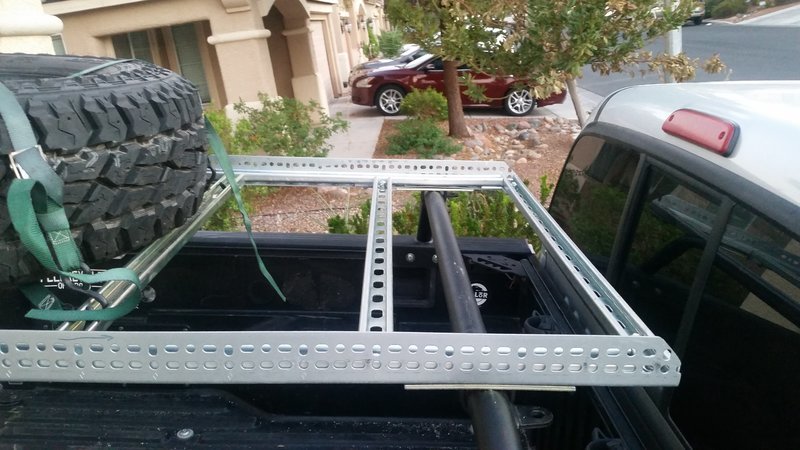

    It's done (unpainted).

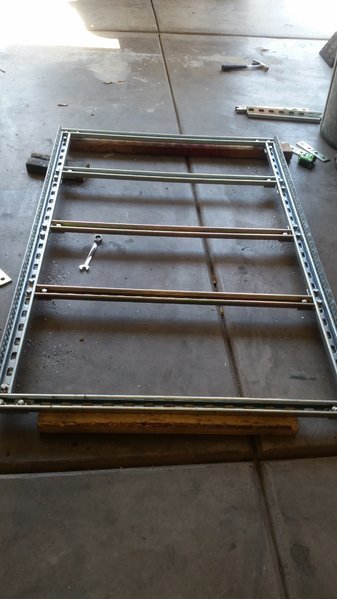

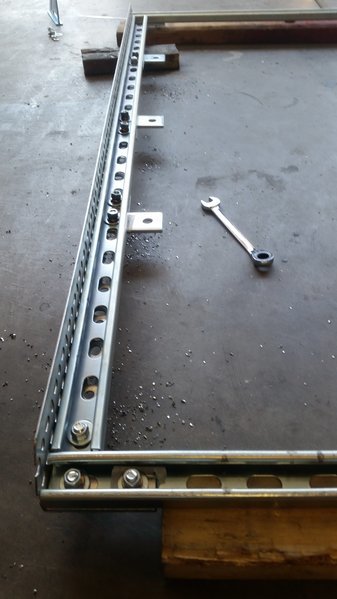

    20160828_130144.jpg 20160828_133916.jpg






    The rack measures 56.75" X 36.5", and weighs in at 37.5 lbs. It is quite stout. I can stand on the middle crossbar with little flex (180 lbs).

    Parts List
    (3) 10' Struts
    (2) 6' 2.25" X 1.5" Angled Iron
    (10) 3-hole Corner Bracket
    (4) 4-hole Straight Bracket
    (38) Nuts & Bolts
    (38) Split/Lock Washers
    (76) Flat Washers
    (2) Hacksaw Blades

    I need to get four of those square washers for spacers.
    Painting within a few weeks.

    Last edited: Aug 28, 2016
    samiam, Aug 28, 2016
    #227
    ready6delta, Taco3042, ERMB[OP] and 3 others like this.
  8. Aug 28, 2016 at 10:41 PM
    #228
    Crom

    #228
    Crom Super-Deluxe Member

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,618
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions

    Awesome work! Looks great! :jellydance:

    Crom, Aug 28, 2016
    #228
    samiam[QUOTED] likes this.
  9. Aug 29, 2016 at 7:25 AM
    #229
    samiam

    #229
    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it
    Thank you.

    samiam, Aug 29, 2016
    #229
    Crom[QUOTED] likes this.
  10. Aug 29, 2016 at 9:25 PM
    #230
    Taco3042

    #230
    Taco3042 Well-Known Member

    Joined:
    Jun 23, 2016
    Member:
    #190376
    Messages:
    228
    Gender:
    Male
    North GA
    Vehicle:
    2014 white TRD off road
    Well I have officially been inspired by this thread and seeing how I work at one of the hardware stores as my part time job, I immediately picked up supplies as soon as my shift was over today and will be starting on my rack tomorrow, very excited and thanks for this awesome thread! :thumbsup:

    Taco3042, Aug 29, 2016
    #230
    ERMB[OP], Crom and samiam like this.
  11. Aug 29, 2016 at 9:36 PM
    #231
    samiam

    #231
    samiam Always here, never there

    Joined:
    Apr 7, 2011
    Member:
    #54533
    Messages:
    3,151
    Gender:
    Male
    First Name:
    Sam
    Stinky Vegas
    Vehicle:
    2008 TRD OR DCSB 4.0 6MT 1E7 Alu Cab
    Workin' on Workin' on it

    Cool. Can't wait to see some pics.

    samiam, Aug 29, 2016
    #231
  12. Aug 29, 2016 at 9:55 PM
    #232
    Crom

    #232
    Crom Super-Deluxe Member

    Joined:
    Jun 22, 2009
    Member:
    #18782
    Messages:
    9,618
    Gender:
    Male
    First Name:
    Nick
    San Diego, CA
    Vehicle:
    2009 4x4 DCSB Camp Supreme
    Millions
    Awesome! Have fun. :)

    Crom, Aug 29, 2016
    #232
  13. Aug 30, 2016 at 12:06 AM
    #233
    DC-USAF

    #233
    DC-USAF Well-Known Member

    Joined:
    Mar 13, 2013
    Member:
    #99665
    Messages:
    1,393
    Gender:
    Male
    First Name:
    Dale
    WNC
    Vehicle:
    2015 SR5 Access Cab 4x4 V6
    TRD PRO Grill, mobtown offroad recovery bar, SCS Ray 10's
    That sucks. What did you do with you totalled shell? I would love to get the good windoor from it.

    DC-USAF, Aug 30, 2016
    #233
  14. Aug 30, 2016 at 1:34 AM
    #234
    Theloraxcross

    #234
    Theloraxcross "He's Got the Crazy Eye"

    Joined:
    May 4, 2013
    Member:
    #103459
    Messages:
    1,206
    Gender:
    Male
    First Name:
    Joseph
    San Angelo Tx
    Vehicle:
    08 AC TRD OR
    Respect to ERMB and samiam for all of the hard work and time spent building these projects and taking the time to do a write-up for it. Seriously considering making one of these for my LEER. Really need it for lumber and plywood sheet transporting. Question would the aluminum side plates that you attached be able to withstand mounting an awning to it, such as the ARB 2000 that I just ordered? Thank you in advance.

    Theloraxcross, Aug 30, 2016
    #234
    samiam, ERMB[OP] and RNJNKE like this.
  15. Aug 30, 2016 at 3:44 AM
    #235
    ERMB

    #235
    ERMB [OP] Well-Known Member

    Joined:
    Mar 11, 2011
    Member:
    #52813
    Messages:
    10,399
    Gender:
    Male
    Vehicle:
    2002 Land Cruiser
    Thanks man, I think depending on how you attach the aluminum to the strut will make all the difference. An L bracket reinforcing it from the back would help definitely.

    ERMB, Aug 30, 2016
    #235
  16. Aug 30, 2016 at 3:49 AM
    #236
    ERMB

    #236
    ERMB [OP] Well-Known Member

    Joined:
    Mar 11, 2011
    Member:
    #52813
    Messages:
    10,399
    Gender:
    Male
    Vehicle:
    2002 Land Cruiser
    Great job Sam, I really like the hardware you used. Can't wait to see it all painted up.

    ERMB, Aug 30, 2016
    #236
    Crom and samiam[QUOTED] like this.
  17. Aug 30, 2016 at 3:56 AM
    #237
    Theloraxcross

    #237
    Theloraxcross "He's Got the Crazy Eye"

    Joined:
    May 4, 2013
    Member:
    #103459
    Messages:
    1,206
    Gender:
    Male
    First Name:
    Joseph
    San Angelo Tx
    Vehicle:
    08 AC TRD OR
    Honestly I'm more concerned with it warping the metal where its attached due to buffeting @ highway speeds.

    Theloraxcross, Aug 30, 2016
    #237
  18. Aug 30, 2016 at 4:03 AM
    #238
    ERMB

    #238
    ERMB [OP] Well-Known Member

    Joined:
    Mar 11, 2011
    Member:
    #52813
    Messages:
    10,399
    Gender:
    Male
    Vehicle:
    2002 Land Cruiser
    The aluminum I put on mine is merely decorative and attaches on the rear rack to the side of the strut running parallel behind it. If I were to run an awning I would attach an L bracket which I believe comes with the awning right behind the aluminum along the two of the crossmember struts set at whatever distance it requires as per ARB.

    ERMB, Aug 30, 2016
    #238
  19. Aug 30, 2016 at 4:05 AM
    #239
    Theloraxcross

    #239
    Theloraxcross "He's Got the Crazy Eye"

    Joined:
    May 4, 2013
    Member:
    #103459
    Messages:
    1,206
    Gender:
    Male
    First Name:
    Joseph
    San Angelo Tx
    Vehicle:
    08 AC TRD OR
    Guess I need to start gathering supplies. Thanks again for the ideas/thread/responses.

    Theloraxcross, Aug 30, 2016
    #239
  20. Aug 30, 2016 at 4:06 AM
    #240
    ERMB

    #240
    ERMB [OP] Well-Known Member

    Joined:
    Mar 11, 2011
    Member:
    #52813
    Messages:
    10,399
    Gender:
    Male
    Vehicle:
    2002 Land Cruiser
    You got it, best of luck with the build! Looking forward to seeing your results :cheers:

    ERMB, Aug 30, 2016
    #240
