exhaust re-routing pictures?

Discussion in 'Performance and Tuning' started by eric3187, Aug 31, 2012.

  1. Oct 5, 2012 at 9:41 AM
    #21
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,463
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    You would still have the two necessary cats that are read by the O2 sensors, if you only upgraded to the URD Y, and not headers as well.

    If you aren't from Cali, it won't matter. Plus, in your state, you will pass emissions with the front two cats only.

  2. Oct 5, 2012 at 11:19 AM
    #22
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    I guess these y pipes serve the purpose for high clearance but not the purpose of performance. You get what you pay for.

  3. Oct 5, 2012 at 11:38 AM
    #23
    NYCO

    NYCO ┌∩┐‹(ಠ_ಠ)›┌∩┐

    Joined:
    Jul 27, 2010
    Member:
    #40842
    Messages:
    15,864
    Gender:
    Male
    First Name:
    bOb
    Colorado
    Vehicle:
    Blue Betty - '06 TRD OR
    dents & scratches
    exactly...these all show only clearance gains...i.e. wanting to put a ATO or similar tranny skid on

  4. Oct 5, 2012 at 12:01 PM
    #24
    carcharias

    carcharias Giggiddy what what

    Joined:
    Jan 9, 2011
    Member:
    #48988
    Messages:
    4,676
    Gender:
    Male
    First Name:
    Mike
    Los Angeles, CA
    Vehicle:
    '11 AC MGM OR
    Kings all-around w/ 700lb coils, Dakar leaf pack, TC uca's, DO single hoop bumper, BAMF bolt-on sliders w/ kickouts, Rigid 20" e-series spot/flood, aFe pro-dry, BFG KM2 255/85/16, silver TRD FJ wheels, WARN M8000-s, Access LE, Grillcraft, BAMF lightbar, BAMF rear dif skid, BAMF LCA skids, window tint, Wet Okoles, WeatherTech floorliners, Silverstar lights, led dome lights, Redline Tuning hood struts, center console lock mod, mag-lite mod, extra d-rings, re-routed exhaust, ATO skids, ATO Hi-Lift mounts, pipe tailgate lock, seatbelt alarm delete, wheel/spare locks, Viper 5901, LoJack... WISHLIST: a golden canary that poops platinum
    Damnit, you're completely correct. I ran it by some exhaust pros I'm now working with and they said it won't be terrible, but the way it is isn't ideal. Grrrr.... Thanks for catching that!

  5. Oct 5, 2012 at 12:15 PM
    #25
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,463
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    My pleasure sir. :thumbsup: Glad I could help.

  6. Sep 19, 2013 at 12:05 PM
    #26
    1 Bored Clerk

    1 Bored Clerk Well-Known Member

    Joined:
    Sep 18, 2013
    Member:
    #112786
    Messages:
    291
    Gender:
    Male
    Vancouver, WA
    Vehicle:
    '13 4x4 AC TRD OR
    This is pretty much exactly what I want to do. Maybe a tad more room behind the transfer case. Did you have stainless steel tubing used? Also, any thoughts on ceramic coating the newly created 'y' pipe?

    I plan on getting a full set of Relentless skids. It looks like all of these crossover re-routes would be outside (to the rear) of the back of the transfer case skid. Bummer but I guess it's not really an issue since it's up so high. Would have to cut a second exhaust clearance hole on the drivers side of the skid for the pipe to come out then turn it immediately to the passenger side. I guess I'll find out for sure once I get my skids and take a look. :)

  7. Sep 19, 2013 at 3:25 PM
    #27
    carcharias

    carcharias Giggiddy what what

    Joined:
    Jan 9, 2011
    Member:
    #48988
    Messages:
    4,676
    Gender:
    Male
    First Name:
    Mike
    Los Angeles, CA
    Vehicle:
    '11 AC MGM OR
    Kings all-around w/ 700lb coils, Dakar leaf pack, TC uca's, DO single hoop bumper, BAMF bolt-on sliders w/ kickouts, Rigid 20" e-series spot/flood, aFe pro-dry, BFG KM2 255/85/16, silver TRD FJ wheels, WARN M8000-s, Access LE, Grillcraft, BAMF lightbar, BAMF rear dif skid, BAMF LCA skids, window tint, Wet Okoles, WeatherTech floorliners, Silverstar lights, led dome lights, Redline Tuning hood struts, center console lock mod, mag-lite mod, extra d-rings, re-routed exhaust, ATO skids, ATO Hi-Lift mounts, pipe tailgate lock, seatbelt alarm delete, wheel/spare locks, Viper 5901, LoJack... WISHLIST: a golden canary that poops platinum

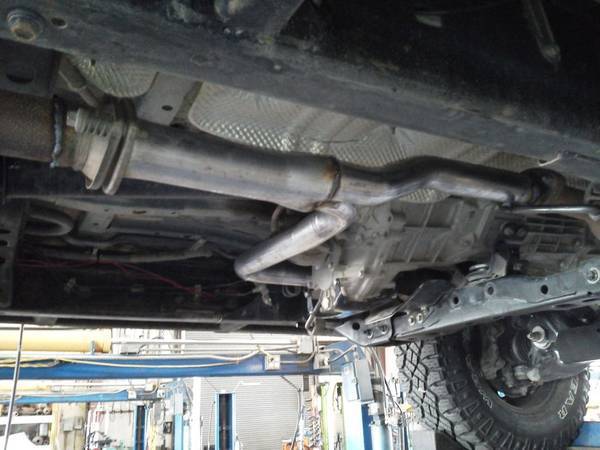

    Finally got mine fixed from the earlier "T," thanks to Torspd!

    [​IMG]

  8. Sep 19, 2013 at 3:39 PM
    #28
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,813
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    60$ at my local shop. enough clearance for my flat transfer case skid.
    [​IMG]

  9. Sep 19, 2013 at 4:30 PM
    #29
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,463
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Now that looks much better mate. :thumbsup:

  10. Sep 19, 2013 at 6:57 PM
    #30
    tooter

    tooter play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,393
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    Oh man... that's a great improvement. :thumbsup:

    The T was truly painful to look at. It was like a plumber did it.

    I really like how nothing needs to pass under the trans. You know, that junction forms the third Y of a tri Y exhaust design. Have you noticed any more bottom end pull with that setup? Moving that third Y farther back increases the effective length of the "header" tuning. And the longer the header, the more bottom end torque you get. :)

  11. Dec 15, 2013 at 5:26 PM
    #31
    qnyla

    qnyla Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30604
    Messages:
    812
    Gender:
    Male
    NM
    Vehicle:
    06 DC Off Road 6-Speed
    Bumping this thread back to life.

    Looking for more example photos!

    I need to reroute my exhaust to clear a Pelfreybilt t-case skid.

    Several good examples here. I'm worried that the crossover close behind the t-case might cook the grease in the U-joint. Anybody have issues with this?

  12. Dec 15, 2013 at 5:46 PM
    #32
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,813
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    see my version of the ypipe reroute... Good option. Same style that Tyler of "pelfreybuilt" did. Minimal pipe cut and change. I have all three pelfrey skids.

  13. Dec 15, 2013 at 5:51 PM
    #33
    Desert Drifter

    Desert Drifter Well-Known Member

    Joined:
    Aug 23, 2012
    Member:
    #85385
    Messages:
    1,181
    Gender:
    Male
    First Name:
    Bill
    Central Arizona
    Vehicle:
    Tacoma 4x4, SR5
    Icon MT suspension, Pelfreybuilt front bumper, Relentless skids, Avid sliders, Avid custom rack. Pelfreybilt HC Rear bumper.
    I put on the full set of Relentless Offroad skids (3 pieces) using the bone stock V6 exhaust. The skid has about a 1" bump out" section to clear that stupid stock crossover. So far so good, but I know somday I am going to be hung up on a rock and that "bump out" is going to be the reason.


    I like the URD "Y pipe", but a bit concerned if I have to eliminate those cats that I had to pay for. will that cause my truck to throw a Check Engine Light? I drive a GTI that is big turbo and half legal making it a dance to get through emissions testing, not willing to go this way on my Tacoma.

  14. Dec 15, 2013 at 5:59 PM
    #34
    Super Werty

    Super Werty Sleeper 4x4

    Joined:
    Aug 1, 2008
    Member:
    #8278
    Messages:
    576
    Gender:
    Male
    Arizona
    Vehicle:
    07 TRD Tacoma
    air and fuel
  15. Dec 15, 2013 at 6:56 PM
    #35
    qnyla

    qnyla Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30604
    Messages:
    812
    Gender:
    Male
    NM
    Vehicle:
    06 DC Off Road 6-Speed
    Thanks Sconnie, that is what I am looking for.

    My thoughts exactly.

    Too custom for me. Looks cool.


    SconnieHailer's pics reposted from his thread. Looks good. These are the same skids I need to clear.





    Last edited: Dec 15, 2013
  16. Dec 16, 2013 at 4:34 PM
    #36
    Super Werty

    Super Werty Sleeper 4x4

    Joined:
    Aug 1, 2008
    Member:
    #8278
    Messages:
    576
    Gender:
    Male
    Arizona
    Vehicle:
    07 TRD Tacoma
    air and fuel
    Too custom? No such thing!:p it's bolt on!

  17. Dec 16, 2013 at 4:40 PM
    #37
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    urd y will not cause a cel.

  18. Dec 16, 2013 at 5:38 PM
    #38
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,813
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    I've considered the URD but worried about opening up the exhaust too much on the NA motor... I don't want to kill anymore of my low end torque!

  19. Dec 16, 2013 at 5:40 PM
    #39
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,006
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
  20. Dec 16, 2013 at 5:44 PM
    #40
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    6,813
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    say wha! I noticed my torque curve move up in the rev range when I moved to a magnaflow flowthru muffler. That's my reasoning for the opening up of the Ypipe region moving that torque up even higher in the rev range, something not super useful to me. Why the sigh?
