exhaust re-routing pictures?

Discussion in 'Performance and Tuning' started by eric3187, Aug 31, 2012.

  1. Dec 16, 2013 at 6:08 PM
    #41
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,954
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    On his dyno, it didn't show any negative effects on his low end. Although, being an Auto you cannot see below the 3k range. It did pick up a lot as the RPMs increased though. A significant amount. For N/A, headers and Y pipe with stock sized catback is a great combination to keep the scavenging velocity up.

    Once a larger catback is installed, that is when it really shifts the torque curve. That is when more power out of the engine is necessary to take advantage of the added flow capacity, and bring it back forward.

    I promise you, his headers, URD Y, plus TRD Gen1, larger T.B., and X-1 has plenty of low end tq. Plenty.

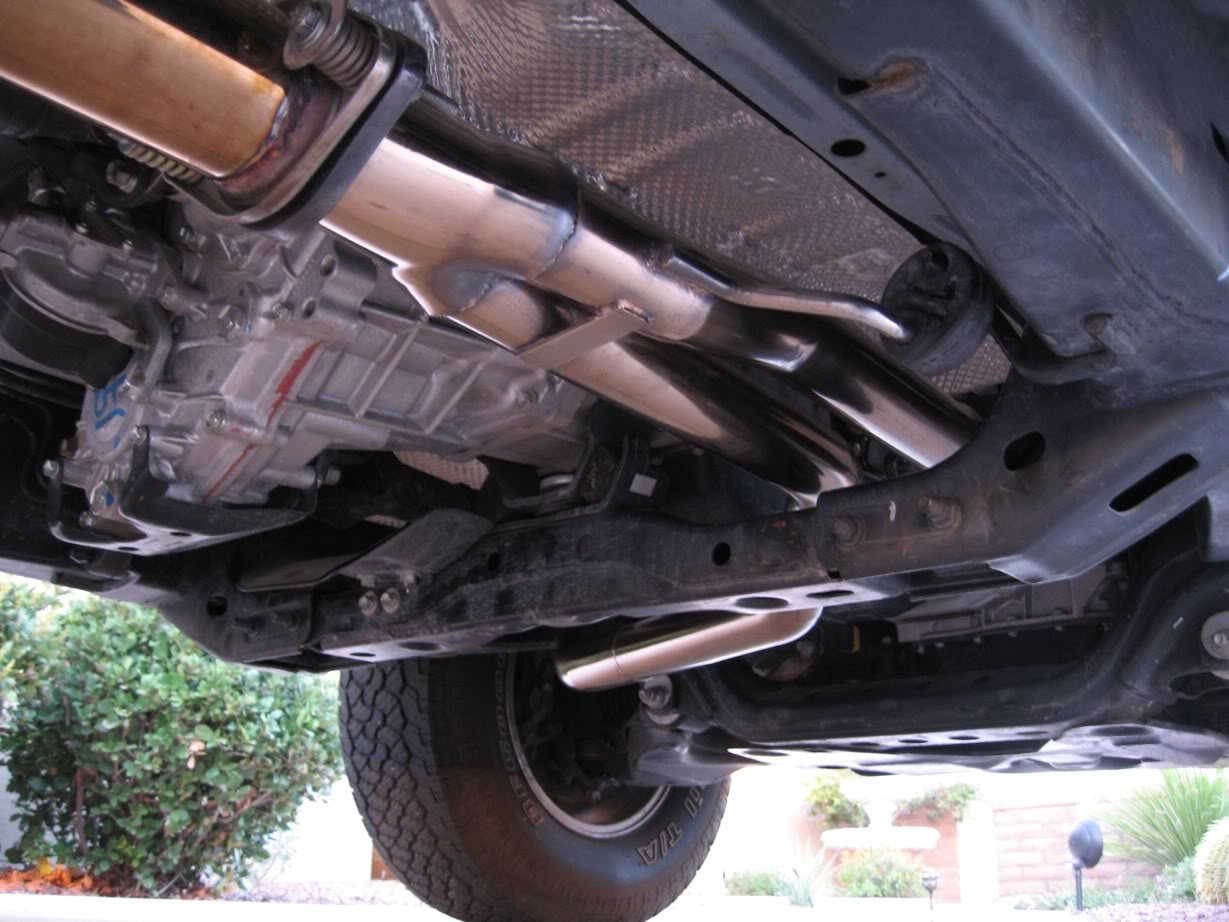

    Also, by the routing which is clearly visible in Super Werty's pictures, it routes the exhaust away from the U-joints. No cooking.

    It does route it under the trans, so depending on how rough one is off-road, a strong skid might be needed to protect that area. I am reminded of Colinb's transmission skid right now. Crazy heavy blasted cut me. Lol.

  2. Dec 16, 2013 at 6:17 PM
    #42
    Lucario Runner

    Lucario Runner Resident SUV racer

    Joined:
    Jun 29, 2011
    Member:
    #59067
    Messages:
    2,024
    Gender:
    Male
    First Name:
    Robert
    San Antonio, TX
    Vehicle:
    06 Toyota 4Runner
    AFE stage II intake, APR X1, URD 70mm Throttle Valve (ported and knife edged), NST intake manifold spacer, URD spec U headers, Denso IKH20, URD fuel pump, APR fuel rail, URD Y pipe, Greddy sandwich cooler plate, Earls oil cooler, FJ TRD shocks, Cusco front and rear sway bars, LC Engineering sway bushings, ES rear track rod bushings, Carbotech pads, Stoptech ss brake lines, Stoptech slotted rotors, Limited Grill, Painted hatch cover by me, Painted valve covers by me, Cobra CB, TRD rad and oil cap, Escort 8500, Autometer oil psi and temp gauges, Flexpod, Pioneer 400w speakers.
    enough to peel out of EVERY corner at msr. :( I needs LSD bad.

  3. Dec 16, 2013 at 6:18 PM
    #43
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    7,156
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    haha, thanks for the winded response man! My truck goes in for diagnosis of my motor issues on wed. pending what happens and what they find out i'll be looking to do a proper Y like URD and since I'm a manual i've got lots of room between the trans and the skid plate without the auto pan in there. Im still all stock size pipe from the y back so from what it sounds like from you I should be ok deleting the #2 cats and keeping it the way i've got it back out. I really wish URD made the equal length headers for the air injection model motors!

  4. Dec 16, 2013 at 6:20 PM
    #44
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    7,156
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
    haha i'll take your word for it :D One wheeler peeler squealer isnt much fun :pout: A good tight limited slip would be good for ya!

  5. Dec 16, 2013 at 10:24 PM
    #45
    tooter

    tooter play every day

    Joined:
    Apr 13, 2013
    Member:
    #102021
    Messages:
    2,391
    Gender:
    Male
    First Name:
    Greg
    Los Angeles
    Vehicle:
    2012, std cab, 5 lug, 2.7, 5 speed
    Built for maximum low end torque, tooter II.VII intake manifold spacer, LCE long tube header, Injen long tube intake, 2,900 rpm torque peak.
    Man, that's an effing work of art! :thumbsup:

  6. Dec 17, 2013 at 7:43 AM
    #46
    Winston

    Winston Member

    Joined:
    May 18, 2012
    Member:
    #79079
    Messages:
    9
    Gender:
    Male
    Available from what source?

  7. Dec 17, 2013 at 8:14 AM
    #47
    SconnieHailer

    SconnieHailer PutterClutch

    Joined:
    Aug 26, 2012
    Member:
    #85590
    Messages:
    7,156
    Gender:
    Male
    First Name:
    Marc
    Lander, Wyoming
    Vehicle:
    2012 TRD Off Road Double Cab V6 6Speed
  8. Dec 17, 2013 at 9:47 AM
    #48
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,954
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    Enjoy the candy store.

  9. Dec 18, 2013 at 8:15 AM
    #49
    Winston

    Winston Member

    Joined:
    May 18, 2012
    Member:
    #79079
    Messages:
    9
    Gender:
    Male
  10. Dec 18, 2013 at 8:59 AM
    #50
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,954
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    You must be from Cali, Winston.

    You will pass smog and emissions testing with that Y. Not with headers, if an actual test is done.

  11. Dec 20, 2013 at 2:53 AM
    #51
    Smooth Operator

    Smooth Operator Well-Known Member

    Joined:
    Aug 15, 2013
    Member:
    #110506
    Messages:
    94
    Gender:
    Male
    First Name:
    G
    Central, PA
    Vehicle:
    2013 TRD Sport / Long Bed
    None
    Does that URD Y-Pipe fit on 2013's?

  12. Dec 20, 2013 at 5:47 AM
    #52
    Torspd

    Torspd Tor-nication

    Joined:
    Sep 18, 2009
    Member:
    #22958
    Messages:
    5,954
    Gender:
    Male
    First Name:
    Tor
    Houston
    Vehicle:
    MMVI 4.4L 4x4 Access Cab
    Torspd Custom Turbo kit [] Borg Warner 9180EFR Turbo [] ProEFI Pro128 EMS [] TiAL Q BOV [] TiAL V44 Wastegate @ 15psi [] CP Pistons [] CP Carrillo Rods [] ARP Head studs [] ARP Main Studs [] ARP Header - Head Studs [] Ported Heads w/ 1mm oversized valves intake/exhaust [] Brian Crower Forged Stroker Crank [] Darton M.I.D. Sleeved Block [] Kelford Camshafts [] Torspd 170* T-stat mod [] APR Large Fuel Rail [] Aeromotive Stealth 340 LPH Fuel Pump [] FueLab FPR [] APR T56 Conversion Kit [] KP RACING Built T56 [] McLeod Racing Custom Twin Disk Clutch [] One Piece Aluminum Driveshaft [] MGW Shifter [] Custom lowering kit [] Ohlins Front Coilovers [] QA1rear shocks [] Custom Ron Davis Radiator [] Dual SPAL Electric Fans []
    I think it will. Calling URD would be the best bet. Let us know what you find out.

  13. Dec 21, 2013 at 5:37 AM
    #53
    qnyla

    qnyla Well-Known Member

    Joined:
    Feb 2, 2010
    Member:
    #30604
    Messages:
    871
    Gender:
    Male
    NM
    Vehicle:
    06 DC Off Road 6-Speed
    Is the exhaust sound louder with the URD Y-pipe?

  14. Dec 22, 2013 at 2:19 PM
    #54
    Winston

    Winston Member

    Joined:
    May 18, 2012
    Member:
    #79079
    Messages:
    9
    Gender:
    Male
    Nope, Colorado.

    I emailed URD to ask "I'm in Colorado and own a 2012 Tacoma 4WD V6. Do you have a street legal and emissions passing drop-in replacement to re-route the exhaust up and around the transfer case or anywhere other than the current stupid route under it?"

    "Legal, no for a highway vehicle. For off road/racing vehicles we have the URD Y pipe and the Doug Thorley Y pipe."

    Why doesn't someone make a street legal drop-in fix for the idiotic so-called "off road" exhaust routing on the Tacoma?

  15. Dec 22, 2013 at 2:41 PM
    #55
    Vigo

    Vigo 4X4 Lifted, Locked, Geared, Blown.

    Joined:
    Jul 16, 2012
    Member:
    #82750
    Messages:
    871
    Gender:
    Male
    First Name:
    Ryan
    On a rock in the pacific
    Vehicle:
    '12 4 door
    stuff...
    They have to tell you that. I believe that's is federal law to only replace catalytic converters that are from the factory, not remove them. But, as stated before, with the fronts still installed, some can still pass emission tests.

  16. Dec 22, 2013 at 3:01 PM
    #56
    Spoonman

    Spoonman Granite Guru

    Joined:
    Sep 11, 2011
    Member:
    #63328
    Messages:
    7,821
    Gender:
    Male
    First Name:
    Jamie
    Calgary
    Vehicle:
    2006 Campster Mobile
    My truck is MAGIC
    Federal law? There's lots of aftermarket cats available. So that wouldn't make much sense..

    However good quality factory cats are fucking expensive. If you wanted a y pipe with factory cats you'd be looking at upwards of $3000.

  17. Dec 22, 2013 at 3:01 PM
    #57
    Loco38SUP

    Loco38SUP Well-Known Member

    Joined:
    Jan 6, 2013
    Member:
    #94622
    Messages:
    390
    Gender:
    Male
    North Seattle, WA
    Vehicle:
    2011 Double Cab SR5 4X4
    Loud as hell URD exhaust!
    Is this the old model?

    The URD website shows the bend behind the transfer case.

    RJM

  18. Dec 22, 2013 at 3:08 PM
    #58
    Jetlander

    Jetlander Just trying to measure up...

    Joined:
    May 21, 2013
    Member:
    #104658
    Messages:
    3,143
    Gender:
    Male
    First Name:
    Jonathan (aka MOAB)
    Depends on the day.
    Vehicle:
    2010 Tacoma DCSB 4x4 SR5
    TKO Wheel w/ 35" BFG KM2, Volant CAI, Safari Snorkel, 3" lift, All-Pro Full Skid Underarmor, Chopped/Re-Routed FlowMaster Exhaust, CBI Moab 2.0 Front Bumper, DerpWerx High Clearance Rear Bumper, Rear Tire Swing Out, BAMF Sliders w/Kickouts, King Resi w/700# Coilovers on front, Total Chaos UCA's, King Long Travel with Resi's, Shock Hoops and King 2.5 Bump Stops, OME Dakar Leaf Springs mounted on All-Pro Shackle Flip w/ U-Bolt Flip, extended SS Brake Lines, DerpWerx Bedrack, 10# C02 Tank, Black Badges, Dual Optima Red Top's, Blue Sea 12 Fuse Block on custom Block mount, SuperWinch 9.5iSR Talon w/synthetic line, Prolink Thimble, 20" Rigid Dual Row LED Light Bar, Rigid Dually Floods, OTRATTW Switches, Cab Mount Chop, Cobra CB w/ 4' Firestik, Center Counsel Glock 23 mount (with plenty o' ammo!), Weathertechs, and plenty more mods to come!
    Very nice. This is probably my next major mod. Which URD exhaust is this?

  19. Dec 22, 2013 at 3:19 PM
    #59
    Vigo

    Vigo 4X4 Lifted, Locked, Geared, Blown.

    Joined:
    Jul 16, 2012
    Member:
    #82750
    Messages:
    871
    Gender:
    Male
    First Name:
    Ryan
    On a rock in the pacific
    Vehicle:
    '12 4 door
    stuff...
    I had contemplated re-routing, but it just made more sense to go with the URD. Worth every penny. Fit perfectly with no modification whatsoever. Will not work without modification if you're running a 4x4 with a drop bracket, though.
    Noise levels didn't increase much, and very little rasp with the two cats removed.
    Added a magnaflow muffler, a large one at that, and it's still very quiet. My afe intake drowns out the exhaust note, that's how quiet it is. Still running the stock header and front cats.

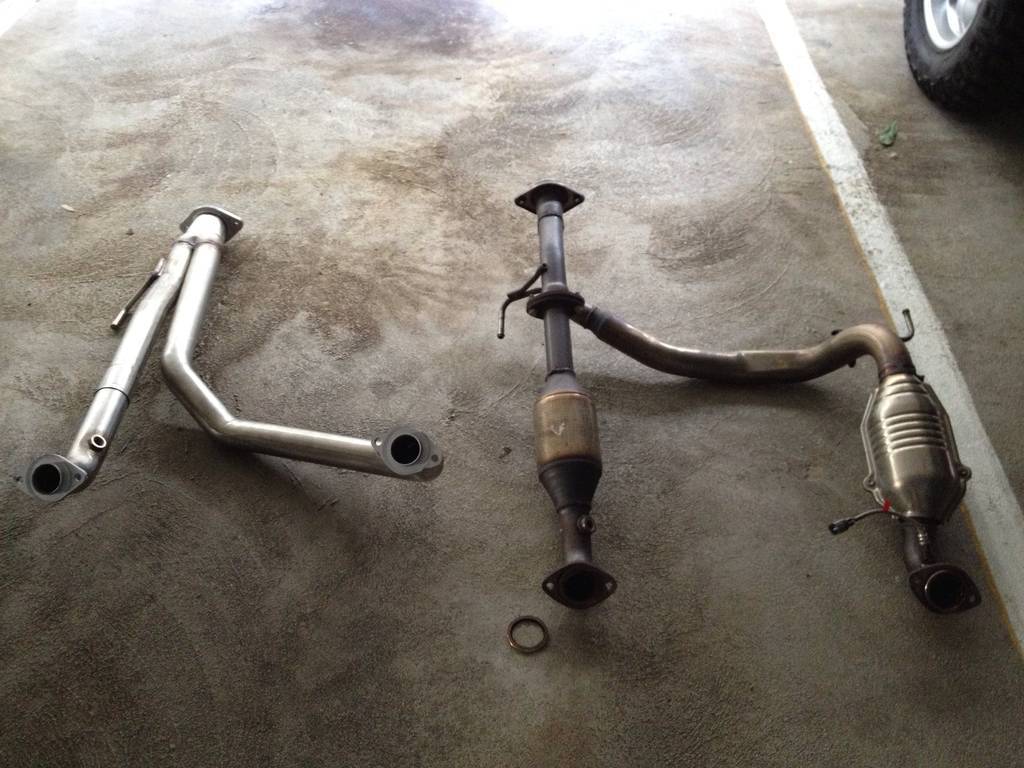

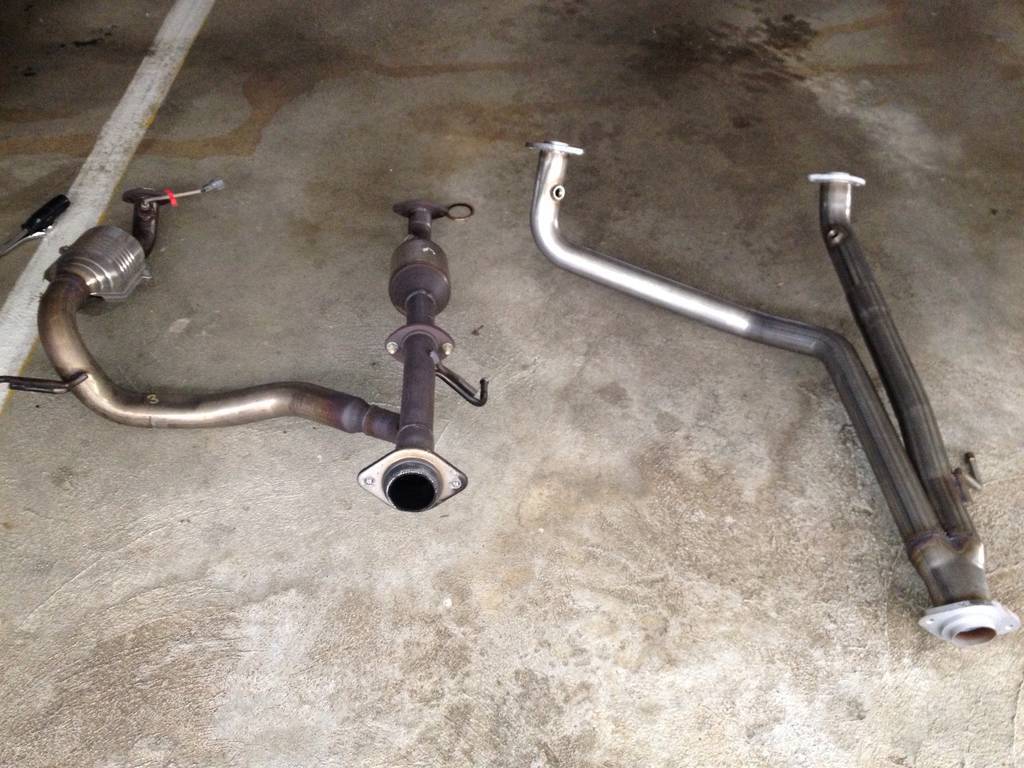

    Here are some comparison pics.
    [​IMG]

    [​IMG]

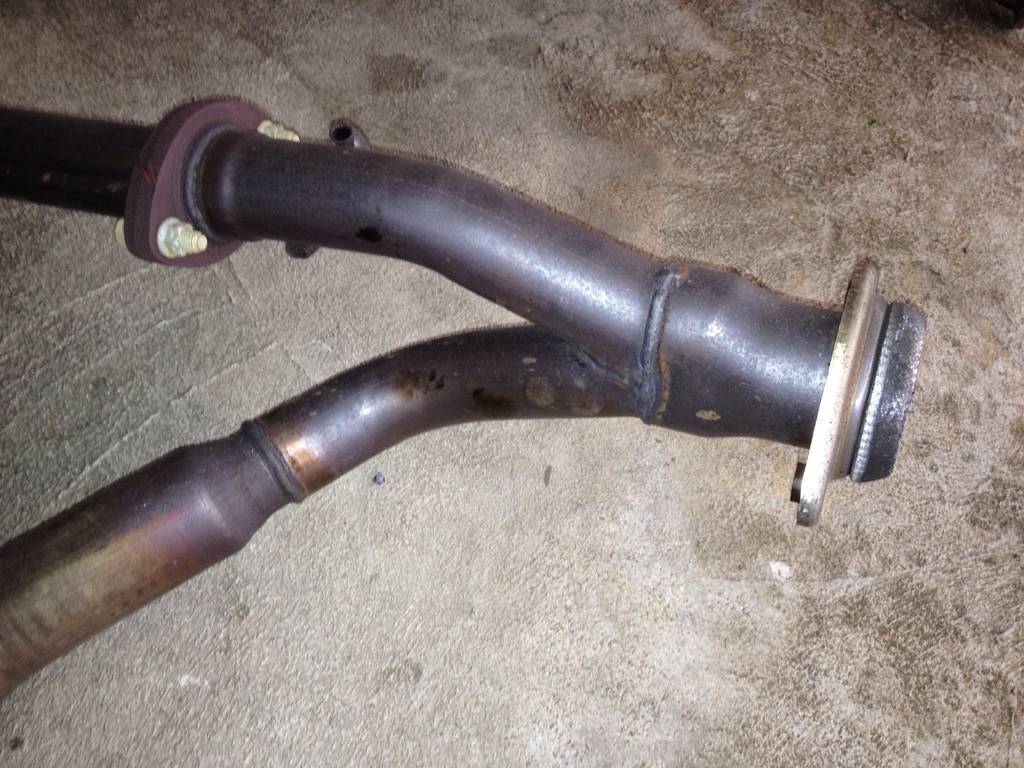

    Stock Y
    And FYI, the crossover tube is double walled, so the inner tube is really small. See where it attaches to the Y? That small.
    [​IMG]

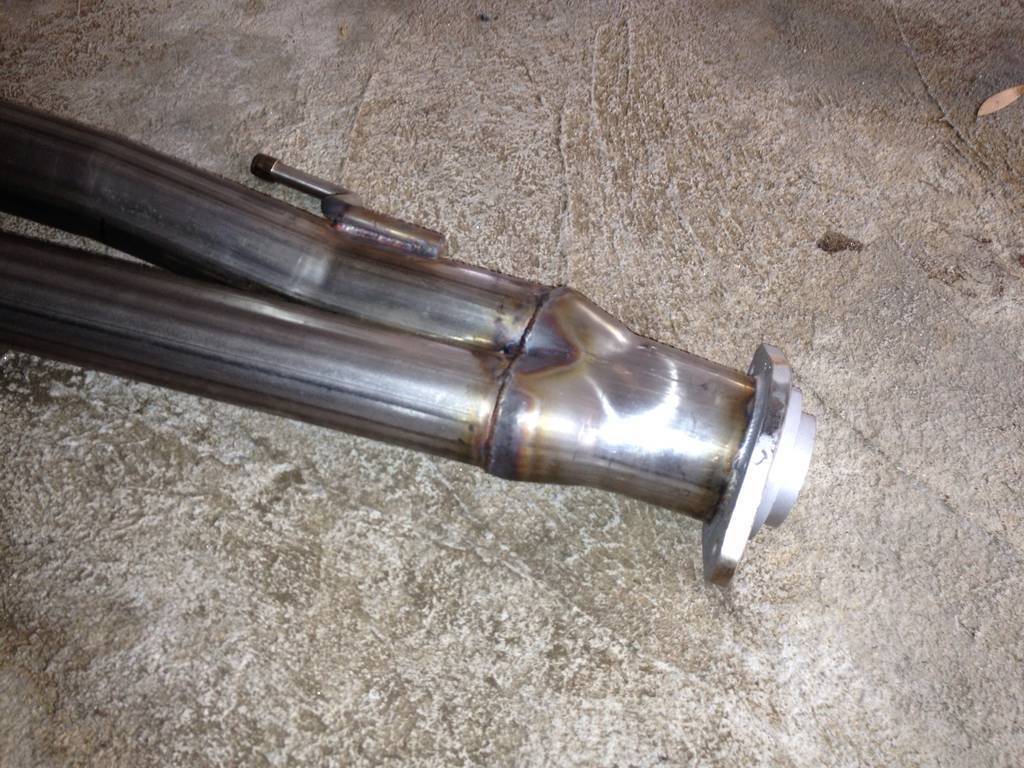

    URD Y

    [​IMG]

  20. Dec 22, 2013 at 3:21 PM
    #60
    Vigo

    Vigo 4X4 Lifted, Locked, Geared, Blown.

    Joined:
    Jul 16, 2012
    Member:
    #82750
    Messages:
    871
    Gender:
    Male
    First Name:
    Ryan
    On a rock in the pacific
    Vehicle:
    '12 4 door
    stuff...
    I said removal is illegal, not replacement.
