Expedition Bed Rack Build - 56k warning...

Discussion in '1st Gen. Tacomas (1995-2004)' started by t0mills, Apr 3, 2011.

  1. Apr 3, 2011 at 4:26 PM
    #1
    t0mills

    t0mills [OP] Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51524
    Messages:
    74
    Gender:
    Male
    TRD, Gray Wire Mod, 3" Suspension lift, 3" Body Lift, 285/75 AT2s
    Got a lot of pics, so I might as well get to it…

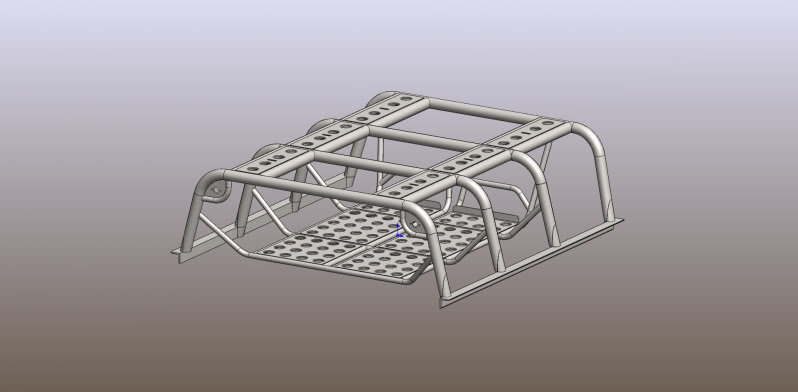

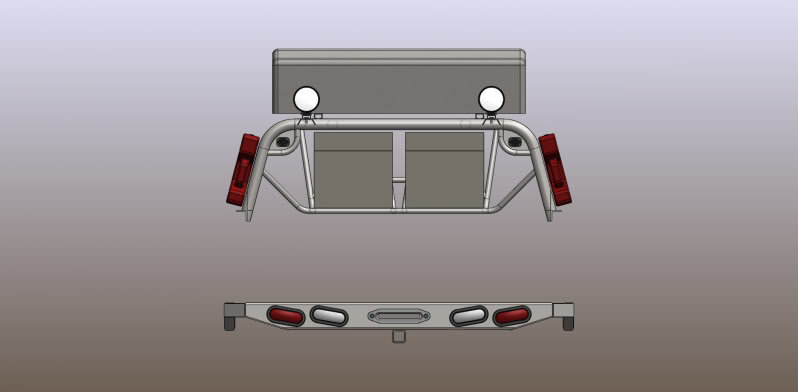

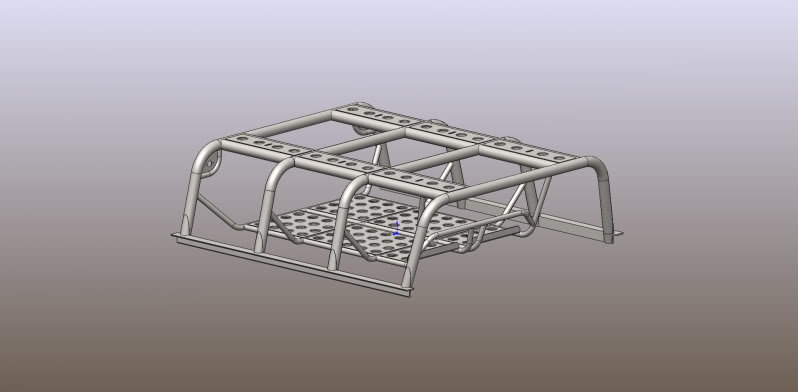

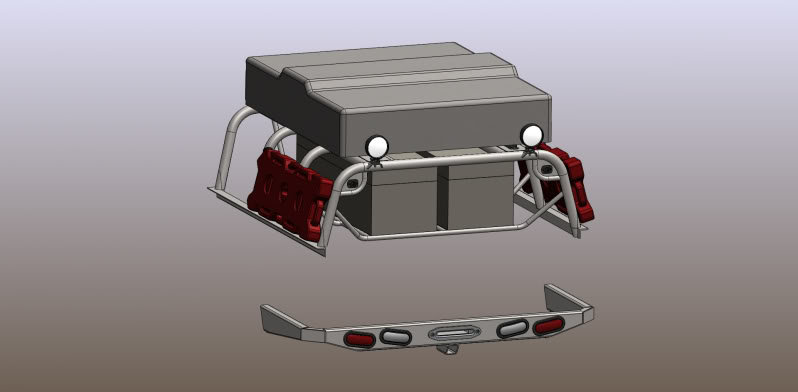

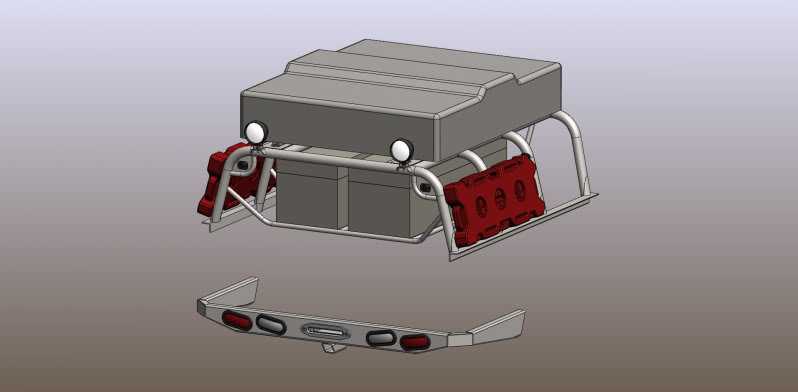

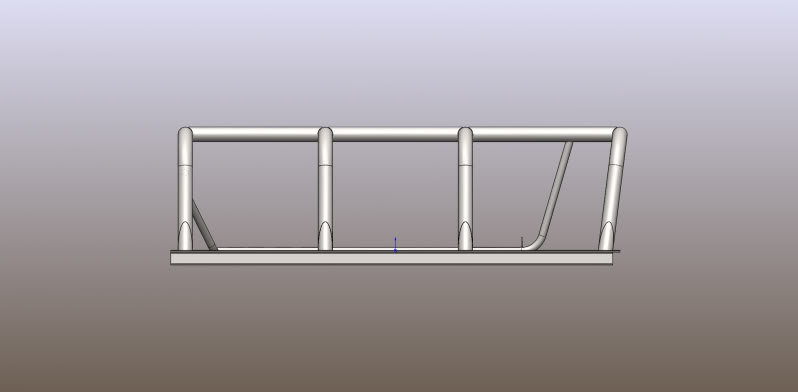

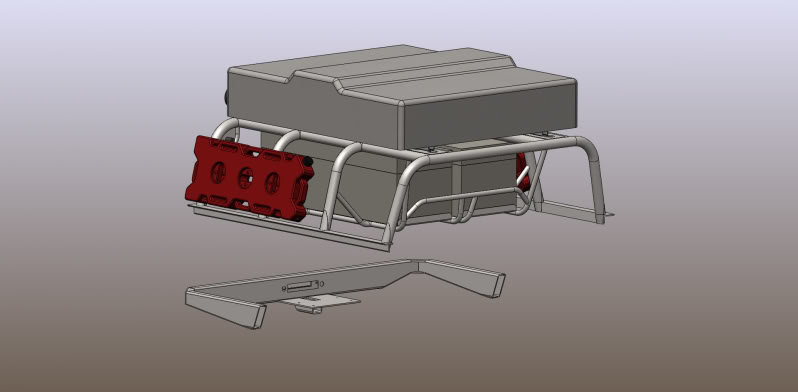

    Here is the design that I came up with for the bed rack:

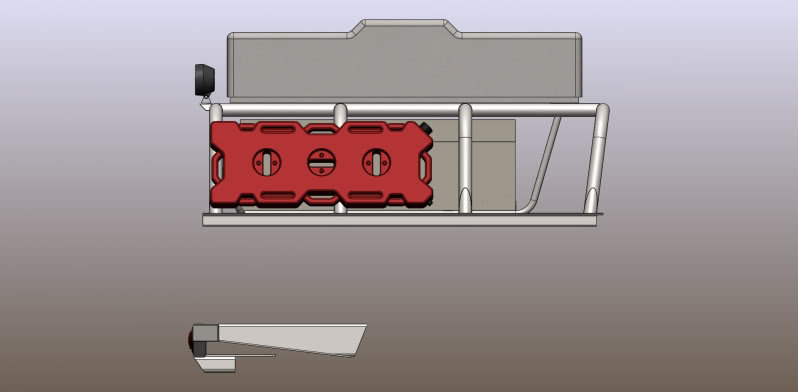

    Its made to carry a Rooftop Tent, so I wanted it to stay below the height of the cab, as the tent is about 12” tall when closed up.

    The main frame is built from 2” x 0.120” tubing, and the inner frame is constructed from 1” x 0.083” tubing. The inner frame is made to store my Pelican 1740 cases, as seen here: LINK

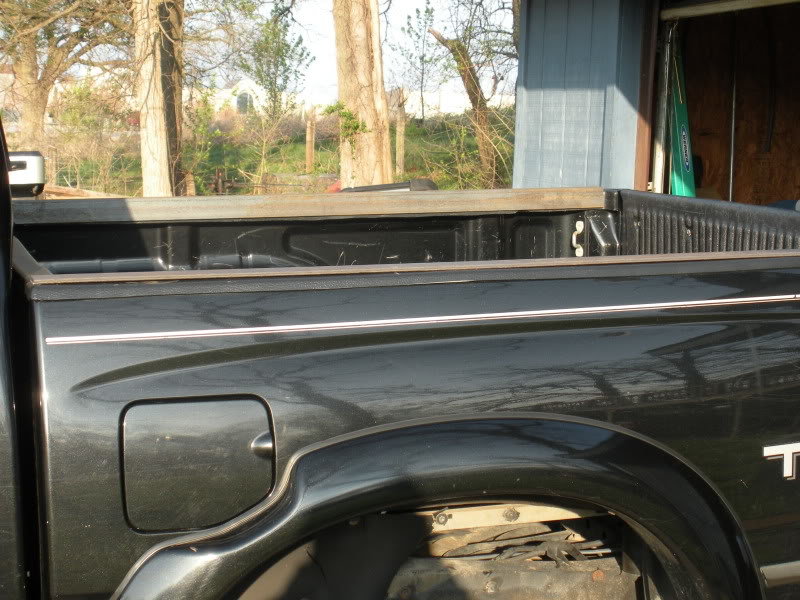

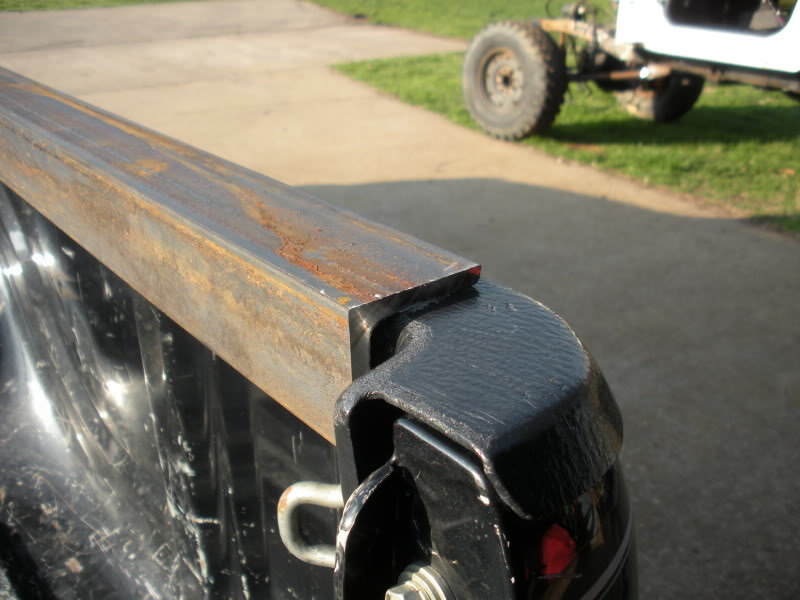

    The rails are made from 2” x 2” x ¼” angle iron. They are attached to the bed with 4x 3/8”bolts, but I will be adding 2 more as soon as I pick some up.

    The skins are made from 1/8” plate, and the top features slotted holes to mount the tent. Therest of the holes are 2” flared holes, to cut down on weight and give it some style.















  2. Apr 3, 2011 at 4:28 PM
    #2
    S.B.

    S.B. Well-Known Member

    Joined:
    Jun 24, 2009
    Member:
    #18838
    Messages:
    3,587
    Gender:
    Male
    First Name:
    Sean
    Colorado Springs, CO
    Vehicle:
    08 Taco 4x4 TRD OffRoad Rugged Trail
    Fox 2.5, Built right UCAs, CBI Front bumper, NWTI Rear bumper, 35s
    Pics no worky.

  3. Apr 3, 2011 at 4:29 PM
    #3
    Gramps

    Gramps My walker is faster than your Prius!

    Joined:
    Feb 7, 2011
    Member:
    #50695
    Messages:
    13,236
    Gender:
    Male
    First Name:
    Gramps
    Colorado! Where else?
    Vehicle:
    07 TRD DC 4x4
    A small handful of select mods.
    I want to see them but the pics are not working.:redxfall:

  4. Apr 3, 2011 at 4:32 PM
    #4
    tinker_troy

    tinker_troy VAN ENTHUSIAST

    Joined:
    Sep 17, 2007
    Member:
    #2718
    Messages:
    11,153
    Gender:
    Male
    WA
    Vehicle:
    Blue Subaru Thingamagigy
  5. Apr 3, 2011 at 4:33 PM
    #5
    t0mills

    t0mills [OP] Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51524
    Messages:
    74
    Gender:
    Male
    TRD, Gray Wire Mod, 3" Suspension lift, 3" Body Lift, 285/75 AT2s
    Dammit... I'll get it right here in a sec!




    *Got it!

  6. Apr 3, 2011 at 4:38 PM
    #6
    tinker_troy

    tinker_troy VAN ENTHUSIAST

    Joined:
    Sep 17, 2007
    Member:
    #2718
    Messages:
    11,153
    Gender:
    Male
    WA
    Vehicle:
    Blue Subaru Thingamagigy
  7. Apr 3, 2011 at 4:41 PM
    #7
    Pope953

    Pope953 That's a fact Jack!

    Joined:
    Feb 25, 2010
    Member:
    #32117
    Messages:
    11,462
    Gender:
    Male
    First Name:
    Wesley
    Asheville, NC
    Vehicle:
    SR5 Pickup
    35% up front, 20% in the back window tint, 15" Mickey Thompson bullet hole wheels, with 31x10.5 Firestone Destination A/T tires. Glass Pack, High Flow Cat, S&B CAI, Custom Light Bar with 4 fog lights. 2 10" Rockford Fosgate P2 subs with 1000 watt Rockford Fosgate Amp, CB.
    Looks awesome. Nice rendering! Cant wait to see the final piece.

  8. Apr 3, 2011 at 4:42 PM
    #8
    t0mills

    t0mills [OP] Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51524
    Messages:
    74
    Gender:
    Male
    TRD, Gray Wire Mod, 3" Suspension lift, 3" Body Lift, 285/75 AT2s

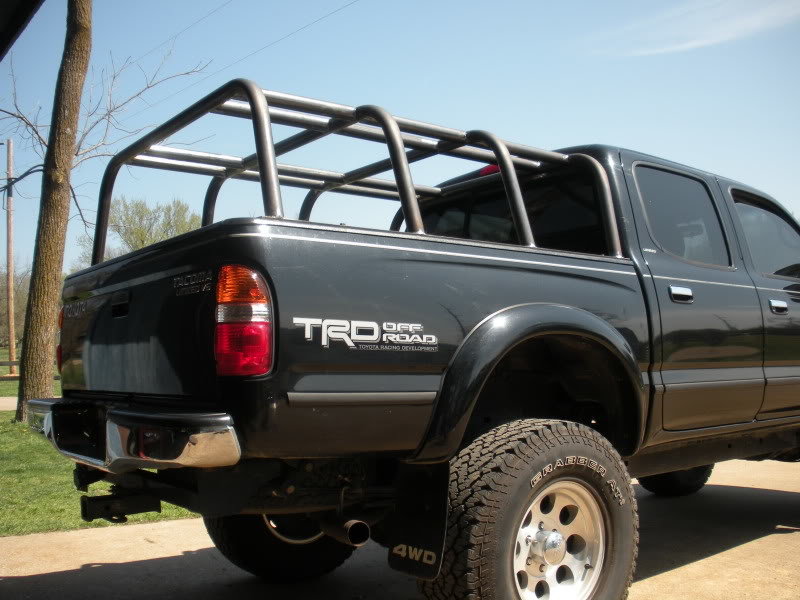

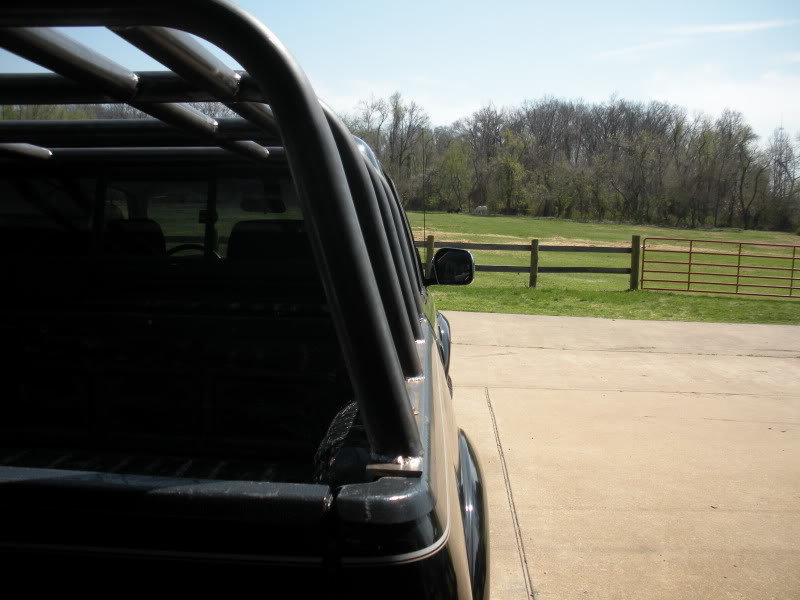

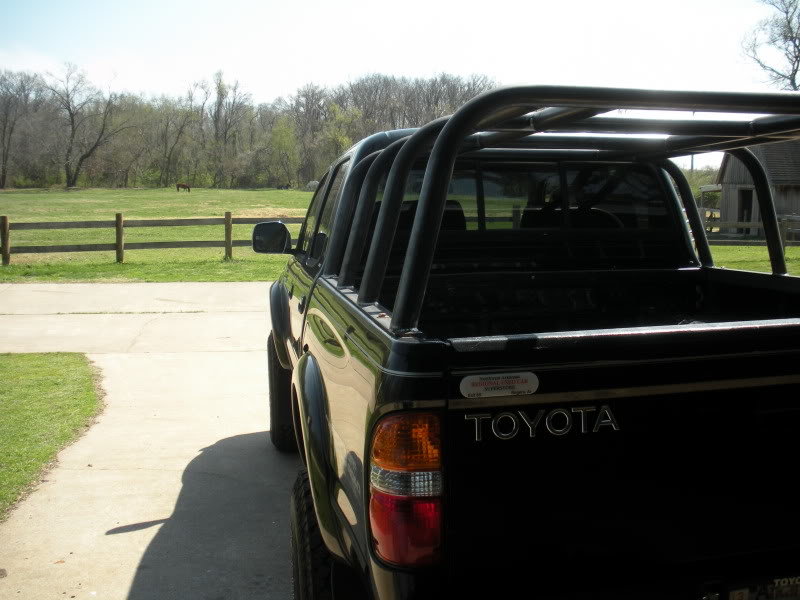

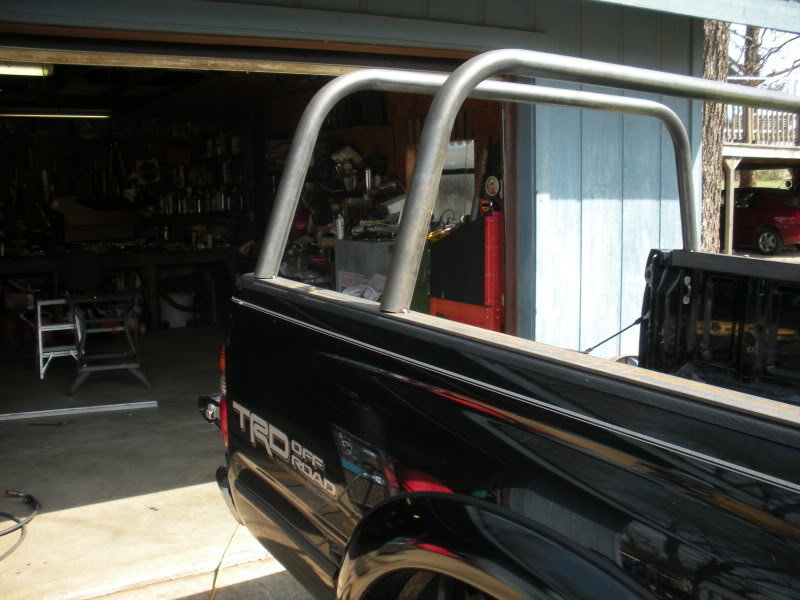

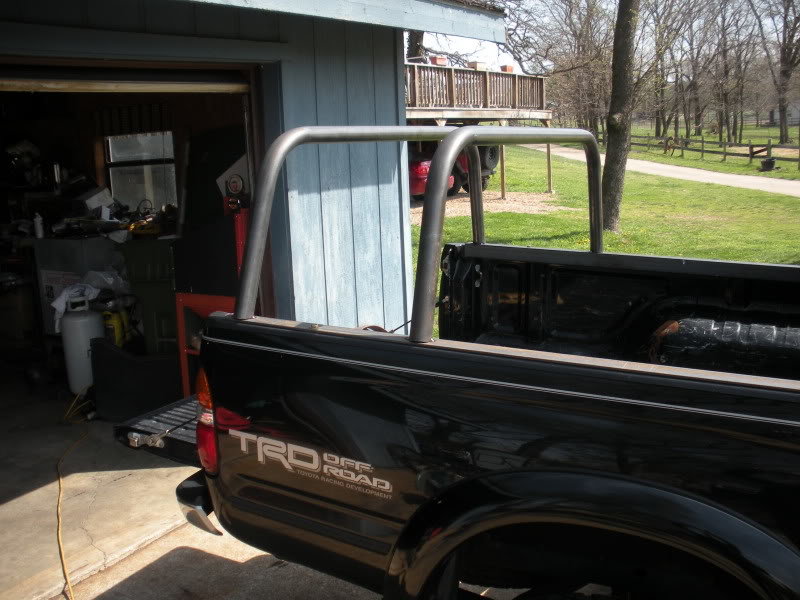

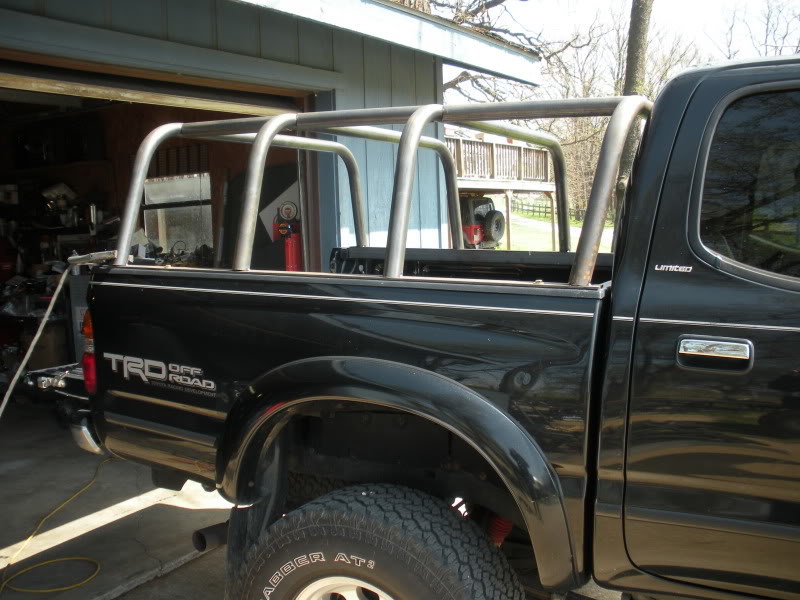

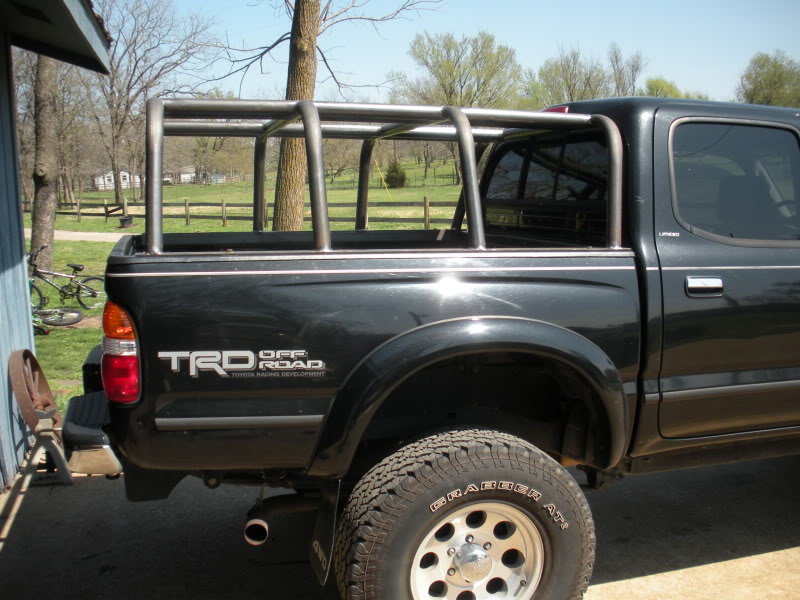

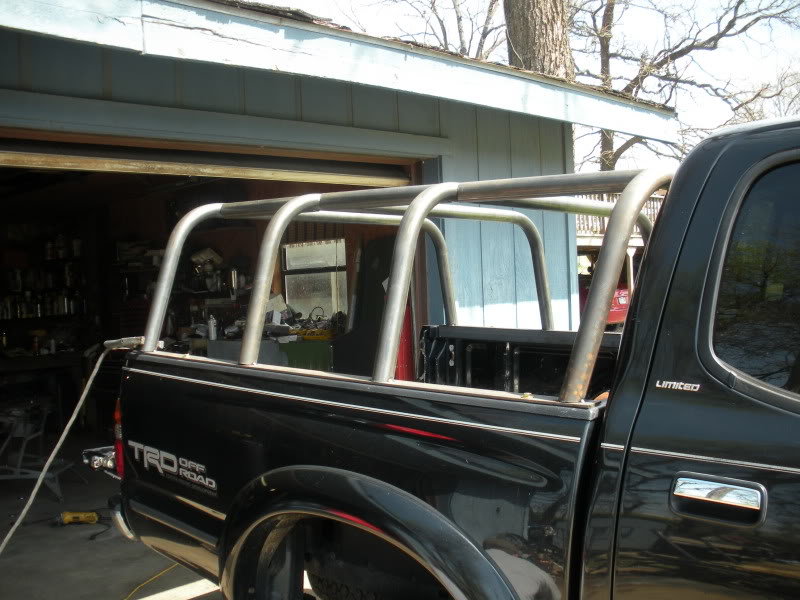

    The front hoop is angled toward the front to match the curveof the cab. All of the hoops are taperedin, and perfectly match the angle of the cab when viewed from behind.

    I’m really happy with the way its turning out so far. I’m lucky enough to live in the same town asan excellent fabricator, and we came a long way on progress today.

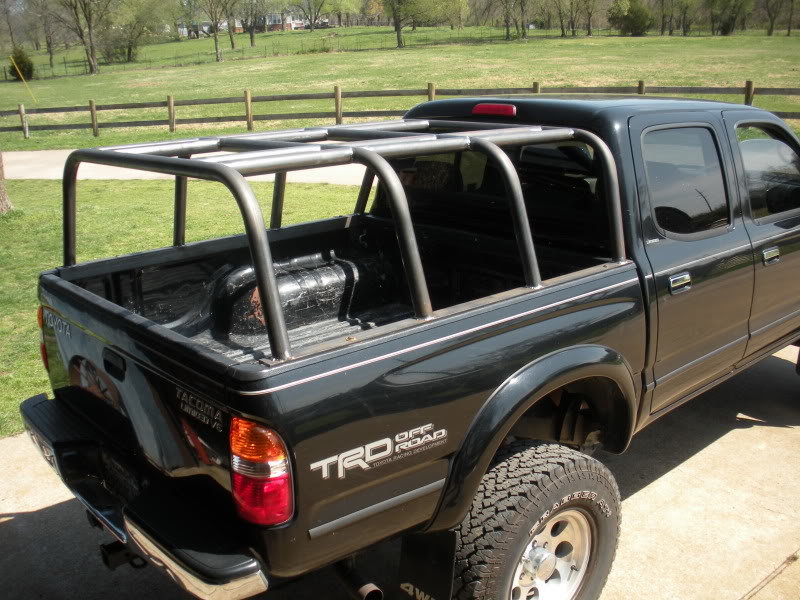

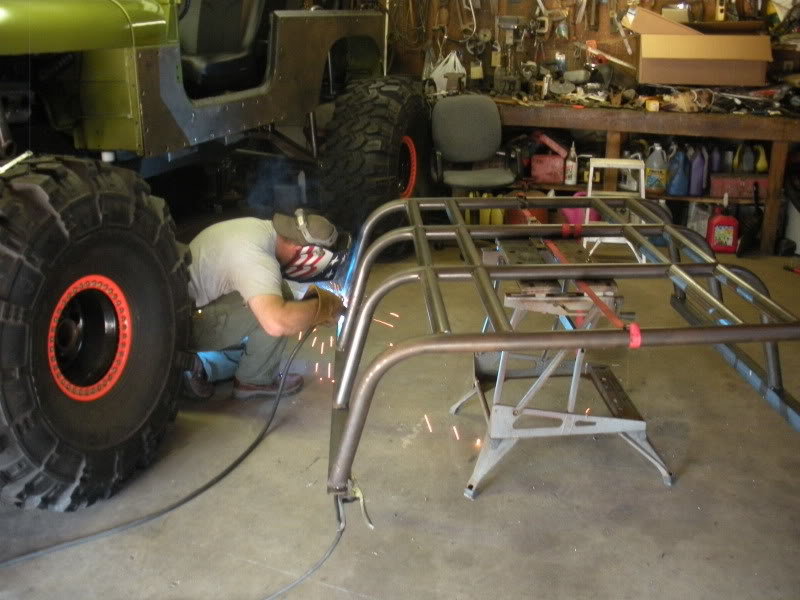

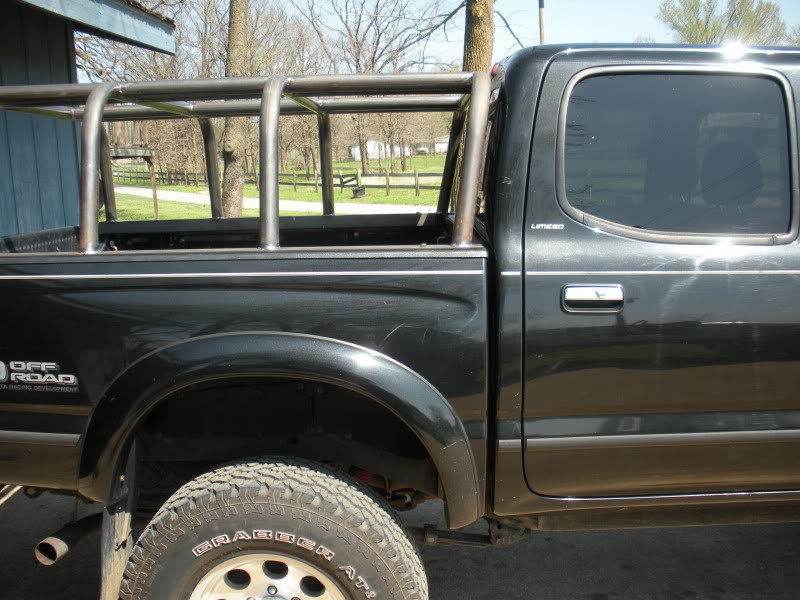

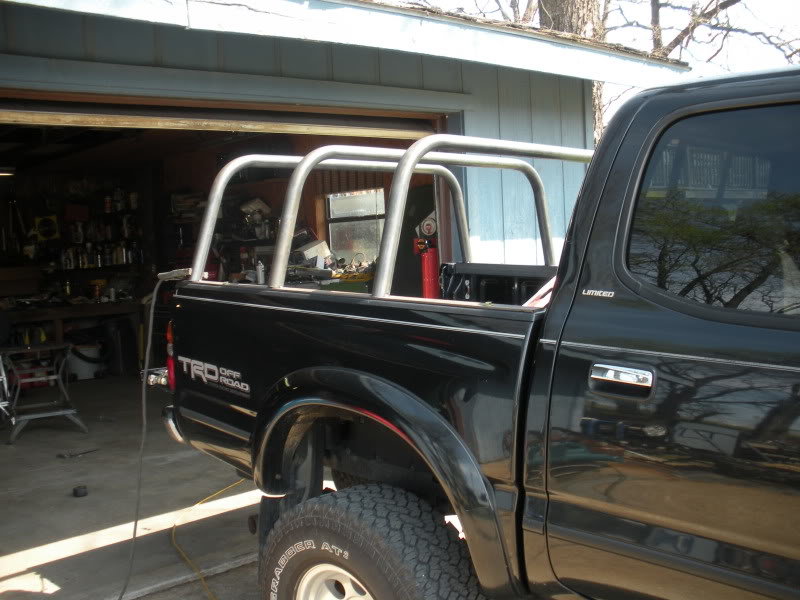

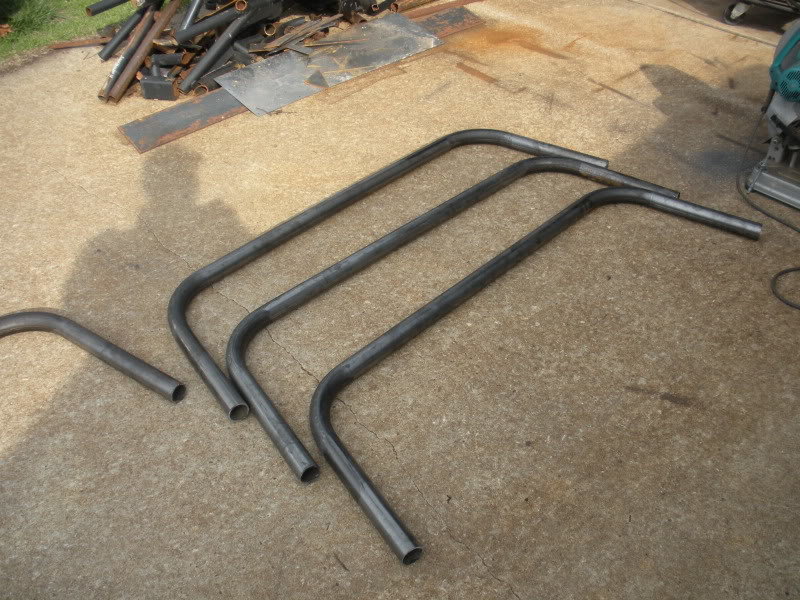

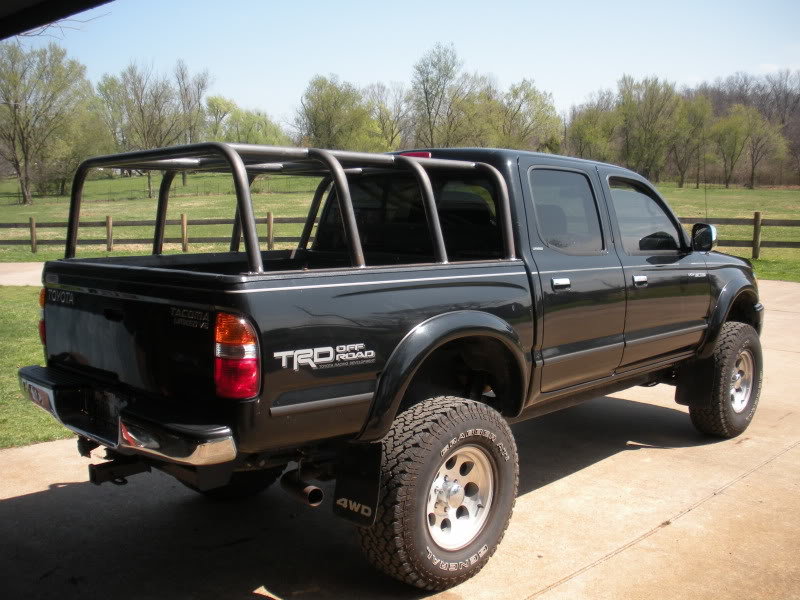

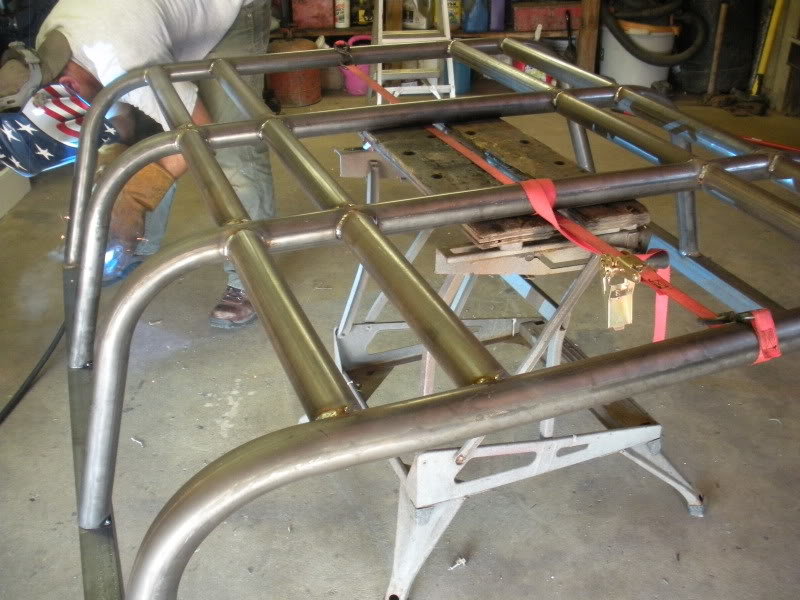

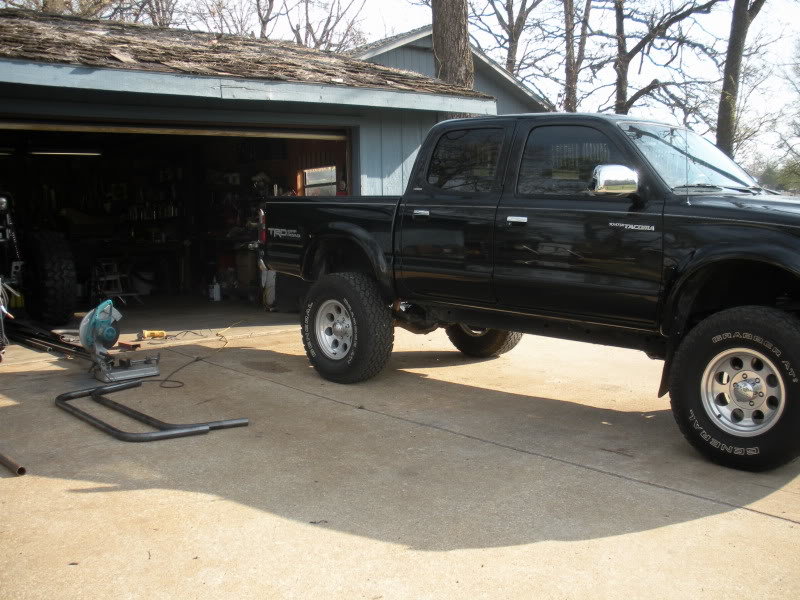

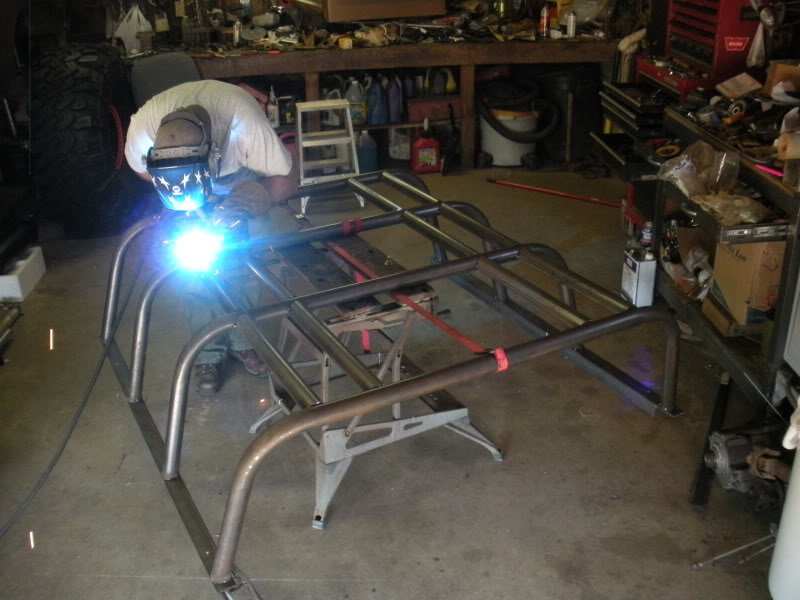

    Here are some pics of the build:






















  9. Apr 3, 2011 at 4:44 PM
    #9
    Pope953

    Pope953 That's a fact Jack!

    Joined:
    Feb 25, 2010
    Member:
    #32117
    Messages:
    11,462
    Gender:
    Male
    First Name:
    Wesley
    Asheville, NC
    Vehicle:
    SR5 Pickup
    35% up front, 20% in the back window tint, 15" Mickey Thompson bullet hole wheels, with 31x10.5 Firestone Destination A/T tires. Glass Pack, High Flow Cat, S&B CAI, Custom Light Bar with 4 fog lights. 2 10" Rockford Fosgate P2 subs with 1000 watt Rockford Fosgate Amp, CB.
    Looking good so far :thumbsup:

  10. Apr 3, 2011 at 4:47 PM
    #10
    t0mills

    t0mills [OP] Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51524
    Messages:
    74
    Gender:
    Male
    TRD, Gray Wire Mod, 3" Suspension lift, 3" Body Lift, 285/75 AT2s













































    Progress will continue to be made on weekends, until it’scomplete. I’m cutting the skins on the laser at work this week, so they should be welded on next weeked.

    Shortly after that, it’ll be time for a little road trip toTRDParts4U in Dallas to pick up a Mombasa Expedition Plus!

    EB Group likes this.
  11. Apr 3, 2011 at 4:48 PM
    #11
    malander

    malander That's some tight butthole

    Joined:
    May 6, 2010
    Member:
    #36656
    Messages:
    2,422
    Gender:
    Male
    First Name:
    max
    Missouri
    Vehicle:
    01 limited trd 4x4
    deck plate mod,jba cat back,bilstein 5100's,ome 883 springs, Allpro expos, allpro U-bolt flip kit, 10" Bilstien 5150 shocks, custom lower shock mounts
    Wow looks great. I'd love to have something like that over the ap racks. What software did you use?

  12. Apr 3, 2011 at 4:51 PM
    #12
    STLharry

    STLharry Lube: It's the key to penetration.

    Joined:
    Oct 11, 2008
    Member:
    #9899
    Messages:
    1,908
    Gender:
    Male
    First Name:
    Harry
    VT
    Vehicle:
    Yeti Rescue Package with 240k miles
    '95-'97 camouflaged, ARB bull bar, RAT Products skid plate kit, sliders, Green Mountain Customs rear tube bumper and overland bed rack, King coilovers with Icon neoprene covers, defenestrated sway bar, OME Rear Suspension: CS046R leafs + AAL/5125 shocks/NWOR greasable hardware/U-bolt flip kit; S13WL Tundra calipers/pads/rotors, IPF H4 lenses and bulbs, IPF 968 DCG 100W lights, clapped out CB radio, Aussie-spec FJ60 inclinometer, ARB CKMA12 compressor, Superwinch S9000 with 12V Guy clock switch, 4' Hi-Lift, deckplate mod/grey wire mod/dif breather extensions, Duratrac tires, Sockmonkey bedside decals, boat cupholder, Dakine bike pad
    I like it a lot. :popcorn:

  13. Apr 3, 2011 at 4:57 PM
    #13
    t0mills

    t0mills [OP] Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51524
    Messages:
    74
    Gender:
    Male
    TRD, Gray Wire Mod, 3" Suspension lift, 3" Body Lift, 285/75 AT2s
    Thanks for the comments, you guys are quick!! :D


    As for the design, I'm an Engineer through the week, and use SolidWorks to design Gas/Oil Rigs. This was something I worked on during lunch or any free time I had (which isn't much...)


    Here is a link that I forgot to post earlier. It's to the Pelican 1740 cases that I've ordered. These will allow me to store a lot of gear/clothing without worrying about it getting wet or dusty.


    http://www.pelican.com/cases_detail.php?Case=1740

  14. Apr 3, 2011 at 5:02 PM
    #14
    ColtsTRD

    ColtsTRD .....

    Joined:
    May 13, 2009
    Member:
    #17177
    Messages:
    17,806
    Gender:
    Male
    First Name:
    Scott
    AZ
    Vehicle:
    2005 TRD DCSB
    Damn nice work!!!!

  15. Apr 3, 2011 at 5:09 PM
    #15
    907taco

    907taco Alaskan Assassin

    Joined:
    Mar 27, 2010
    Member:
    #34091
    Messages:
    1,358
    Gender:
    Male
    First Name:
    Bobby
    Alaska
    Vehicle:
    2010 BlackSandPearl 4x4
    ultimate lift kit ( toytec ) ome dakar leaf pack , w/ extended length billies, LR uca's, Pro comp 7089s, KM2's 285 70 17, neoprene seat covers, weather techs, CBI sliders w/kickout, URD ss, cab mount chop, VHT night shade tint>tails,3rd B-light. Debadged. Grillecraft grille, rear diff breather mod. CBI Moab front bumper, warn M8000 winch, HID kragens 7", Hella's micro fogs. retrofit headlights HIDS, LED solutions maps/license! 886 back up light mod,
    that is going to be awesome. suscribed. cant wait for final pics.

  16. Apr 3, 2011 at 5:09 PM
    #16
    MillerMan06

    MillerMan06 Well-Known Member

    Joined:
    Feb 10, 2011
    Member:
    #50950
    Messages:
    104
    Gender:
    Male
    First Name:
    Adam
    Raleigh
    Vehicle:
    06 PreRunner SR5
    K&N Cold Air Intake,Running boards,bed cover,windows tinted, MagLite seat mount (A big Thankyou to piercedtiger for that one got it off cheap/free mods) extra 4 outlets on the 12V plug 3 12V plug in's and a USB all one box with toggles,48LED dome light (blue), Tail gate theft mod,Exhaust flowmaster super 44 with tips!!!!
    sweet build man!!!!! I think its going to look badass when your done!!!

  17. Apr 3, 2011 at 5:12 PM
    #17
    Avsguy33

    Avsguy33 Well-Known Member

    Joined:
    Oct 1, 2009
    Member:
    #23633
    Messages:
    148
    Gender:
    Male
    Pics of the big sombitch in the garage that you are welding in front of!!!

  18. Apr 3, 2011 at 5:17 PM
    #18
    edcal

    edcal Well-Known Member

    Joined:
    Nov 14, 2010
    Member:
    #46180
    Messages:
    76
    Gender:
    Male
    First Name:
    Ed
    Long Beach, CA
    Vehicle:
    02 PreRunner
    Icon Coil Overs/AAL, Bilstein 5100's, 285/75/16's on MT Classic Locks, 4runner Hood Scoop Mod, Yakima Roof Rack w/BVG Roof Basket, Alpine iDA-X100 Head Unit, iCom V8000 w/Comet SBB25 Antenna, Dual LED Dust Lights, DeChromed, DeBadged, small cosmetic mods like Clear Corner Lights, Painted Tail Lights, Mesh Grille, Tinted Windows & LineX Bed

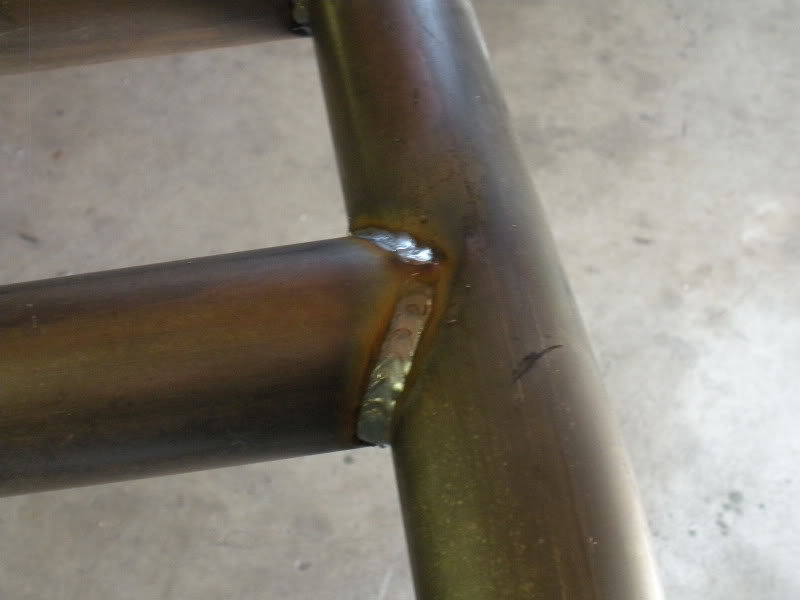

    nice welds mills your bed rack is shaping up nicely. HBmurphy has a similar setup on his 2nd gen. Dunno if he made is own bed rack or bought it but has the tent youre talking about. folds down while wheelin then pops up with a small ladder when ready to camp. Sweet setup. Cant wait to see yours when done

  19. Apr 3, 2011 at 5:40 PM
    #19
    t0mills

    t0mills [OP] Well-Known Member

    Joined:
    Feb 20, 2011
    Member:
    #51524
    Messages:
    74
    Gender:
    Male
    TRD, Gray Wire Mod, 3" Suspension lift, 3" Body Lift, 285/75 AT2s


    Ask and you shall receive!

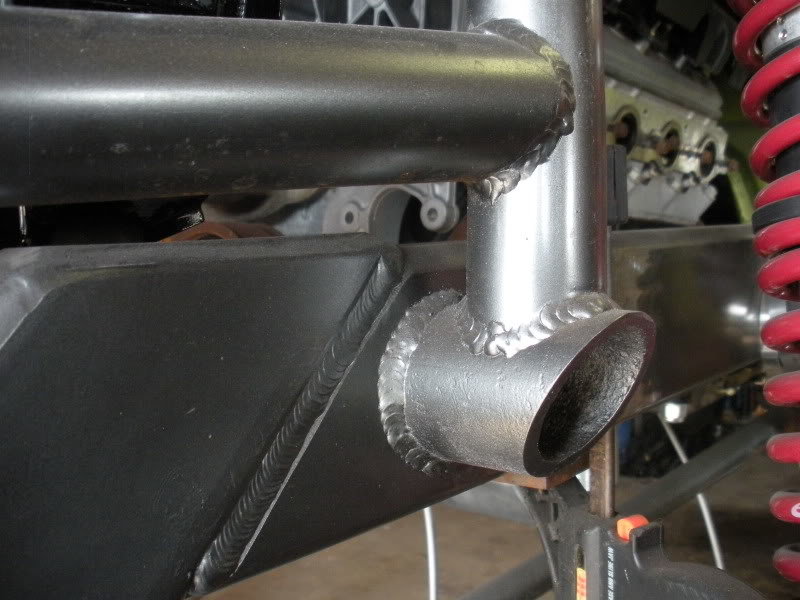

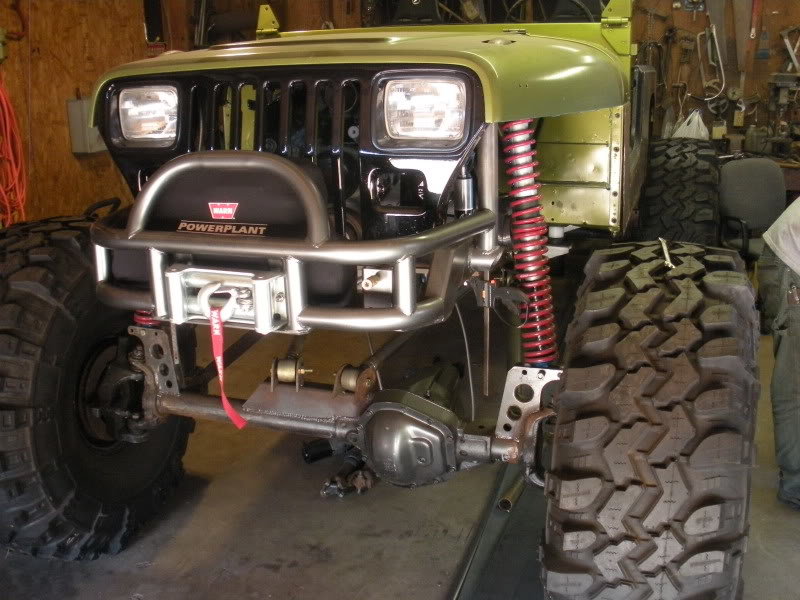

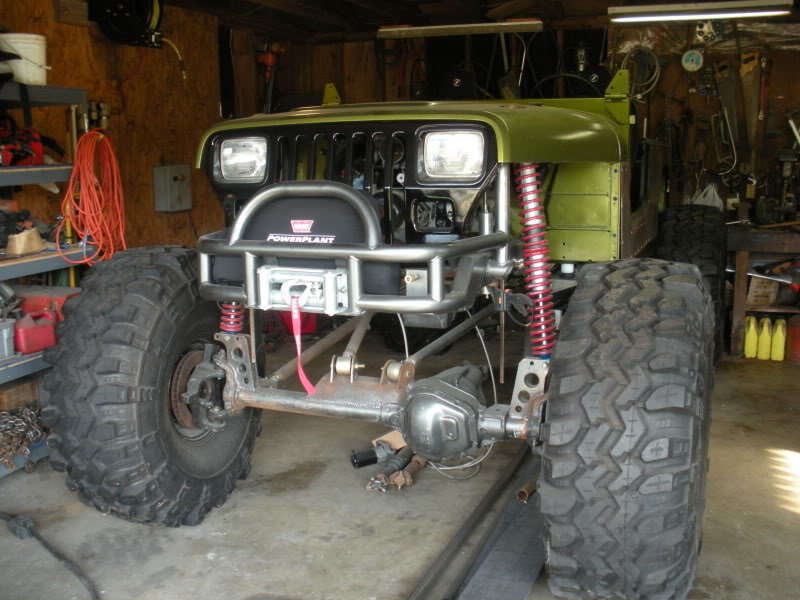

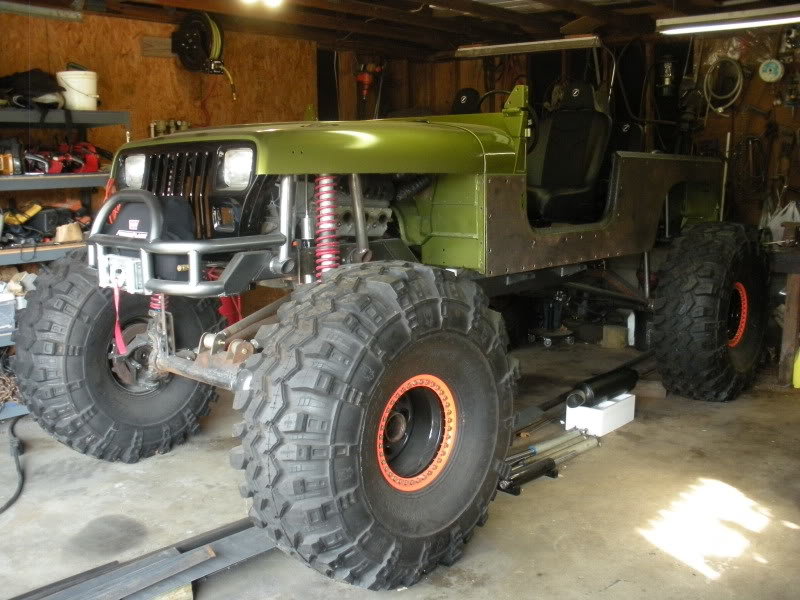

    That rig belongs to Curtis (Fabricator) and is a work in progress. He's built everything from the frame to the interior.... :cool:


    47" LTBs, LS1, Corbeau Suspension Seats, Onboard Air, Fox Resi Coilovers all around, Lockers, Hydro steer....ect.

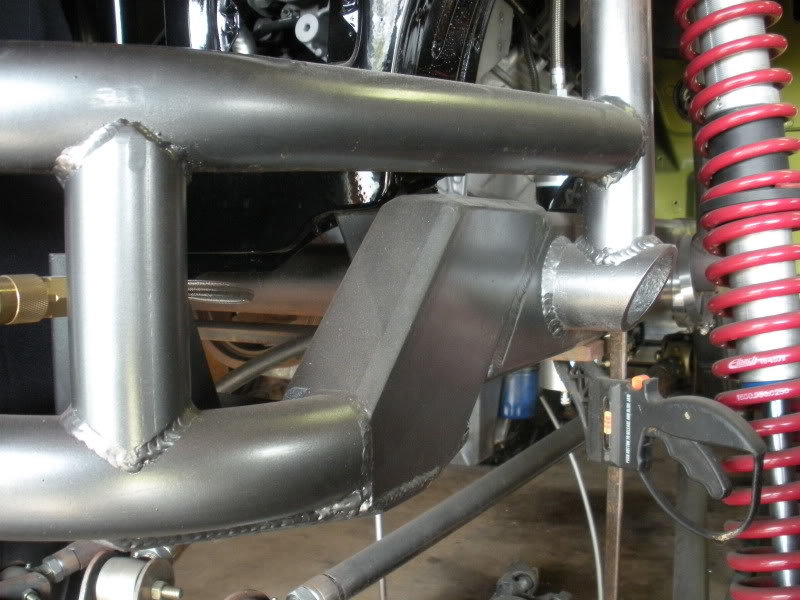

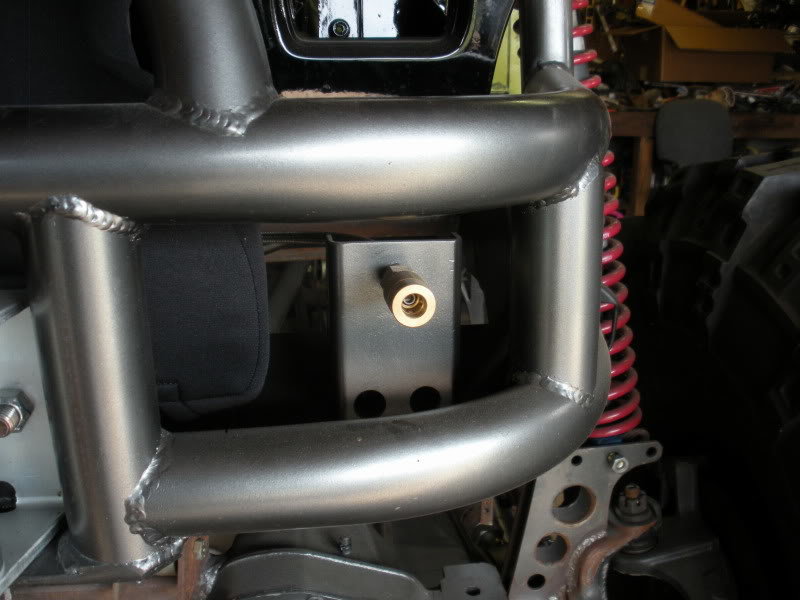

    Here are some pics of that rig to hold you over until I can make more progress on mine!









  20. Apr 3, 2011 at 5:44 PM
    #20
    Avsguy33

    Avsguy33 Well-Known Member

    Joined:
    Oct 1, 2009
    Member:
    #23633
    Messages:
    148
    Gender:
    Male
    Oh man that is gnarly! Bed racks looks awesome BTW. I wish I could weld like that.
