Fabtech, ProComp 6" lift or more. Pictures

Discussion in 'Suspension' started by toku58, Jul 2, 2009.

  1. Feb 24, 2014 at 7:17 PM
    #8121
    2ndGenJonny

    2ndGenJonny Well-Known Member Vendor

    Joined:
    Jan 3, 2013
    Member:
    #94306
    Messages:
    18,457
    Gender:
    Male
    First Name:
    Jon
    Gilbert, AZ
    When you cycle a front end without a coil you will soon hit a stop wit the uniball, there is only so far it can go. As for the TC lower, they are made to stop the steering and Im in no danger of bending a tie rod unless I'm being an idiot. Ill hit the lower DB at the cam tab or DB itself before I hit anywhere else... And I have when I have when I navigated a trail called Elvis out here. :D
    I'm probably going to remove the tires, bumps and coils this weekend and see if I can get more droop/bump out of it before I make the call to remove the spacer inside the coil itself. I may go as far as removing the coil spring and see what we get with just the shock itself for travel. If I do it, I'll try to snap some photos for you.

    Last edited: Feb 24, 2014
  2. Feb 24, 2014 at 7:50 PM
    #8122
    TexasIslandBoy

    TexasIslandBoy THE RED DRAGON!!

    Joined:
    Jun 10, 2009
    Member:
    #18262
    Messages:
    3,261
    Gender:
    Male
    First Name:
    Andrew
    South Texas. SPI
    Vehicle:
    07' trd offroad 4X4 (For Sale)
    pro comp 6inch lift 35'' tires moto 950's radfo coilovers magnaflow exhaust 5/16" front skidplate usa spec ipod interface tree pin strip mod dry drop in filter full size BFG KM2 spare

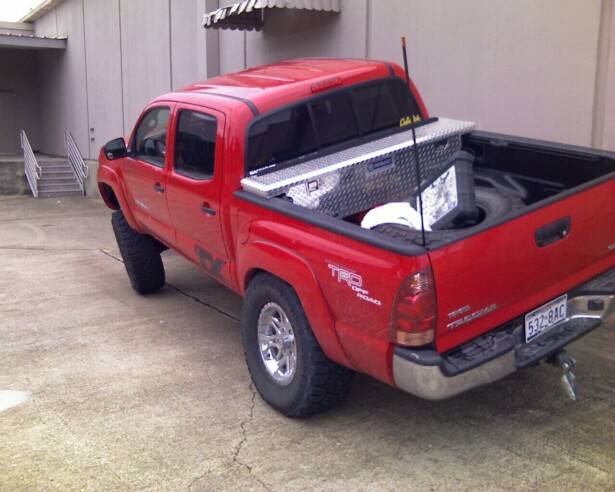

    You can get alot of front flex with out the front sway bar and radflo coilovers. I was up on a 5 or 6th stair on this. I still had alittle more out of the front but the rear was on the bumps. I just ordered new wheels and tires for mine.
    [​IMG][​IMG]

  3. Feb 24, 2014 at 8:14 PM
    #8123
    WailuaTaco808

    WailuaTaco808 A.L.O.H.A. Member

    Joined:
    Jul 18, 2012
    Member:
    #82916
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Phil
    Hawaiian Islands
    Vehicle:
    2010 Tacoma TRD SPORT Kauai Built
    Oh boy...
    god i love this thread..... i can agree with everything stated above.... Procomp C/o's blow. not gunna beat the dead horse anymore. Im looking forward to seeing someone make a better riding 6+ inch lift. Im sitting at 8 now and happy with the height. just wish the ride wasn't so bouncy.

    That being said, my ride is still better than my brother's SAS ford f250powerstroke. But i am thinking SAS may be my next rout so that i can get a little more articulation out of the front. I think ill upload a video to show u guys.....

  4. Feb 24, 2014 at 10:52 PM
    #8124
    WailuaTaco808

    WailuaTaco808 A.L.O.H.A. Member

    Joined:
    Jul 18, 2012
    Member:
    #82916
    Messages:
    1,348
    Gender:
    Male
    First Name:
    Phil
    Hawaiian Islands
    Vehicle:
    2010 Tacoma TRD SPORT Kauai Built
    Oh boy...
    not toooooo bad but not too great either... expecially seeing that one tire lift off the ground at one point


  5. Feb 25, 2014 at 11:02 AM
    #8125
    2ndGenJonny

    2ndGenJonny Well-Known Member Vendor

    Joined:
    Jan 3, 2013
    Member:
    #94306
    Messages:
    18,457
    Gender:
    Male
    First Name:
    Jon
    Gilbert, AZ
    Texas, Sway bar was removed a long time ago along with coils and everything else I can buy to get the most flex. :D
    I love that skid you have set up, can you please post up some close up pictars of it?

  6. Feb 25, 2014 at 11:32 AM
    #8126
    TexasIslandBoy

    TexasIslandBoy THE RED DRAGON!!

    Joined:
    Jun 10, 2009
    Member:
    #18262
    Messages:
    3,261
    Gender:
    Male
    First Name:
    Andrew
    South Texas. SPI
    Vehicle:
    07' trd offroad 4X4 (For Sale)
    pro comp 6inch lift 35'' tires moto 950's radfo coilovers magnaflow exhaust 5/16" front skidplate usa spec ipod interface tree pin strip mod dry drop in filter full size BFG KM2 spare
    It's made of 5/16 aluminum. I had a buddy with a full sheet of it and I just bent it up and bolted it on. It would not hold up to rocks but mud and sand isnt a big deal.

  7. Feb 25, 2014 at 11:37 AM
    #8127
    2ndGenJonny

    2ndGenJonny Well-Known Member Vendor

    Joined:
    Jan 3, 2013
    Member:
    #94306
    Messages:
    18,457
    Gender:
    Male
    First Name:
    Jon
    Gilbert, AZ
    I would do steel and Iike the look from what I can see In your pictures. Do you have any more you can post?

  8. Feb 25, 2014 at 11:56 AM
    #8128
    TexasIslandBoy

    TexasIslandBoy THE RED DRAGON!!

    Joined:
    Jun 10, 2009
    Member:
    #18262
    Messages:
    3,261
    Gender:
    Male
    First Name:
    Andrew
    South Texas. SPI
    Vehicle:
    07' trd offroad 4X4 (For Sale)
    pro comp 6inch lift 35'' tires moto 950's radfo coilovers magnaflow exhaust 5/16" front skidplate usa spec ipod interface tree pin strip mod dry drop in filter full size BFG KM2 spare
    Ya I'll have to dig alittle I did it like 3 or 4 years ago.

  9. Mar 1, 2014 at 10:53 AM
    #8129
    Evenflow

    Evenflow Well-Known Member

    Joined:
    Jul 15, 2013
    Member:
    #108344
    Messages:
    5,766
    Gender:
    Male
    First Name:
    Jason
    San Diego, CA
    Vehicle:
    06' DCSB 4x4
    Yes
    Well here is a little project I have been working on during the painful wait times for all the custom suspension orders.

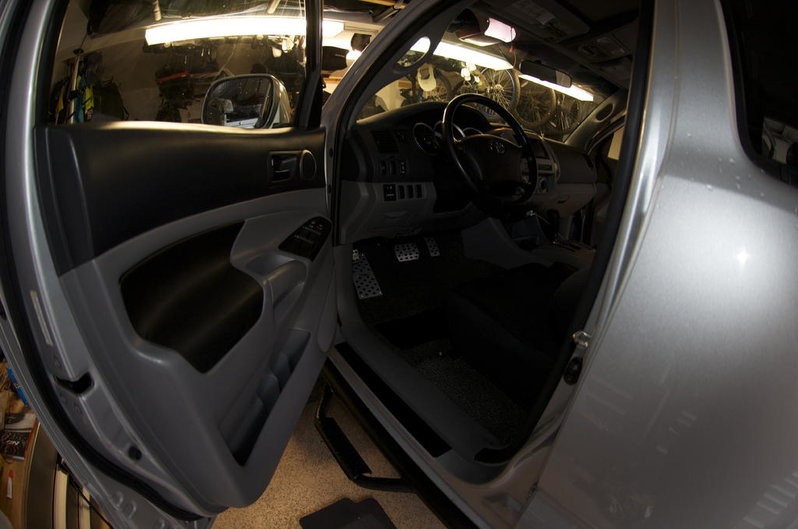

    My interior was absolutely trashed so i gutted it and started with new charcoal grey closed loop style carpet like old Jeeps and hot rods. Unless you have done carpet work yourself before just let a shop do it for you because when you order it online it is just a molded blank that fits the basic curves of the floor but it still needs 100% trim to fit and a little steam / fit work. Luckily I worked at a custom shop when I was kid so I was able to do it myself. I ordered the carpet with rubber " mass backing " for extra sound deadening but again if you plan to do the work yourself the extra stiffness of the sound deadening backing makes it extra tough to fit and trim the carpet. I already had ten tons of Dynamat installed back in 06' the entire floor, back wall, roof and doors are done with Dynamat X and I am extremely pleased with how quiet the truck is over OE.

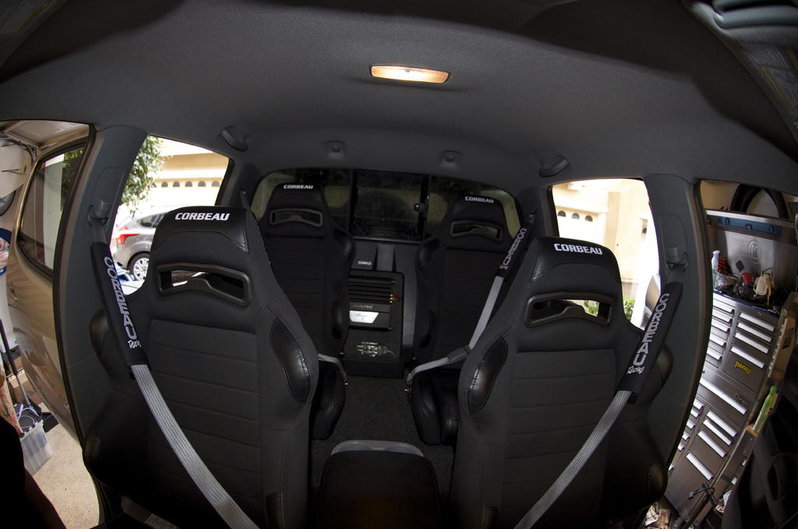

    Next I started looking at options to recover my OE seats and quickly discovered that just buying all new seats was only a bit more and I always wanted a 4 door with 4 buckets…only prob is that obviously nobody makes rear bucket seat brackets for a Taco. I ordered an extra set of front brackets and sliders from Corbeau, chopped the legs off and redesigned the legs and had a local TW member SPEEDFREAK help me weld them up then simply re painted them etc. The installation of the rear buckets is honestly pretty simple you have to weld in mounting points for the front bolts IE: sheet metal with nuts welded on then weld to the floor. For the rear bolts simply drill out the floor of the truck and use some nice grade 8 hardware with large washers. As my shit luck would have it...when I designed the rear seat brackets the width of my rear legs ended up directly over a "U" channel under the cab so I had to drill through the floor from the top then drill a small pilot hole through the channel…find it underneath then open up the hole with a hole saw big enough to get a washer and socket through it. The driver side is a bit tricky because you have to partially drop your gas tank to get to the inside rear seat bolt. Luckily our tanks are on hinged straps so it wasn't that tough just take the bolts out of the straps and lower the tank down with a jack just enough to reach up under it. Tip - run your tank empty and it even easier ;) Hey one cool thing about a DB lift - super easy to lay under your truck and work on all that stuff :)

    Edit * - before anyone asks - yes I removed the rear under seat storage and no I don't miss it at all because with a DB lift the OE jack is obviously useless and I have a high lift mounted in the bed... and I have another additional storage project in the bed to be revealed later.

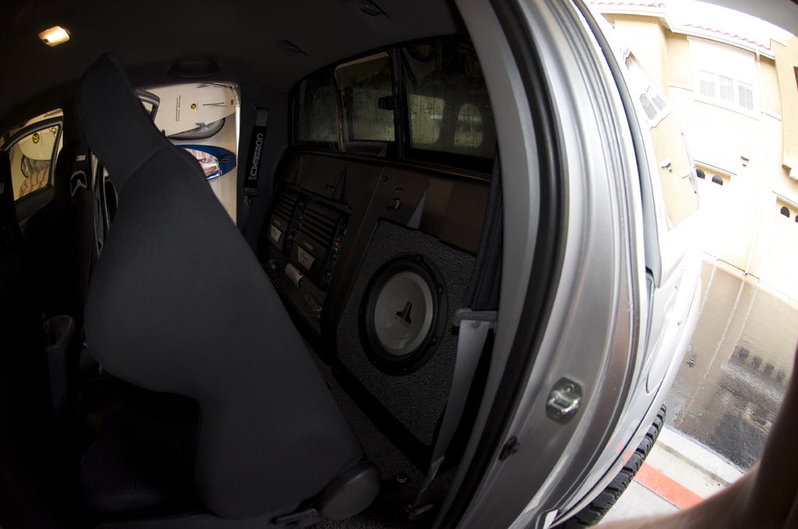

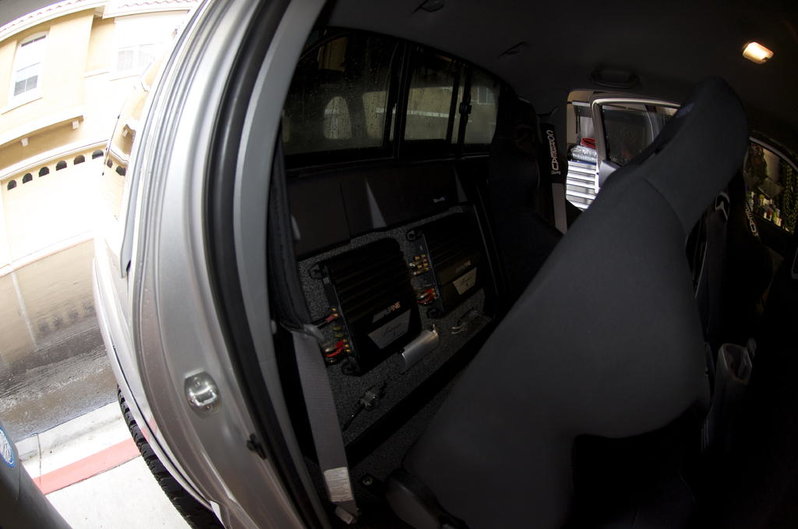

    I did the stereo system back in 2006 so I just recovered it with the new matching carpet. I'm pretty stoked with it so far but thinking of redoing the audio set up to build a rear center console that blends into the amp rack and sub box. I really like the look of i how I got it to all fit behind the OE trim but now that I have the buckets the front view is a little weird ?

    I ordered a few extra yards of the seat cloth and vinyl and had the center console armrest recovered in the same vinyl as the patches on the seats. I also recovered the door panel armrests in the matching material.

    Last but not least threw in some TRD pedals for a quick 5hp gain :)


    Last edited: Mar 1, 2014
    smw62891 likes this.
  10. Mar 1, 2014 at 11:57 AM
    #8130
    Warputer

    Warputer Dirt Road Inspector

    Joined:
    Jul 31, 2011
    Member:
    #60864
    Messages:
    8,386
    Gender:
    Male
    First Name:
    Chris
    Lake Murray, South Carolina
    Vehicle:
    2011 TRD Off Road
    9" of Super Bro lift
    :eek: ^^Mucho Awesomeness!!!!

  11. Mar 1, 2014 at 12:11 PM
    #8131
    BORNWILDGUY

    BORNWILDGUY Well-Known Member

    Joined:
    Apr 30, 2012
    Member:
    #77942
    Messages:
    2,812
    Gender:
    Male
    First Name:
    Rich
    Florida
    Vehicle:
    2020 TACOMA TRD SPORT DCLB LIFTED W KDMAX-PRO XT TUNE
    FULLY LOADED WITH THE TECH PACKAGE, LEATHER, JBL SYSTEM W UPGRADED JBL SPEAKERS IN AL DOORS AND SUB, LED HEADLIGHTS, MOONROOF, EXTANG FULL TILT COVER, NFAB SIDE STEPS, OEM ROOF RACK, TRD PRO TAILS, COLOR MATCHED TRD PRO GRILL WITH WHITE RAPTOR LIGHTS, 15% TINT ALL THE WAY AROUND, TINTED WINDSHIELD 50%, BILSTEIN 6112'S W 650# SPRINGS AND 1/4 SPACER, ICON LEAF SPRINGS W 5125 REAR SHOCKS, WELD LEDGE 6 WHEELS 18 X 9 -12 W 275/65R18 TOYO AT III LOAD C TIRES
    Nice to see something different done:thumbsup::thumbsup:

  12. Mar 1, 2014 at 4:02 PM
    #8132
    AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB
    I want to ditch my stupid DB lift :goingcrazy:

  13. Mar 1, 2014 at 4:20 PM
    #8133
    Lurp

    Lurp Well-Known Member

    Joined:
    Aug 27, 2011
    Member:
    #62454
    Messages:
    338
    Gender:
    Male
    GA
    Vehicle:
    2010 Sport
    Roger That, and went a different route

  14. Mar 1, 2014 at 4:42 PM
    #8134
    AaronArf

    AaronArf Well-Known Member

    Joined:
    Nov 12, 2011
    Member:
    #66926
    Messages:
    4,218
    Gender:
    Male
    First Name:
    Aaron
    VA Beach
    Vehicle:
    2023 LR OR DCSB
    Did you ? or you want to as well

  15. Mar 1, 2014 at 5:16 PM
    #8135
    Lurp

    Lurp Well-Known Member

    Joined:
    Aug 27, 2011
    Member:
    #62454
    Messages:
    338
    Gender:
    Male
    GA
    Vehicle:
    2010 Sport
    Want to as well

  16. Mar 1, 2014 at 9:40 PM
    #8136
    Blacktacoma23

    Blacktacoma23 If your tires don't rub you can fit bigger tires

    Joined:
    Jan 16, 2011
    Member:
    #49366
    Messages:
    5,001
    Gender:
    Male
    Vehicle:
    2011 Mall Crawler
    6" BDS DB, 37", Dirt King, Total chaos UCA's w/ Heims, Fox c/o's, 4-banger fenders, 37" Nittos, 4.88 w/ rear ARB, AP Expos, 17x9 Method beadlocks, cab mount relocation, "Insain fab" tub, 5% tint, 10" Rockford Fosgates, Magnaflow 18" custom catback exhaust, AFE intake, Trail Gear bumper, Crown brake lines F/R
    Looks great!
    :popcorn: for the coilovers



    Guess im the only one still happy with a DB :p
    dont miss that 3" v

    [​IMG]
    [​IMG]
    [​IMG]

  17. Mar 1, 2014 at 9:42 PM
    #8137
    PLC721

    PLC721 Well-Known Member

    Joined:
    Dec 27, 2009
    Member:
    #28268
    Messages:
    18,957
    Gender:
    Male
    First Name:
    Patrick
    Chandler, Az
    Vehicle:
    2017 Toyota Tundra Crewmax ProKiller
    Kings, Toyos, Baja Designs, TC, SDHQ
    Whats up brotha!

  18. Mar 1, 2014 at 9:49 PM
    #8138
    Blacktacoma23

    Blacktacoma23 If your tires don't rub you can fit bigger tires

    Joined:
    Jan 16, 2011
    Member:
    #49366
    Messages:
    5,001
    Gender:
    Male
    Vehicle:
    2011 Mall Crawler
    6" BDS DB, 37", Dirt King, Total chaos UCA's w/ Heims, Fox c/o's, 4-banger fenders, 37" Nittos, 4.88 w/ rear ARB, AP Expos, 17x9 Method beadlocks, cab mount relocation, "Insain fab" tub, 5% tint, 10" Rockford Fosgates, Magnaflow 18" custom catback exhaust, AFE intake, Trail Gear bumper, Crown brake lines F/R
    Whats good! Ive been a ghost
    PM me, lost ur cell

  19. Mar 1, 2014 at 11:38 PM
    #8139
    Manwithoutaplan

    Manwithoutaplan the full Monty

    Joined:
    Jan 30, 2008
    Member:
    #4500
    Messages:
    54,643
    Gender:
    Male
    ID
    Vehicle:
    07 Tacoma Speedway Blue Trd 4x4
    -Nitro 4.56 gears - Arb Front and Rear lockers. -Rear Swing out bumper Curiosity of ( Dept .94) https://www.facebook.com/Dept94 -Tinted, -ProComp 6 inch lift with Icon Coil overs and Bilstein's 7100Resi -315/70/17 - 17x8 in Pro Comp Matte black rims 4.5 bs -East Coast Gear Supply Sliders -ALL Pro EXP LEaf pack -Camburg UCA's -CAB mount CHOP

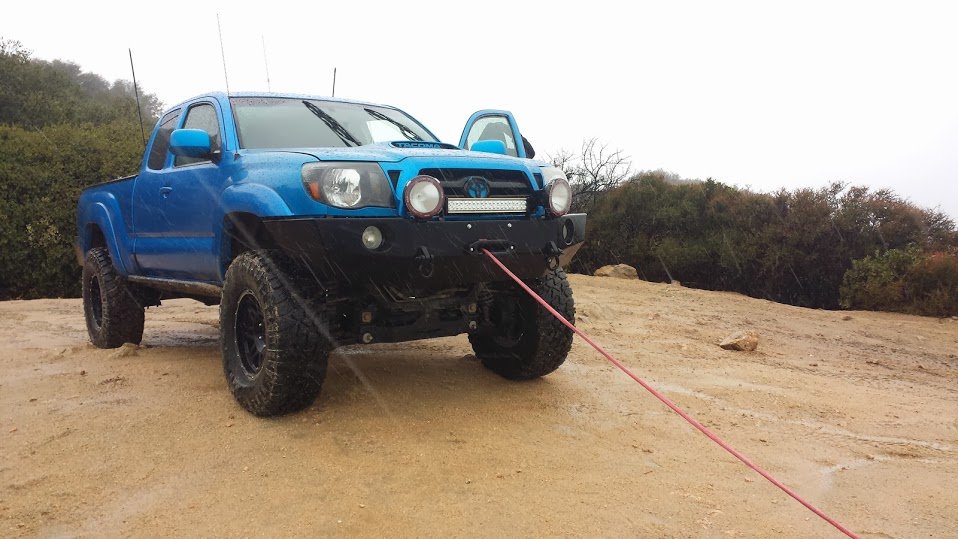

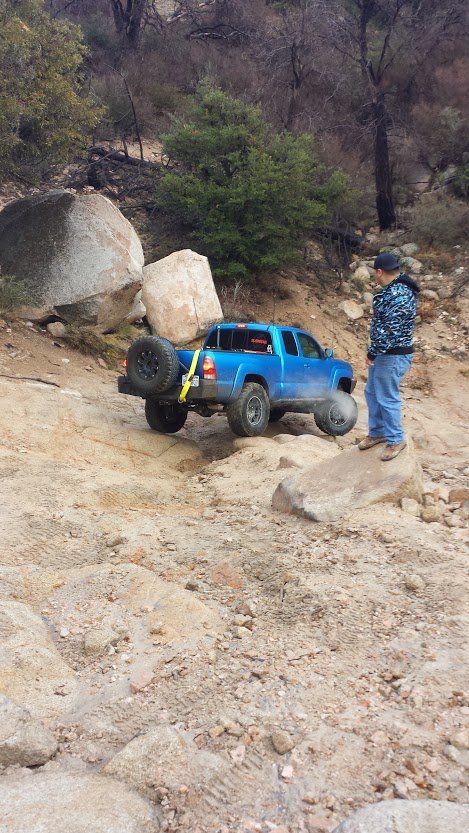

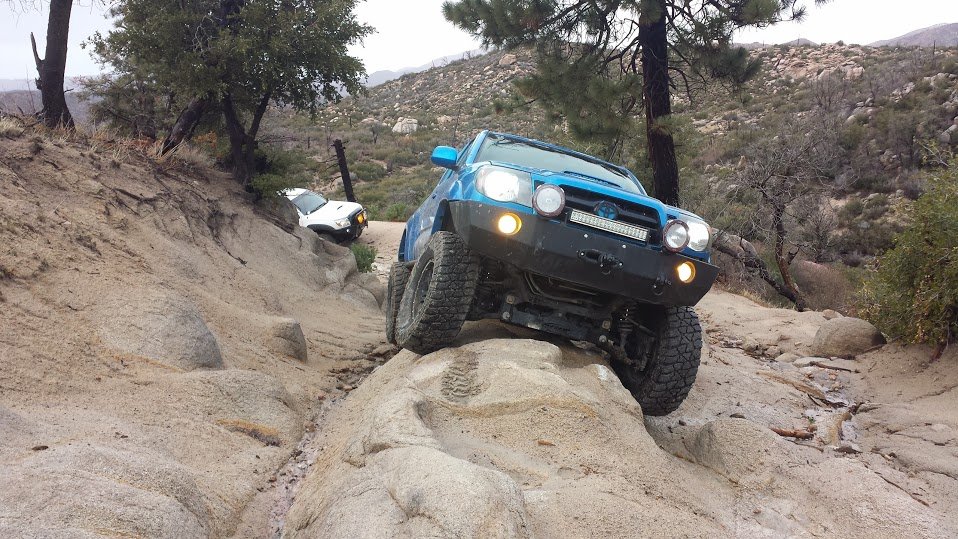

    Doing work today :D





  20. Mar 2, 2014 at 9:53 AM
    #8140
    2ndGenJonny

    2ndGenJonny Well-Known Member Vendor

    Joined:
    Jan 3, 2013
    Member:
    #94306
    Messages:
    18,457
    Gender:
    Male
    First Name:
    Jon
    Gilbert, AZ
    That looks fun, where is that in CA?
