factory fog switch for Hella Black Magic Lights

Discussion in '2nd Gen. Tacomas' started by Krusey1011, Sep 11, 2009.

  1. Sep 11, 2009 at 2:12 AM
    #1
    Krusey1011

    Krusey1011 [OP] Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20239
    Messages:
    209
    Gender:
    Male
    First Name:
    Kyle
    SW Washington
    Vehicle:
    Taco of Terror!!!
    K&N high performance intake, billet grill, bhlm, T-Rex eyelids, debadged/blacked, behind grill Hella Black Magic's, Fog light anytime, DTLT headers, Interior/Exterior LED's
    So I installed my dual Hella Black Magic behind the grill headlights and I ordered the factory fog light switch from the stealership for a factory look. Only thing is, it's a 4 prong switch that requires a plug on the back side that it didn't come with. For my 3 wires. The guy at the stealership told me he could only find it where I purchase the entire harness and wiring with the plug. I could use some other switch but I already paid $70 bucks for this one. (dumb idea!) oh well it's already done. So I looked around and found some similar threads but nothing that helps. IDK maybe I'll just keep the cheap-o-switch I got and waste the $70 bucks. It Don't look bad. I want to move on to bigger and better mods! hahah So if anyone knows, please drop some info. Otherwise F it! Some other time.:pout:

  2. Sep 11, 2009 at 3:21 AM
    #2
    RCBS

    RCBS Mr Thundermaker is about to start barking fire!

    Joined:
    Apr 9, 2008
    Member:
    #5845
    Messages:
    2,484
    Gender:
    Male
    Appalachia
    Vehicle:
    06 Main Runner OR
    found thses numbers on toyota nation:

    Toyota Connector Housing (90980-11090)
    Terminal Wires for Connector (82998-12340 4 required)

    four wires and the plastic connector that plugs into the back of the switch. insert wires into plastic piece, plug into fog light switch.

  3. Sep 11, 2009 at 3:25 AM
    #3
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,257
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    Probably gonna need this info for my ebay fogs to factory switch hookup. Good info! Rep for u.........

  4. Sep 11, 2009 at 3:26 AM
    #4
    Krusey1011

    Krusey1011 [OP] Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20239
    Messages:
    209
    Gender:
    Male
    First Name:
    Kyle
    SW Washington
    Vehicle:
    Taco of Terror!!!
    K&N high performance intake, billet grill, bhlm, T-Rex eyelids, debadged/blacked, behind grill Hella Black Magic's, Fog light anytime, DTLT headers, Interior/Exterior LED's
    Yeah I seen that here on TW and I think it's the same thing the dealer had but I never gave it a chance. I'll check it out n see if it will do the trick. Thanks for the effort! NE and every bit helps

  5. Sep 11, 2009 at 3:36 AM
    #5
    rossk35

    rossk35 Do Work Son!

    Joined:
    Mar 26, 2009
    Member:
    #15197
    Messages:
    912
    Gender:
    Male
    hawaii
    Vehicle:
    07 TRD Sport Supercharged
    TRD S/C/TRD Intake/TRD Boost Gauge/DT Headers/OEM TL/ZKW retro/Pioneer DVD w/Ipod/Magnaflow/20% Tint/BHLM/JL 10" sub, JL VR components, JL 450/4 amp/Helwig Sway bar/Viper 791/ 18" limited 4runner rims
    Toyota Connector Housing (90980-11090)
    Termainal Wires for Connector (82998-12340 4 required)

  6. Sep 11, 2009 at 3:40 AM
    #6
    T@co_Pr3runn3r

    T@co_Pr3runn3r XXXXXXXXXXXXXXXXXXX

    Joined:
    Jan 20, 2009
    Member:
    #12767
    Messages:
    10,257
    Gender:
    Male
    <----------------->
    Vehicle:
    08 RC Prerunner SR5
    OK, rep for u too...because you live in HI

  7. Sep 11, 2009 at 7:34 AM
    #7
    fritzthecat

    fritzthecat Well-Known Member

    Joined:
    Jun 10, 2008
    Member:
    #7217
    Messages:
    111
    Gender:
    Male
    Virginia Beach
    Vehicle:
    07 PreRunner Auto AccCab Indigo
    Just to tick you off, the OEM light switch is U$25 on Ebay.

    There are 4 terminals on the switch. Two are for the backlight, the other two are for the actual switching. A multimeter will let you figure out which terminals do what.
    In my install I didn't bother with a factory connector. I soldered two wires with plugs on the two on/off metal traces of the switch. Didn't bother with backlight.

    Fritz

  8. Sep 11, 2009 at 10:57 AM
    #8
    RCBS

    RCBS Mr Thundermaker is about to start barking fire!

    Joined:
    Apr 9, 2008
    Member:
    #5845
    Messages:
    2,484
    Gender:
    Male
    Appalachia
    Vehicle:
    06 Main Runner OR
    thanks! glad to help when i can.

  9. Sep 11, 2009 at 11:27 AM
    #9
    Snyperx

    Snyperx Seniore Marcos

    Joined:
    Dec 23, 2008
    Member:
    #11838
    Messages:
    677
    Gender:
    Male
    It's funny this thread came up. I don't have a link at the moment, but I think a bunch of guys over on the FJC forums had this discussion. I think someone ended up finding a switch just like the factory one, but with only 3 standard prongs. I think they ordered from Allied electronics or Digikey. Something like that. In any case it was way cheaper than buying a factory button and special harness.

  10. Sep 11, 2009 at 2:17 PM
    #10
    Krusey1011

    Krusey1011 [OP] Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20239
    Messages:
    209
    Gender:
    Male
    First Name:
    Kyle
    SW Washington
    Vehicle:
    Taco of Terror!!!
    K&N high performance intake, billet grill, bhlm, T-Rex eyelids, debadged/blacked, behind grill Hella Black Magic's, Fog light anytime, DTLT headers, Interior/Exterior LED's
    Yeah, I seen this. Live n learn. I'm sure I could have found a better switch tho too.

  11. Sep 12, 2009 at 1:11 PM
    #11
    Krusey1011

    Krusey1011 [OP] Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20239
    Messages:
    209
    Gender:
    Male
    First Name:
    Kyle
    SW Washington
    Vehicle:
    Taco of Terror!!!
    K&N high performance intake, billet grill, bhlm, T-Rex eyelids, debadged/blacked, behind grill Hella Black Magic's, Fog light anytime, DTLT headers, Interior/Exterior LED's
    Took that part # to the stealership and it turned out to be a single terminal wire. That's it! So, I'm just going to solder the wires onto the switch. :D

  12. Sep 12, 2009 at 2:08 PM
    #12
    Snyperx

    Snyperx Seniore Marcos

    Joined:
    Dec 23, 2008
    Member:
    #11838
    Messages:
    677
    Gender:
    Male

    Huh? I just and I mean just got back from the dealership picking up the switches using the part number provided in this thread and the two switches I got are both three terminal switches. Not sure what your dealership ordered you or did you order the push button?

  13. Sep 12, 2009 at 2:30 PM
    #13
    Krusey1011

    Krusey1011 [OP] Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20239
    Messages:
    209
    Gender:
    Male
    First Name:
    Kyle
    SW Washington
    Vehicle:
    Taco of Terror!!!
    K&N high performance intake, billet grill, bhlm, T-Rex eyelids, debadged/blacked, behind grill Hella Black Magic's, Fog light anytime, DTLT headers, Interior/Exterior LED's
    Yeah, I got the push button. Same as the fog light push button switch. IDK Why the came up with just a terminal wire. I used the second part # and that's what it came up with. Oh well, soldering should work

  14. Sep 24, 2009 at 6:15 AM
    #14
    Fishpig

    Fishpig Well-Known Member

    Joined:
    Sep 15, 2007
    Member:
    #2706
    Messages:
    72
    New Jersey
    Vehicle:
    07 Access Cab TRD Sport
    Does anyone have the wiring info on the 4 wires to the OEM switch?

  15. Sep 24, 2009 at 7:11 AM
    #15
    PSUnick

    PSUnick Lets Go State!

    Joined:
    May 23, 2009
    Member:
    #17556
    Messages:
    151
    Gender:
    Male
    MA
    Vehicle:
    2007 AC 4x4 Sport
    DRL w/ OEM Switch, Weathertech Digitalfit Floormats, Pioneer Z110BT w/ 09 Style Backup Camera and OEM Steering Wheel Phone Controls, JL C2-690tx, Infinity 6002i, Alpine MRP-F240, Illuminated LED 4x4 Switch, Westin Platinum Nerf Bars, AGRI Lorado Tonneau Cover, Extra Bed D-Rings, Toyota Bed Mat, TRD Exhaust, 09 OEM LED Tail Lights

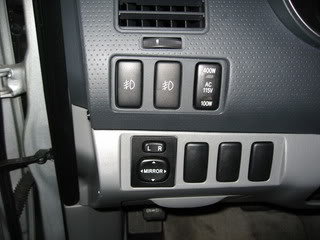

    Guys I put the OEM fog light switch in the position to the right of the factory fog light switch (Traction Control Switch location I believe) for a DTRL kill switch. When I popped out the blank cover there already was a plug there, and it was wired. All four wires were installed in the plug. This pic is of that prewired connector after I pulled the two of wires for the LED out.

    [​IMG]

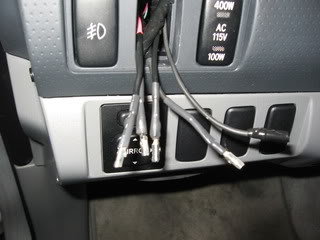

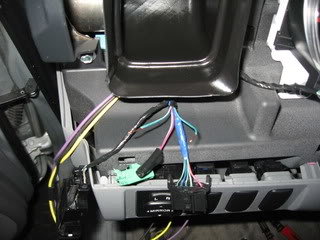

    If your vehicle did not come with a fog lights from factory, you may have the connector already wired behind your blank cover. I don't know for sure because mine had fog lights from the factory. So I reused the two for the LED on my new switch, because they are already were wired to come on with my lights.

    [​IMG]

    [​IMG]

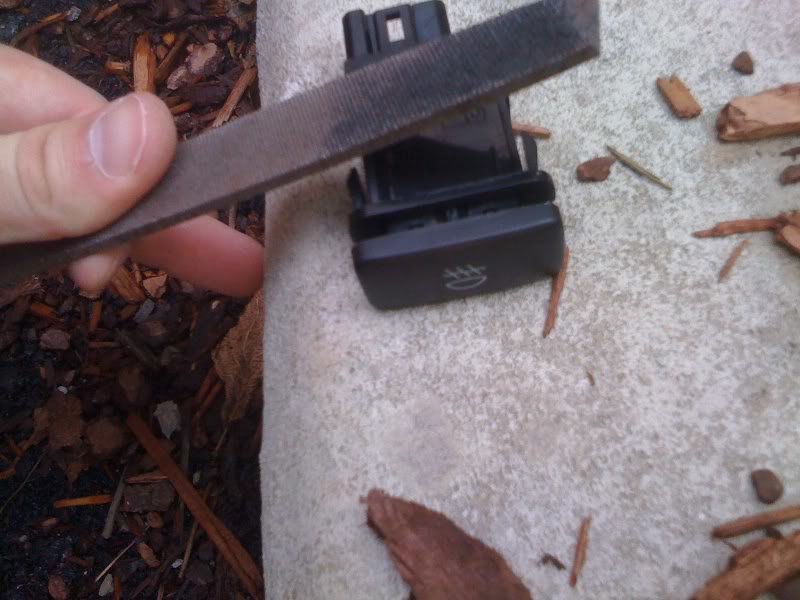

    Note that the all of the switches are keyed to go into a certain place on the dash, so I had to modify my new fog light DTRL switch to fit in the open location.

    [​IMG]

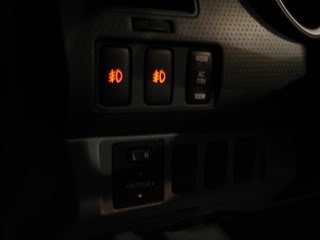

    Here is a pic of the new DTRL kill switch. I need to find a way to label them 'FOG' and 'DTRL' Any Ideas?

    [​IMG]

  16. Sep 24, 2009 at 7:12 AM
    #16
    PSUnick

    PSUnick Lets Go State!

    Joined:
    May 23, 2009
    Member:
    #17556
    Messages:
    151
    Gender:
    Male
    MA
    Vehicle:
    2007 AC 4x4 Sport
    DRL w/ OEM Switch, Weathertech Digitalfit Floormats, Pioneer Z110BT w/ 09 Style Backup Camera and OEM Steering Wheel Phone Controls, JL C2-690tx, Infinity 6002i, Alpine MRP-F240, Illuminated LED 4x4 Switch, Westin Platinum Nerf Bars, AGRI Lorado Tonneau Cover, Extra Bed D-Rings, Toyota Bed Mat, TRD Exhaust, 09 OEM LED Tail Lights
  17. Sep 24, 2009 at 7:38 AM
    #17
    yotarob2005

    yotarob2005 Kiss My IFS

    Joined:
    Aug 10, 2009
    Member:
    #20984
    Messages:
    2,375
    Gender:
    Male
    First Name:
    Rob
    Bryan, Tx
    Vehicle:
    05 D-cab trd sport long bed
    Front Bilstien 5100's Set @ 1.75", rear 5100's & TSB springs, Flowmaster, TRD seat covers, Toyota All weather floor mats, 265/70-17 Michelin LTX AT2's, some Debadgeding, BHLM, led bed lights, 886 back up lights, fog lights anytime mod, Extra d-rings, Toyota bed mat, sockmoney TRD decals, Tacoma world.com sticker, Kenwood 890DNX, Firestone ride-rite air bags, 2 car seats.
    I got switch part number 00550-35976 from the dealership for $9. It is not the same as the fog light switch but still is a direct fit & uses 3 wires. It is a rocker style, not push button. It looks good imo, like it belongs there.

  18. Sep 24, 2009 at 11:18 AM
    #18
    RCBS

    RCBS Mr Thundermaker is about to start barking fire!

    Joined:
    Apr 9, 2008
    Member:
    #5845
    Messages:
    2,484
    Gender:
    Male
    Appalachia
    Vehicle:
    06 Main Runner OR
    pic?

  19. Sep 27, 2009 at 12:36 AM
    #19
    Krusey1011

    Krusey1011 [OP] Well-Known Member

    Joined:
    Jul 27, 2009
    Member:
    #20239
    Messages:
    209
    Gender:
    Male
    First Name:
    Kyle
    SW Washington
    Vehicle:
    Taco of Terror!!!
    K&N high performance intake, billet grill, bhlm, T-Rex eyelids, debadged/blacked, behind grill Hella Black Magic's, Fog light anytime, DTLT headers, Interior/Exterior LED's

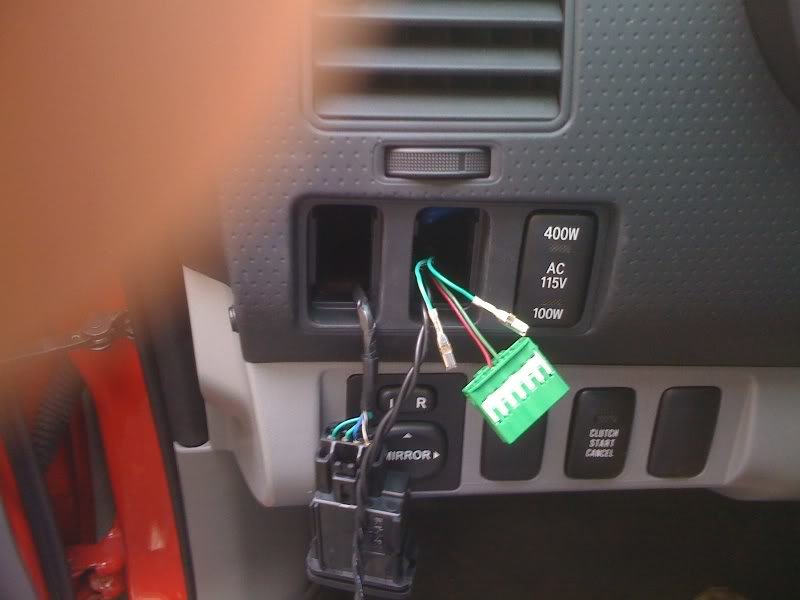

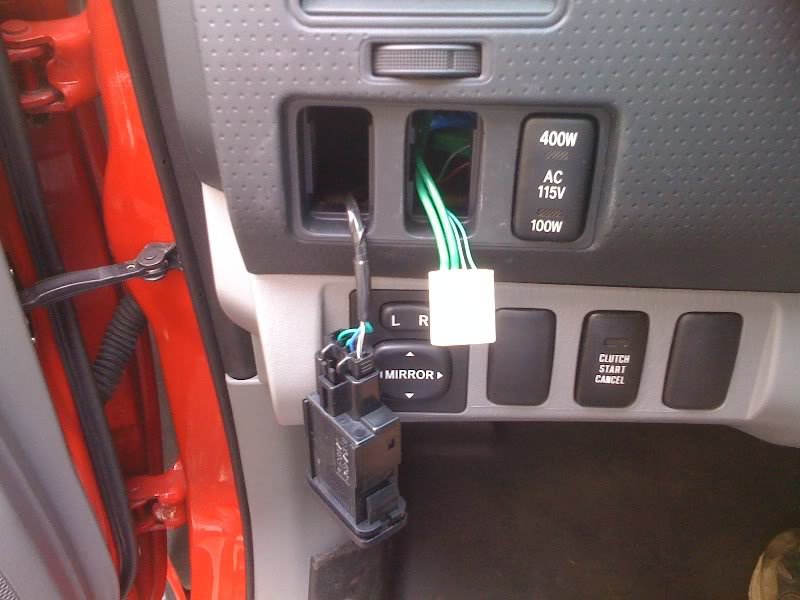

    Damn! I wish I would have paid closer attention to your post PSUnick. I only paid attention to how to make the switch fit into the slot by removing the notch. I didn't know I could remove the wires with the metal tabs. I cut the wires and pulled them out then re soldered them on. alot of extra work I didn't need to do. Whatever, it's done and working now. Heres what it looked like.
    [​IMG][​IMG][​IMG][​IMG] Alot more work as you can see. Hahah Live n learn! I'm just glad it works:D Great post though man!

  20. Sep 27, 2009 at 3:03 AM
    #20
    ETAV8R

    ETAV8R 4th MAW

    Joined:
    Feb 20, 2008
    Member:
    #4832
    Messages:
    1,273
    Gender:
    Male
    Republik of Kalifornia
    Vehicle:
    MGM 09 AC 4WD V6 TRD-OR w/ 2013 FWC Finch
    Grillcraft, Demello Sliders, OME Front and Rear suspension
    Krusey,
    any pics of the blackmagics behind the grill? This is exactly what I would like to do. I don't have the technical know how.
